Blue vs. Green fiber connectors: Do you know the difference? Mating them together is a guaranteed way to bring down your network.

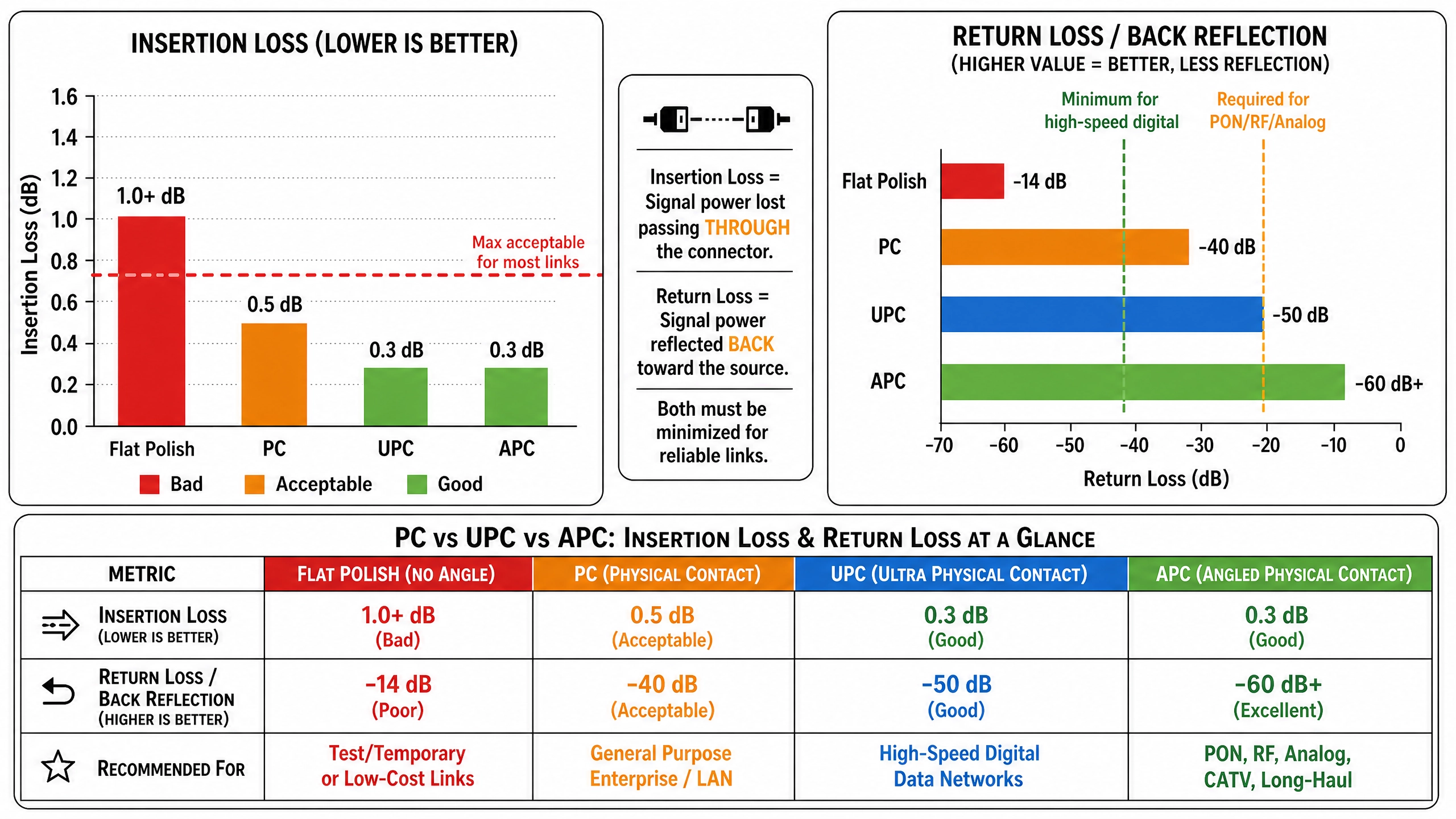

When it comes to fiber optics, the shape of the connector’s end-face — the polish type — is just as important as the fiber itself. The polish determines how the two glass cores meet, which directly impacts Insertion Loss (light lost passing through) and Return Loss (light reflected back to the source).
Here is the ultimate breakdown of the three main polish types:
PC (Physical Contact) & UPC (Ultra Physical Contact)
- Geometry: The end-face is polished into a slight, convex dome. This allows the two fiber cores to meet at the very apex, squeezing out the air gap that used to plague legacy flat connectors. UPC is simply a much finer, smoother polish than standard PC.
- Performance: UPC delivers excellent Insertion Loss (≤ 0.3 dB) and solid Return Loss (-50 dB).
- Color Code: Usually Blue (Single-mode) or Beige/Black (Multimode).

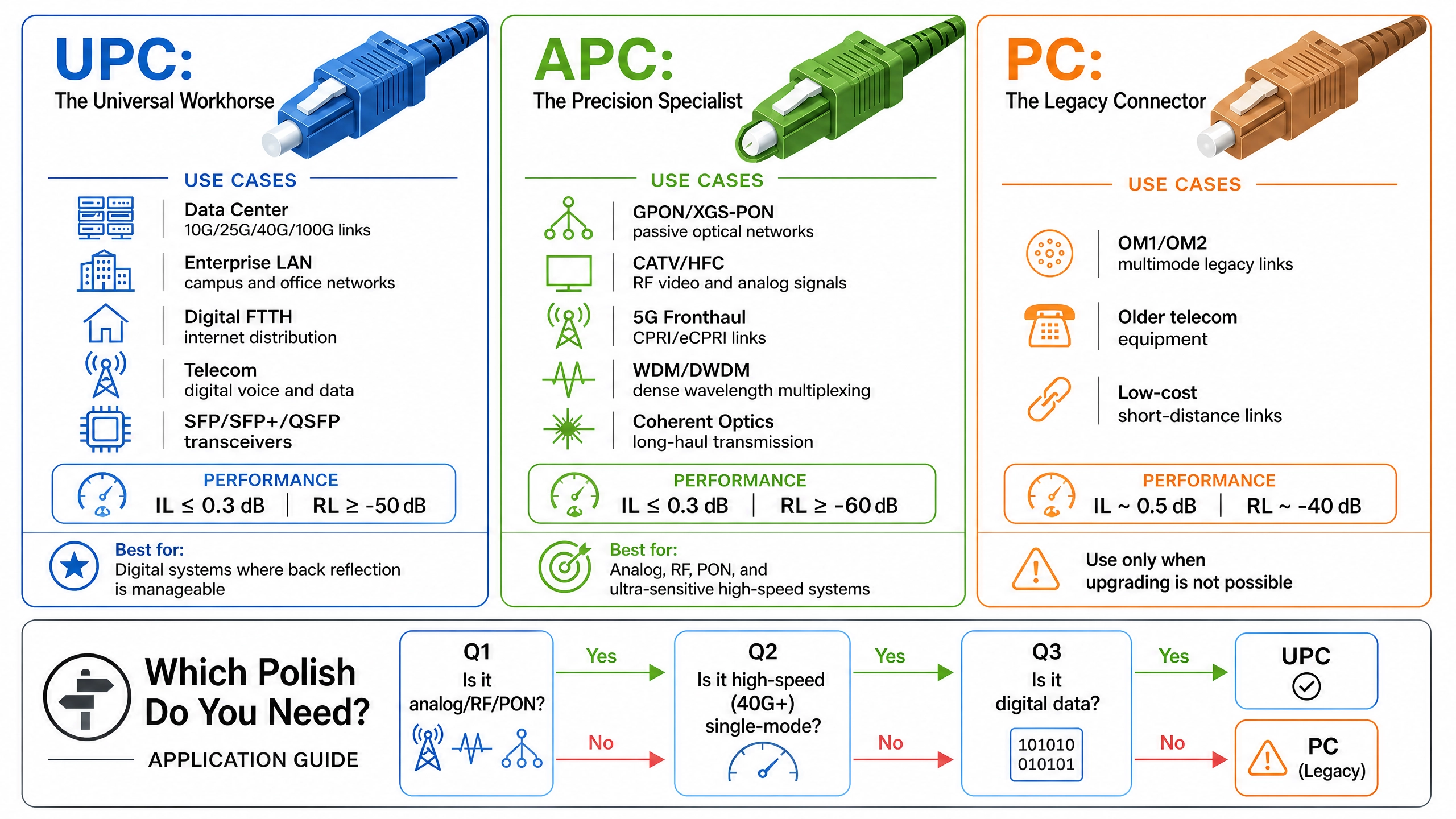

- Use Case: The universal workhorse. Perfect for standard digital data networks, enterprise LANs, and data center Ethernet (10G/40G/100G).
APC (Angled Physical Contact)
- Geometry: This is where the magic happens. The end-face is polished at a precise 8-degree angle.
- Performance: Why the angle? Any light that reflects off the connection point doesn’t bounce straight back down the core (which causes noise and laser degradation). Instead, the 8-degree angle deflects the reflected light safely out into the cladding. This results in an incredibly high Return Loss of -60 dB or better.
- Color Code: Always Green.
- Use Case: The precision specialist. Mandatory for analog RF video (CATV), Passive Optical Networks (GPON/FTTH), and ultra-high-speed or long-haul coherent optical systems.

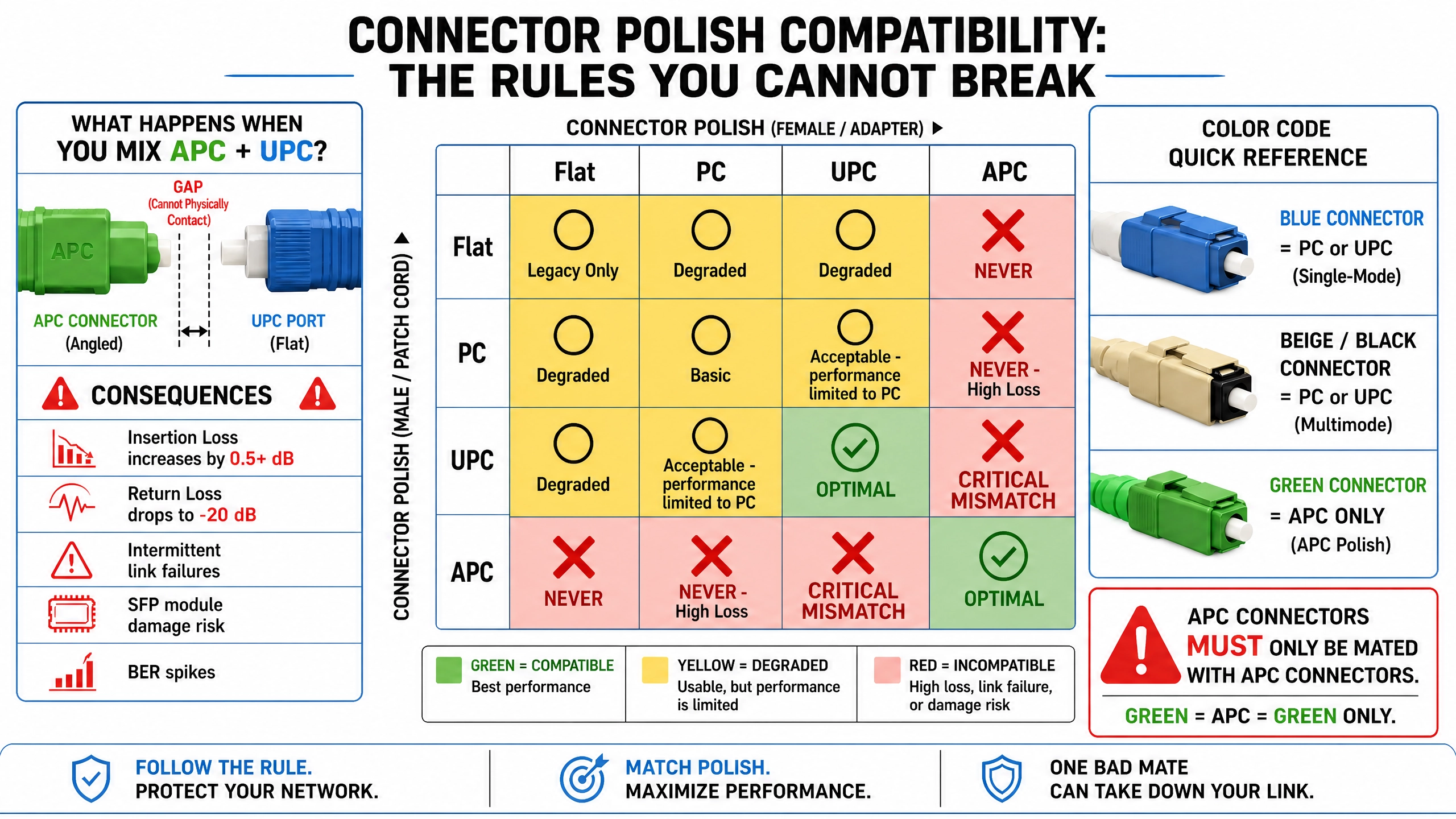

THE GOLDEN RULE OF COMPATIBILITY
NEVER mate a Blue (UPC) connector with a Green (APC) connector.
Because the APC is angled and the UPC is flat/domed, their cores will not align. The result is a physical gap. If you force them together:
- You will suffer massive Insertion Loss (often > 0.5 dB penalty).
- Your Return Loss will plummet to unacceptable levels (-20 dB).
- You risk permanently crushing and destroying the delicate glass ferrule of both connectors.
Always match your polish: Blue to Blue. Green to Green.
