Description

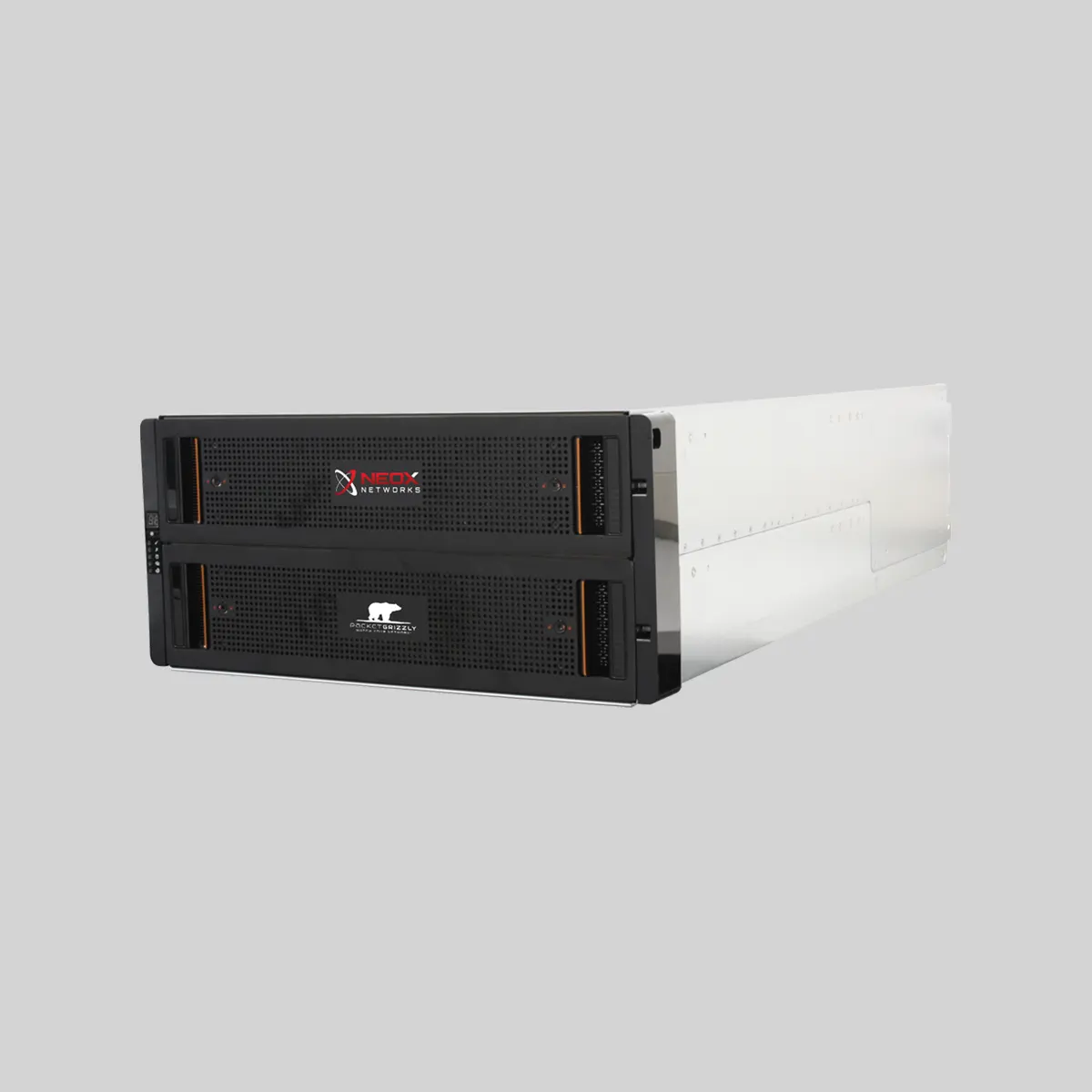

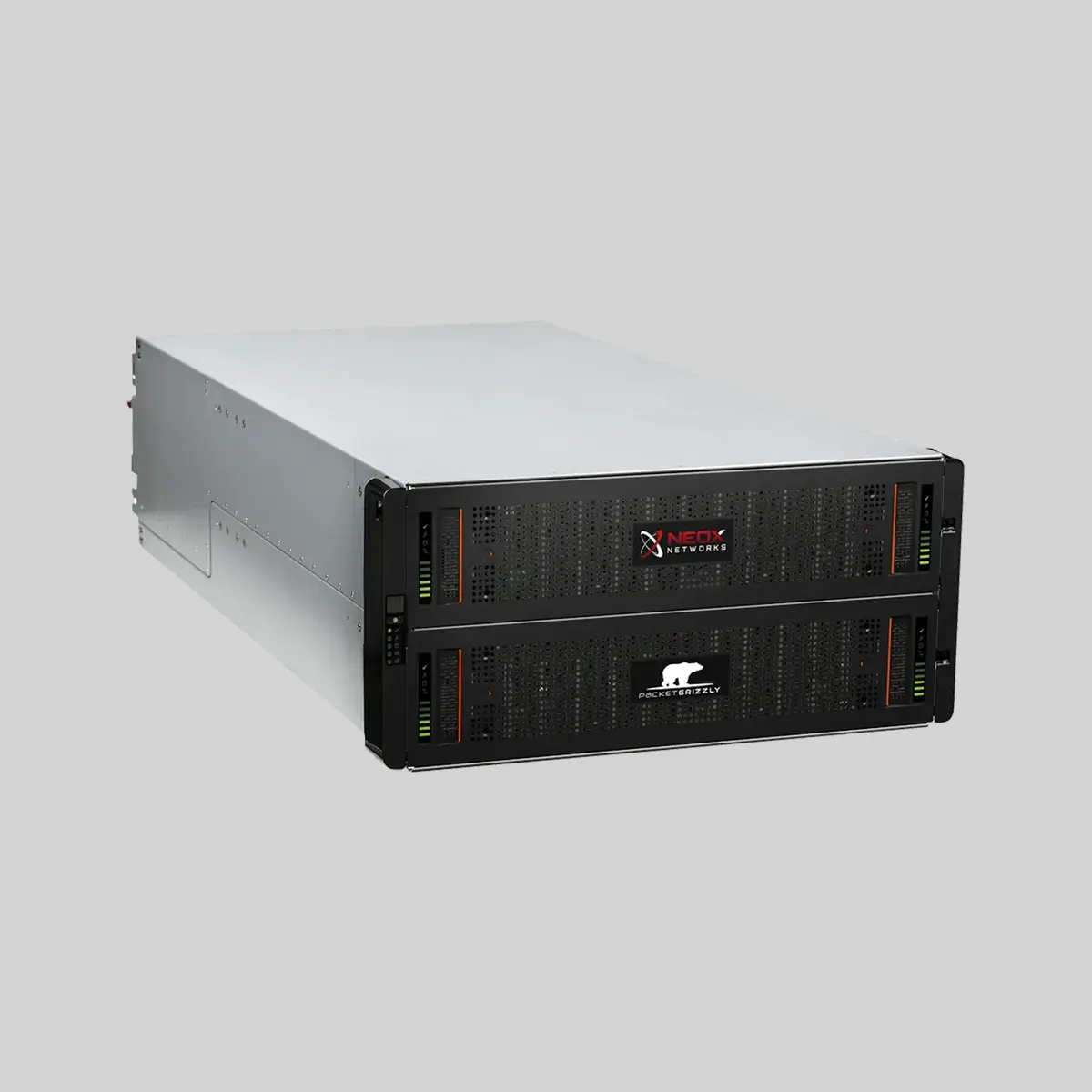

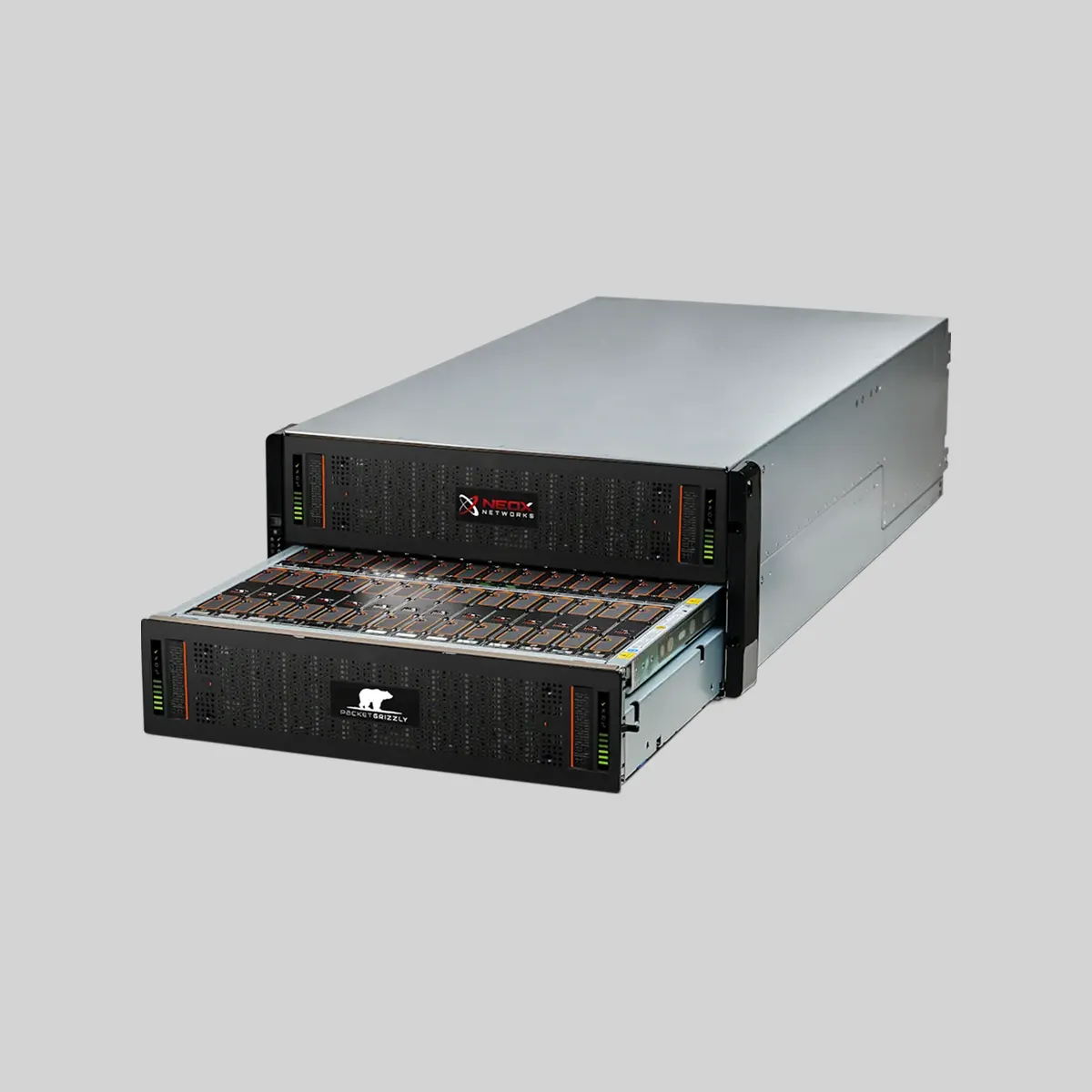

- High-performance storage appliance for the PacketGrizzly capture appliance to record the capture data
- High-speed SAS HDD (gross storage 1,008 TB)
Tech Specs
-
- Storage Capacity: 504 TB – 8,064 TB
- Storage Units: Up to 4 per Capture Appliance
- Hardware RAID: 0, 1, 5, 6, 10, 50, or ADAPT
- SAN: eSAS, iSCSI and Fibre Channel
- Self Healing Drives: Yes
- Redundant Power Supply: 2x 2200W, typical power draw 1200W, Platinum
- Housing: 19“ Rackmount, 5RU
-
- Dimensions (WxHxD): 48.3 cm x 22.2 cm x 98.1 cm / 19.0″ x 8.7″ x 38.6″
- Weight: min. 82 kg (without drives) / max. 135 kg (fully equipped)
- Operating Temperature: 5°C to 35°C / 41°F to 95°F
- Storage Temperature: -40°C to 70°C / -40°F to 158°F
- Relative Operating Humidity: 10% to 80% (non-condensing)
- Relative Storage Humidity: > 5% to 100% (non-condensing)
- Certifications:
Standard Marks/Approvals: United States, Canada, European Union (EU), Australia/New Zealand, Japan, China (PRC), Russia, Mexico, Germany, South Korea, Taiwan, India
Safety Certifications: UL 62368-1 | CAN/CSA-C22.2 No.62368-1- 19 | CE to EN 62368-1 | CB IEC 62368-1 | Power Supplies CCC & BIS
Emissions (EMC): FCC CFR 47 Part 15 Subpart B Class A | ICES/NMB-003 Class A | EN 55032:2015 Class A |AS/NZS CISPR 22/CISPR 32 Class A | VCCI Class A | KN 32/KN 35 Class A | CNS 15936 Class A
Harmonics & Flicker: EN 61000-3-2 | EN 61000-3-3
Immunity: EN 55032 | KN 32/KN 35
Environmental Standards: The RoHS Directive (2011/65/EU) | The WEEE Directive (2012/19/EU) | The REACH Directive (EC) No. 1907/2006 and WFD Directive (EU) 2018/815
