Full Network Visibility up to 400G
Industry's Highest Performance Portable Network TAP
FPGA Chipset I Data Diode Function I Redundant Power





















GRASSROOT LEVEL NETWORK MONITORING
Real-Time Network Wire-Data and Network Intelligence Access

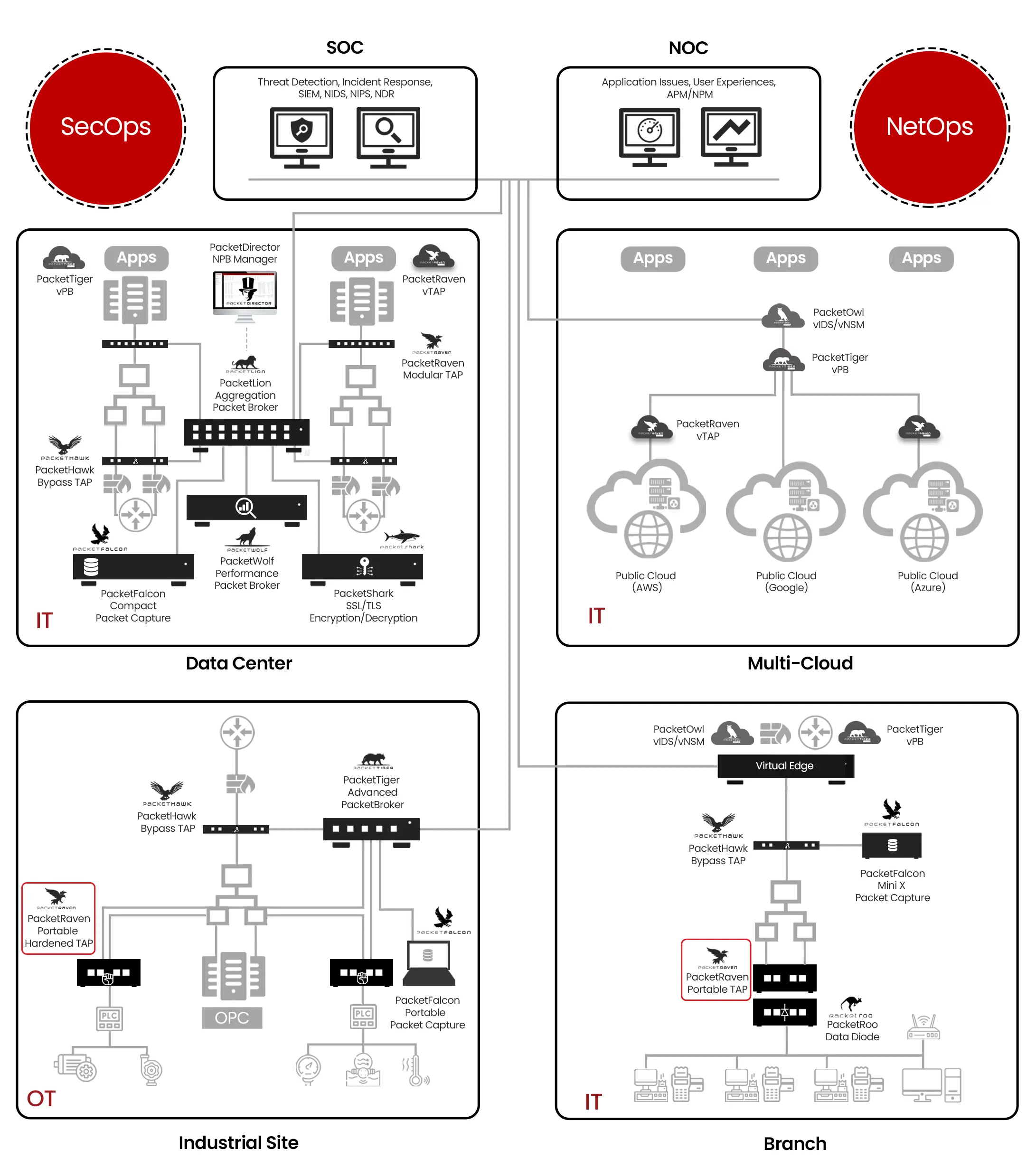

NEOX FIELD-PROVEN SOLUTION

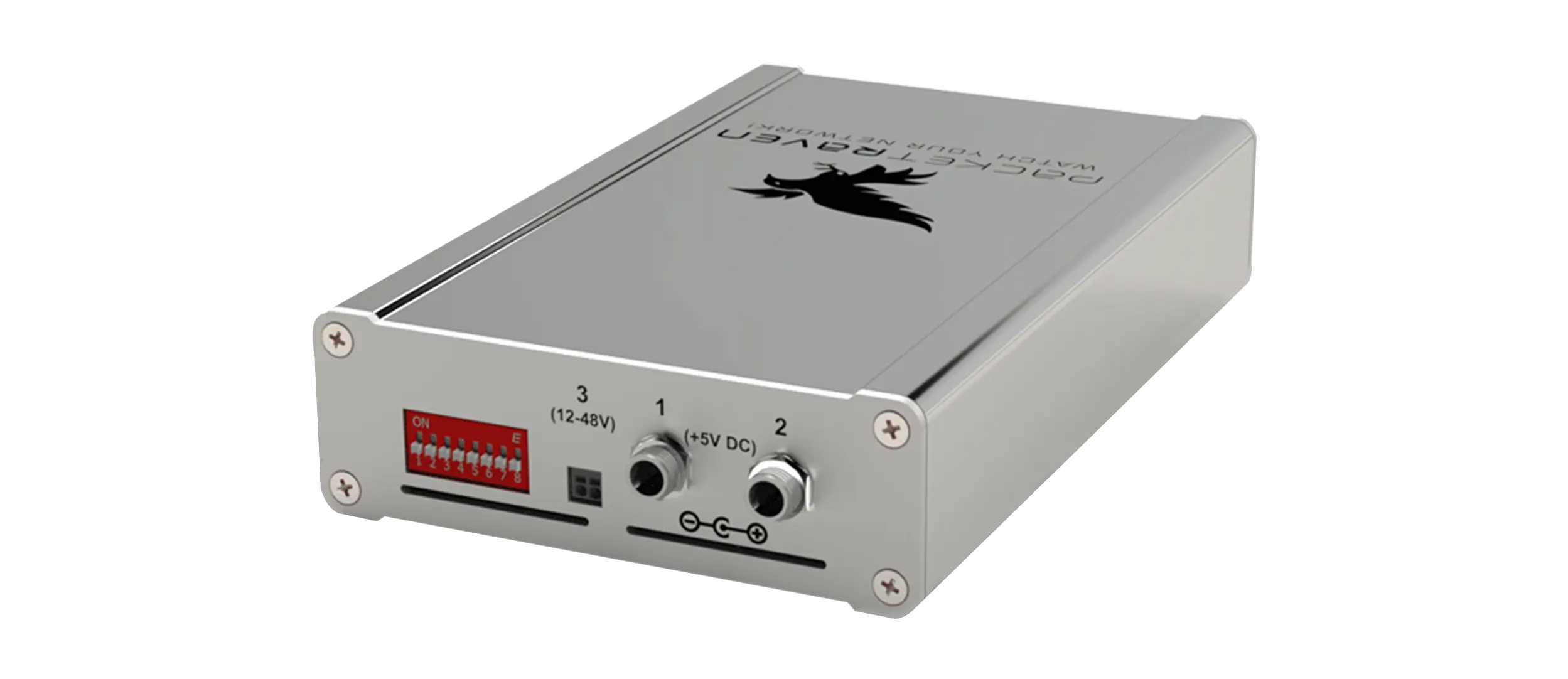

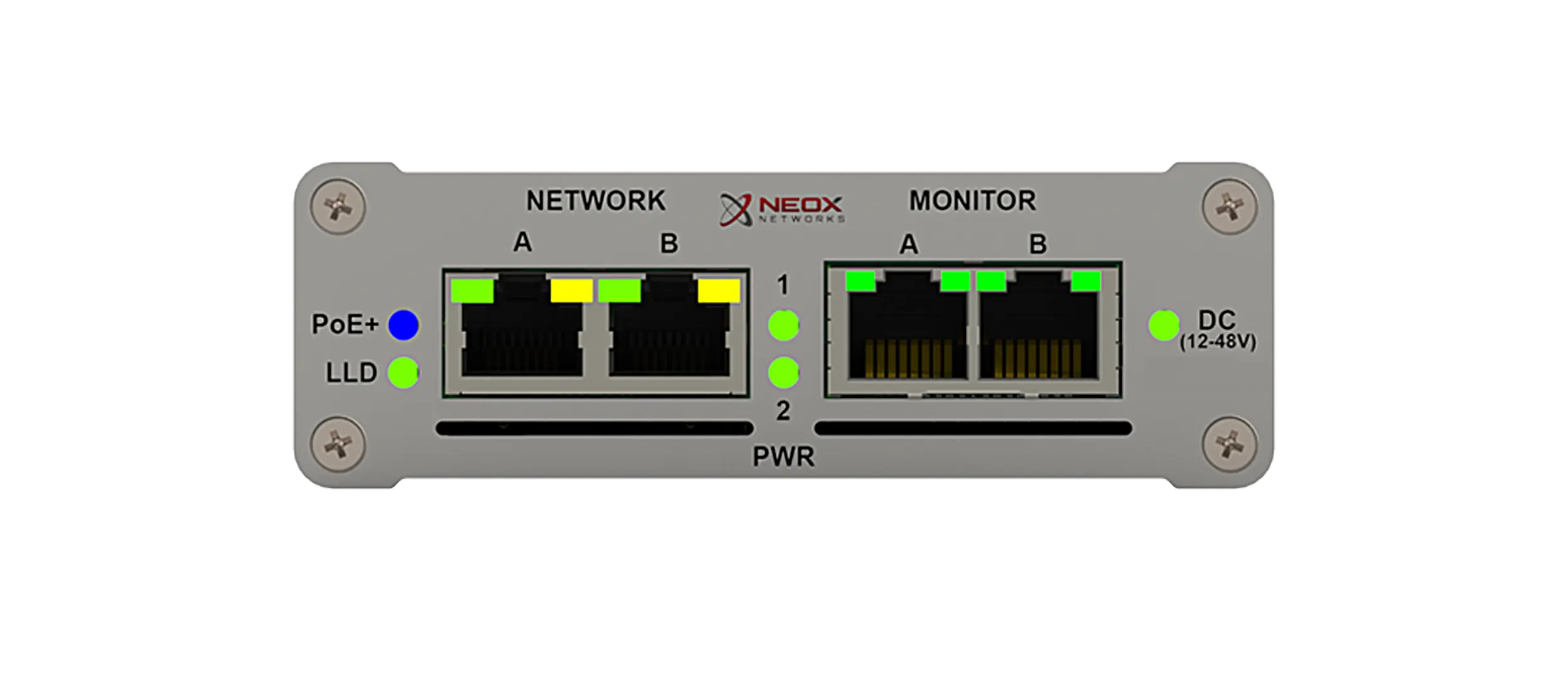

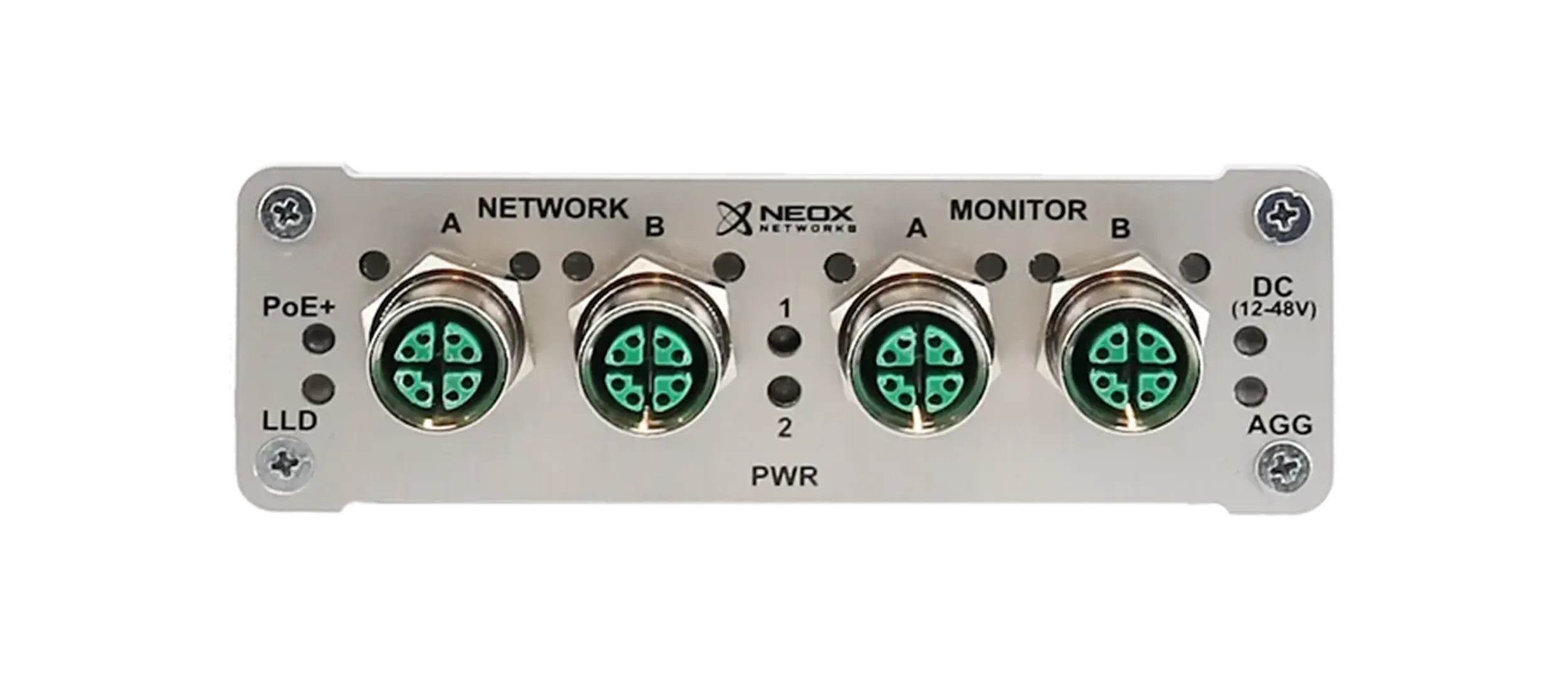

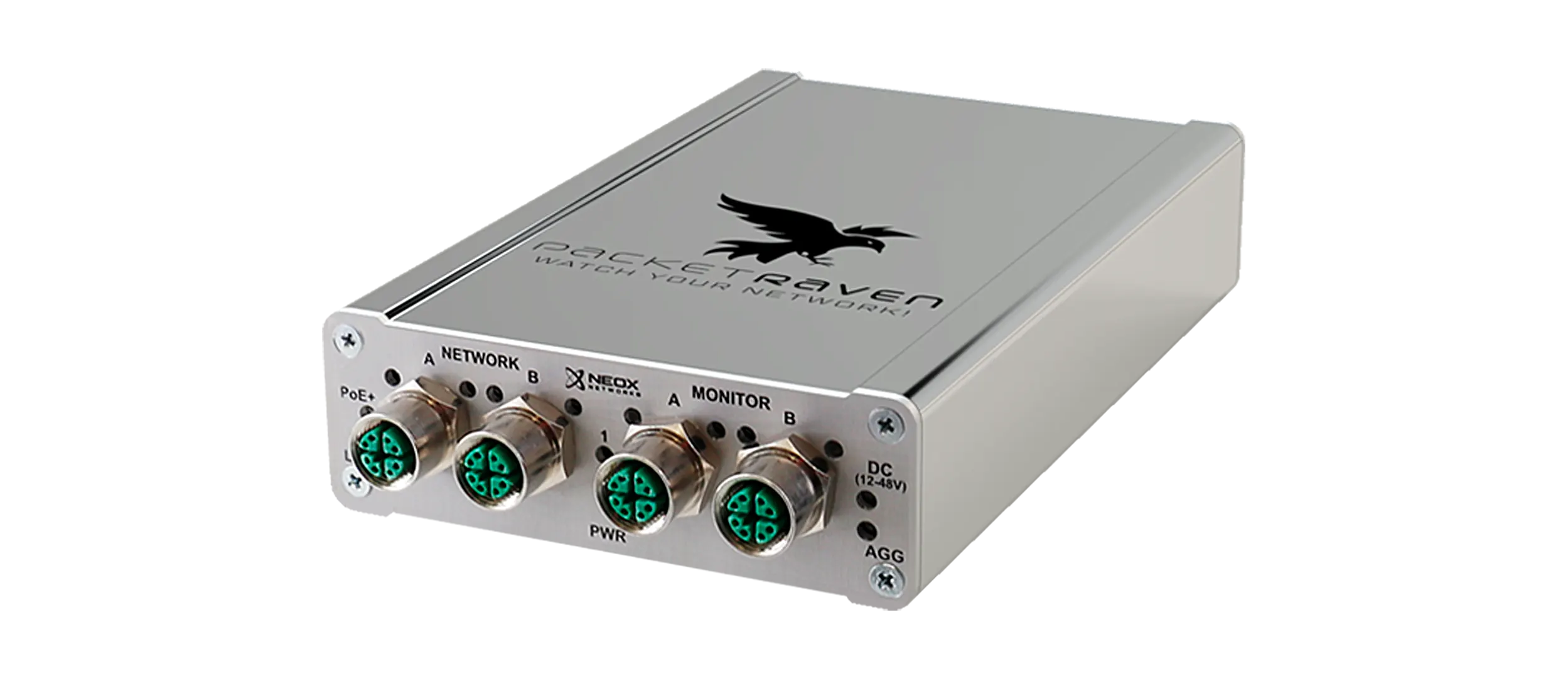

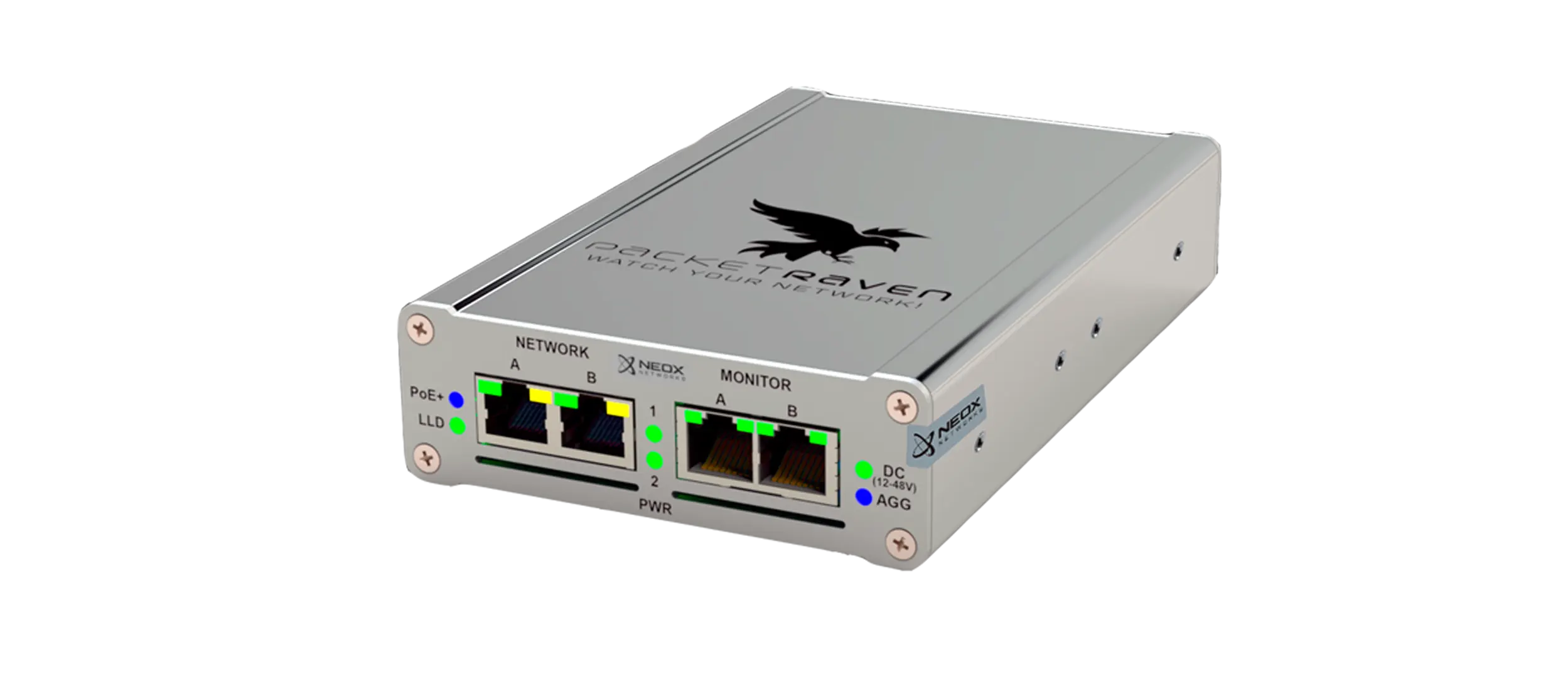

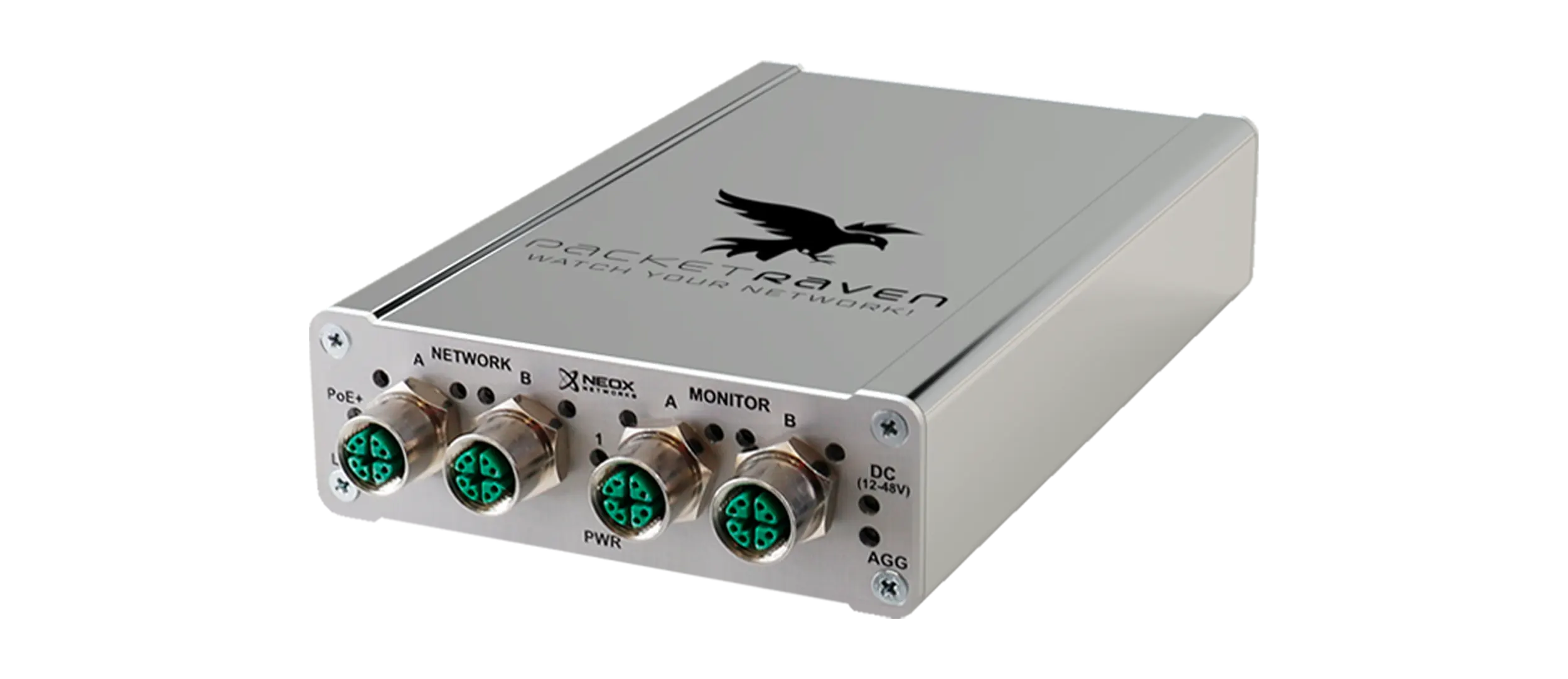

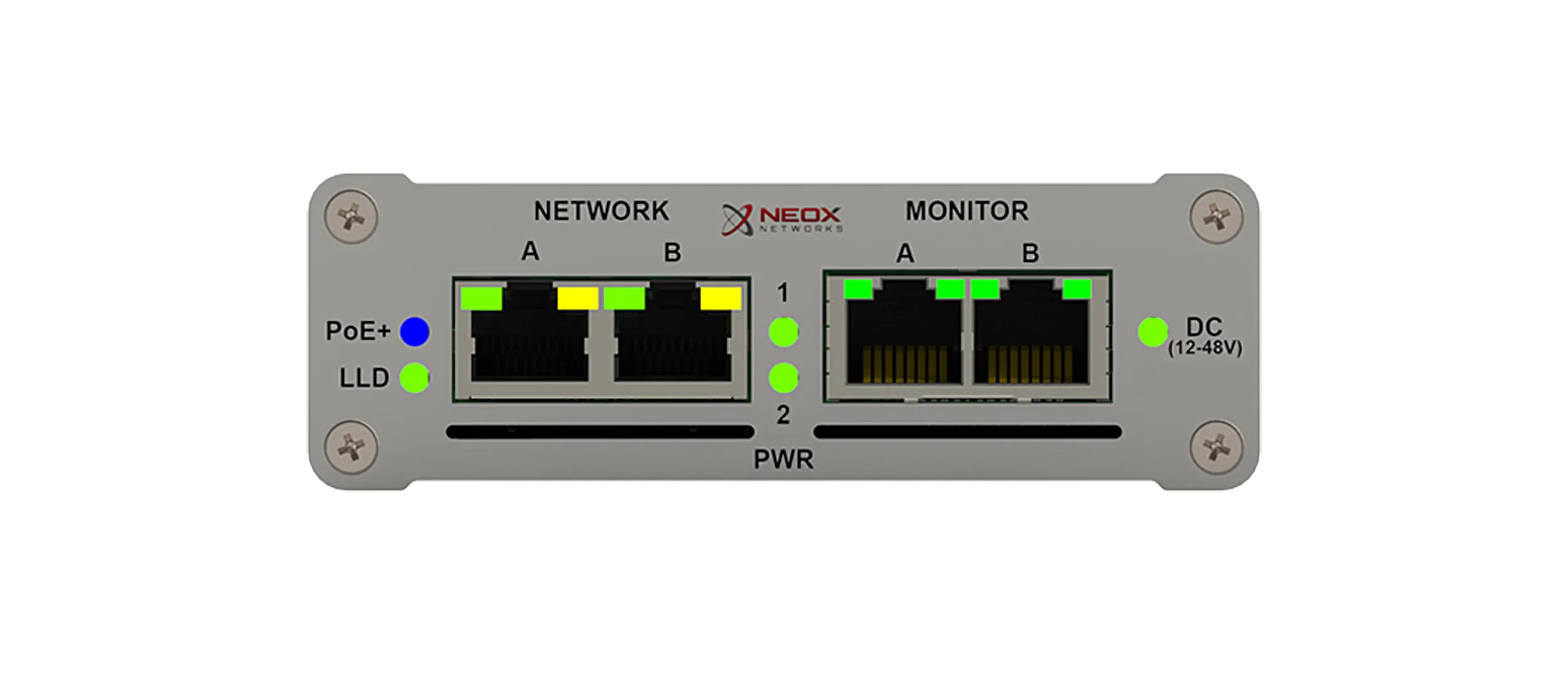

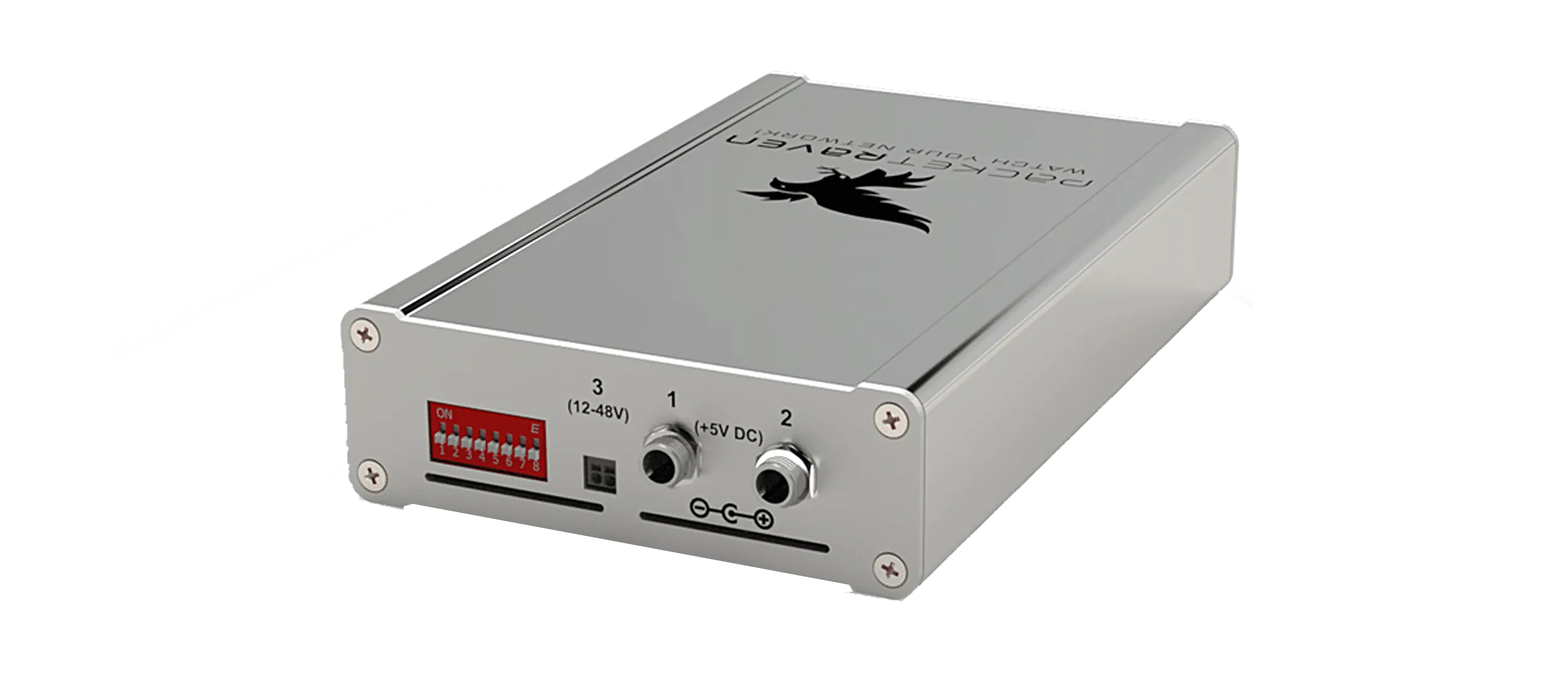

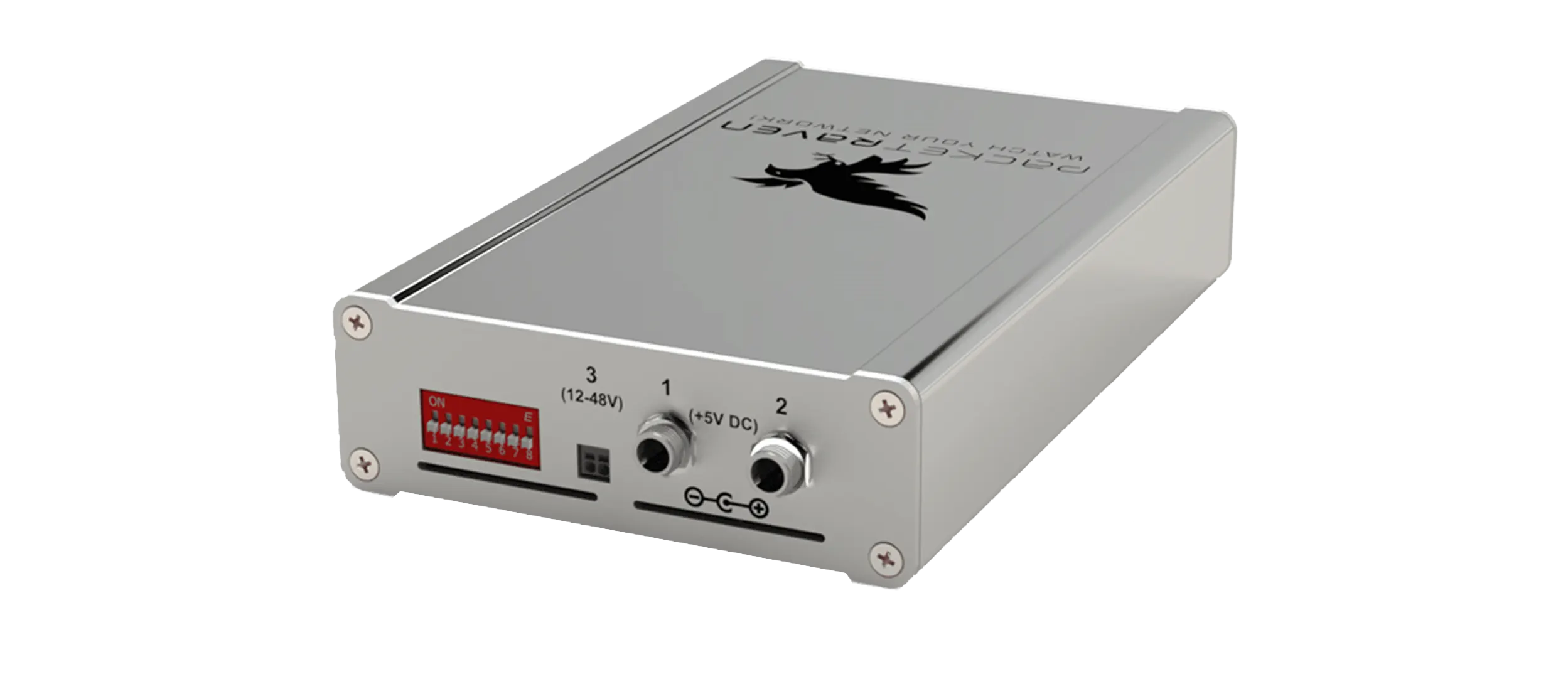

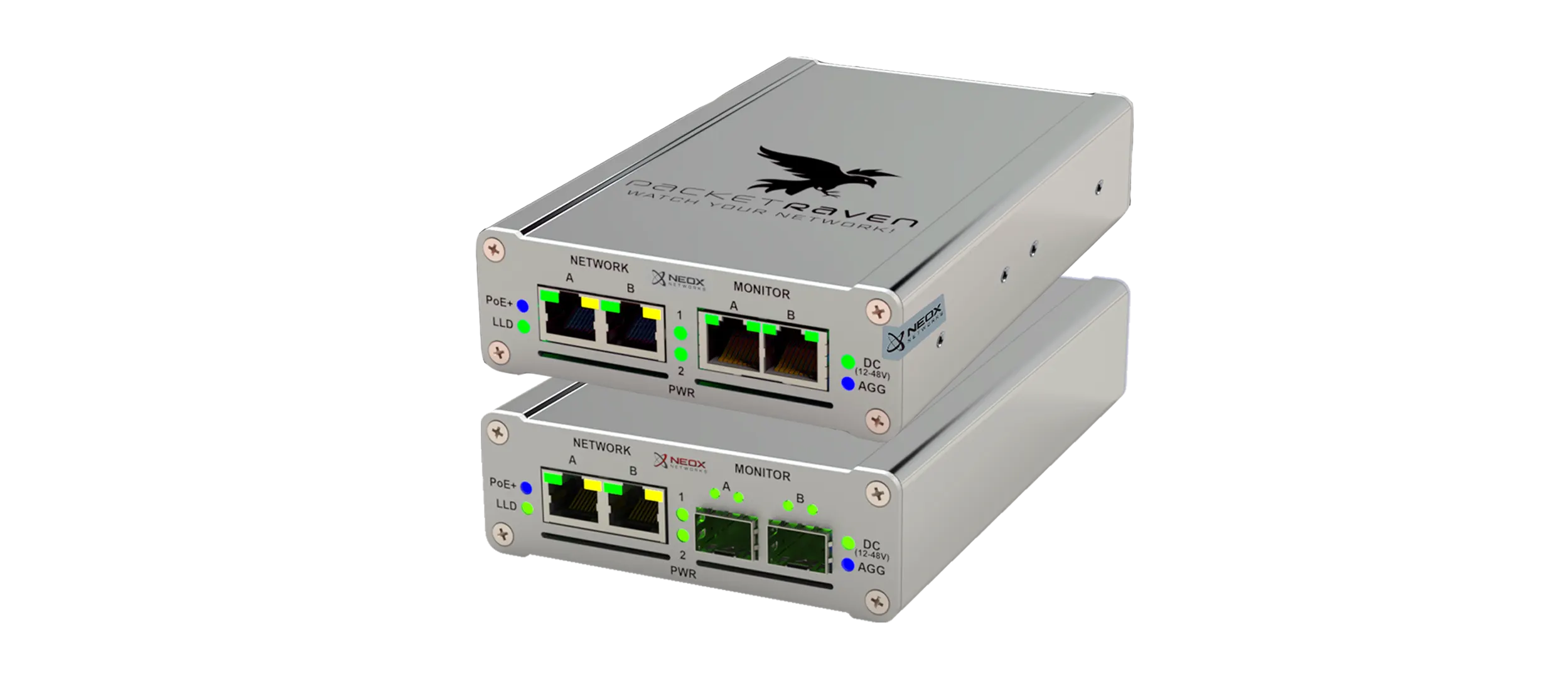

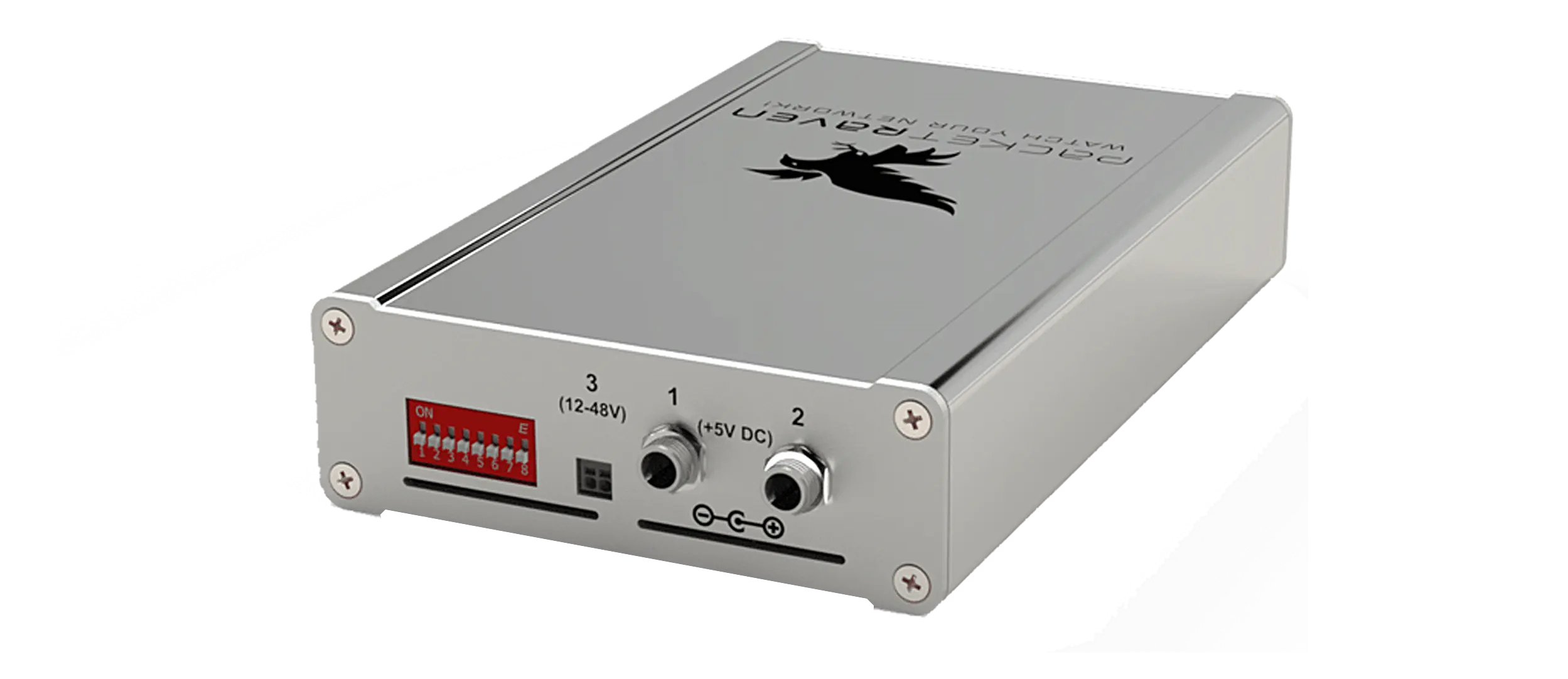

Copper 10/100/1000Base-T Portable Network TAP
OVERVIEW

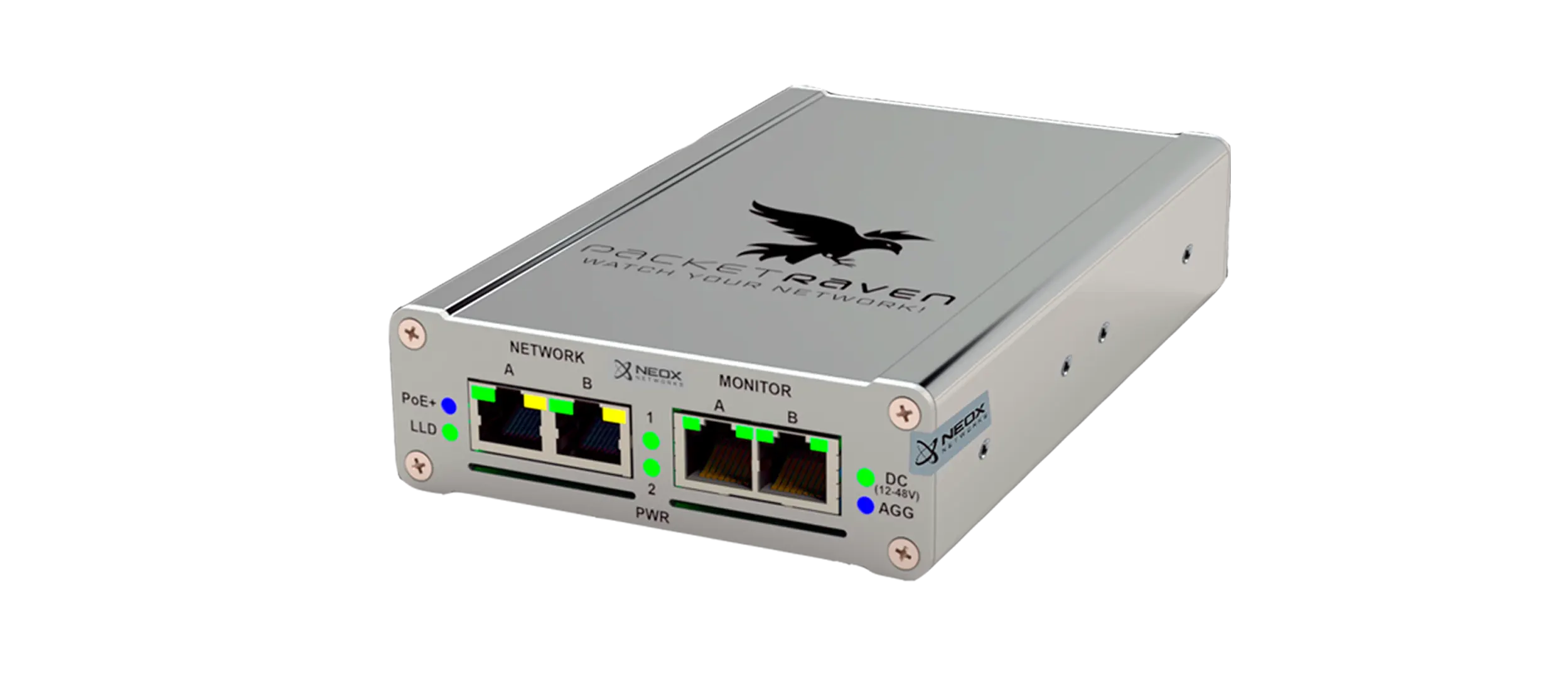

PacketRaven Copper Portable Network TAPs are intelligent FPGA-based mirroring devices for secure and reliable tapping of network data in copper-based networks. These Network TAPs are looped into the copper line to be monitored and forward all network data traffic without interruption. Our Copper Network TAPs have redundant power supplies, which guarantees high reliability.
They do not have a MAC or IP address, but work on OSI Layer 1, and are therefore not detectable in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method. Portable Network TAPs are increasingly used for network forensics, security and monitoring in remote and industrial applications.
PacketRaven Copper Portable Network TAPs were designed as portable TAPs, but can also be installed in data centers using a mounting kit in a 19″ mounting frame.
They support 10M, 100M and 1G speeds. With PacketRaven Copper Portable Network TAPs you get permanent network access without risk and provide e.g. your monitoring tools with 100% reliable network data without introducing a single point of failure. Because your network security tool is only as good as the data source!
HIGHLIGHTS
- Safe, rock-solid FPGA-based design
- Supports 10M, 100M and 1G network speeds – 10Base-T, 100Base-TX, 1000Base-T, 10/100/1000 BaseT
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible on the network, no IP address, no MAC address, cannot be hacked
- Guaranteed no packet loss
- Power supply via redundant AC/DC power supply units (5V) and/or 12-48V DC voltage
- Supports PoE 802.3af passthrough
- Supports failsafe mode for resilience in the event of a power failure
- Supports breakout, aggregation and regeneration mode
- Simple configuration via DIP switches
- 100% reaction-free through galvanic isolation (data diode function)
- Supports up to 16k Jumbo Frames
- Plug-n-Play
- Various mounting options available
- Designed, assembled, certified and tested in Germany
MODELS - STANDARD
COPPER/RJ45/M12 TAP MODELS – STANDARD | |||||
---|---|---|---|---|---|
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||
Article No. | Standard(s) | Network | Interface NET. / MON. | OPERATING MODE(S) | |
PRP-SCC-1GA | 10/100/1000Base-T | 10M/100M/1000M | RJ45 | RJ45 | Aggregation, Breakout, Regeneration |
PRP-SCS-1GA | 10/100/1000Base-T | 10M/100M/1000M | RJ45 | SFP | Aggregation, Breakout, Regeneration |
PRP-SCC-1GB | 10/100/1000Base-T | 10M/100M/1000M | RJ45 | RJ45 | Breakout |
PRP-SCS-1GB | 10/100/1000Base-T | 10M/100M/1000M | RJ45 | SFP | Breakout |
PRP-M12-1GA | 10/100/1000Base-T | 10M/100M/1000M | M12 (X-coded) | M12 (X-coded) | Aggregation, Breakout, Regeneration |
PRP-M12-1GB | 10/100/1000Base-T | 10M/100M/1000M | M12 (X-coded) | M12 (X-coded) | Breakout |
MODELS - HARDENED
COPPER/RJ45 TAP MODELS – HARDENED | |||||
---|---|---|---|---|---|
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||
Article No. | Standard(s) | Network | Interface NET. / MON. | OPERATING MODE(S) | |
PRP-SCC-1GA-S | 10/100/1000Base-T | 10M/100M/1000M | RJ45 | RJ45 | Aggregation, Breakout, Regeneration |
PRP-SCC-1GAO-S | 10/100/1000Base-T | 10M/100M/1000M | RJ45 | RJ45 | Aggregation |
PRP-SCC-1GBO-S | 10/100/1000Base-T | 10M/100M/1000M | RJ45 | RJ45 | Breakout |
PRP-M12-1GA-S | 10/100/1000Base-T | 10M/100M/1000M | M12 (X-coded) | M12 (X-coded) | Aggregation, Breakout, Regeneration |
PRP-M12-1GAO-S | 10/100/1000Base-T | 10M/100M/1000M | M12 (X-coded) | M12 (X-coded) | Aggregation |
PRP-M12-1GBO-S | 10/100/1000Base-T | 10M/100M/1000M | M12 (X-coded) | M12 (X-coded) | Breakout |
DIMENSION, WEIGHT & CERTIFICATIONS
DIMENSIONS (WxHxD) / WEIGHT | CERTIFICATIONS |
---|---|
10.60 cm x 3.50 cm x 16.40 cm / ca. 0.5 kg | CE, FCC, RoHS, WEEE, EN 55032 KL. A/B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 50121-4:2016*, EN 50129* |

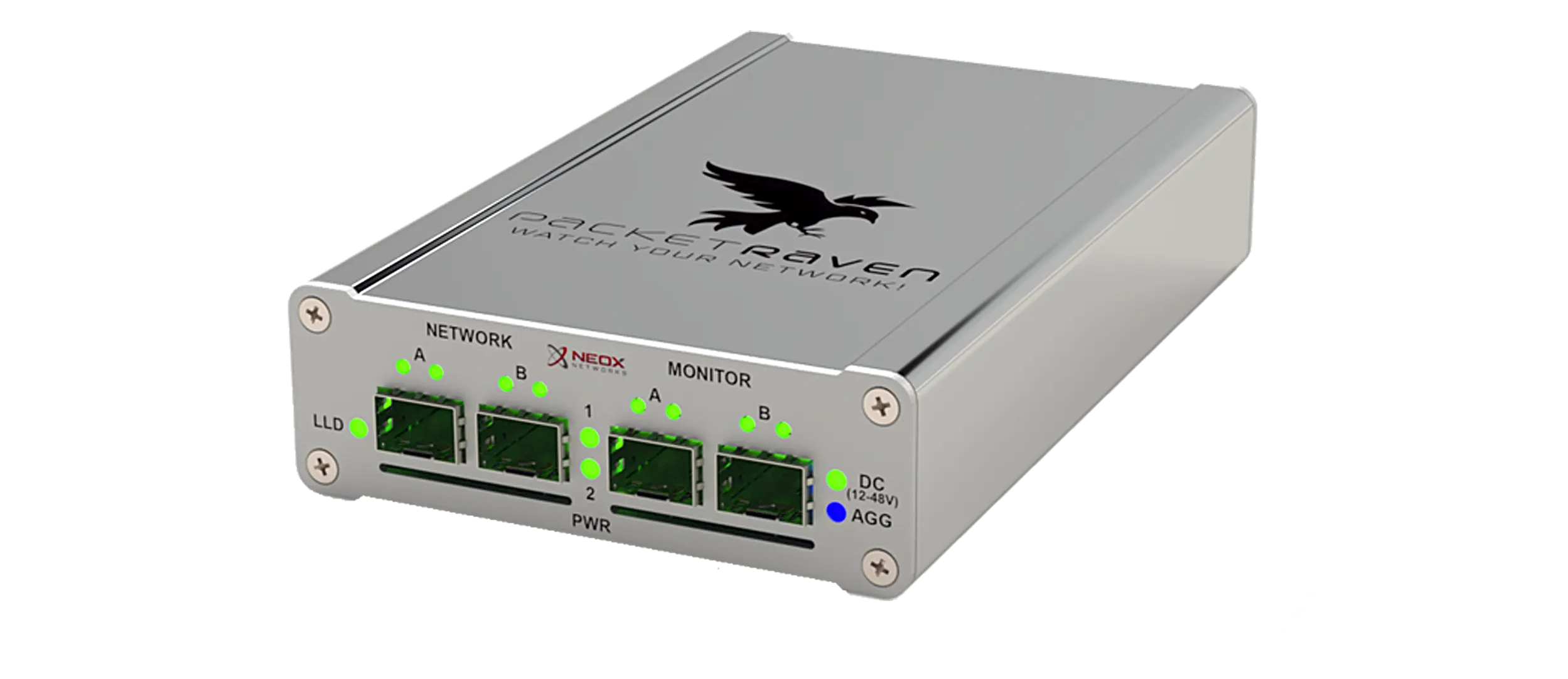

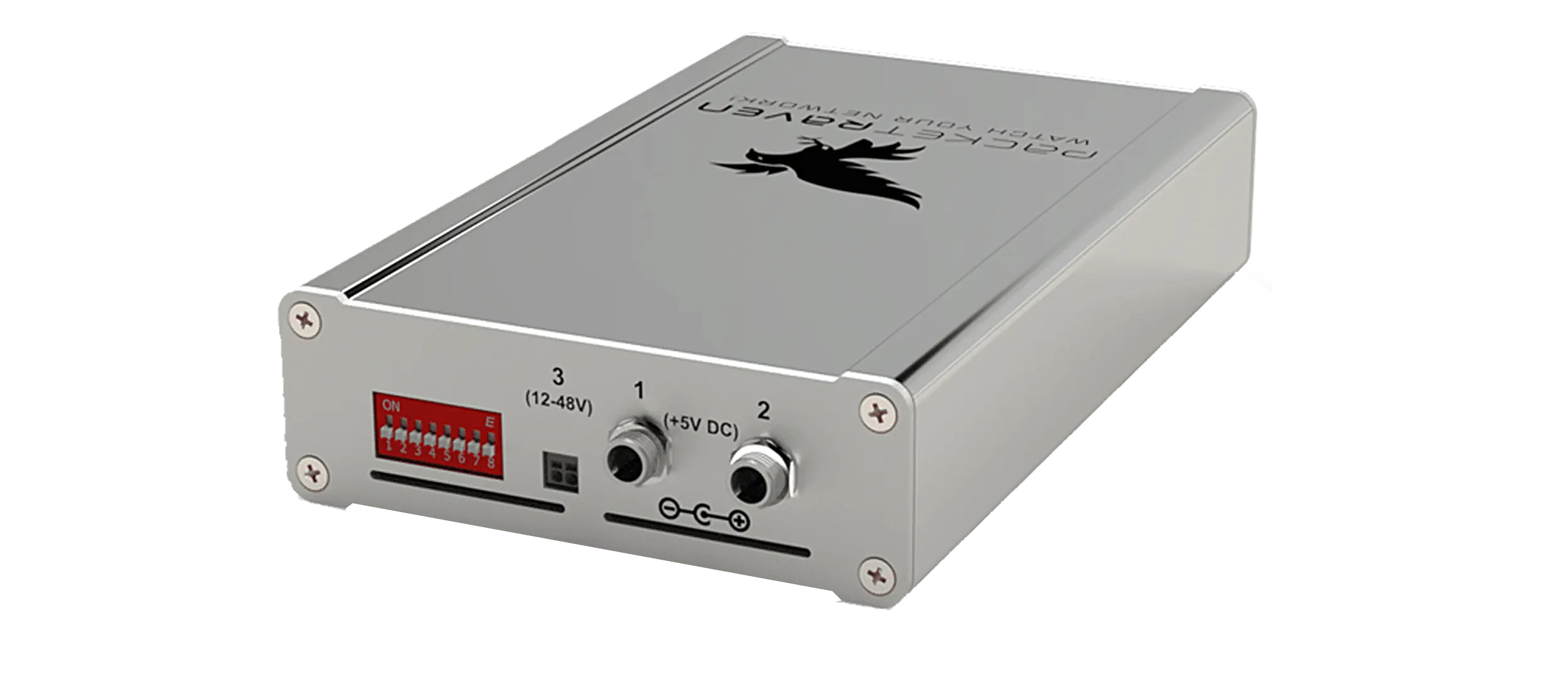

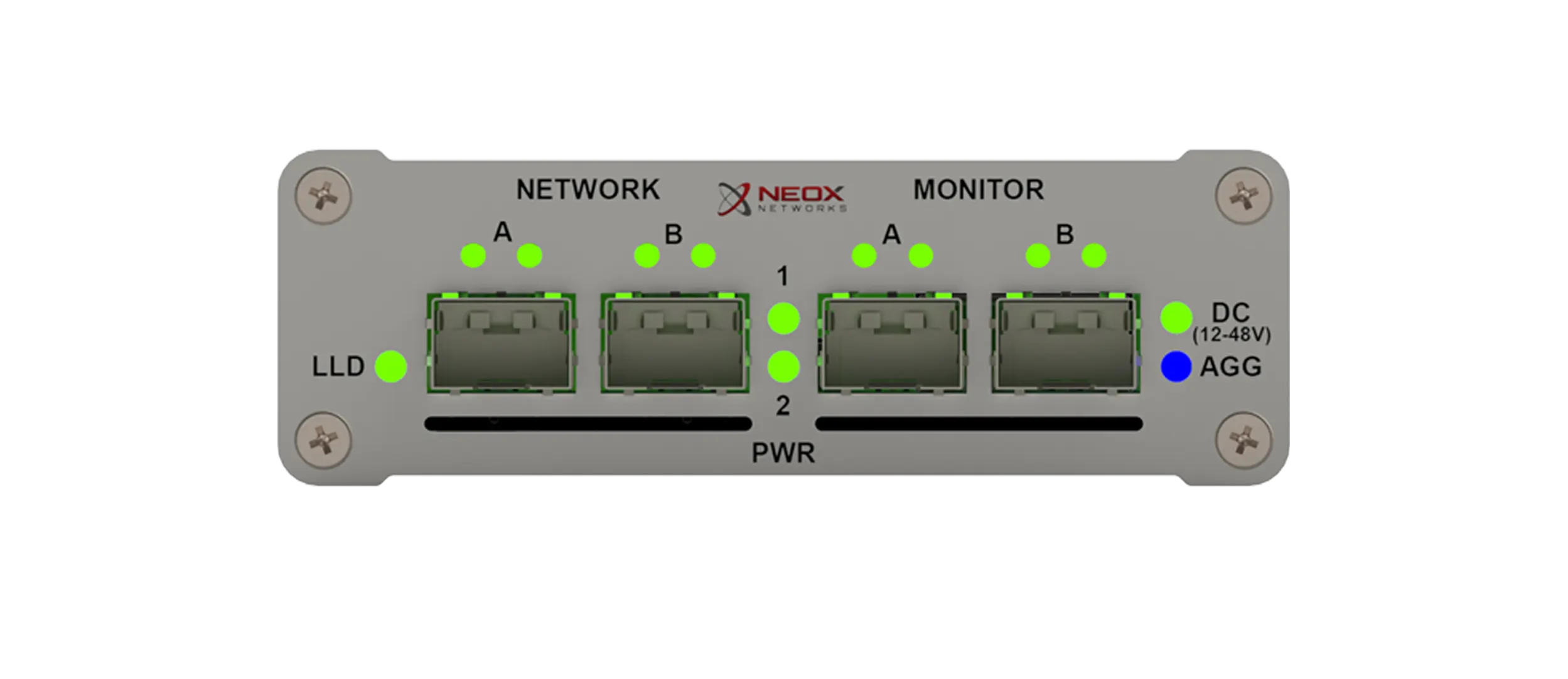

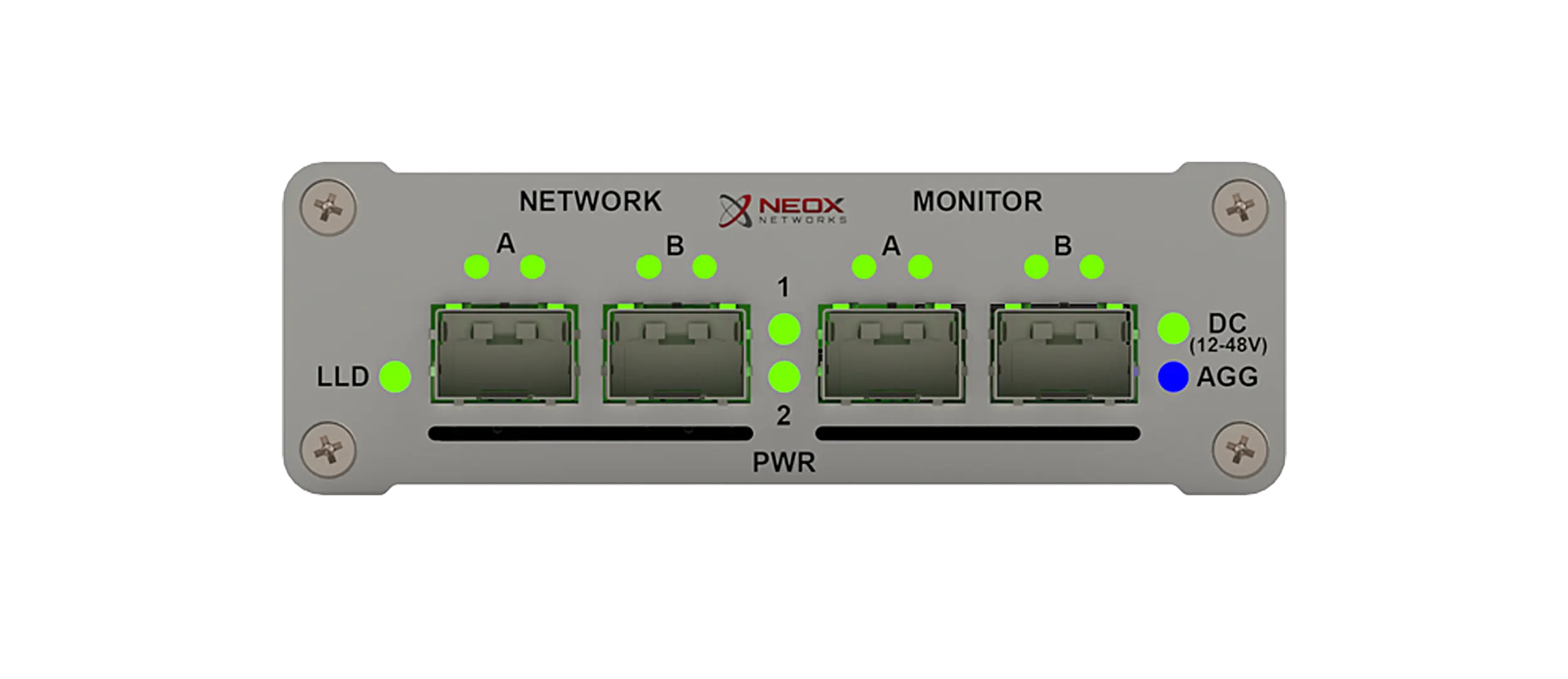

Fiber 1G Portable Network TAP
OVERVIEW

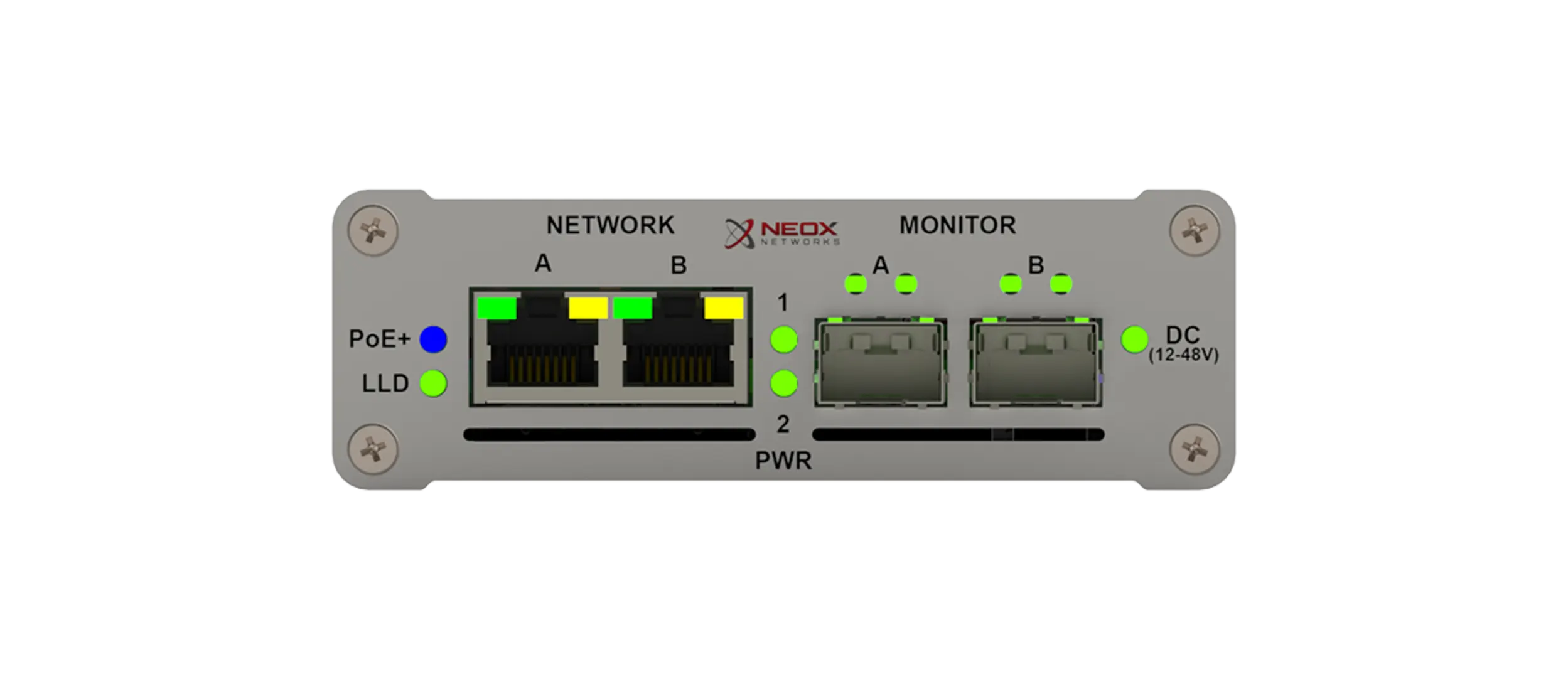

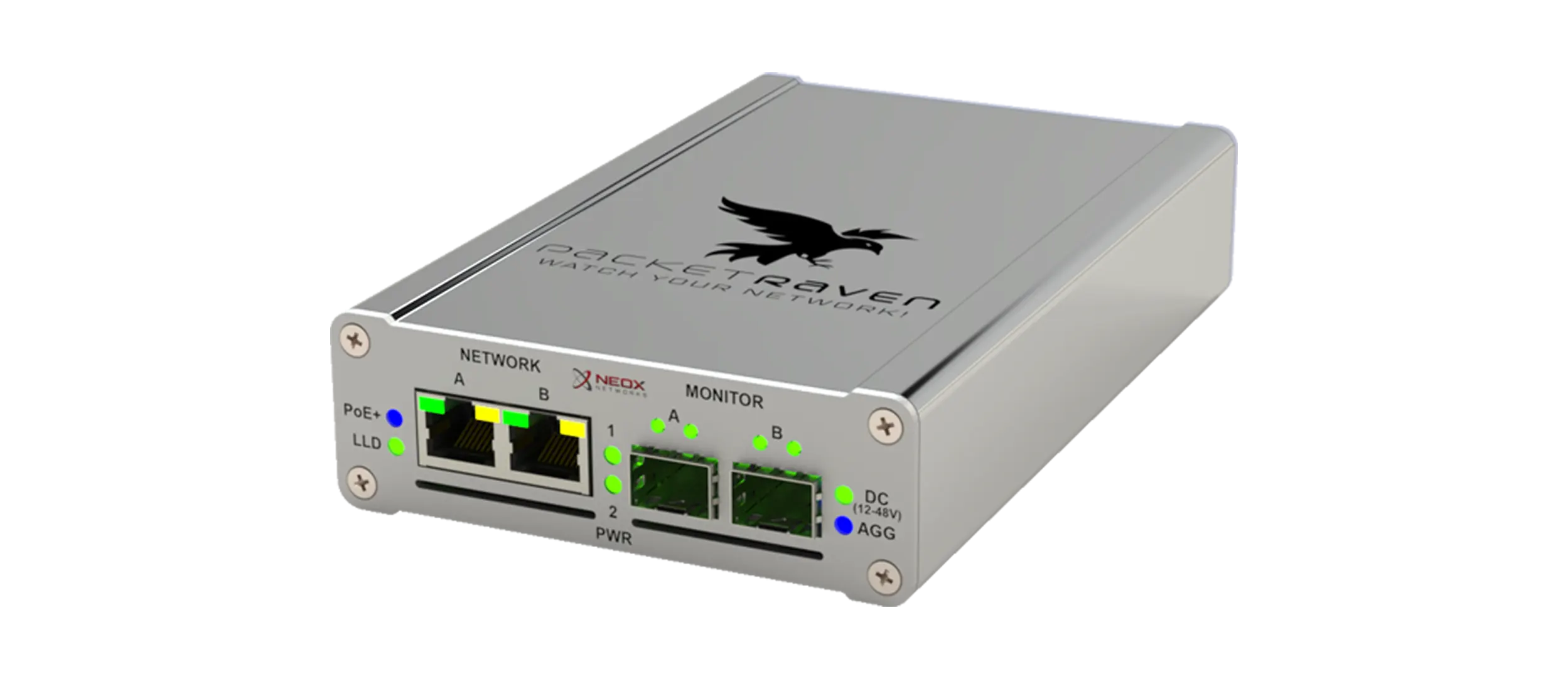

Our flexible SFP TAPs are intelligent FPGA based mirroring devices for secure and reliable tapping of network data in optical and copper-based networks. These TAPs are looped into the network line to be monitored and route all data traffic without interruption.
The great advantage of SFP TAPs is that they can be used extremely flexibly in different network types and for different media types due to the simple interchangeability of their SFP transceivers.
Our SFP TAPs have redundant power supplies, which guarantees high reliability. They do not have a MAC or IP address, but work on OSI Layer 1, and are therefore not detectable in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
PacketRaven SFP Network TAPs are designed as portable TAPs, but can also be installed in data centers via a mounting kit in a 19″ mounting frame and support networks up to 1G.
With PacketRaven Network TAPs you get permanent network access without risk and provide e.g. your monitoring tools with 100% reliable network data – without introducing a single point of failure. Because your network security tool is only as good as the data source!
HIGHLIGHTS
- Safe, rock-solid FPGA-based design
- Supports 10M, 100M and 1G network speeds – 10Base-T, 100Base-TX, 1000Base-T, 10/100/1000 BaseT
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible on the network, no IP address, no MAC address, cannot be hacked
- Guaranteed no packet loss
- Power supply via redundant AC/DC power supply units (5V) and/or 12-48V DC voltage
- Supports PoE 802.3af passthrough
- Supports failsafe mode for resilience in the event of a power failure
- Supports breakout, aggregation and regeneration mode
- Simple configuration via DIP switches
- 100% reaction-free through galvanic isolation (data diode function)
- Supports up to 16k Jumbo Frames
- Plug-n-Play
- Various mounting options available
- Designed, assembled, certified and tested in Germany
MODEL
SFP TAP MODEL | |||||
---|---|---|---|---|---|
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||
Article No. | Standard(s) | Network | Interface NET. / MON. | OPERATING MODE(S) | |
PRP-SSS-1GA | 100Base-FX, 100Base-TX, 1000Base-LX, 1000Base-SX, 1000Base-ZX, 1000Base-T | 100M/1G | SFP | SFP | Aggregation, Breakout, Regeneration |
DIMENSION, WEIGHT & CERTIFICATIONS
DIMENSIONS (WxHxD) / WEIGHT | CERTIFICATIONS |
---|---|
10.60 cm x 3.50 cm x 16.40 cm / ca. 0.5 kg | CE, FCC, RoHS, WEEE |
MAXIMUM INSERTION LOSS
MAXIMUM INSERTION LOSS | |||
---|---|---|---|
Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
Singlemode OS1, OS2 | 3.4 dB / 3.4 dB | 2.5 dB / 4.5 dB | 1.7 dB / 5.8 dB |

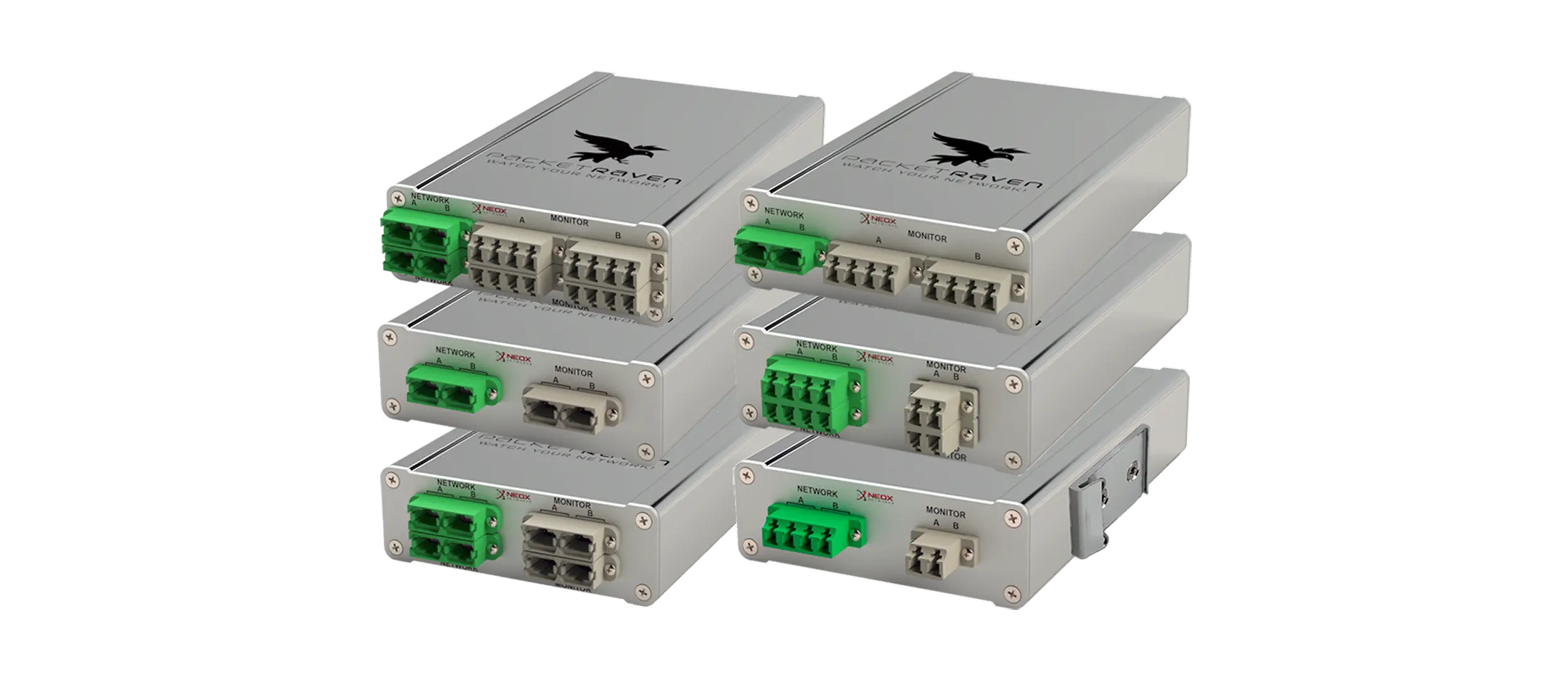

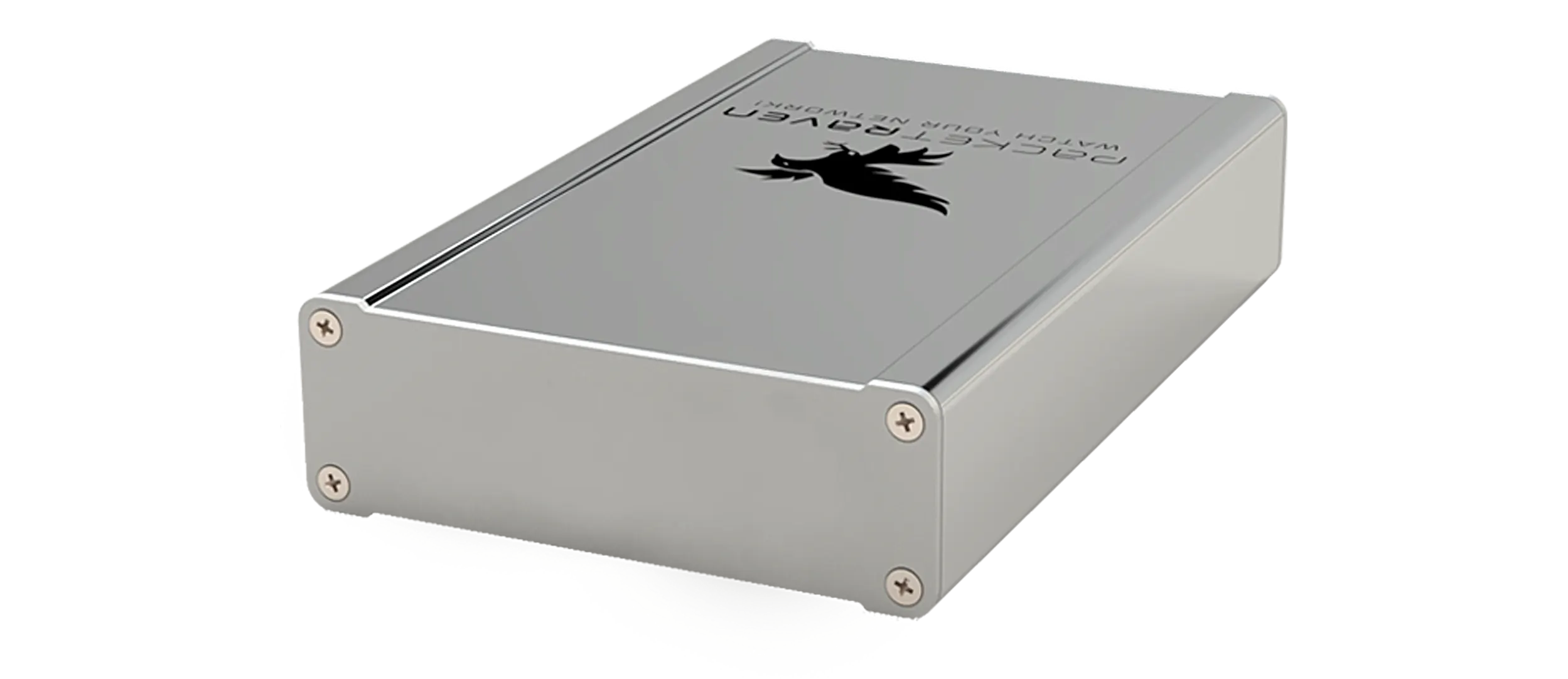

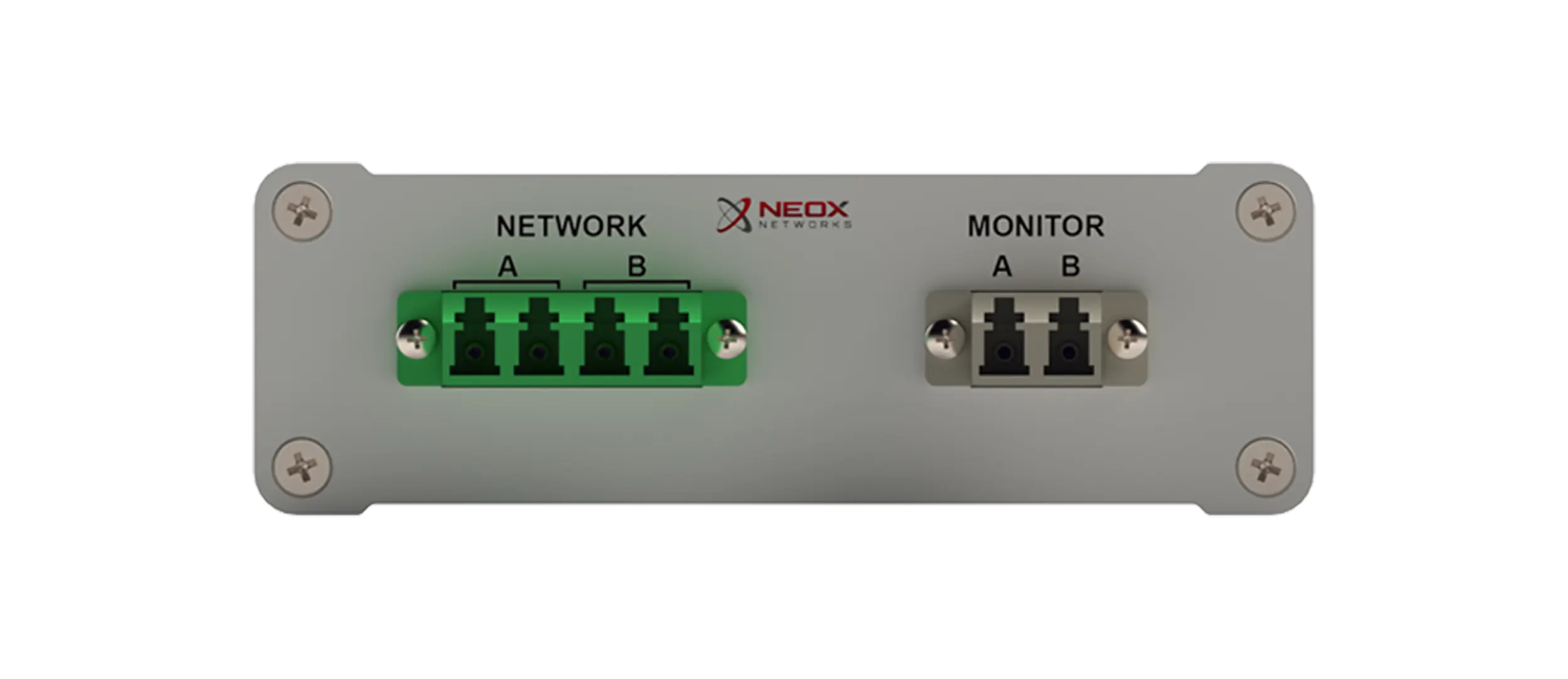

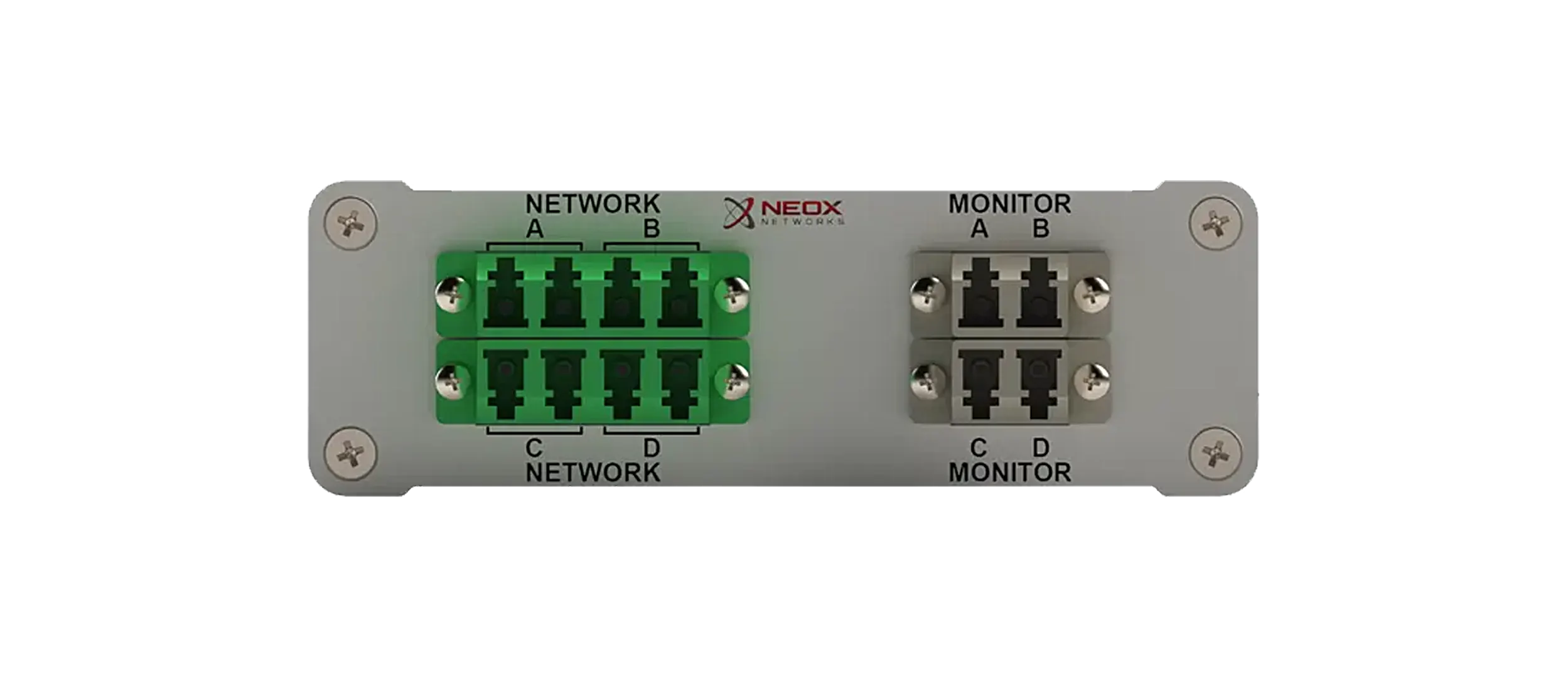

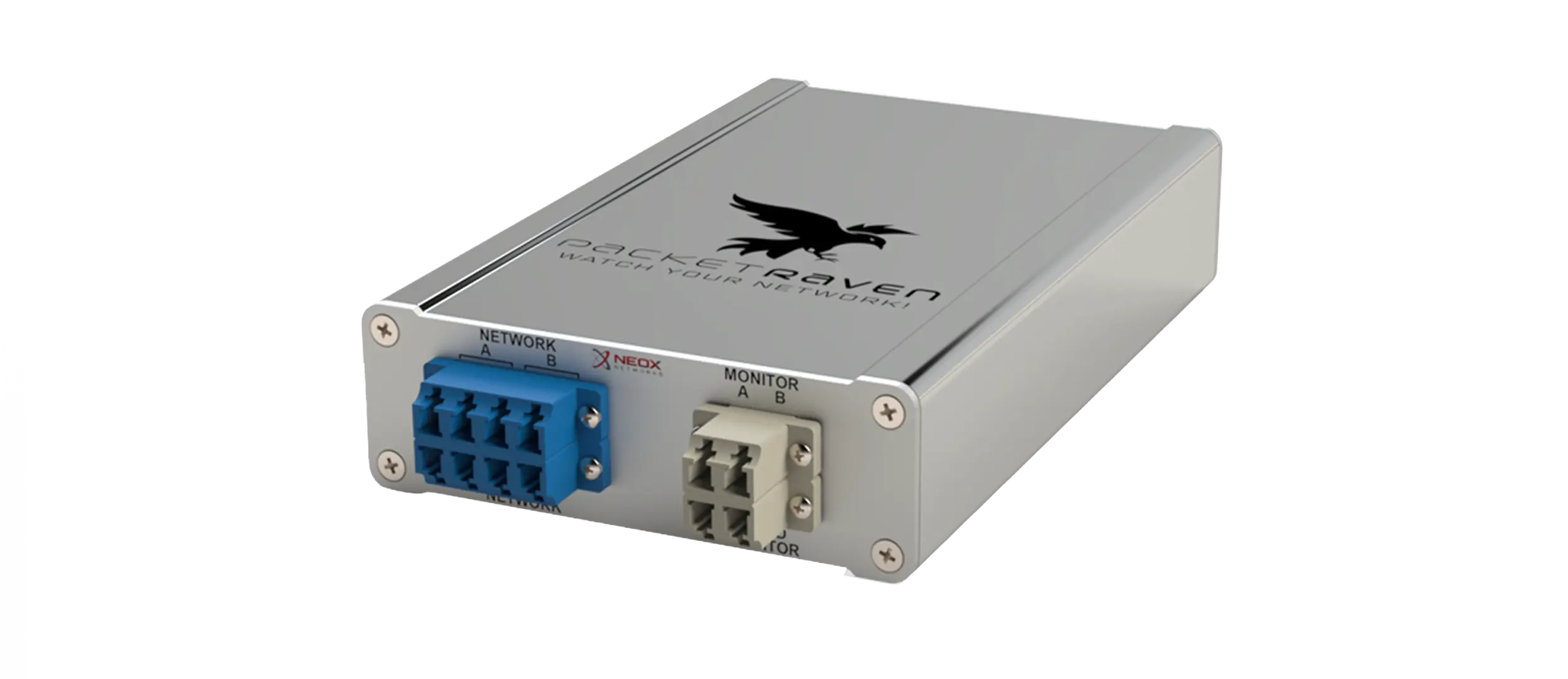

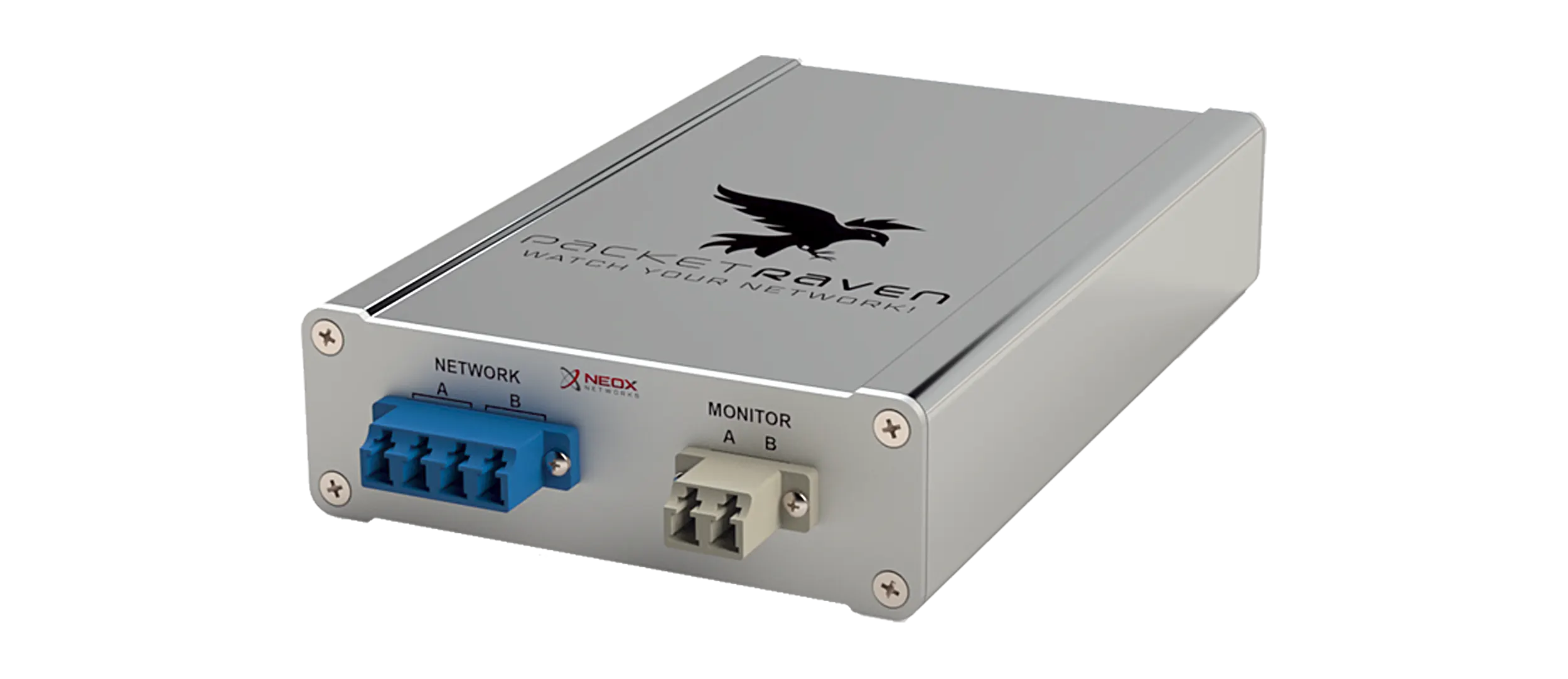

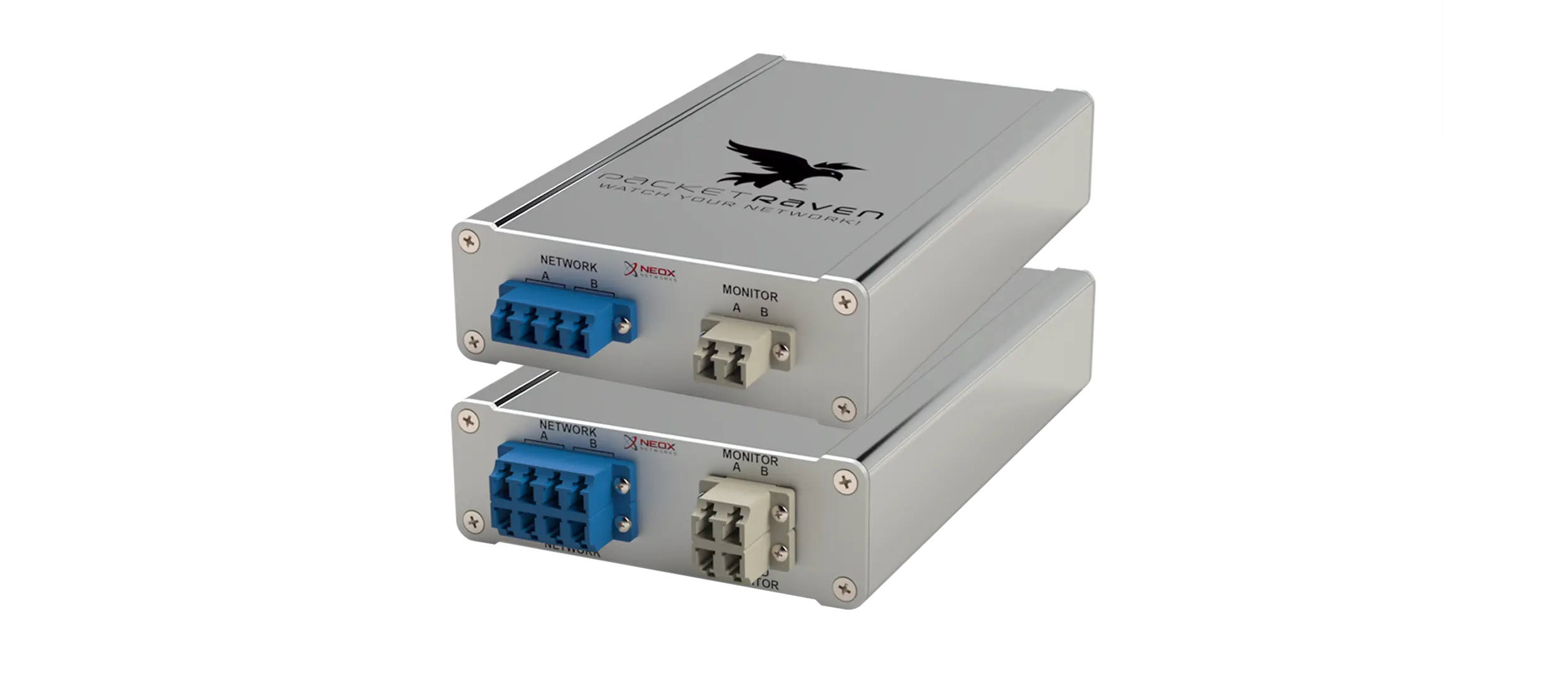

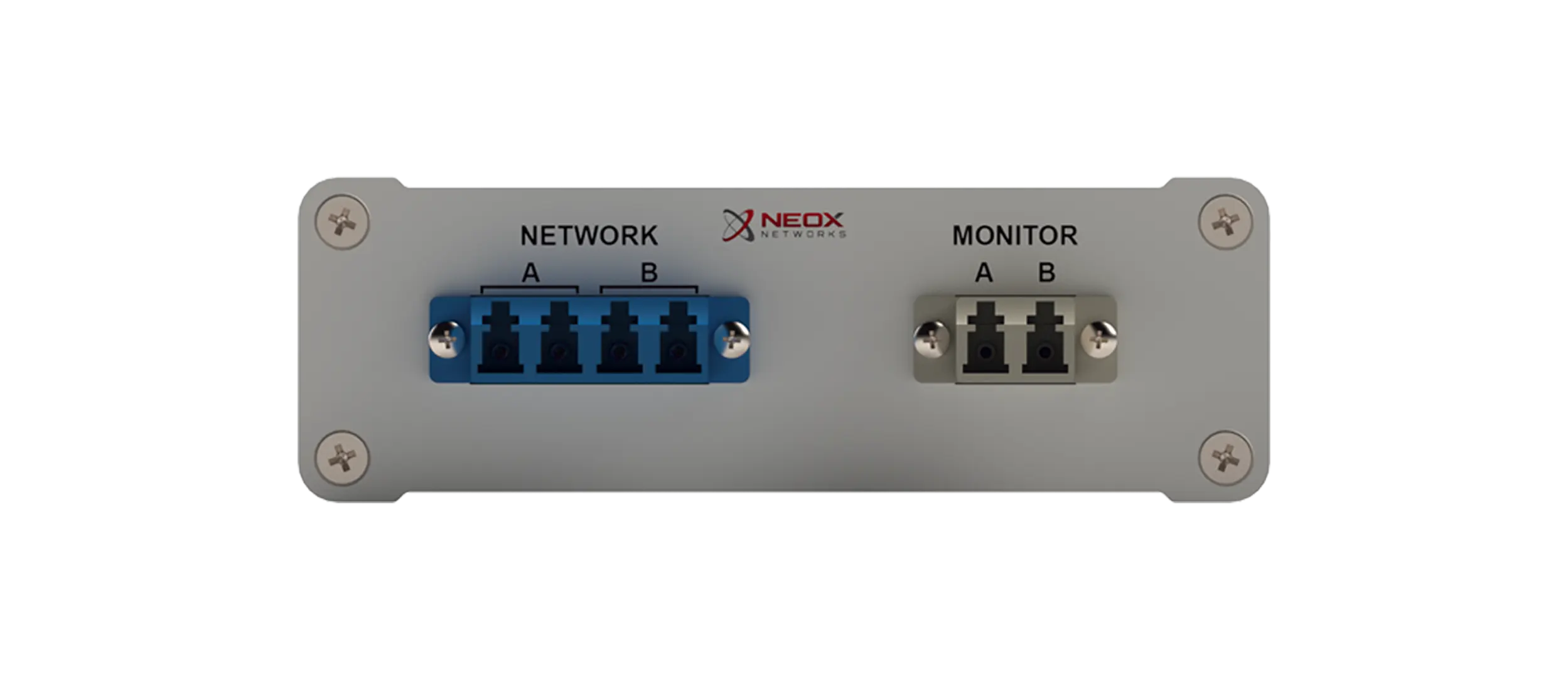

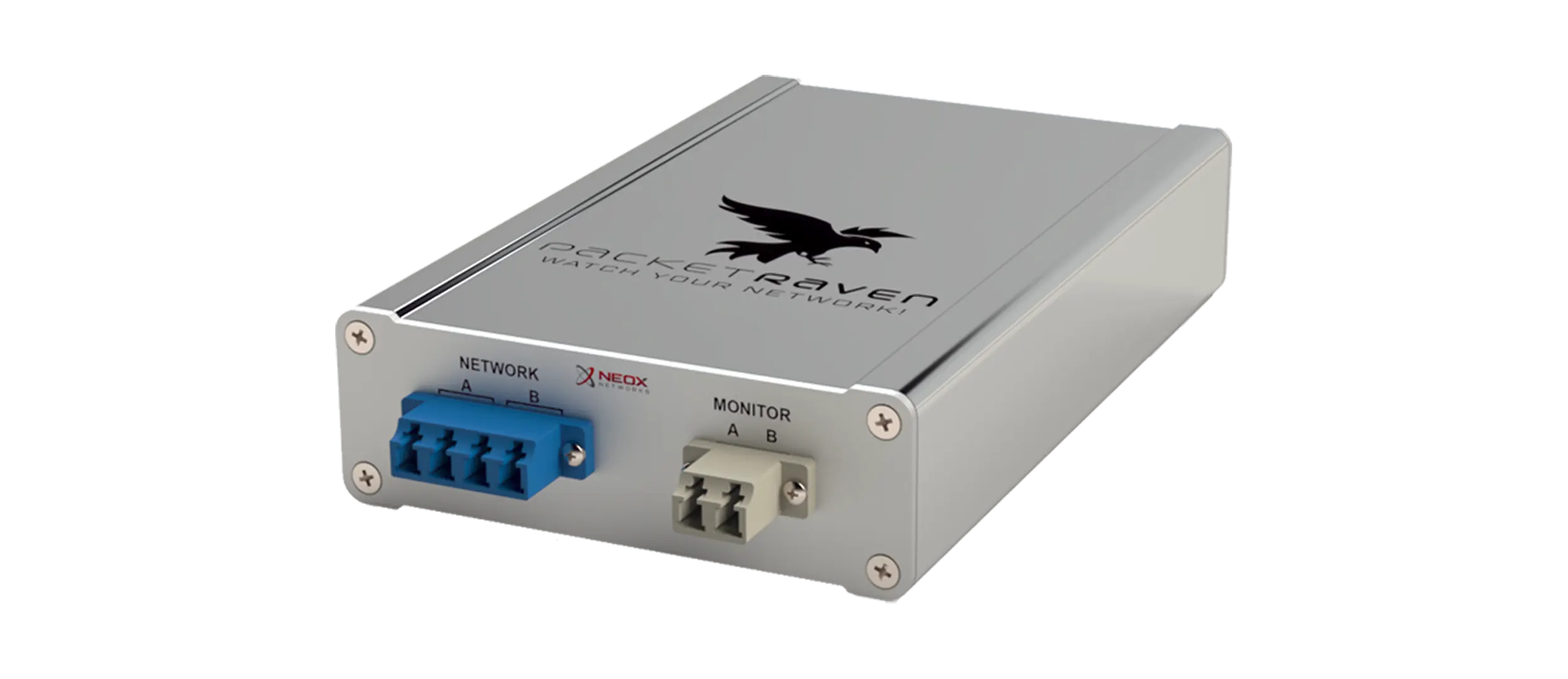

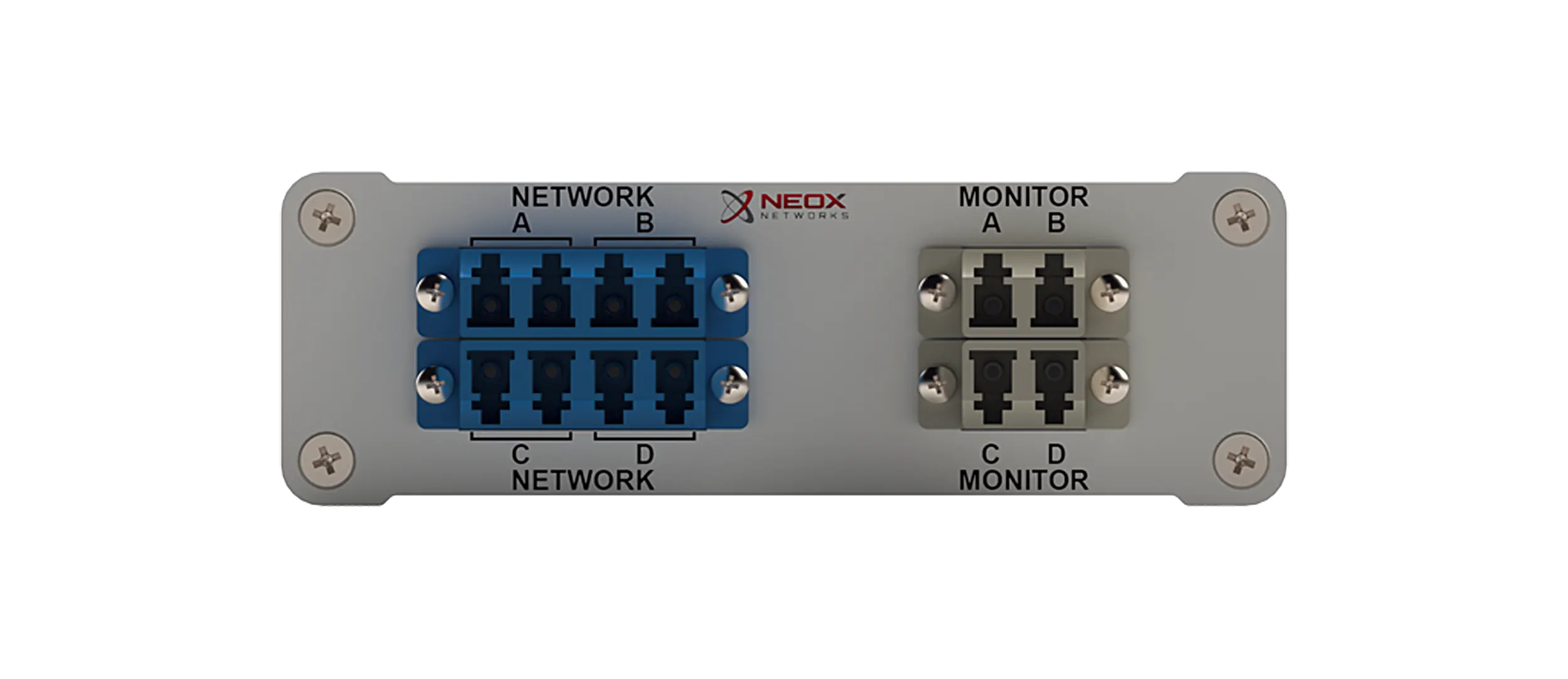

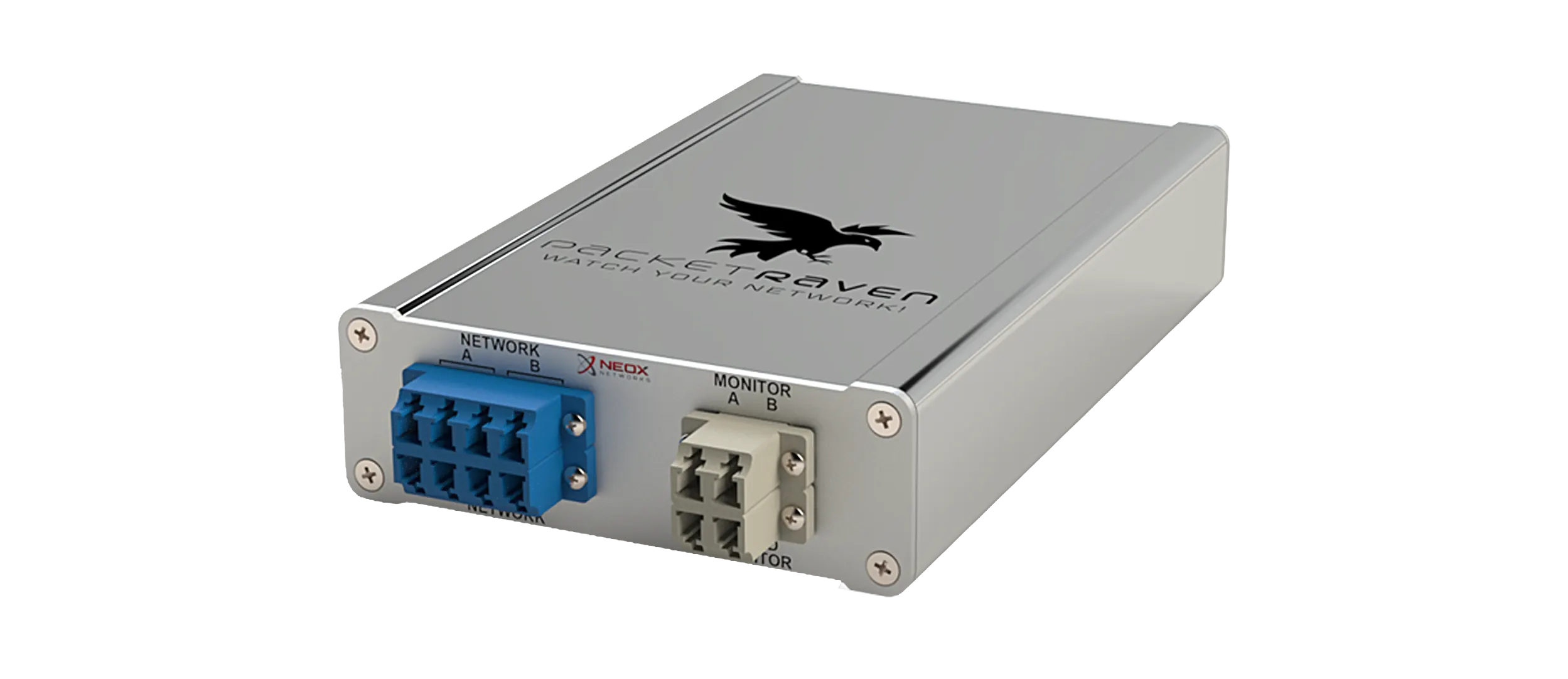

Fiber 1G-400G Singlemode Portable Network TAP
OVERVIEW
PacketRaven Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our fibre TAPs do not have a MAC or IP address, but work on OSI Layer 1, and are therefore not detectable in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
PacketRaven Fiber TAPs are designed as portable TAPs, but can also be installed in data centers via a mounting kit in a 19″ rack, and support network speeds up to 400G.
With PacketRaven Fiber TAPs you get permanent network access without risk and provide e.g. your monitoring tools with 100% reliable network data without introducing a single point of failure. Because your network security tool is only as good as the data source!
HIGHLIGHTS
- 1000Base-LX/ZX – supported network speeds: 1G, 10G, 25G, 40G, 50G, 100G, 200G and 400G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible on the network, no IP address, no MAC address, cannot be hacked
- Guaranteed no packet loss
- 100% passive without affecting the active network connection, no additional latency
- Available in different split ratios – e.g. 50:50, 60:40, 70:30, 80:20, 90:10
- No power supply needed, 100% passive
- Plug-n-Play
- Supports up to 16k Jumbo Frames
- Various mounting options available
- Designed, assembled, certified and tested in Germany
MODELS - STANDARD
SINGLEMODE FIBER TAP MODELS – STANDARD | ||||||||
---|---|---|---|---|---|---|---|---|
All TAPs for fiber type OS2 are also OS1 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
||||||||
Article No. | Network | Stan- dards | Fiber type | Wave- length | Split Ratio | Interface NET. / MON. | TAP Version | |
PRP-OS2-SLL | 1G/10G/25G/ 40G/50G/100G/ 200G/400G | * | OS2 | 1260 – 1650 nm | 50:50, 60:40 or 70:30 | LC | LC | Single-TAP |
PRP-OS2-DLL | 1G/10G/25G/ 40G/50G/100G/ 200G/400G | * | OS2 | 1260 – 1650 nm | 50:50, 60:40 or 70:30 | LC | LC | Dual-TAP |
MODELS - SECURE
SINGLEMODE FIBER TAP MODELS – SECURE | ||||||||
---|---|---|---|---|---|---|---|---|
All TAPs for fiber type OS2 are also OS1 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
||||||||
Article No. | Network | Stan- dards | Fiber type | Wave- length | Split Ratio | Interface NET. / MON. | TAP Version | |
PRP-OS2-SLL-1310S | 1G/10G/25G/ 40G/50G/100G/ 200G/400G | * | OS2 | 1310 nm | 50:50, 60:40 or 70:30 | LC | LC | Single TAP |
PRP-OS2-SLL-1550S | 1G/10G/25G/ 40G/50G/100G/ 200G/400G | * | OS2 | 1550 nm | 50:50, 60:40 or 70:30 | LC | LC | Single TAP |
PRP-OS2-DLL-1310S | 1G/10G/25G/ 40G/50G/100G/ 200G/400G | * | OS2 | 1310 nm | 50:50, 60:40 or 70:30 | LC | LC | Dual TAP |
PRP-OS2-DLL-1550S | 1G/10G/25G/ 40G/50G/100G/ 200G/400G | * | OS2 | 1550 nm | 50:50, 60:40 or 70:30 | LC | LC | Dual TAP |
DIMENSION, WEIGHT & CERTIFICATIONS
DIMENSIONS (WxHxD) / WEIGHT | CERTIFICATIONS |
---|---|
10.60 cm x 3.50 cm x 16.40 cm / ca. 0.5 kg | CE, FCC, RoHS, WEEE |
MAXIMUM INSERTION LOSS
MAXIMUM INSERTION LOSS | |||
---|---|---|---|
Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
Singlemode OS1, OS2 | 3.4 dB / 3.4 dB | 2.5 dB / 4.5 dB | 1.7 dB / 5.8 dB |

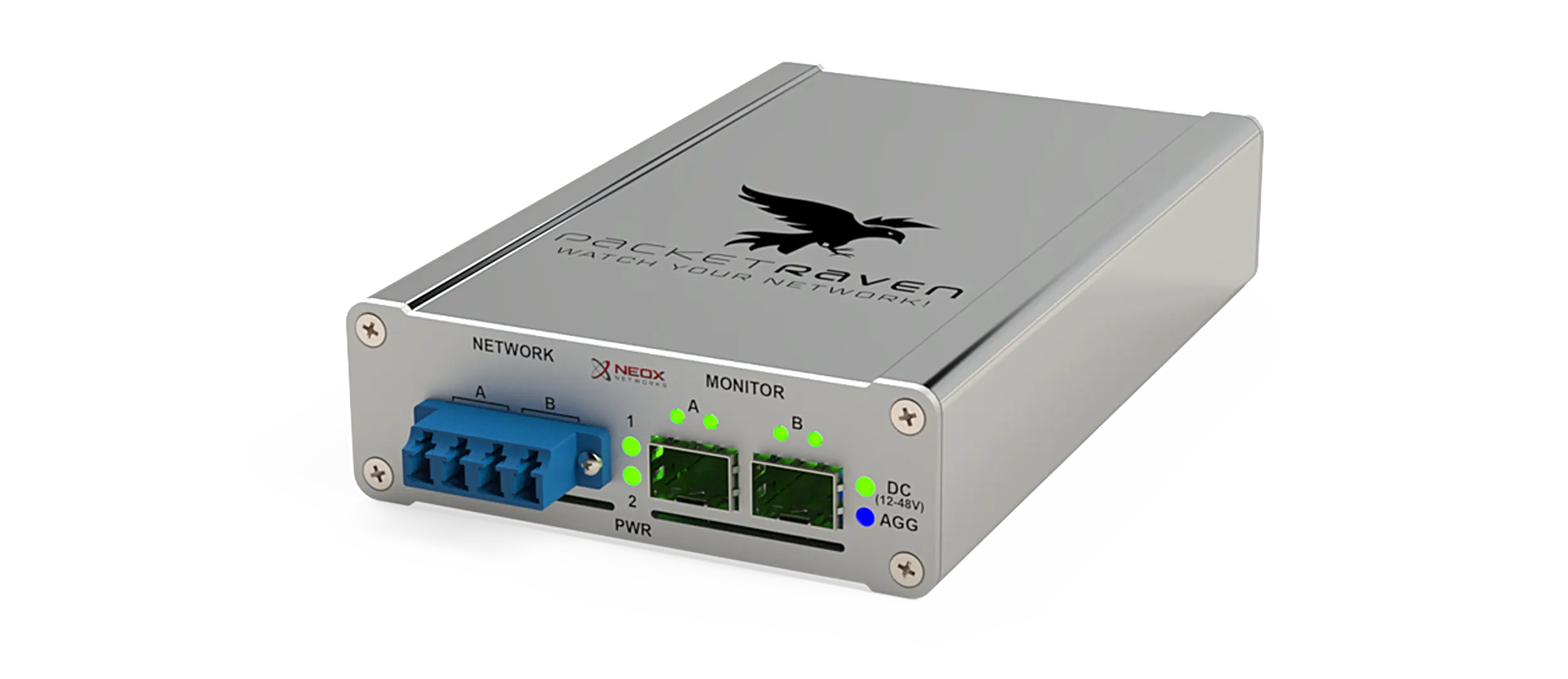

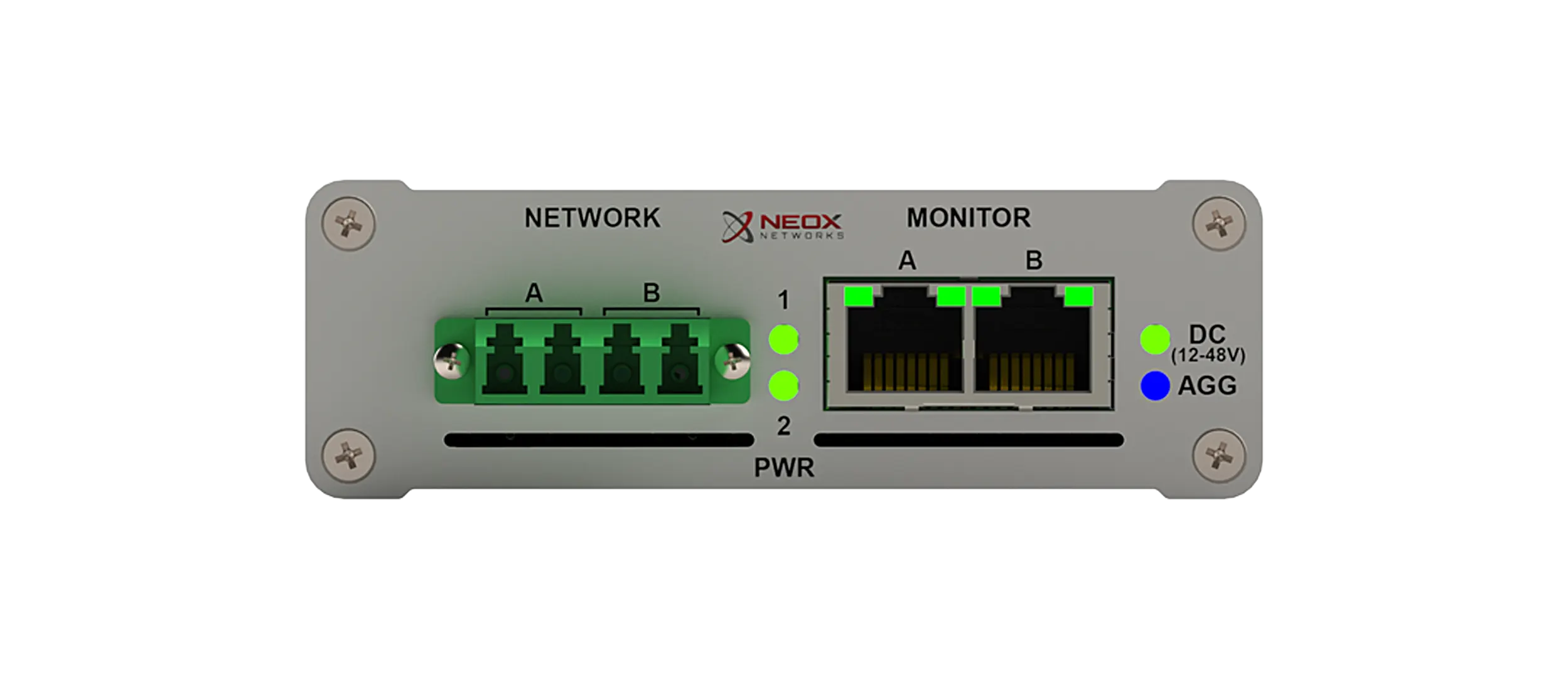

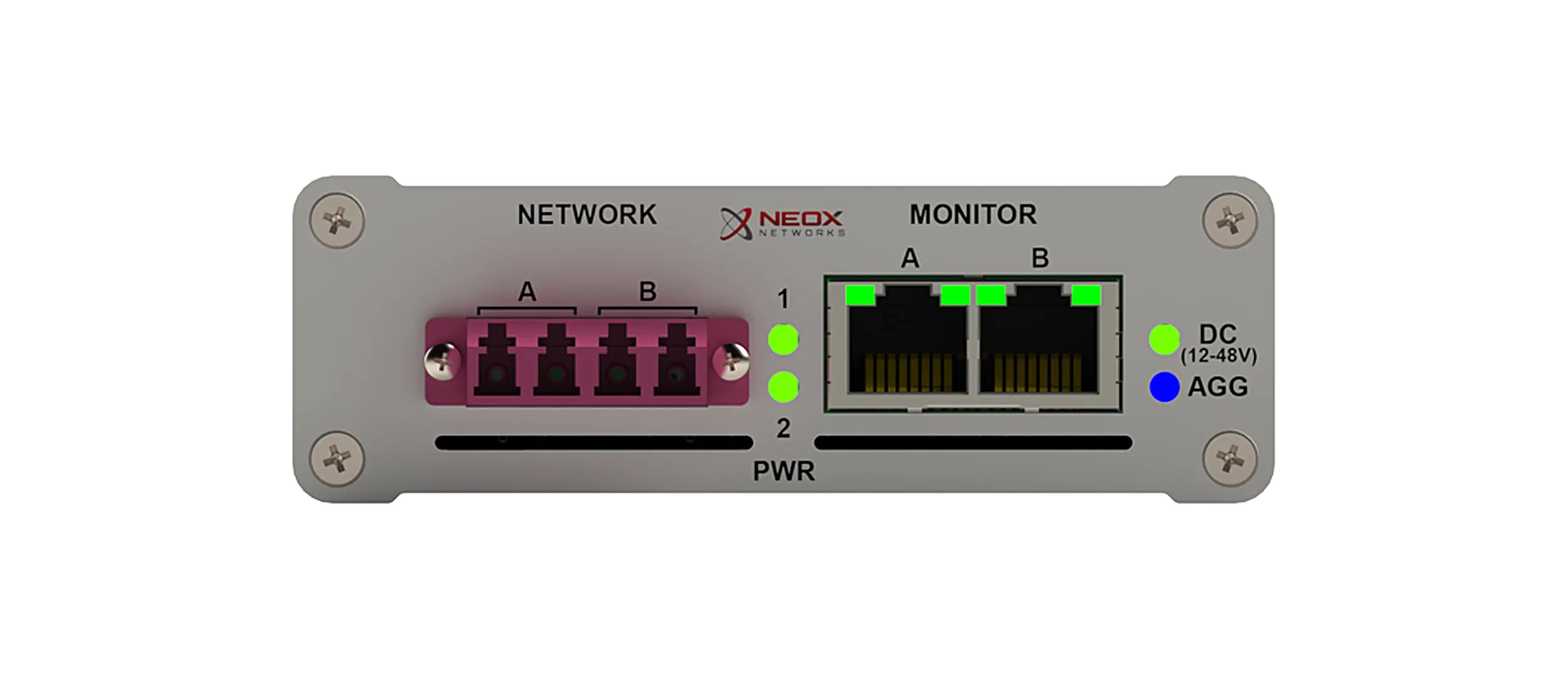

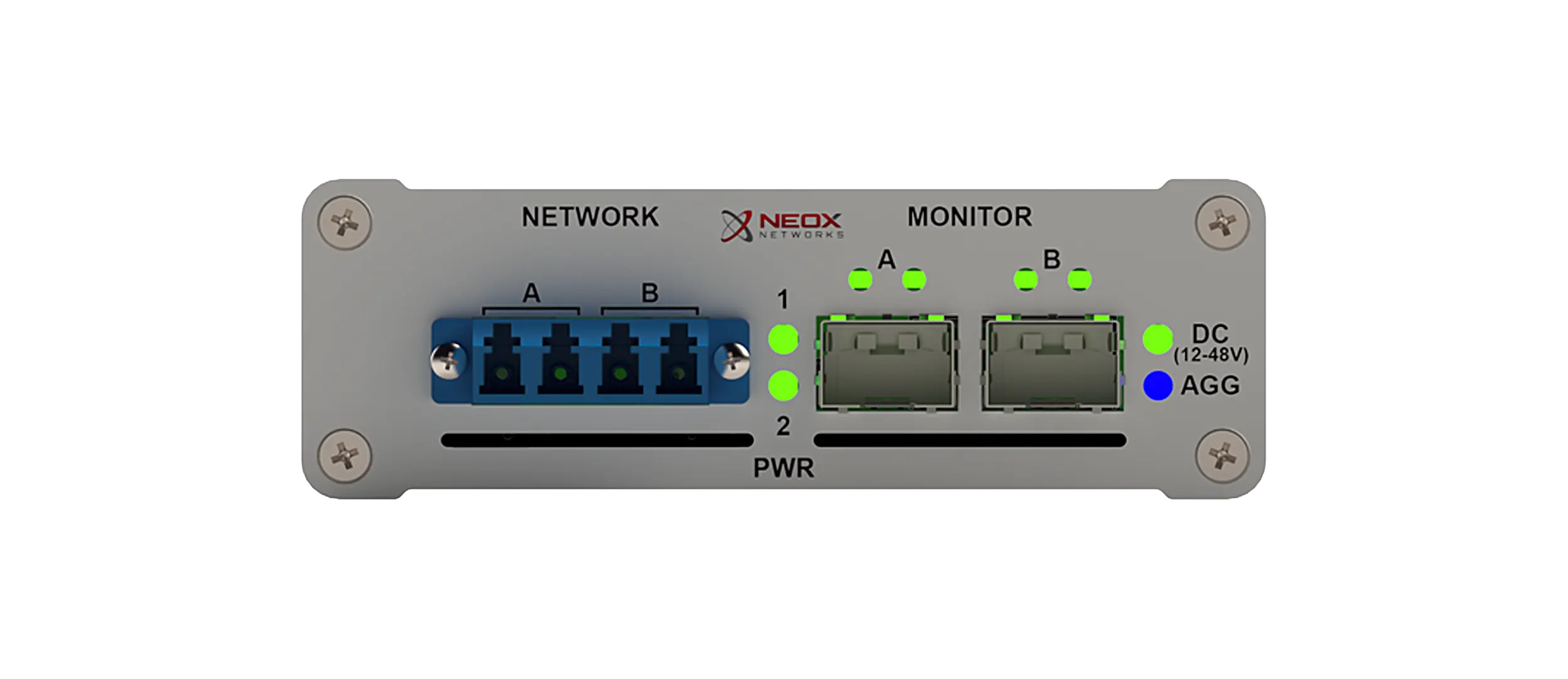

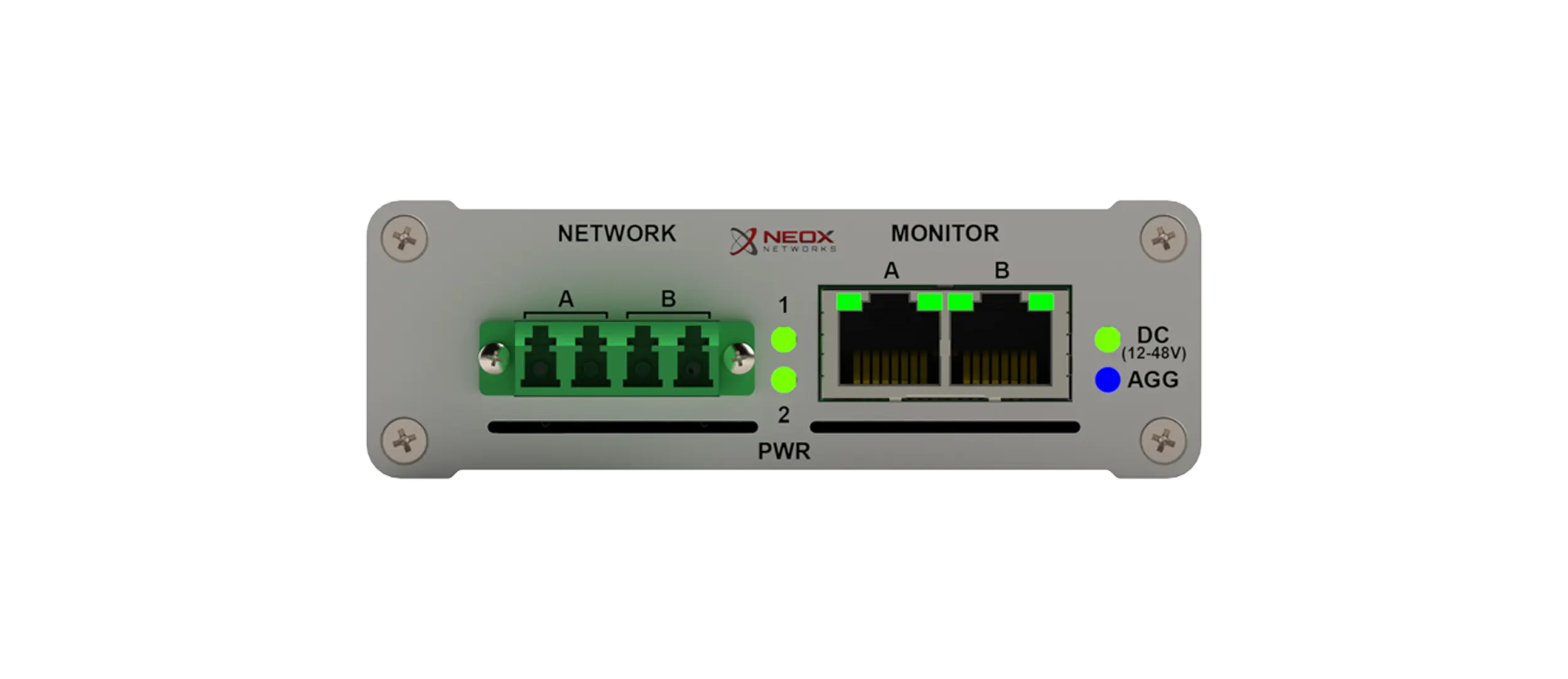

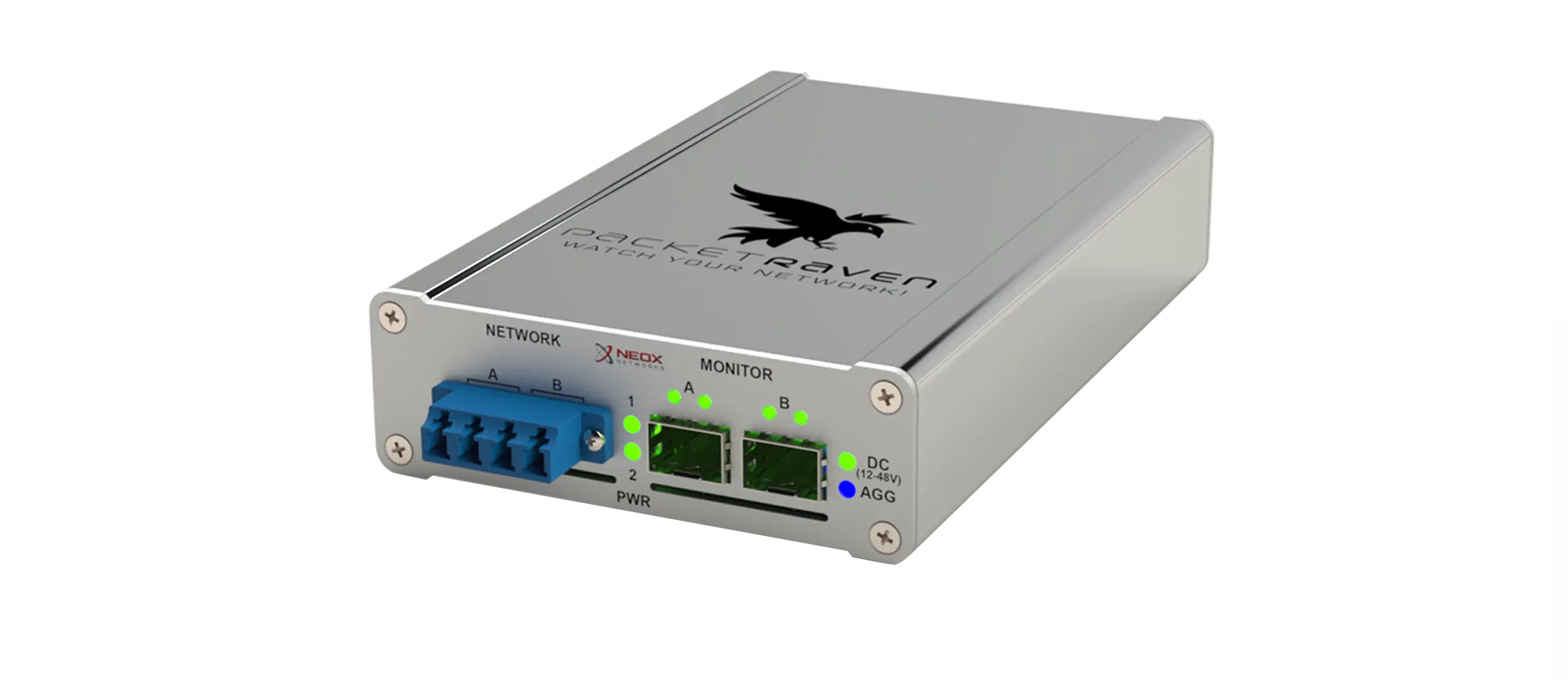

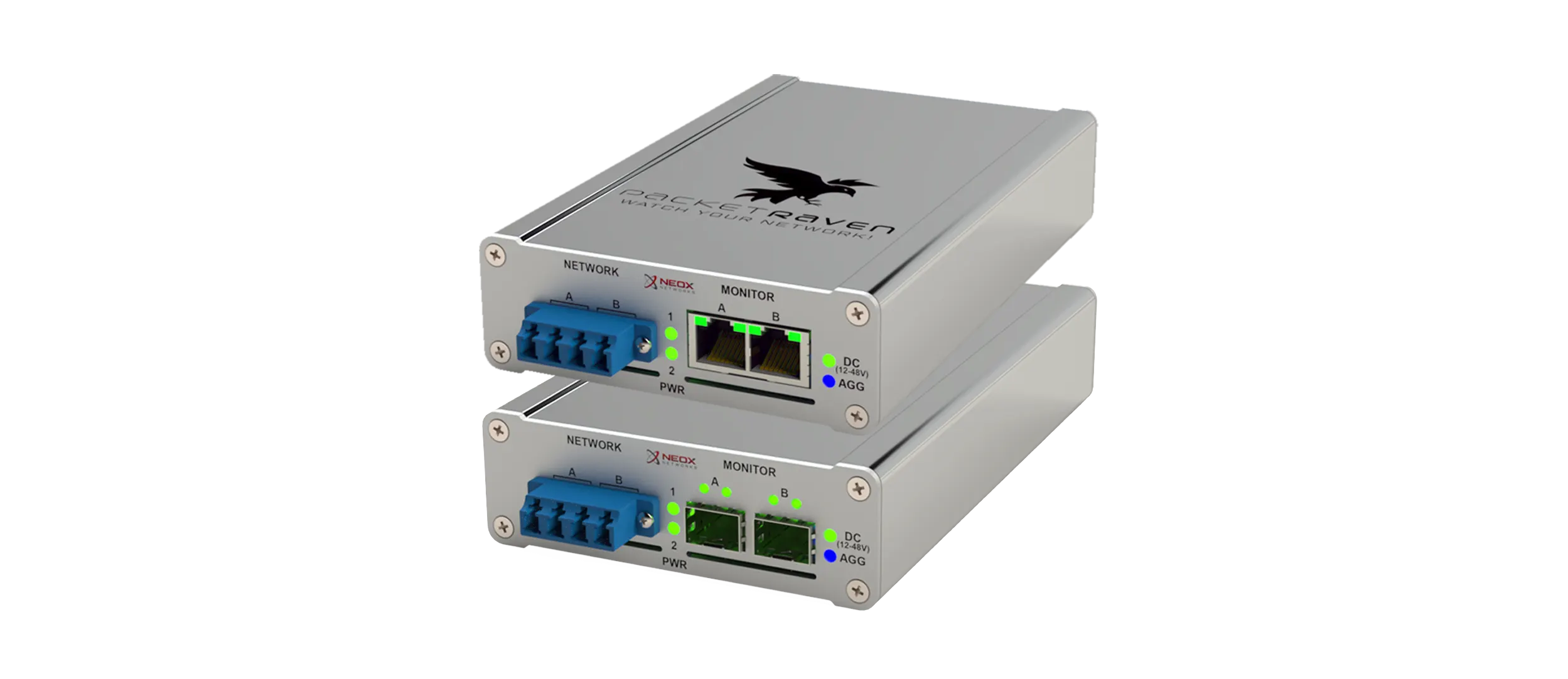

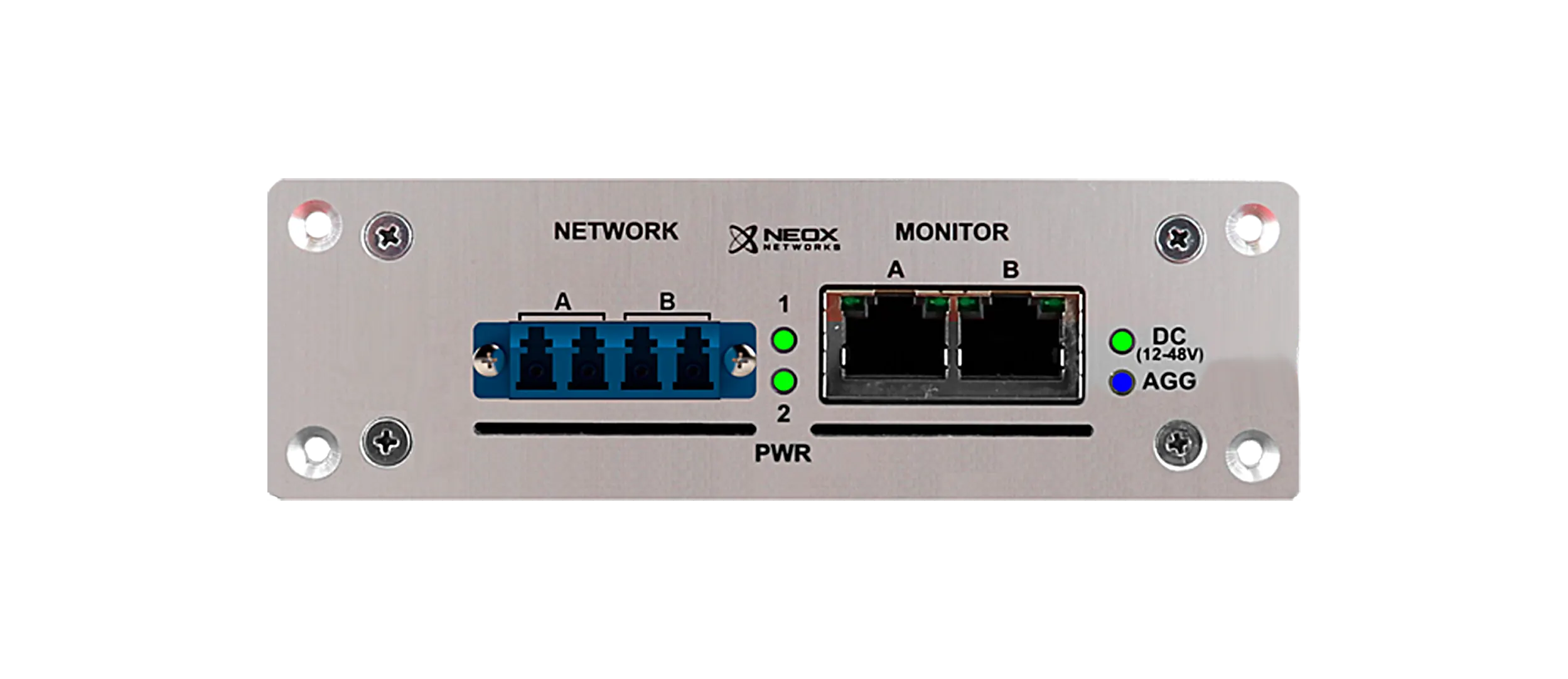

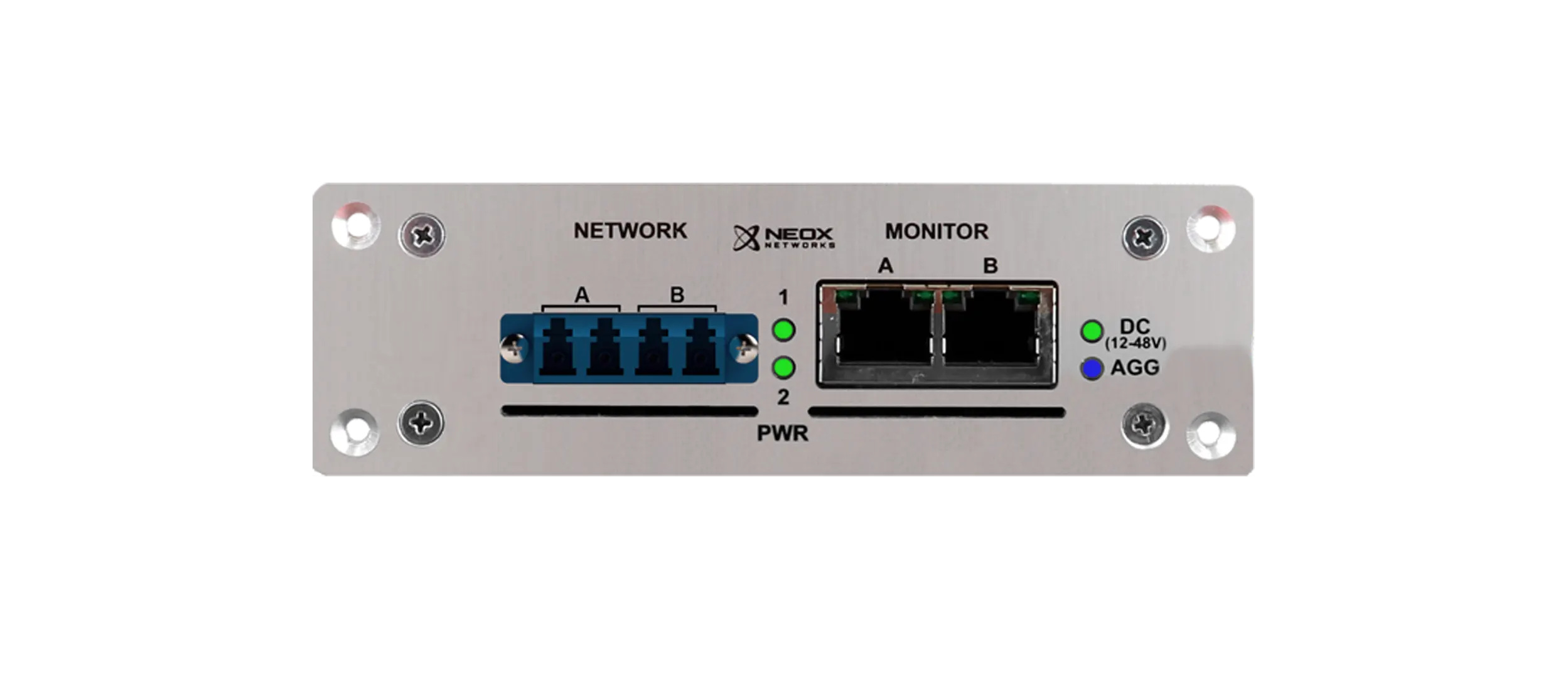

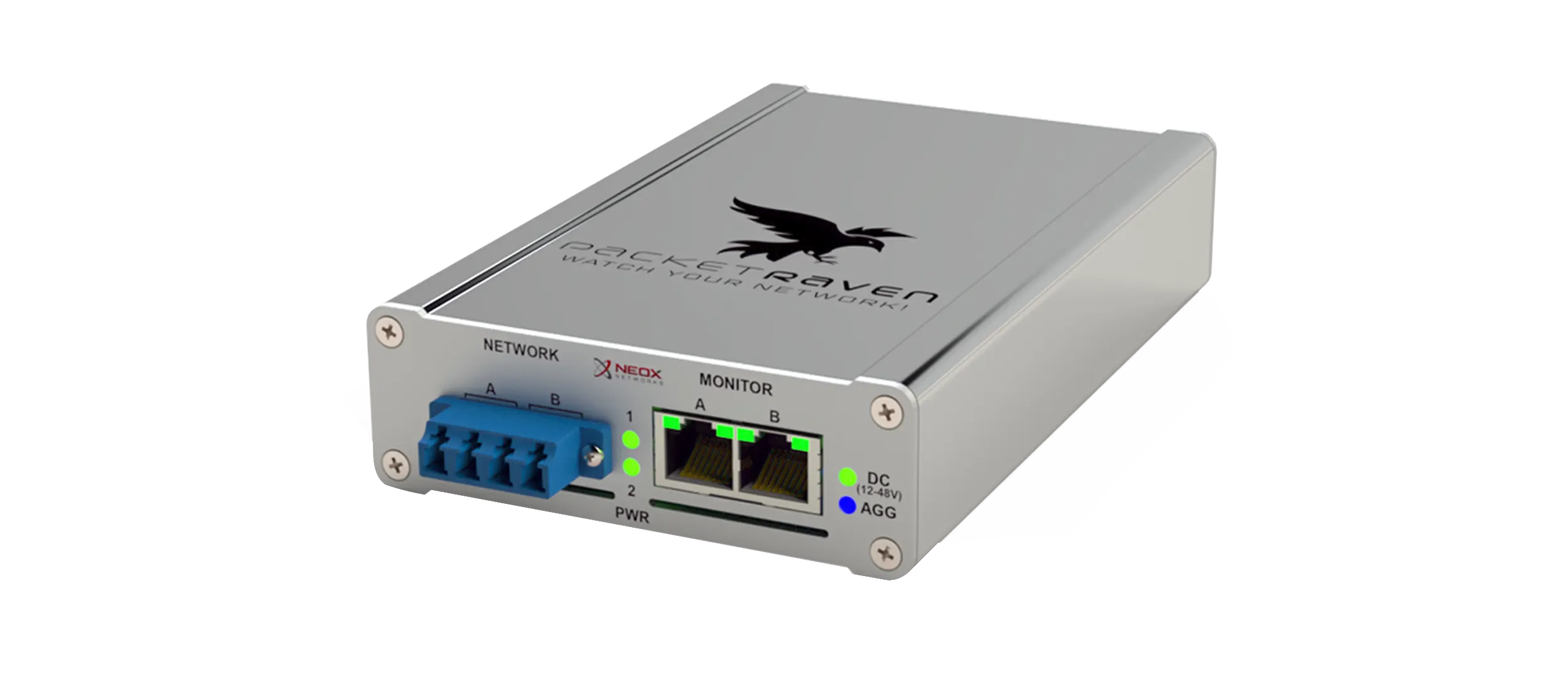

Fiber Hybrid 1G Singlemode Portable Network TAP + Data Diode
OVERVIEW

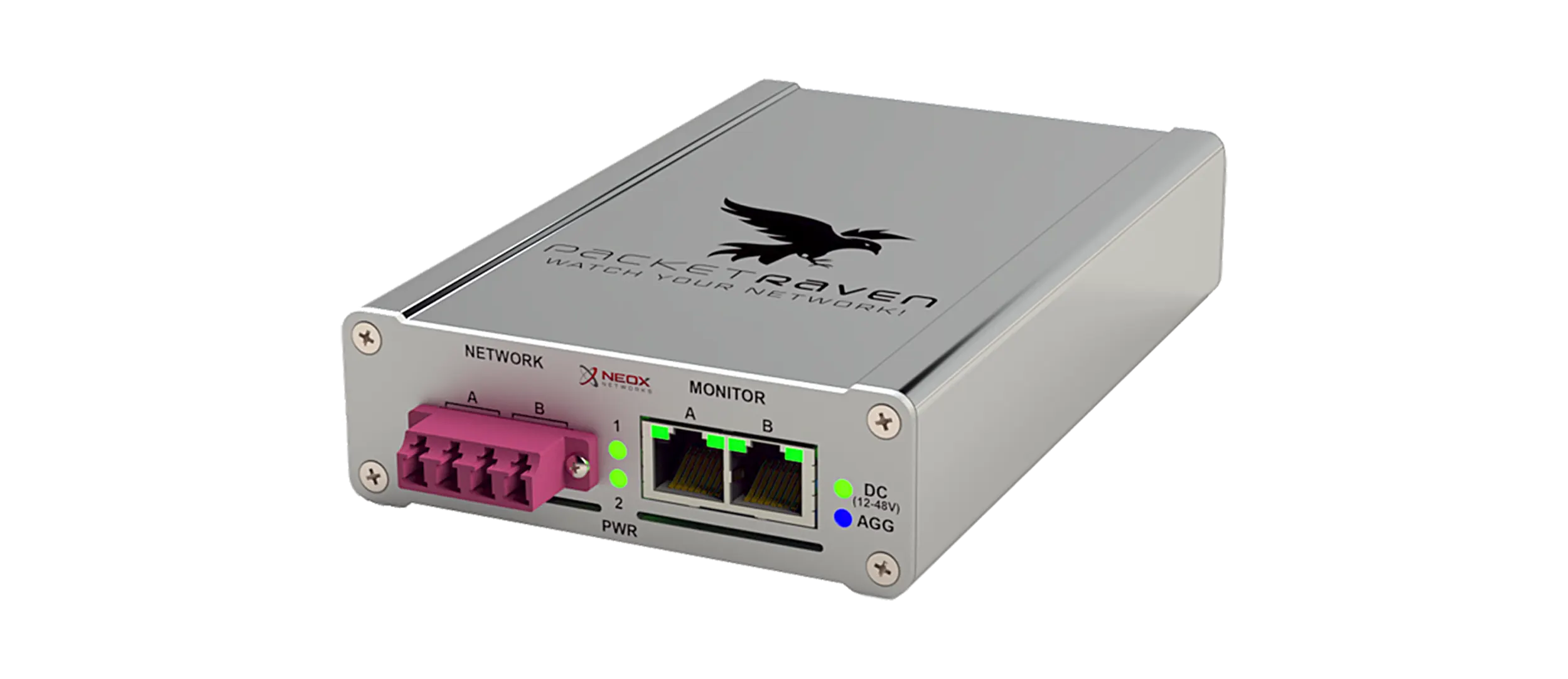

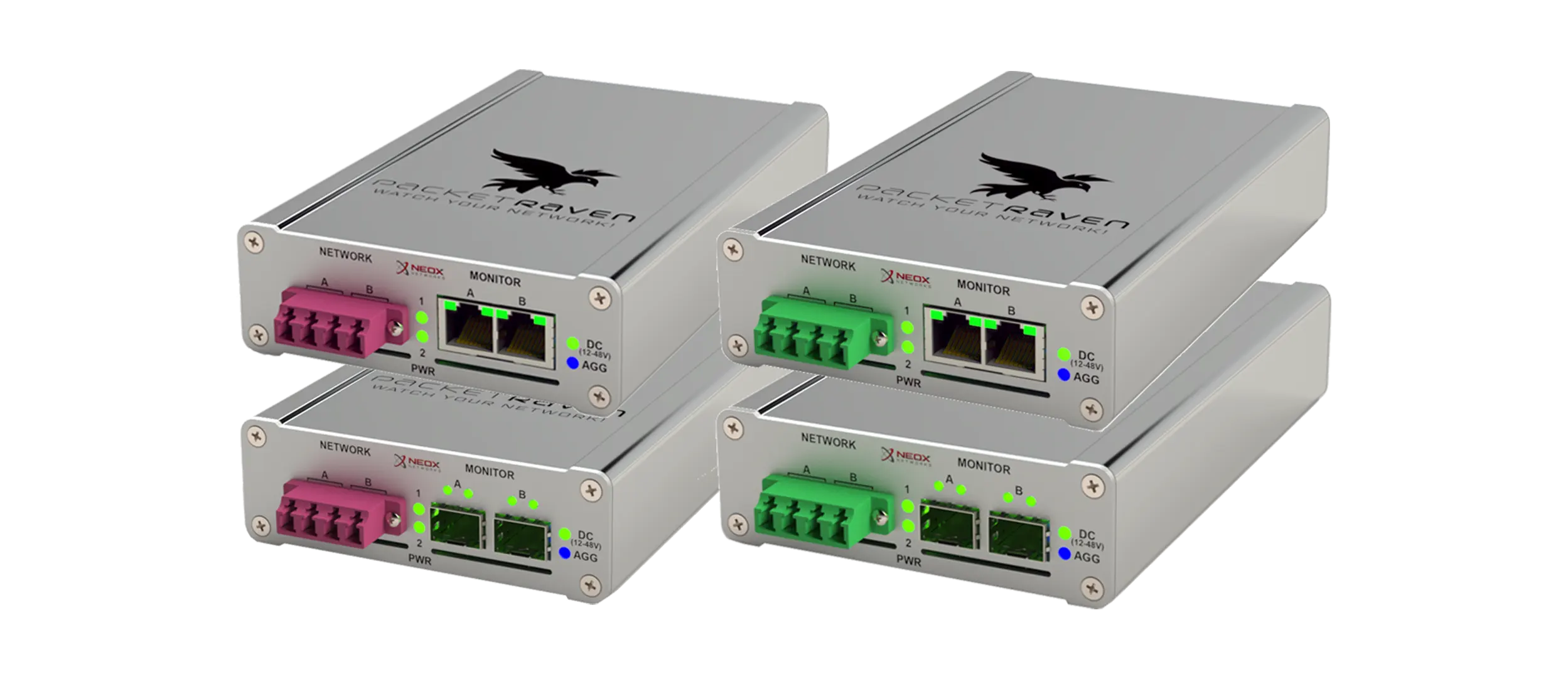

Hybrid Fiber TAPs with media conversion and signal regeneration are decoupling elements for passive, secure and reliable tapping of network data in optical networks. These TAPs are looped into the fibreoptic line to be monitored and route out the entire data traffic while maintaining data integrity, without interruption and without packet loss.
Furthermore, our hybrid TAPs are passive on the network side, which means that there is no interruption of network traffic in the event of a power failure. In order to ensure the highest possible reliability on the monitoring side, our hybrid Fiber TAPs have redundant power supplies, but can also be additionally operated and protected with 12-48V DC voltage.
These Taps also work like a data diode and the monitoring ports are physically isolated from the network ports, which prevents access to the network via the monitoring ports on the hardware side for security reasons. Therefore, our hybrid Fiber TAPs guarantee a reliable network analysis or security investigation without compromise.
This range of our PacketRaven TAPs is designed as portable TAPs, but can also be installed in a 19“ mounting frame in data centres via a mounting kit and support a network speed of 1G (1000Base-LX/1000Base-ZX).
HIGHLIGHTS
- Secure, rock-solid FPGA-based design
- 1000Base-LX and 1000Base-ZX – supported network speed: 1G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible on the network, no IP address, no MAC address, cannot be hacked
- Guaranteed no packet loss
- Power supply via redundant 5V AC/DC power supply and/or 12-48V DC voltage
- 100% passive without affecting the active network connection, no additional latency
- Available in different split ratios – e.g. 50:50, 60:40, 70:30, 80:20, 90:10
- Support breakout, aggregation and regeneration mode
- 100% reaction-free due to galvanic isolation (data diode function)
- Plug-n-Play – Operating mode change via DIP switch
- Supports up to 16k Jumbo Frames
- Various mounting options available
- Designed, assembled, certified and tested in Germany
MODELS - STANDARD
HYBRID SINGLEMODE FIBER TAP MODELS – STANDARD | ||||||||
---|---|---|---|---|---|---|---|---|
All TAPs for fiber type OS2 are also OS1 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
||||||||
Article No. | Standard(s) | Network | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | ||
PRP-OS2-SLC | 1000Base-LX | 1G | OS2 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | |
PRP-OS2-SLS | 1000Base-LX | 1G | OS2 | 1310 nm | 50:50, 60:40 or 70:30 | LC | SFP | |
PRP-OS2-SLZC | 1000Base-ZX | 1G | OS2 | 1550 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | |
PRP-OS2-SLZS | 1000Base-ZX | 1G | OS2 | 1550 nm | 50:50, 60:40 or 70:30 | LC | SFP |
MODELS - HARDENED
HYBRID SINGLEMODE FIBER TAP MODELS – HARDENED | ||||||||
---|---|---|---|---|---|---|---|---|
All TAPs for fiber type OS2 are also OS1 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
||||||||
Article No. | Standard(s) | Network | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | OPERATING MODE(S) | |
PRP-OS2-SLC-1GA-S | 1000Base-LX | 1G | OS2 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation, Breakout, Regeneration |
PRP-OS2-SLC-1GAO-S | 1000Base-LX | 1G | OS2 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation |
PRP-OS2-SLC-1GBO-S | 1000Base-LX | 1G | OS2 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Breakout |
PRP-OS2-SLZC-1GA-S | 1000Base-ZX | 1G | OS2 | 1550 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation, Breakout, Regeneration |
PRP-OS2-SLZC-1GAO-S | 1000Base-ZX | 1G | OS2 | 1550 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation |
PRP-OS2-SLZC-1GBO-S | 1000Base-ZX | 1G | OS2 | 1550 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Breakout |
DIMENSION, WEIGHT & CERTIFICATIONS
DIMENSIONS (WxHxD) / WEIGHT | CERTIFICATIONS |
---|---|
10.60 cm x 3.50 cm x 16.40 cm / ca. 0.5 kg | CE, FCC, RoHS, WEEE, EN 55032 KL. A/B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 50121-4:2016*, EN 50129* |
* Hardened TAPs
MAXIMUM INSERTION LOSS
MAXIMUM INSERTION LOSS | |||
---|---|---|---|
Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
Singlemode OS1, OS2 | 3.4 dB / 3.4 dB | 2.5 dB / 4.5 dB | 1.7 dB / 5.8 dB |

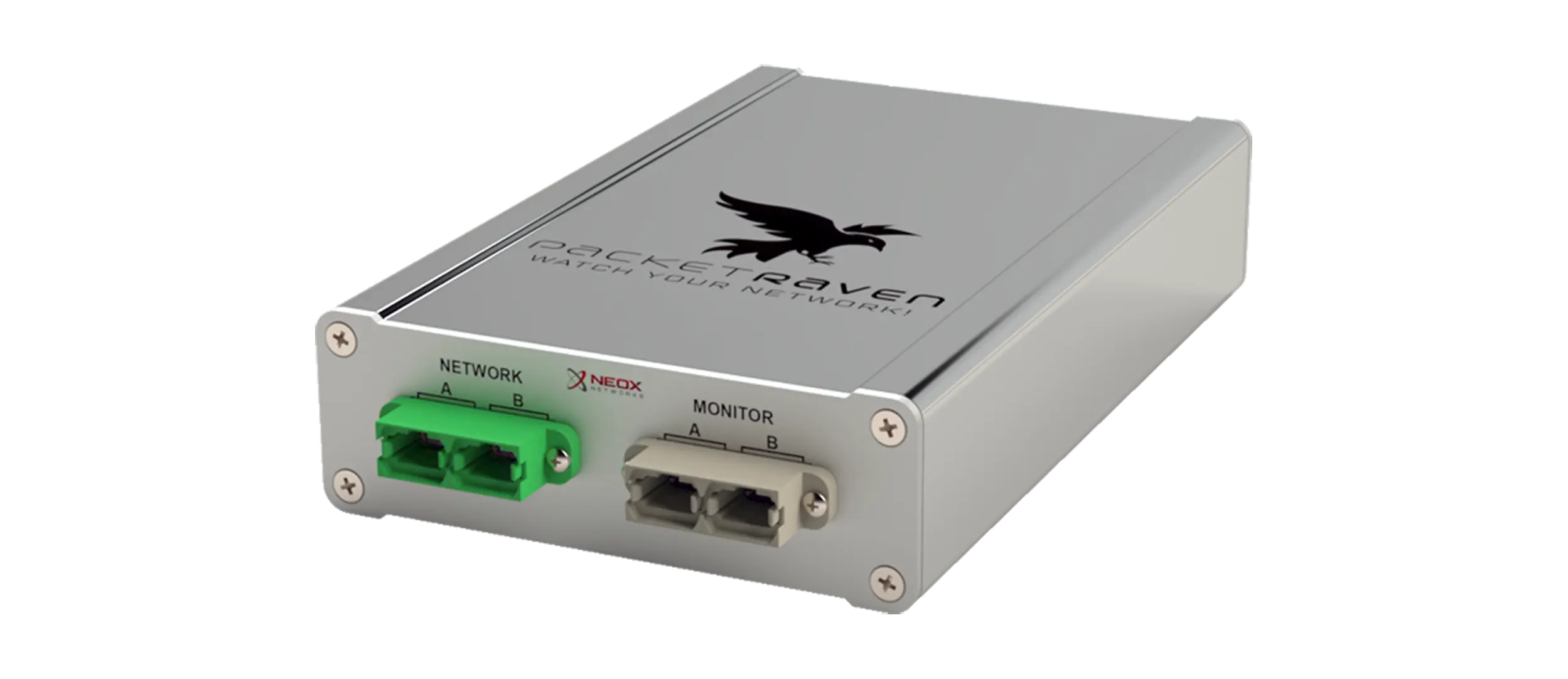

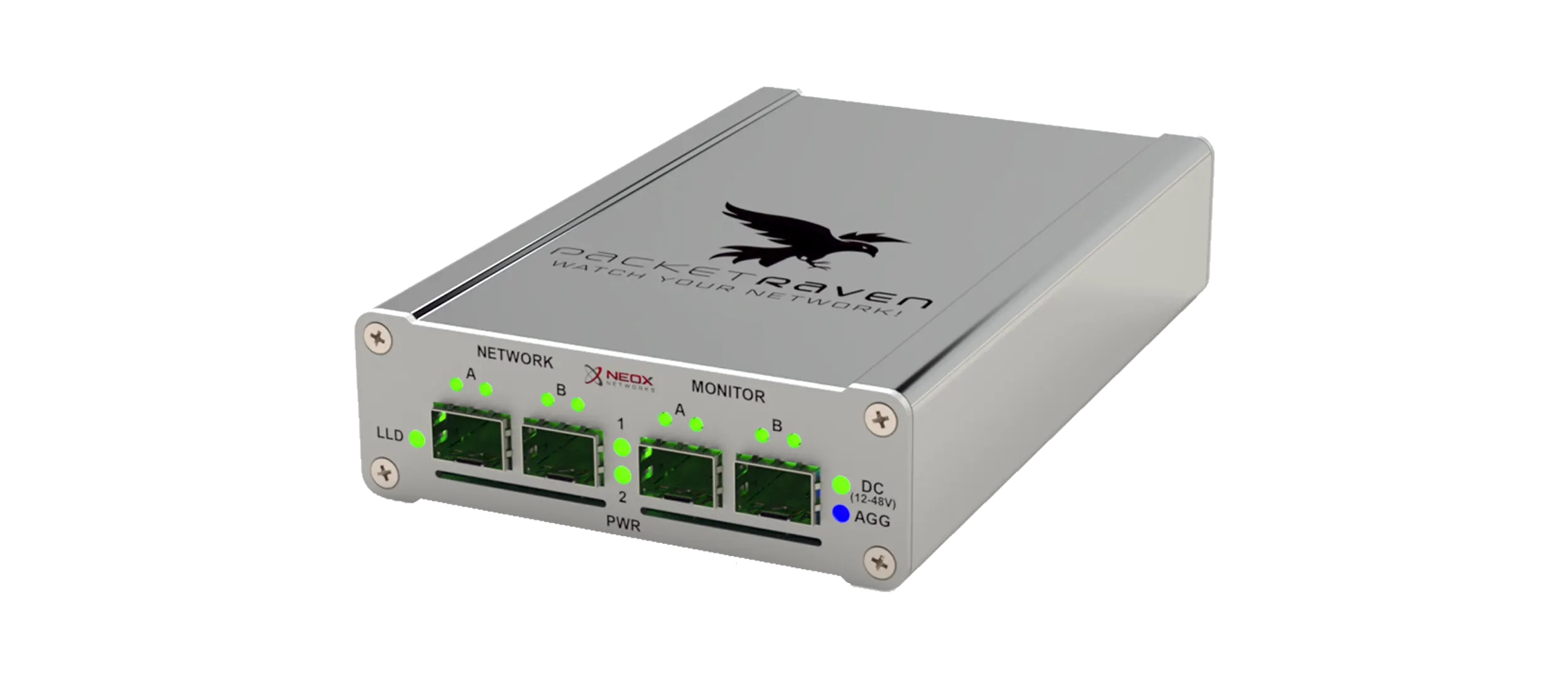

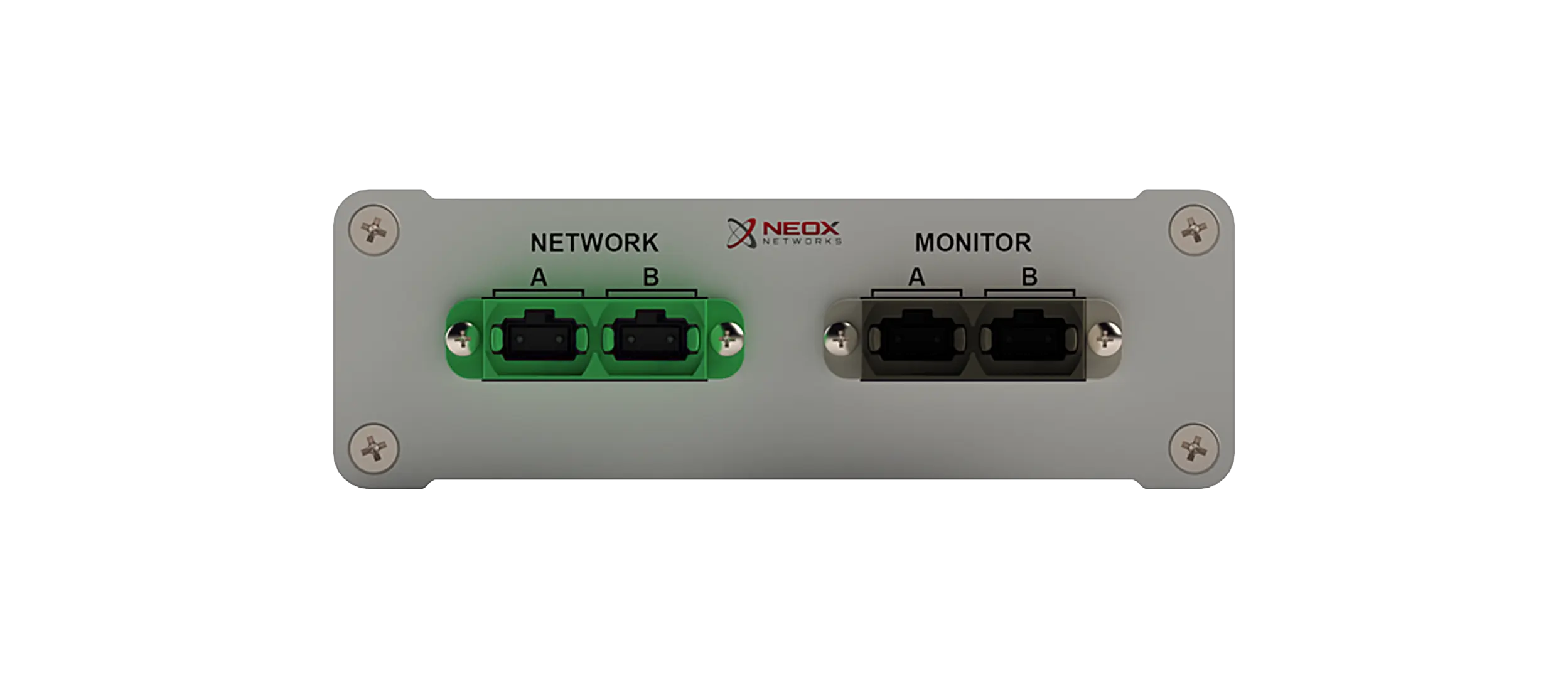

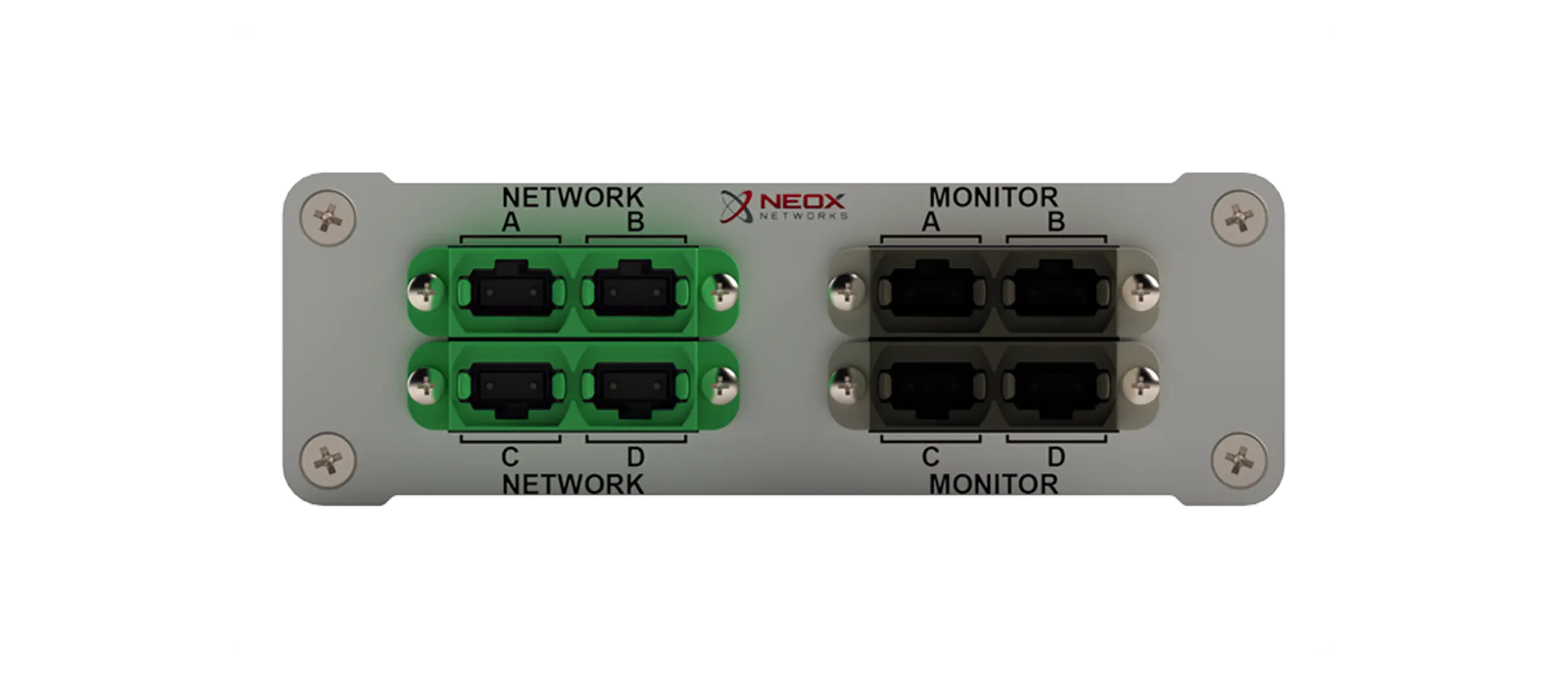

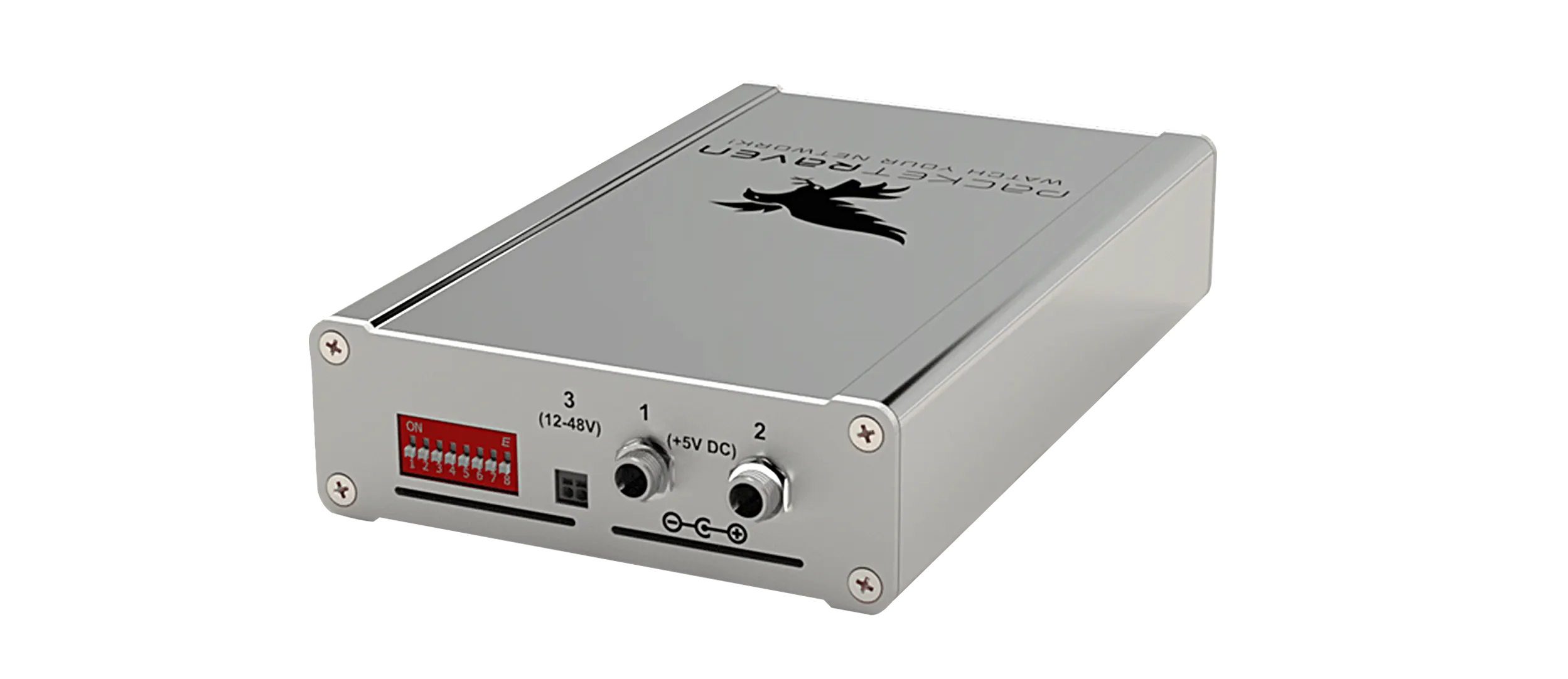

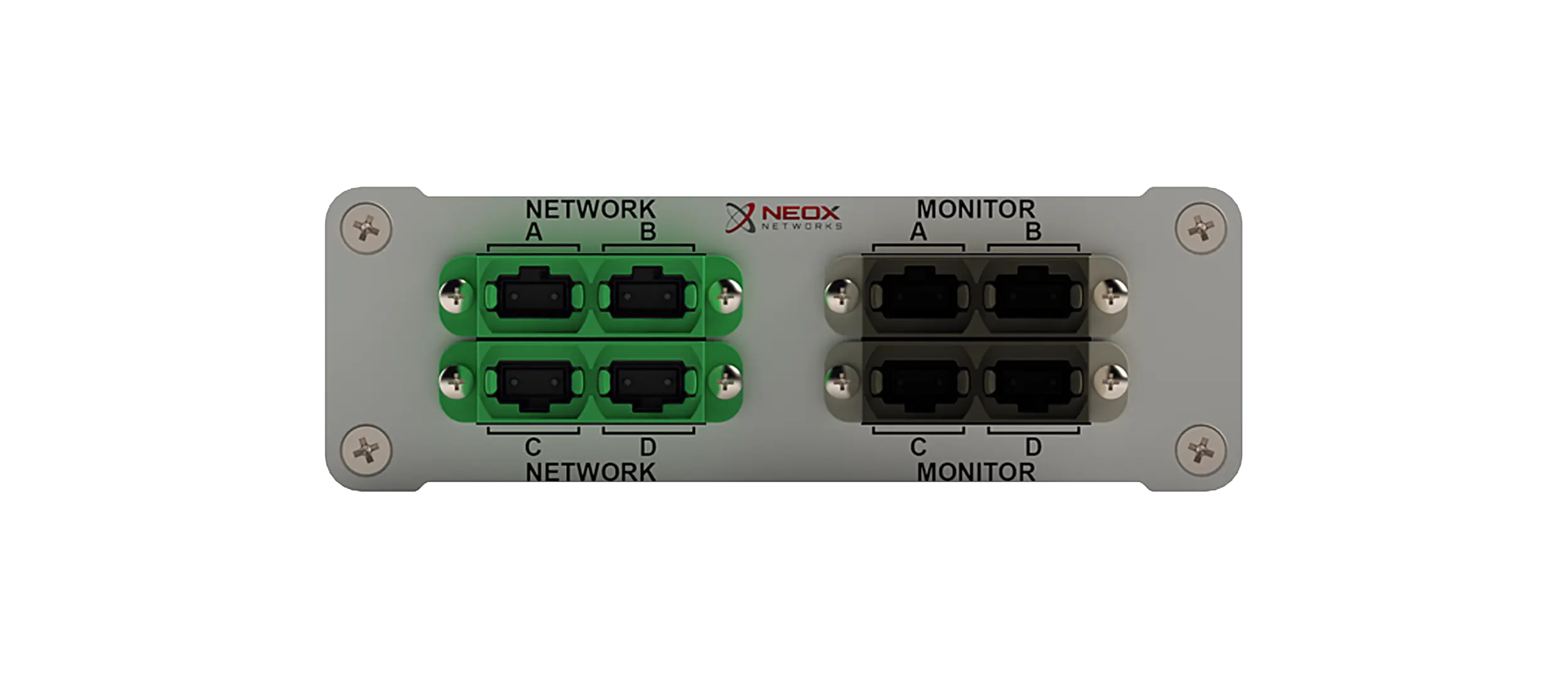

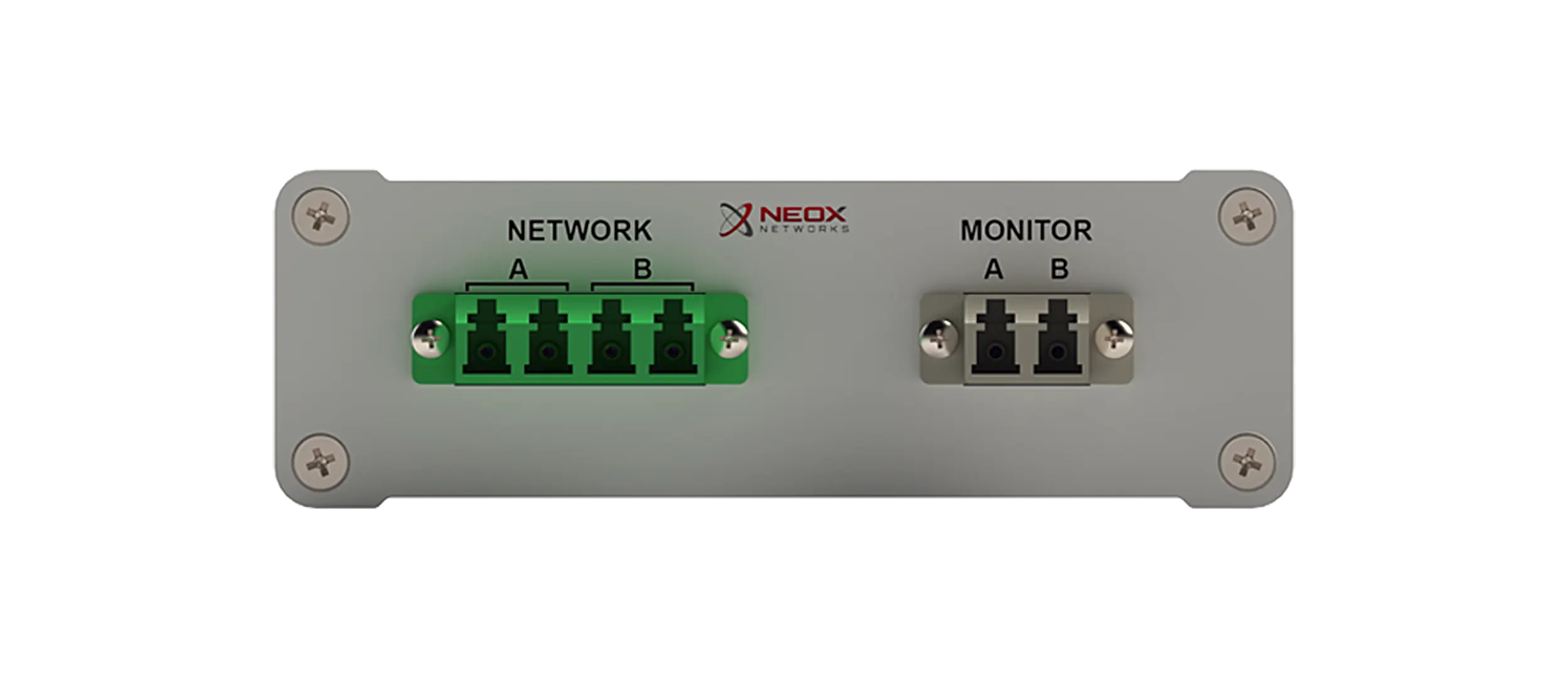

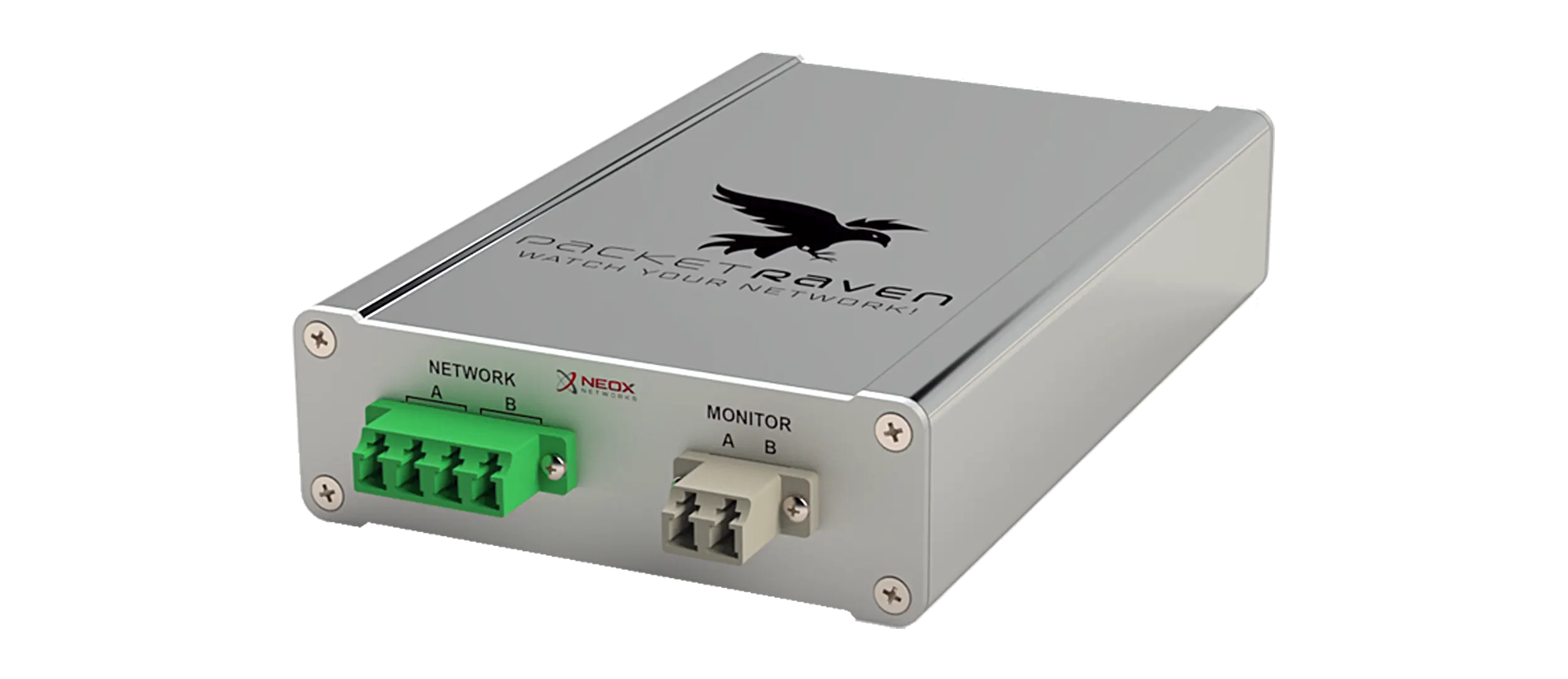

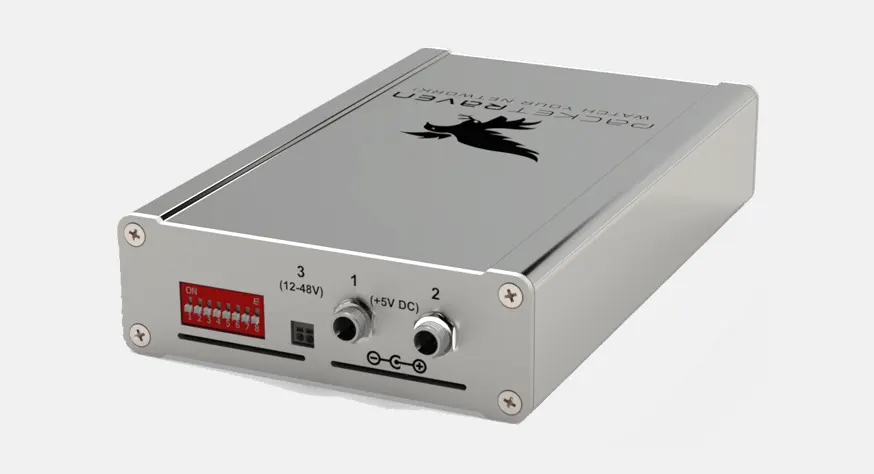

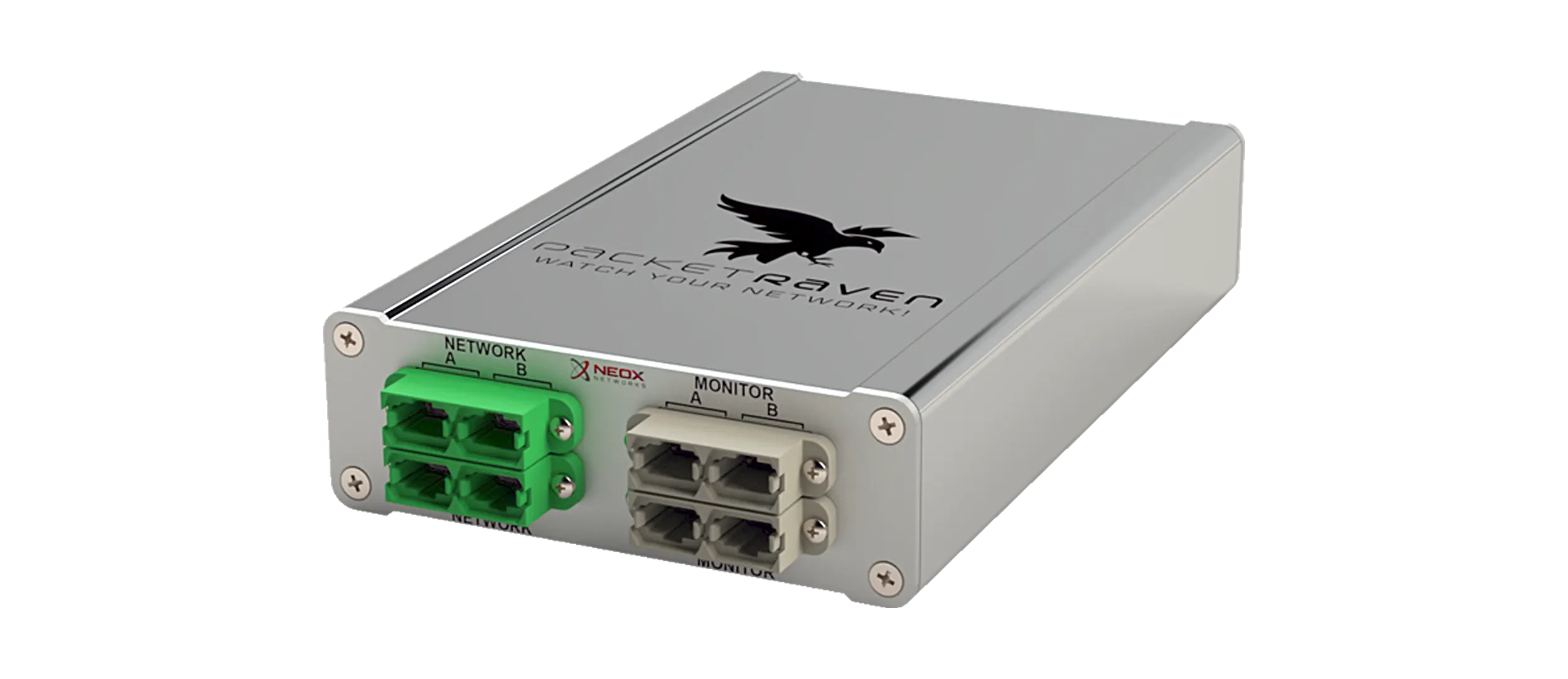

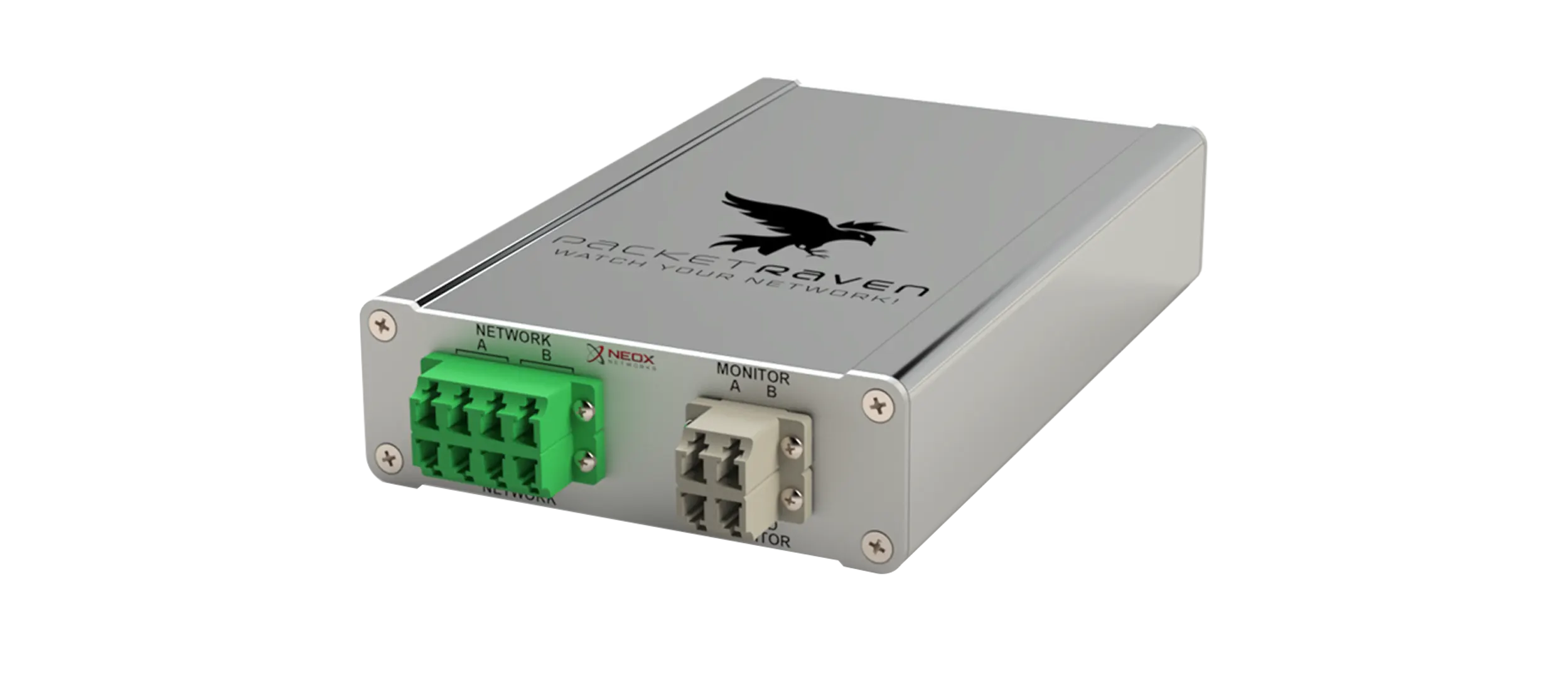

Fiber 100M-400G Multimode Portable Network TAP
OVERVIEW
PacketRaven Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our Fibre TAPs do not have a MAC or IP address, but work on OSI Layer 1, and are therefore not detectable in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
PacketRaven Fiber TAPs are designed as portable TAPs, but can also be installed in data centers via a mounting kit in a 19″ rack, and support network speeds up to 400G.
With PacketRaven Fiber TAPs you get permanent network access without risk and provide e.g. your monitoring tools with 100% reliable network data without introducing a single point of failure. Because your network security tool is only as good as the data source!
HIGHLIGHTS
- Supported network speeds: 1G, 2.5G, 5G, 10G, 25G, 40G, 50G, 100G, 200G and 400G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible on the network, no IP address, no MAC address, cannot be hacked
- Guaranteed no packet loss
- 100% passive without affecting the active network connection, no additional latency
- Available in different split ratios – e.g. 50:50, 60:40, 70:30, 80:20, 90:10
- No power supply needed, 100% passive
- Simple configuration via DIP switches
- Plug-n-Play
- Supports up to 16k Jumbo Frames
- Various mounting options available
- Designed, assembled, certified and tested in Germany
MODELS - STANDARD - OM4
OM4 MULTIMODE FIBER TAP MODELS – STANDARD | |||||||
---|---|---|---|---|---|---|---|
All TAPs for fiber type OM4 are also OM3 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||||
Article No. | Network | Fiber type | Wave- length | Split Ratio | Interface NET. / MON. | TAP Version | |
PRP-OM4-SLL | 100M/1G/ 10G/25G | OM4 | 850 / 1310 nm | 50:50, 60:40 or 70:30 | LC | LC | Single-TAP |
PRP-OM4-DLL | 100M/1G/ 10G/25G | OM4 | 850 / 1310 nm | 50:50, 60:40 or 70:30 | LC | LC | Dual-TAP |
PRP-OM4-SMM | 100M/1G/10G/ 25G/40G/50G/100G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | MTP® | MTP® | Single-TAP |
PRP-OM4-DMM | 100M/1G/10G/ 25G/40G/50G/100G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | MTP® | MTP® | Dual-TAP |
MODELS - STANDARD - OM5
OM5 MULTIMODE FIBER TAP MODELS – STANDARD | |||||||
---|---|---|---|---|---|---|---|
All TAPs for fiber type OM5 are also OM4 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||||
Article No. | Network | Fiber type | Wave- length | Split Ratio | Interface NET. / MON. | TAP Version | |
PRP-OM5-SLL | 100M/1G/10G/25G/40G/50G/100G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | LC | LC | Single-TAP |
PRP-OM5-DLL | 100M/1G/10G/25G/40G/50G/100G | OM5 | 850 – 950 nm | 50:50, 60:40 or 70:30 | LC | LC | Dual-TAP |
PRP-OM5-SMM | 100M/1G/10G/25G/40G/ 50G/100G/200G/400G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | MTP® | MTP® | Single-TAP |
PRP-OM5-DMM | 100M/1G/10G/25G/40G/ 50G/100G/200G/400G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | MTP® | MTP® | Dual-TAP |
MODELS - SECURE - OM4
MULTIMODE OM4 FIBER TAP MODELS – SECURE | |||||||
---|---|---|---|---|---|---|---|
All TAPs for fiber type OM4 are also OM3 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||||
Article No. | Network | Fiber type | Wave- length | Split Ratio | Interface NET. / MON. | TAP Version | |
PRP-OM4-SLL-S | 100M/1G/ 10G/25G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | LC | LC | Single TAP |
PRP-OM4-DLL-S | 100M/1G/ 10G/25G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | LC | LC | Dual TAP |
PRP-OM4-SMM-S | 100M/1G/10G/ 25G/40G/50G/100G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | MTP® | MTP® | Single TAP |
PRP-OM4-DMM-S | 100M/1G/10G/ 25G/40G/50G/100G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | MTP® | MTP® | Dual TAP |
MODELS - SECURE - OM5
MULTIMODE OM5 FIBER TAP MODELS – SECURE | |||||||
---|---|---|---|---|---|---|---|
All TAPs for fiber type OM5 are also OM4 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||||
Article No. | Network | Fiber type | Wavelength | Split Ratio | Interface NET. / MON. | TAP Version | |
PRP-OM5-SLL-S | 100M/1G/10G/25G/ 40G/50G/100G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | LC | LC | Single TAP |
PRP-OM5-DLL-S | 100M/1G/10G/25G/ 40G/50G/100G | OM5 | 850 – 950 nm | 50:50, 60:40 or 70:30 | LC | LC | Dual TAP |
PRP-OM5-SMM-S | 100M/1G/10G/25G/40G/ 50G/100G/200G/400G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | MTP® | MTP® | Single TAP |
PRP-OM5-DMM-S | 100M/1G/10G/25G/40G/ 50G/100G/200G/400G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | MTP® | MTP® | Dual TAP |

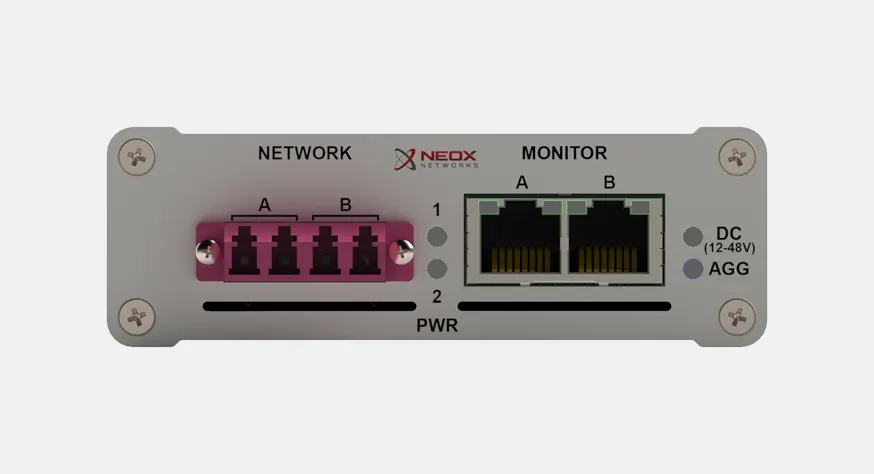

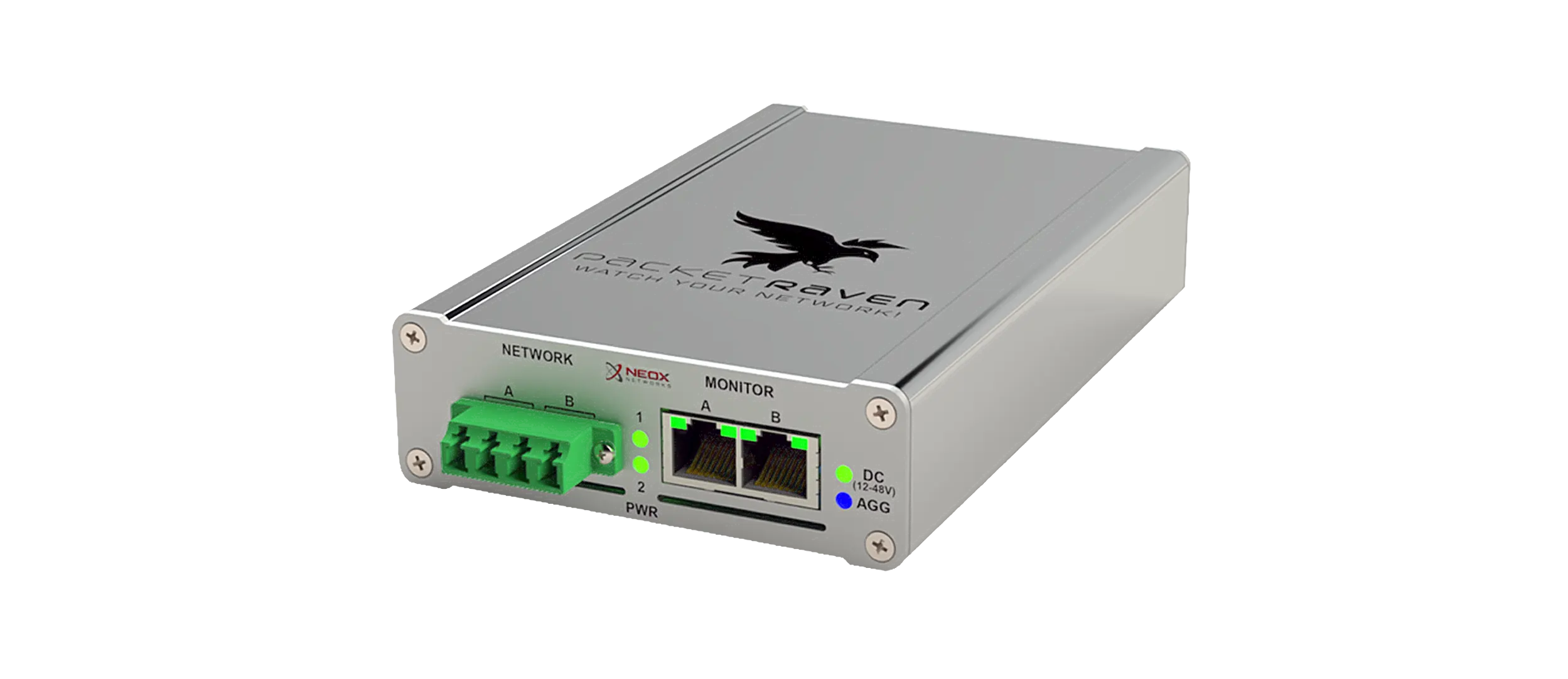

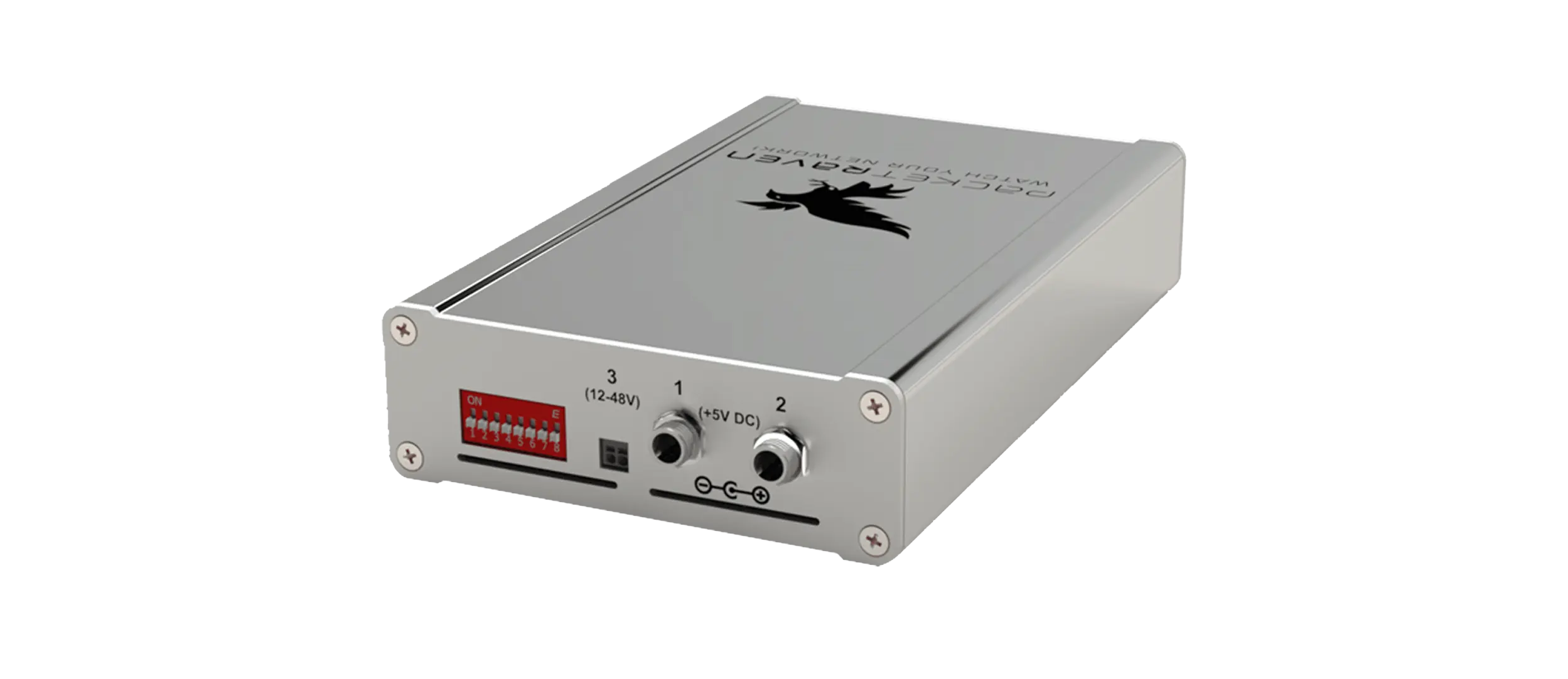

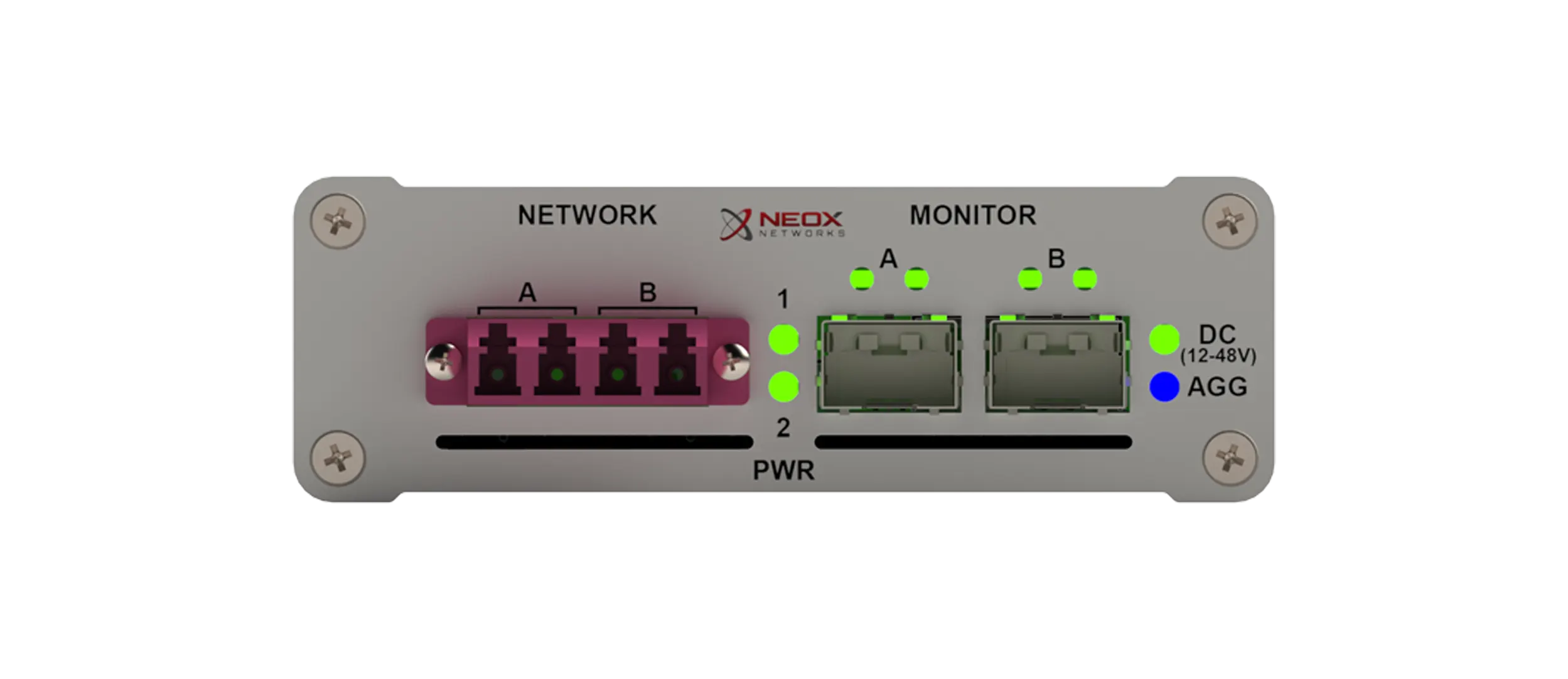

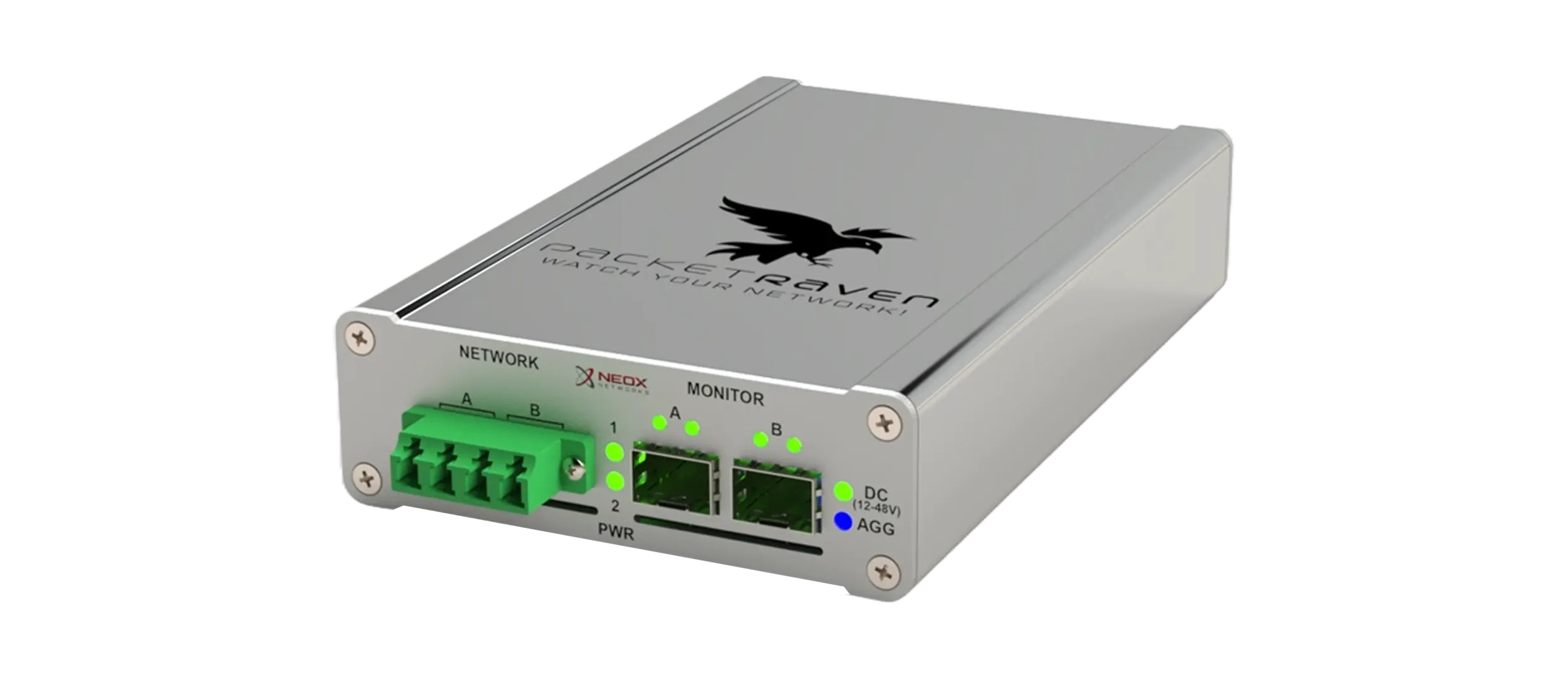

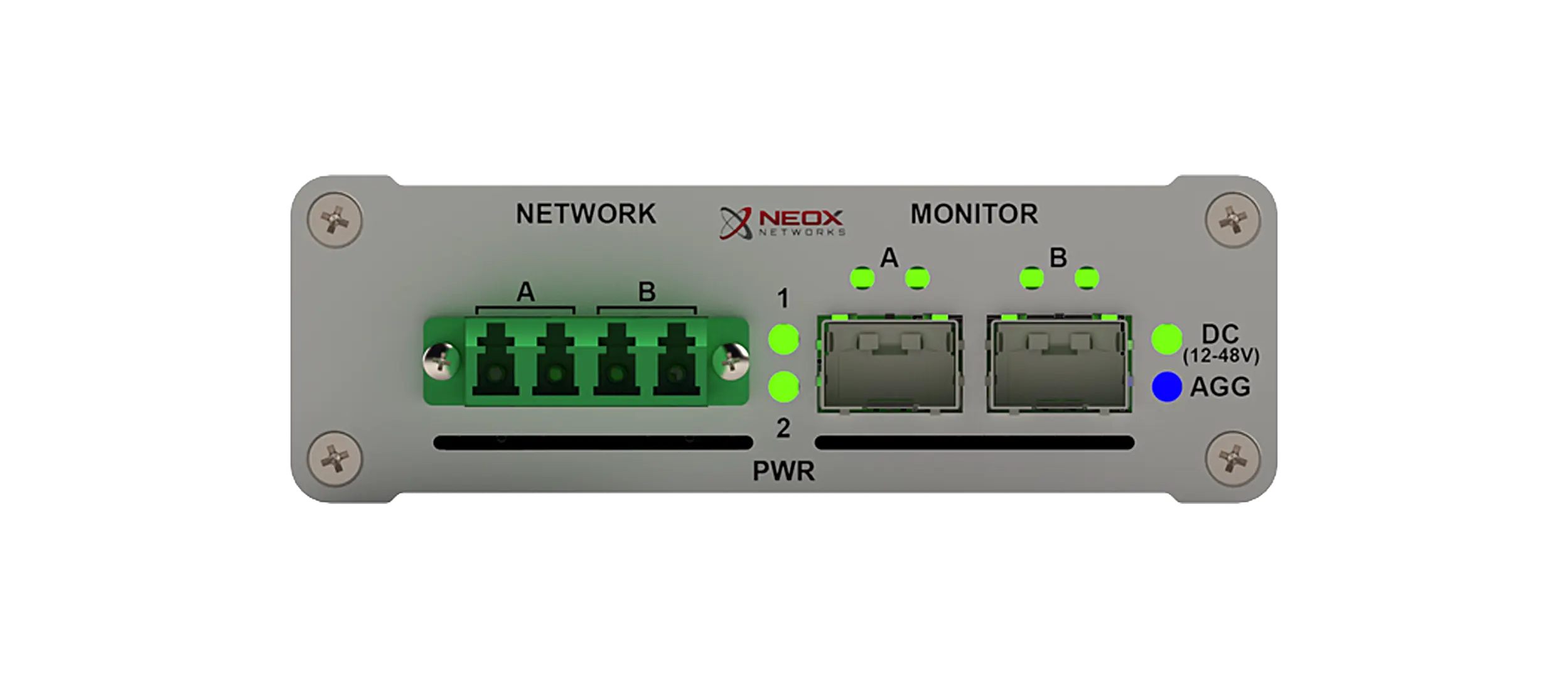

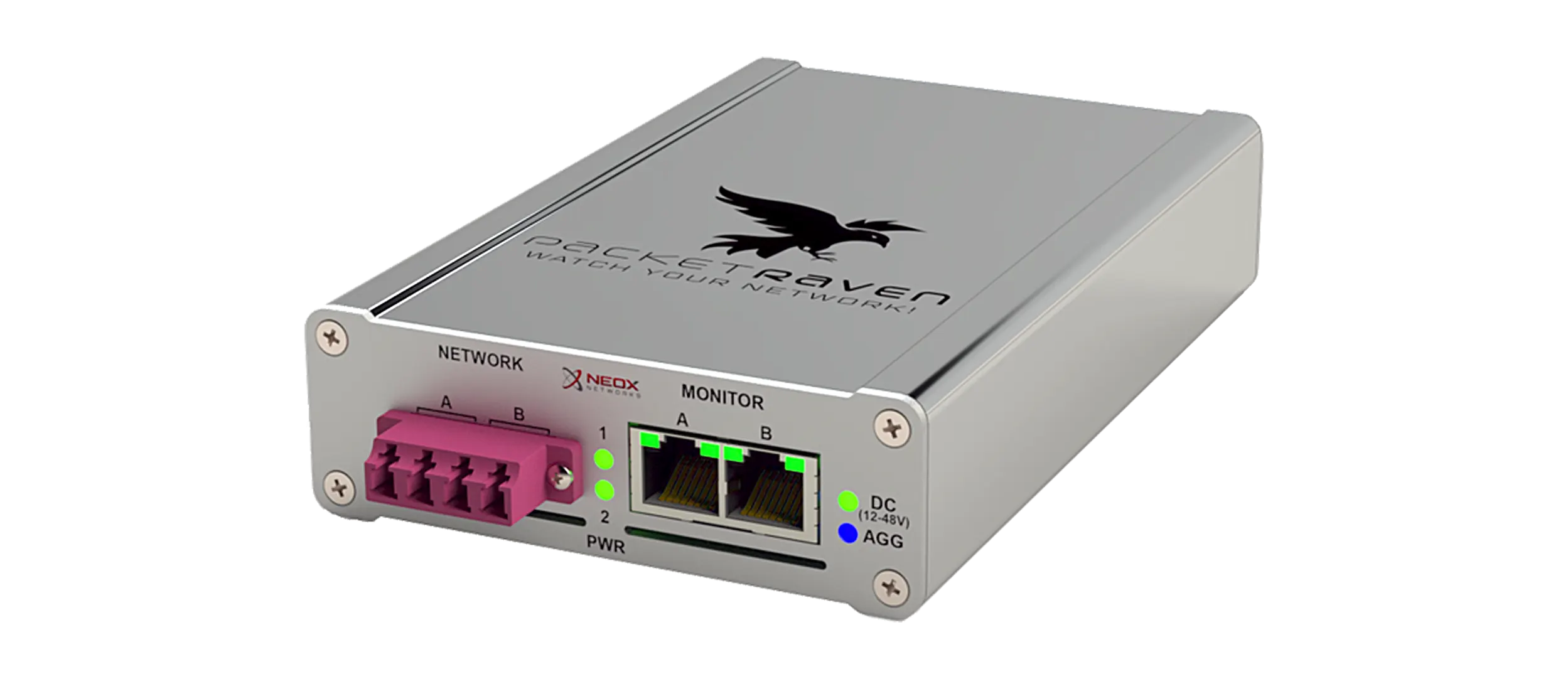

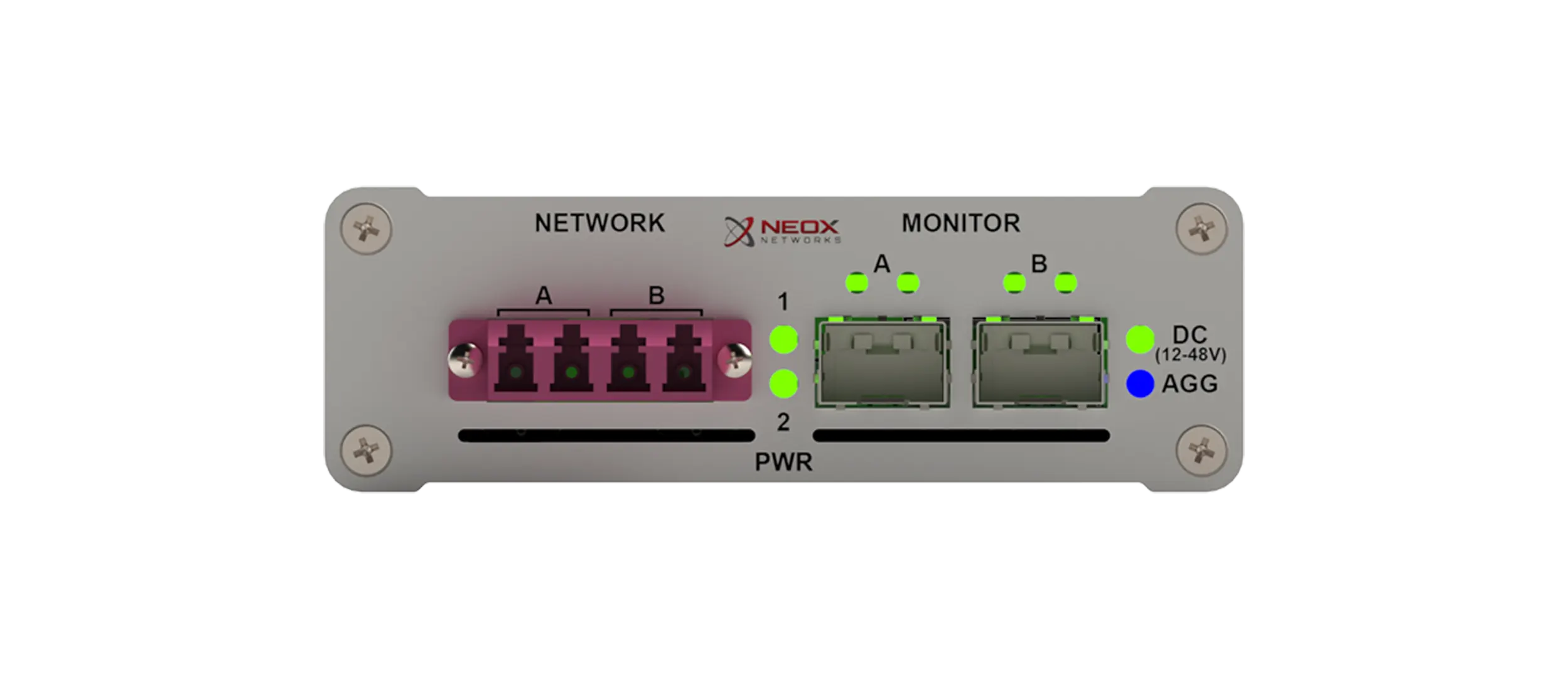

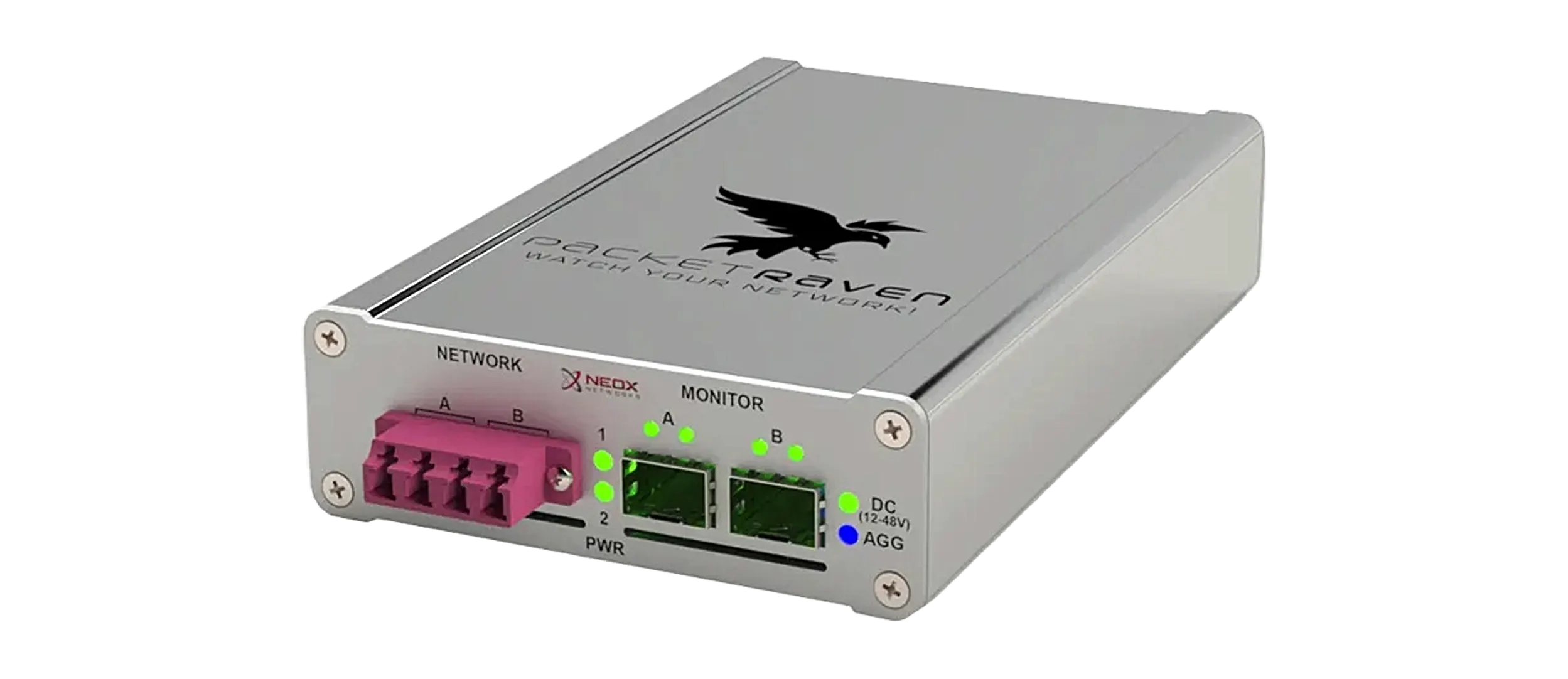

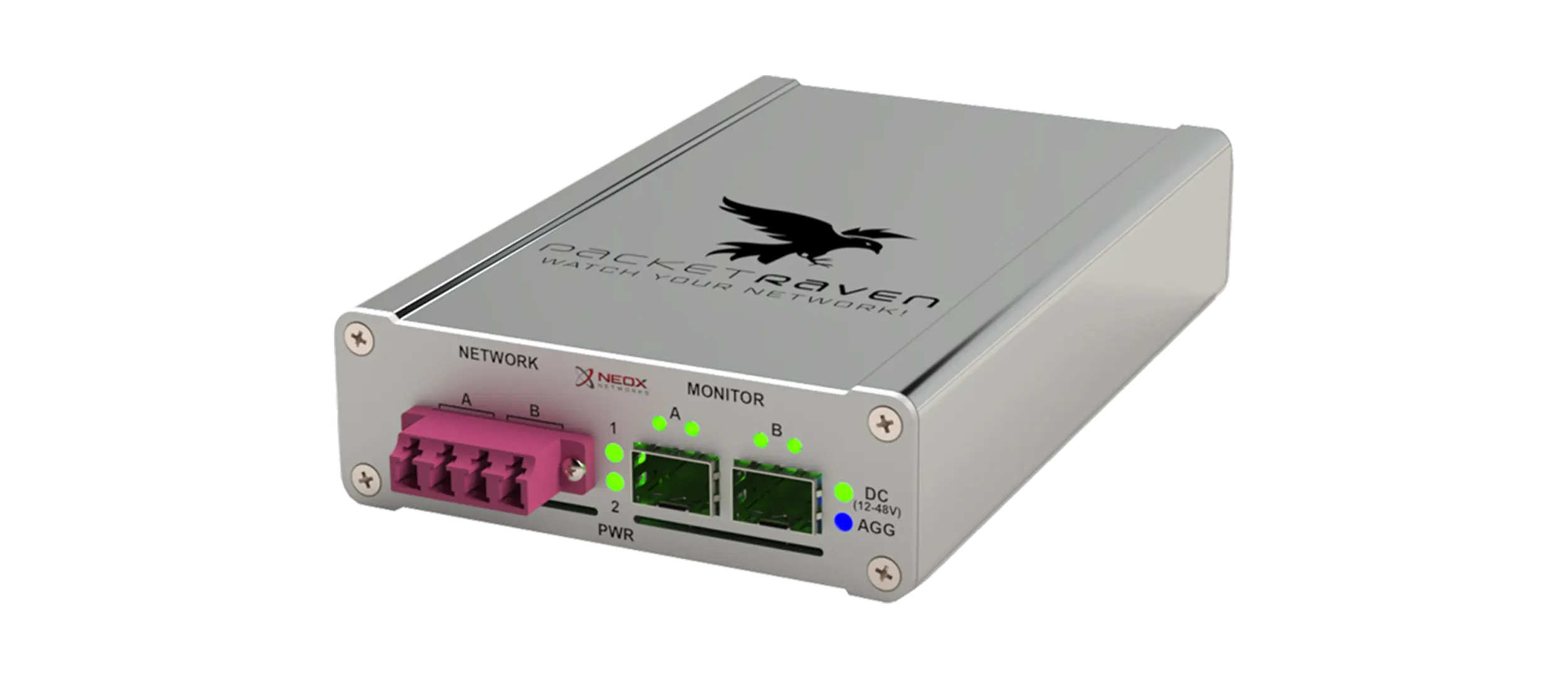

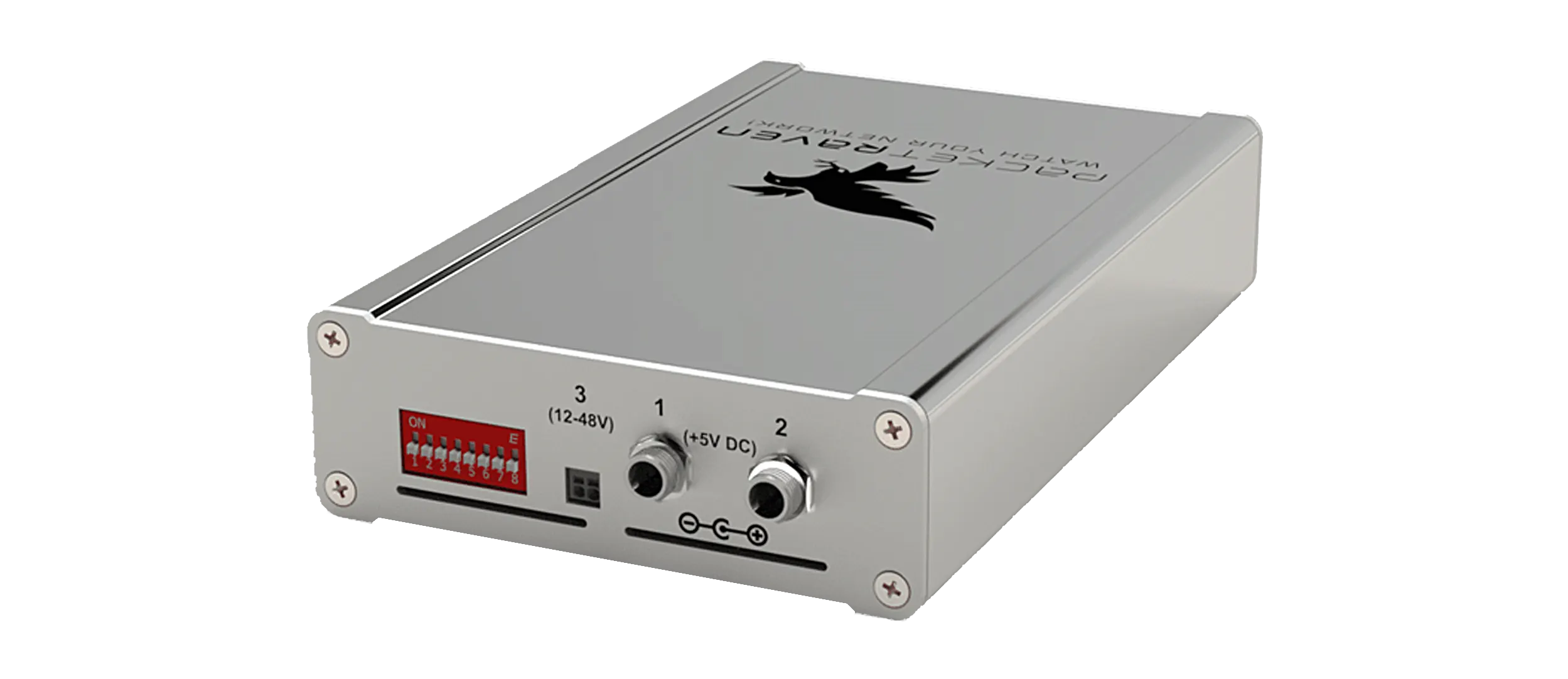

Fiber Hybrid 100M & 1G Multimode Portable Network TAP + Data Diode
OVERVIEW
Hybrid Fiber TAPs with media conversion and signal regeneration are decoupling elements for passive, secure and reliable tapping of network data in optical networks. These TAPs are looped into the fibreoptic line to be monitored and route out the entire data traffic while maintaining data integrity, without interruption and without packet loss.
Furthermore, our hybrid TAPs are passive on the network side, which means that there is no interruption of network traffic in the event of a power failure. In order to ensure the highest possible reliability on the monitoring side, our hybrid Fiber TAPs have redundant power supplies, but can also be additionally operated and protected with 12-48V DC voltage.
These Taps also work like a data diode and the monitoring ports are physically isolated from the network ports, which prevents access to the network via the monitoring ports on the hardware side for security reasons. Therefore, our hybrid Fiber TAPs guarantee a reliable network analysis or security investigation without compromise.
This range of our PacketRaven TAPs is designed as portable TAPs, but can also be installed in a 19“ mounting frame in data centres via a mounting kit and support a network speed of 100Mbps (100Base-FX) or 1G (1000Base-SX).
HIGHLIGHTS
- Secure, rock-solid FPGA-based design
- Support100M Multimode 100Base-FX and 1G Multimode 1000Base-SX
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible on the network, no IP address, no MAC address, cannot be hacked
- Guaranteed no packet loss
- Power supply via redundant 5V AC/DC power supply and/or 12-48V DC voltage
- Available in different split ratios – e.g. 50:50, 60:40, 70:30, 80:20, 90:10
- 100% passive without affecting the active network connection, no additional latency
- Support breakout, aggregation and regeneration mode
- 100% reaction-free due to galvanic isolation (data diode function)
- Plug-n-Play – Operating mode change via DIP switch
- Supports up to 16k Jumbo Frames
- Various mounting options available
- Designed, assembled, certified and tested in Germany
MODELS - STANDARD - OM3
HYBRID OM3 MULTIMODE FIBER TAP MODELS – STANDARD | |||||||
---|---|---|---|---|---|---|---|
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||||
Article No. | Standard | Network | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | |
PRP-OM3FX-SLC | 100Base-FX | 100M | OM3 | 1310 nm | 50:50, 60:40 or 70:30 | LC Multimode | RJ45 |
PRP-OM3FX-SLS | 100Base-FX | 100M | OM3 | 1310 nm | 50:50, 60:40 or 70:30 | LC Multimode | SFP |
MODELS - STANDARD - OM4
HYBRID OM4 MULTIMODE FIBER TAP MODELS – STANDARD | |||||||
---|---|---|---|---|---|---|---|
All TAPs for fiber type OM4 are also OM3 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||||
Article No. | Standard | Network | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | |
PRP-OM4FX-SLC | 100Base-FX | 100M | OM4 | 1310 nm | 50:50, 60:40 or 70:30 | LC Multimode | RJ45 |
PRP-OM4FX-SLS | 100Base-FX | 100M | OM4 | 1310 nm | 50:50, 60:40 or 70:30 | LC Multimode | SFP |
PRP-OM4-SLC | 1000Base-SX | 1G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | LC Multimode | RJ45 |
PRP-OM4-SLS | 1000Base-SX | 1G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | LC Multimode | SFP |
MODELS - STANDARD - OM5
HYBRID OM5 MULTIMODE FIBER TAP MODELS – STANDARD | |||||||
---|---|---|---|---|---|---|---|
All TAPs for fiber type OM5 are also OM4 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
|||||||
Article No. | Standard | Network | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | |
PRP-OM5-SLC | 1000Base-SX | 1G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | LC Multimode | RJ45 |
PRP-OM5-SLS | 1000Base-SX | 1G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | LC Multimode | SFP |
MODELS - HARDENED - OM3
HYBRID OM3 MULTIMODE FIBER TAP MODELS – HARDENED | ||||||||
---|---|---|---|---|---|---|---|---|
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
||||||||
Article No. | Standard | Network | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | OPERATING MODE(S) | |
PRP-OM3FX-SLC-100MA-S | 100Base-FX | 100M | OM3 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation, Breakout, Regeneration |
PRP-OM3FX-SLC-100MAO-S | 100Base-FX | 100M | OM3 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation |
PRP-OM3FX-SLC-100MBO-S | 100Base-FX | 100M | OM3 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Breakout |
MODELS - HARDENED - OM4 100Base-FX
HYBRID OM4 MULTIMODE FIBER TAP MODELS –HARDENE | ||||||||
---|---|---|---|---|---|---|---|---|
All TAPs for fiber type OM4 are also OM3 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
||||||||
Article No. | Standard | Network | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | OPERATING MODE(S) | |
PRP-OM4FX-SLC-100MA-S | 100Base-FX | 100M | OM4 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation, Breakout, Regeneration |
PRP-OM4FX-SLC-100MAO-S | 100Base-FX | 100M | OM4 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation |
PRP-OM4FX-SLC-100MBO-S | 100Base-FX | 100M | OM4 | 1310 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Breakout |
MODELS - HARDENED - OM4 1000Base-SX
OM4 1000BASE-SX MULTIMODE FIBER TAP MODELS – HARDENED | ||||||||
---|---|---|---|---|---|---|---|---|
All TAPs for fiber type OM4 are also OM3 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
||||||||
Article No. | Standard | Net- work | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | OPERATING MODE(S) | |
PRP-OM4-SLC-1GA-S | 1000Base-SX | 1G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation, Breakout, Regeneration |
PRP-OM4-SLC-1GAO-S | 1000Base-SX | 1G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation |
PRP-OM4-SLC-1GBO-S | 1000Base-SX | 1G | OM4 | 850 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Breakout |
MODELS - HARDENED - OM5
OM5 1000BASE-SX MULTIMODE FIBER-TAP MODELS – HARDENED | ||||||||
---|---|---|---|---|---|---|---|---|
All TAPs for fiber type OM5 are also OM4 compatible!
If you need a TAP with DIN rail mounting clip, please order additionally the mounting clip PRP-DIN-CLIP!
If you need a TAP with mounting frame front panel, please order additionally the front panel PRP-1U3-CLIP!
(see “Mounting options“) |
||||||||
Article No. | Standard | Net- work | Fiber Type | Wave- length | Split Ratio | Interface NET. / MON. | OPERATING MODE(S) | |
PRP-OM5-SLC-1GA-S | 1000Base-SX | 1G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation, Breakout, Regeneration |
PRP-OM5-SLC-1GAO-S | 1000Base-SX | 1G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Aggregation |
PRP-OM5-SLC-1GBO-S | 1000Base-SX | 1G | OM5 | 850 nm – 950 nm | 50:50, 60:40 or 70:30 | LC | RJ45 | Breakout |
DIMENSION, WEIGHT & CERTIFICATIONS
DIMENSIONS (WxHxD) / WEIGHT | CERTIFICATIONS |
---|---|
10.60 cm x 3.50 cm x 16.40 cm / ca. 0.5 kg | CE, FCC, RoHS, WEEE, EN 55032 KL. A/B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 50121-4:2016*, EN 50129* |
* Hardened TAPs
MAXIMUM INSERTION LOSS
MAXIMUM INSERTION LOSS | |||
---|---|---|---|
Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
Multimode OM3, OM4, OM5 | 3.8 dB / 3.8 dB | 2.8 dB / 4.8 dB | 2.2 dB / 6.1 dB |

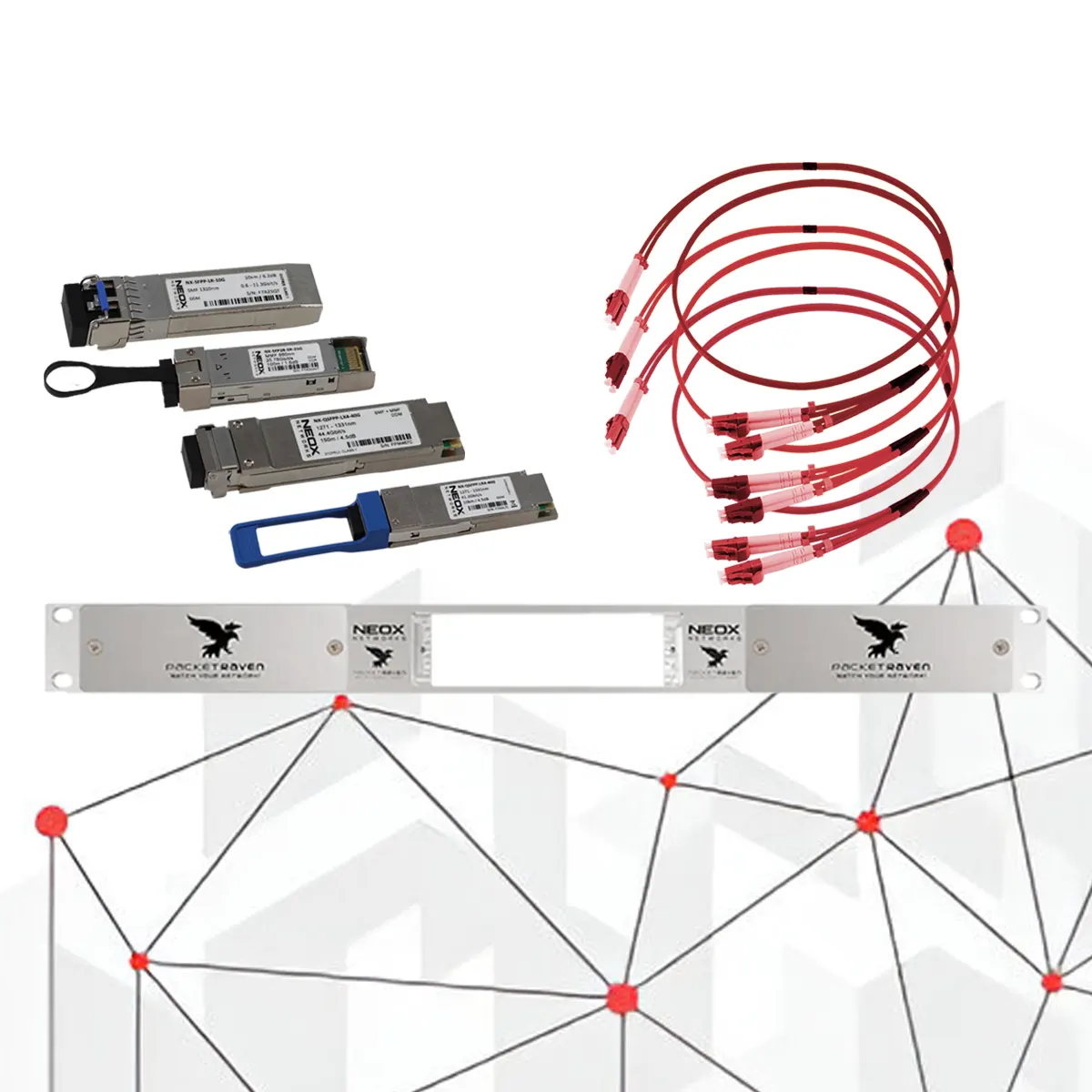

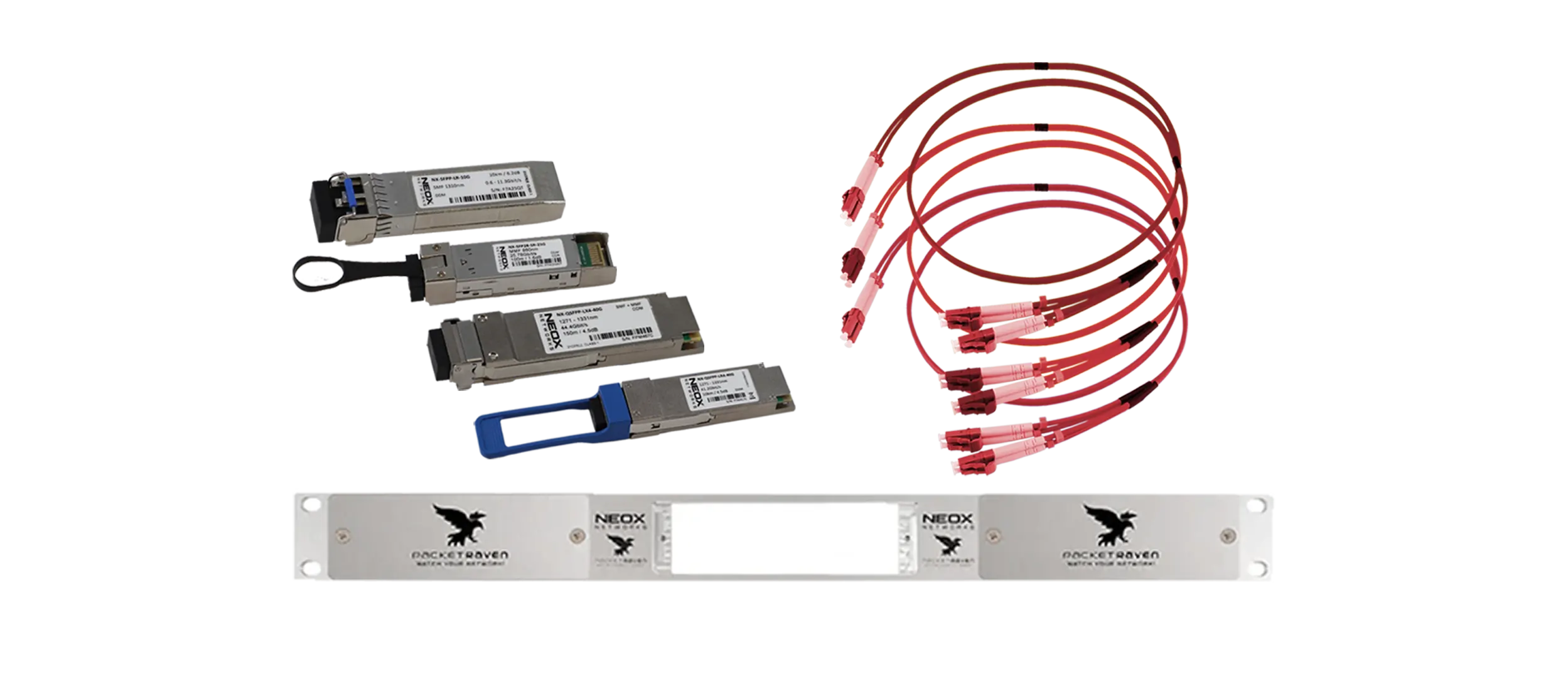

Portable Network TAP ACCESSORIES
RACKMOUNT FRAMES & PLATES
ARTICLE NO. | DESCRIPTION |
---|---|

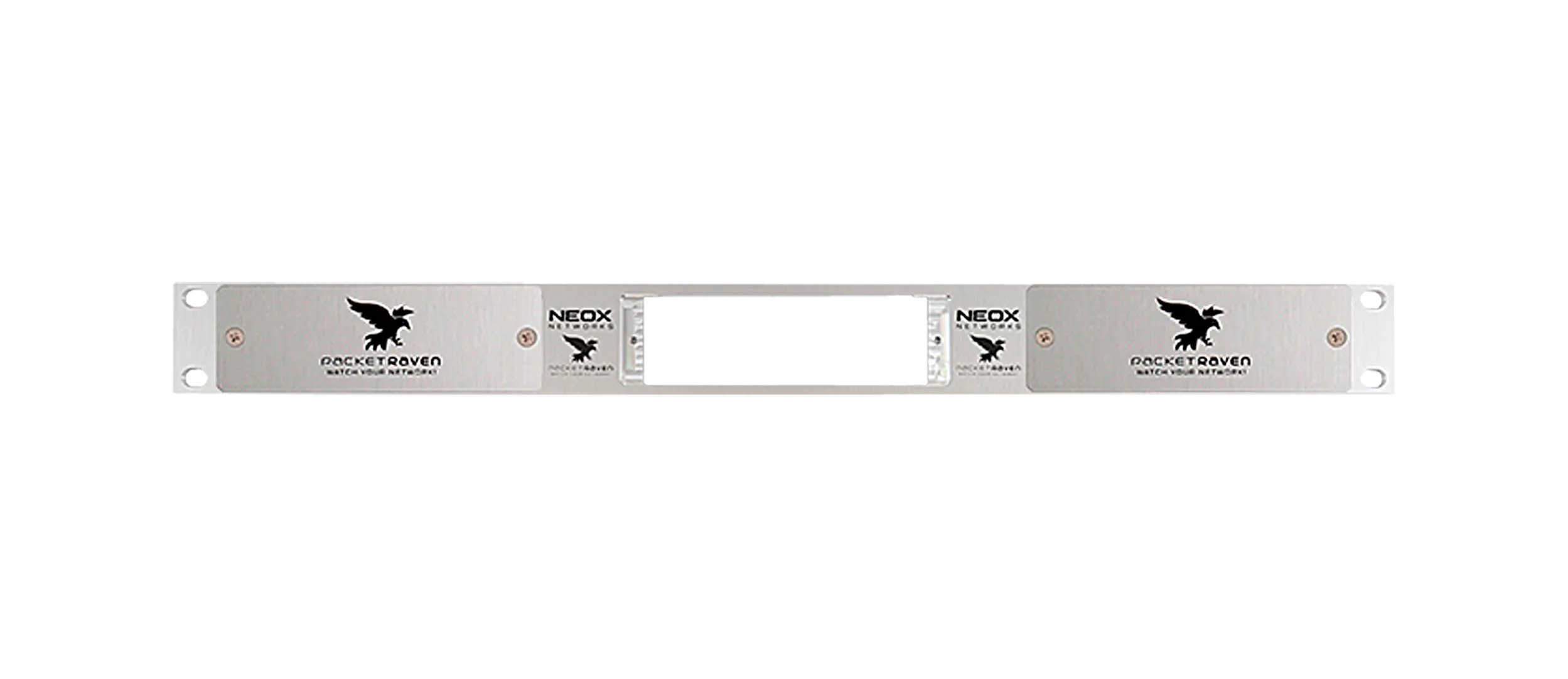

PRP-1U3-V2 | Server rack mounting frame for 3 portable TAPs |
PRP-1U3-BP-V2 | Blank plate for mounting frame (see center in photo) |
PRP-1U3-CLIP | TAP rackmount frame bracket for server rack monuting frame PRP-1U3-V2 |
PRP-DIN-CLIP | TAP DIN rail mounting clip |
POWER SUPPLIES
ARTICLE NO. | DESCRIPTION |
---|---|
PRP-PS-INT | Power supply with with interchangeable EU, UK, and US plug heads (Two of these power supplies are already included with every portable active Network TAP) |
PRP-PS-EU | Power supply with EU plug (head) |
PRP-PS-UK | Power supply with UK plug (head) |
PRP-PS-US | Power supply unit with US plug (head) |
PRP-PS-*-A | Plug head *EU, *UK or *US |
PRP-PS-C14-25W | Switching power supply with C14 socket on input side according to IEC60320, to be connected to PDU via C13-C14 cable |

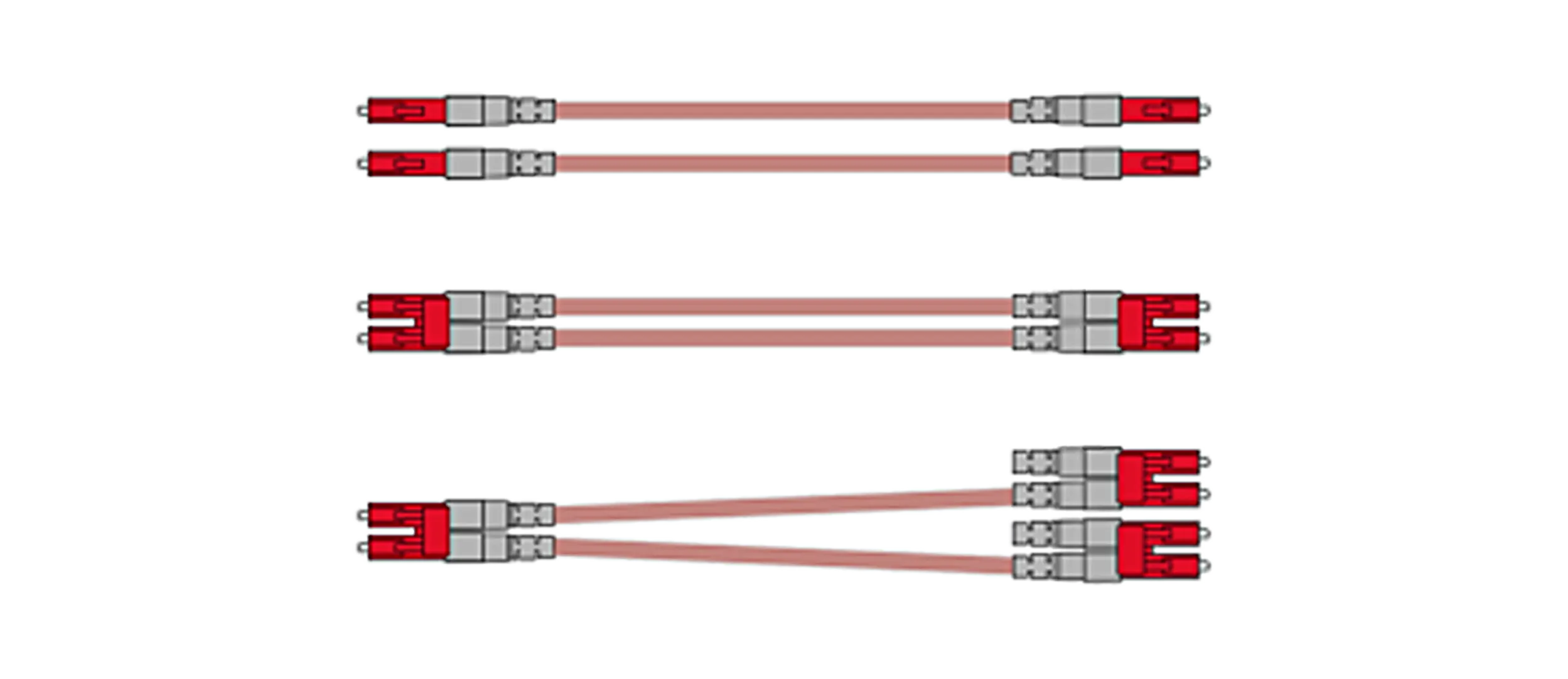

Y - CABLES FOR FIBER NETWORK TAPS
ARTICLE NO. | FIBRE TYPE | DIAMETER | DESCRIPTION | CABLE LENGTH |
---|---|---|---|---|
NX-LC-Y-PC-OS2-1M | OS2* | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 1m |
NX-LC-Y-PC-OS2-2M | OS2* | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 2m |
NX-LC-Y-PC-OS2-3M | OS2* | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 3m |
NX-LC-Y-PC-OS2-5M | OS2* | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 5m |
NX-LC-Y-PC-OM4-1M | OM4 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 1m |
NX-LC-Y-PC-OM4-2M | OM4 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 2m |
NX-LC-Y-PC-OM4-3M | OM4 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 3m |
NX-LC-Y-PC-OM4-5M | OM4 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 5m |
NX-LC-Y-PC-OM5-1M | OM5 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 1m |
NX-LC-Y-PC-OM5-2M | OM5 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 2m |
NX-LC-Y-PC-OM5-3M | OM5 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 3m |
NX-LC-Y-PC-OM5-5M | OM5 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 5m |

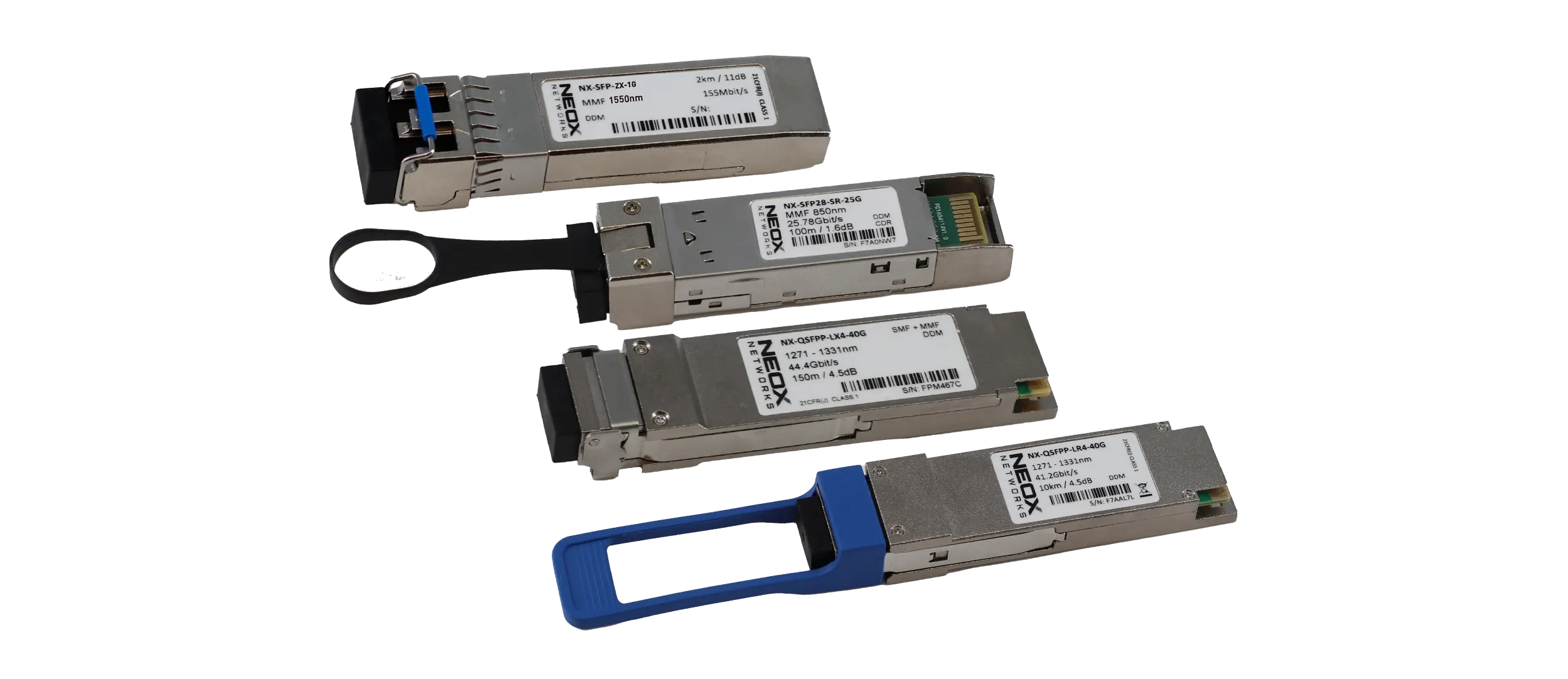

SFP TRANSCEIVERS
NEOXPacketRaven Network TAPs basically support all MSA-compliant SFP transceivers!
A selection of the SFP transceivers we have already tested can be found in our SFP Transceiver Compatibility Overview.
ITEM NO. | LINK | CONNECTOR | OPERATING TEMP. | LLD1 |
---|---|---|---|---|
NX-SFP-TX-1G | 1000Base-T | RJ45 | 0°C to 70°C | |
NX-SFP-SX-1G | 1000Base-SX | LC | 0°C to 70°C | |
NX-SFP-LX10-1G | 1000Base-LX; 10 km | LC | 0°C to 70°C | |
NX-SFP-LX20-1G | 1000Base-LX; 20 km | LC | 0°C to 70°C | |
NX-SFP-LX40-1G | 1000Base-SX; 40 km | LC | 0°C to 70°C | |
NX-SFP-ZX80-1G | 1000Base-ZX; 80 km | LC | 0°C to 70°C | |
NX-SFP-ZX120-1G | 1000Base-ZX; 120 km | LC | 0°C to 70°C | |
NX-SFP-ZX160-1G | 1000Base-ZX; 160 km | LC | 0°C to 70°C | |
NX-SFP-FX-100M | 100Base-FX | LC | 0°C to 70°C |
Portable Network tap Mounting Options
MOBILE USE
The standard versions of our Portable Network TAPs are designed for mobile use (without additional accessories), but can also be installed in a server rack using an additional server rack mounting frame (see Accessories above) and rackmount frame mounting kit (see Accessories above), or mounted on a DIN top-hat rail using a DIN top-hat rail clip (see Accessories above).
SERVER RACK MOUNTING
To install our portable TAPs in a server rack, you need our server rack mounting frame with item number PRP-1U3-V2, as well as a rackmount frame mounting kit (item number PRP-1U3-CLIP) for the TAP.
The server rack mounting frame PRP-1U3-V2 provides space for up to 3 portable PacketRaven Network TAPs.
Both components are available as accessories.
DIN RAIL MOUNTING
As a further alternative, we also offer a top-hat rail clip for our TAPs for mounting on a TS35/7.5 DIN top-hat rail. This clip can be rotated by 180° so that the connections of the TAP can be aligned according to the respective requirements. This DIN rail clip, available as an accessory, has the item number PRP-DIN-CLIP.
SERVICE & SUPPORT
Unparallel Multi-Level Service & Support for Peace of Mind
All NEOX PacketRaven Network TAP come with NEOX SILVER Support and can be upgraded to GOLD Support for advanced replacement in case of a hardware failure.
FEATURED CONTENT
Creating Solutions for Your Success

Infographic
Why You Need a Network Tap

White Paper
Network Tap vs SPAN/Mirror Port

Product Brochure
A Complete Guide to Products
