SUSTAINED FULL-PACKET CAPTURE & ANALYSIS UP TO 100G
PCAP Data | Out-of-Box Dashboards | Forensic Analysis

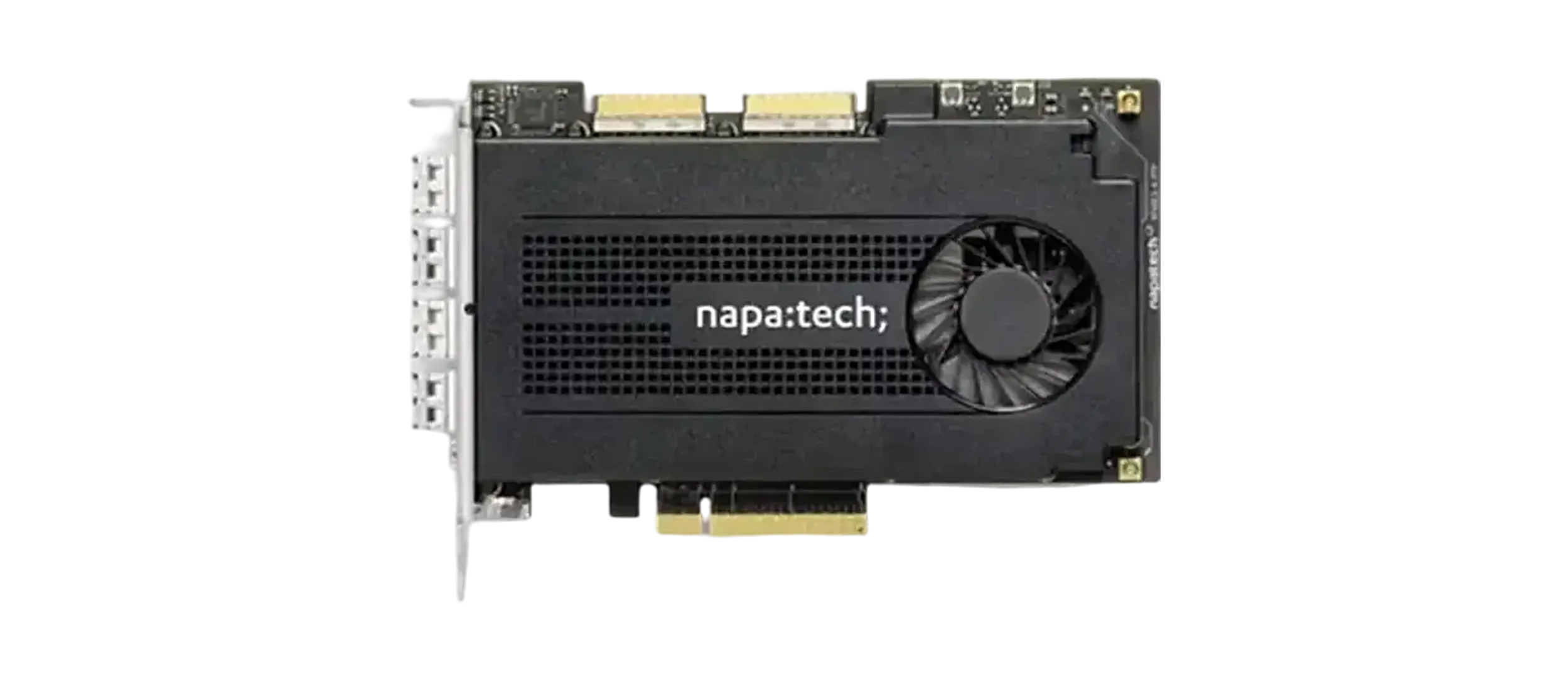

NEOX SmartNICs: FPGA-Powered Networking Solutions
Precision Network Analysis for Demanding Industries
The NEOX Network leverages a series of high-performance FPGA-based SmartNICs equipped with Link-Capture™ Software, designed to meet the demands of precision network analysis, real-time traffic monitoring, and ultra-low-latency processing across various industries. These SmartNICs, including the NT200A02-SCC (2x40G/2x100G), NT100A01-SCC (4×1/10G + 4×10/25G), NT50B01 (2×1/10G + 2×10/25G), NT40E3-4-PTP (4x1G/10G with PTP), NT20E3-2-PTP (2x1G/10G with PTP), and NT40A01-SCC-4*1 (4x1G), provide a scalable and flexible solution for applications ranging from high-frequency trading (HFT) and telecom testing to enterprise security monitoring and industrial network synchronization. The NT200A02-SCC stands out for its ultra-high-speed capabilities with dual 40G and 100G ports, making it ideal for environments requiring massive data throughput and nanosecond-accurate timestamping, while the NT100A01-SCC offers a balanced configuration with multi-rate support for mixed-speed network environments. For deployments requiring Precision Time Protocol (PTP) synchronization, the NT40E3-4-PTP and NT20E3-2-PTP ensure sub-microsecond timing accuracy, critical for financial markets, broadcast media, and industrial automation. Meanwhile, the NT50B01 and NT40A01-SCC-4*1 cater to cost-sensitive and lower-bandwidth applications without sacrificing FPGA-accelerated packet processing. Across the entire lineup, Link-Capture™ Software enables deep packet inspection, real-time traffic analysis, and hardware-accelerated filtering, ensuring that NEOX-powered networks achieve maximum efficiency, security, and performance in even the most demanding scenarios. Whether deployed in data centers, telecom infrastructure, or cybersecurity appliances, these SmartNICs form the backbone of NEOX’s commitment to high-speed, deterministic, and intelligent networking solutions.
- NT200A02-SCC SmartNIC: 200Gbps FPGA-accelerated SmartNIC with 2x40G QSFP+ and 2x100G QSFP28 ports
- NT100A01-SCC SmartNIC: High-density 100Gbps network monitoring card with 4×1/10G SFP+ and 4×10/25G SFP28 ports
- NT50B01 SmartNIC: 50Gbps multi-protocol analysis NIC with 2×1/10G and 2×10/25G interfaces
- NT40E3-4-PTP SmartNIC: Precision timing SmartNIC with 4x1G/10G SFP+ ports and IEEE 1588 PTP support
- NT20E3-2-PTP SmartNIC: Cost-effective 20Gbps timing card with 2x1G/10G ports
- NT40A01-SCC-4*1 SmartNIC: Enterprise-grade 4x1G monitoring NIC for security appliances
- NT400D11-SCC SmartNIC: Ultra-high performance 400Gbps SmartNIC with 2x100G QSFP28 interfaces
NT400D11 2 x 100G SMARTNIC
HIGHLIGHTS
- Ultra-High-Speed Capture: Supports 2×100G (200G total) full-duplex ports for lossless, full-packet capture at line rate (200 Gbps).
- Nanosecond-Accurate Timestamping: Hardware-based IEEE 1588 PTP synchronization for precision timing in HFT, telecom, and 5G networks.
- Traffic Replay & Simulation: Enables 100% replay of captured traffic with nanosecond precision for testing and analysis.
- PCIe Gen4 ×16 Host Interface: Ensures zero bottleneck for 200G traffic between NIC and server memory.
- Multi-Port Packet Merging: Combines and orders packets from multiple ports with correct sequencing.
- FPGA-Accelerated Processing: On-board packet slicing, filtering, and deduplication to reduce storage/CPU load.
- Link-Capture™ Software Integration: Real-time analysis, PCAP/PCAPNG export, and advanced traffic visualization.
- High-Density Deployment: Ideal for data centers, hyperscale networks, and cybersecurity forensics.
- Robust Build: Enterprise-grade hardware with advanced cooling for 24/7 operation.
Ideal for:
- 200G network monitoring
- Financial trading (HFT)
- 5G/telecom test labs
- Traffic replay & simulation
SPECIFICATIONS
MODELS
| MODEL | NT400D11 | NT200A02 | NT100A01 | NT50B01 | NT40E3 | NT20E3 | NT40A01 |
|---|---|---|---|---|---|---|---|
| PORTS | 2x 100G | 2× 1G/10G, 8x 10G, 2× 10G/25G, 4× 10G/25G, 2x 40G, 2x 100G | 4× 1G/10G, 4× 10G/25G | 2× 1G/10G, 2× 10G/25G | 4x 1G/10G | 2x 1G/10G | 4x 1G |
DOCUMENTS
NT200A02 2 x 100G SMARTNIC
HIGHLIGHTS
- Ultra-High-Speed Capture: Supports 2x40G and 2x100G interfaces for lossless Full Packet Capturing (FPC) at continuous 10G WTD (Write to Disk) and up to 15G with packet slicing & compression.
- FPGA-Accelerated Processing: Features deduplication, packet slicing, nanosecond-accurate timestamping, and hardware capture filters for real-time traffic analysis.
- Precision Timing: Compliant with IEEE 1588v2 PTP for synchronization-critical applications like HFT and telecom.
- Multi-Format Support: Enables PCAP & PCAPNG export for compatibility with industry-standard analysis tools.
- Advanced Traffic Analysis: Includes an intuitive WebUI for deep packet inspection, VoIP/video analysis, and performance troubleshooting.
- High-Capacity Storage Options: Scalable storage from 7TB to 30TB, backed by a 4GB/8GB hardware buffer to handle microbursts.
- Expert Event Detection: Identifies anomalies across OSI Layers 2-7, accelerating Mean-Time-To-Resolution (MTTR) via metadata visualization.
- Modular & Scalable: Supports cascading multiple systems for large-scale deployments.
- Robust Hardware Design: Compact, passively cooled aluminum housing with an integrated LCD screen and 330W external PSU for reliability.
- Enterprise-Grade Support: 1-year warranty covering hardware, software, and maintenance, with German-engineered quality assurance.
SPECIFICATIONS
- Capture cards: 200Gbps FPGA capture card for 40G/100G
- Ports: 2x QSFP+ (40G), 2x QSFP28 (100G)
- SSD Storage Capacity: 15TB – 60TB
- RAM: 128GB DDR4
- Power Supply: External 400W PSU, redundant support
- Housing: Industrial aluminum chassis
- Dimensions: 43.0 x 30.0 x 5.5 cm / 16.9″ x 11.8″ x 2.2″
- Weight: 8.2 kg
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
MODELS
| MODEL | NT400D11 | NT200A02 | NT100A01 | NT50B01 | NT40E3 | NT20E3 | NT40A01 |
|---|---|---|---|---|---|---|---|
| PORTS | 2x 100G | 2× 1G/10G, 8x 10G, 2× 10G/25G, 4× 10G/25G, 2x 40G, 2x 100G | 4× 1G/10G, 4× 10G/25G | 2× 1G/10G, 2× 10G/25G | 4x 1G/10G | 2x 1G/10G | 4x 1G |
DOCUMENTS
NT100A01 4 x 25G SMARTNIC
HIGHLIGHTS
- High-Density Multi-Speed Ports: Features 4×1G/10G (SFP+) + 4×10G/25G (SFP28) for flexible deployment in mixed-speed networks.
- FPGA-Powered Efficiency: Enables hardware-accelerated packet capture, deduplication, and nanosecond-accurate timestamping for real-time analysis.
- Lossless Full Packet Capture: Supports continuous 10G WTD (Write to Disk) with optional packet slicing/compression for higher throughput.
- Precision Timing: Integrates IEEE 1588v2 PTP for time-sensitive applications like financial trading and 5G networks.
- Advanced Analysis Tools: Includes WebUI for PCAP/PCAPNG export, VoIP/video decoding, and OSI Layer 2-7 troubleshooting.
- Scalable Storage: Configurable storage up to 30TB with a 4GB/8GB hardware buffer to absorb traffic bursts.
- Enterprise-Grade Design: Compact, fanless aluminum chassis with 330W PSU and German-engineered reliability.
SPECIFICATIONS
- Capture cards: 100Gbps FPGA card for 1G/10G/25G
- Ports: 4x SFP+ (1/10G), 4x SFP28 (10/25G)
- SSD Storage Capacity: 7TB – 30TB
- RAM: 64GB DDR4
- Power Supply: External 330W PSU
- Housing: Rugged aluminum
- Dimensions: 10.0 x 30.0 x 25.5 cm / 3.9″ x 11.8″ x 10.0″
- Weight: 6.1 kg
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
MODELS
| MODEL | NT400D11 | NT200A02 | NT100A01 | NT50B01 | NT40E3 | NT20E3 | NT40A01 |
|---|---|---|---|---|---|---|---|
| PORTS | 2x 100G | 2× 1G/10G, 8x 10G, 2× 10G/25G, 4× 10G/25G, 2x 40G, 2x 100G | 4× 1G/10G, 4× 10G/25G | 2× 1G/10G, 2× 10G/25G | 4x 1G/10G | 2x 1G/10G | 4x 1G |
DOCUMENTS
NT100A01 2 x 25G SMARTNIC
HIGHLIGHTS
- Balanced Performance: Combines 2×1G/10G + 2×10G/25G ports for cost-effective, high-fidelity packet capture.
- FPGA-Optimized Processing: Delivers packet slicing, hardware filtering, and nanosecond timestamping for low-latency analysis.
- PTP Synchronization: Supports IEEE 1588v2 for timing-critical environments.
- Seamless Integration: Compatible with PCAP/PCAPNG and Link-Capture™ WebUI for metadata visualization.
- Robust Build: Passively cooled, compact design with industrial-grade durability.
SPECIFICATIONS
- Capture cards: 50Gbps multi-protocol FPGA card
- Ports: 2x SFP+ (1/10G), 2x SFP28 (10/25G)
- SSD Storage Capacity: 4TB – 15TB
- RAM: 32GB DDR4
- Power Supply: External 250W PSU
- Housing: Lightweight aluminum
- Dimensions: 8.5 x 20.0 x 20.0 cm / 3.3″ x 7.9″ x 7.9″
- Weight: 4.5 kg
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
MODELS
| MODEL | NT400D11 | NT200A02 | NT100A01 | NT50B01 | NT40E3 | NT20E3 | NT40A01 |
|---|---|---|---|---|---|---|---|
| PORTS | 2x 100G | 2× 1G/10G, 8x 10G, 2× 10G/25G, 4× 10G/25G, 2x 40G, 2x 100G | 4× 1G/10G, 4× 10G/25G | 2× 1G/10G, 2× 10G/25G | 4x 1G/10G | 2x 1G/10G | 4x 1G |
DOCUMENTS
NT100A01 4 x 10G SMARTNIC
HIGHLIGHTS
- Precision Timing Focus: 4×1G/10G ports with IEEE 1588v2 PTP for broadcast, industrial, and financial networks.
- FPGA Acceleration: Nanosecond timestamping, packet deduplication, and real-time capture filters.
- Full Packet Capture: 1G/10G WTD with optional slicing/compression for efficient storage.
- Portable & Reliable: Fanless aluminum housing with LCD status display.
SPECIFICATIONS
- Capture cards: Precision timing card for 1G/10G
- Ports: 4x SFP+ (1/10G)
- SSD Storage Capacity: 2TB – 10TB
- RAM: 16GB DDR4
- Power Supply: External 200W PSU
- Housing: Fanless aluminum
- Dimensions: 7.5 x 15.0 x 18.0 cm / 3.0″ x 5.9″ x 7.1″
- Weight: 3.2 kg
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
MODELS
| MODEL | NT400D11 | NT200A02 | NT100A01 | NT50B01 | NT40E3 | NT20E3 | NT40A01 |
|---|---|---|---|---|---|---|---|
| PORTS | 2x 100G | 2× 1G/10G, 8x 10G, 2× 10G/25G, 4× 10G/25G, 2x 40G, 2x 100G | 4× 1G/10G, 4× 10G/25G | 2× 1G/10G, 2× 10G/25G | 4x 1G/10G | 2x 1G/10G | 4x 1G |
DOCUMENTS
NT100A01 2 x 10G SMARTNIC
HIGHLIGHTS
- Compact PTP Solution: 2×1G/10G ports with 1588v2 support for edge deployments.
- FPGA-Based Capture: Hardware timestamping and packet slicing for lightweight analysis.
- Low-Power Design: Passive cooling and external 330W PSU for silent operation.
SPECIFICATIONS
- Capture cards: Compact timing card for 1G/10G
- Ports: 2x SFP+ (1/10G)
- SSD Storage Capacity: 1TB – 5TB
- RAM: 8GB DDR4
- Power Supply: External 150W PSU
- Housing: Miniature aluminum
- Dimensions: 5.0 x 10.0 x 15.0 cm / 2.0″ x 3.9″ x 5.9″
- Weight: 2.1 kg
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
MODELS
| MODEL | NT400D11 | NT200A02 | NT100A01 | NT50B01 | NT40E3 | NT20E3 | NT40A01 |
|---|---|---|---|---|---|---|---|
| PORTS | 2x 100G | 2× 1G/10G, 8x 10G, 2× 10G/25G, 4× 10G/25G, 2x 40G, 2x 100G | 4× 1G/10G, 4× 10G/25G | 2× 1G/10G, 2× 10G/25G | 4x 1G/10G | 2x 1G/10G | 4x 1G |
DOCUMENTS
NT100A01 4 x 1G SMARTNIC
HIGHLIGHTS
- Dedicated 1G Capture: 4×1G ports optimized for legacy network monitoring.
- FPGA Processing: Deduplication, filtering, and timestamping for efficient traffic analysis.
- Cost-Effective: Ideal for enterprise security and compliance logging.
SPECIFICATIONS
- Capture cards: Enterprise 1G monitoring card
- Ports: 4x SFP (1G)
- SSD Storage Capacity: 1TB – 4TB
- RAM: 8GB DDR4
- Power Supply: External 120W PSU
- Housing: Compact aluminum
- Dimensions: 5.0 x 8.0 x 12.0 cm / 2.0″ x 3.1″ x 4.7″
- Weight: 1.8 kg
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
MODELS
| MODEL | NT400D11 | NT200A02 | NT100A01 | NT50B01 | NT40E3 | NT20E3 | NT40A01 |
|---|---|---|---|---|---|---|---|
| PORTS | 2x 100G | 2× 1G/10G, 8x 10G, 2× 10G/25G, 4× 10G/25G, 2x 40G, 2x 100G | 4× 1G/10G, 4× 10G/25G | 2× 1G/10G, 2× 10G/25G | 4x 1G/10G | 2x 1G/10G | 4x 1G |
DOCUMENTS
SERVICE & SUPPORT
Unparallel Multi-Level Service & Support for Peace of Mind
All NEOXPacketFalcon Capture Appliances come with NEOX SILVER Support and can be upgraded to GOLD Support for advanced replacement in case of a hardware failure.
