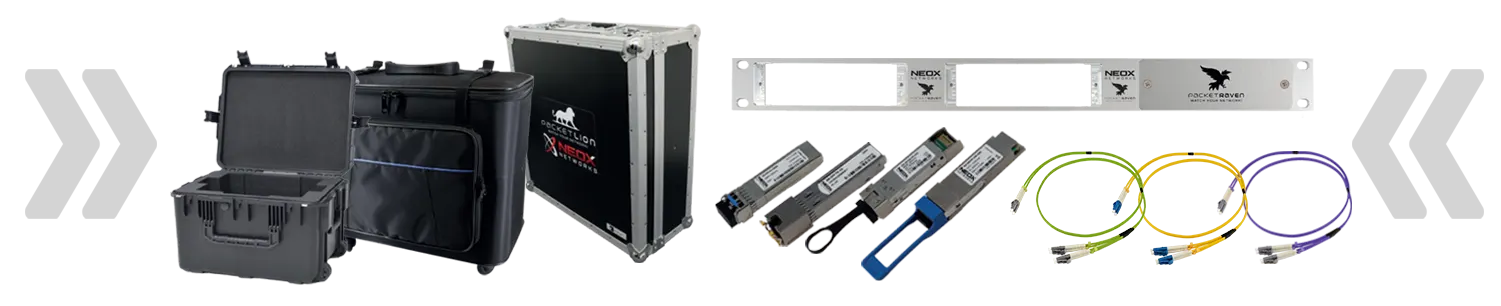

Overview of NEOX Optics and Accessories
Reliable Components to Support Your Network Infrastructure
- High-speed transceivers for SFP, SFP+, QSFP, and QSFP28 modules
- Durable fiber and copper cables, DACs, and adapters
- Essential network accessories for installation and maintenance
- Fully compatible with all NEOX networking solutions
PacketRaven Portable TAP Accessories
The PacketRaven Portable Network TAPs are designed with maximum versatility and mobility in mind, making them ideal for both temporary and permanent indoor and outdoor deployments. Out of the box, these units are fully operational for mobile use and require no additional accessories. However, for structured environments such as data centers and industrial plants, the TAPs can be conveniently installed in a standard 19” server rack using our dedicated server rack mounting frame, which accommodates multiple PacketRaven Portable TAPs side by side.
To secure the TAPs within the mounting frame, the rackmount frame mounting kit is required. Both items are available as accessories and allow for stable, professional installation that is space-efficient and organized.
As an alternative to rack installation, PacketRaven TAPs can also be mounted on TS35/7.5 DIN top-hat rails, commonly used in industrial and field environments. For this purpose, we offer a DIN rail mounting clip that allows easy and secure attachment. The clip is rotatable by 180°, providing flexibility to align the TAP’s ports according to specific installation requirements. This is particularly useful in space-constrained enclosures or when front-facing access is necessary.
Additionally, we provide custom Y-cables as part of the accessory lineup, enabling efficient and clean cable management in breakout or aggregation configurations. These cables are built to match the high-performance standards of PacketRaven TAPs, ensuring signal integrity and reliability in any deployment scenario. With all these mounting and connectivity options, PacketRaven Portable TAPs offer unmatched adaptability, enabling users to deploy them in mobile setups, secure rack environments, or rugged industrial systems without compromising performance or accessibility.
SERVER RACK MOUNTING
To install our portable TAPs in a server rack, you need our server rack mounting frame with item number PRP-1U3-V2, as well as a rackmount frame mounting kit (item number PRP-1U3-CLIP) for the TAP.
The server rack mounting frame PRP-1U3-V2 provides space for up to 3 portable PacketRaven Network TAPs.
Both components are available as accessories.
| SKU | DESCRIPTION |
|---|---|
| PRP-1U3-V2 | Server rack mounting frame for 3 portable TAPs |
| PRP-1U3-BP-V2 | Blank plate for mounting frame (see center in photo) |
| PRP-1U3-CLIP | TAP rackmount frame bracket for server rack mounting frame PRP-1U3-V2 |
| PRP-DIN-CLIP | TAP DIN rail mounting clip |
DIN RAIL MOUNTING
As a further alternative, we also offer a top-hat rail clip for our TAPs for mounting on a TS35/7.5 DIN top-hat rail. This clip can be rotated by 180° so that the connections of the TAP can be aligned according to the respective requirements. This DIN rail clip, available as an accessory, has the item number PRP-DIN-CLIP.
POWER SUPPLIES
| SKU | DESCRIPTION |
|---|---|
| PRP-PS-INT | Power supply with with interchangeable EU, UK, and US plug heads (Two of these power supplies are already included with every portable active Network TAP) |
| PRP-PS-EU | Power supply with EU plug (head) |
| PRP-PS-UK | Power supply with UK plug (head) |
| PRP-PS-US | Power supply unit with US plug (head) |
| PRP-PS-*-A | Plug head *EU, *UK or *US |
| PRP-PS-C14-25W | Switching power supply with C14 socket on input side according to IEC60320, to be connected to PDU via C13-C14 cable |
SFP TRANSCEIVERS
NEOXPacketRaven Network TAPs basically support all MSA-compliant SFP transceivers!
A selection of the SFP transceivers we have already tested can be found in our SFP Transceiver Compatibility Overview.
| SKU | LINK | CONNECTOR | OPERATING TEMP. | LLD1 |
|---|---|---|---|---|
| NX-SFP-TX-1G | 1000Base-T | RJ45 | 0°C to 70°C | |
| NX-SFP-SX-1G | 1000Base-SX | LC | 0°C to 70°C | |
| NX-SFP-LX10-1G | 1000Base-LX; 10 km | LC | 0°C to 70°C | |
| NX-SFP-LX20-1G | 1000Base-LX; 20 km | LC | 0°C to 70°C | |
| NX-SFP-LX40-1G | 1000Base-SX; 40 km | LC | 0°C to 70°C | |
| NX-SFP-ZX80-1G | 1000Base-ZX; 80 km | LC | 0°C to 70°C | |
| NX-SFP-ZX120-1G | 1000Base-ZX; 120 km | LC | 0°C to 70°C | |
| NX-SFP-ZX160-1G | 1000Base-ZX; 160 km | LC | 0°C to 70°C | |
| NX-SFP-FX-100M | 100Base-FX | LC | 0°C to 70°C |
Y - CABLES
| SKU | FIBRE TYPE | DIAMETER | DESCRIPTION | CABLE LENGTH |
|---|---|---|---|---|
| NX-LC-Y-PC-OS2-1M | OS2* | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 1m |
| NX-LC-Y-PC-OS2-2M | OS2* | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 2m |
| NX-LC-Y-PC-OS2-3M | OS2* | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 3m |
| NX-LC-Y-PC-OS2-5M | OS2* | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 5m |
| NX-LC-Y-PC-OM4-1M | OM4 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 1m |
| NX-LC-Y-PC-OM4-2M | OM4 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 2m |
| NX-LC-Y-PC-OM4-3M | OM4 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 3m |
| NX-LC-Y-PC-OM4-5M | OM4 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 5m |
| NX-LC-Y-PC-OM5-1M | OM5 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 1m |
| NX-LC-Y-PC-OM5-2M | OM5 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 2m |
| NX-LC-Y-PC-OM5-3M | OM5 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 3m |
| NX-LC-Y-PC-OM5-5M | OM5 | 3.0mm | Y-Kabel / Special Patchcord LC/PC-LC/PC Duplex | 5m |
PacketTiger Accessories
The PacketTiger lineup offers a versatile range of optics and accessories to support your network deployment needs. While the core PacketTiger units do not include transceivers, they are fully compatible with standard SFP, SFP+, QSFP, and QSFP28 modules, allowing seamless integration with existing network infrastructure. Our accessories include high-quality fiber and copper cables, DACs, adapters, and cable management tools to ensure organized, reliable, and efficient connectivity. These options provide flexibility for mobile setups, rack-mounted installations, and industrial environments, helping maintain optimal performance and accessibility in any network scenario.
PacketFalcon Accessories
The PacketFalcon series supports a wide range of optics and accessories to enhance network connectivity. While the devices themselves do not come with built-in transceivers, they are compatible with standard SFP, SFP+, QSFP, and QSFP28 modules for seamless integration with your existing network. Available accessories include fiber and copper cables, DACs, adapters, and cable management tools, enabling clean, organized, and reliable connections. These options ensure flexibility for mobile setups, rack-mounted deployments, and industrial environments while maintaining high network performance.
PacketGrizzly Accessories
PacketGrizzly provides a comprehensive selection of network optics and accessories designed to support robust connectivity in any environment. The units themselves do not include transceivers but are compatible with standard SFP, SFP+, QSFP, and QSFP28 modules. Accessories such as fiber and copper cables, DACs, adapters, and cable management tools are available to facilitate organized, efficient, and reliable network connections. These options allow for versatile deployment across mobile setups, data center racks, and industrial installations, ensuring optimal accessibility and performance.
