PacketHawk Series

Physical Inline Bypass Network TAP

Full Network Visibility up to 100G

4x100G | Modular Chassis | Service Chaining | Filtering Support

GRASSROOT LEVEL NETWORK VISIBILITY

Real-Time Network Data-in-Motion and Network Intelligence Access

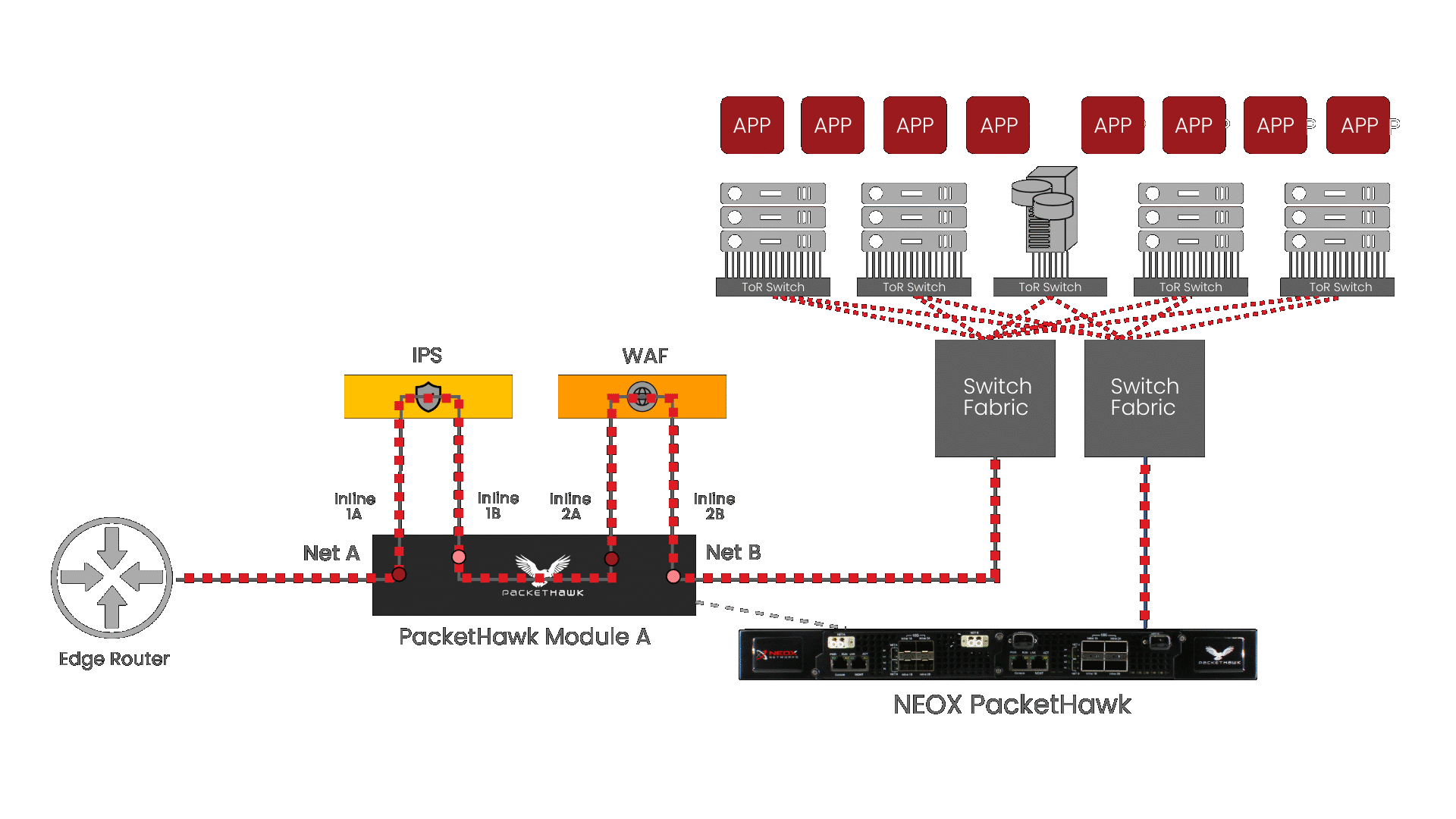

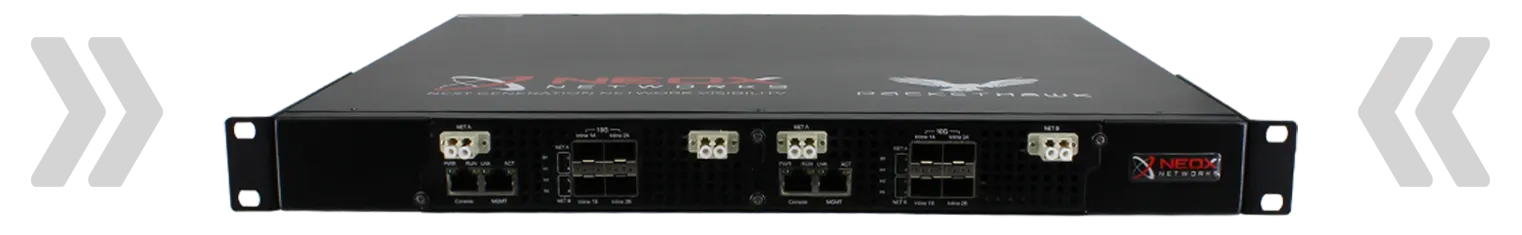

Bypass Network TAP - Chassis

10G/40G/100G

A Bypass TAP/Switch is essential for maintaining uninterrupted connectivity and smooth network operation. It acts as a fail-safe mechanism in the event that devices fail or require maintenance, allowing traffic to continue flowing without interruption.

It also provides the flexibility to reroute traffic for security monitoring or analysis purposes without impacting network performance.

Essentially, investing in a Bypass TAP is critical to optimising reliability, security and operational efficiency in any network infrastructure.

  • Supports 10G/40G/100G networks

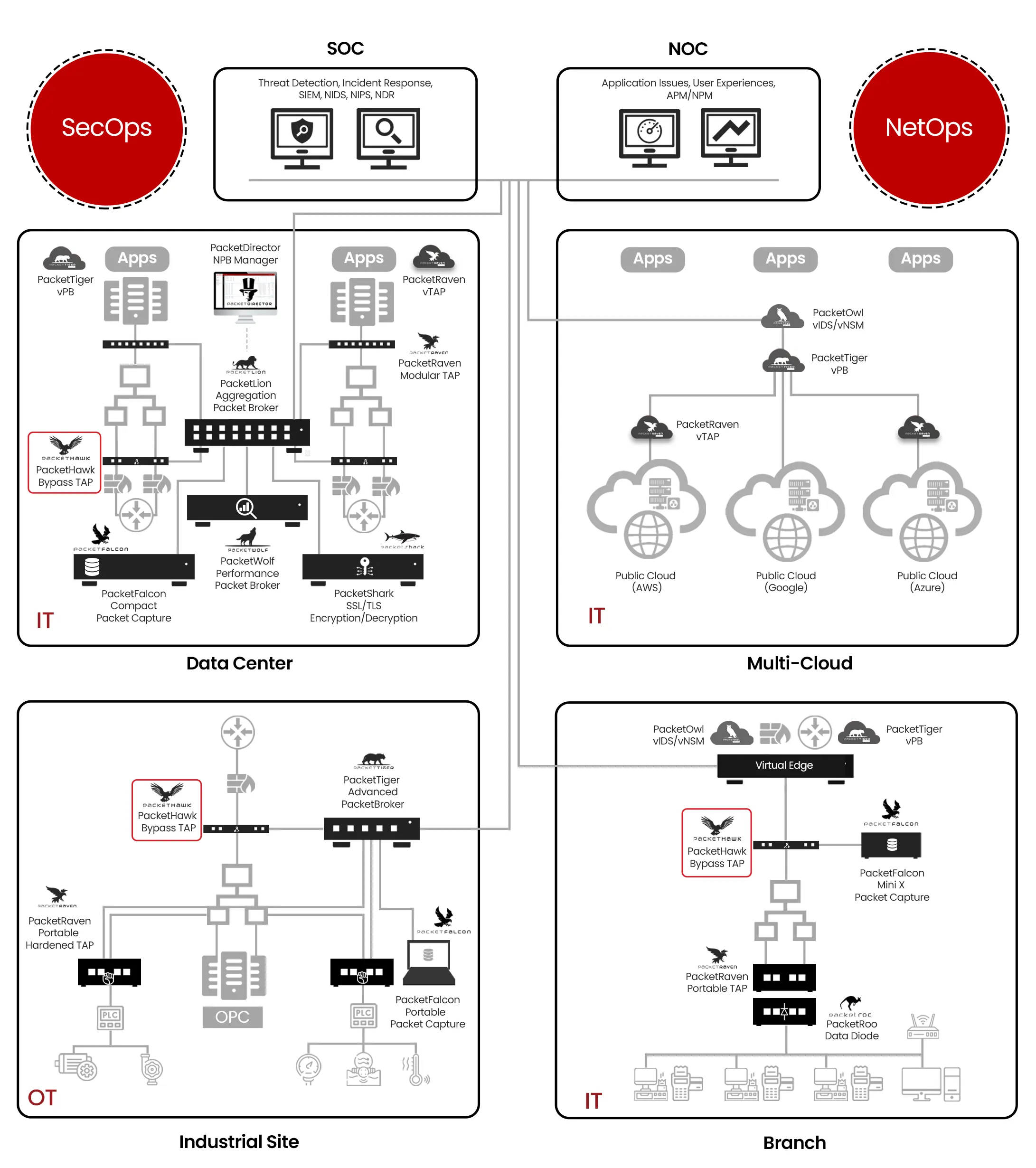

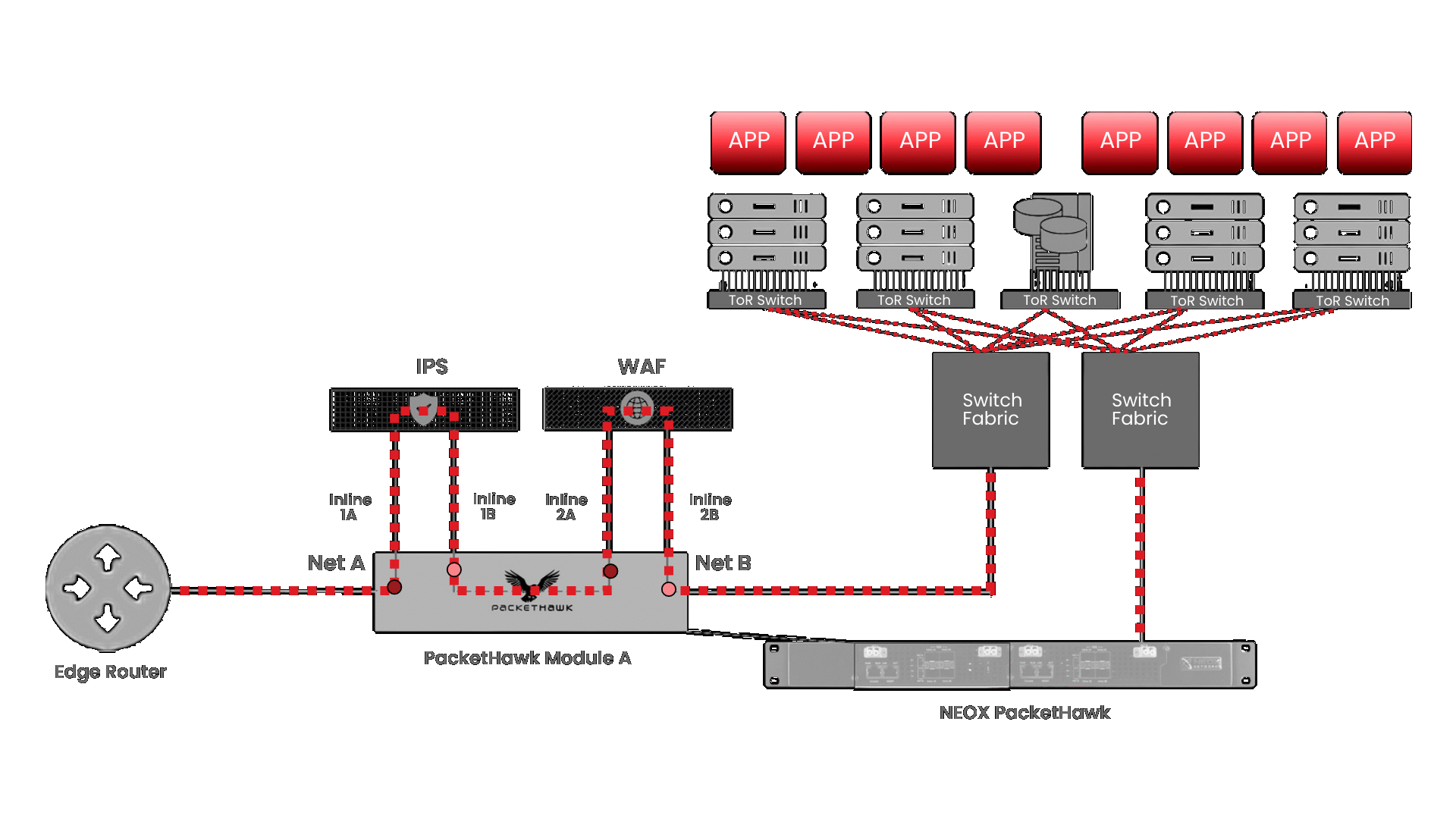

  • Supports 2 In-Line devices on a single network line
  • Heartbeat packet: ICMP, IPX, UDP, firewall support
  • Network and In-Line port health check as well as speed and duplex monitoring
  • 6 bypass modes: auto, semi-auto, force inline, force bypass, tap-separate, tap-aggregate
  • Console, Telnet, SSH, HTTP, HTTPS interfaces
  • Link Loss Detection (LLD), behaviour in the event of a network connection failure
  • Redundant bypass behaviour in the event of a Bypass TAP/switch failure : Active Bypass, Passive Bypass
  • Supports TAP mode: Net A, Net B traffic any-to-any mapping
  • Supports mirror mode: mapping of In-Line 1 to In-Line 2, In-Line 2 to In-Line 1 port traffic
  • Filtering by In-Line port IP, port : include or exclude
  • Syslog support (registration of up to 5 syslog servers)
  • Supports ACL (Access Control List) policies for the management port

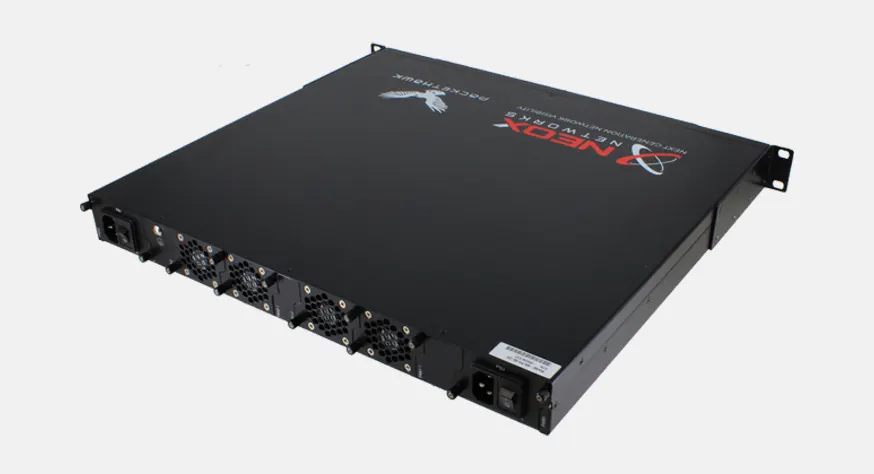

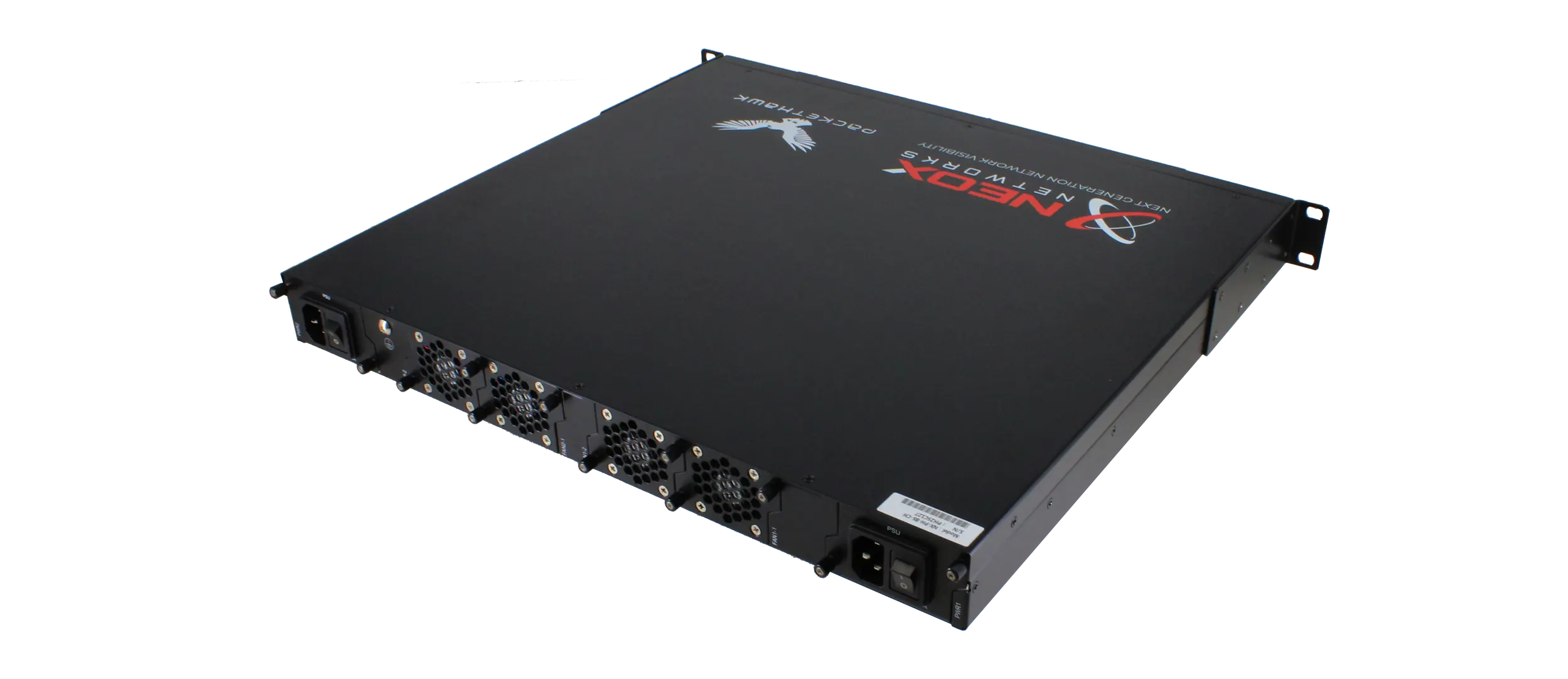

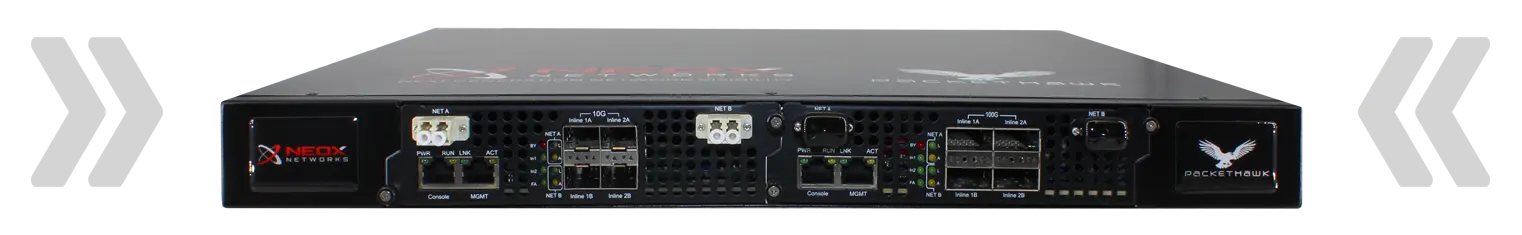

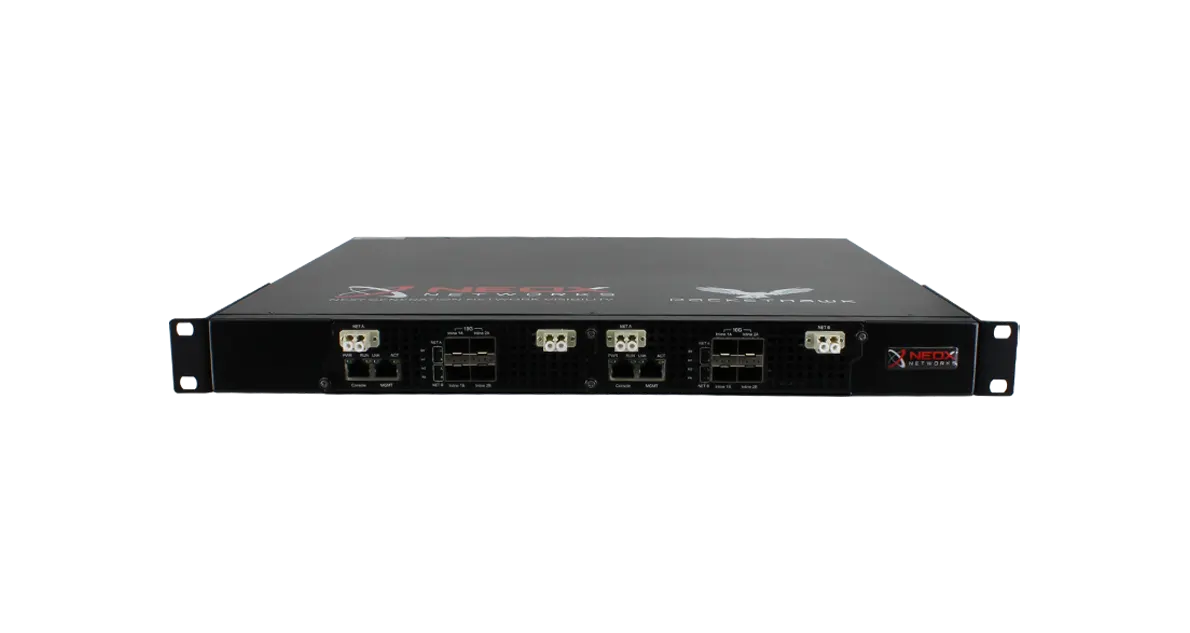

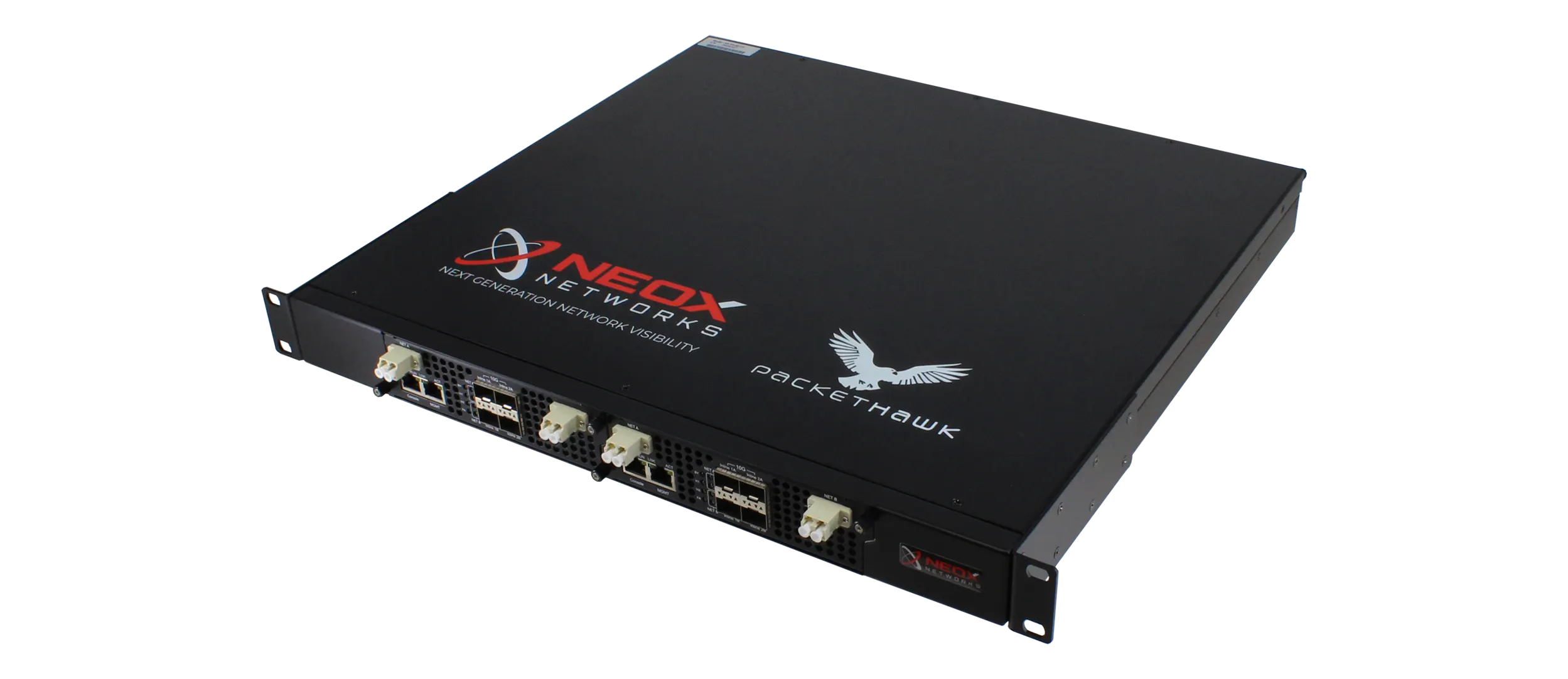

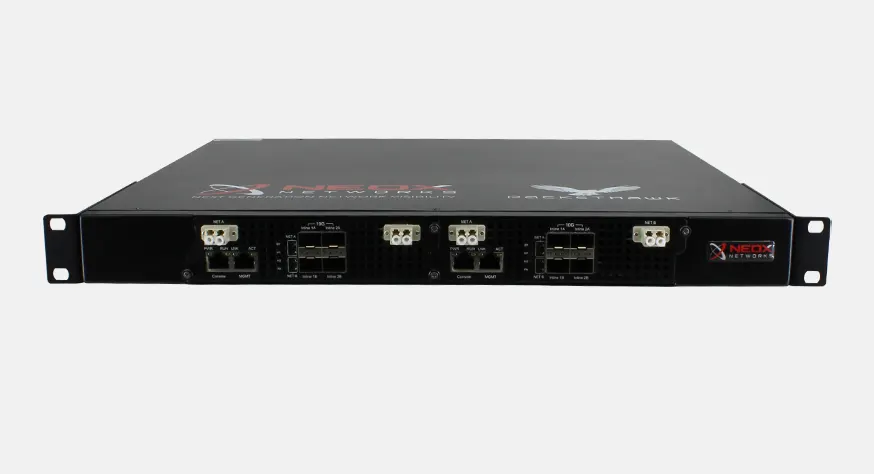

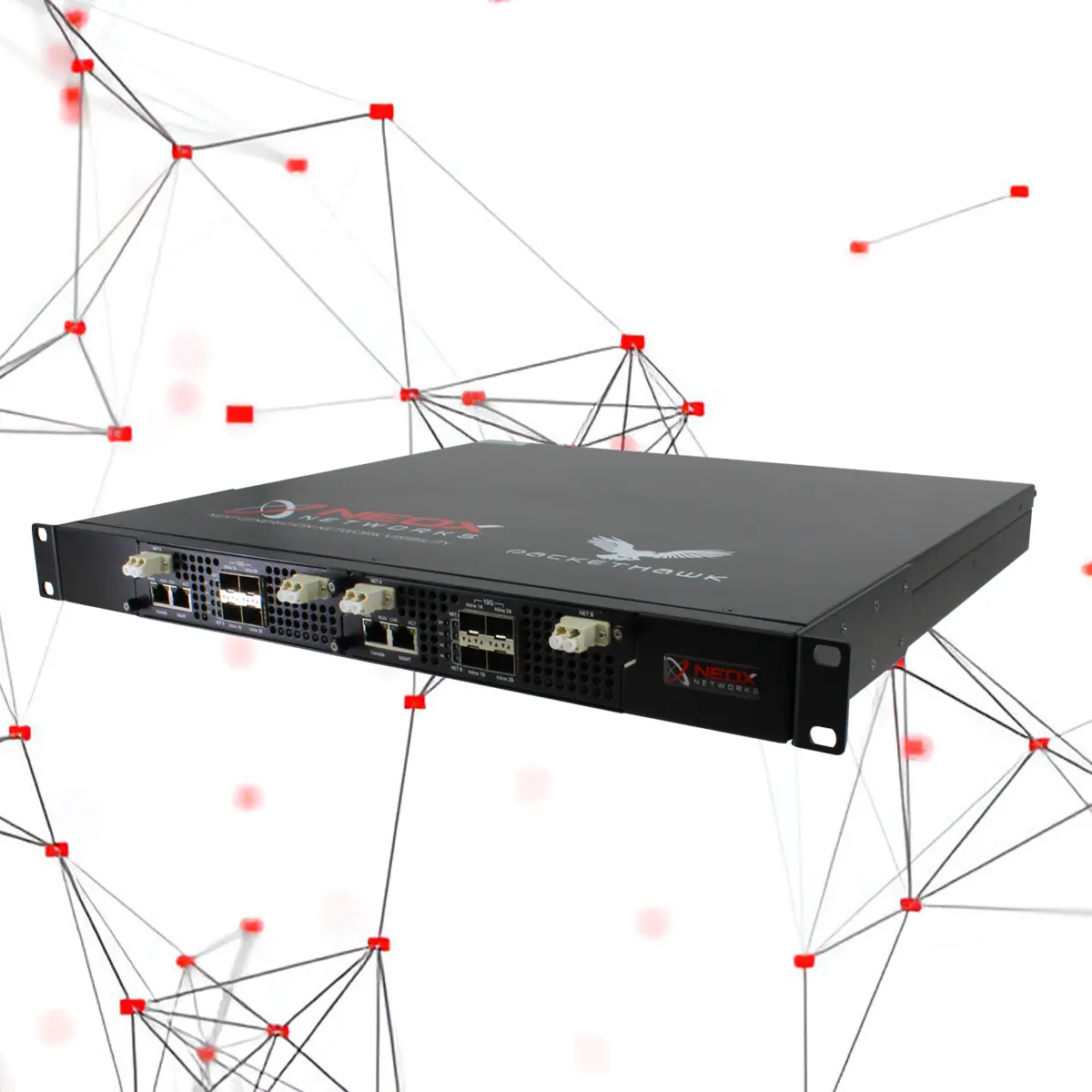

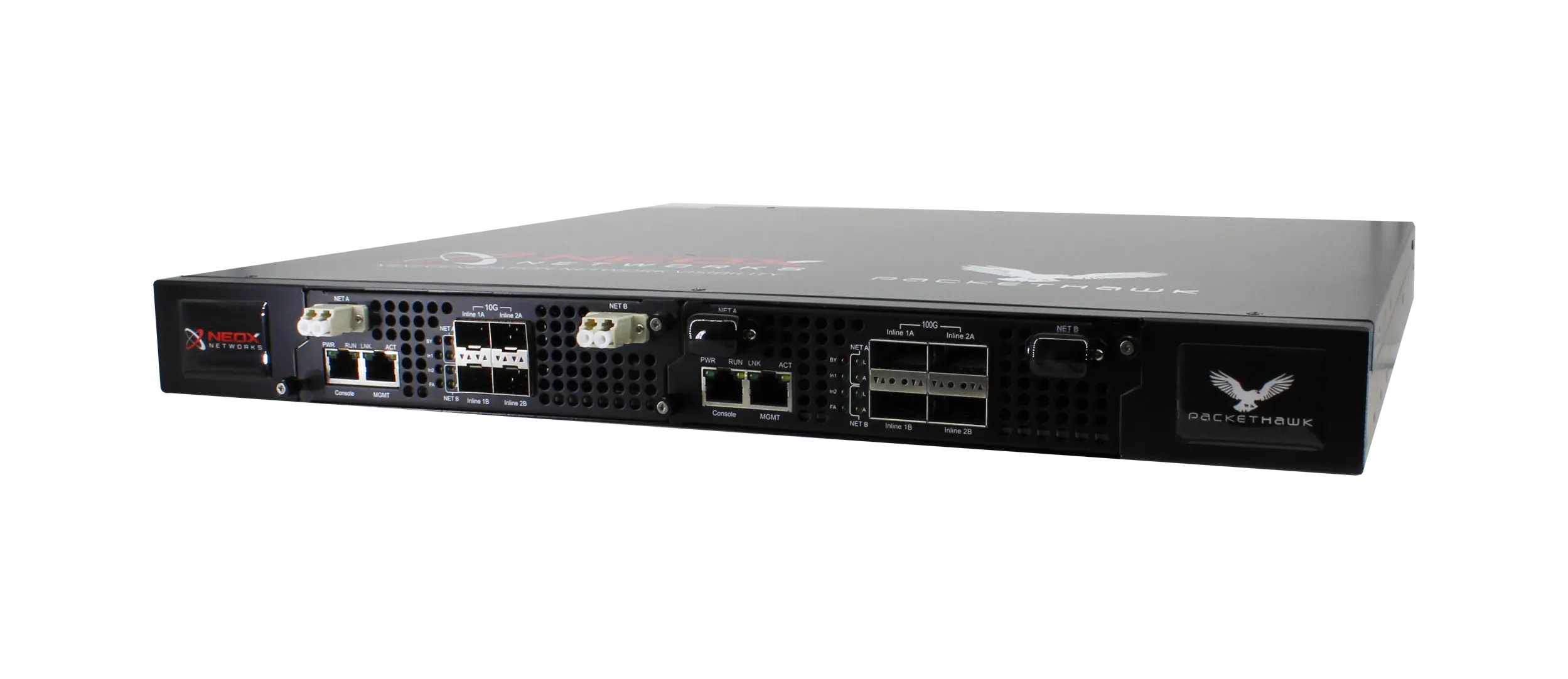

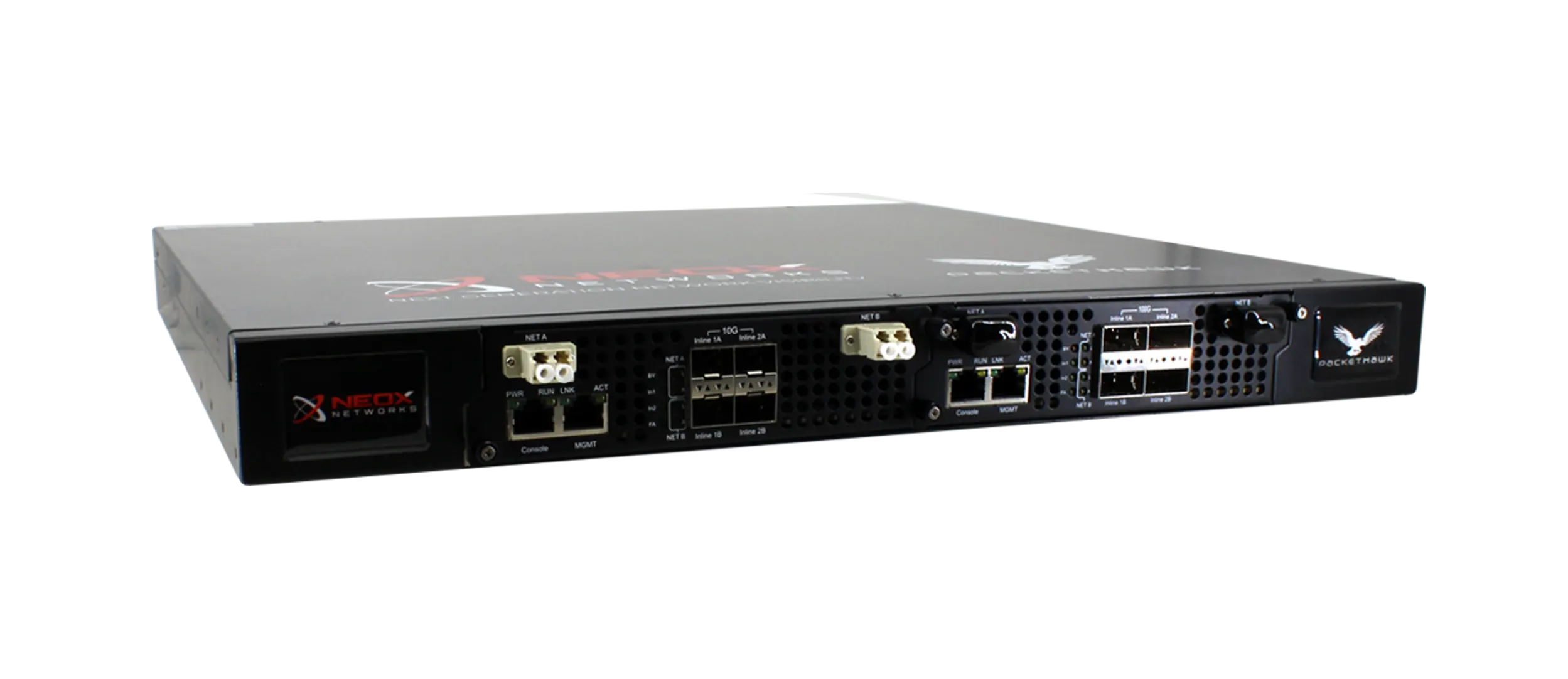

  • 19” 1U rackmount 2-slots chassis, modular type
  • High-Availability: 1×2 Inline bypass TAP supporting (1) Network line (2) Inline devices.
  • Inline device heartbeat health check: Unidirectional, Bidirectional
  • Supported Heartbeat packet: ICMP, IPX, UDP(* TCP) and Firewall health check (* special feature)
  • System health LED indicators:
    • Network/Inline port link/activity, operation mode (Bypass/Inline), power, fan
  • Supported packet size: 64~9,000 byte
  • Traffic auto-refresh statistics per port: Byte/bps/pps, Uni/Multi/Broadcast packet, packet size, utilization%, Runt/Jumbo packet, CRC error, drop count
  • Operation mode:
    • Network: Auto, Semi-Auto, force Inline, force bypass
    • Inline: Single, Service-chain, load balance, Active/Standby and TAP(mirror) mode
    • Combine Inline and TAP mode: “2 x Inline” or “1 x Inline + 1 x TAP” or “2 x TAP”
  • Inline port TAP(mirror) mode support:
    • Net A, Net B traffic Any-to-Any mapping
    • Breakout, Aggregation
  • Redundant bypass operation in case of bypass TAP failure: active bypass, passive bypass
  • LLD (Link Loss Detection) operation in case of network link failure
  • Link-Drop operation: Inline device failure or network link failure
  • Inline port L3/L4 filtering: include or exclude
  • Syslog (internal: logging & viewer, external – up to 3 Syslog servers)
  • SNMP v2/3, NTP, RADIUS/TACACS(*)
  • 2x Management ports: serial console, Ethernet
  • Management access: Telnet, SSH, HTTP, HTTPS (enable/disable, Service Port Custom)
  • ACL (Access Control List) on management port (based on host & network address)
  • Port DDM (Digital Diagnostic Monitoring)
  • System health monitoring LED indicator: power, fan, port link/activity, operation mode
  • Configuration export/import

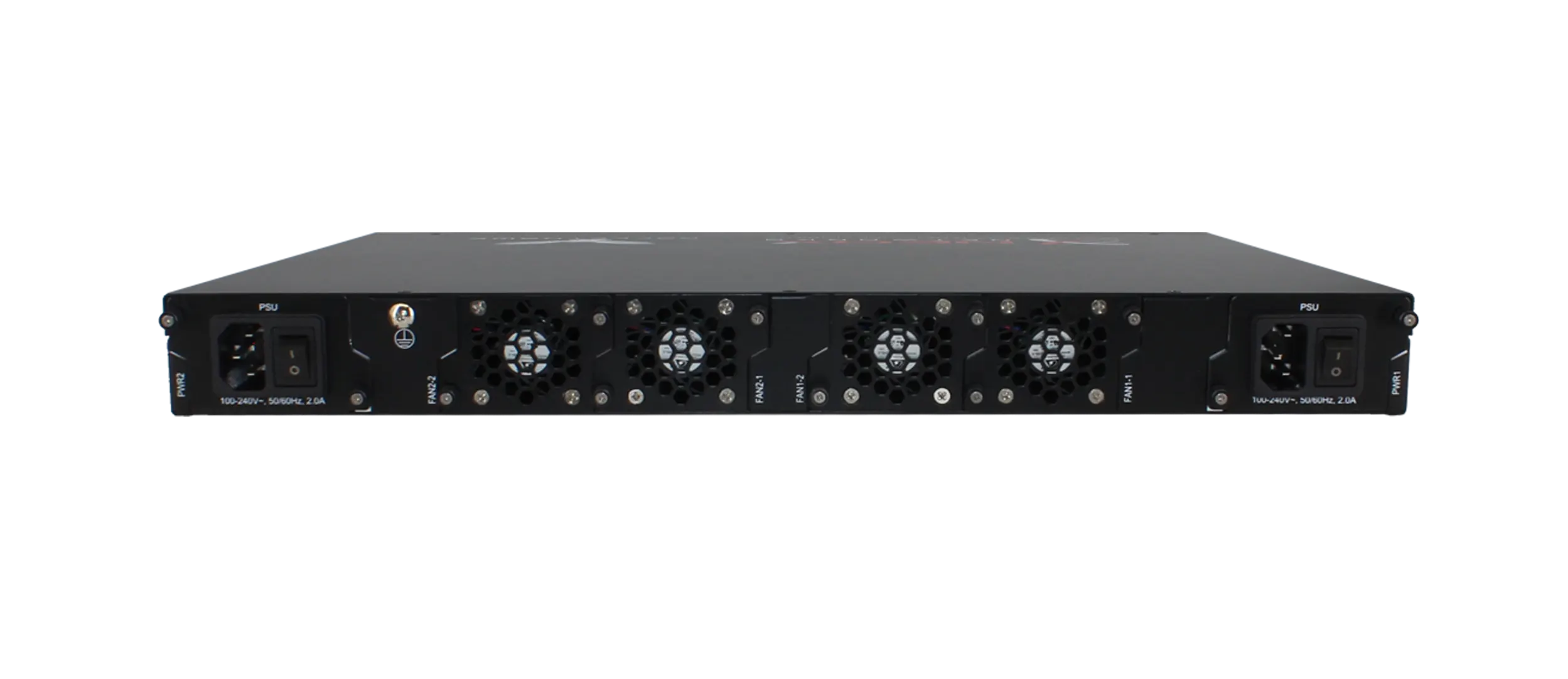

  • Hot-swappable redundant power supply & fan module
  •

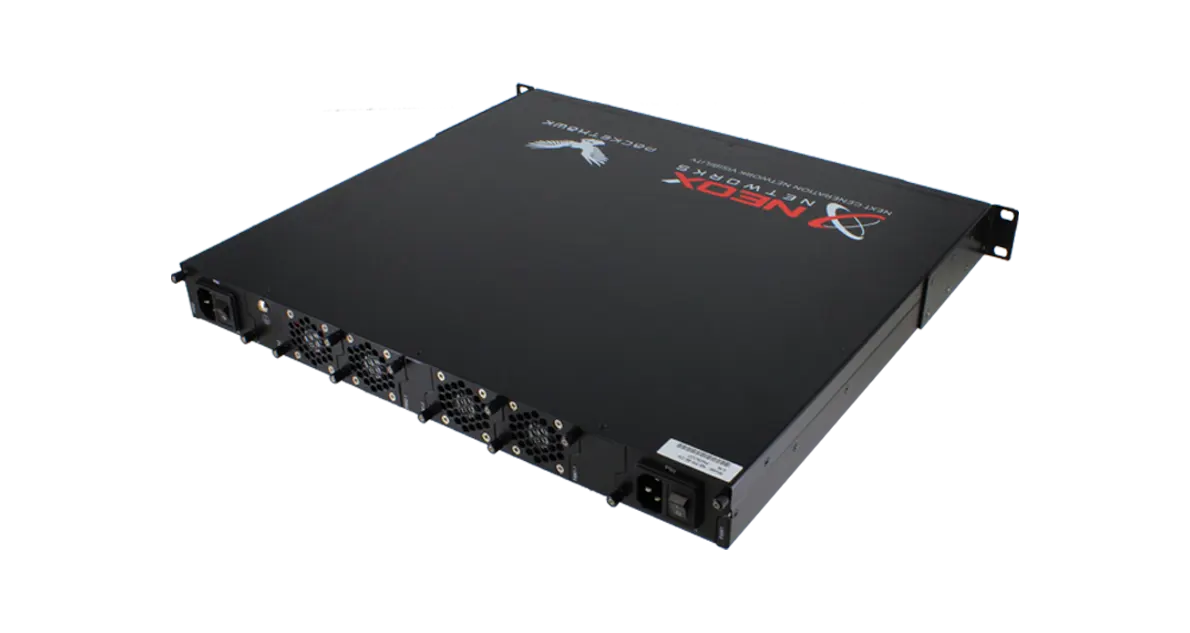

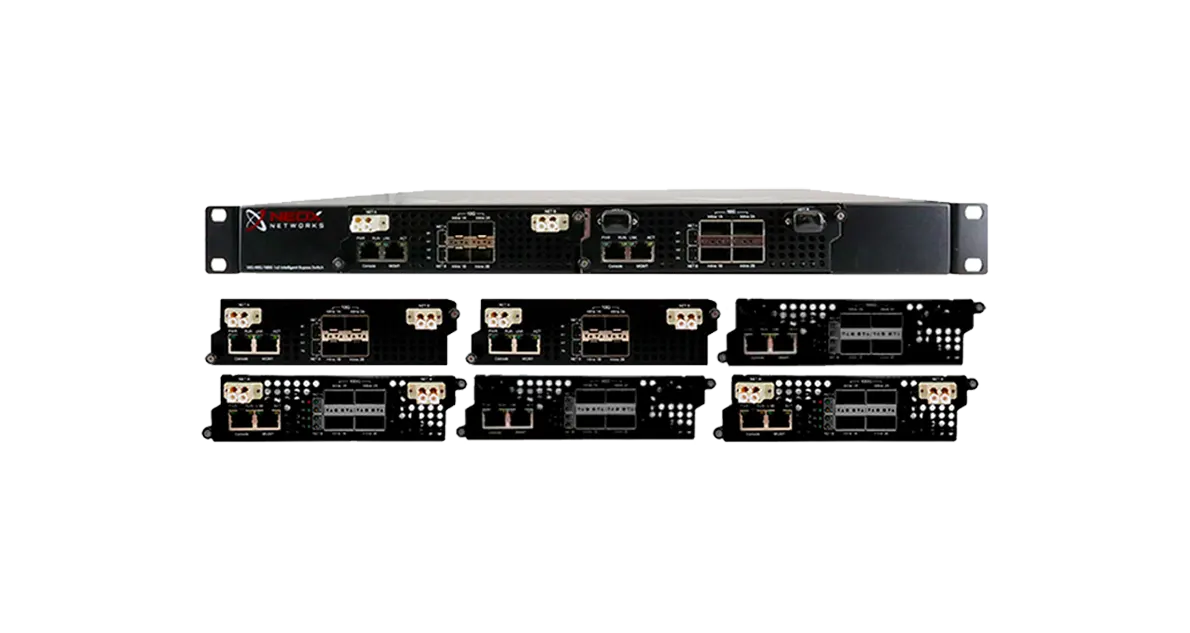

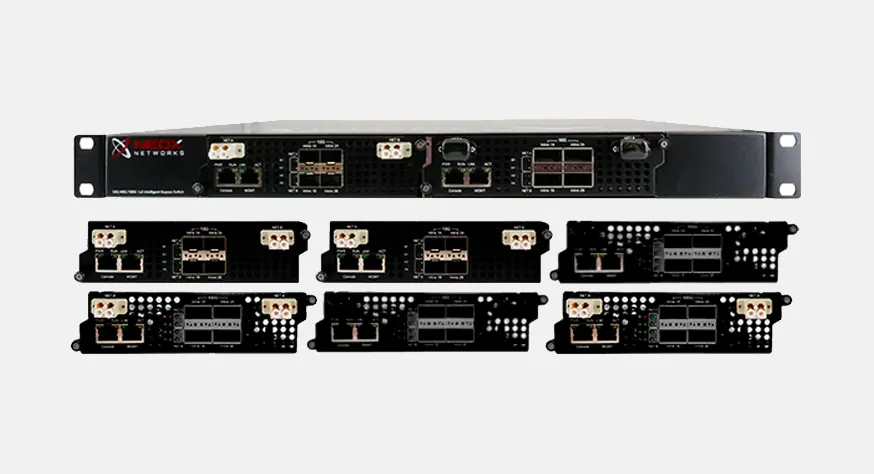

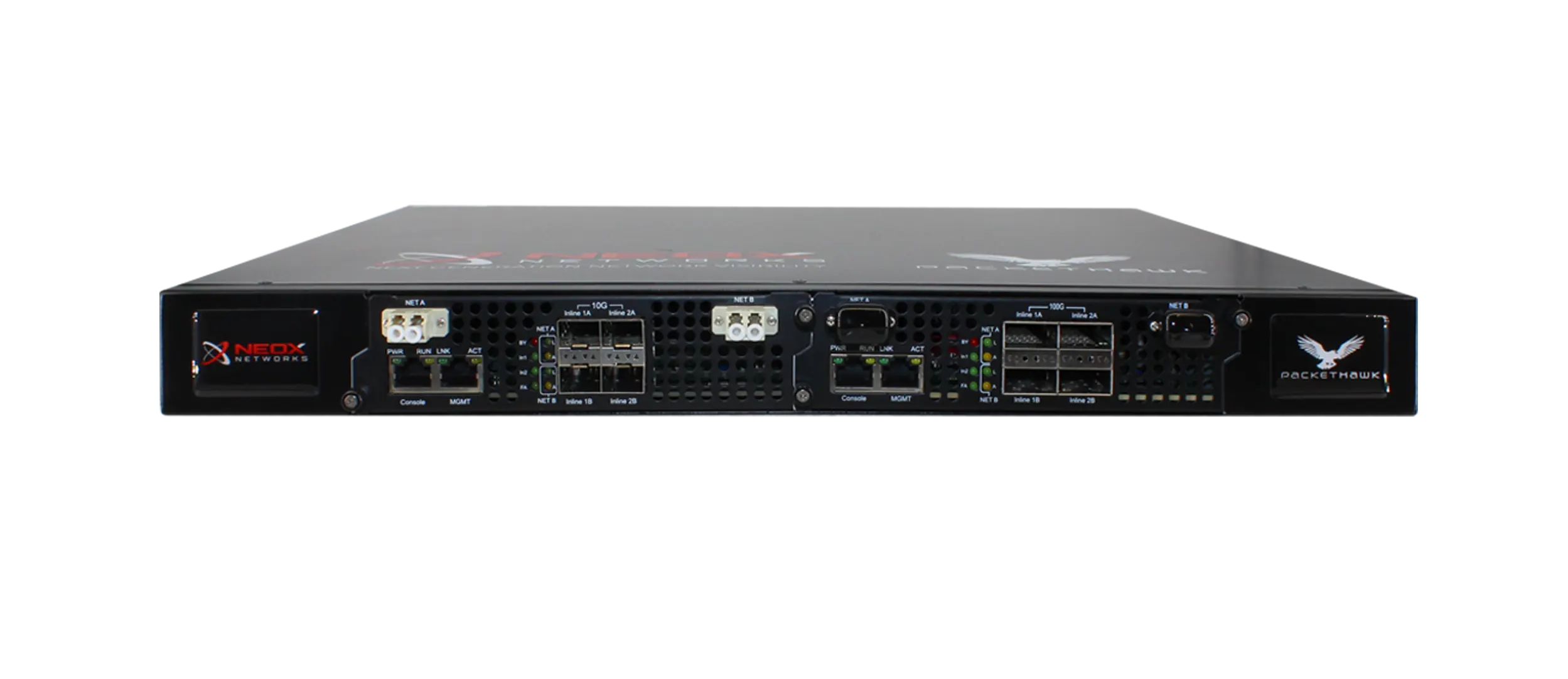

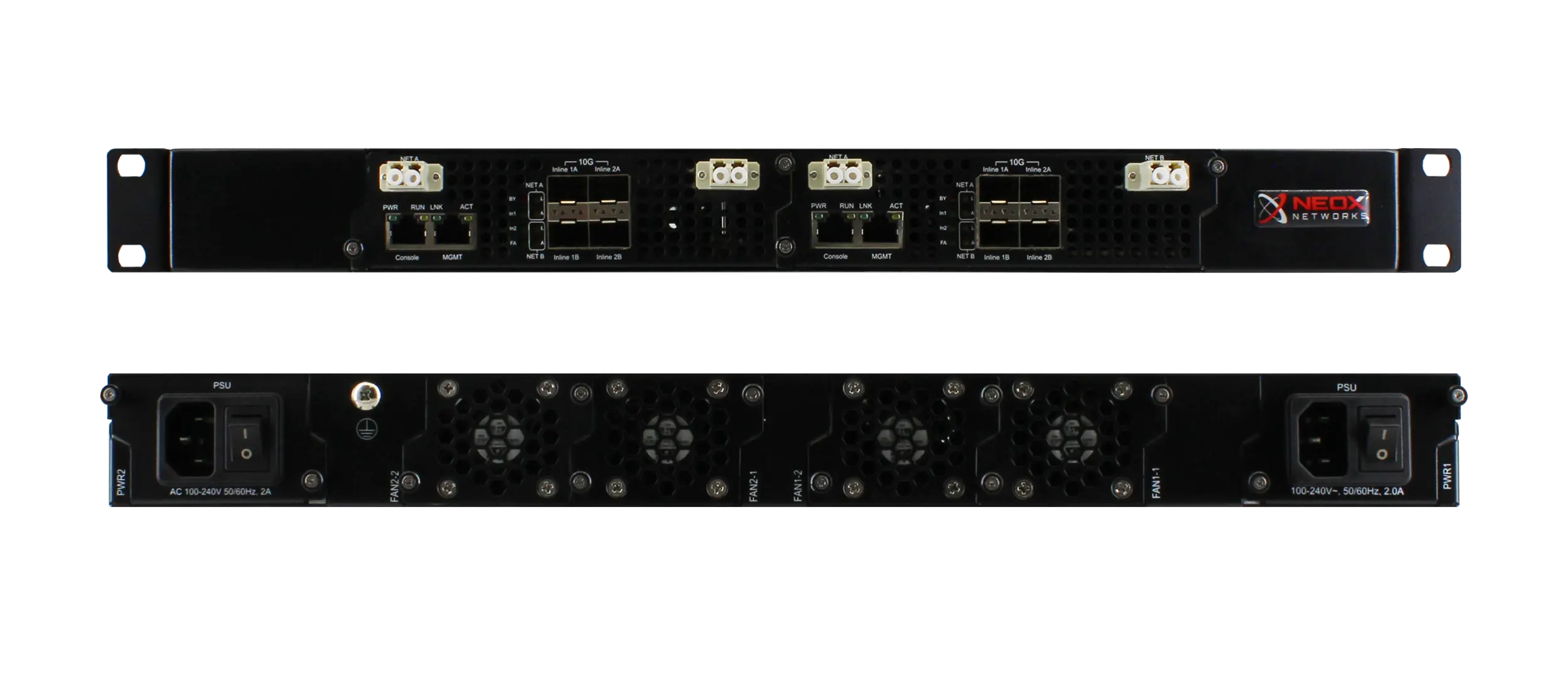

  • This is an empty chassis with power supplies that will be fitted with the respective modules (see below)
    Dimensions & Weight
    • Size: 440mm x 410mm x 44mm (W x D x H)
    • Weight: 5.5 kg
    Power Supply
    • Power: 100~240VAC, 2A,50/60Hz, typical: 70W, max.: 90W
    • 1+1 Redundant, hot-swappable power supply modules
    Operating Temperature
    • 0° – 50° Celsius
    Relative Humidity
    • 10% – 90% (non-condensing)

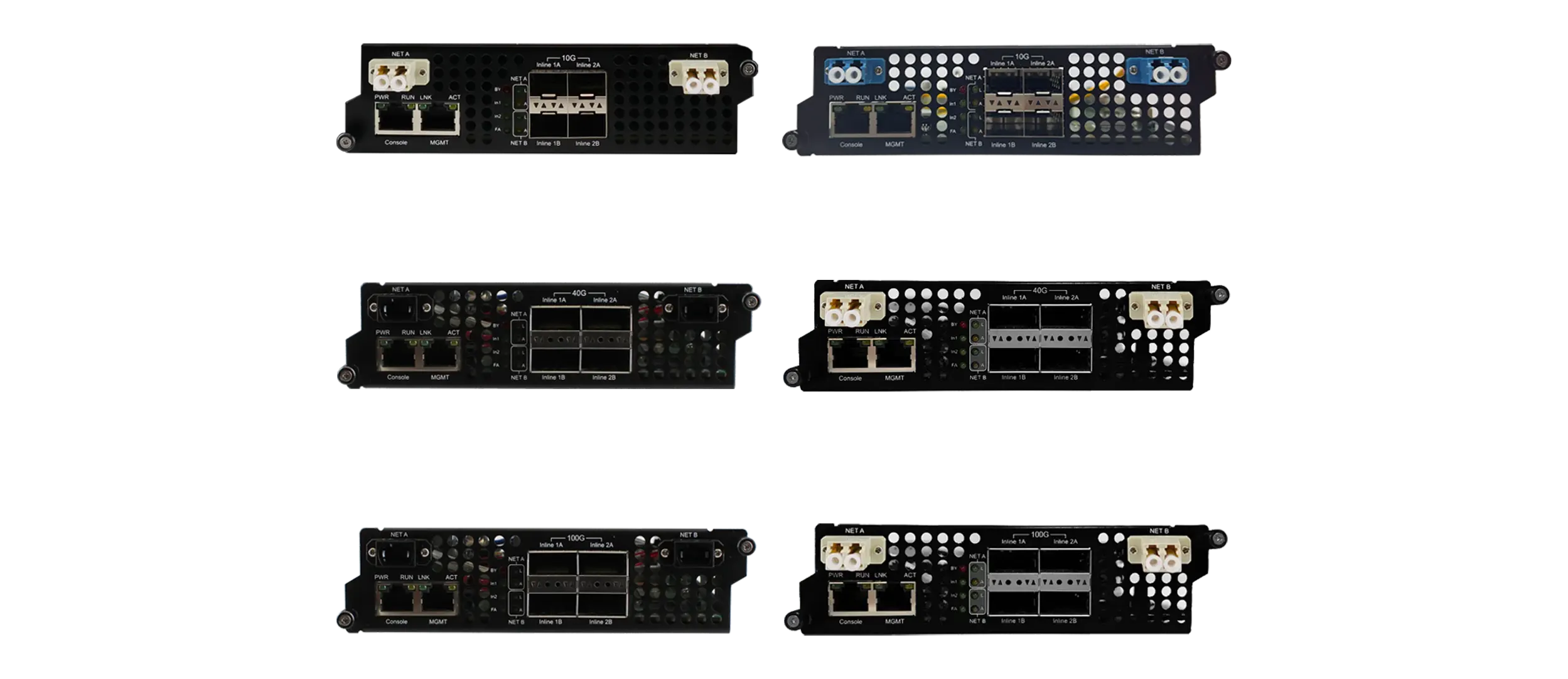

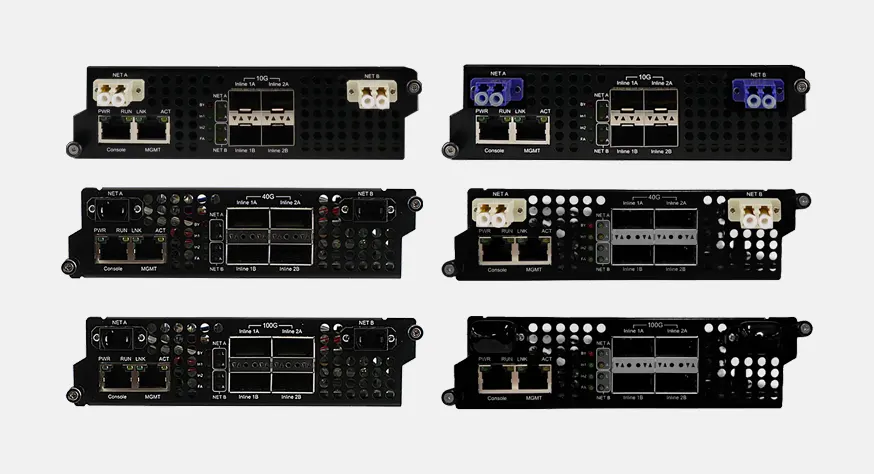

Bypass Network TAP - Modules

ModuleS

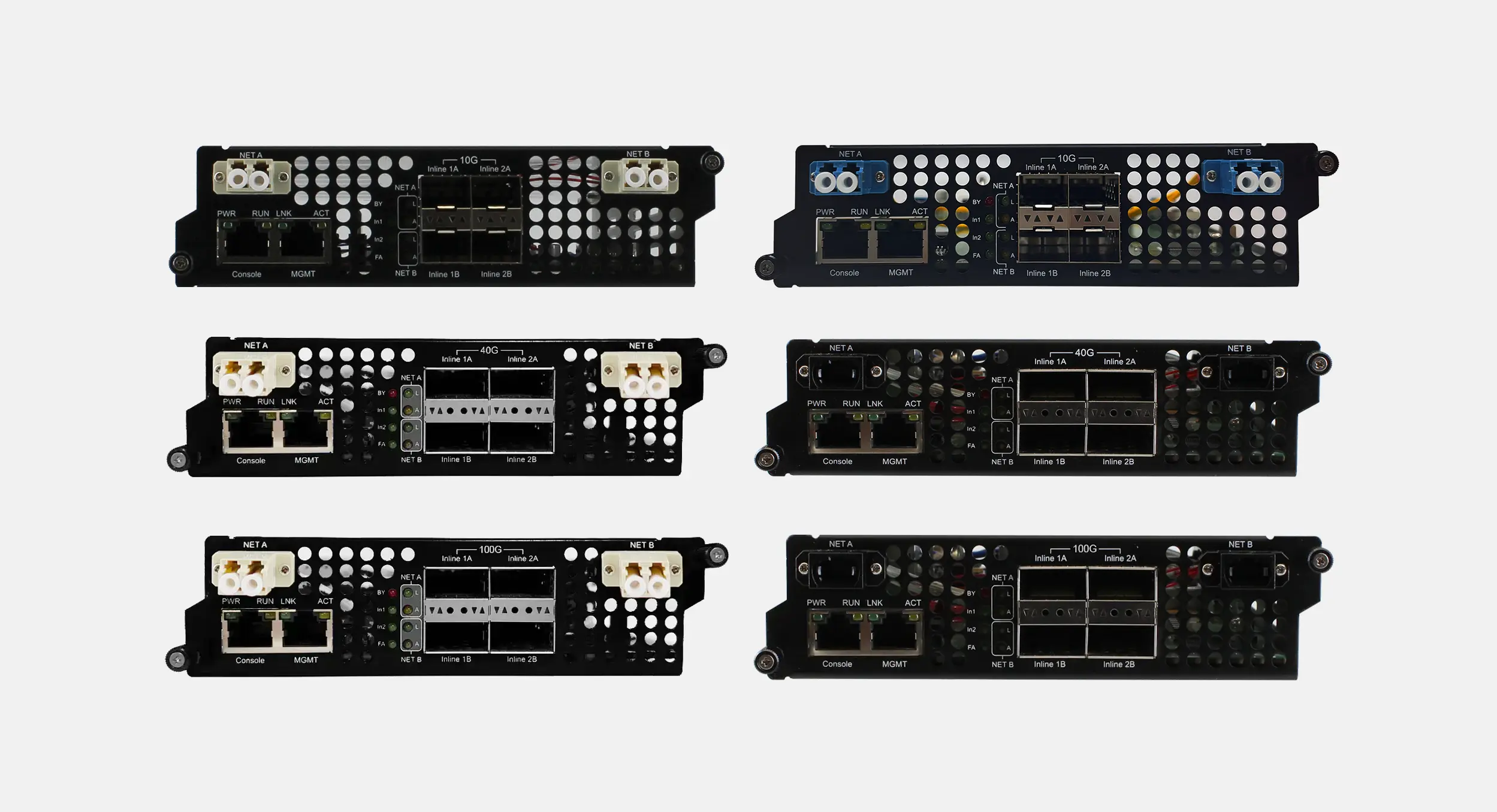

PACKETHAWK MODULES
Article No. Description

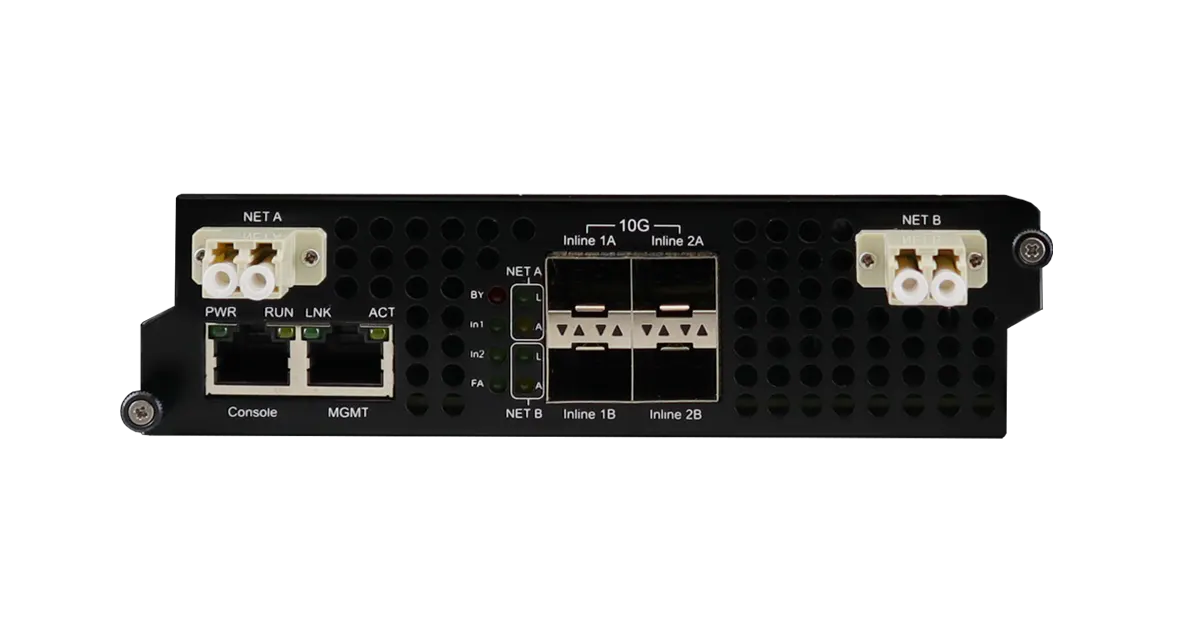

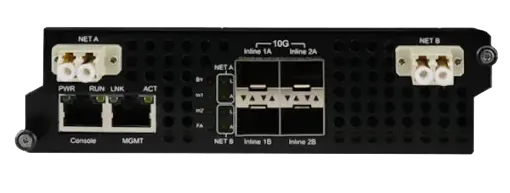

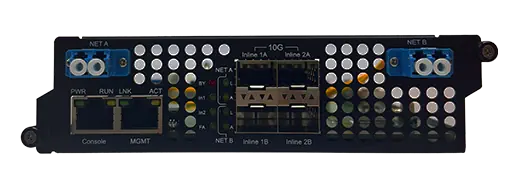

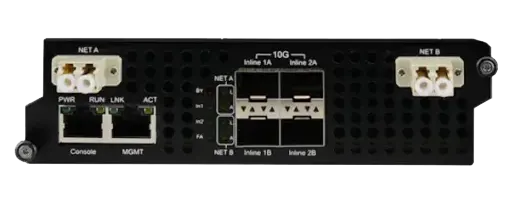

NX-PH-BS-M10S10 Gigabit Bypass TAP I/F module (SR)

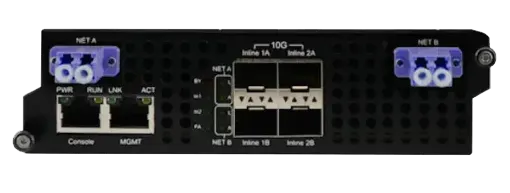

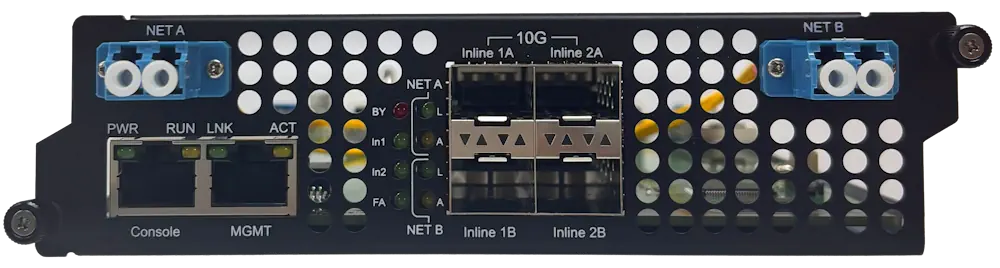

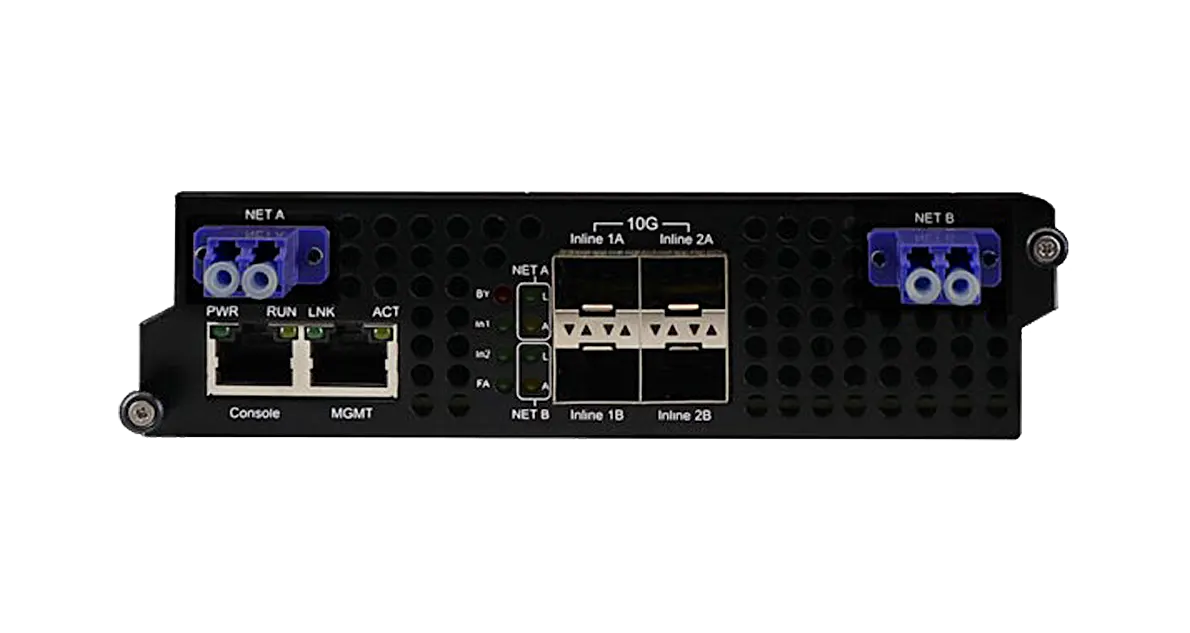

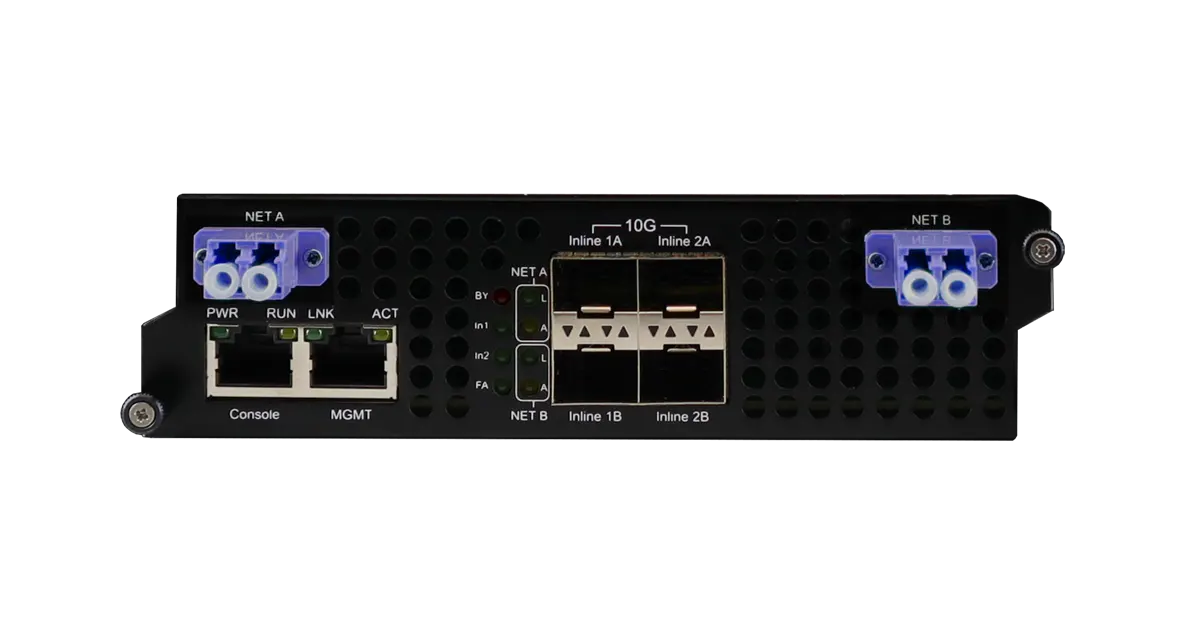

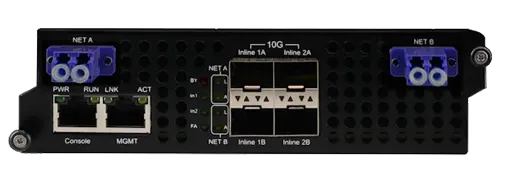

NX-PH-BS-M10L 10 Gigabit Bypass TAP I/F module (LR)

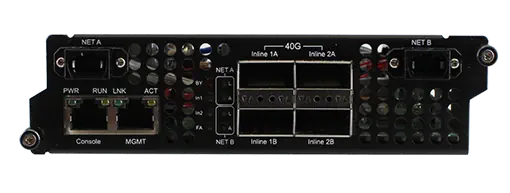

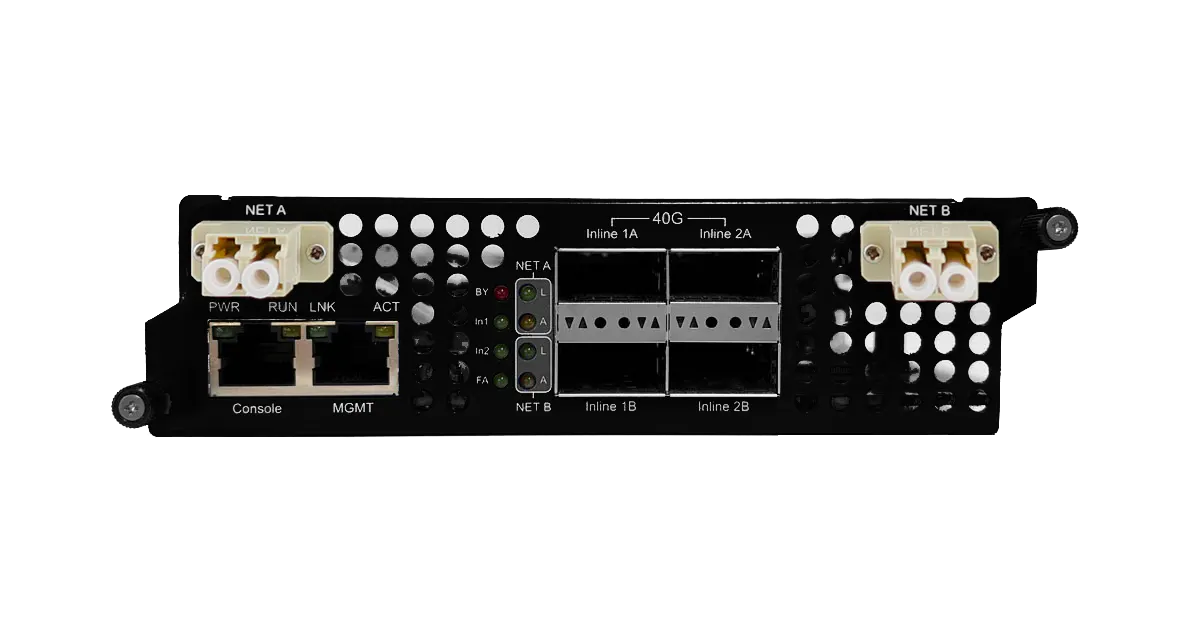

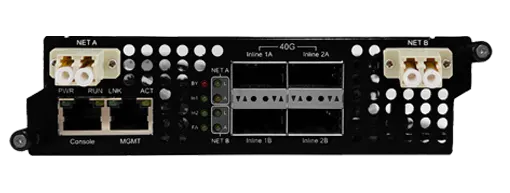

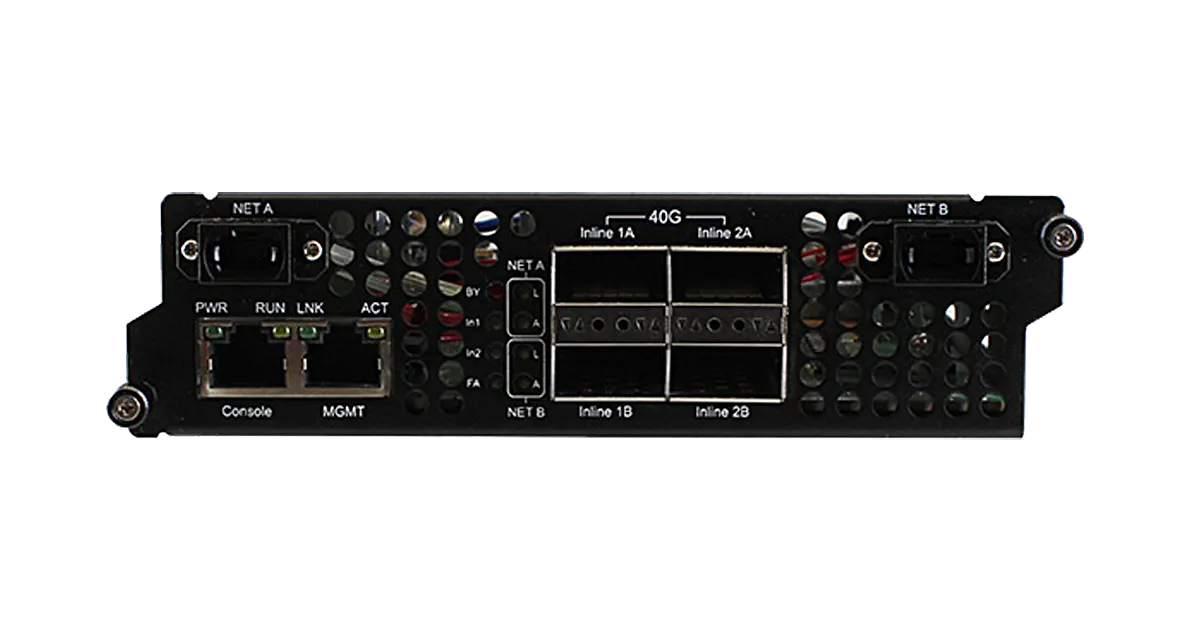

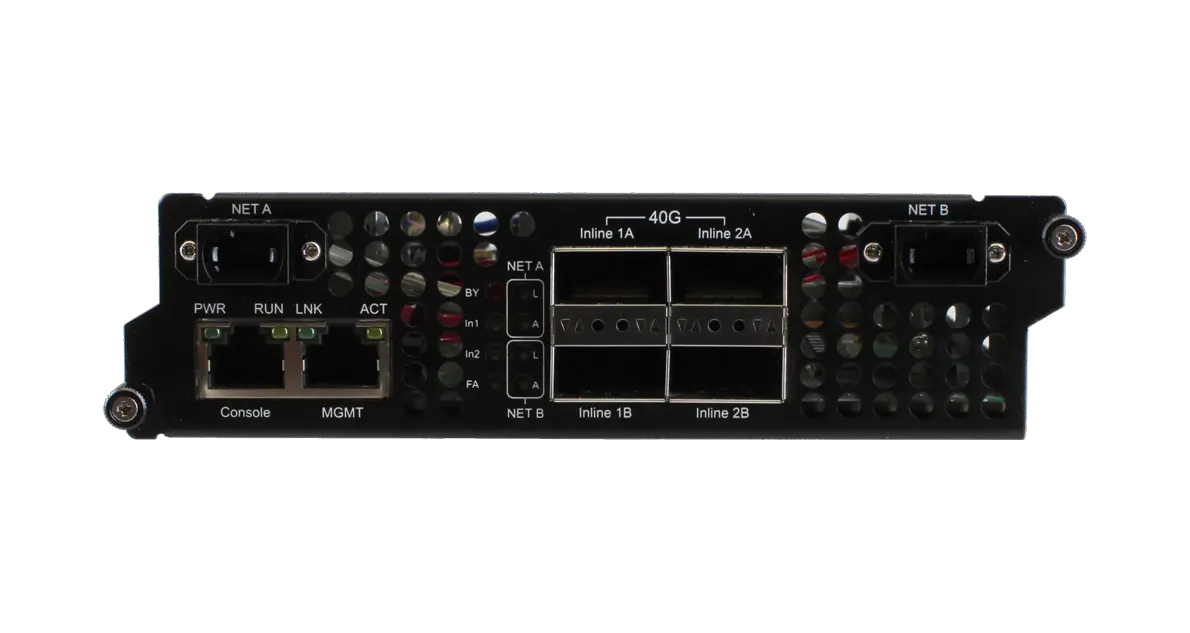

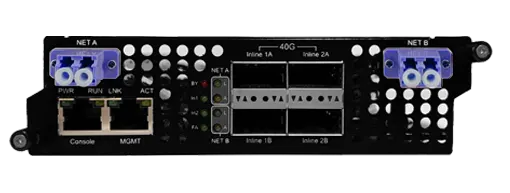

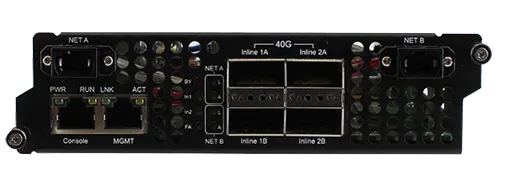

NX-PH-BS-M40S 40 Gigabit Bypass TAP I/F module (SR4)

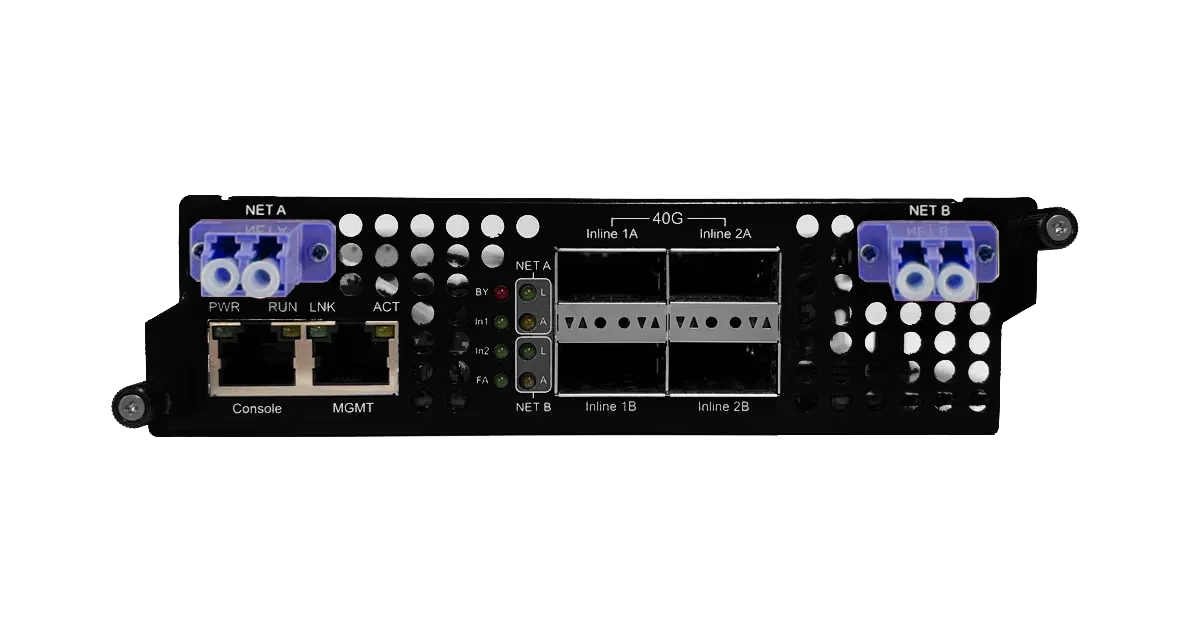

NX-PH-BS-M40L 40 Gigabit Bypass TAP I/F module (LR4)

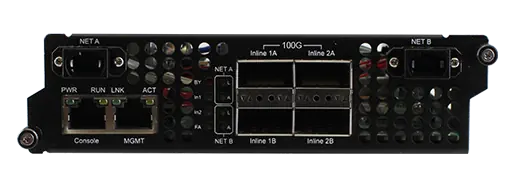

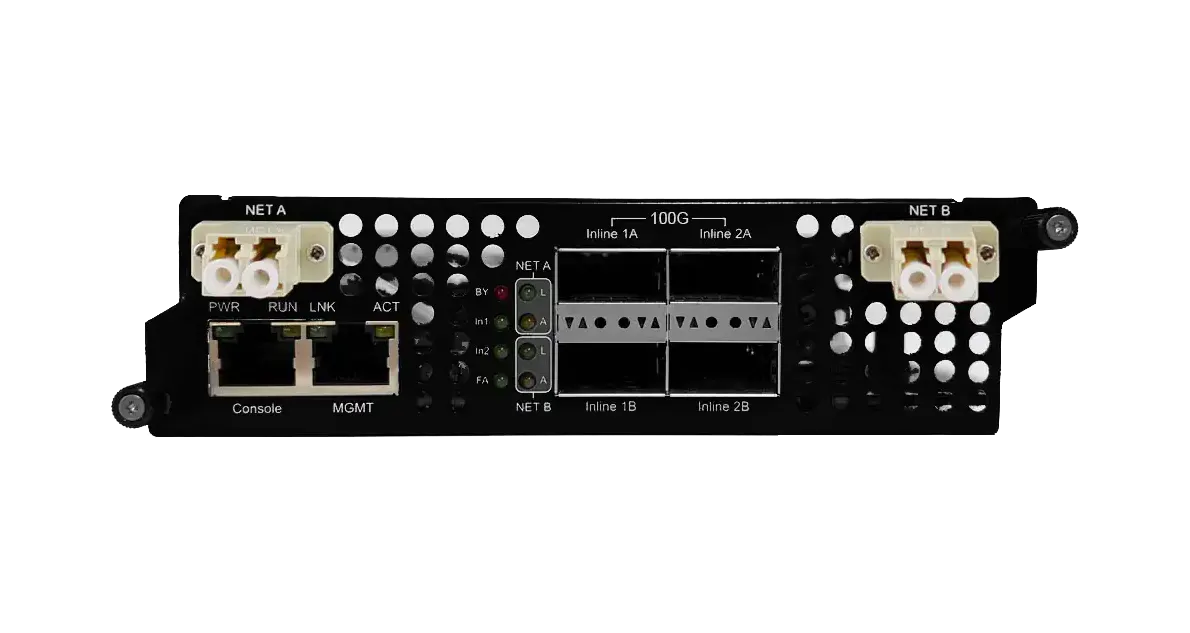

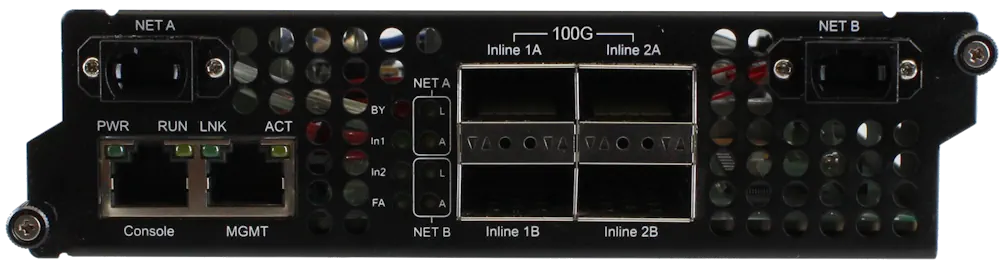

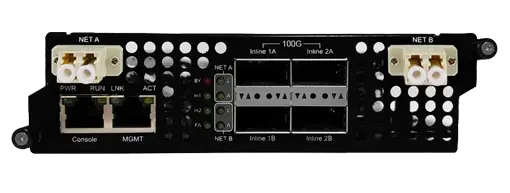

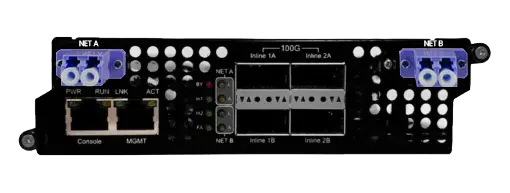

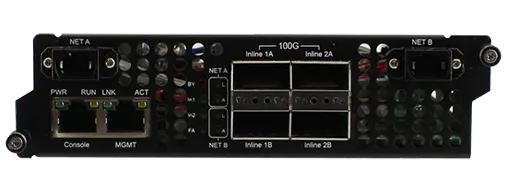

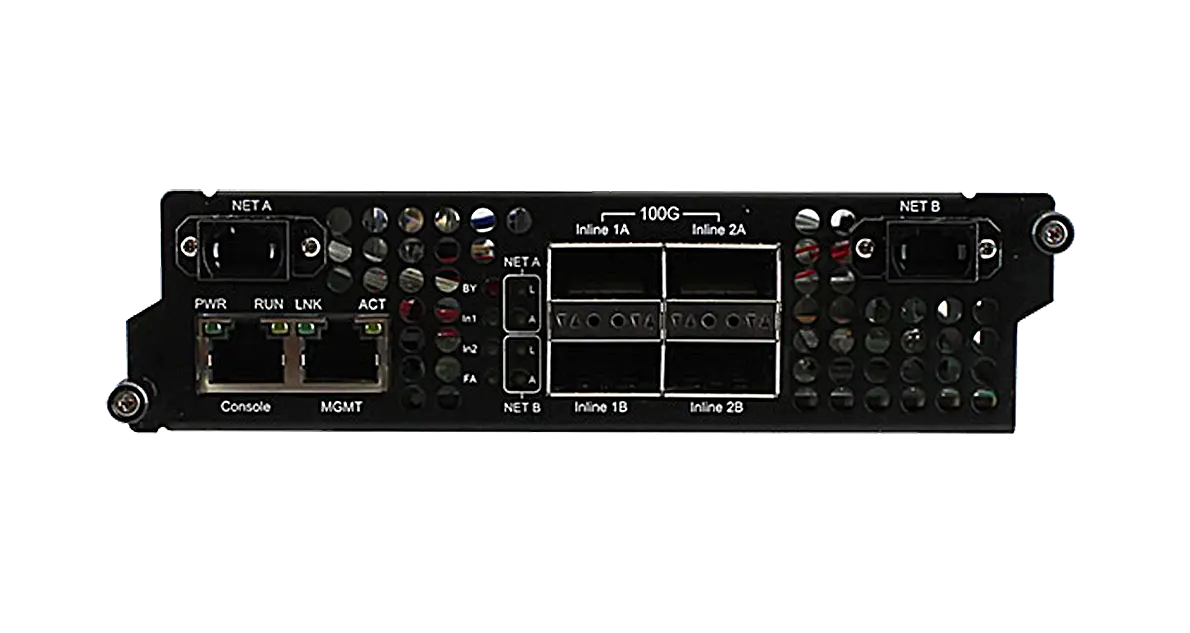

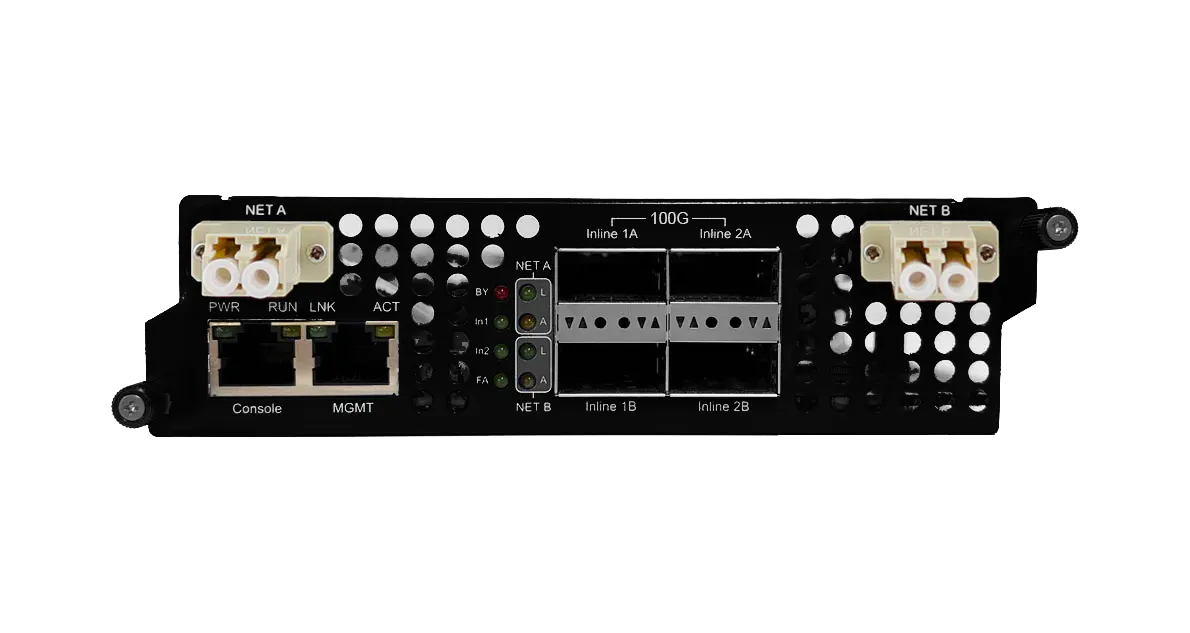

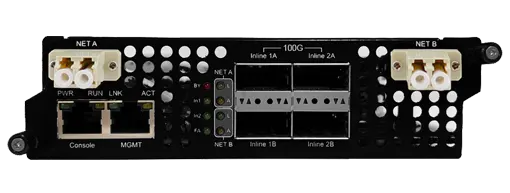

NX-PH-BS-M100S 100 Gigabit Bypass TAP I/F module (SR4)

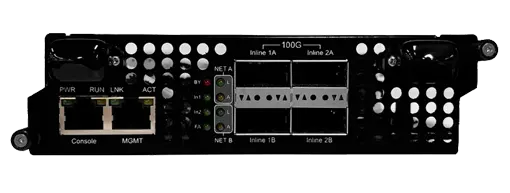

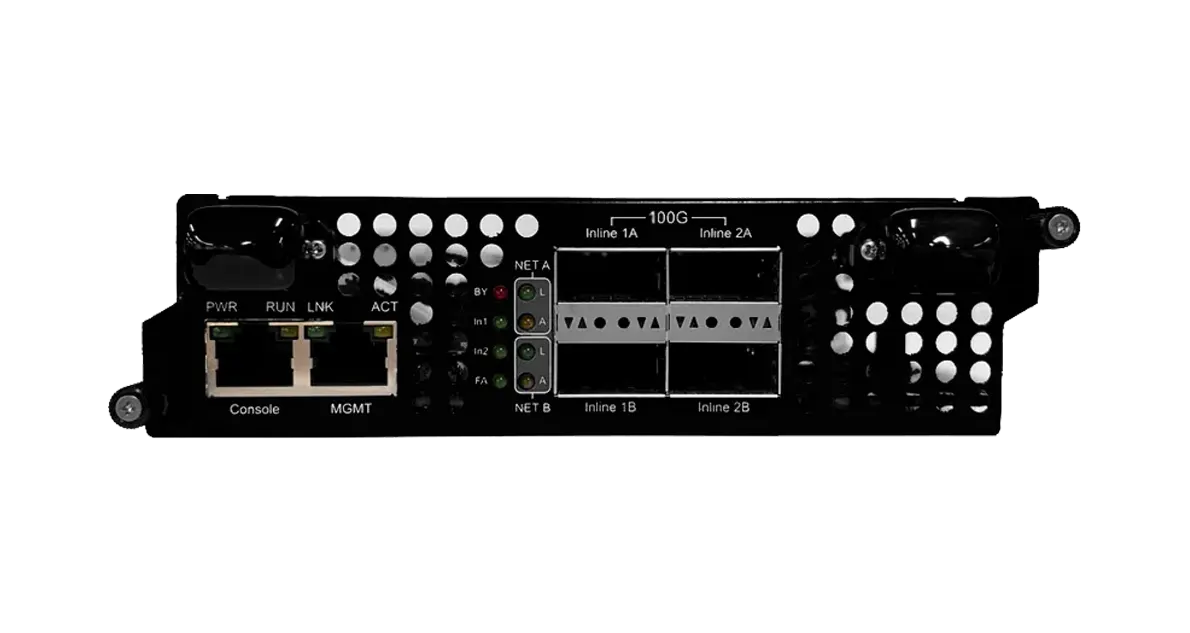

NX-PH-BS-M100L 100 Gigabit Bypass TAP I/F module (LR4)

SERVICE & SUPPORT

Unparallel Multi-Level Service & Support for Peace of Mind

All NEOXPacketHawk Bypass Switches come with NEOX SILVER Support and can be upgraded to GOLD Support for advanced replacement in case of a hardware failure.
