Full Network Visibility up to 400G
Full Network Transparency | 100% Passive | Extra Secure Modular Network TAP Models for CRITIS Available
GRASSROOT LEVEL NETWORK VISIBILITY

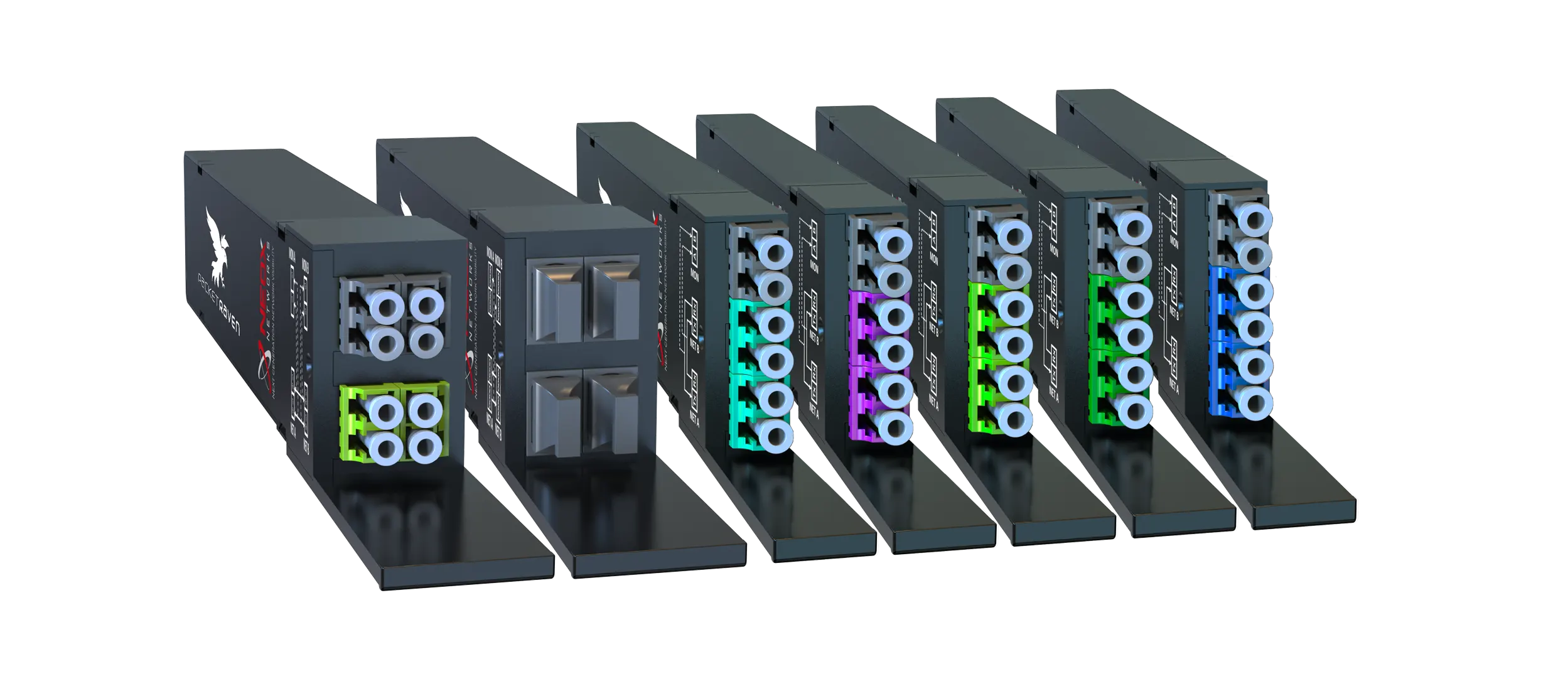

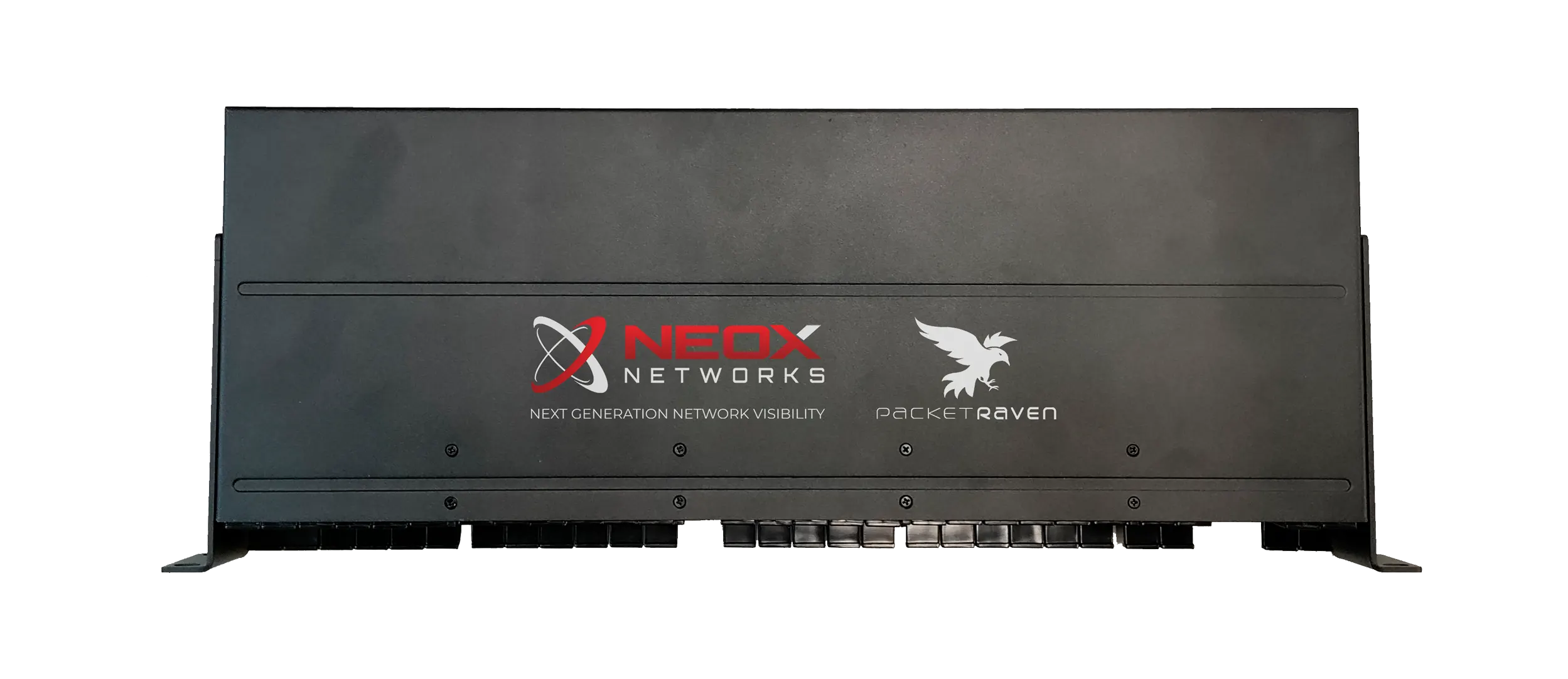

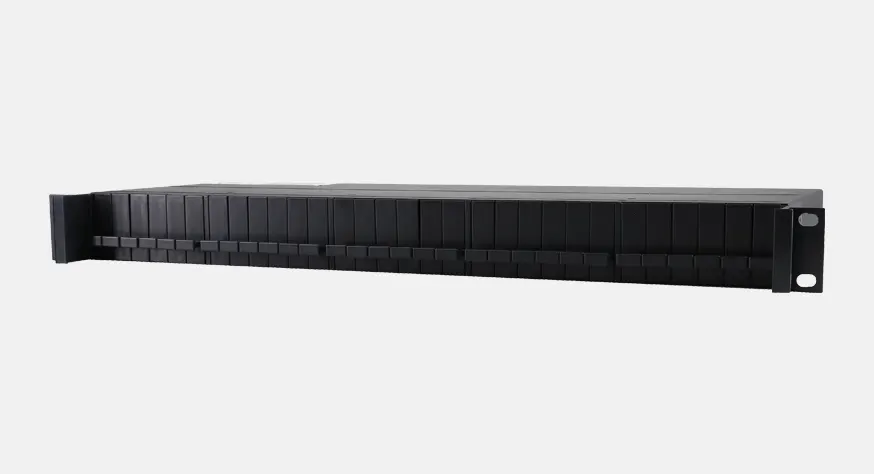

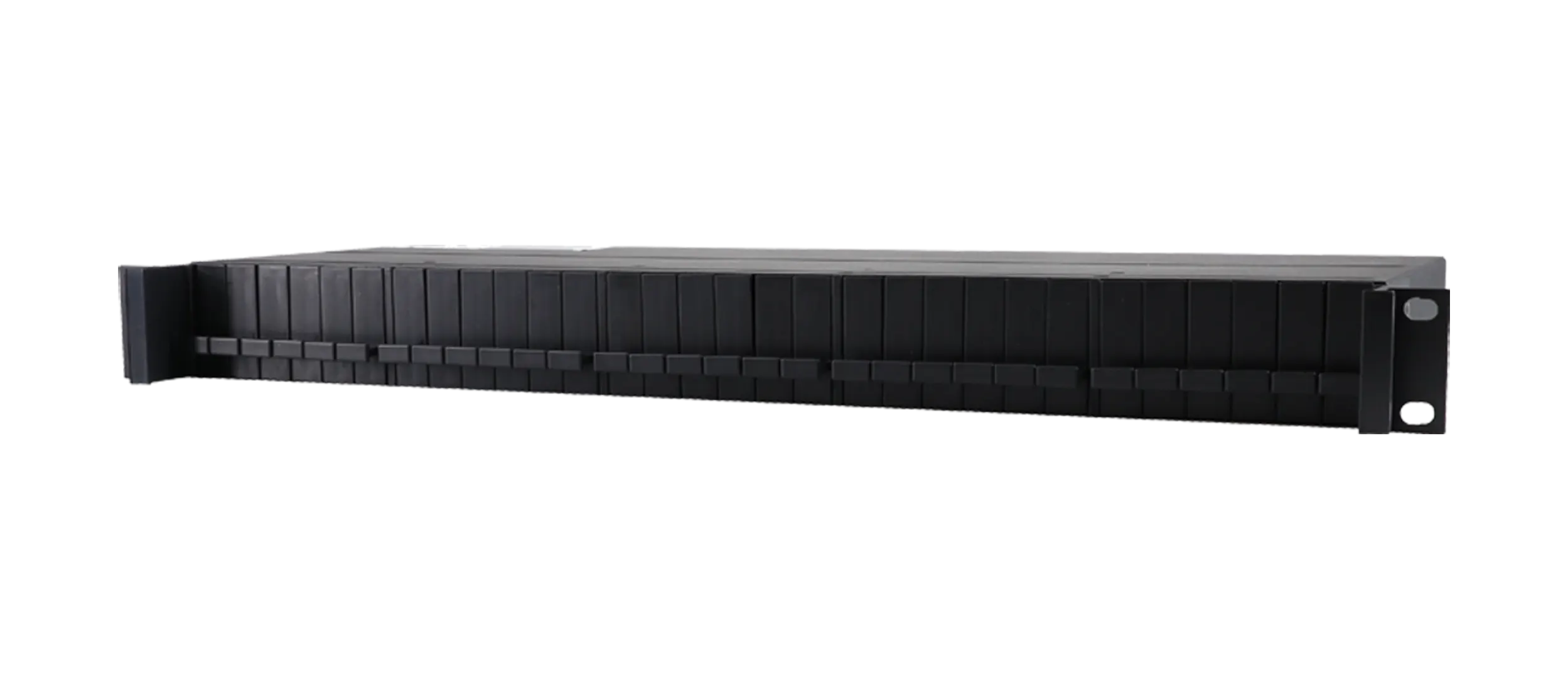

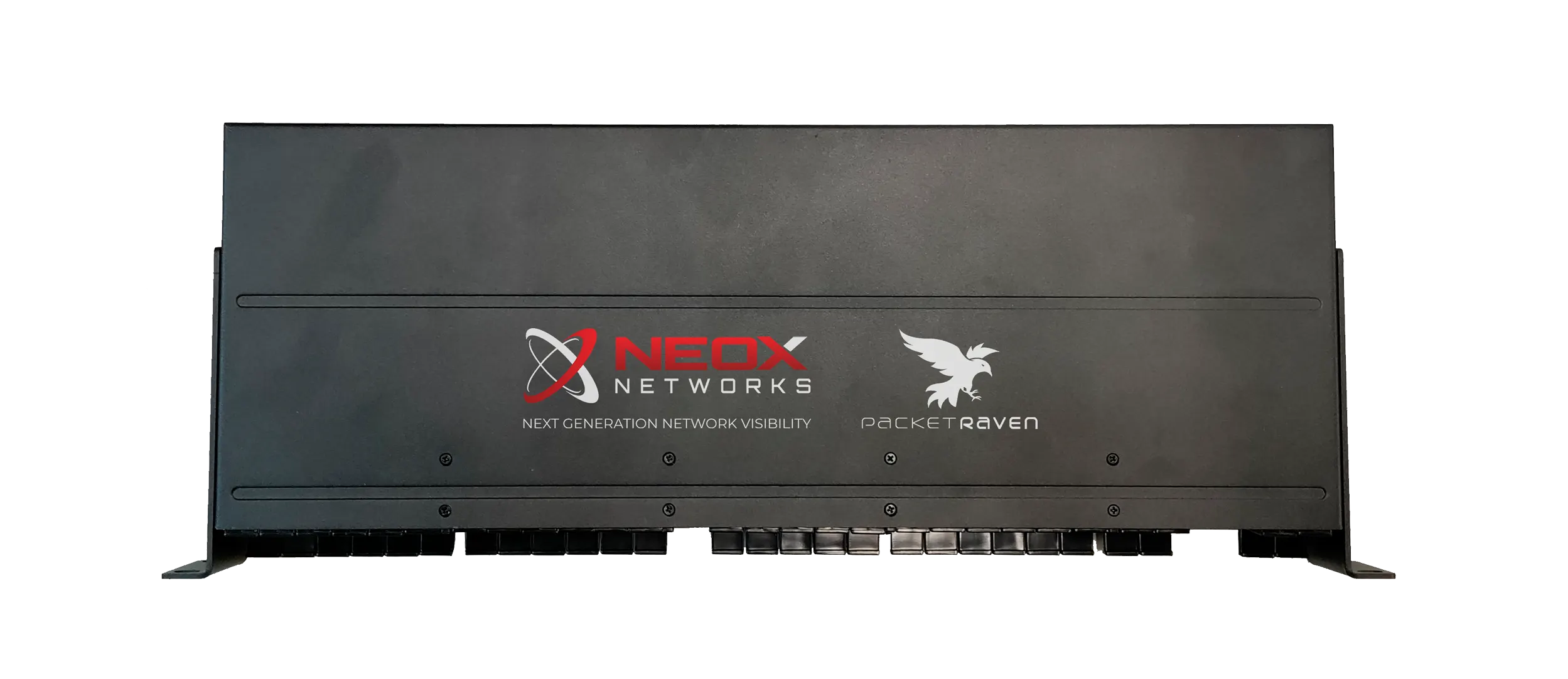

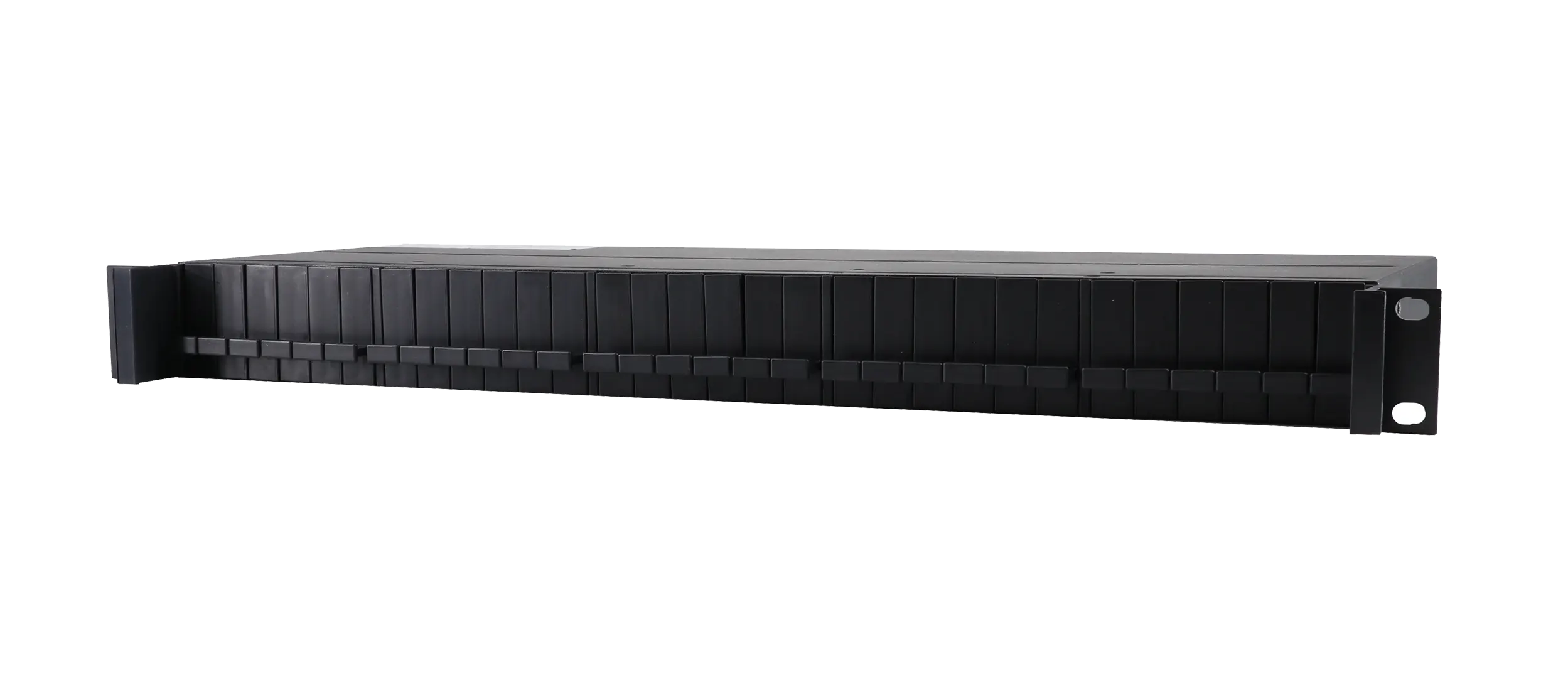

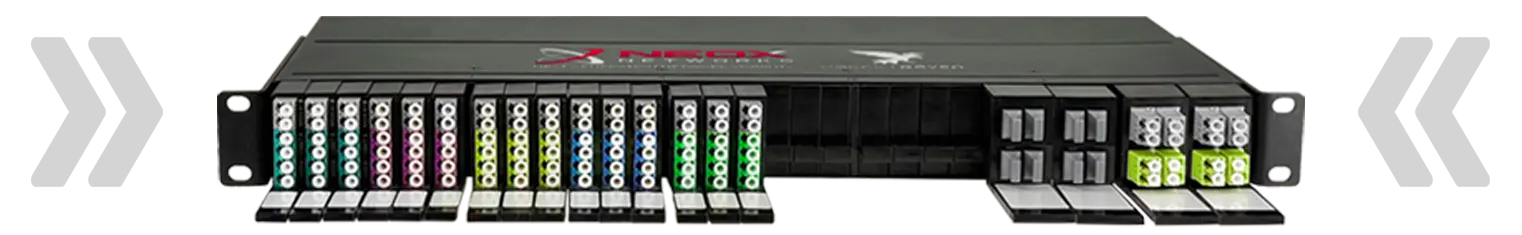

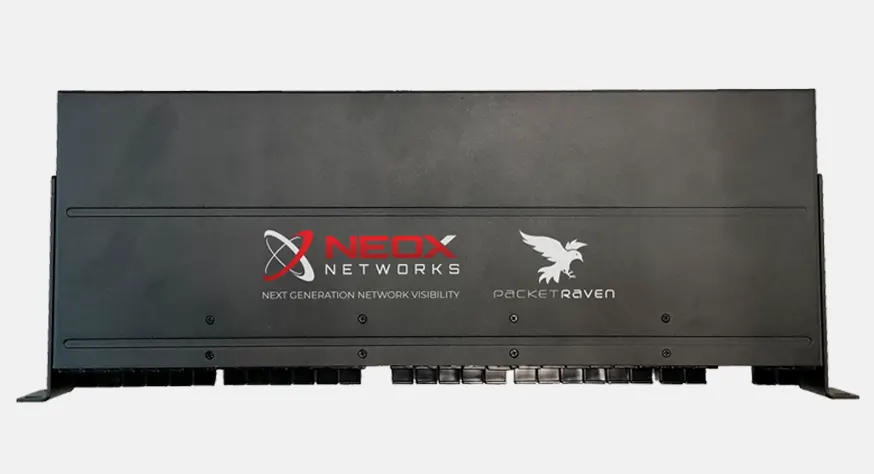

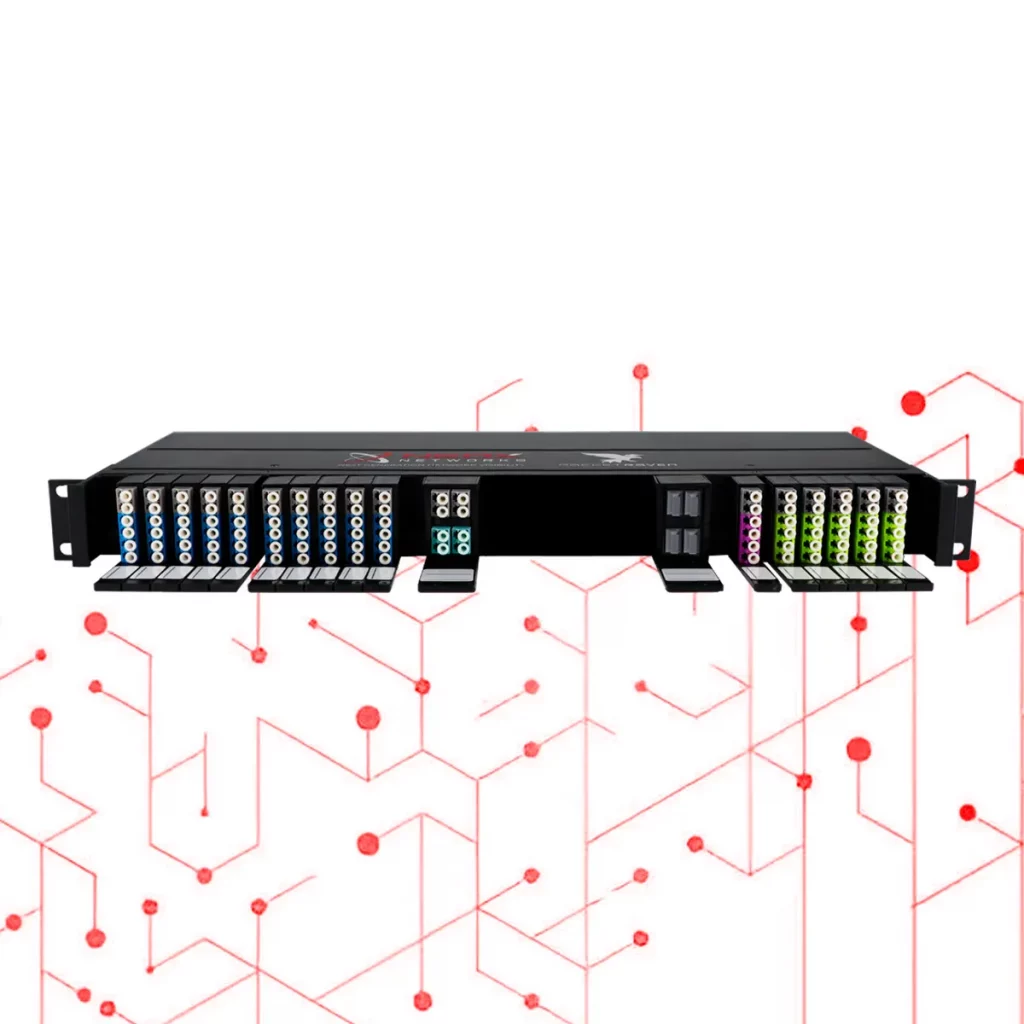

Industry's Highest Density Modular Network TAP
Real-Time Network Data-in-Motion and Network Intelligence Access
NEOX FIELD-PROVEN SOLUTION

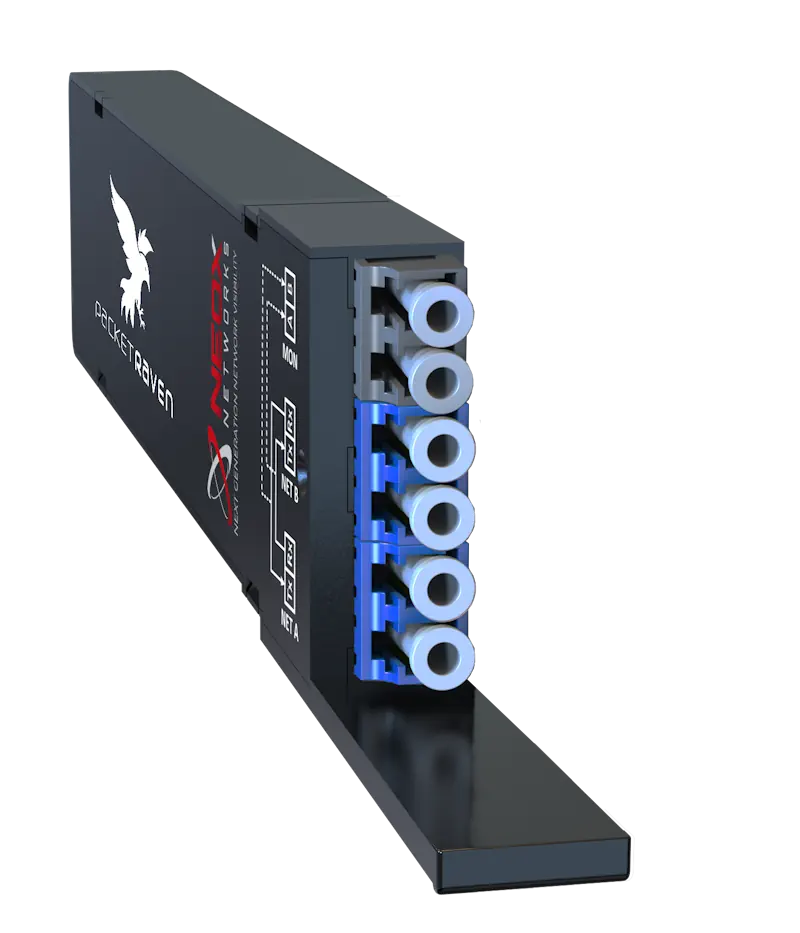

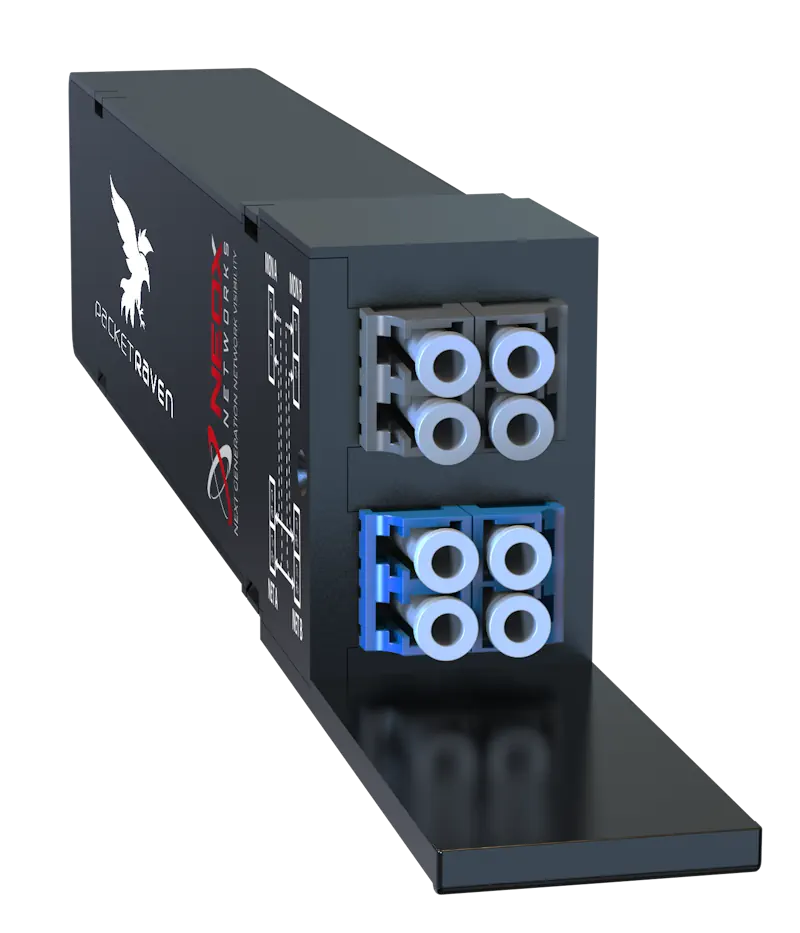

Fiber Singlemode OS2 LC - Modular Network TAP
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.

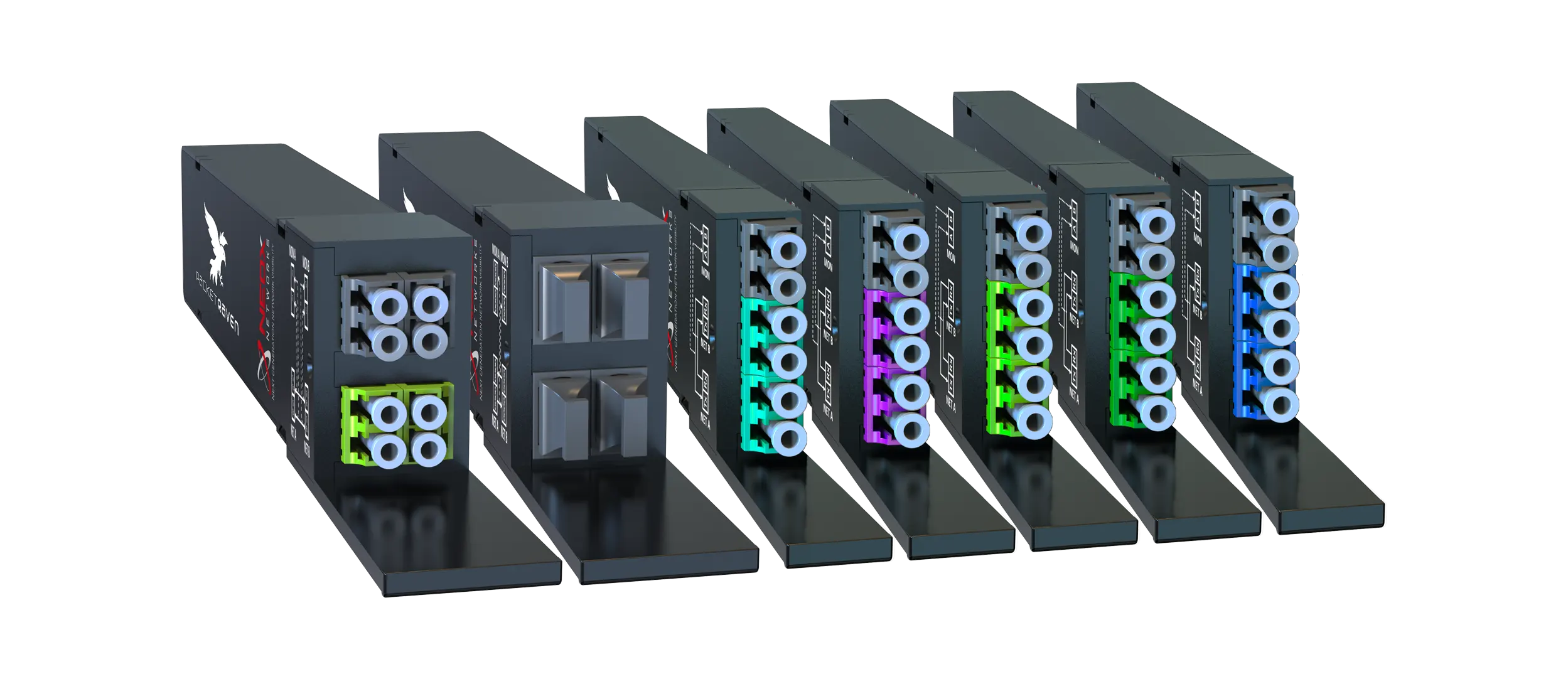

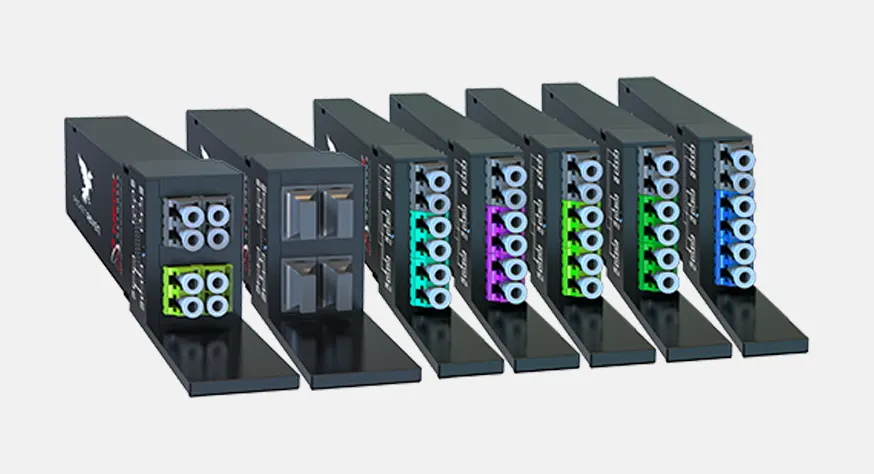

PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 100M, 1G, 10G, 25G, 40G, 50G, 100G, 200G, and 400G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50, 60:40, 70:30, 80:20 and 90:10 are supported
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency

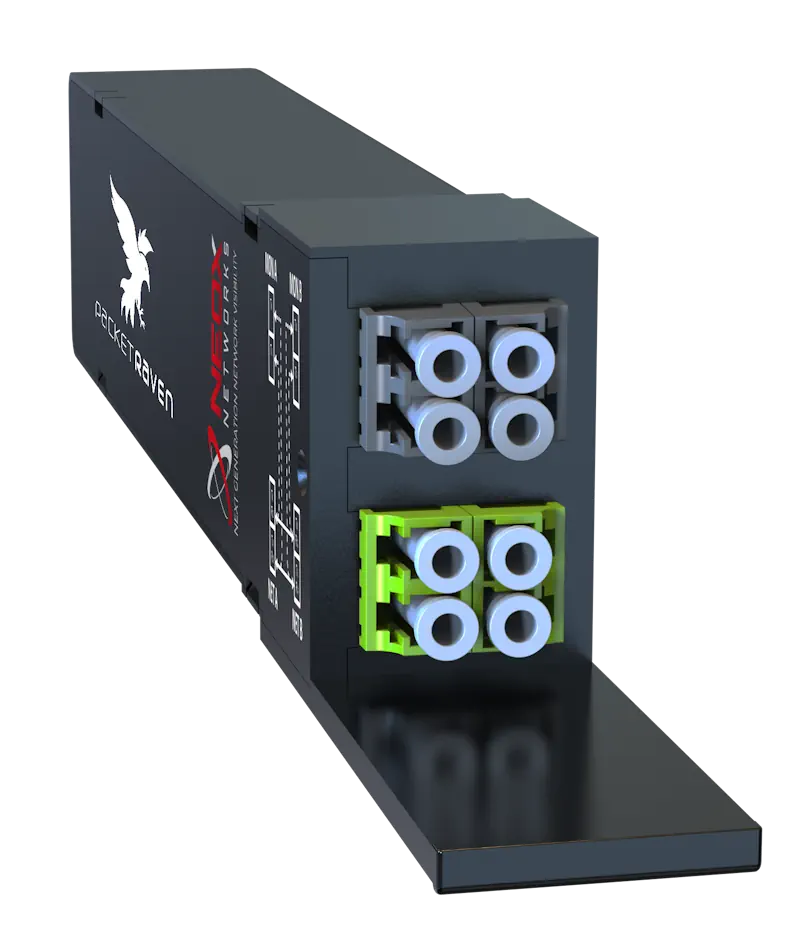

- Bi-directional (BiDi) models available
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Singlemode LC 1260 nm – 1650 nm | OS1, OS2 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
| Singlemode LC OS1, OS2 | 3.4 dB / 3.4 dB | 2.5 dB / 4.5 dB | 1.7 dB / 5.8 dB |
SINGLEMODE TAPS
| PACKETRAVEN TAP MODELS SINGLEMODE LC | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OS2 are also OS1 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wavelength | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OS2-LL | 100M/1G/10G/25G/40G/ 50G/100G/200G/400G |
OS2 | 1260 nm – 1650 nm | LC | LC | 50:50, 60:40 or 70:30 |
1 |
DOCUMENTS

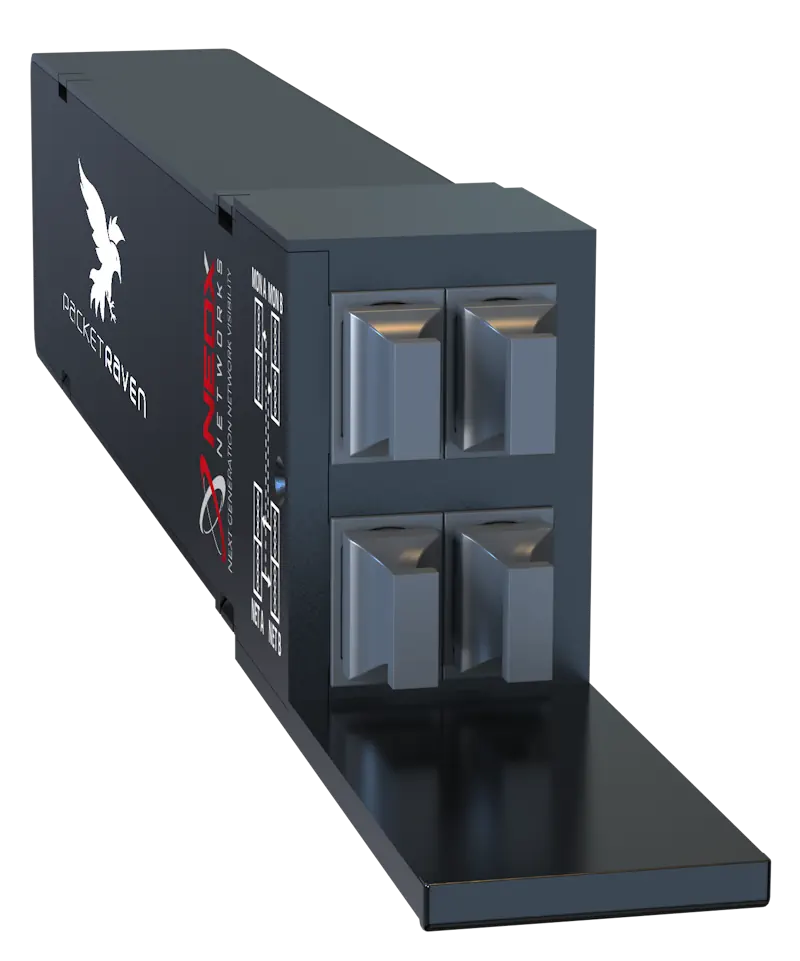

Fiber Singlemode OS2 MTP® - Modular Network TAP
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.
PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 40G, 100G, 200G, and 400G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50, 60:40, 70:30, 80:20 and 90:10 are supported
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Singlemode MTP 1310 nm – 1550 nm | OS1, OS2 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
| Singlemode MTP OS1, OS2 | 4.1 dB / 4.1 dB | 3.2 dB / 5.2 dB | 2.4 dB / 6.5 dB |
SINGLEMODE TAPS
| PACKETRAVEN TAP MODELS SINGLEMODE MTP | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OS2 are also OS1 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wavelength | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OS2-MTP | 40G/100G/ 200G/400G | OS2 | 1310 nm – 1550 nm | MTP®/MPO | MTP®/MPO | 50:50*, 60:40 or 70:30 |
2 |
DOCUMENTS

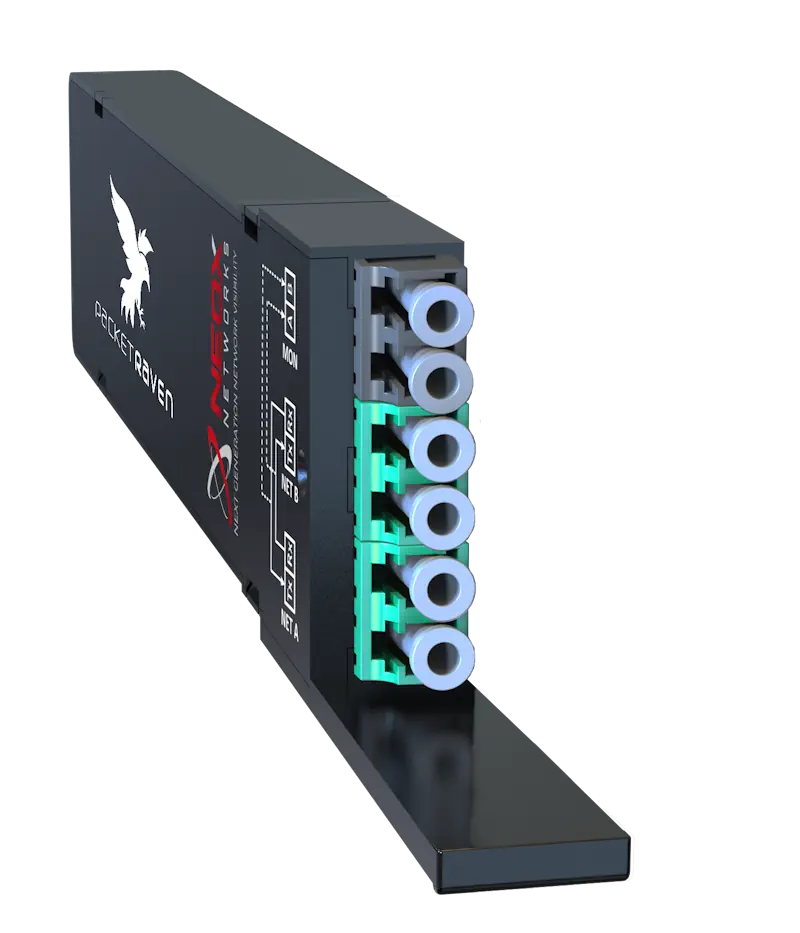

Fiber Multimode OM3 LC - Modular Network TAP
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.
PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 1G, 10G, 25G, 50G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50, 60:40, 70:30, 80:20 and 90:10 are supported
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Multimode 850 nm | OM3, OM4 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
| Multimode OM3, OM4, OM5 | 3.8 dB / 3.8 dB | 2.8 dB / 4.8 dB | 2.2 dB / 6.1 dB |
MULTIMODE TAPS
| PACKETRAVEN TAP MODELS MULTIMODE OM3 | |||||||
|---|---|---|---|---|---|---|---|
| Item No. | Network | Fiber Type | Wavelength | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OM3-LL | 1G/10G/25G/50G | OM3 | 850 nm | LC | LC | 50:50, 60:40 or 70:30 | 1 |
DOCUMENTS
Fiber Multimode OM4 LC - Modular Network TAP
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.
PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 1G, 10G, 25G, 50G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50, 60:40, 70:30, 80:20 and 90:10 are supported
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Multimode 850 nm | OM3, OM4 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
| Multimode OM3, OM4, OM5 | 3.8 dB / 3.8 dB | 2.8 dB / 4.8 dB | 2.2 dB / 6.1 dB |
MULTIMODE TAPS
| PACKETRAVEN TAP MODELS MULTIMODE OM4 | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OM5 are also OM4 compatible!
All TAPs for fiber type OM4 are also OM3 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wavelength | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OM4-LL | 1G/10G/25G/50G | OM4 | 850 nm | LC | LC | 50:50, 60:40 or 70:30 | 1 |
DOCUMENTS

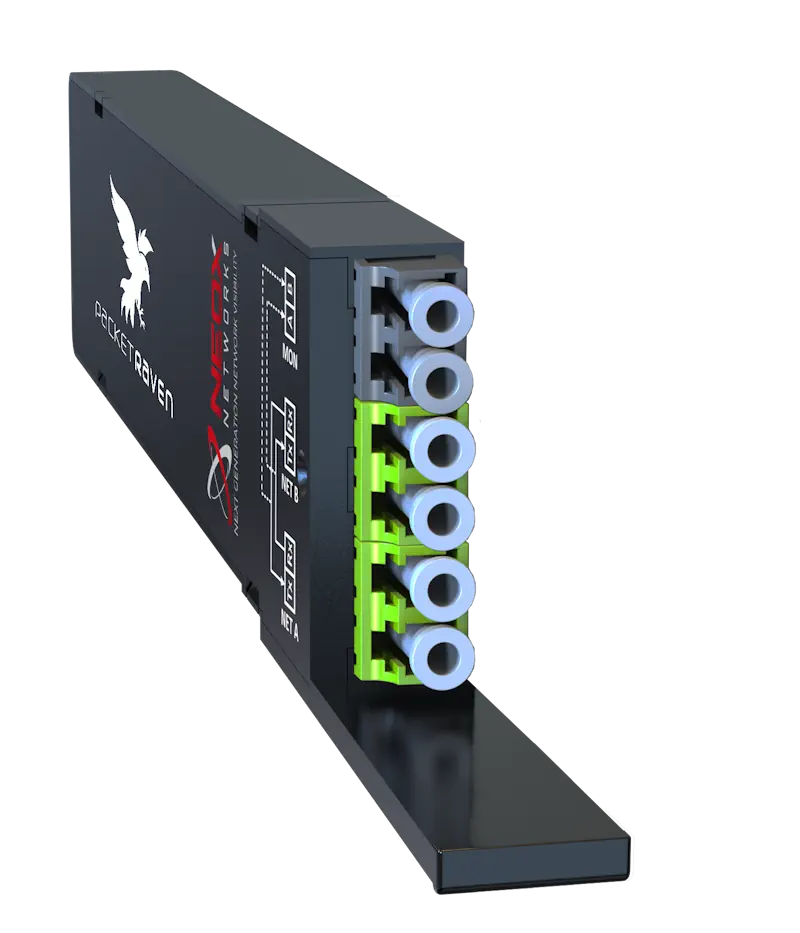

Fiber Multimode OM5 LC - Modular Network TAP
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.
PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 1G, 10G, 25G, 50G, 100G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50, 60:40, 70:30, 80:20 and 90:10 are supported
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency
- Bi-directional (BiDi) models available
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Multimode 850 nm – 950 nm | OM5 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
| Multimode OM3, OM4, OM5 | 3.8 dB / 3.8 dB | 2.8 dB / 4.8 dB | 2.2 dB / 6.1 dB |
MULTIMODE TAPS
| PACKETRAVEN TAP MODELS MULTIMODE OM5 | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OM5 are also OM4 compatible!
All TAPs for fiber type OM4 are also OM3 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wave- length | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OM5-LL | 1G/10G/25G/ 50G/100G | OM5 | 850 nm – 950 nm | LC | LC | 50:50, 60:40 or 70:30 | 1 |
DOCUMENTS
Fiber Multimode OM4 MTP® - Modular Network TAP
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.
PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 40G, 50G, 100G, 200G, and 400G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50, 60:40, 70:30, 80:20 and 90:10 are supported
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Multimode 850 nm | OM3, OM4 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
| Multimode OM3, OM4, OM5 | 3.8 dB / 3.8 dB | 2.8 dB / 4.8 dB | 2.2 dB / 6.1 dB |
MULTIMODE TAPS
| PACKETRAVEN TAP MODELS MULTIMODE MTP OM4 | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OM5 are also OM4 compatible!
All TAPs for fiber type OM4 are also OM3 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wave- length | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OM4-MM | 40G/100G/ 200G/400G | OM4 | 850 nm | MTP® | MTP® | 50:50, 60:40 or 70:30 | 2 |
DOCUMENTS
Fiber Multimode OM5 MTP® - Modular Network TAP
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.
PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 40G, 50G, 100G, 200G, and 400G
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50, 60:40, 70:30, 80:20 and 90:10 are supported
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Multimode 850 nm – 950 nm | OM5 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
| Multimode OM3, OM4, OM5 | 3.8 dB / 3.8 dB | 2.8 dB / 4.8 dB | 2.2 dB / 6.1 dB |
MULTIMODE TAPS
| PACKETRAVEN TAP MODELS MTP MULTIMODE | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OM5 are also OM4 compatible!
All TAPs for fiber type OM4 are also OM3 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wave- length | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OM5-MM-50 | 40G/100G/200G/400G | OM5 | 850 nm – 950 nm | MTP® | MTP® | 50:50, 60:40 or 70:30 | 2 |
DOCUMENTS
Fiber Multimode OM5 LC BiDI - Modular Network TAP
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.
Integrating support for tapping connections that utilize Bi-Directional (BiDi) technology based on Wavelength Division Multiplexing (WDM), some of our TAPs also accommodate both Singlemode and Multimode setups.
PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 40G and 100G
- Bi-directional (BiDi) model – WDM (Wavelength Division Multiplexing) based
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50, 60:40, 70:30, 80:20 and 90:10 are supported
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Multimode 850 nm – 950 nm | OM5 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 60:40 | 70:30 |
| Multimode OM3, OM4, OM5 | 3.8 dB / 3.8 dB | 2.8 dB / 4.8 dB | 2.2 dB / 6.1 dB |
BIDI MULTIMODE TAPS
| PACKETRAVEN TAP MODELS BIDI MULTIMODE | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OM5 are also OM4 and OM3 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wavelength | Interface NET. / MON. | Split Ratio | Slots needed | |
| PRM-OM5-BD-LL | 40G/100G | OM5 | 830 nm – 950 nm | LC | LC | 50:50, 60:40 or 70:30 | 2 |
DOCUMENTS
Fiber Secure Modular Network TAP + Data Diode
OVERVIEW
Fiber TAPs are passive mirroring devices for secure and reliable tapping of network data in optical networks. These TAPs are looped into the fiber optic line to be monitored and route all data traffic without interruption.
Our optical TAPs do not require power, are purely passive components and therefore cannot be detected in the network without expensive measurement equipment. Hackers and other attackers thus have no chance, and since the integrity of the outgoing data remains unaltered due to this tapping method, Network TAPs are increasingly used in the areas of network forensics, security and monitoring.
But how does it work? Technically, optical TAPs split the light as it arrives and divide it into two fibers. In this case, a large part of the splitted signal remains on the actual network link and the rest is output to a monitoring port for external recording. Highly sensitive prisms are used to couple out the light wave.
Since optical Fiber TAPs are protocol-independent, these devices can be installed in a variety of network media. Thus, these TAPs are available for multimode and also singlemode network types and wavelength as well as network speed do not matter. The data is routed out transparently and loss-free without interfering with the active line.
Due to this splitting technique using a prism, attenuations naturally occur which must be taken into account when selecting the TAP. Fiber TAPs are available in 5 different variations and differ in their split ratio. Available are devices with the “split ratio” 50:50, 60:40, 70:30, 80:20, 90:10. A typical attenuation value of a 70:30 Fiber TAP is about 2dB on the network side and 6dB on the monitoring ports.
PacketRaven Modular Fiber TAPs are designed for data centers and allow you to equip up to 30 network segments with TAPs using our innovative, modular 1U chassis. They support network speeds from 100Mbps up to 400Gbps.
Without risk you get permanent network access and provide your monitoring and security tools with 100% reliable network data without introducing a single point of failure.
This makes our Secure TAPs especially suitable for business-critical applications and high-security areas and CRITIS infrastructures with high requirements for securing sensitive data.
They are 100% compatible with our modular standard TAPs without Data Diode Function and can be installed together in the same chassis. On top of that, they are protocol-agnostic and compatible with all monitoring systems from leading suppliers.
For further technical details, please refer to the data sheet or contact us. We will be happy to assist you in selecting the right TAP.
In addition to our Modular PacketRaven Network TAPs, we also offer Portable Network TAPs. These are, as the name suggests, portable, but can also be installed in one of our 1U rackmount frames.
HIGHLIGHTS
- Supported network speeds: 100M, 1G, 10G, 25G, 40G, 50G, 100G, 200G, and 400G
- Extra secure models with data diode functionality
- Alternative to SPAN ports – mirrors 100% of traffic including FCS/CRC errored packets that may be dropped by SPANs
- Invisible in the network, no IP address, no MAC address, cannot be hacked
- No power source necessary, 100% passive
- Guaranteed no packet loss
- Plug & play, simple installation without configuration
- Scalable and modular, supports installation of all TAP models regardless of media type, speed and connector type
- Split ratios of 50:50 and 70:30 are supported. If other Split Ratio needed pls. contact us
- Color coded connectors for quick determination of the fitting fibre type
- Does not cause additional latency
- Designed, assembled, certified and tested in Germany
SPECIFICATIONS
| SUPPORTED MEDIA TYPE | |
|---|---|
| Multimode 850 nm / 1300 nm | OM1, OM2 |
| Multimode 850 nm | OM3, OM4 |
| Multimode 850 nm – 950 nm | OM5 |
| Singlemode 1310 nm / 1550 nm | OS1, OS2 |
| SPECIFICATIONS | |
|---|---|
| Height x Width x Depth (Chassis) | 4.80 cm x 19.40 cm x 42.50 cm |
| Operating Temperature | -40°C – +85°C |
| Relative Operating Humidity | 5% – 95% |
| Reliability | GR-1221-CORE |
| MAXIMUM INSERTION LOSS (dB) | |||
|---|---|---|---|
| Split Ratio (more on request) | 50:50 | 70:30 | |
| Multimode OM3, OM4, OM5 | 3.8 dB / 4.8 dB | 2.2 dB / 7.1 dB | |
| Singlemode OS1, OS2 | 3.4 dB / 4.4 dB | 1.7 dB / 6.8 dB | |
MULTIMODE TAPS
| PACKETRAVEN SECURE TAP MODELS MULTIMODE | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OM5 are also OM4 compatible!
All TAPs for fiber type OM4 are also OM3 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wavelength | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OM3-LL-S | 1G/10G/25G/50G | OM3 | 850 nm | LC | LC | 50:50 or 70:30 | 1 |
| PRM-OM4-LL-S | 1G/10G/25G/50G | OM4 | 850 nm | LC | LC | 50:50 or 70:30 | 1 |
| PRM-OM5-LL-S | 1G/10G/25G/50G | OM5 | 850 nm – 950 nm | LC | LC | 50:50 or 70:30 | 1 |
SINGLEMODE TAPS
| PACKETRAVEN SECURE TAP MODELS SINGLEMODE | |||||||
|---|---|---|---|---|---|---|---|
|
All TAPs for fiber type OS2 are also OS1 compatible! |
|||||||
| Item No. | Network | Fiber Type | Wavelength | Interface NET. / MON. |
Split Ratio | Slots needed | |
| PRM-OS2-LL-1310S | 100M/1G/10G/25G/40G/ 50G/100G/200G/400G |
OS2 | 1310 nm | LC | LC | 50:50 70:30 | 1 |
| PRM-OS2-LL-1550S | 100M/1G/10G/25G/40G /50G/100G/200G/400G |
OS2 | 1550 nm | LC | LC | 50:50 70:30 | 1 |
DOCUMENTS
SERVICE & SUPPORT
Unparallel Multi-Level Service & Support for Peace of Mind
All NEOXPacketRaven Modular TAPs come with NEOX SILVER Support and can be upgraded to GOLD Support for advanced replacement in case of a hardware failure.
FEATURED CONTENT
Creating Solutions for Your Success
Infographic
Why You Need a Network Tap
White Paper
Network Tap vs SPAN/Mirror Port
Product Brochure
A Complete Guide to Products
