100G Packet Capture Appliance

PacketFalcon products are powerful recorders for network packet capture or network forensics.

Our solution enables IT organisations to ensure the analysis, monitoring and accurate recording of traffic without compromise.

PacketFalcon allows permanent 24 x 7 access to 1G, 10G, 25G, 40G and 100G network media for detailed analysis, including forensic analysis of past events.

SKU NX-LC-100G-XTB-PT Category Tag

Description

Portable High-Speed Network Forensics, Capture and Analysis Appliance

HIGHLIGHTS

  • Lossless recording up to 100 Gbps
  • Acceleration of Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
  • Extensive insight into the functioning of networks and applications including application detection/classification
  • Analysis of network traffic in each remote segment, support for 1/10/25/40/100 Gigabit Ethernet
  • Voice and Video over IP quality metrics (MOS Score), including overview statistics and comprehensive analysis of signaling and RTP media flows
  • Packet-based analysis of communication relationships, visualized in intuitive graphical displays
  • Integrated, reliable expert events, indication of anomalies via OSI Layer 2-7
  • Recording of terabytes of traffic without packet loss
  • Hardware/FPGA based Timestamping with nanosecond accuracy
  • PTP support for external time synchronization according to IEEE 1588v2
  • Simultaneous unlimited access via Web GUI
  • Hardware/FPGA based Packet Slicing and Capture Filter
  • Hardware/FPGA based Deduplication
  • 8GB/12 GB hardware buffer for absorbing and analyzing microbursts
  • Patented drill-down function
  • PCAP and PCAPNG support
  • Support for IEEE 1588v2 PTP
  • Trolley included
  • Optional: Hard shell case with CNC milled foam for transport
  • Development and quality assurance in Germany

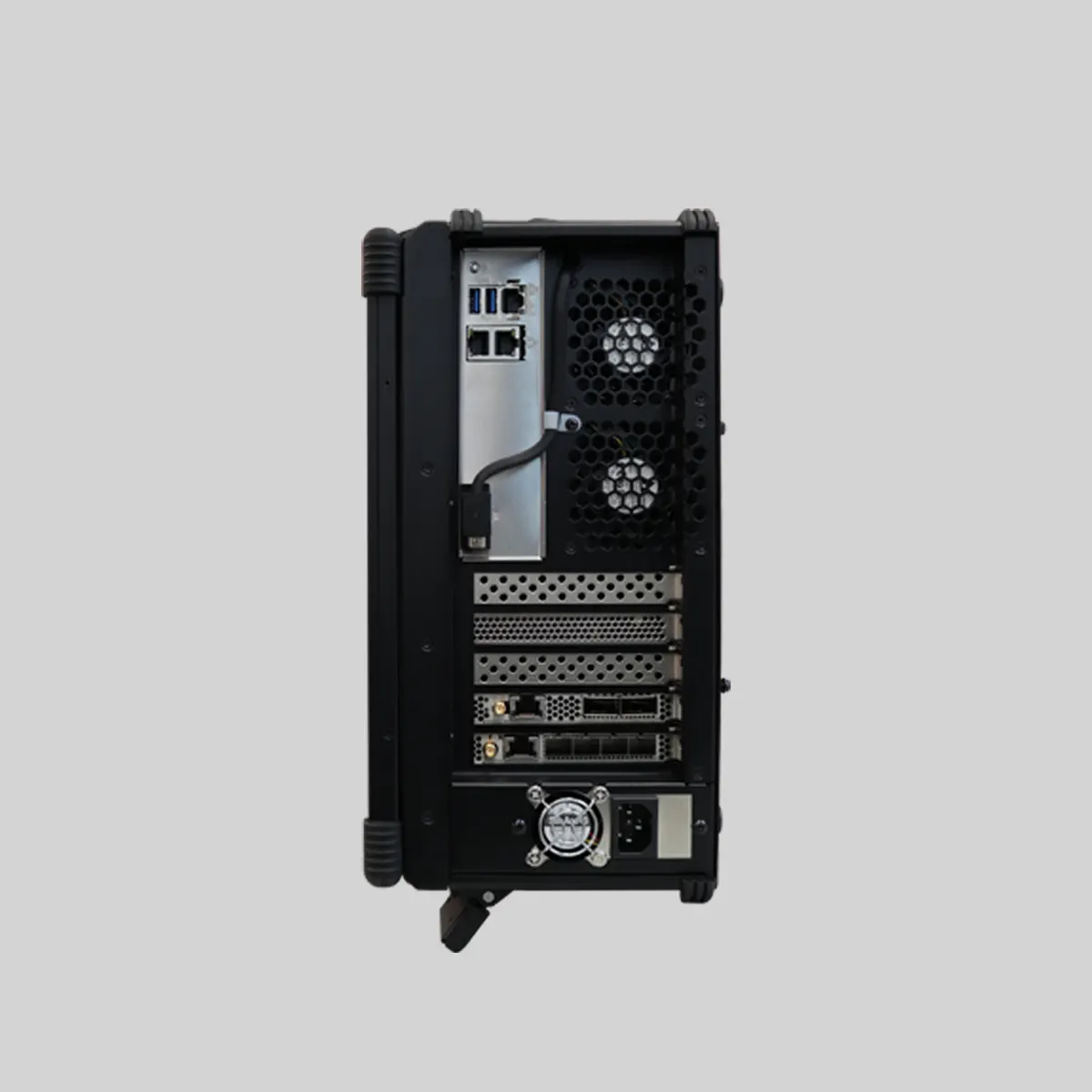

HARDWARE

  • High-speed FPGA Capture cards for 2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
  • Storage capacity 30 TB
  • 256 GB DDR4 RAM (optional up to 1024 GB RAM)

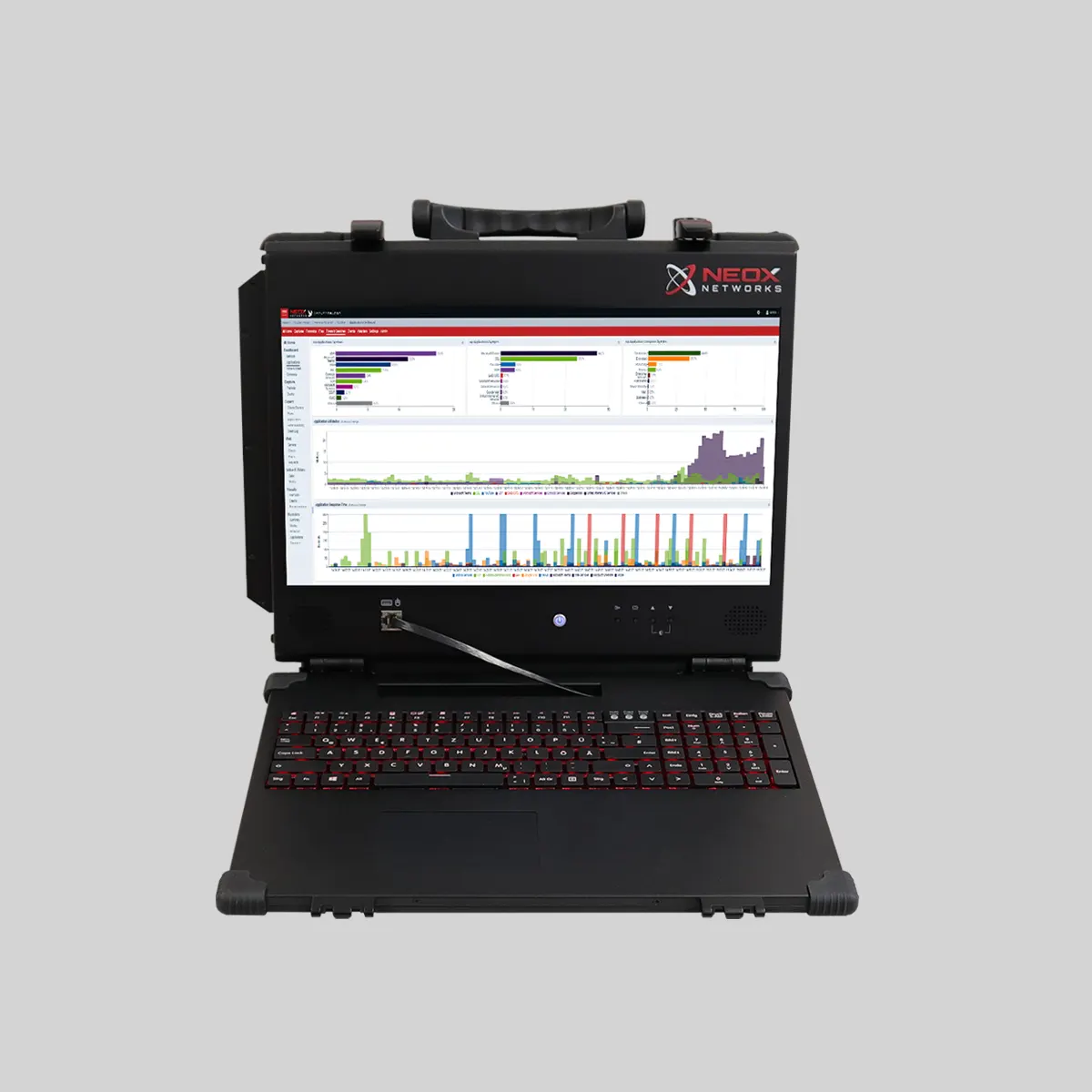

  • 17,3“ Full HD 1920 x 1080 Display

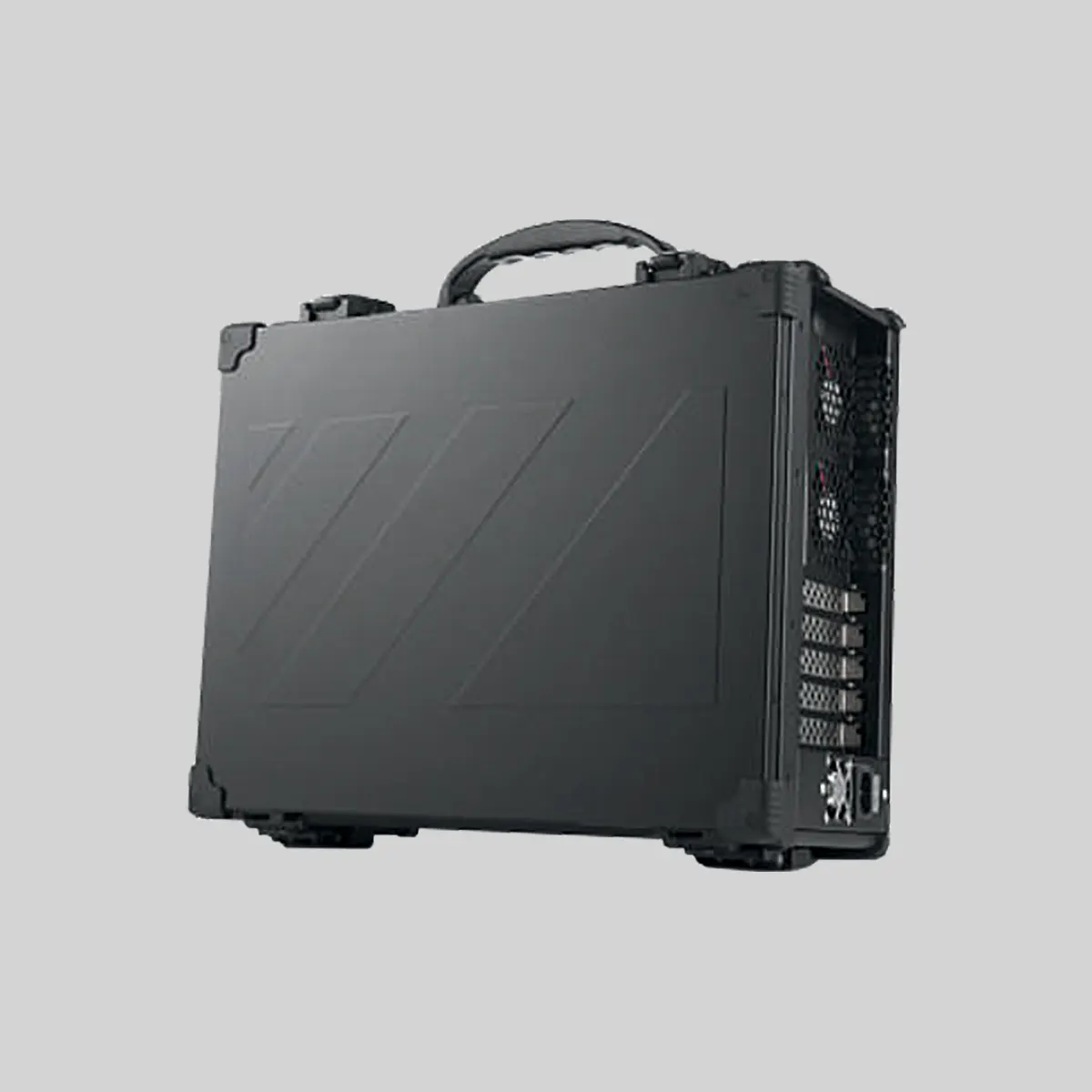

  • Robust aluminium housing
  • AMD EPYC CPU
  • 10G Ethernet Management Interface
  • USB 3.0, USB 2.0, Serial Port, Hardware RAID 0, 5, 6, 00, 50, 60
  • Operating System on separate NVMe M2 SSD
  • 16x 2.5″ SSD removable frame
  • Support for hardware-encrypted capture storage, protects your data from unauthorized access. FIPS 140-2 certification and complies with ISO/IEC 27040 and NIST 800-88 standards
  • Keyboard, lockable as display protection during transport
  • Quiet fans, 658 W Power supply
  • Dimensions (W x H x D): 43.5 x 37.3 x 17.8 cm, approx. 15 kg
  • Optional: Hard case with CNC-milled foam for transport
