PacketFalcon Packet Capture Appliance

Network Packet Capture, Analysis & Forensics

ULTRA-FAST 1–100G PACKET CAPTURE Appliance & ANALYSIS

Leading solution for application troubleshooting, security forensics, and compliance

PCAP Data | Out-of-Box Dashboards | Wireshark Support

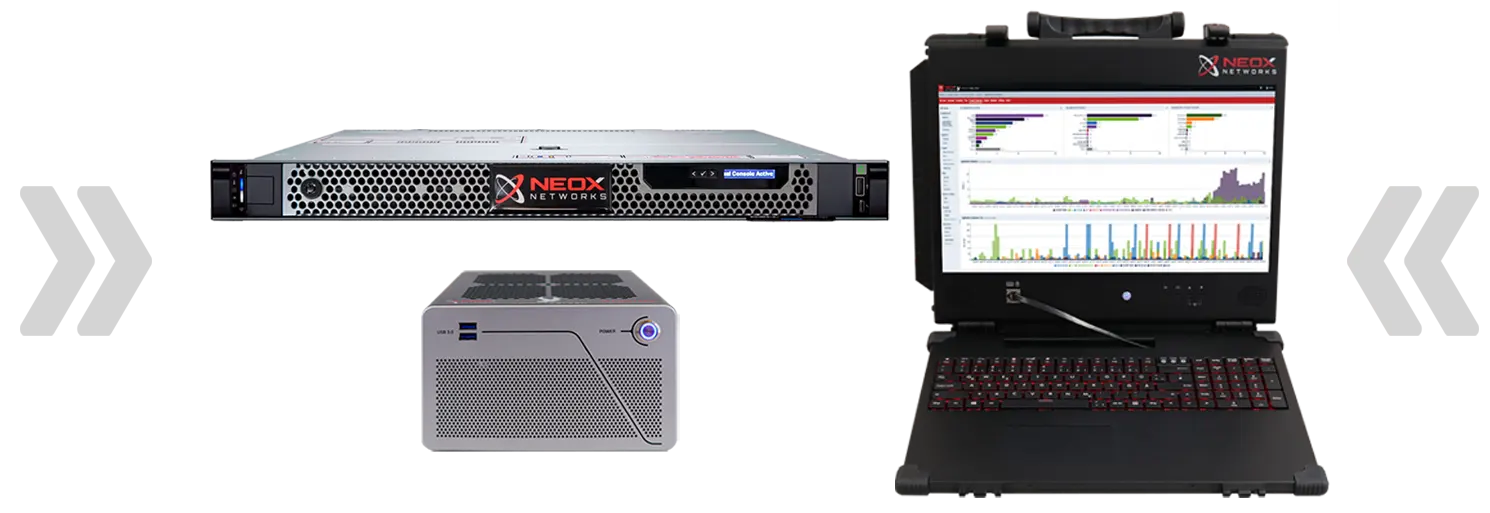

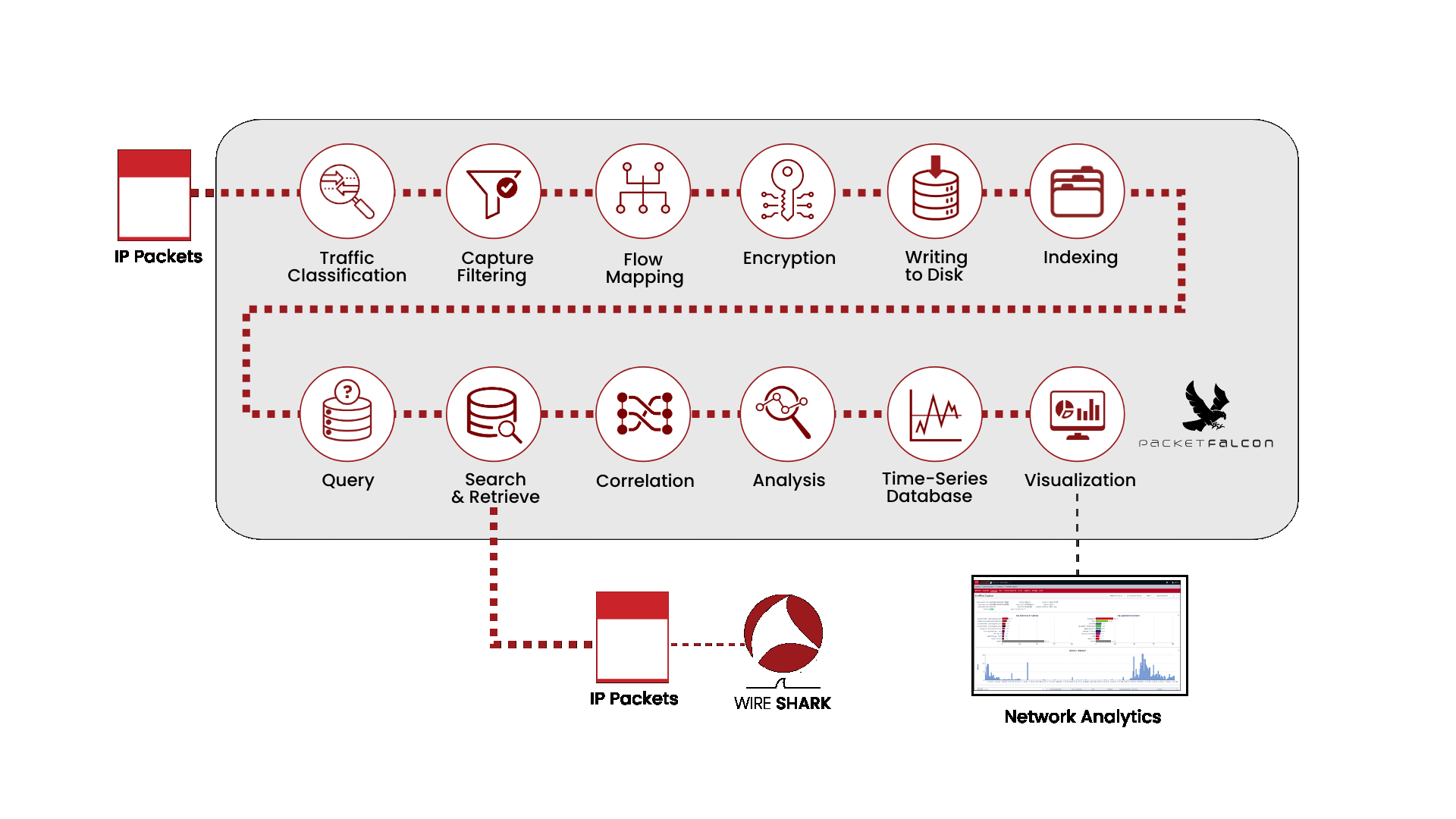

The NEOX PacketFalcon Series is a powerful Packet Capture Appliance designed to record network packet data at sustained capture rates from 1 to 100Gbps. The onboard storage capacity options include 7–480TB of onboard SSD/SED disk space depending on the model. Its flexibility in terms of mobile and fixed rack-mountable applications makes it the ideal companion for IT NetSecOps. PacketFalcon packet capture appliance enables IT NetOps and AppOps teams to reference historical network data at any time, to recreate situations for troubleshooting, and to perform session- or conversation-level analysis, reducing the mean-time-to-resolution (MTTR) of customer issues.
PacketFalcon is a must-have packet capture appliance for SecOps teams for forensic analysis and incident response in a post-breach situation—for investigation, evidence collection, and compliance audits. The before, during, and after event data captured can help narrow down security loopholes, suspicious activities, and the attacker’s IP address. By indexing the data and applying hardware/software filters, PacketFalcon packet capture appliance enables SecOps teams to quickly investigate and block attacks.

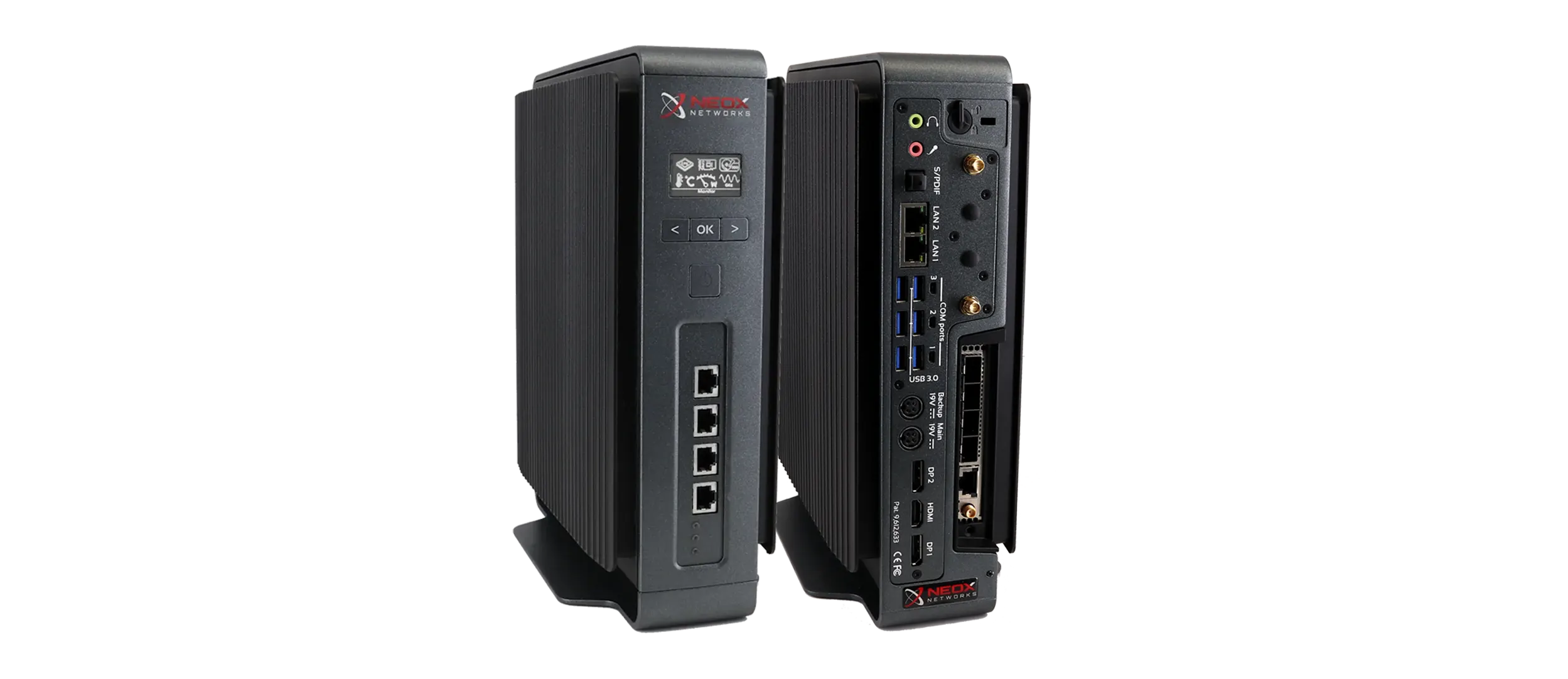

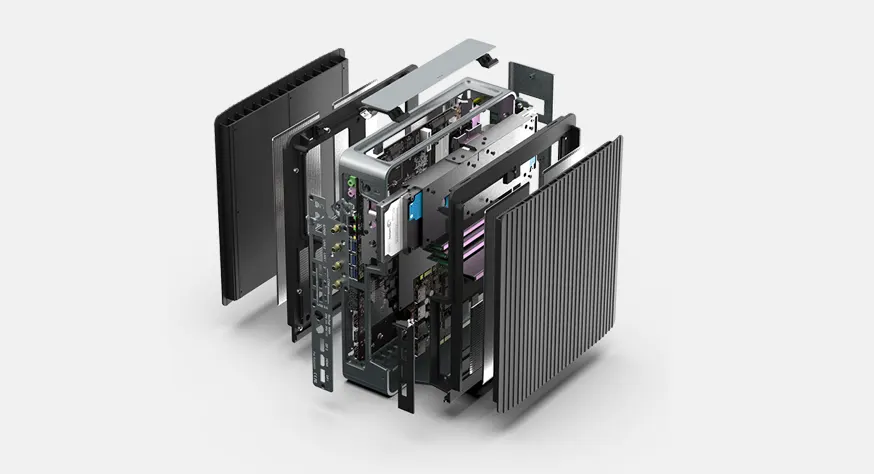

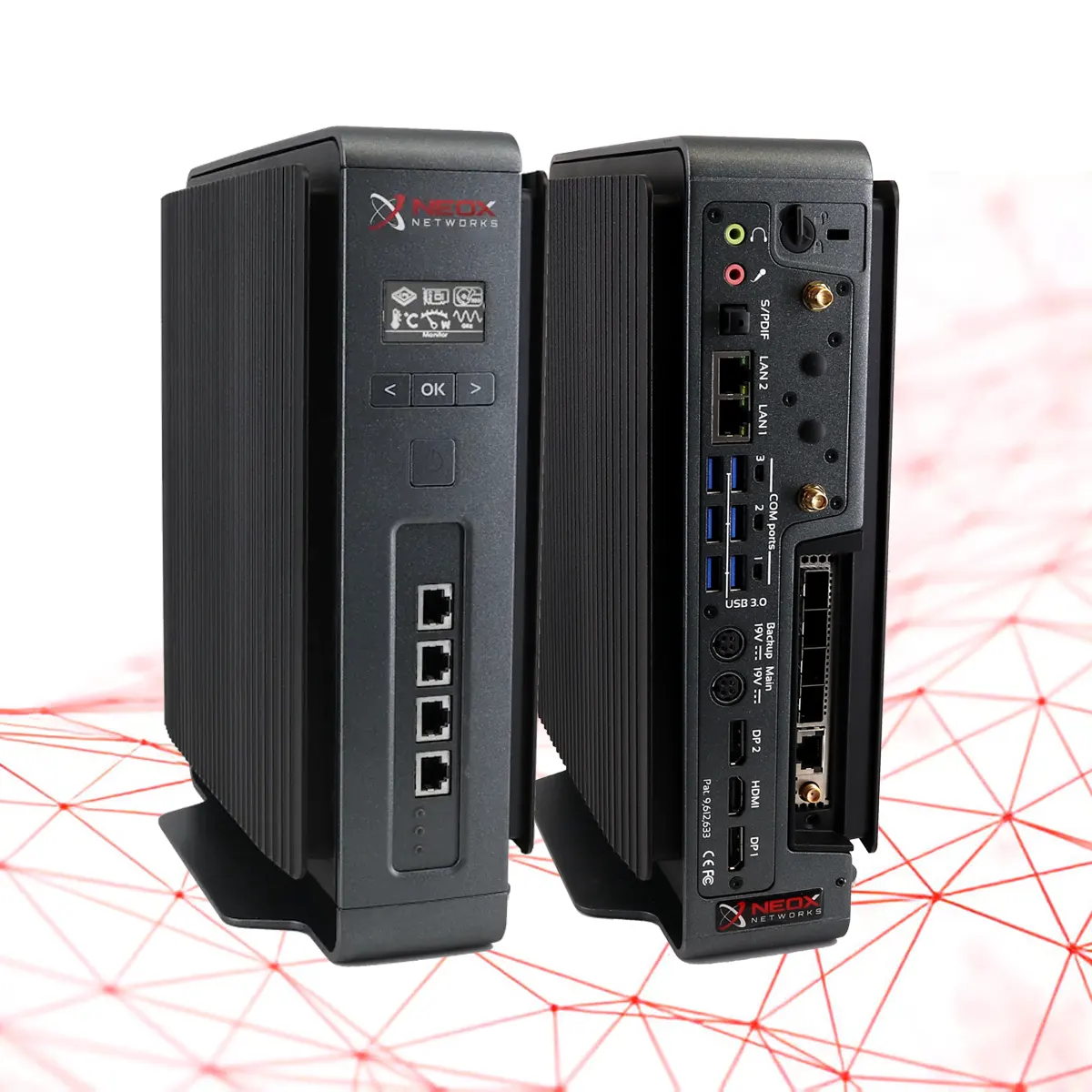

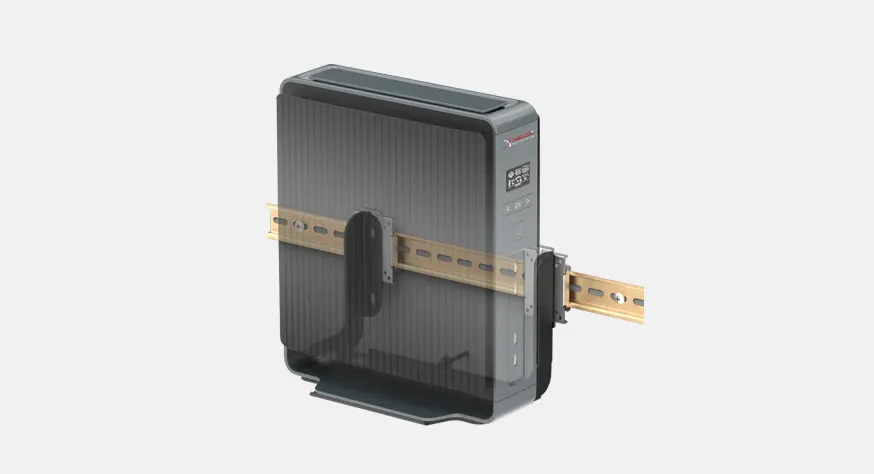

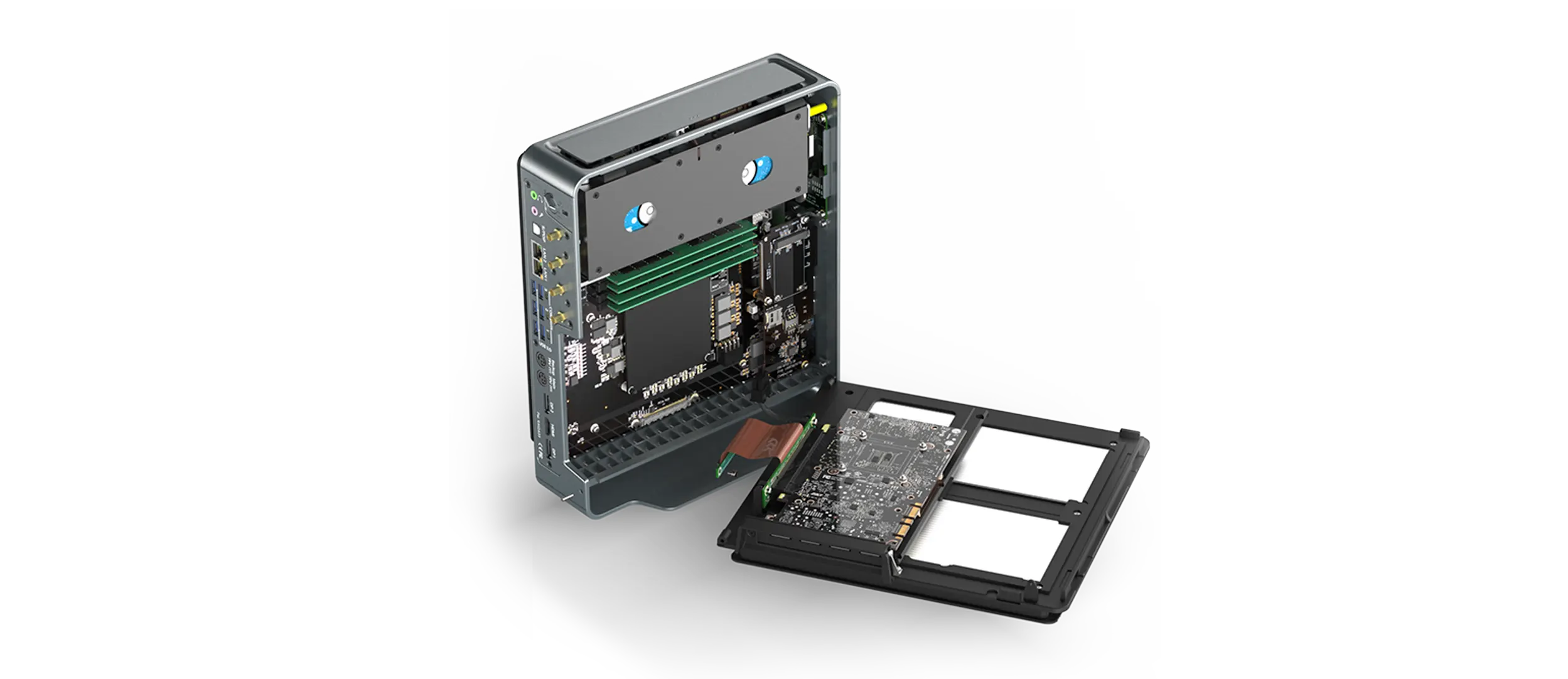

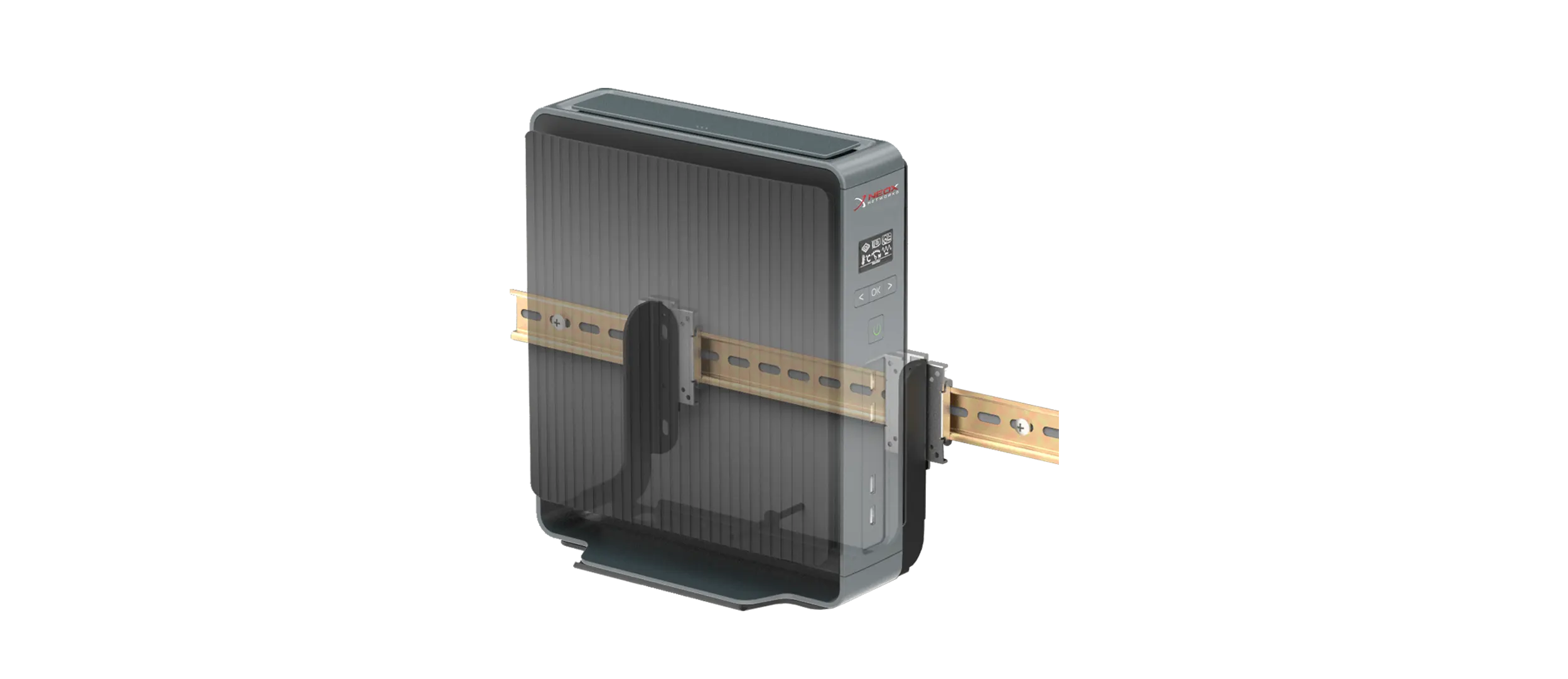

PacketFalcon Mini 10G Packet Capture Appliance

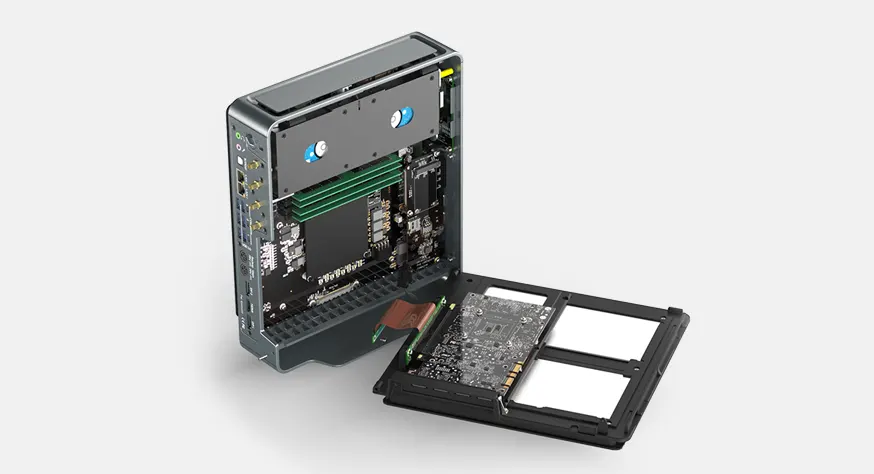

The PacketFalcon Mini is a next-generation, ultra-compact packet capture appliance purpose-built for modern IT, security, and compliance teams that require complete network visibility without the bulk. Designed to deliver high-performance full packet capture, indexing, and historical analysis in a lightweight, energy-efficient form factor, it’s the ideal field-ready solution for advanced packet capture, forensic analysis, troubleshooting, and incident response.

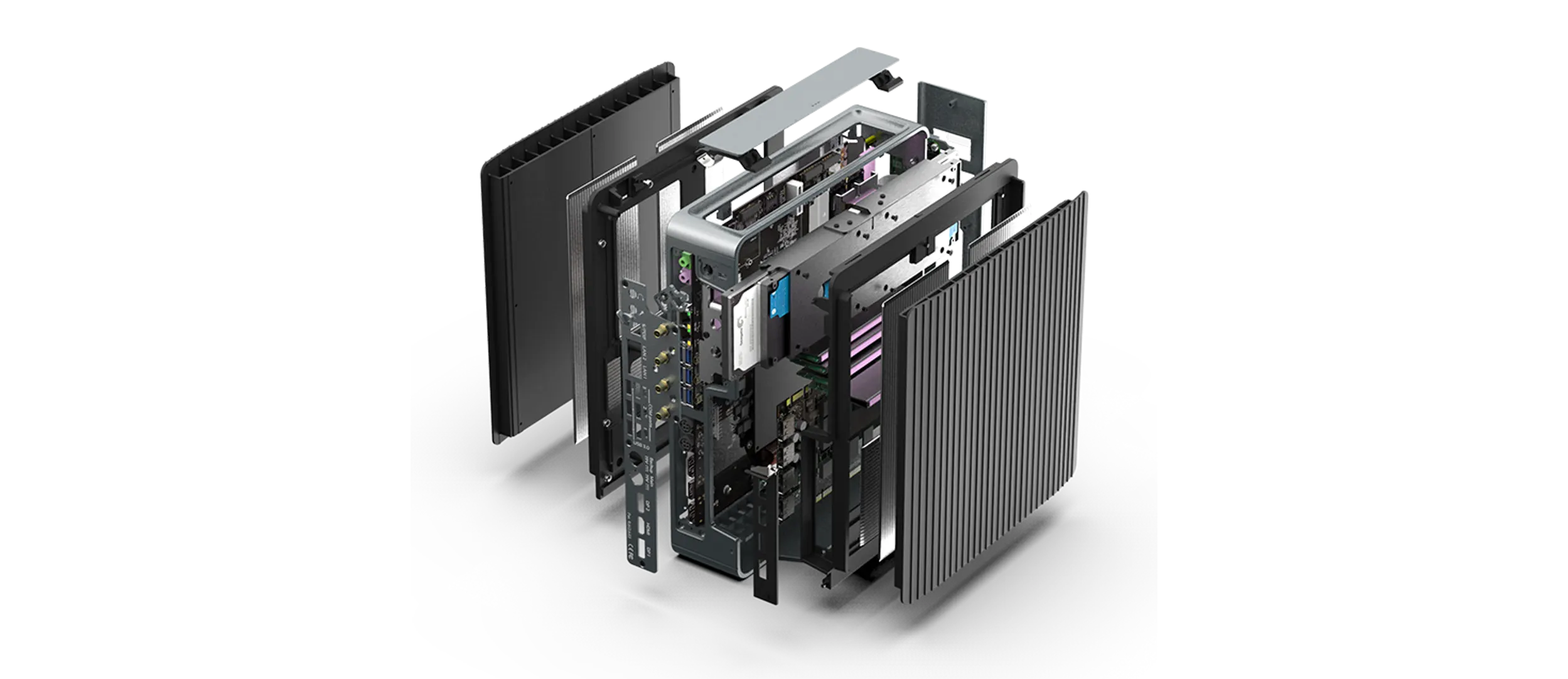

Engineered with a fanless passive cooling system, this quiet yet powerful packet capture appliance delivers sustained 10Gbps capture-to-disk performance. Its robust FPGA-based architecture ensures zero packet loss, even under peak traffic conditions. With up to 32TB of onboard storage using high-performance SATA drives and support for hardware RAID configurations (0, 5, 6, 50, 60), the PacketFalcon Mini offers both capacity and resilience.
Advanced features such as capture compression, dynamic slicing, intelligent filtering, and deduplication help optimize storage use while focusing only on critical network traffic. Whether for proactive threat hunting or post-event forensic investigations, the PacketFalcon Mini guarantees no loss of crucial data. All traffic is stored in PCAP/PCAP-NG formats and integrates seamlessly with analysis tools like Wireshark and Suricata.
With 10-nanosecond hardware timestamping via FPGA-based PTP, it provides forensic-grade accuracy for event reconstruction. Preloaded dashboards and analytics tools offer real-time visibility out of the box—no complex setup or external integrations needed. Whether deployed in secure operations centers, mobile teams, or tactical edge environments, the PacketFalcon Mini delivers unmatched performance, portability, and reliability. In today’s high-stakes digital landscape, this compact packet capture appliance ensures every packet is captured, every time. Shop PacketFalcon Mini

MODELS

SKU	CPU	RAM	SSD	PORTS
NX-LC-25G-64GB-7TB-M-*	Intel XEON	32 GB	7 TB	4x 1G/10G/25G SFP/SFP+/SFP28
NX-LC-25G-64GB-15TB-M-*	Intel XEON	64 GB	15 TB	4x 1G/10G/25G SFP/SFP+/SFP28
NX-LC-25G-64GB-30TB-M-*	Intel XEON	64 GB	30 TB	4x 1G/10G/25G SFP/SFP+/SFP28

* With „-3Y“ for 3 year – or „-5Y“ for 5 year software subscription and hardware support

HIGHLIGHTS

Continuous 10G WTD (Write to disc) – lossless Full Packet Capturing (FPC)
Up to 15G with Packet Slicing and compression enabled
High-Speed Smart FPGA Capture Card for 1G or 1G/10G/25G
4x SFP/SFP+/SFP28 Ports
FPGA-based Deduplication
FPGA-based Packet Slicing and Capture Filters
FPGA-based nanosecond-accurate Timestamping
Supports IEEE 1588v2 PTP
PCAP and PCAPNG support
Intuitive WebUI for advanced analysis and PCAP Export
Storage capacity from 7TB to 30TB
4GB/8GB Hardware Buffer to absorb and analyse microbursts
Integrated, reliable expert events, reference to conspicuous features of the OSI Layer 2-7
Acceleration of the Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
Packet-based analysis of communication relationships, visualized in intuitive graphical displays
VoIP/video analysis
Troubleshooting of Performance Issues
1G Management Interface
Cascading of multiple PacketFalcon systems possible
Small, compact and portable
Robust aluminum housing with integrated LCD Screen
Passively cooled CPU, very quiet
External 330W power supply
Includes 1 year hardware, software and maintenance support
Development, assembly & QA in Germany

SPECIFICATIONS

- Capture cards: High-speed smart FPGA capture card for 1G/10G/25G
- Ports: SFP/SFP+/SFP28
- SSD Storage Capacity: 7 TB – 30 TB
- RAM: 64 GB
- Power Supply: Very quiet, external 330W PSU, redundant power supply supported
- Housing: Robust aluminum

- Dimensions (WxHxD): 3.9 in × 11.8 in × 10.0 in / 10.0 cm x 30.0 cm x 25.5 cm
- Weight: ca. 6.1 kg
- Operating Temperature: -40°F to 158°F / -40°C to 70°C
- Storage Temperature: -40°F to 185°F / -40°C to 85°C
- Relative Operating Humidity: 5% to 95% non-condensing
- Relative Storage Humidity: 5% to 95% non-condensing

Certifications:
FCC 47CFR part 15: 2019, subpart B, Class B; ICES-003: 2017 Issue 6, Class B; ASINZS CISPR 32: 2015, Class B; EN 55032: 2015, Class B;
EN 61000-3-2: 2014; EN 61000-3-3: 2013; EN 55035: 2017; EN 61000-6-3: 2007 + A1 (11) + AC(12); EN 61000-6-1: 2007; EN IEC 61000-6-1: 2019;
EN 301 489-17: V3.2.4: 2020, Class B; EN 301 489-1: V2.2.3: 2019, Class B; EN 62368-1:2014 + A11 :2017; IEC 62368-1:2014 (Ed.2);

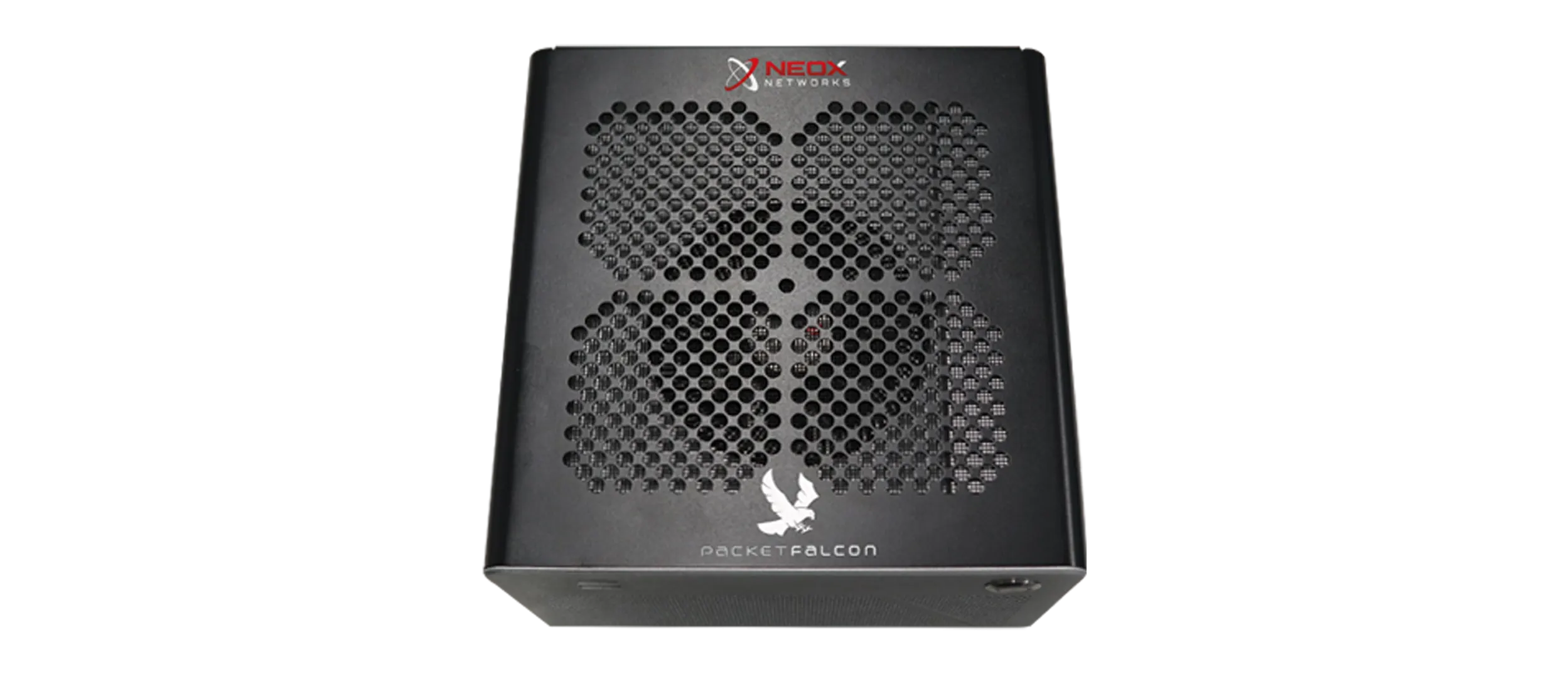

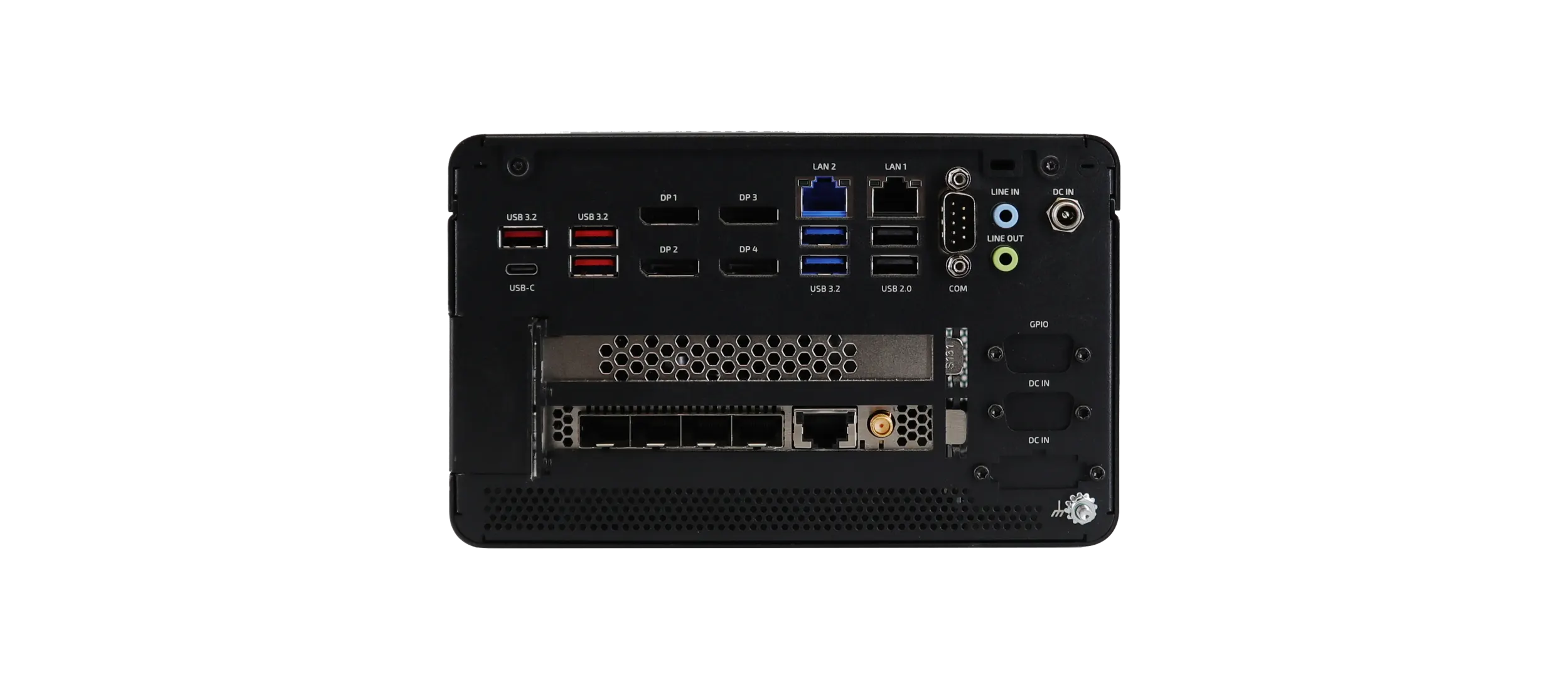

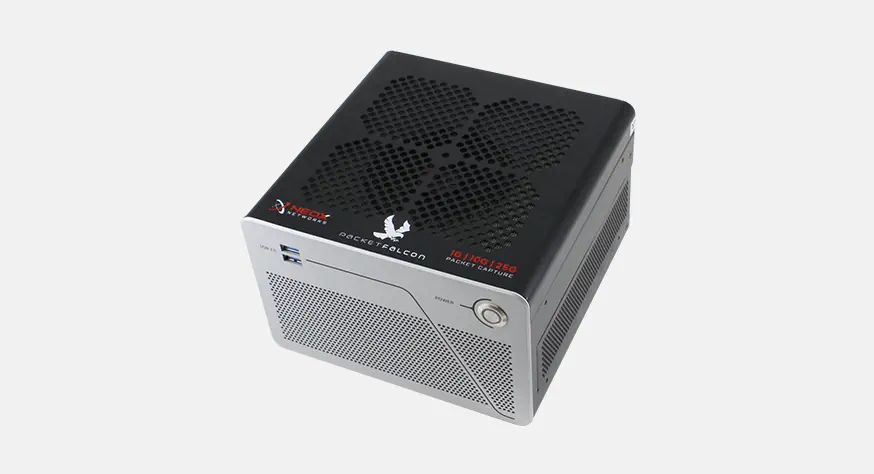

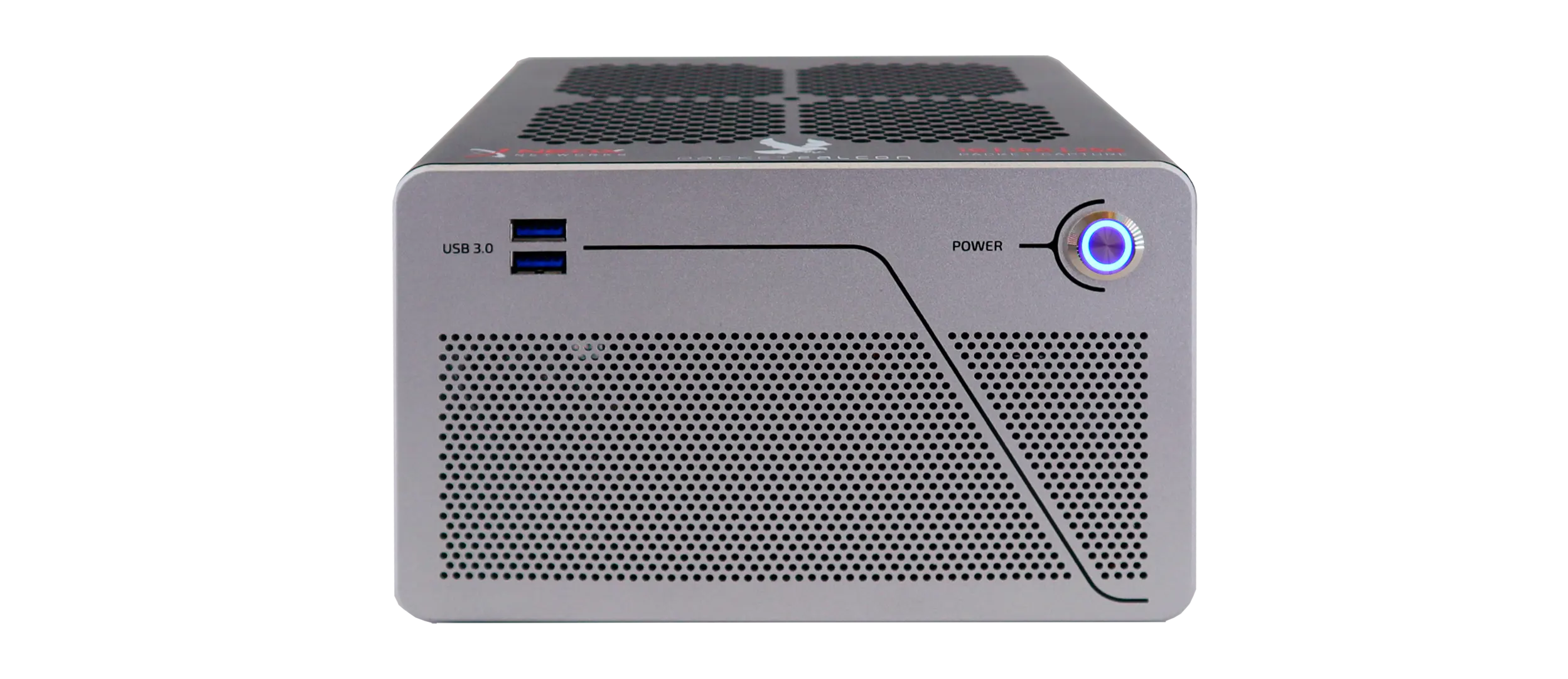

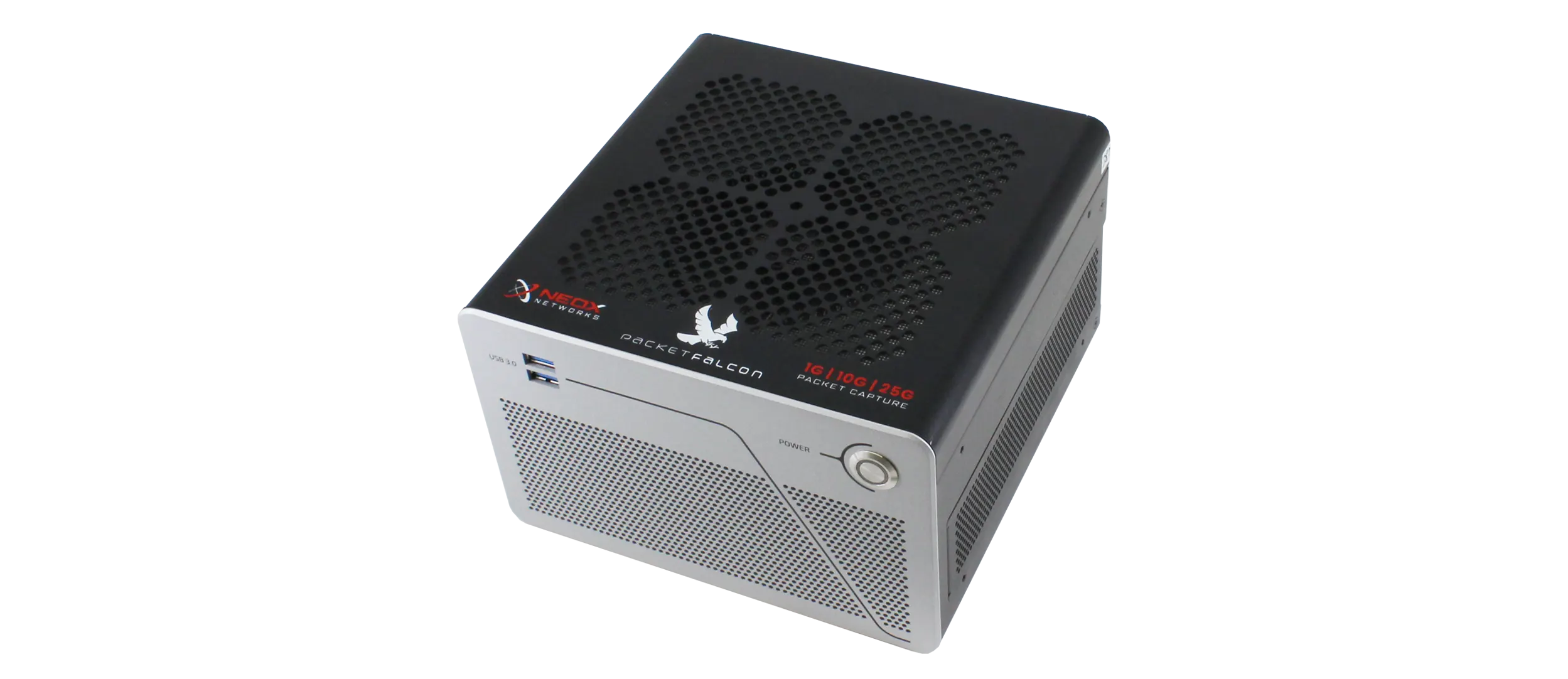

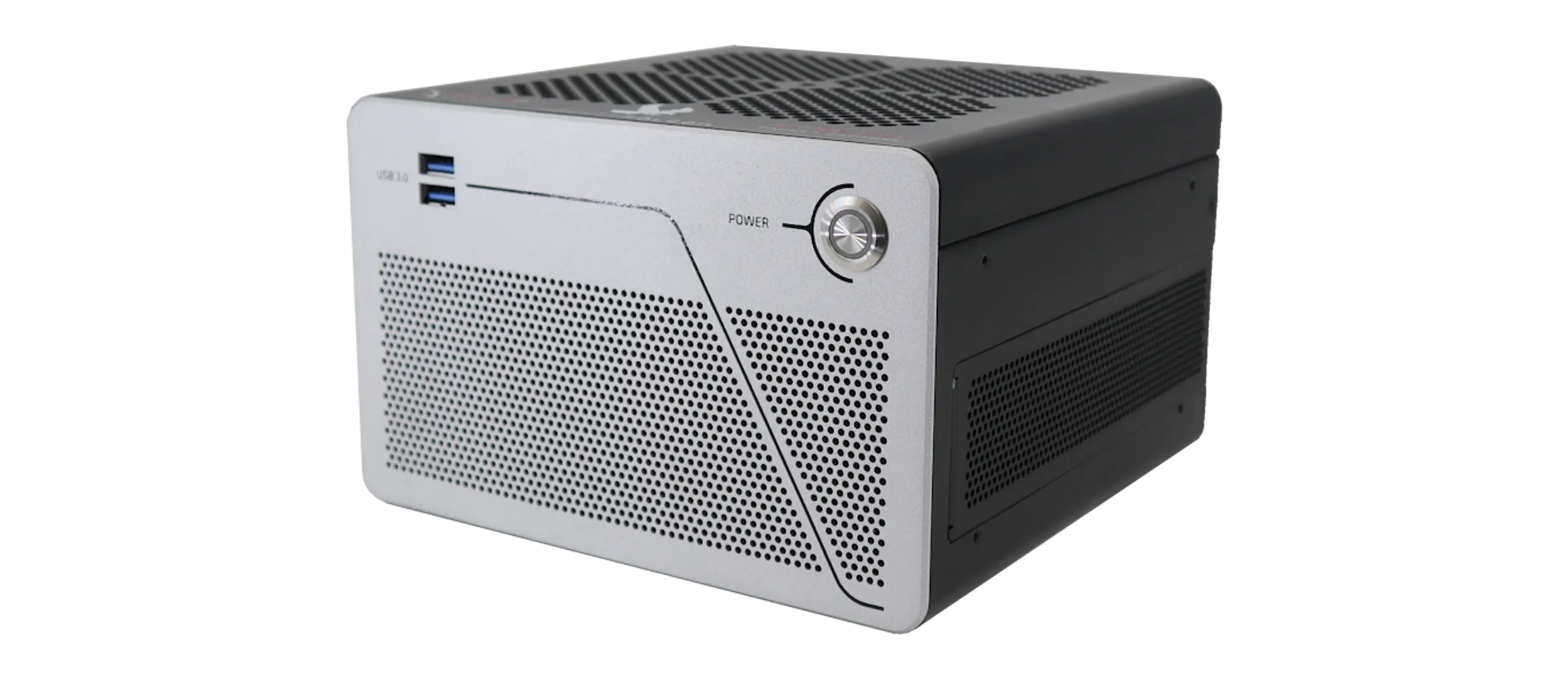

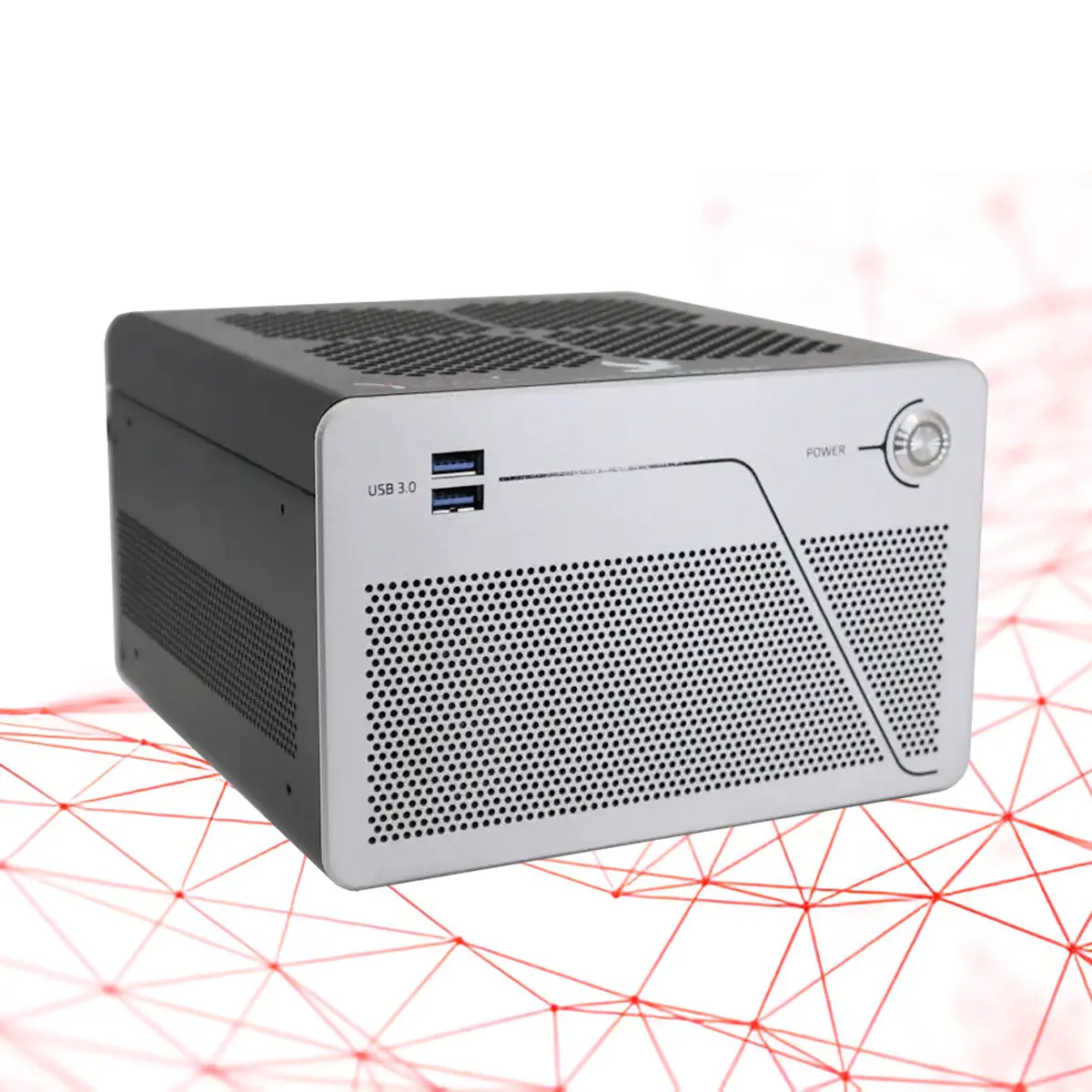

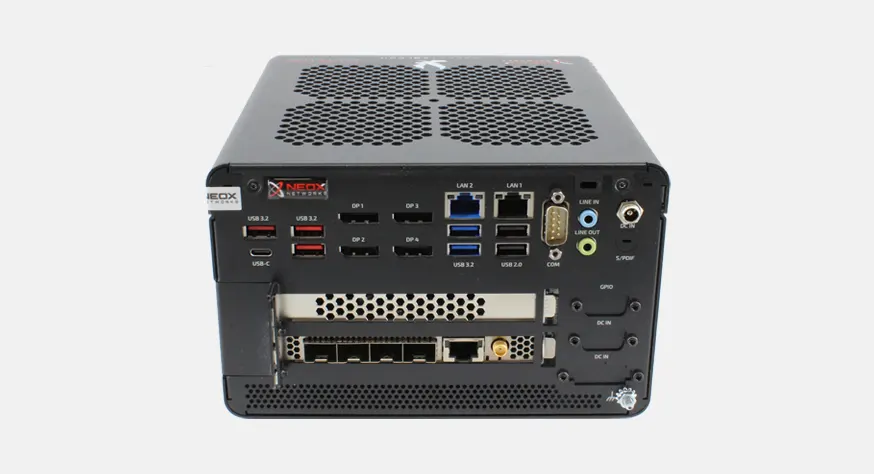

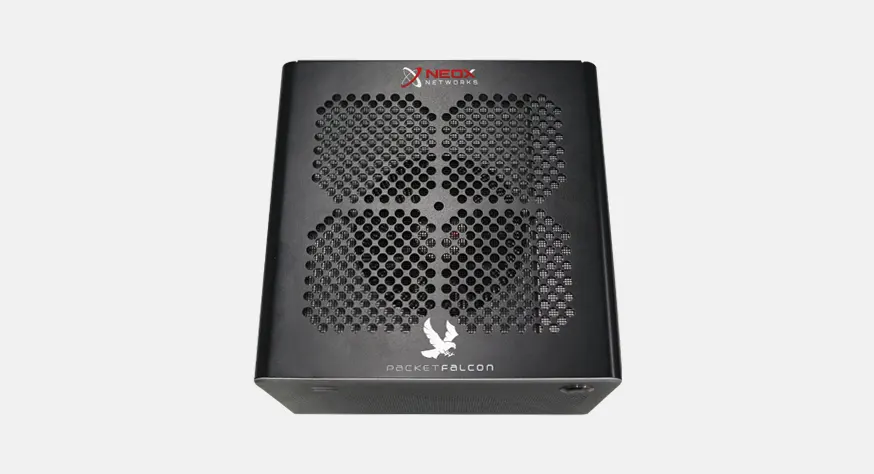

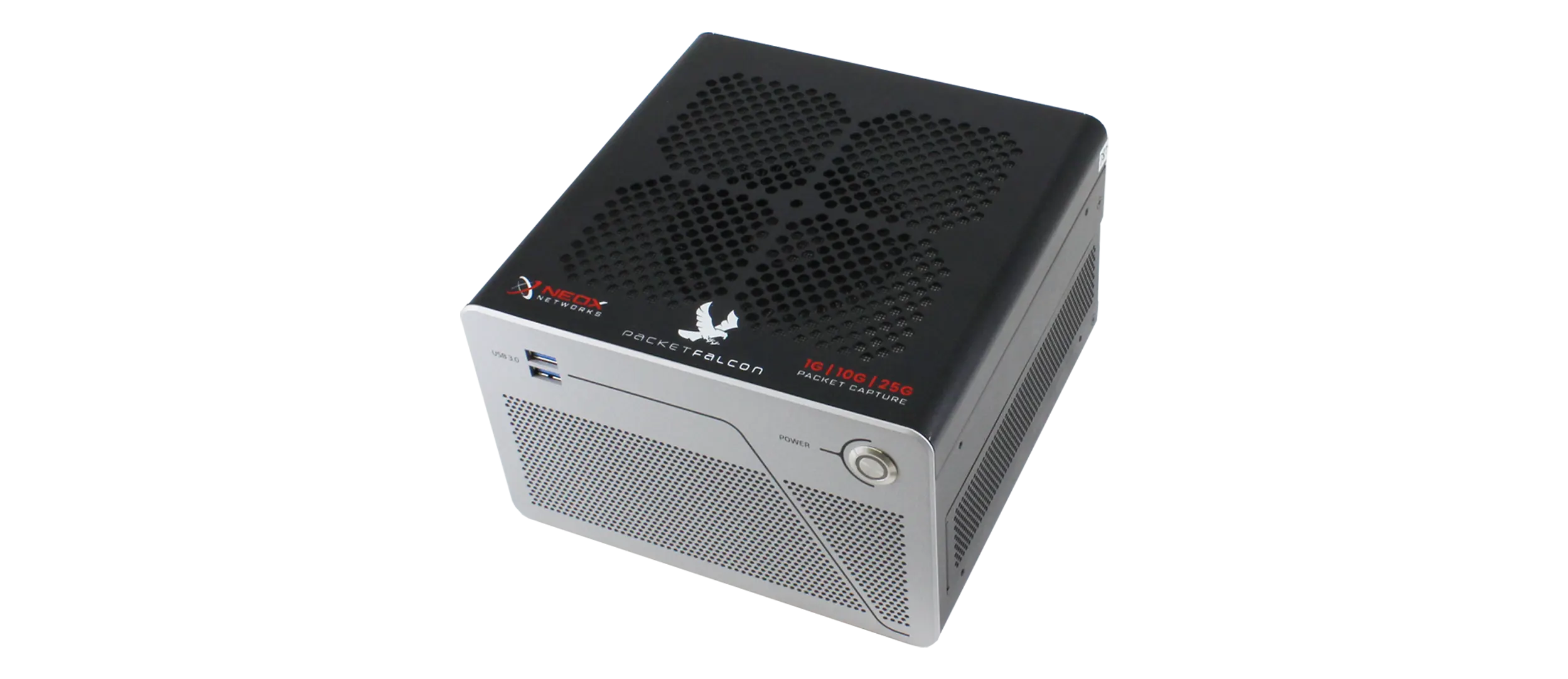

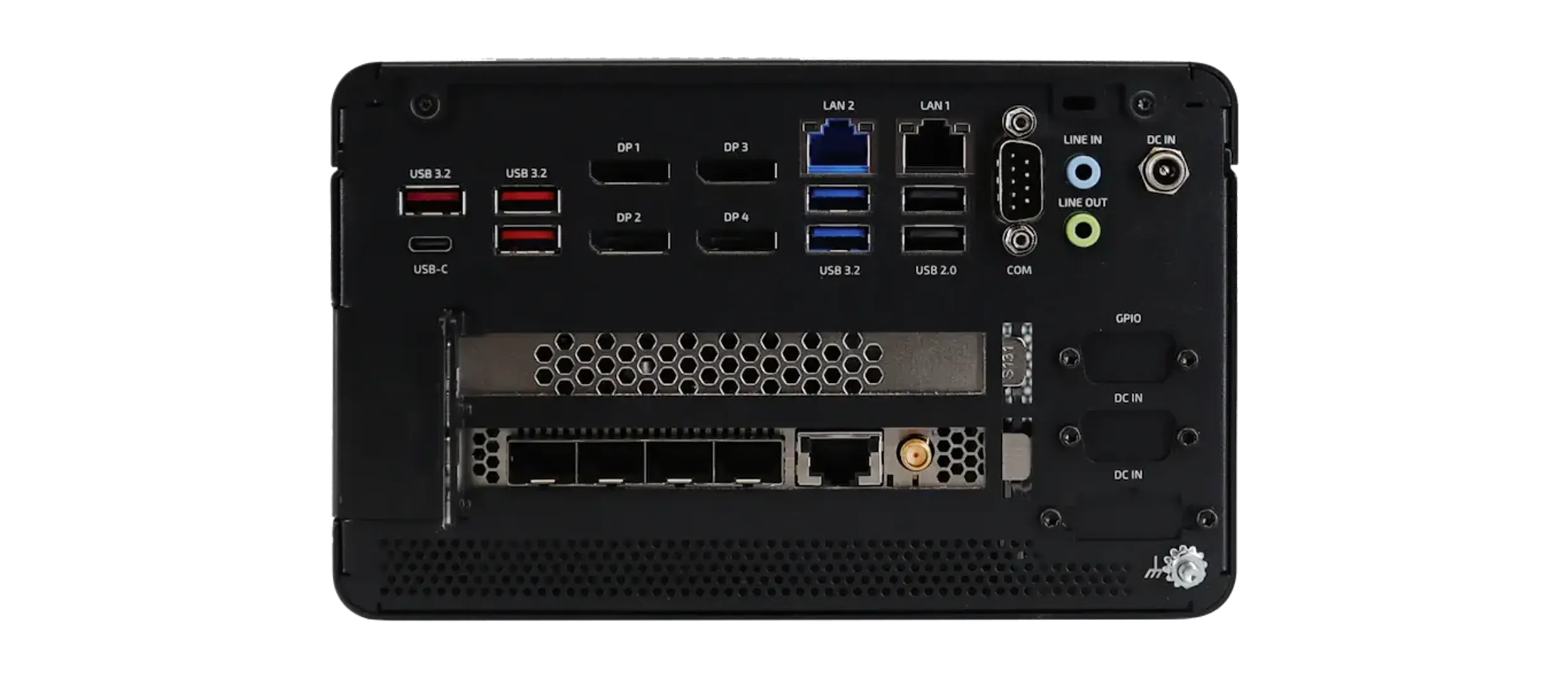

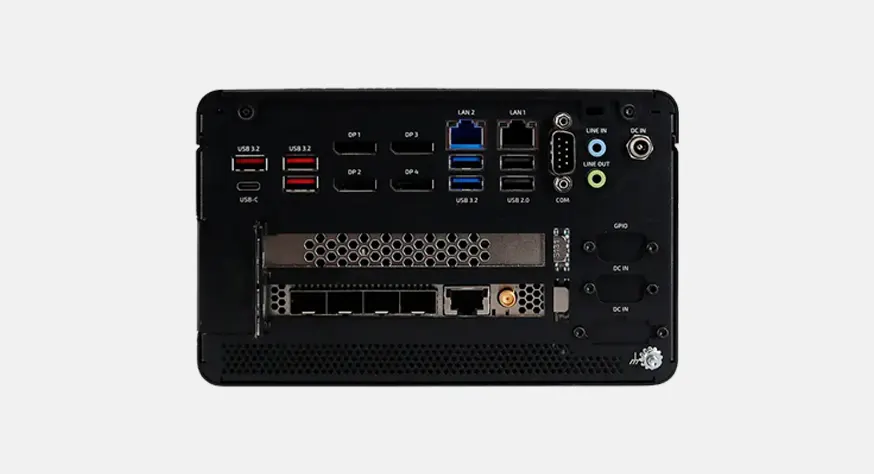

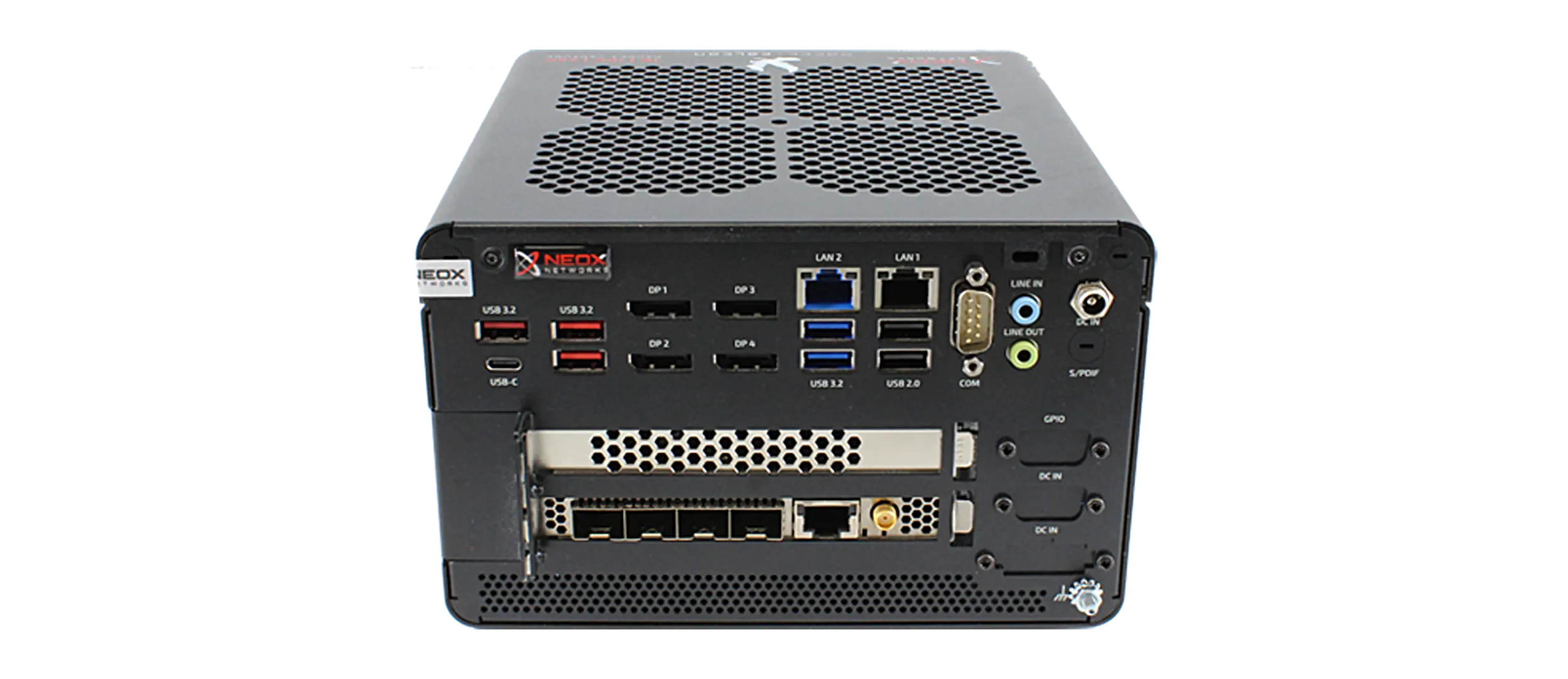

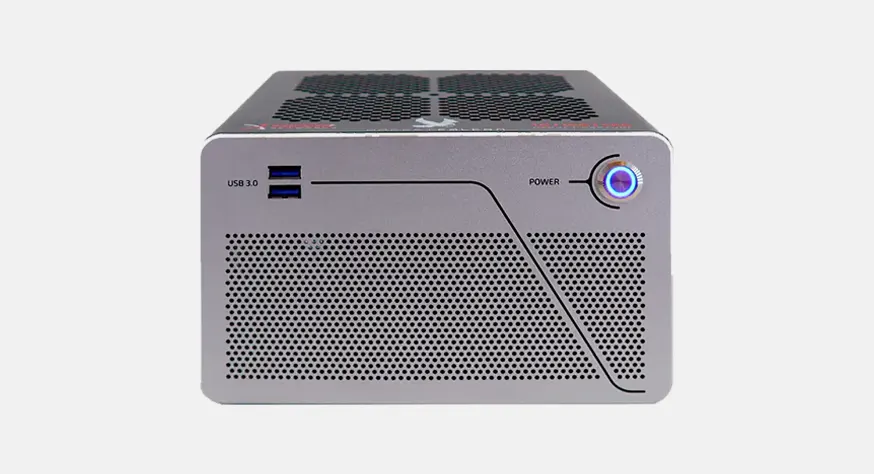

PacketFalcon Mini X 25G Packet Capture Appliance

The PacketFalcon MiniX is a high-performance, portable packet capture appliance engineered for today’s most demanding network visibility and cybersecurity operations. Designed for environments where speed, precision, and data integrity are critical, the MiniX delivers sustained 25Gbps full packet capture-to-disk performance in a rugged, compact form factor. Ideal for forensics, incident response, network troubleshooting, and compliance, it enables both real-time and retrospective traffic analysis—capturing every packet before, during, and after an event with surgical accuracy. At its core, the MiniX features a powerful FPGA-based capture engine that ensures high-throughput ingestion with zero packet loss. Forensic-grade 10-nanosecond timestamping, PTP synchronization, and deduplication ensure complete accuracy and consistency in captured data. With up to 32 TB of onboard NVMe storage and optional Self-Encrypting Drives (SED), this packet capture appliance protects sensitive data through robust hardware-level encryption—ideal for regulated sectors and mission-critical deployments. Advanced capabilities such as dynamic slicing, intelligent capture filtering, and on-the-fly compression help optimize storage while focusing on the most relevant network traffic. All data is stored in PCAP or PCAP-NG formats and is fully compatible with analysis tools like Wireshark and Suricata, ensuring seamless integration with existing security workflows. Bundled with intuitive dashboards and built-in analytics software, the PacketFalcon MiniX offers out-of-the-box visibility and rapid investigation tools without the need for third-party solutions. Whether deployed in SOCs, remote field sites, or tactical environments, this compact packet capture appliance delivers unmatched performance, mobility, and insight. The MiniX is the next evolution in portable packet capture—empowering cybersecurity teams to respond with speed, confidence, and precision. Shop PacketFalcon Mini X

MODELS

SKU	RAM	SSD	PORTS
NX-LC-25G-7TB-MX*	64 GB	7 TB	4x 1G/10G/25G SFP/SFP+/SFP28
NX-LC-25G-15TB-MX*	64 GB	16 TB	4x 1G/10G/25G SFP/SFP+/SFP28
NX-LC-25G-30TB-MX*	64 GB	30 TB	4x 1G/10G/25G SFP/SFP+/SFP28

* With „-3Y“ for 3 year – or „-5Y“ for 5 year software subscription and hardware support

HIGHLIGHTS

Continuous 25G WTD (Write to disc) – lossless Full Packet Capturing (FPC)
Up to 35 Gbps with Packet Slicing and/or compression enabled
High-Speed Smart FPGA Capture Card for 1G/10G/25G
4x SFP/SFP+/SFP28 Ports
FPGA-based Deduplication
FPGA-based Packet Slicing and Capture Filters
FPGA-based nanosecond-accurate Timestamping
Supports IEEE 1588v2 PTP
PCAP and PCAPNG support
Intuitive WebUI for advanced analysis and PCAP Export
Storage capacity from 7TB to 30TB
4GB/8GB Hardware Buffer to absorb and analyze microbursts
Integrated, reliable expert vents, reference to conspicuous features of the OSI Layer 2-7
Acceleration of the Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
Packet-based analysis of communication relationships, visualized in intuitive graphical displays
VoIP/video analysis
Troubleshooting of Performance Issues
Optional support for hardware-encrypted capture storage, protects your data from unauthorised access. FIPS 140-2 certification and complies with ISO/IEC 27040 and NIST 800-88 standards.
1G and 2.5G Management Interface
Cascading of multiple PacketFalcon systems possible
Small, compact and portable
Robust housing
External 150W power supply
Power efficient
Includes 1 year hardware, software and maintenance support
Development, assembly & QA in Germany

SPECIFICATIONS

Capture card: High-speed smart FPGA capture card for 1G/10G/25G
Ports: SFP/SFP+/SFP28
SSD Storage Capacity: 7 TB – 30 TB
RAM: 64 GB
Power Supply: Very quiet, external 130W PSU, redundant power supply supported
Housing: Robust aluminum
Dimensions (WxHxD): 7.5″ x 4.7″ x 7.5″ / 19.0 cm x 12.0 cm x 19.0 cm
Weight: ca. 3.3 kg
Operating Temperature: 32°F to 113°F / 0°C to 45°C
Storage Temperature: -40°F to 185°F / -40°C to 85°C
Relative Operating Humidity: 5% to 93%
Relative Storage Humidity: 5% to 95%
Certifications:
EMC: EN 55032:2012 – class B, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010;
SAFETY: IEC 62368-1:2014, EN 62368-1:2014, UL 62-368-1:2014-12, CAN/CSA-C22.2 No. 62368-1:2014-12;
COMPLIANCE: UL 62386 (TÜV)/CB/CE/FCC/UKCA;
IP PROTECTION CLASS: IP 40 on top / IP 30 on sides;
VIBBRATION OPERATIONAL: IEC 60068-2-6: 10–500 Hz, 1 G;
SHOCK OPERATIONAL: IEC 60068-2-27: half sine 11 ms 15 G

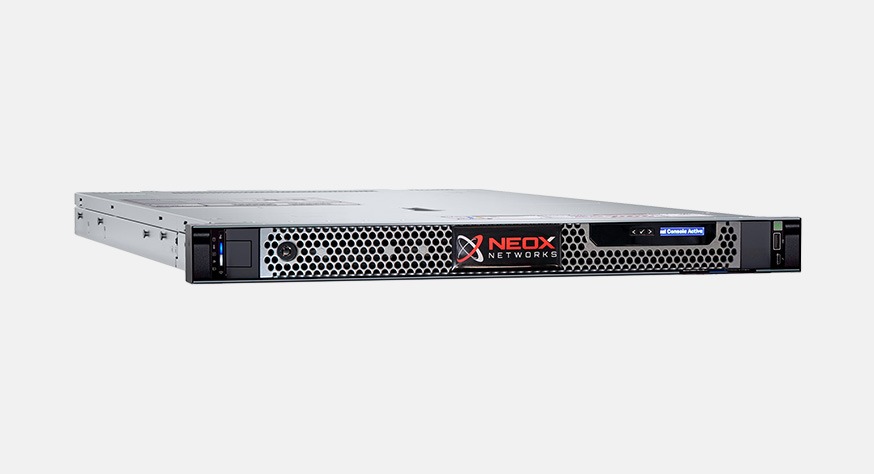

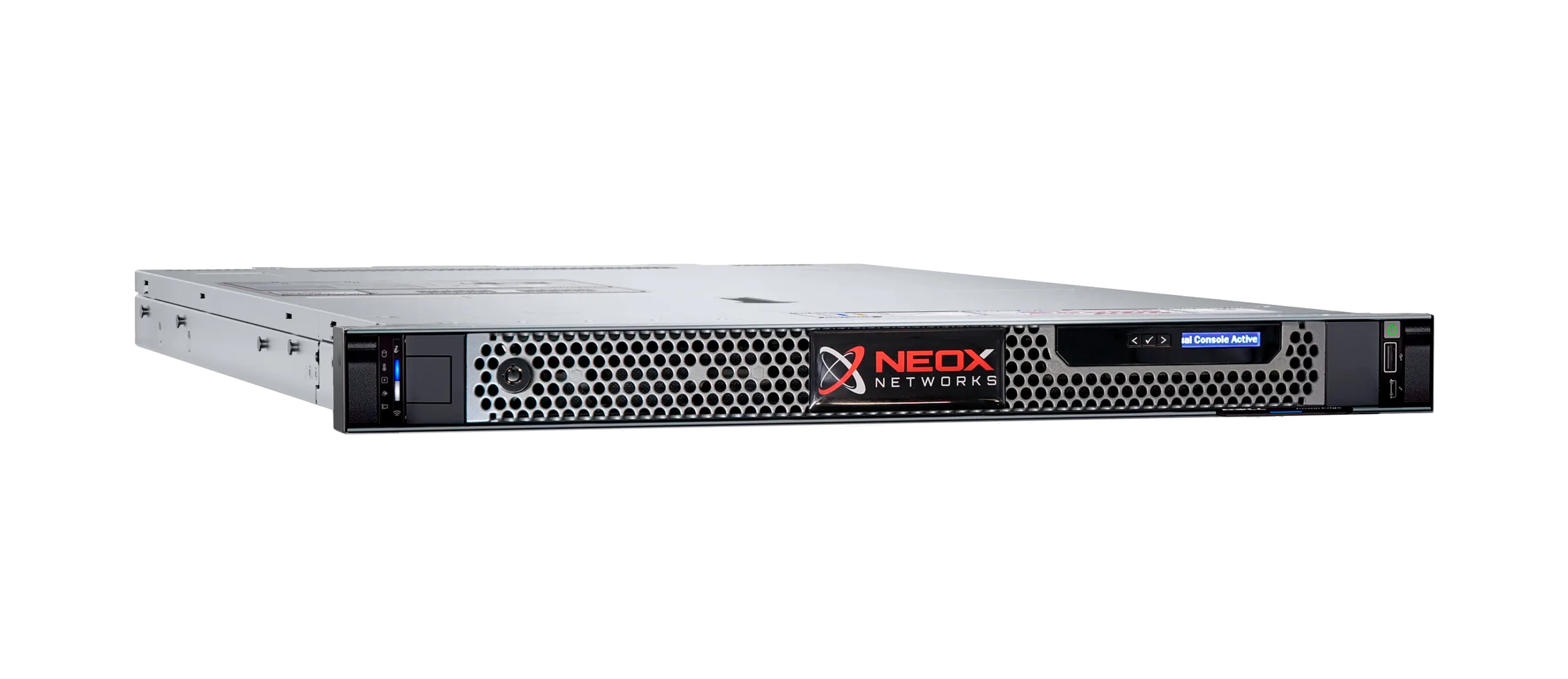

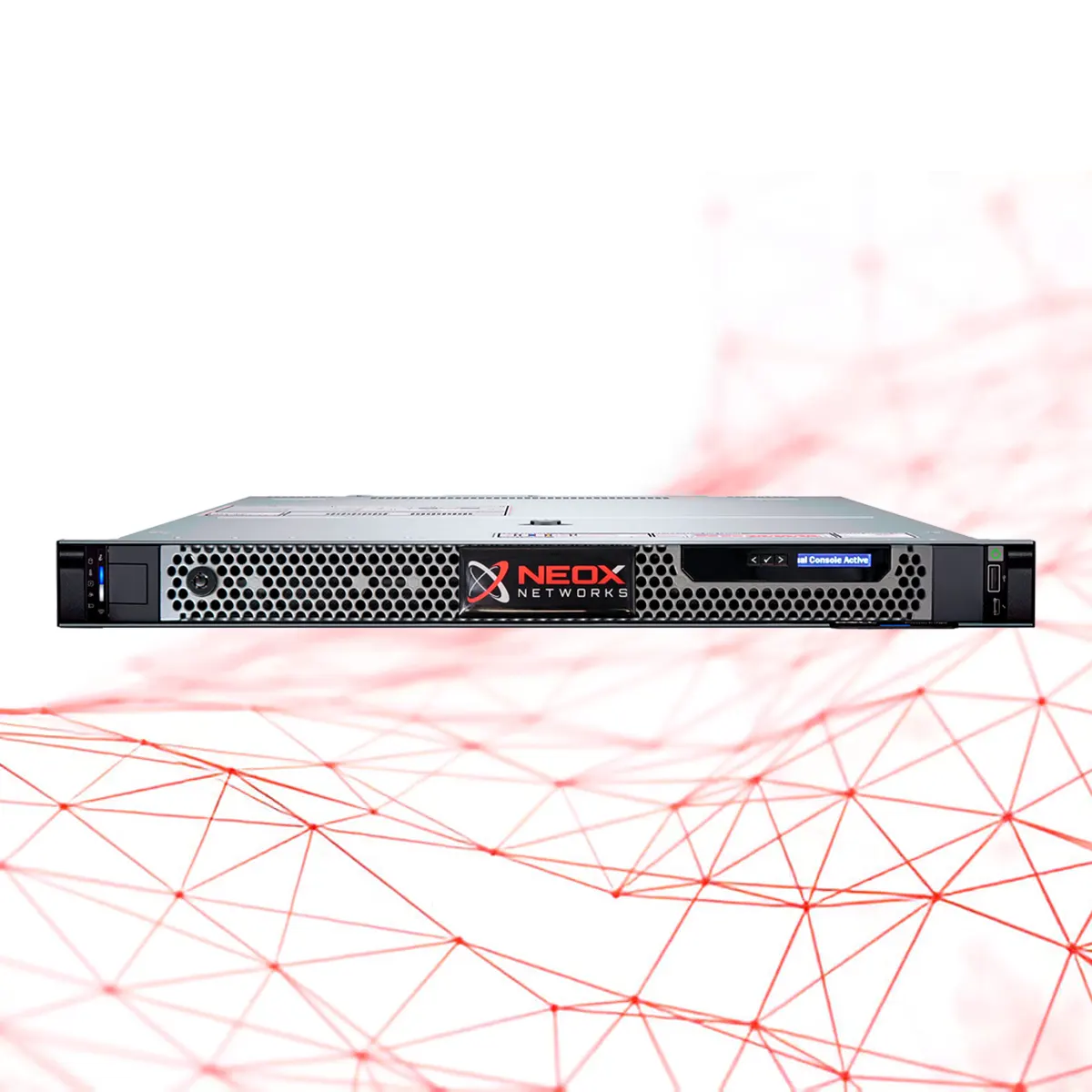

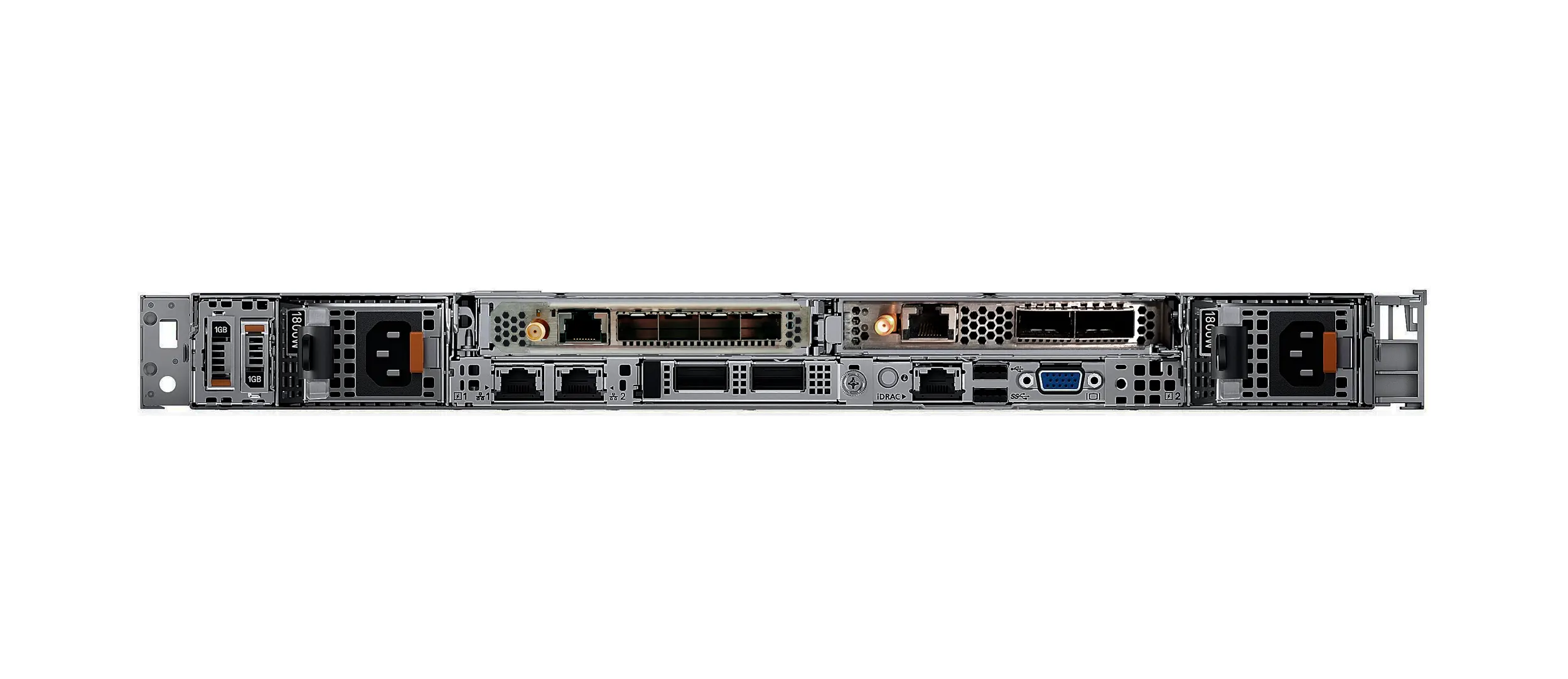

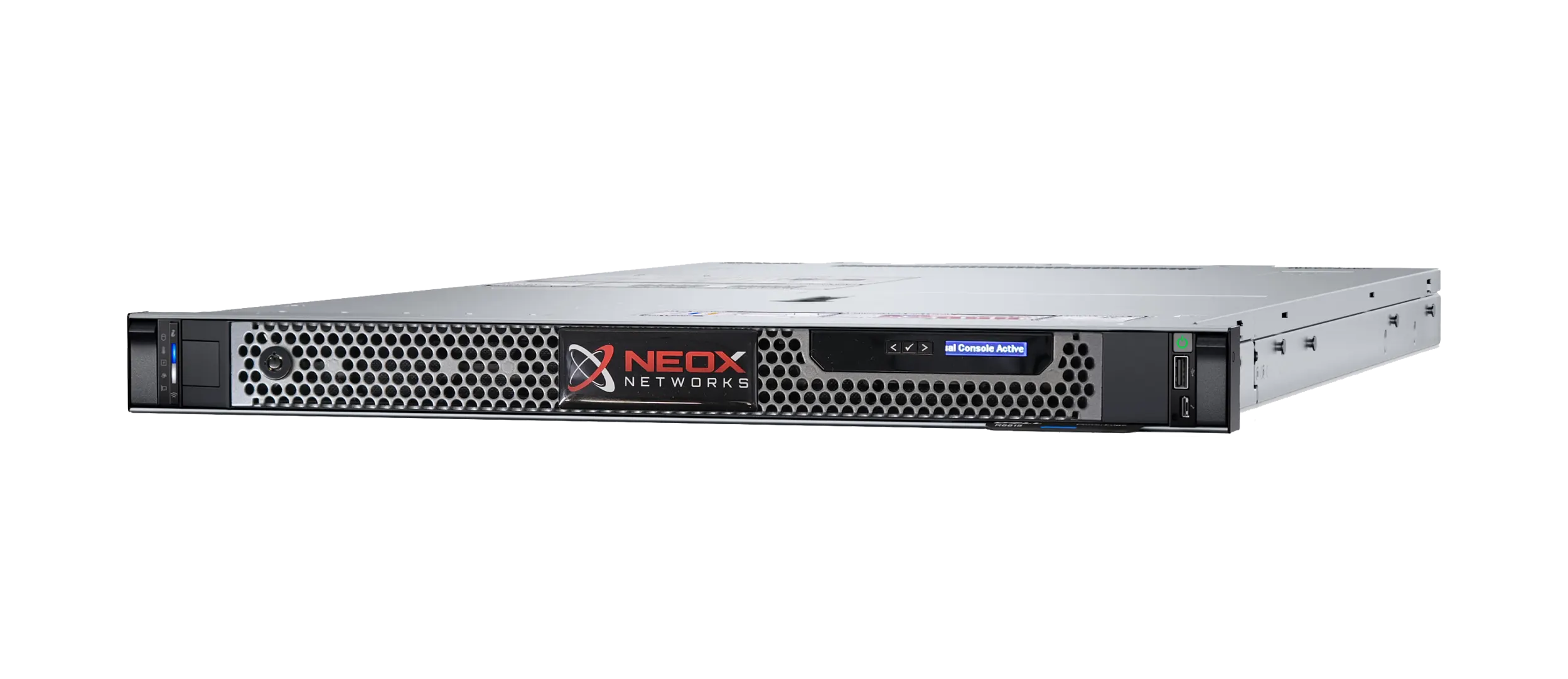

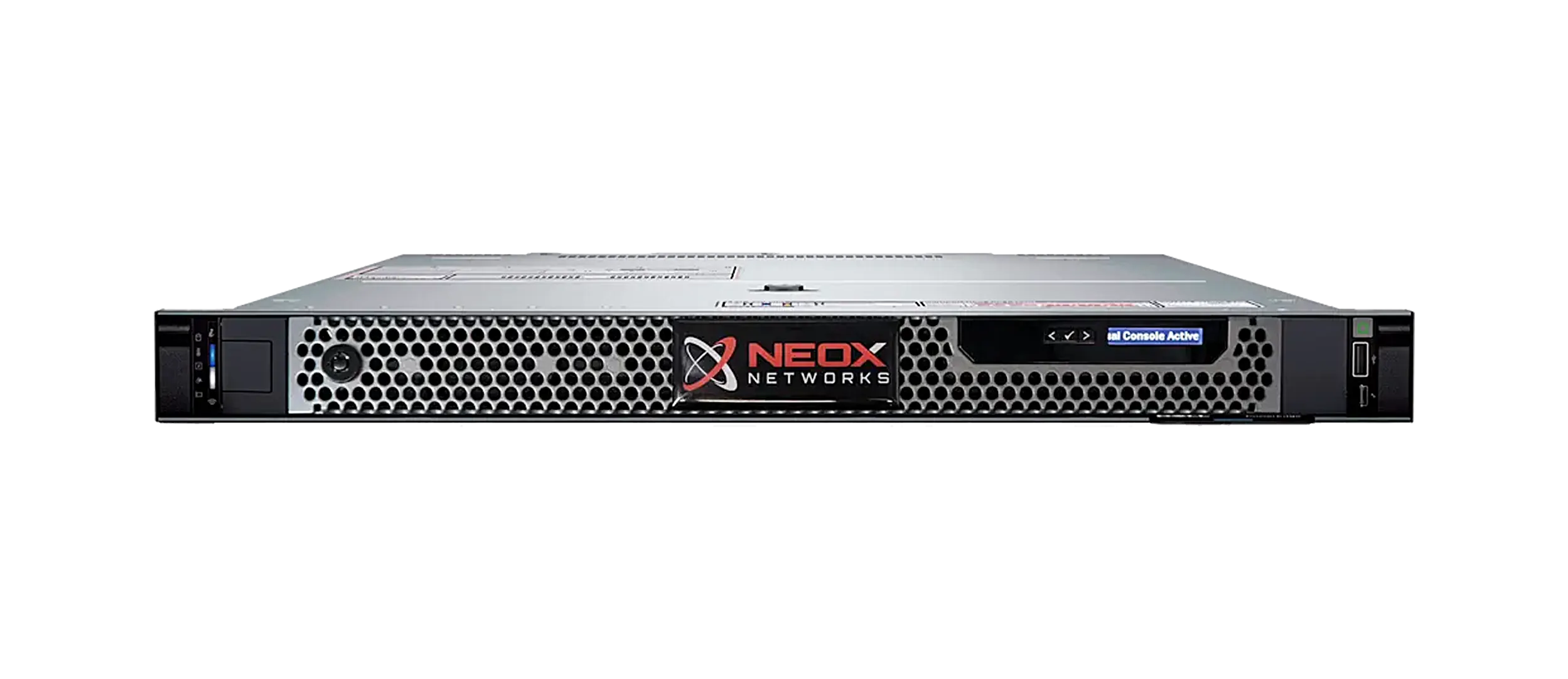

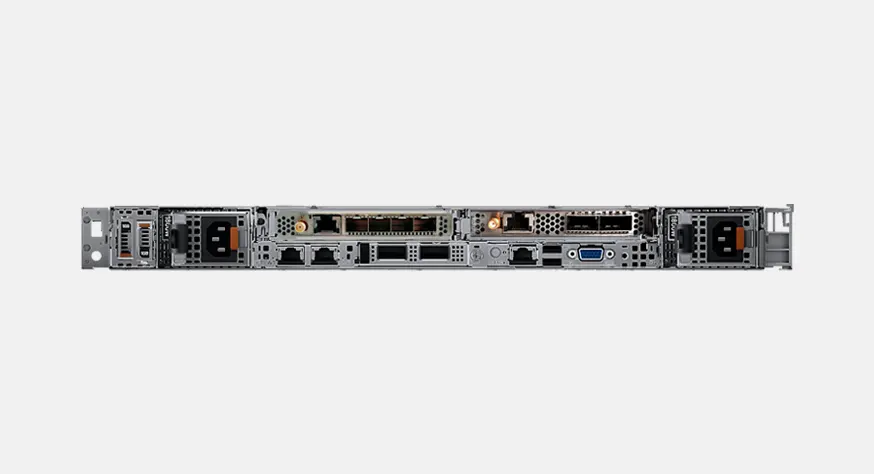

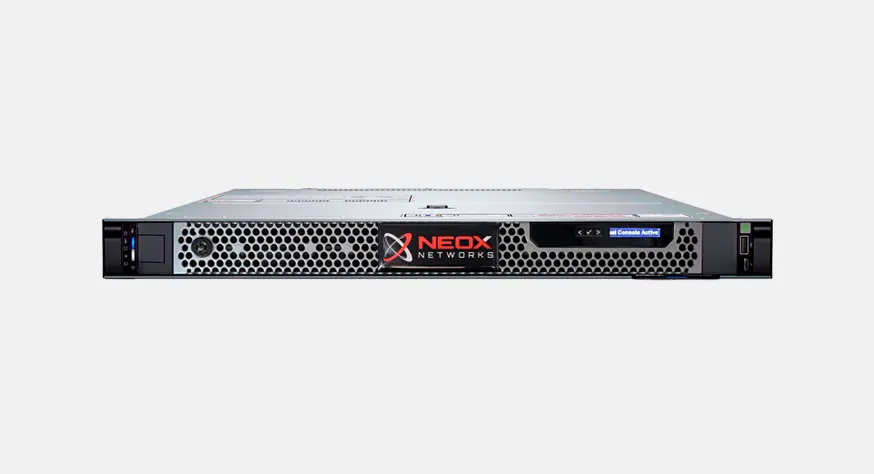

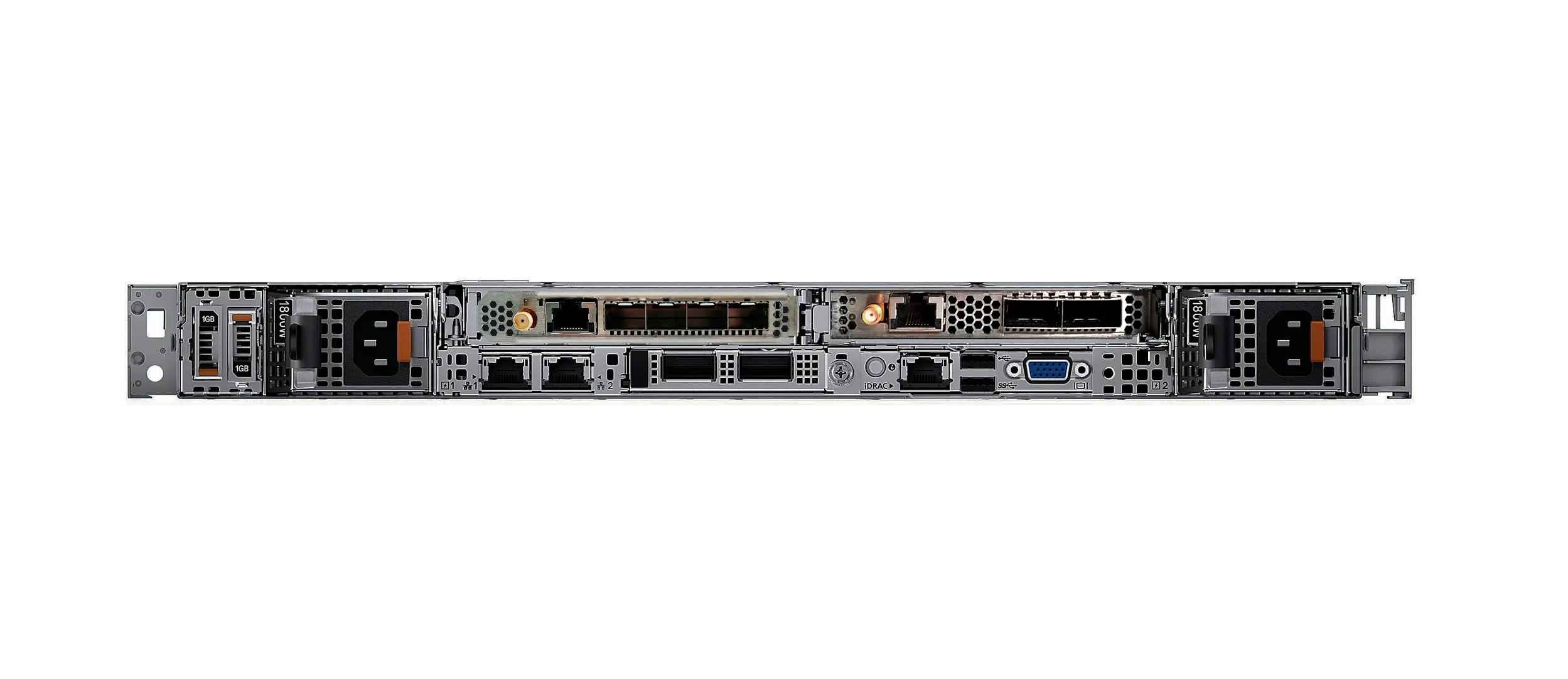

PacketFalcon Compact 100G Packet Capture Appliance

The PacketFalcon Compact is a powerful, rack-mountable packet capture appliance engineered for high-speed, high-volume environments where zero packet loss and forensic precision are mission-critical. Delivering sustained 100Gbps full packet capture-to-disk performance, it is purpose-built for network troubleshooting, cyber forensics, incident response, and regulatory compliance. Capable of capturing and indexing every packet across enterprise, service provider, and defense-grade networks, the PacketFalcon Compact provides full visibility into traffic before, during, and after any incident.
At the heart of this high-performance packet capture appliance is an FPGA-accelerated engine featuring 10-nanosecond timestamping, PTP synchronization, and deduplication—ensuring forensic-level accuracy and traceability. With up to 300TB of onboard hardware-encrypted storage, it supports long-term retention at scale. Advanced features such as capture compression, intelligent filtering, dynamic packet slicing, and real-time capture optimization help maximize storage efficiency without compromising data fidelity. Integrated hardware RAID (0, 5, 6, 50, 60) further enhances performance and data protection, making it ideal for large-scale, mission-critical deployments.
Supporting both PCAP and PCAP-NG formats, the PacketFalcon Compact integrates seamlessly with popular analysis tools like Wireshark and Suricata. It also includes comprehensive, preloaded dashboards and analytics software—enabling IT and security teams to rapidly investigate traffic, correlate events, and take decisive action without third-party dependencies.

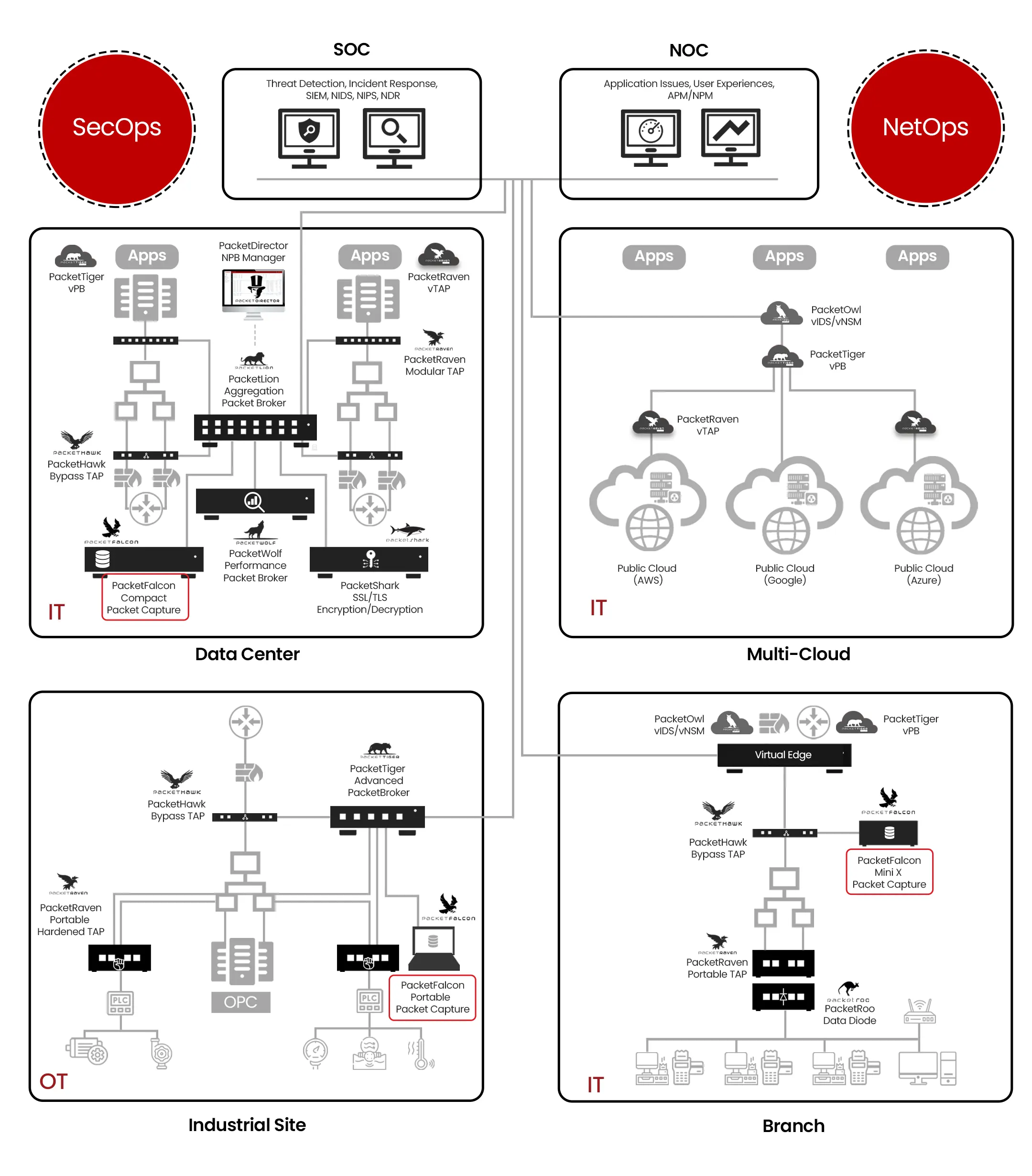

Designed for deployment in data centers, NOCs, and SOCs, this enterprise-grade packet capture appliance offers unmatched speed, scalability, and forensic insight. The PacketFalcon Compact is the definitive solution for organizations that require deep, real-time network visibility and resilient, full-fidelity packet capture at scale. Shop PacketFalcon Compact

Zoom https://neoxnetworks.com/wp-content/uploads/2025/07/PacketFalcon-Compact-2-1.webpImage

MODELS

SKU	RAM	SSD	CAPTURE CARD – PORTS
NX-LC-25G-TB-CT*	256 GB	30TB, 60TB, 150TB or 300TB	4x 1G/10G/25G SFP28
NX-LC-40G-TB-CT*	256 GB	30TB, 60TB, 150TB or 300TB	2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-100G-TB-CT*	256 GB	30TB, 60TB, 150TB or 300TB	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)

SKU	RAM	SSD	CAPTURE CARD 1 – PORTS	CAPTURE CARD 2 – PORTS
NX-LC-25G25G-TB-CT*	256 GB	30TB, 60TB, 150TB or 300TB	4x 1G/10G/25G SFP28	4x 1G/10G/25G SFP28
NX-LC-25G40G-TB-CT*	256 GB	30TB, 60TB, 150TB or 300TB	4x 1G/10G/25G SFP28	2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-40G40G-TB-CT*	256 GB	30TB, 60TB, 150TB or 300TB	2x 40G QSFP+ / 8x 10G (Fan-out)	2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-25G100G-TB-CT*	256 GB	30TB, 60TB, 150TB or 300TB	2x 40G QSFP+ / 8x 10G (Fan-out)	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-100G100G-TB-CT*	256 GB	30TB, 60TB, 150TB or 300TB	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)

* SSD capacity – available sizes: „30“ TB, „60“ TB, „150“ TB or, „300“ TB; other sizes on request ** “3Y“ for 3 years – or „5Y“ for 5 years software subscription and hardware support

HIGHLIGHTS

Continuous 100G WTD (Write to disc) – lossless Full Packet Capturing (FPC)
Up to 125G with Packet Slicing and/or compression enabled
Up to 2 High-Speed FPGA capture cards for 1G/10G/25G/40G/100G
4x SFP/SFP+/SFP28 ports and/or 2x QSFP+/QSFP28 ports
FPGA-based Deduplication
FPGA-based Dynamic Packet Slicing and Capture Filters
FPGA-based nanosecond-accurate Timestamping
Supports IEEE 1588v2 PTP
PCAP and PCAPNG support
Intuitive WebUI for advanced analysis and PCAP Export
Storage capacity from 30TB to 300TB
Enterprise NVMe SSD Drives
8GB/12GB Hardware Buffer to absorb and analyse microbursts
Operating system on RAID 1 NVMe M2 SSD, BOSS
Integrated, reliable expert events, reference to conspicuous features of the OSI Layer 2-7
Acceleration of the Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
Packet-based analysis of communication relationships, visualized in intuitive graphical displays
VoIP/video analysis
Troubleshooting of Performance Issues
Optional support for hardware-encrypted capture storage, protects your data from unauthorised access. FIPS 140-2 certification and complies with ISO/IEC 27040 and NIST 800-88 standards.
10G Management interface
Portable and rackmountable, 1U
Redundant Titanium power supplies
Includes 1 year hardware, software and maintenance support

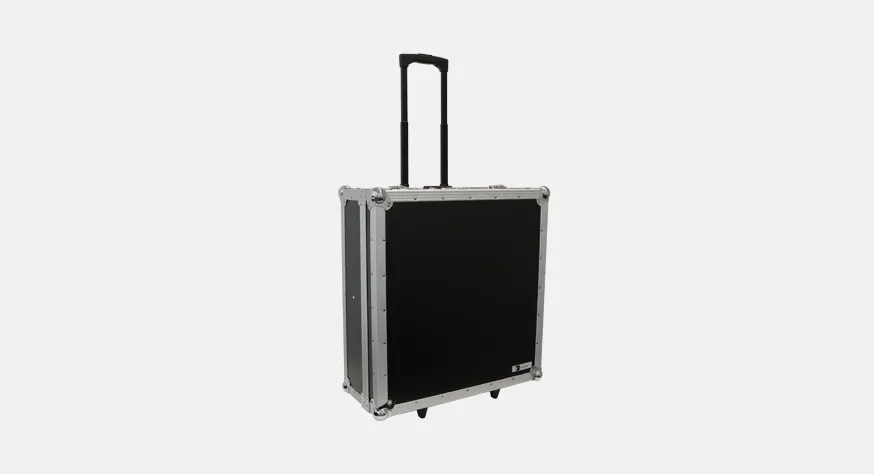

Transport case optionally available
Development, assembly & QA in Germany

SPECIFICATIONS

- Capture cards: High-speed smart FPGA capture card(s) for 1G/10G/25G/40G/100G
- Ports: SFP/SFP+/SFP28/QSFP+/QSFP28
- SSD Storage Capacity: 30 TB – 300 TB
- RAM: 256 GB
- Power Supply: 2x 700 W Titanium, 200 to 240 VAC or 240 HVDC, Hot-Swappable, redundant
- Housing: 1U – incl. rackmount kit

- Dimensions (WxHxD): 19.0″ x 1.7″ x 32.4″ / 48.2 cm x 4.3 cm x 82.3 cm
- Weight: ca. 18 kg
- Operating Temperature: 41°F to 113°F /5°C to 45°C
- Storage Temperature: -40°F to 149°F / -40°C to 65°C
- Relative Operating Humidity: 8% to 90% (non-condensing)
- Relative Storage Humidity: 5% to 95% (non-condensing)

Certifications:
SAFETY: EN 62368-1:2014 +A11:2017, EN IEC 62368-1:2020 +A11:2020, EN IEC 62311:2020, EN 62479:2010;
EMC: EN 55032:2015 +A11:2020, EN 55035:2017 +A11:2020, EN 61000-3-2:2014, EN 61000-3-3:2013;
RoHS: EN IEC 63000:2018

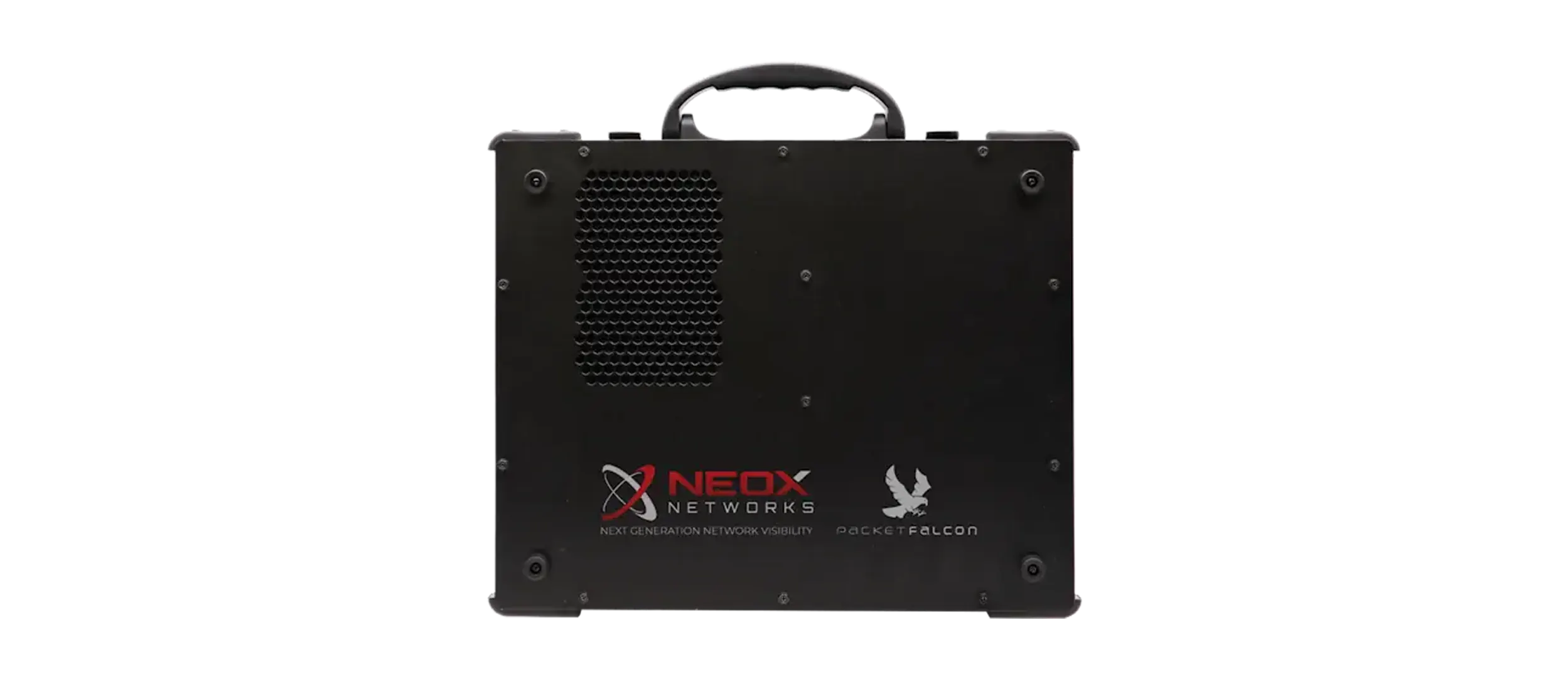

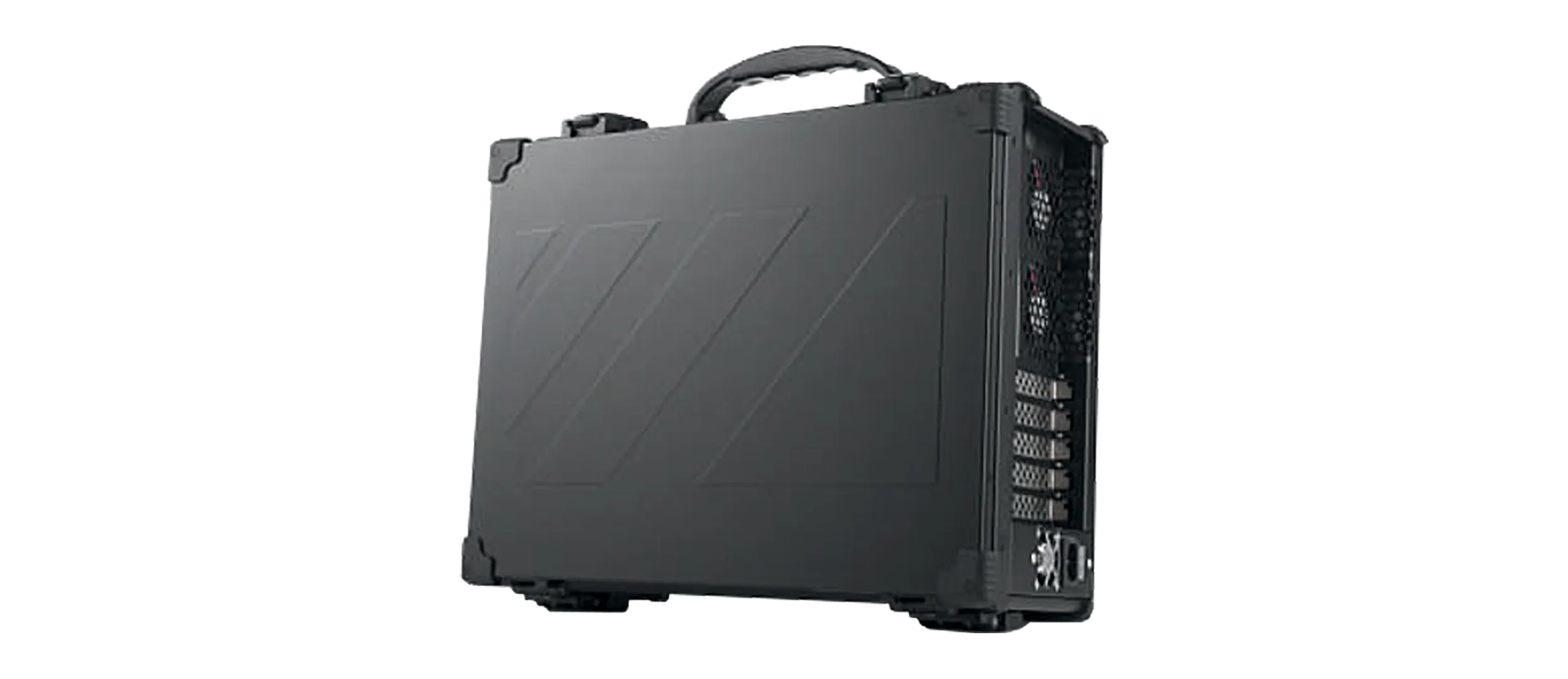

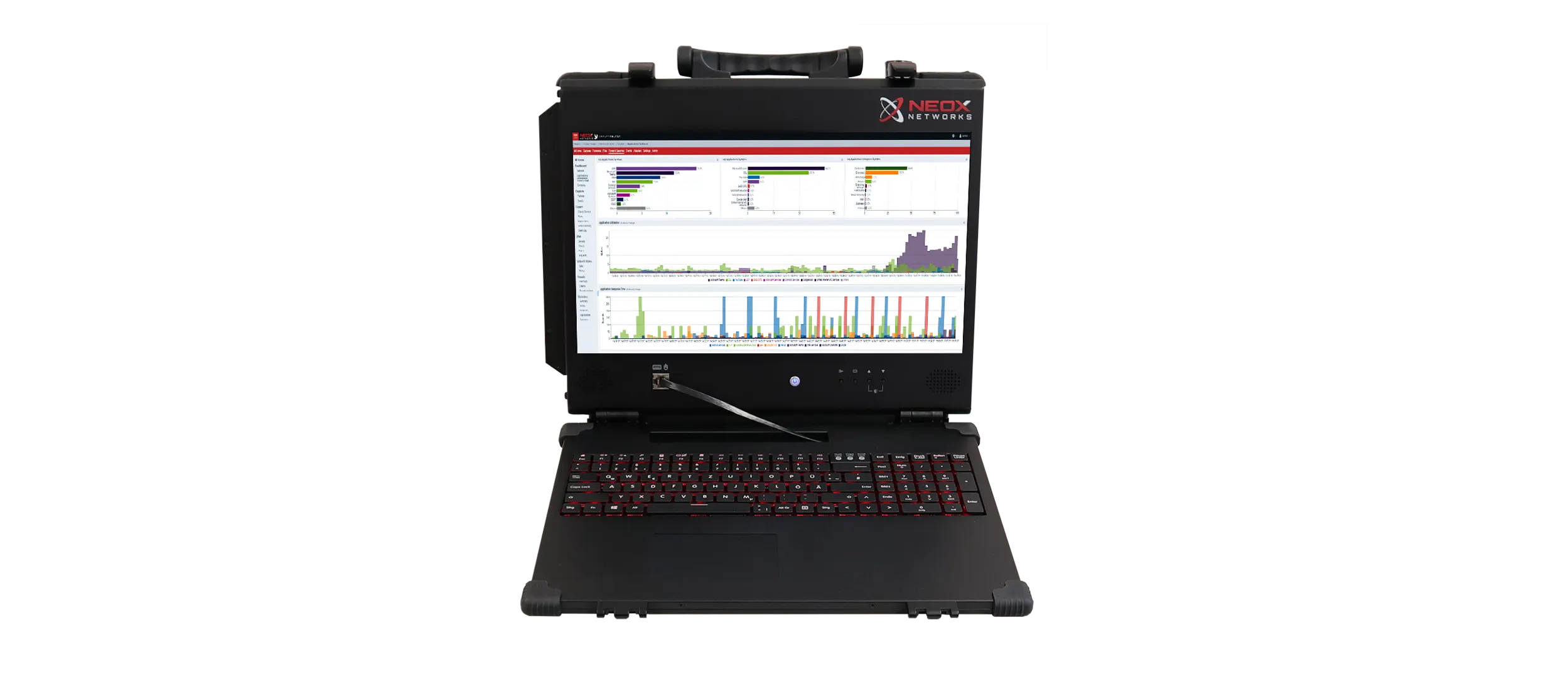

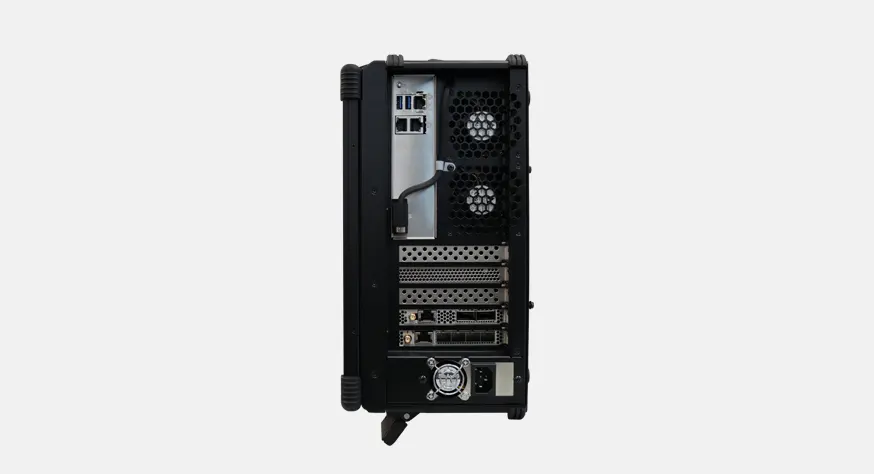

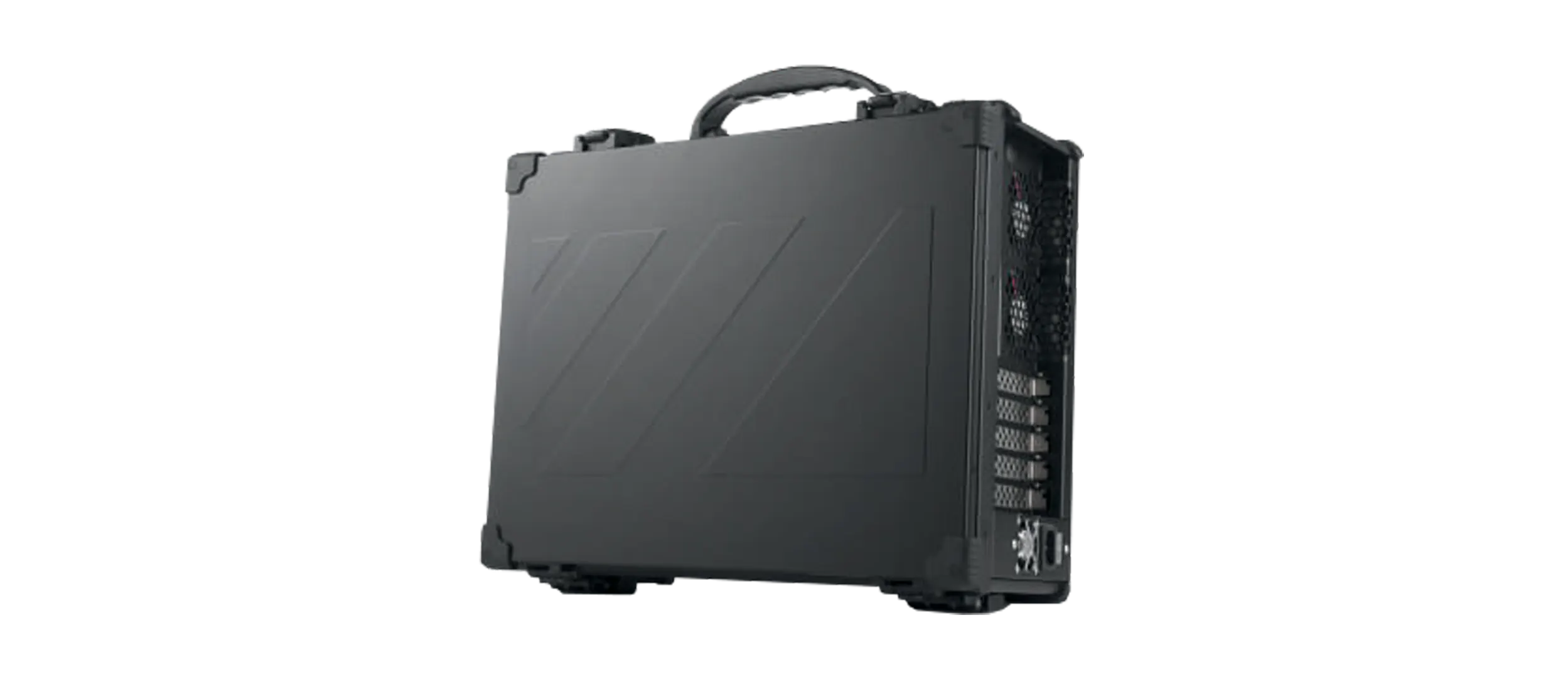

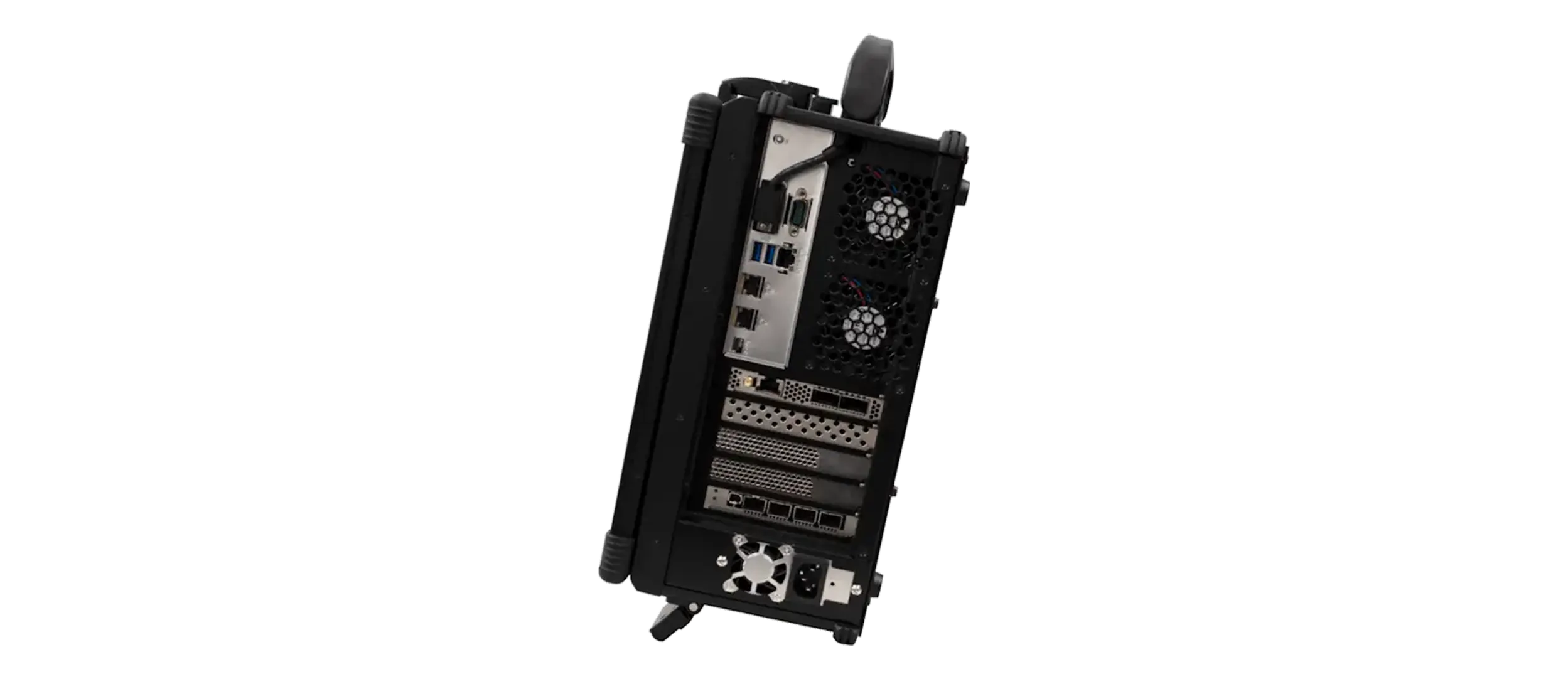

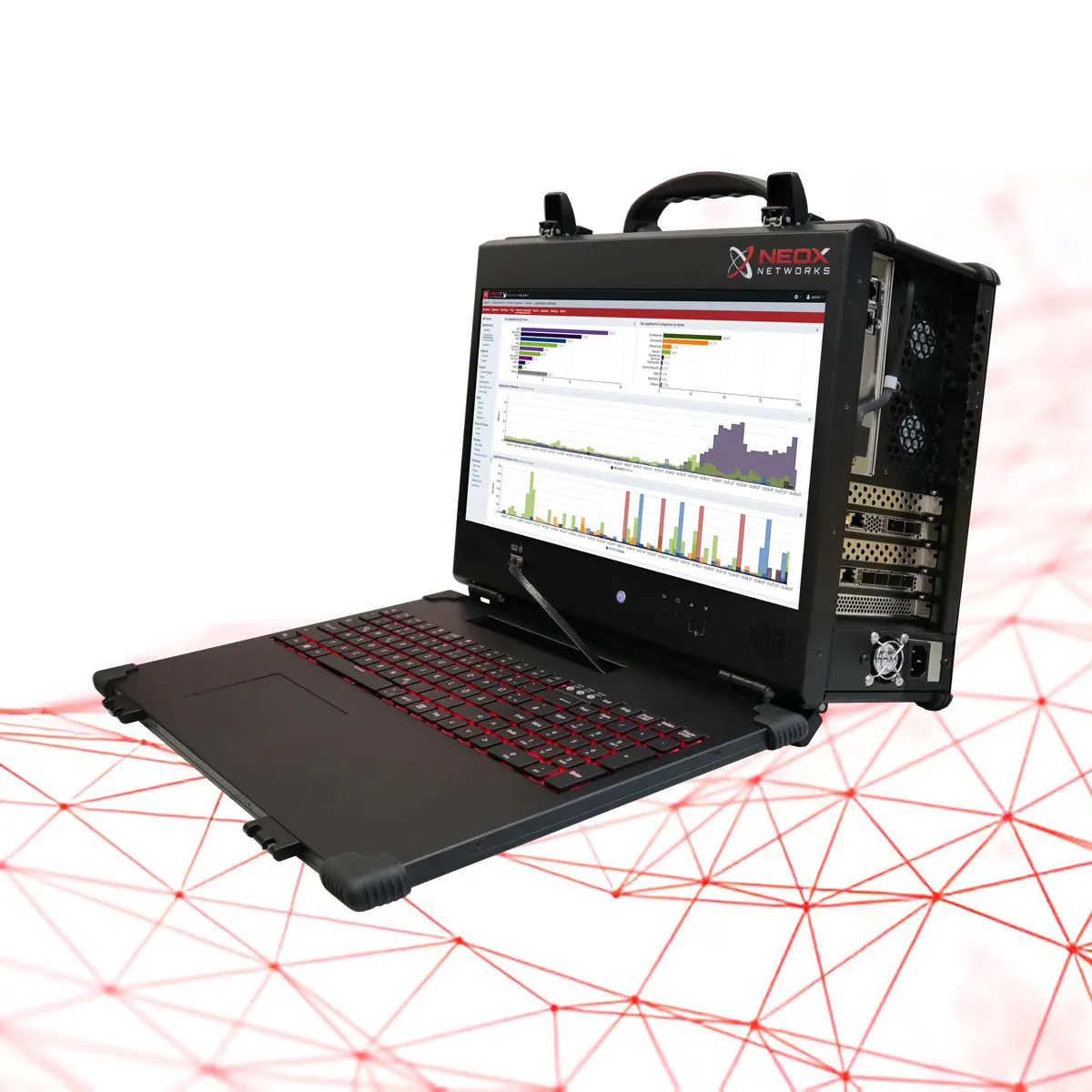

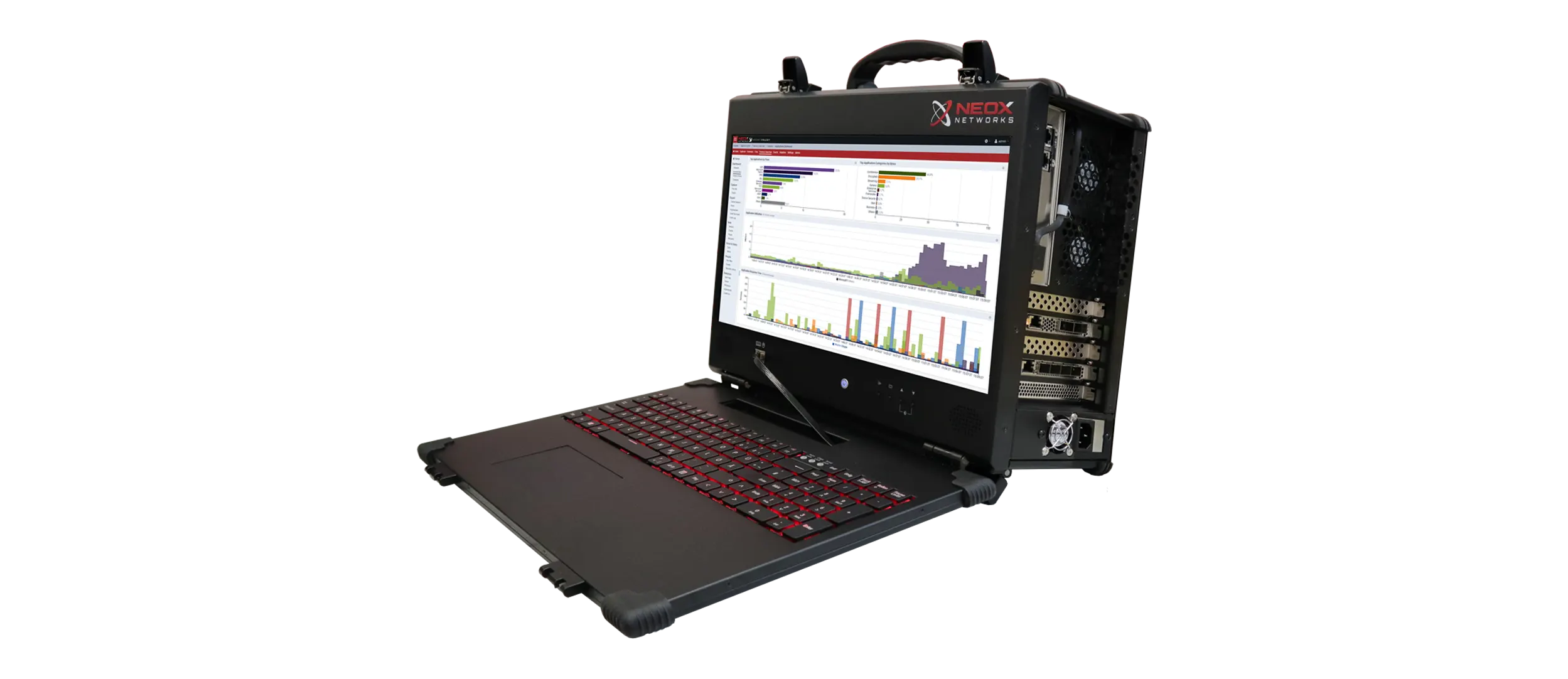

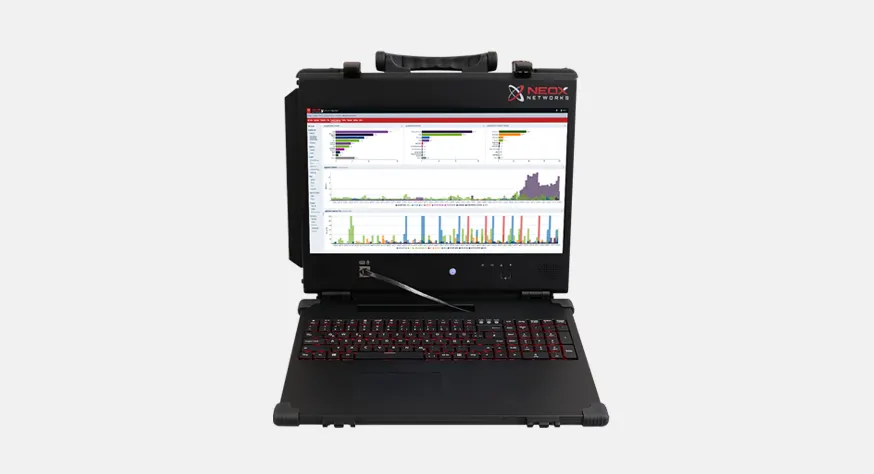

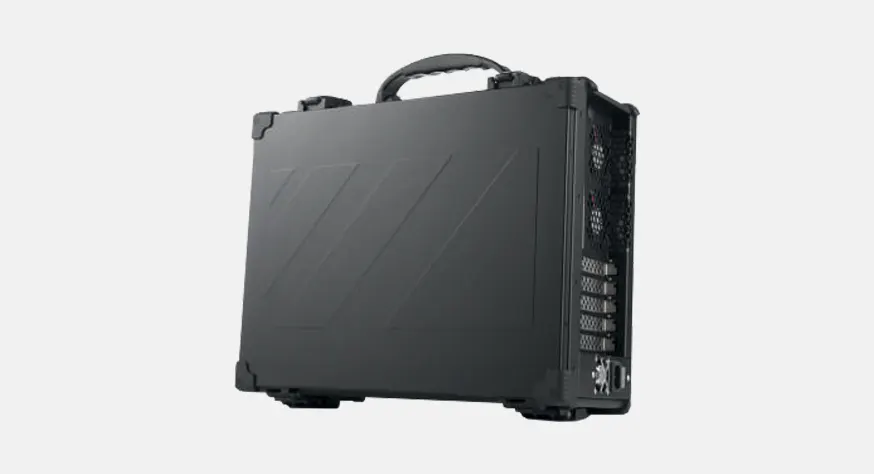

PacketFalcon Portable 100G Packet Capture Appliance

A compact, high-performance packet capture powerhouse designed for mobility without compromising speed, storage, or forensic precision. Built for field teams, tactical deployments, and mobile incident response, this ultra-fast solution delivers sustained 100Gbps full packet capture-to-disk performance in a rugged, portable form factor. Whether you’re troubleshooting network outages, investigating breaches, or responding to compliance audits, the PacketFalcon Portable provides before-during-after visibility with deep packet-level insight anywhere, anytime. Equipped with a powerful FPGA-based architecture, the PacketFalcon Portable ensures precision with 10-nanosecond timestamping, PTP synchronization, and deduplication, making it ideal for high-stakes forensic and regulatory environments. It boasts an unmatched 480TB of onboard hardware-encrypted SED storage, supporting FIPS 140-2 compliance for secure handling of sensitive or classified data. With capture compression, intelligent filtering, dynamic slicing, and full RAID support (0, 5, 6, 50, 60), this system optimizes capacity and performance even under extreme data loads. Seamlessly compatible with PCAP/PCAP-NG formats and tools like Wireshark and Suricata, the PacketFalcon Portable comes ready with out-of-the-box dashboards and built-in analysis software, enabling field teams to search, visualize, and investigate traffic in real time or retrospectively. Whether on a mission-critical site, inside a secure facility, or across multi-domain operations, the NEOX PacketFalcon Portable delivers enterprise-grade packet visibility and forensic depth in a truly mobile platform—empowering defense, government, and enterprise teams with rapid, on-demand network intelligence. Shop PacketFalcon Portable

MODELS

SKU	CPU	RAM	SSD**	PORTS
NX-LC-25G-30TB-PT*	AMD EPYC™	256 GB	30 TB	4x 1G/10G/25G SFP28
NX-LC-25G-60TB-PT*	AMD EPYC™	256 GB	60 TB	4x 1G/10G/25G SFP28
NX-LC-25G-120TB-PT*	AMD EPYC™	256 GB	120 TB	4x 1G/10G/25G SFP28
NX-LC-25G-240TB-PT*	AMD EPYC™	256 GB	240 TB	4x 1G/10G/25G SFP28
NX-LC-25G-480TB-PT*	AMD EPYC™	256 GB	480 TB	4x 1G/10G/25G SFP28

NX-LC-40G-30TB-PT*	AMD EPYC™	256 GB	30 TB	2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-40G-60TB-PT*	AMD EPYC™	256 GB	60 TB	2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-40G-120TB-PT*	AMD EPYC™	256 GB	120 TB	2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-40G-240TB-PT*	AMD EPYC™	256 GB	240 TB	2x 40G QSFP+ / 8x 10G (Fan-out)
NX-LC-40G-480TB-PT*	AMD EPYC™	256 GB	480 TB	2x 40G QSFP+ / 8x 10G (Fan-out)

NX-LC-100G-30TB-PT*	AMD EPYC™	256 GB	30 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-100G-60TB-PT*	AMD EPYC™	256 GB	60 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-100G-120TB-PT*	AMD EPYC™	256 GB	120 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-100G-240TB-PT*	AMD EPYC™	256 GB	240 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
NX-LC-100G-480TB-PT*	AMD EPYC™	256 GB	480 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)

NX-LC-25G100G-30TB-PT*	AMD EPYC™	256 GB	30TB	2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
NX-LC-25G100G-60TB-PT*	AMD EPYC™	256 GB	60 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
NX-LC-25G100G-120TB-PT*	AMD EPYC™	256 GB	120 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
NX-LC-25G100G-240TB-PT*	AMD EPYC™	256 GB	240 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
NX-LC-25G100G-480TB-PT*	AMD EPYC™	256 GB	480 TB	2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28

* With „-3Y“ for 3 year – or „-5Y“ for 5 year software subscription and hardware support ** Further configurations on request

HIGHLIGHTS

Continuous 100G WTD (Write to disc) – lossless Full Packet Capturing (FPC)
Up to 125G with Packet Slicing and/or compression enabled
Up to 3 High-Speed FPGA capture cards for 1G/10G/25G/40G/100G
4x 1G/10G/25G SFP28 or
2x 40G QSFP+ / 8x 10G (Fan-out) or
2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out) or
2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
FPGA-based Deduplication
FPGA-based Dynamic Packet Slicing and Capture Filters
FPGA-based nanosecond-accurate Timestamping
Supports IEEE 1588v2 PTP
PCAP and PCAPNG support
Intuitive WebUI for advanced analysis and PCAP Export
Storage capacity from 24TB to 480TB
Hardware RAID 0, 5, 6, 00, 50, 60

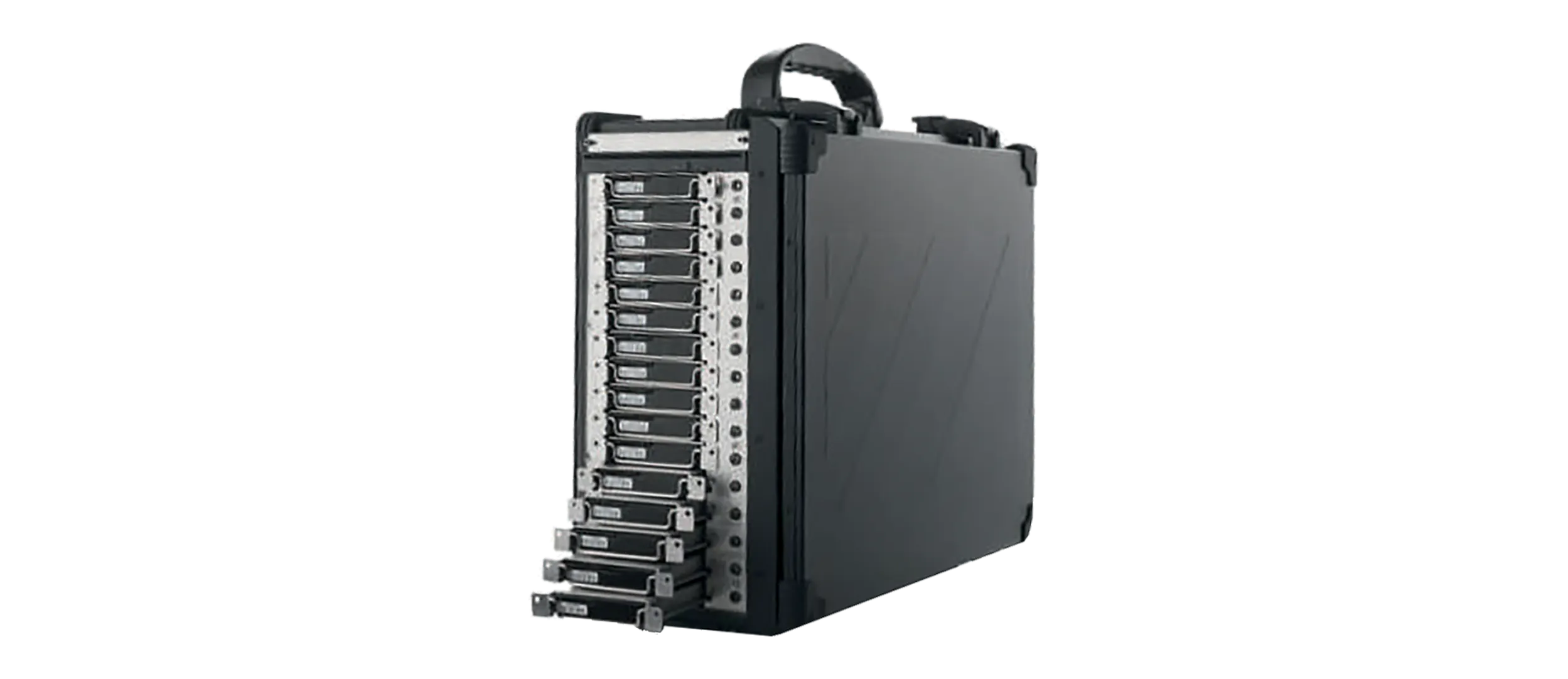

16x 2.5“ SSD removable frames
8GB/12GB Hardware Buffer to absorb and analyze microbursts
Operating system on RAID 1 NVMe M2 SSD, BOSS
17,3“ Full HD 1920×1080 Display
Integrated, reliable expert events, reference to conspicuous features of the OSI Layer 2-7
Acceleration of the Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
Packet-based analysis of communication relationships, visualized in intuitive graphical displays
VoIP/video analysis
Troubleshooting of Performance Issues
Optional support for hardware-encrypted capture storage, protects your data from unauthorized access. FIPS 140-2 certification and complies with ISO/IEC 27040 and NIST 800-88 standards
10G Management interface
Keyboard, lockable as display protection during transport
Portable
Robust aluminum housing
Includes 1 year hardware, software and maintenance support
Trolley included
Transport case with CNC milled foam optionally available
Development, assembly & QA in Germany

SPECIFICATIONS

- Capture cards: High-speed smart FPGA capture card(s) for 1G/10G/25G/40G/100G
- Ports: SFP/SFP+/SFP28/QSFP+/QSFP28
- SSD Storage Capacity: 30 TB – 480 TB
- RAM: 256 GB
- Power Supply: 850W
- Housing: Portable case with LCD screen

- Dimensions (WxHxD): 17.1″ x 14.7″ x 7.0″ / 43.5 cm x 37.3 cm x 17.8 cm
- Weight: ca. 15 kg
- Operating Temperature: 32°F to 104°F / 0°C to 40°C
- Storage Temperature: -40°F – 158°F / -40°C – 70°C
- Relative Operating Humidity: 20% to 80%
- Relative Storage Humidity: > 90% (non-condensing)

Certifications:
Low Voltage Directive: 2014/35/EU Electrical Equipment (Safety) Regulations 2016: EN IEC 62368-1:2020, EN 60335-1, EN 61010-1, EN 60204-1

EMC Directive: 2014/30/EU Electromagnetic Compatibility Regulations 2016: EN 55032:2015 +A11:2020 Class B, EN 55035:2017 +A11:2020, EN 61000-3-2:2014 Class D, EN IEC 61000-3-2:2019 +A1:2021, EN 61000-3-3:2013 , EN 61000-3-3:2013 +A1:2019

RoHS Directive: 2011/65/EU and (EU)2015/863: EN IEC 63000:2018

Reach Certificate: 1907/2006/EU

Product Selector

Product Model	Capture Option				Storage Option									Subscription & Support Option
Product Model	1/10G	25G	40G	100G	7TB	15TB	30TB	60TB	120TB	150TB	240TB	300TB	480TB	1 Year	3 Year	5 Year
PacketFalcon Mini	Yes				Yes	Yes	Yes							Yes	Yes	Yes
PacketFalcon Mini X	Yes	Yes			Yes	Yes	Yes							Yes	Yes	Yes
PacketFalcon Compact	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes					Yes	Yes	Yes
PacketFalcon Portable	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes

Deployment

SERVICE & SUPPORT

Unparalleled Multi-Level Service & Support for Peace of Mind

All NEOXPacketFalcon Capture Appliances come with NEOX SILVER Support and can be upgraded to GOLD Support for advanced replacement in case of a hardware failure.

Creating Solutions for Your Success

STAY IN TOUCH

Follow Our Social Media and Subscribe to Our Newsletter

PacketFalcon Packet Capture Appliance

Network Packet Capture, Analysis & Forensics

ULTRA-FAST 1–100G PACKET CAPTURE Appliance & ANALYSIS

Leading solution for application troubleshooting, security forensics, and compliance

PCAP Data | Out-of-Box Dashboards | Wireshark Support

PacketFalcon Mini 10G Packet Capture Appliance

PacketFalcon Mini X 25G Packet Capture Appliance

PacketFalcon Compact 100G Packet Capture Appliance
