Full Network Visibility up to 400G
Filtering | Packet Slicing | Timestamping

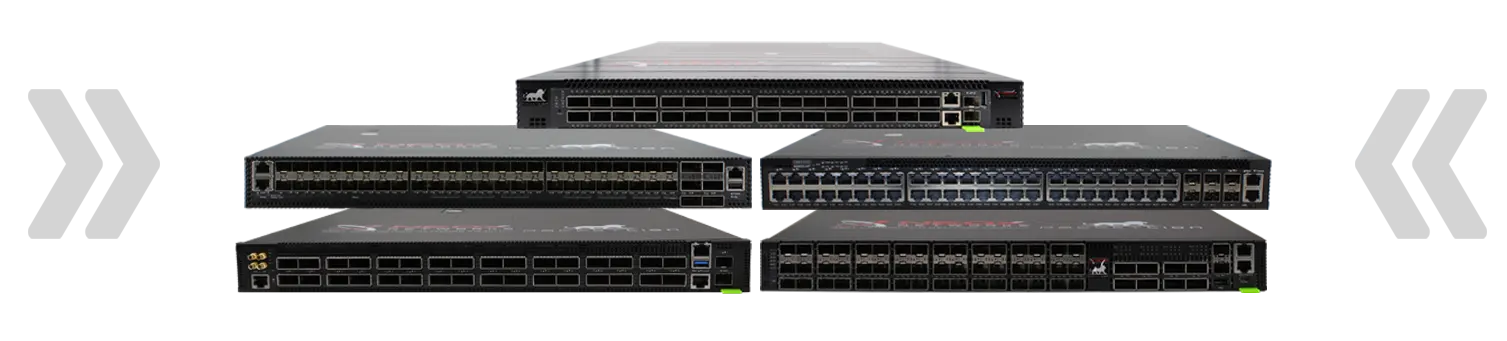

CENTERLIZED NETWORK VISIBILITY
Real-Time Network Data-in-Motion, Consolidation, and Control

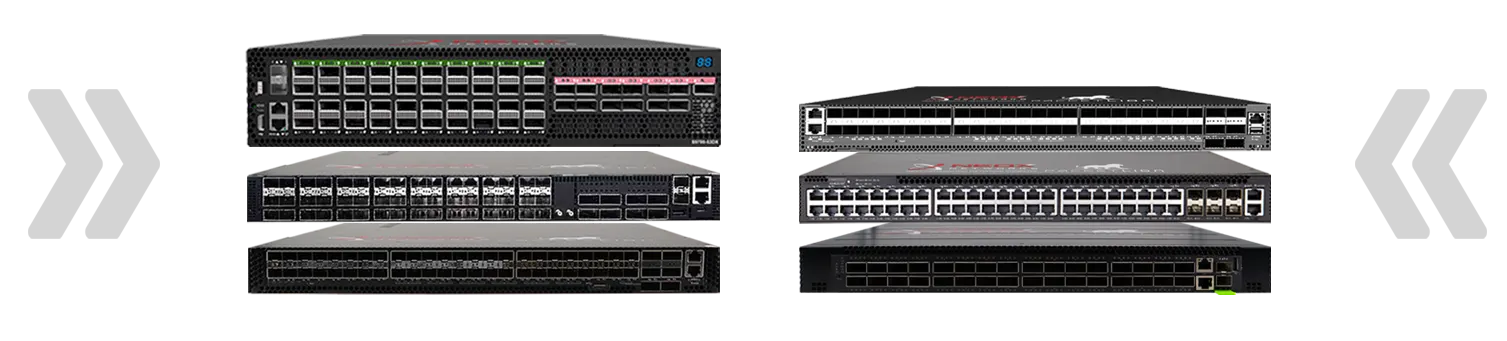

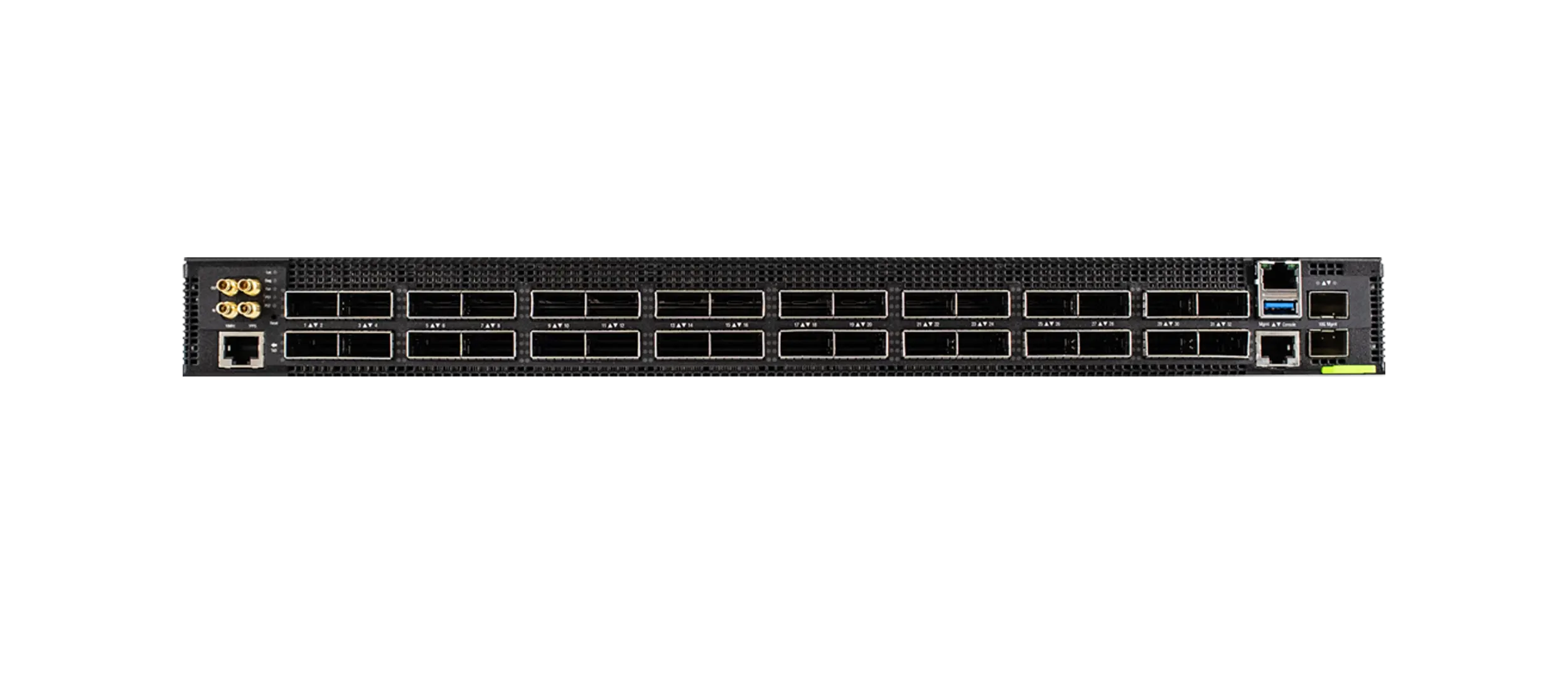

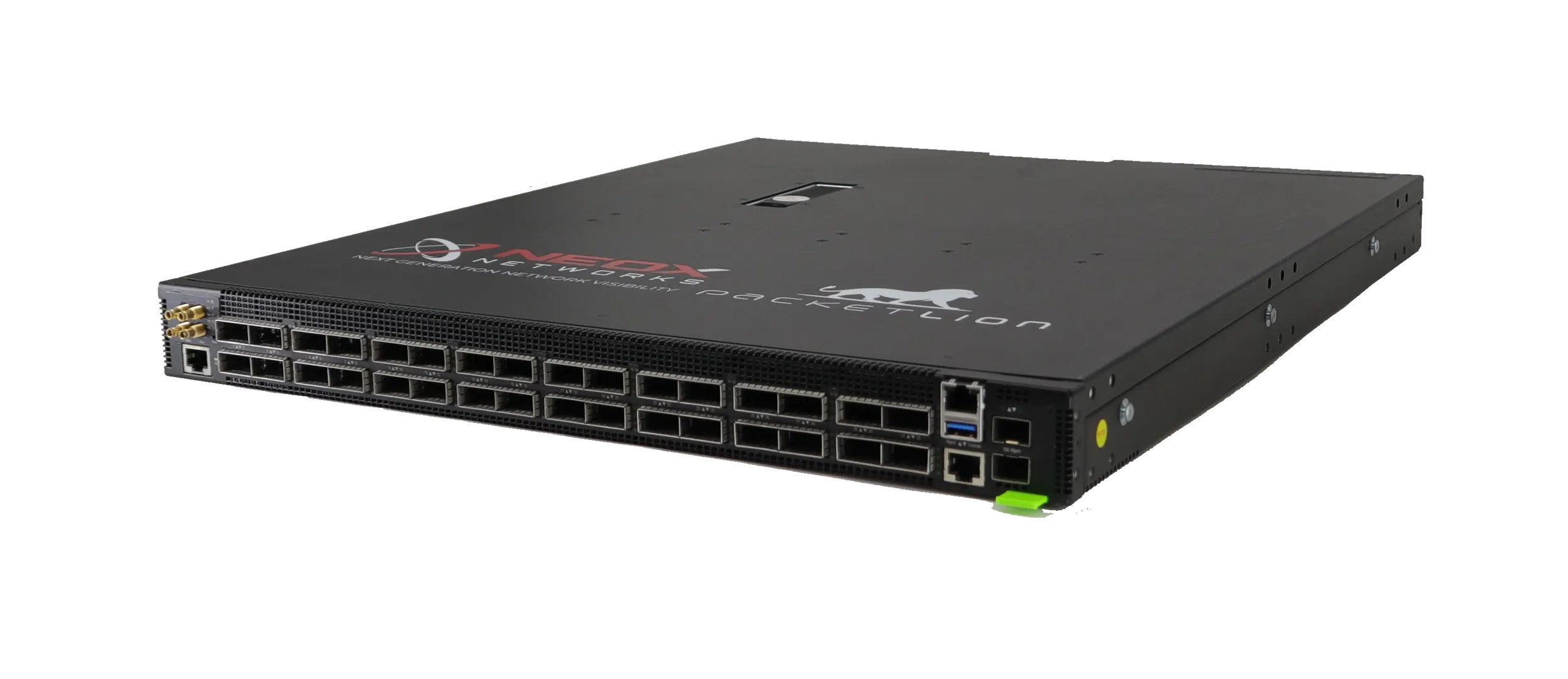

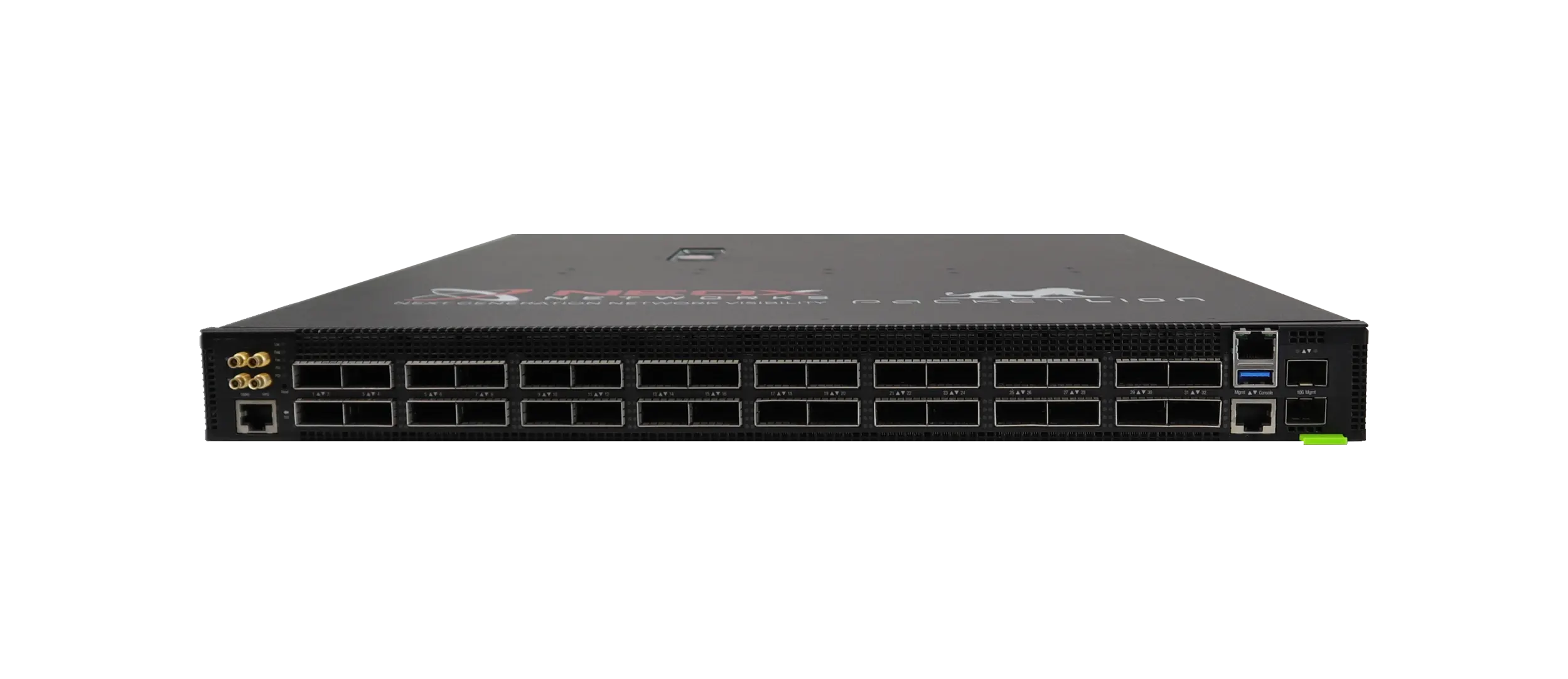

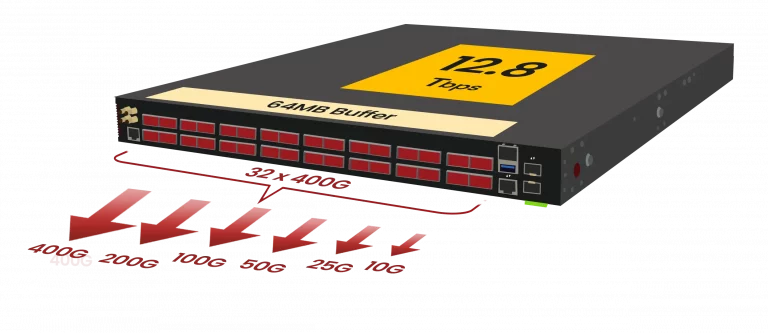

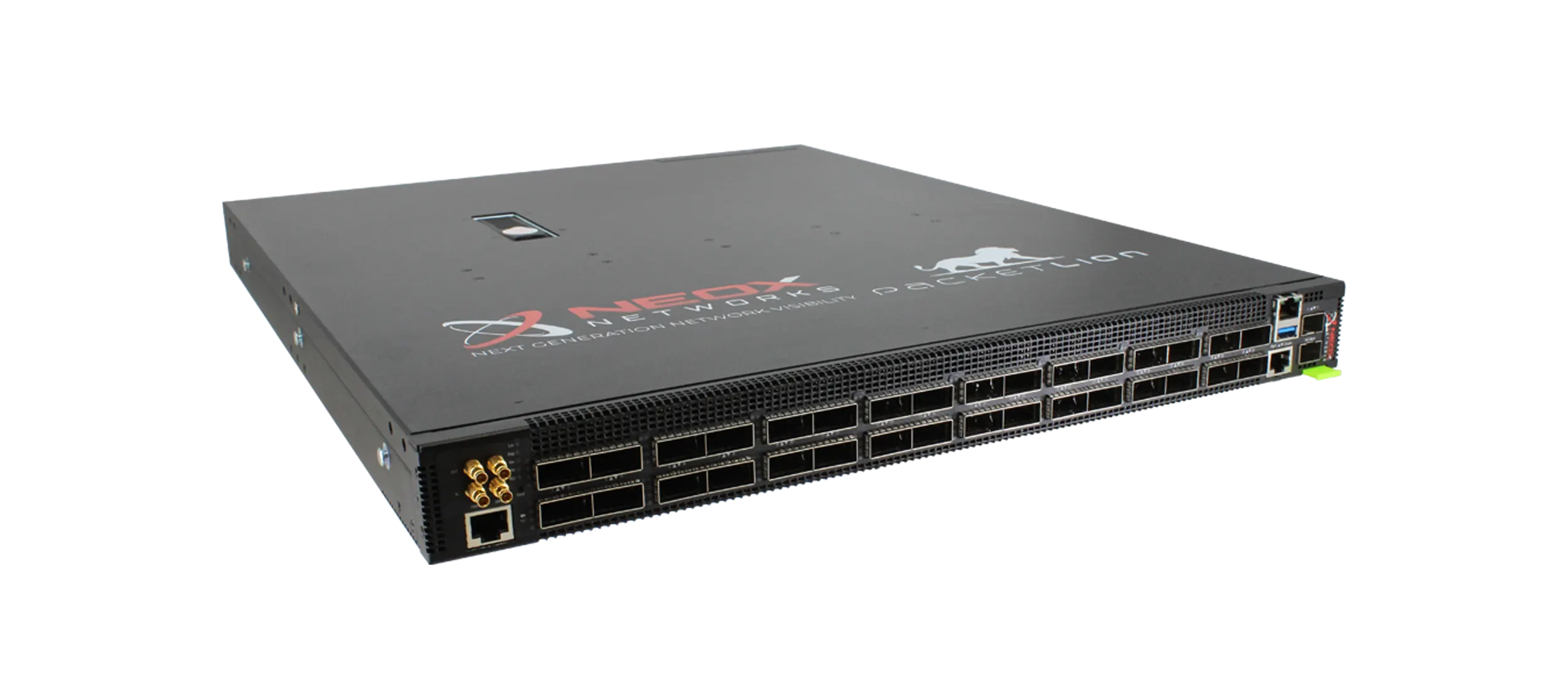

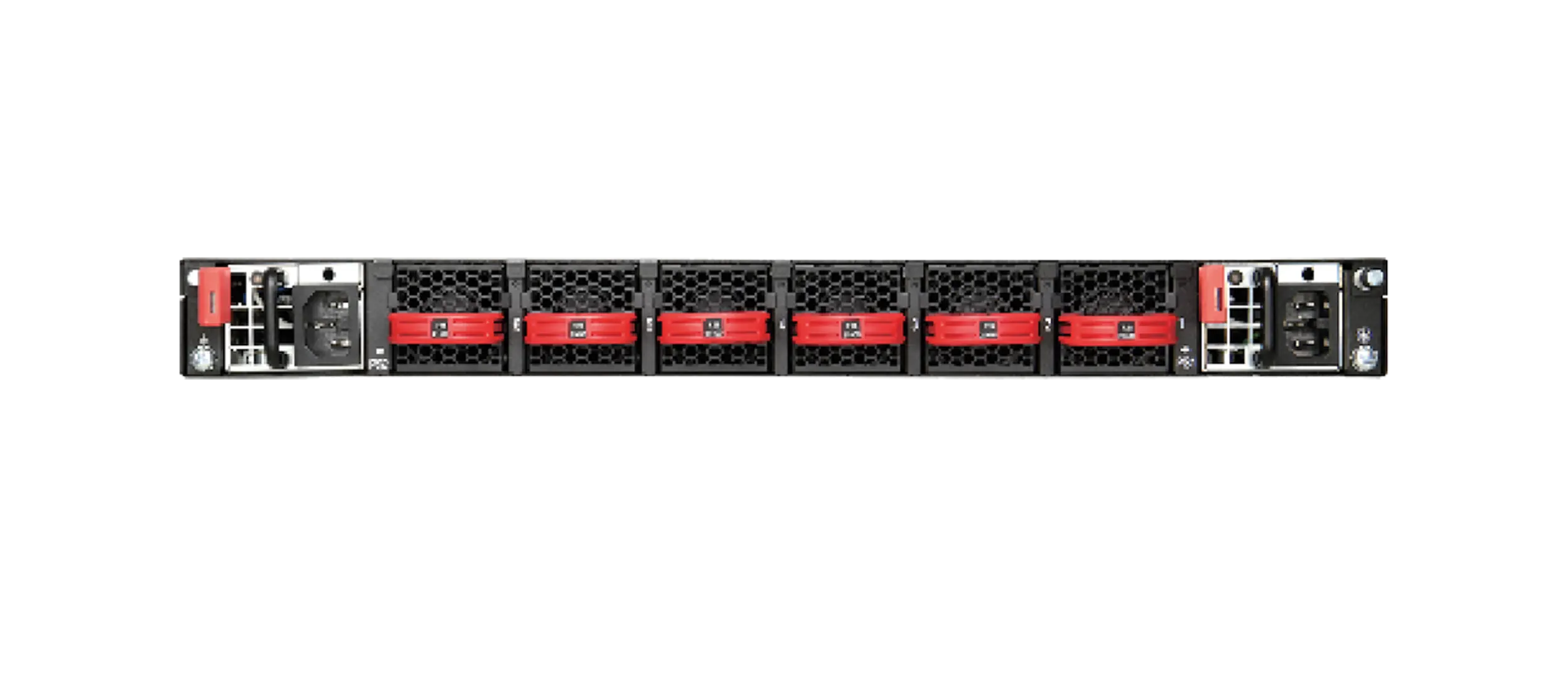

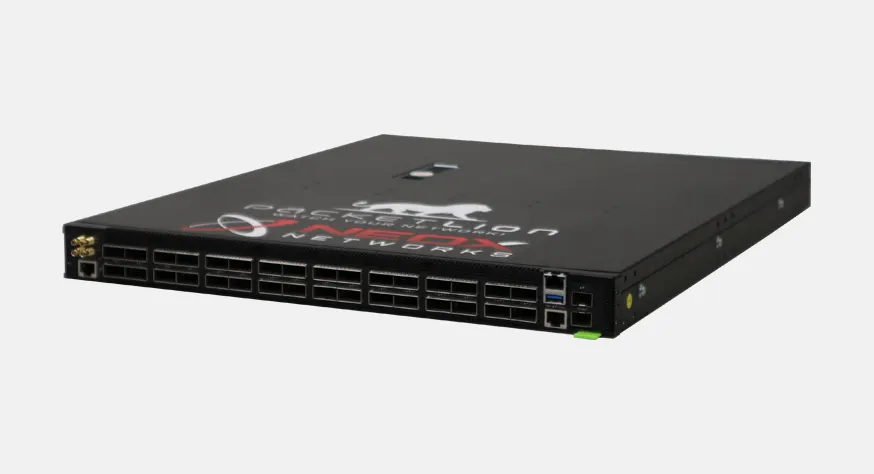

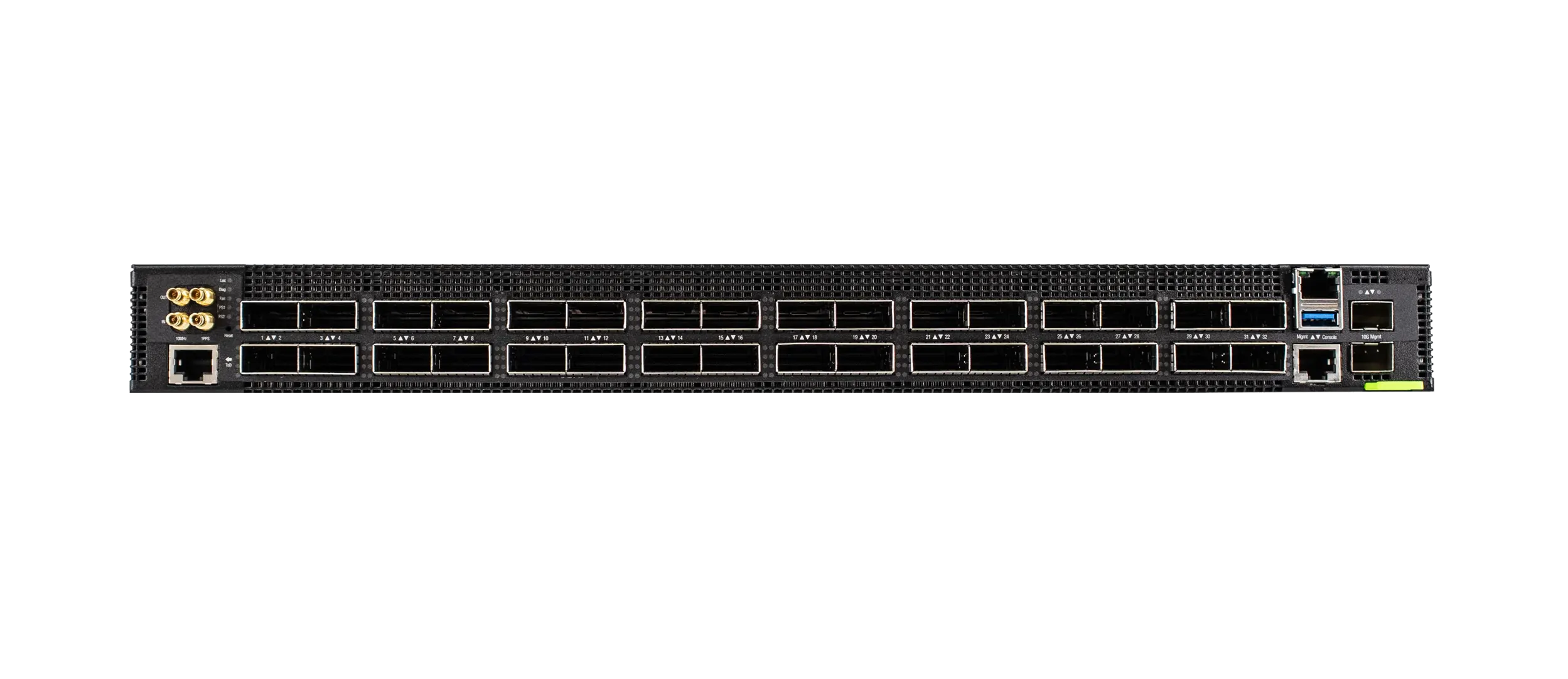

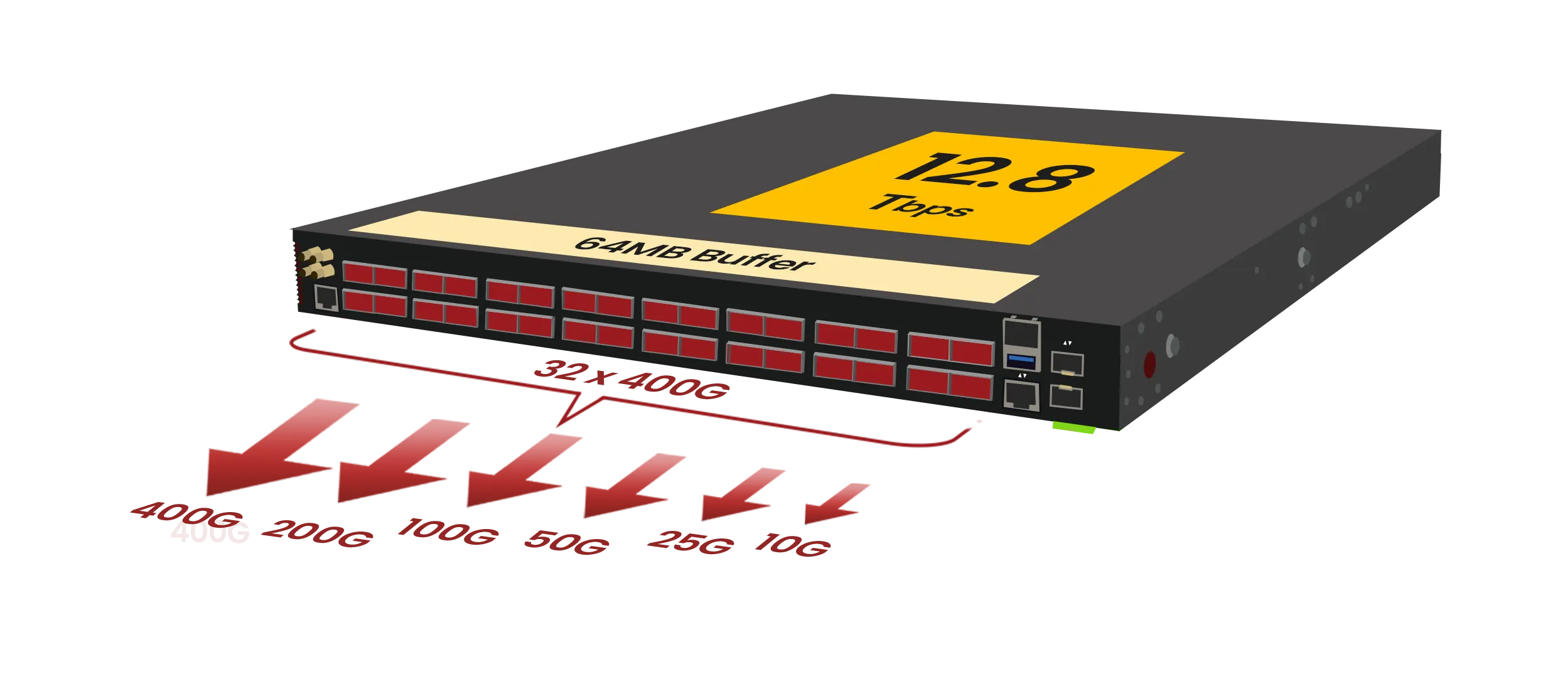

PacketLion NX-PBPL-3XL - Network packet broker
OVERVIEW
The PacketLion NX-PBPL-3XL is a purpose-built network packet broker designed for data center and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a standalone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using NETCONF.
There are no additional license fees per port and the device is compatible with MSA compliant QSFP-DD pluggables / transceivers. Flexible port speeds (port splitting) can be scaled according to network requirements (10G / 25G / 40G / 50G / 100G / 200G) and changed within the interface.
HIGHLIGHTS
- 32x 10G/25G/50G/100G/200G/400G QSFP-DD ports
- 64x 40G possible via fan out cable on QSFP-DD ports
- 128x 10G/25G/50G/100G possible via fan out cable on QSFP-DD ports
- Flexible port mapping (1:1, N:N, N:1, 1:N)
- Aggregation of 10G, 25G, 40G, 50G, 100G, 200G, and 400G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
- Filtering within a tunnel (GTP, L2TP, MPLS, GRE, etc.)
- Aggregation and regeneration of all network traffic
- Support for user-defined filtering rules (UDF)
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Line rate performance without packet loss
- Non-blocking backplane architecture with N+1 redundancy
- Load balancing based on 5-tuple criteria
- Port splitting (simplex mode)
- Port Labeling
- Support for Jumbo Frames
- Digital Diagnostics Monitoring (DDM)
- Radius and TACACS+
- Modular due to QSFP-DD interfaces
- Logging through syslog and SNMP traps
- N+1 redundant, hot-swappable fans
- Hot-swappable, load-sharing and redundant AC/DC power supplies
- Packet slicing
DOCUMENTS

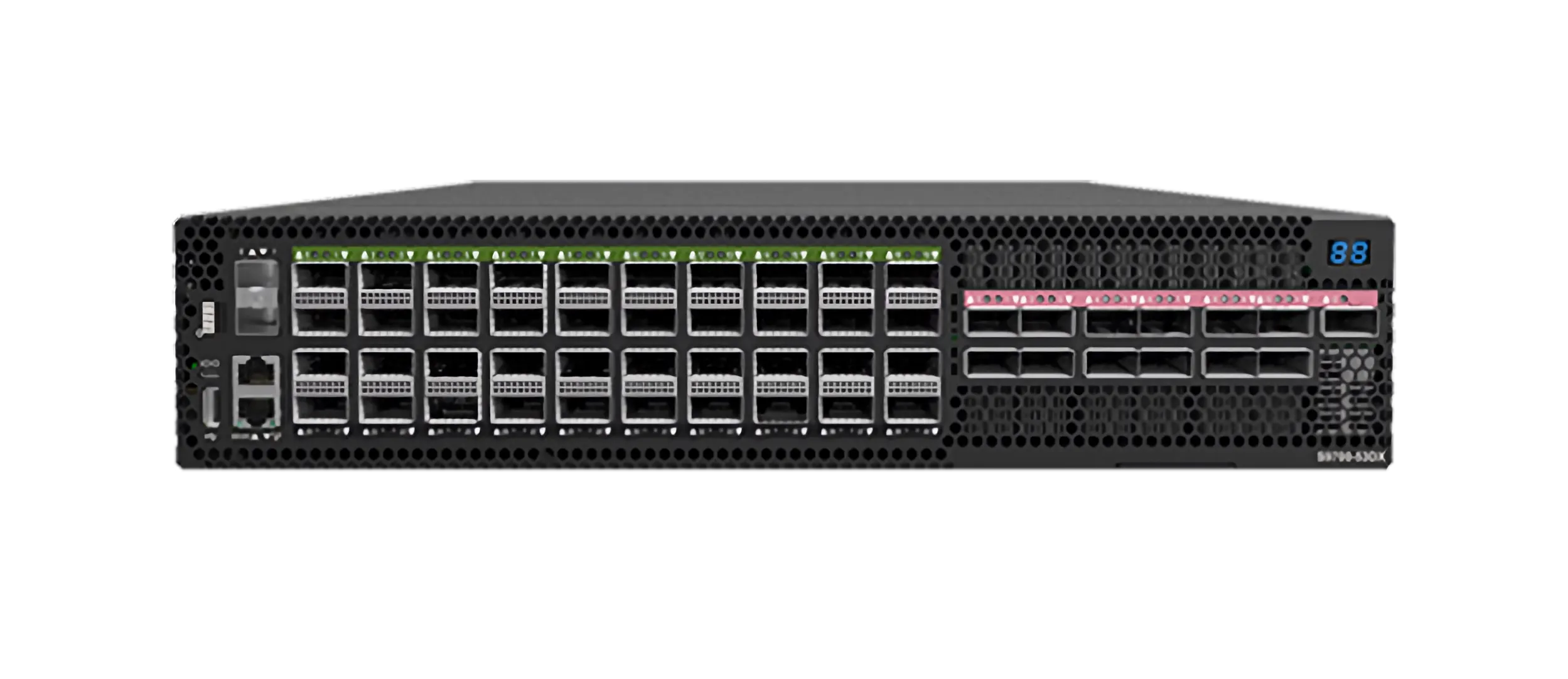

PacketLion NX-PBPL-4L - Network packet broker
OVERVIEW
The PacketLion NX-PBPL-4L is a purpose-built Network Packet Broker designed for use in data centres and network perimeter applications.
The system can be used to optimise the port usage of existing infrastructure or as a standalone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface via NETCONF.
There are no additional licence fees per port and the device is compatible with MSA compliant QSFP28 pluggables / transceivers. Flexible port speeds (port splitting) can be scaled according to network requirements (10G / 25G / 40G) and changed within the interface.
HIGHLIGHTS
- 40x 40G/100G QSFP28 ports
- 80x 10G/25G possible via fan-out cable on the QSFP28 ports
- Flexible port assignment (1:1, N:N, N:1, 1:N)
- Aggregation of 10G, 25G, 40G and 100G network ports
- Support for filter rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
- Filtering within a tunnel (GTP, L2TP, MPLS, GRE, PPPoE, VxLAN, etc.)
- Aggregation and regeneration of all network traffic
- Support for user-defined filter rules (UDF)
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Line rate performance without packet loss
- Blockage-free backplane architecture with N+1 redundancy
- Load balancing based on 5-tuple criteria
- Port Splitting (simplex mode)
- Port Labeling
- Support for Jumbo Frames
- Digital Diagnostics Monitoring (DDM)
- Radius and TACACS+
- Modular thanks to QSFP28 interfaces
- Logging through syslog and SNMP traps
- 3+1 redundant, hot-swappable fans
- Hot-swappable, load-distributing and redundant AC/DC power supply units
- GTP-based load balancing*
- Configure all PacketLion (and PacketTiger) Brokers from a centralised management interface with our PacketDirector
- 13 dedicated QSFP28 100G ports* for stacking additional PacketLions via PacketDirector
DOCUMENTS

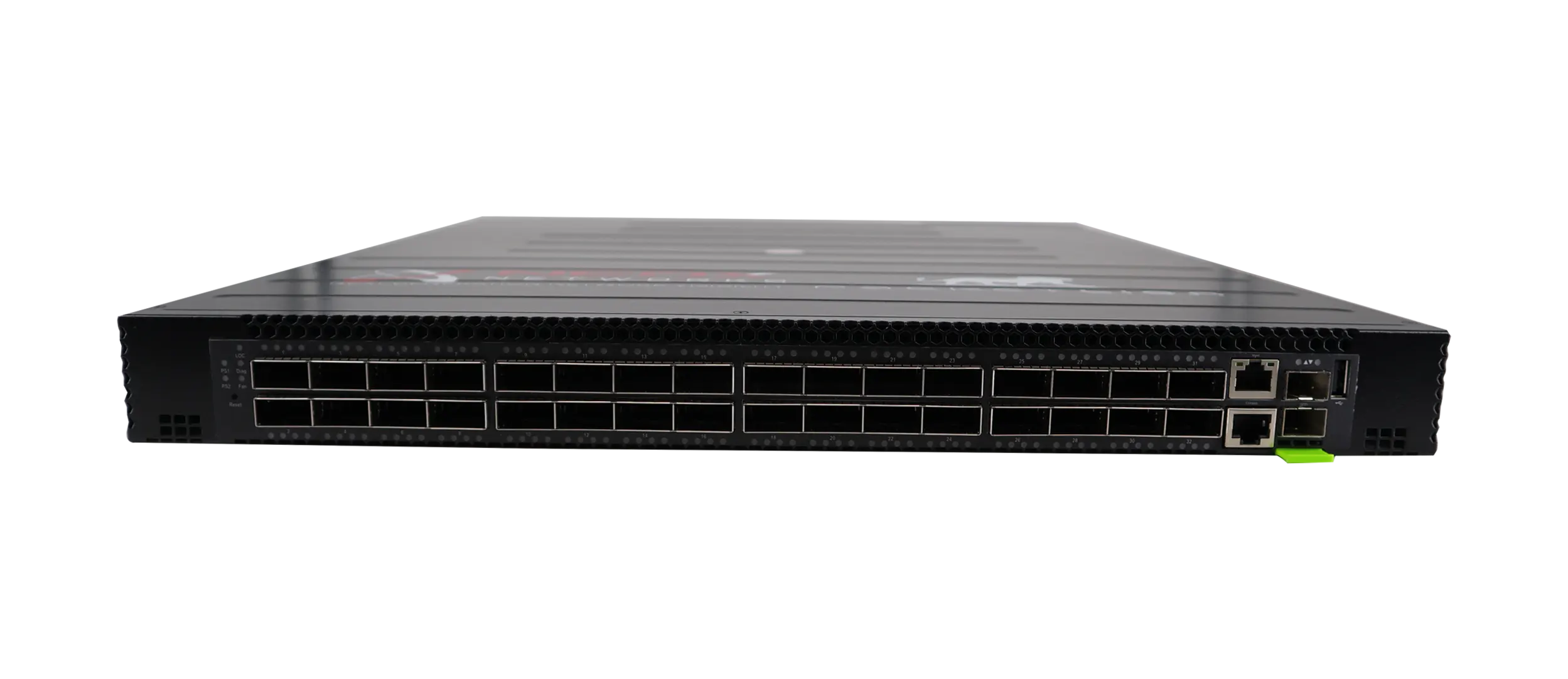

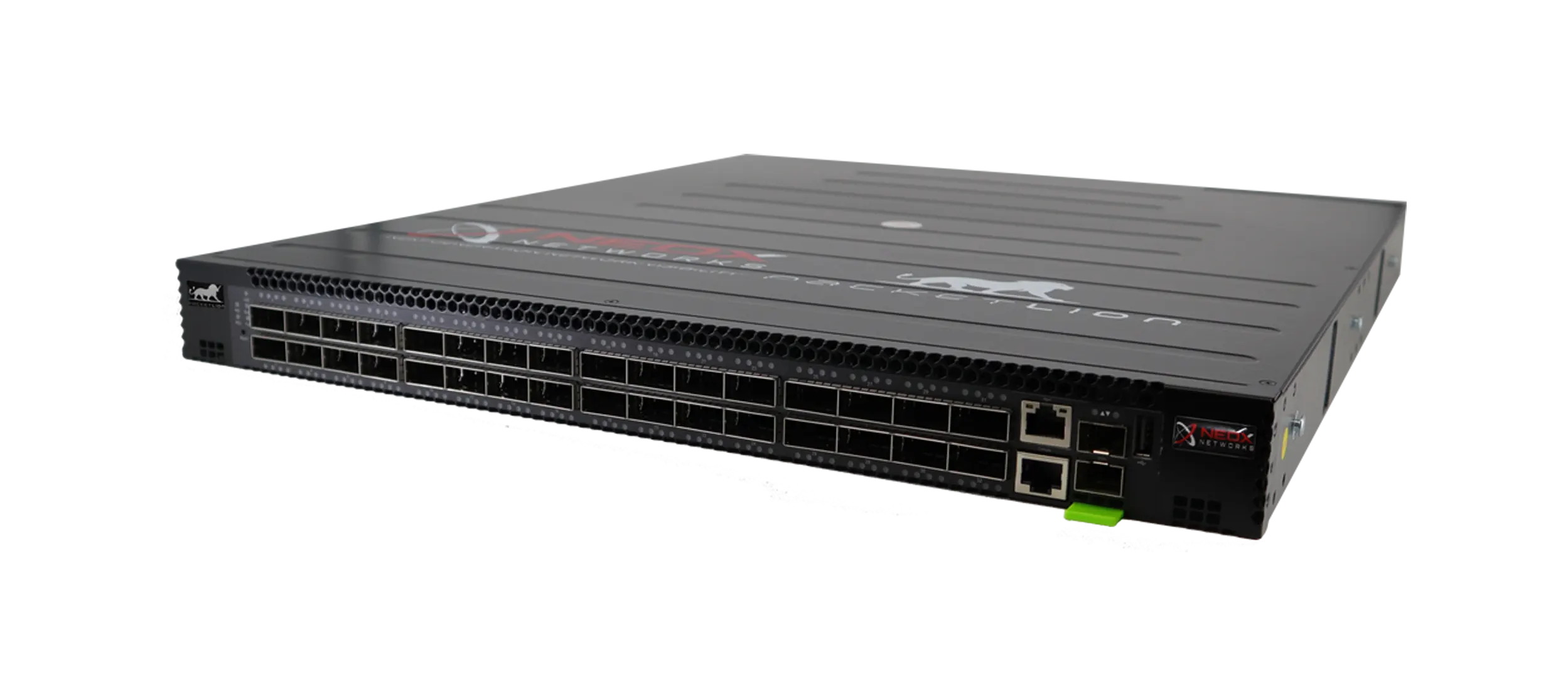

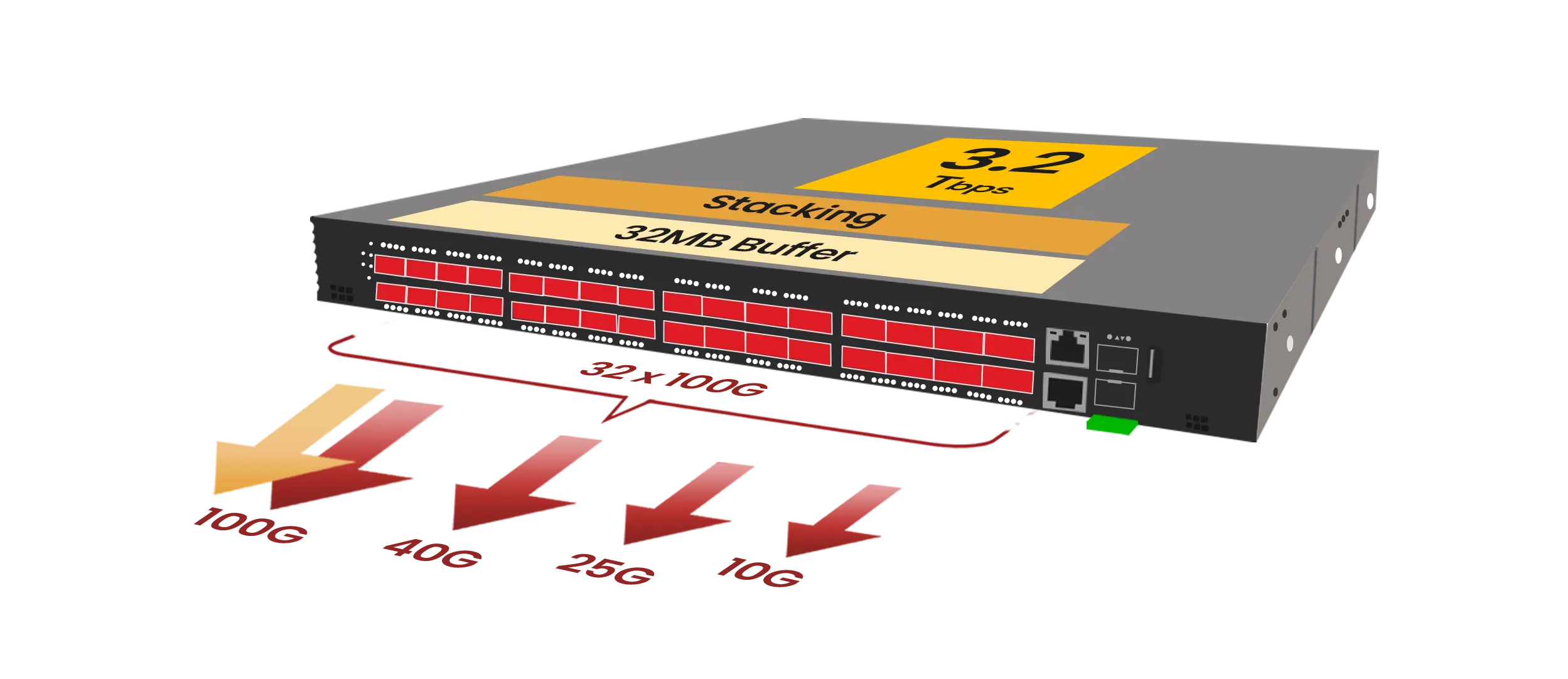

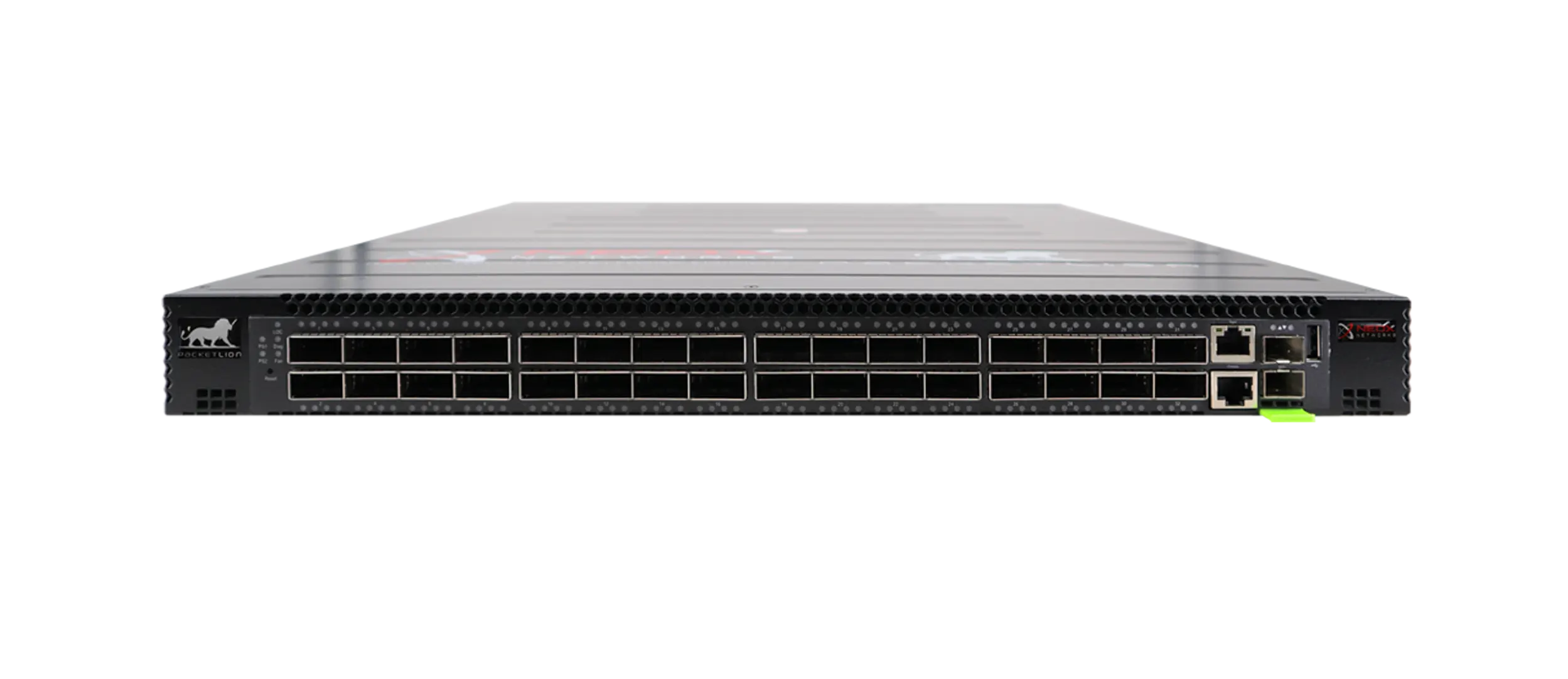

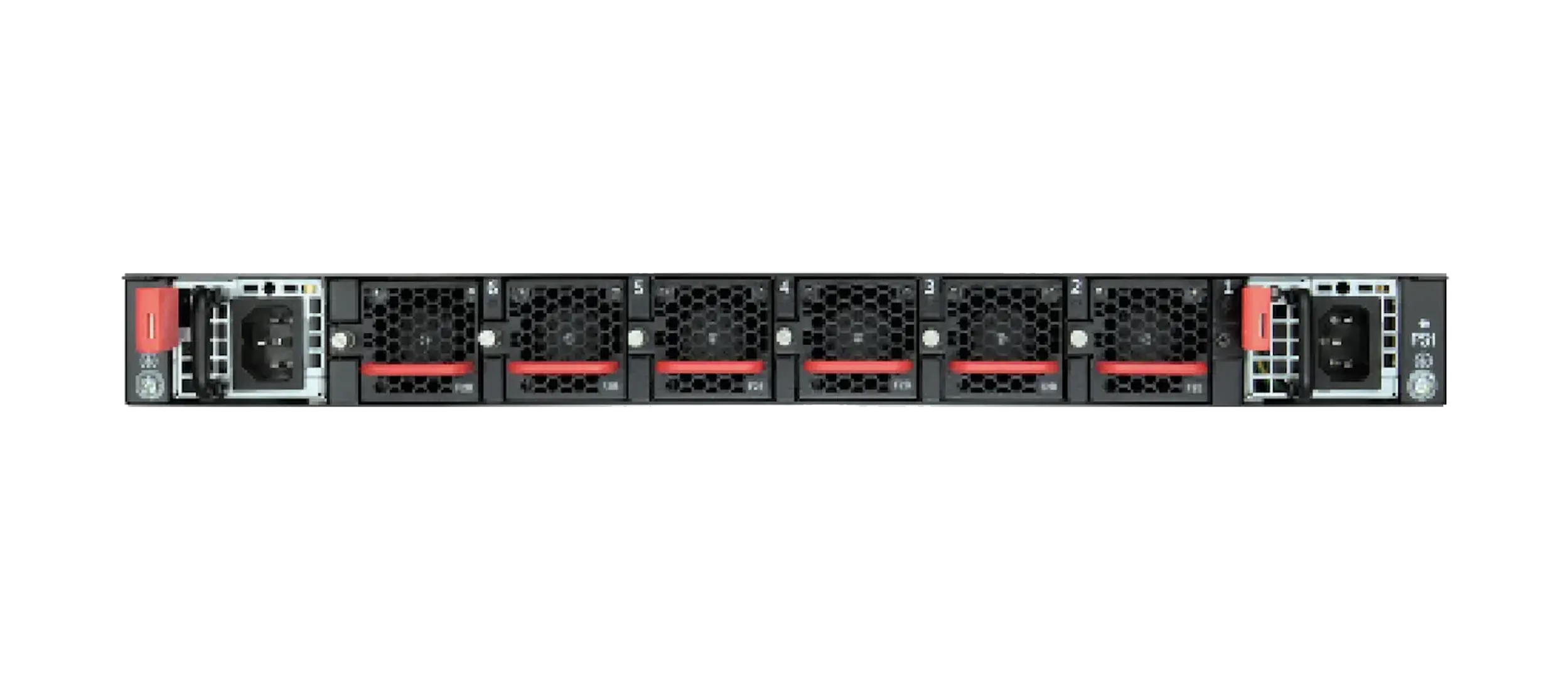

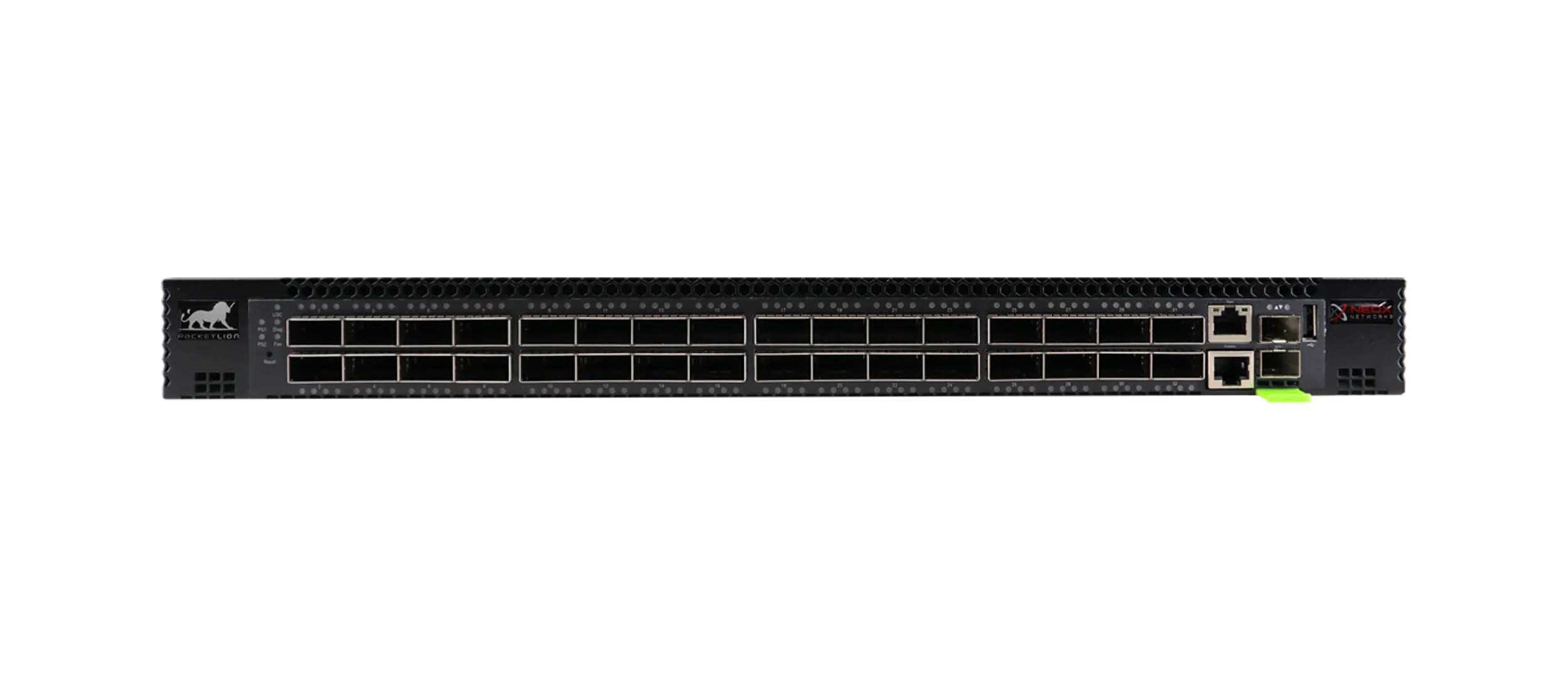

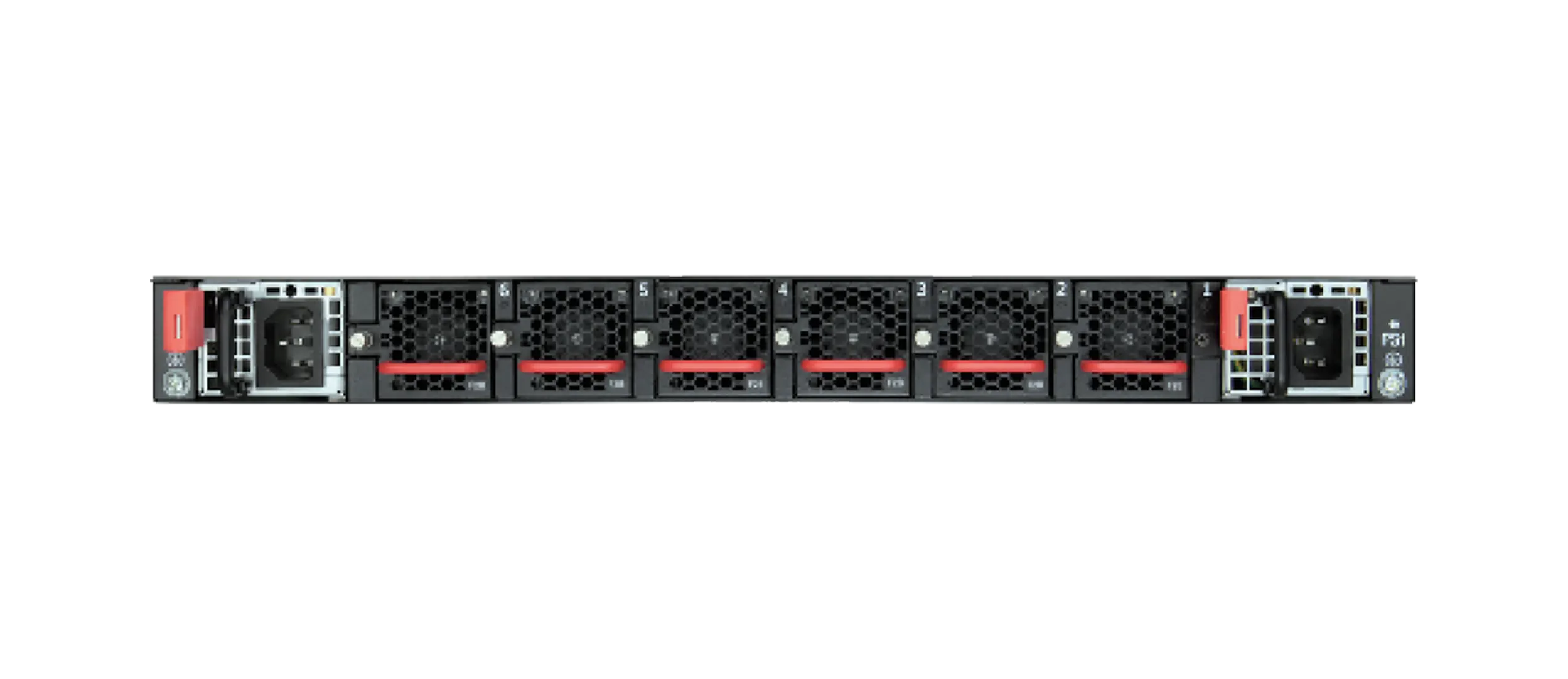

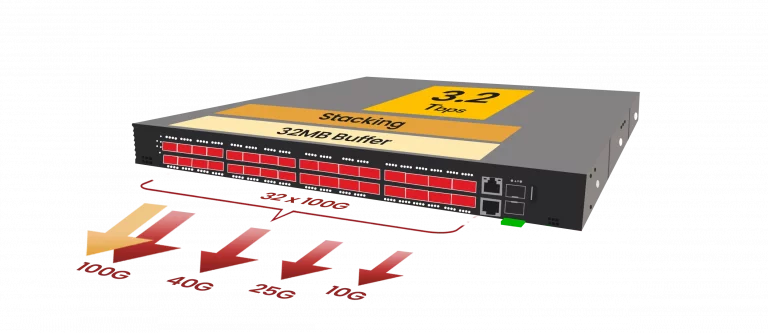

PacketLion NX-PBPL-2L - Network packet broker
OVERVIEW
The PacketLion NX-PBPL-2L is a purpose-built network packet broker designed for data center and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a standalone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using NETCONF.
There are no additional license fees per port and the device is compatible with MSA compliant QSFP28 pluggables / transceivers. Flexible port speeds (port splitting) can be scaled according to network requirements (10G / 25G / 50G) and can be changed within the interface.
HIGHLIGHTS
- 32x 40G/100G QSFP28 ports
- 64x 50G or 128x 1G/10G/25G possible via fan out cable on QSFP28 ports
- Stacking (without additional fees) of multiple Network Packet Broker systems through a single pane of glass and as one logical unit
- Flexible port mapping (1:1, N:N, N:1, 1:N)
- Aggregation of 1G, 10G, 25G, 40G, 50G and 100G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
- Filtering within a tunnel (GTP, L2TP, MPLS, GRE, etc.)
- Aggregation and regeneration of all network traffic
- Support for user-defined filtering rules (UDF)
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Line rate performance without packet loss
- Non-blocking backplane architecture with N+1 redundancy
- Support for L2GRE tunneling protocol
- Load balancing based on 5-tuple criteria
- Port splitting (simplex mode)
- Port Labeling
- Timestamping
- Support for Jumbo Frames
- Digital Diagnostics Monitoring (DDM)
- Radius and TACACS+
- Modular due to QSFP28 interfaces
- Logging through syslog and SNMP traps
- N+1 redundant, hot-swappable fans
- Hot-swappable, load-sharing and redundant AC/DC power supplies
- MPLS Stripping
- Packet slicing
DOCUMENTS

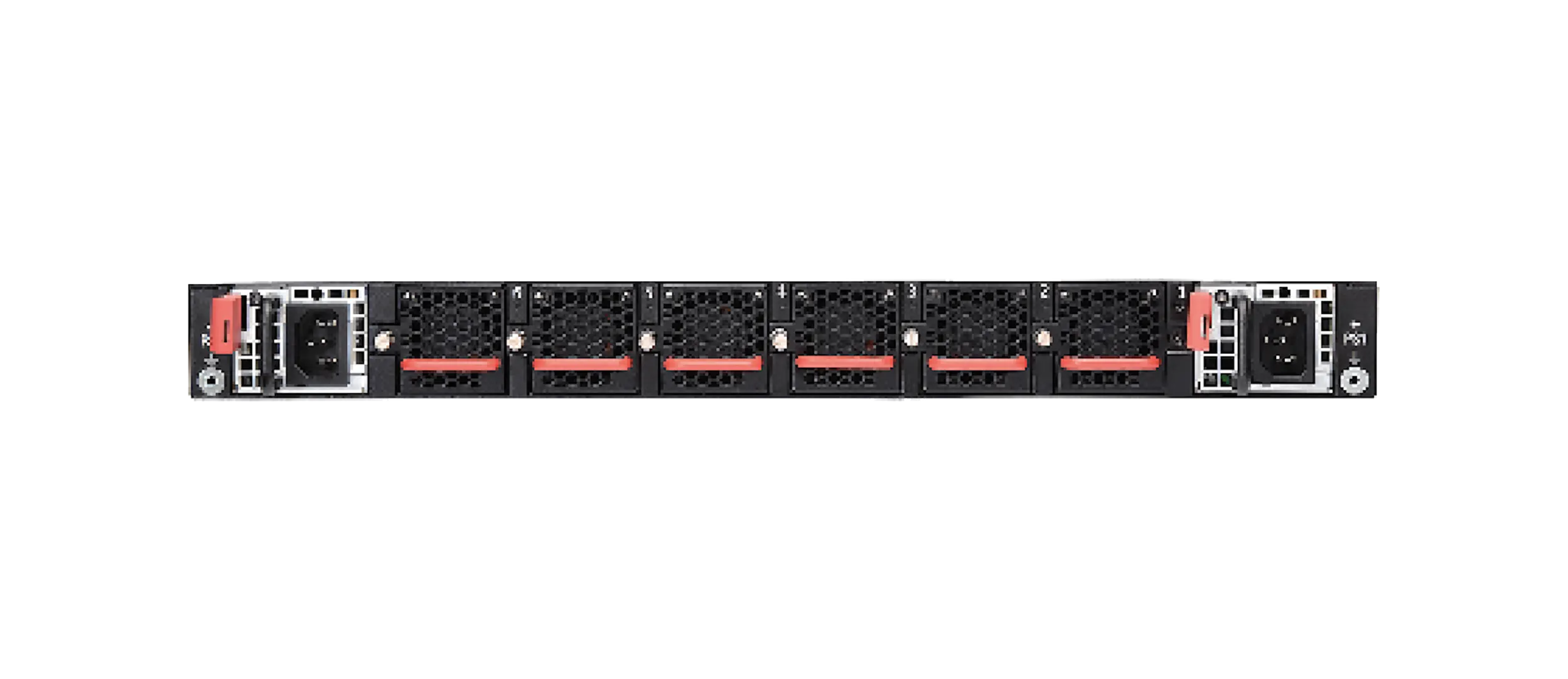

PacketLion NX-PBPL-2M - Network packet broker
OVERVIEW
The PacketLion NX-PBPL-2M is a purpose-built network packet broker designed for data center and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a stand-alone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using NETCONF.
There are no additional license fees per port and the device is compatible with MSA compliant QSFP28 pluggables / transceivers. Flexible port speeds (port splitting) can be scaled according to network requirements (10G / 25G / 50G) and can be changed within the interface.
HIGHLIGHTS
- 32x 40G/100G QSFP28 ports
- 64x 50G or 128x 1G/10G/25G possible via fan out cable on QSFP28 ports
- Flexible port mapping (1:1, N:N, N:1, 1:N)
- Aggregation of 1G, 10G, 25G, 40G and 100G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
- Filtering within a tunnel (GTP, L2TP, MPLS, GRE, etc.)
- Aggregation and regeneration of all network traffic
- Support for user-defined filtering rules (UDF)
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Line rate performance without packet loss
- Non-blocking backplane architecture with N+1 redundancy
- Support for L3GRE tunneling protocol
- Load balancing based on 5-tuple criteria
- Port splitting (simplex mode)
- Port Labeling
- Support for Jumbo Frames
- Digital Diagnostics Monitoring (DDM)
- Radius and TACACS+
- Modular due to QSFP28 interfaces
- Logging through syslog and SNMP traps
- N+1 redundant, hot-swappable fans
- Hot-swappable, load-sharing and redundant AC/DC power supplies
DOCUMENTS

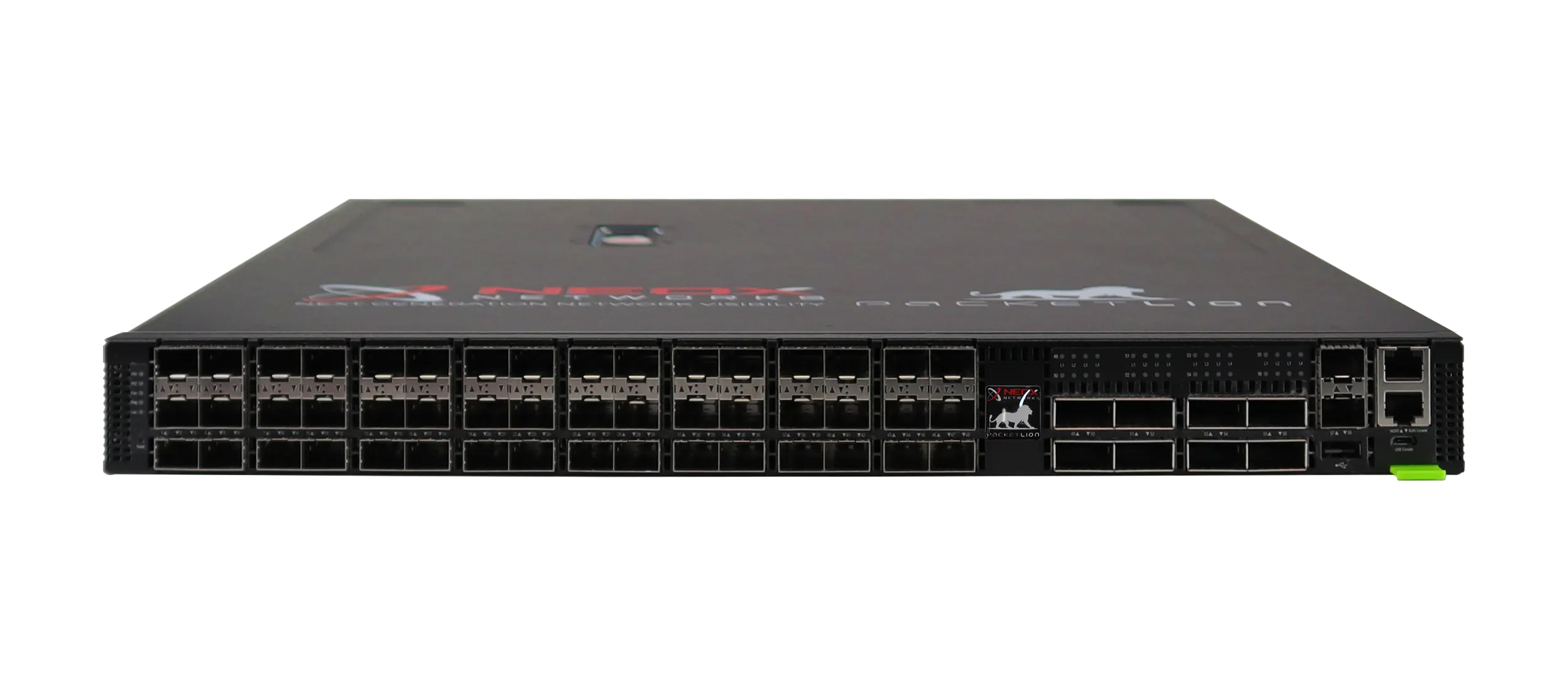

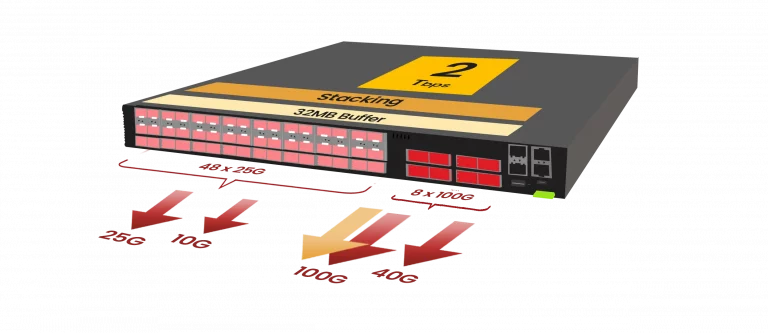

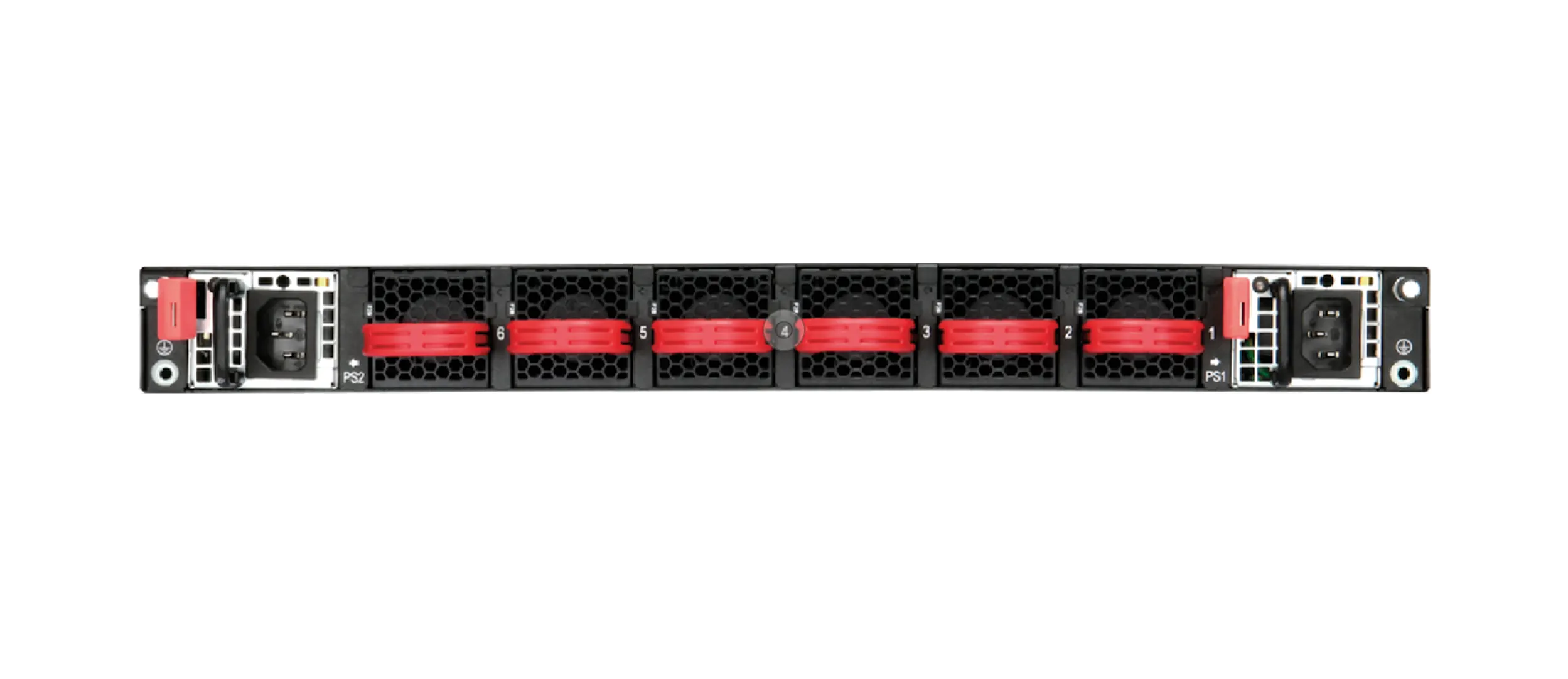

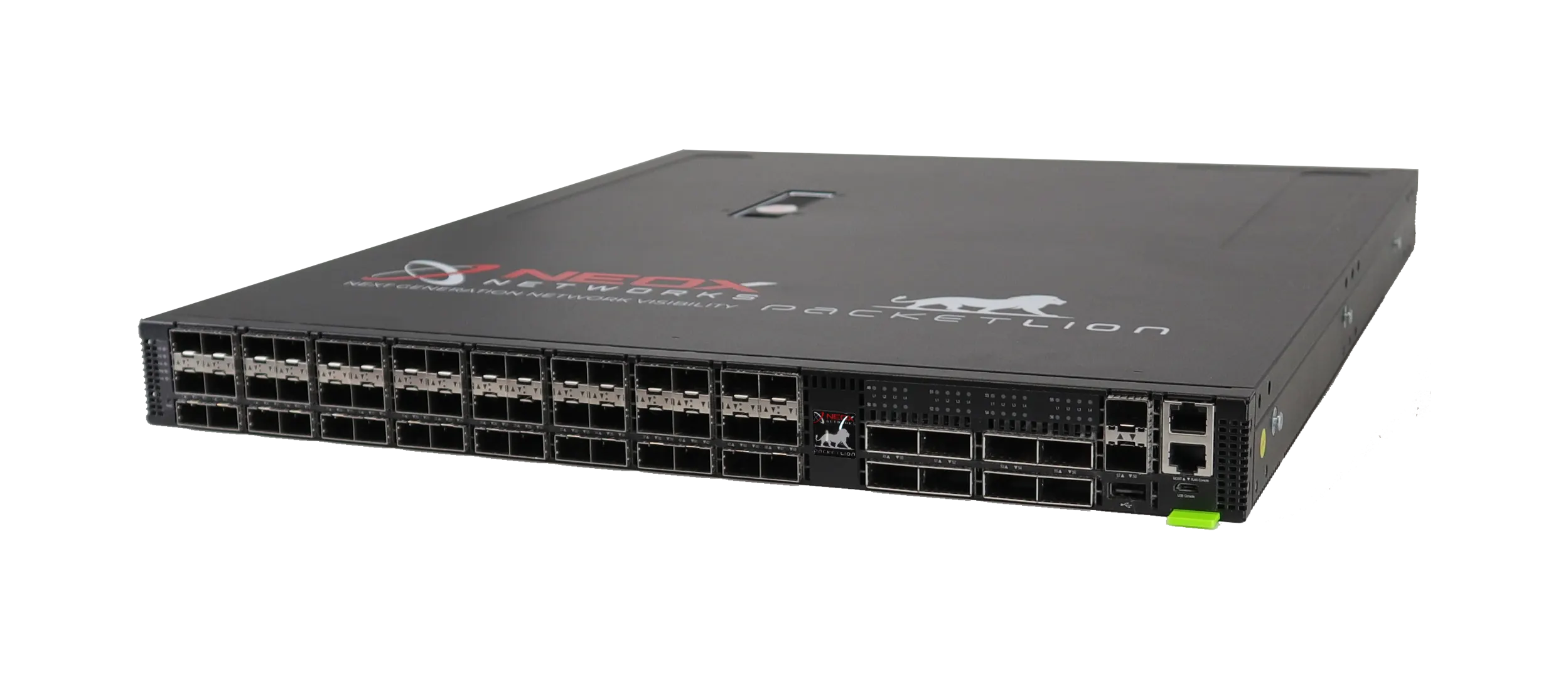

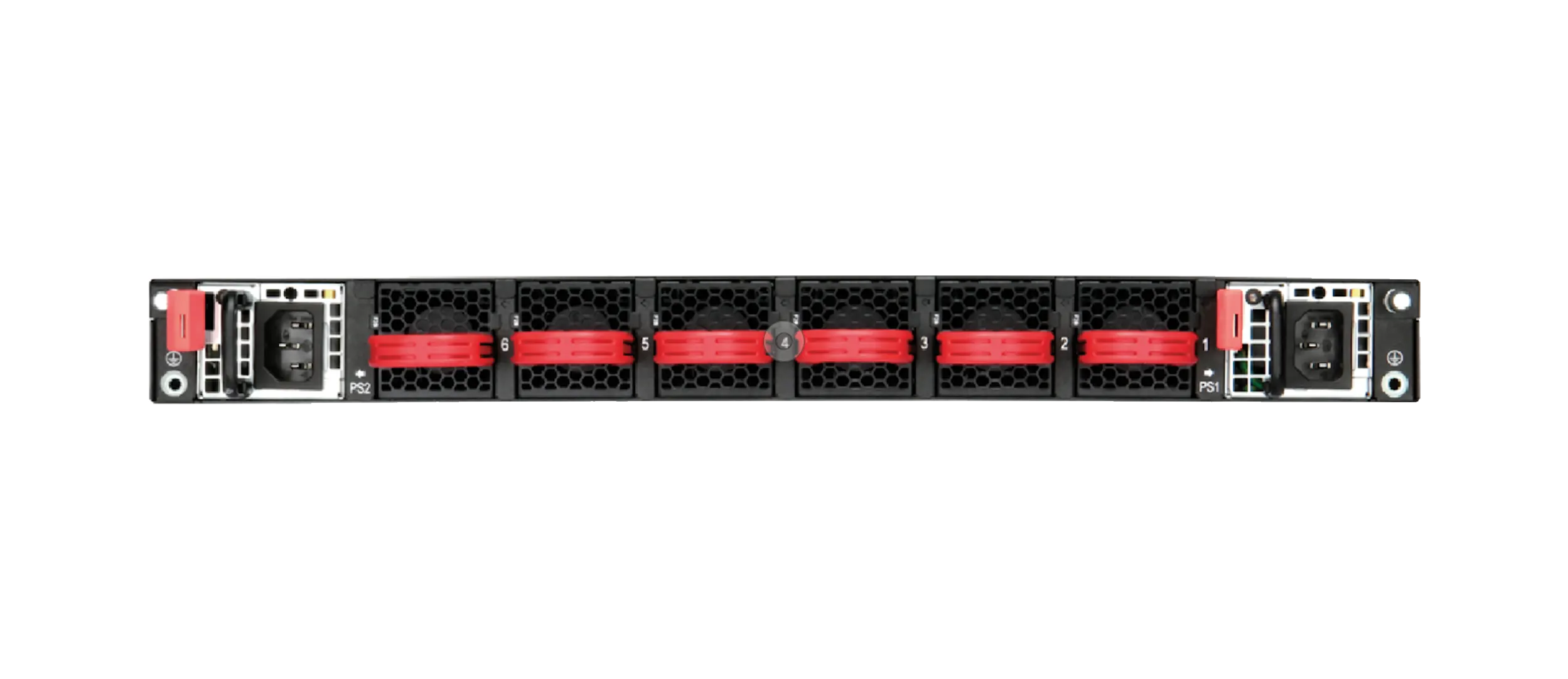

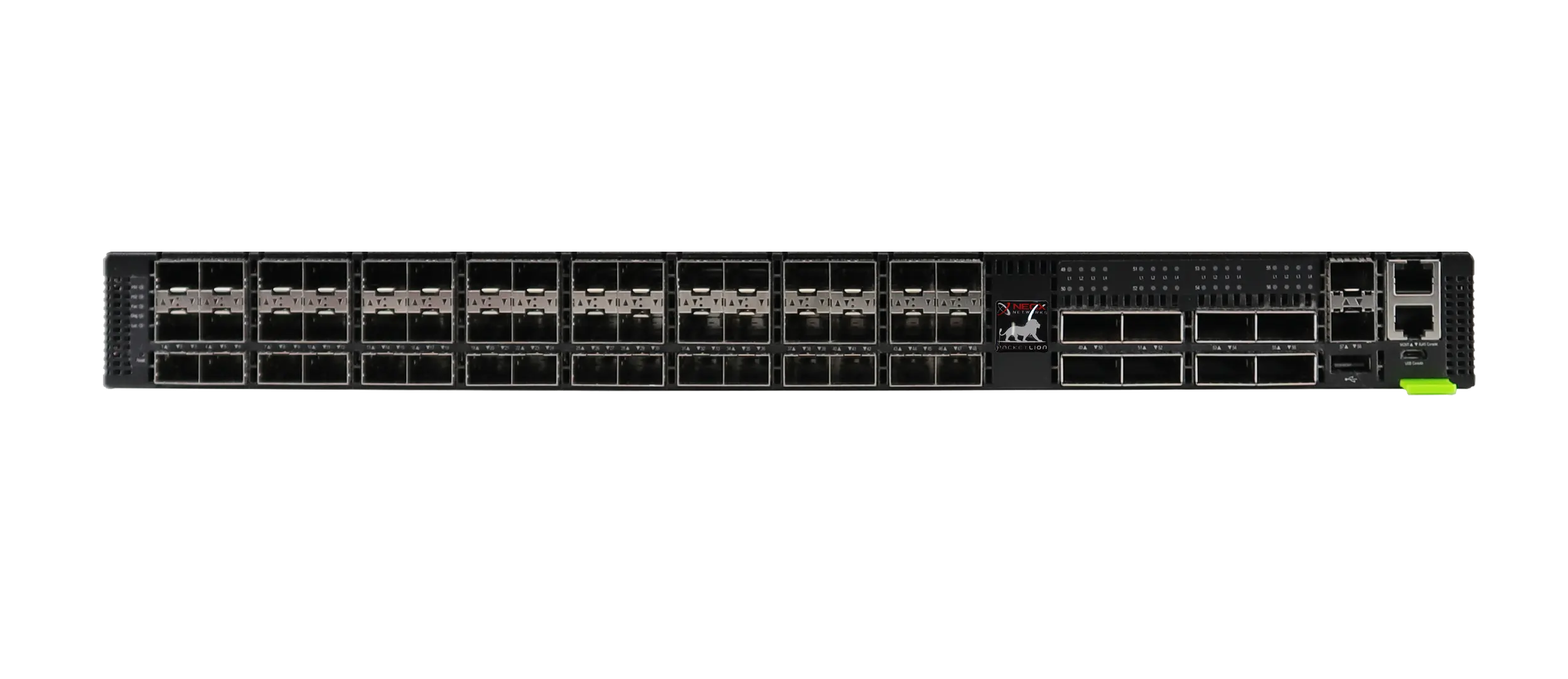

PacketLion NX-PBPL-1L - Network packet broker
OVERVIEW
The PacketLion NX-PBPL-1L is a purpose-built network packet broker designed for use in top-of-rack applications and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a stand-alone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using NETCONF.
There are no additional license fees per port and the device is compatible with MSA compliant SFP28 or QSFP28 pluggables / transceivers. Flexible port speeds (port splitting) for the 8 additional QSFP28 ports can be scaled according to network requirements (10G / 25G / 50G) and can be changed within the interface.
HIGHLIGHTS
- 48x 1G/10G/25G SFP28 ports and 8x 1G/10G/25G/40G/100G QSFP28 ports
- 16x 50G or 32x 10G/25G possible via fan out cable on QSFP28 ports
- Flexible port mapping (1:1, N:N, N:1, 1:N)
- Aggregation of 1G, 10G, 25G, 40G, 50G and 100G network ports
- Stacking (without additional fees) of multiple Network Packet Broker systems through a single pane of glass and as one logical unit
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
- Filtering within a tunnel (GTP, L2TP, MPLS, GRE, etc.)
- Aggregation and regeneration of all network traffic
- Support for user-defined filtering rules (UDF)
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Line rate performance without packet loss
- Non-blocking backplane architecture with N+1 redundancy
- Support for L2GRE tunneling protocol
- Load balancing based on 5-tuple criteria
- Port splitting (simplex mode)
- Port Labeling
- Timestamping
- Support for Jumbo Frames
- Digital Diagnostics Monitoring (DDM)
- Radius and TACACS+
- Modular due to SFP28/QSFP28 interfaces
- Logging through syslog and SNMP traps
- N+1 redundant, hot-swappable fans
- Hot-swappable, load-sharing and redundant AC/DC power supplies
- MPLS Stripping
- Packet slicing
DOCUMENTS

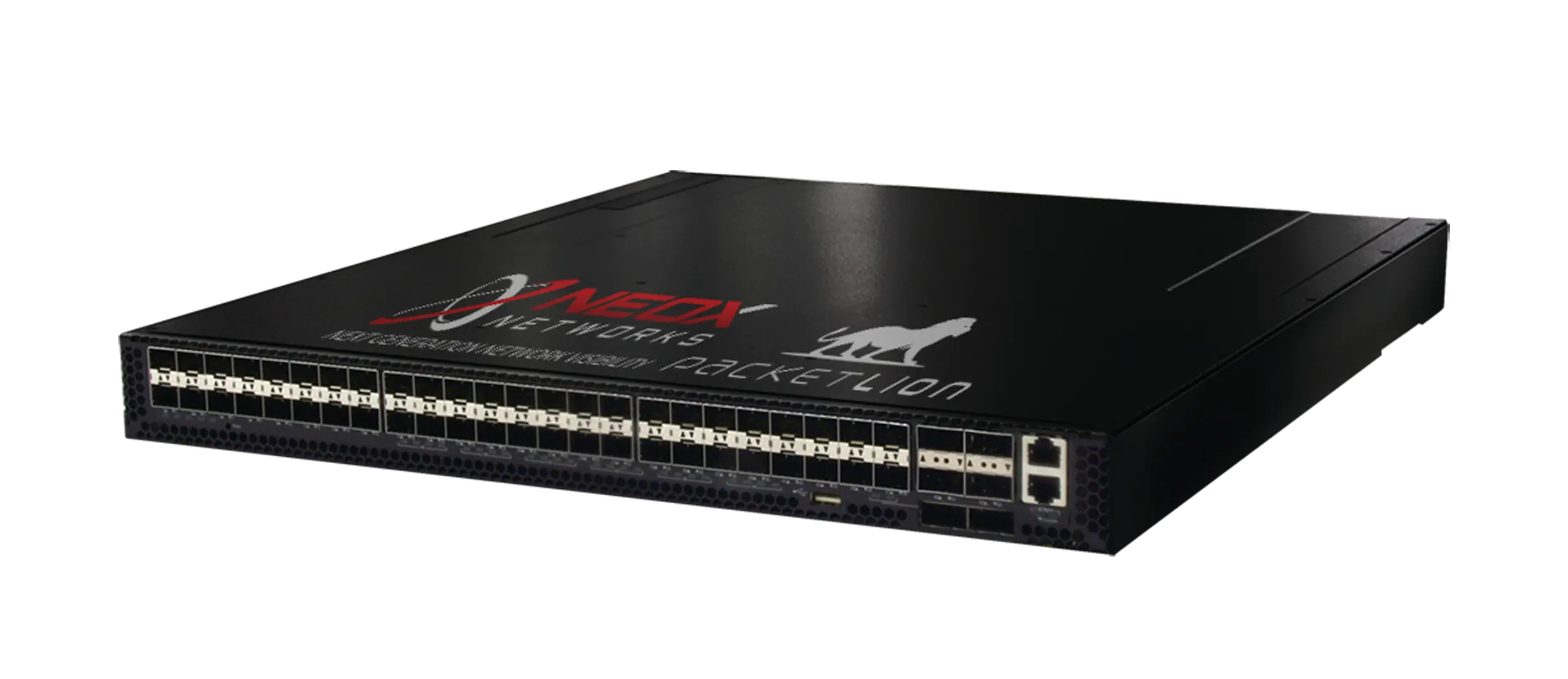

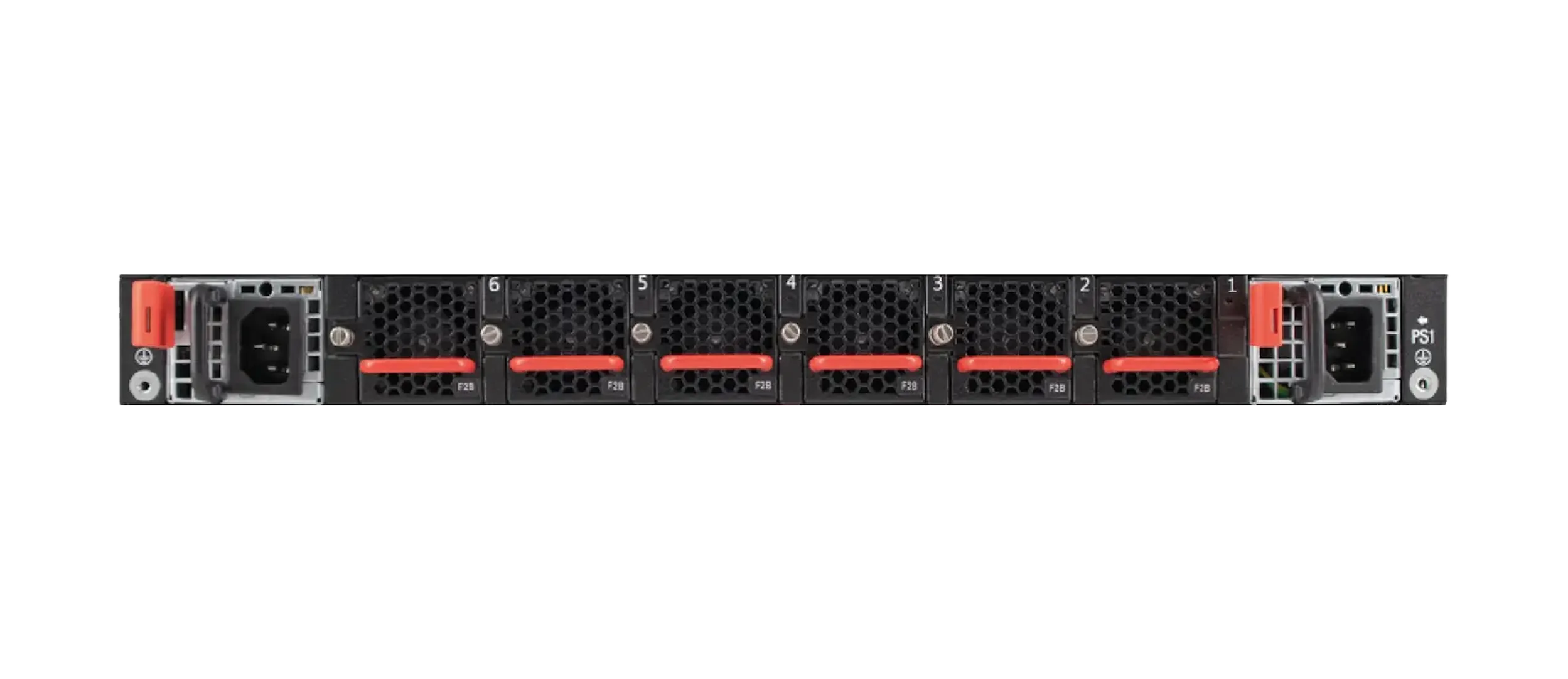

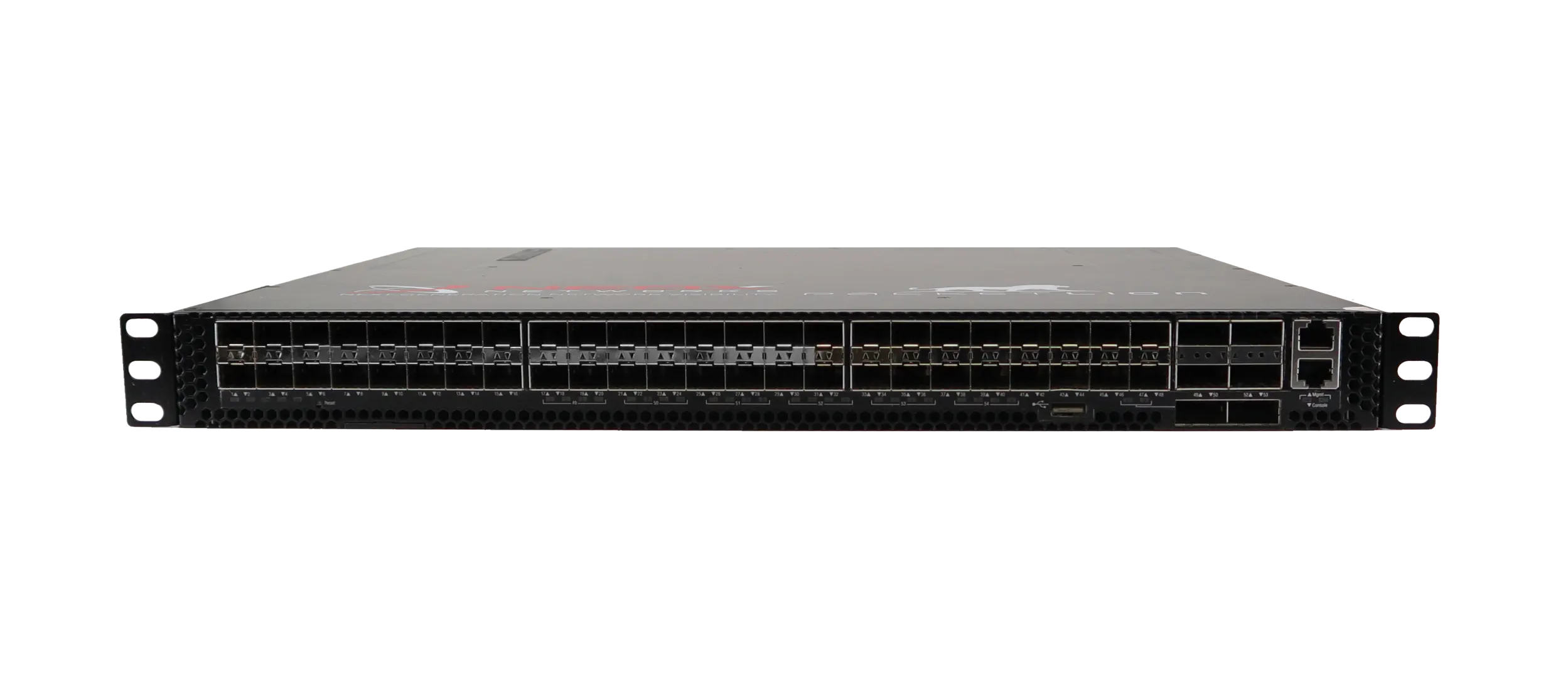

PacketLion NX-PBPL-1M - Network packet broker
OVERVIEW
The PacketLion NX-PBPL-1M is a purpose-built network packet broker designed for use in top-of-rack applications and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a stand-alone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using NETCONF.
There are no additional license fees per port and the device is compatible with MSA compliant SFP+ or QSFP28 pluggables / transceivers. Flexible port speeds (port splitting) for the 6 additional QSFP28 ports can be scaled according to network requirements (10G / 25G / 50G) and can be changed within the interface.
HIGHLIGHTS
- 48x 1G/2.5G/10G SFP+ ports and 6x 1G/10G/40G/100G QSFP28 ports
- 12x 50G or 24x 10G/25G possible via fan out cable on QSFP28 ports
- Flexible port mapping (1:1, N:N, N:1, 1:N)
- Aggregation of 1G, 2.5G, 10G, 25G, 40G, 50G, and 100G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
- Filtering within a tunnel (GTP, L2TP, MPLS, GRE, etc.)
- Aggregation and regeneration of all network traffic
- Support for user-defined filtering rules (UDF)
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Line rate performance without packet loss
- Non-blocking backplane architecture with N+1 redundancy
- Load balancing based on 5-tuple criteria
- Port Splitting (simplex mode)
- Port Labeling
- Support for Jumbo Frames
- Digital Diagnostics Monitoring (DDM)
- Radius and TACACS+
- Modular due to SFP+/QSFP28 interfaces
- Logging through syslog and SNMP traps
- N+1 redundant, hot-swappable fans
- Hot-swappable, load-sharing and redundant AC/DC power supplies
- MPLS Stripping
- Packet Slicing
DOCUMENTS
PacketLion NX-PBPL-1S - Network packet broker
OVERVIEW
The PacketLion NX-PBPL-1S is a purpose-built network packet broker designed for use in top-of-rack applications and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a stand-alone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using NETCONF.
There are no additional license fees per port and the device is compatible with MSA compliant SFP+ or QSFP+ pluggables / transceivers. Flexible port speeds (port splitting) for the 6 additional QSFP+ ports can be scaled according to network requirements (10G) and can be changed within the interface.
HIGHLIGHTS
- 48x 1G/2.5G/10G SFP+ ports and 6x 40G QSFP+ ports
- 24x 1G/2.5G/10G possible via fan out cable on QSFP+ ports
- Flexible port mapping (1:1, N:N, N:1, 1:N)
- Aggregation of 1G, 2.5G, 10G, and 40G network ports
- Stacking (without additional fees) of multiple Network Packet Broker systems through a single pane of glass and as one logical unit
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS)
- Filtering within a tunnel (GTP, L2TP, MPLS, GRE, etc.)
- Aggregation and regeneration of all network traffic
- Support for user-defined filtering rules (UDF)
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Line rate performance without packet loss
- Non-blocking backplane architecture with N+1 redundancy
- Support for L3GRE tunneling protocol
- Load balancing based on 5-tuple criteria
- Port splitting (simplex mode)
- Port Labeling
- Support for Jumbo Frames
- Digital Diagnostics Monitoring (DDM)
- Radius and TACACS+
- Modular due to SFP+/QSFP+ interfaces
- Logging through syslog and SNMP traps
- N+1 redundant, hot-swappable fans
- Hot-swappable, load-sharing and redundant AC/DC power supplies
DOCUMENTS

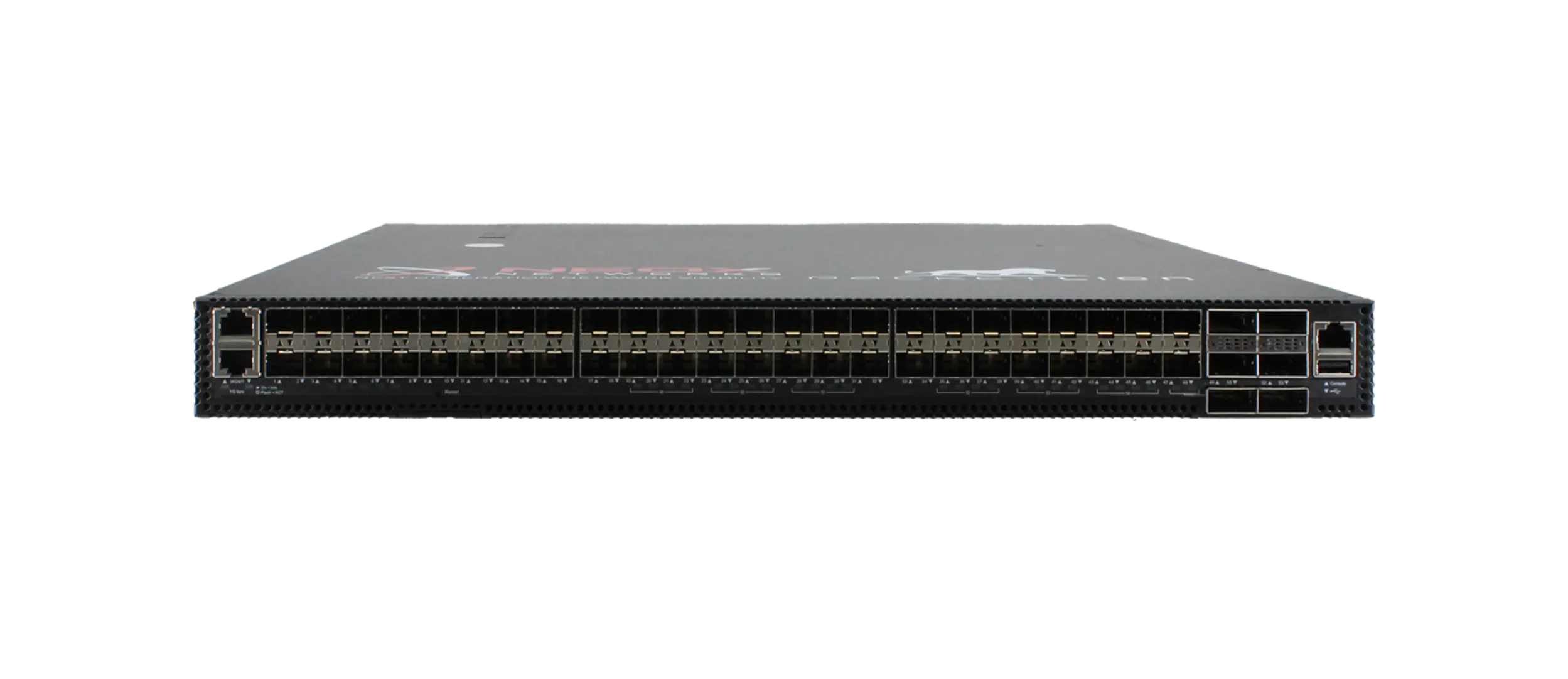

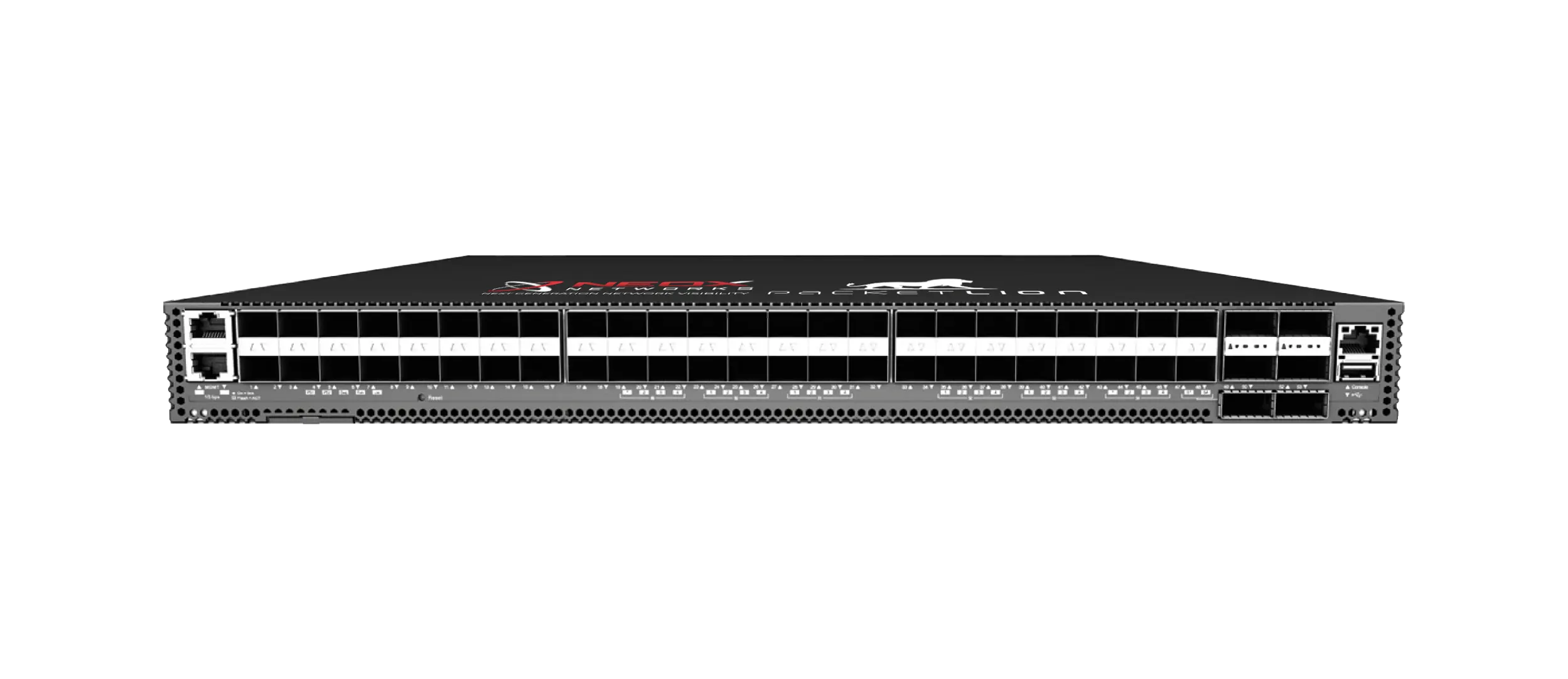

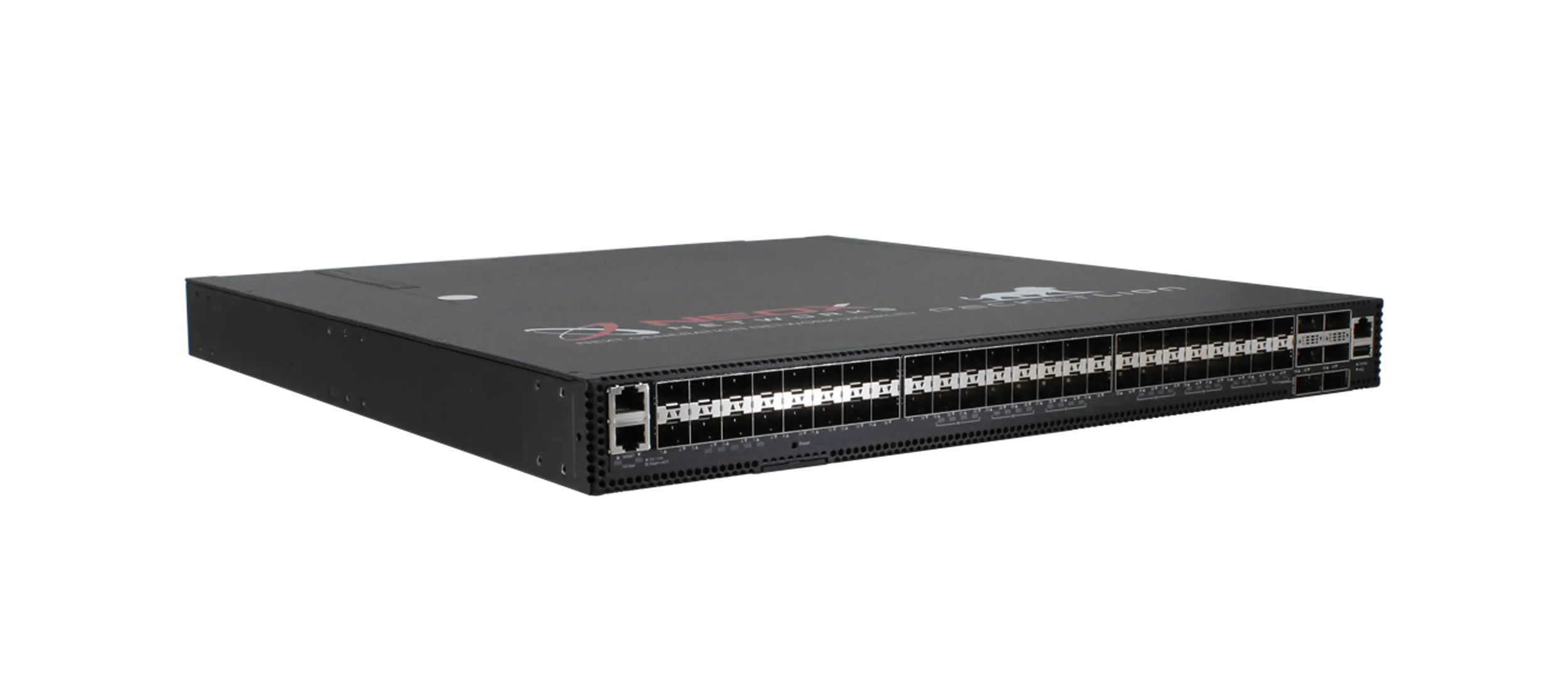

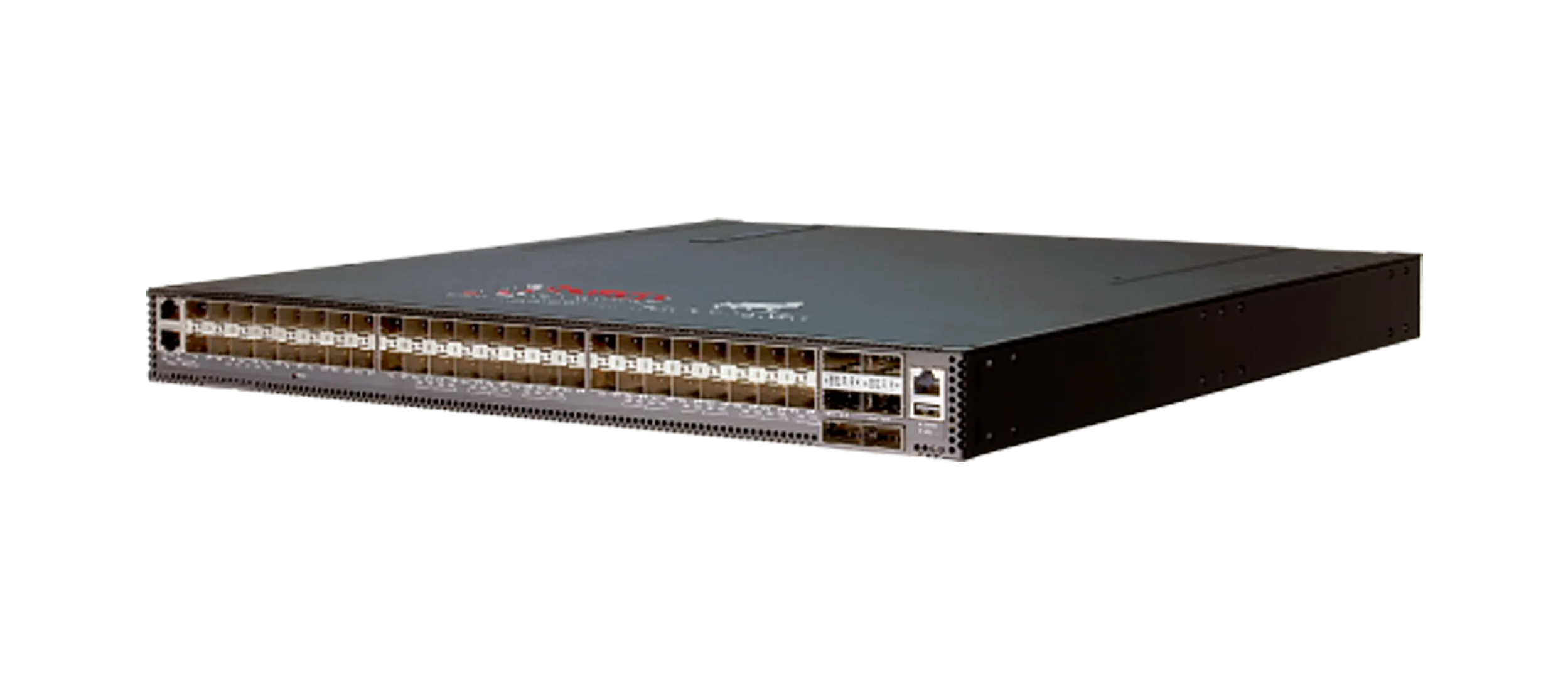

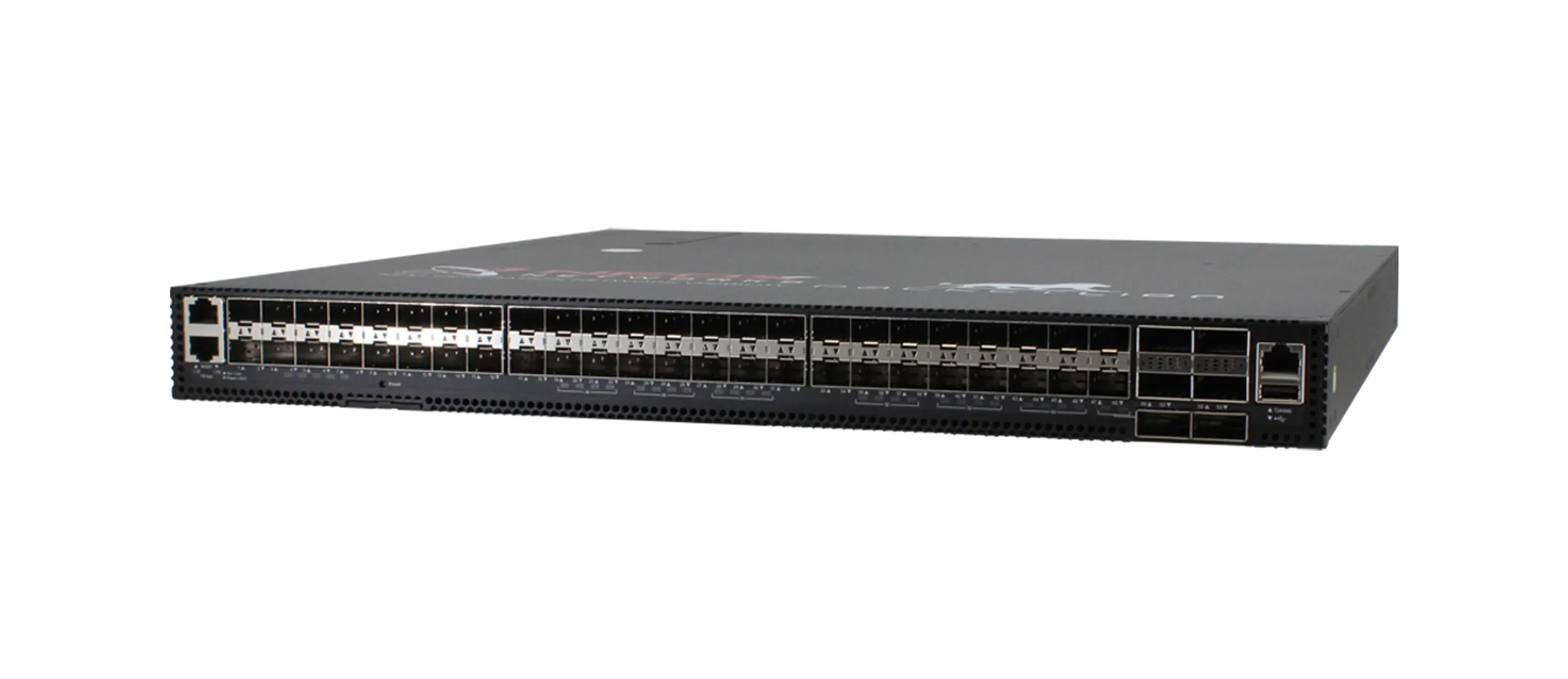

PacketLion NX-PBPL-1S2 - Network packet broker
OVERVIEW
The PacketLion NX-PBPL-1S2 is a purpose-built network packet broker designed for use in top-of-rack applications and network perimeter use. The system can be used to optimize port utilization of existing infrastructure, or as a stand-alone device in L2-L4 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketLions offer a full API interface using NETCONF.
In the world of the Internet of Things (IoT), Internet of Medical Things (IoMT) and Operational Technology (OT), managing and securing networks with numerous low data rate devices presents a unique challenge where the NX-PBPL-1S2 can provide an essential addition to existing monitoring tools. The PacketLion NX-PBPL-1S2, based on the advanced Trident 3 switch, offers a high-density form factor and robust functionality. NX-PBPL-1S2 supports a wide range of connection rates, from 10/100/1000BASE-T copper (via backward compatible SFP transceivers) to 100G fibre.
There are no additional license fees per port and the device is compatible with MSA compliant SFP+ or SFP28 pluggables / transceivers.
HIGHLIGHTS
- 48x 1G/10G SFP+ ports and 6x 40G/100G QSFP28 ports
- Aggregation, L2-L4 including 5-tuple Filtering
- TRIDENT 3 platform with 1.08Tbps capacity and 32MB Buffer Size
- Full range of rates supported in a 1U platform: 10/100/1000Mbps, 10G, 40G and 100G
- Non-blocking backplane architecture with N+1 redundancy
- Line rate performance without packet loss
- Stacking of multiple NEOXPacketLion Network Packet Brokers
- Service/Tool chain for Inline tools use cases
- Support for L2GRE and VxLAN tunnelling protocol
- Load distribution based on 5-tuple criteria
- Port Splitting (Simplex Mode), Port Labeling
- Nanosecond Timestamping (per port / per filter rule)
- Support for Jumbo Frames
- MAC Replace
- MPLS Stripping (up to 7 labels)
- Packet Slicing
- Management Ports: 1x RJ-45 serial console, 1x RJ45 100/1000Base-T
- Unified management including CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API
- Radius and TACACS+

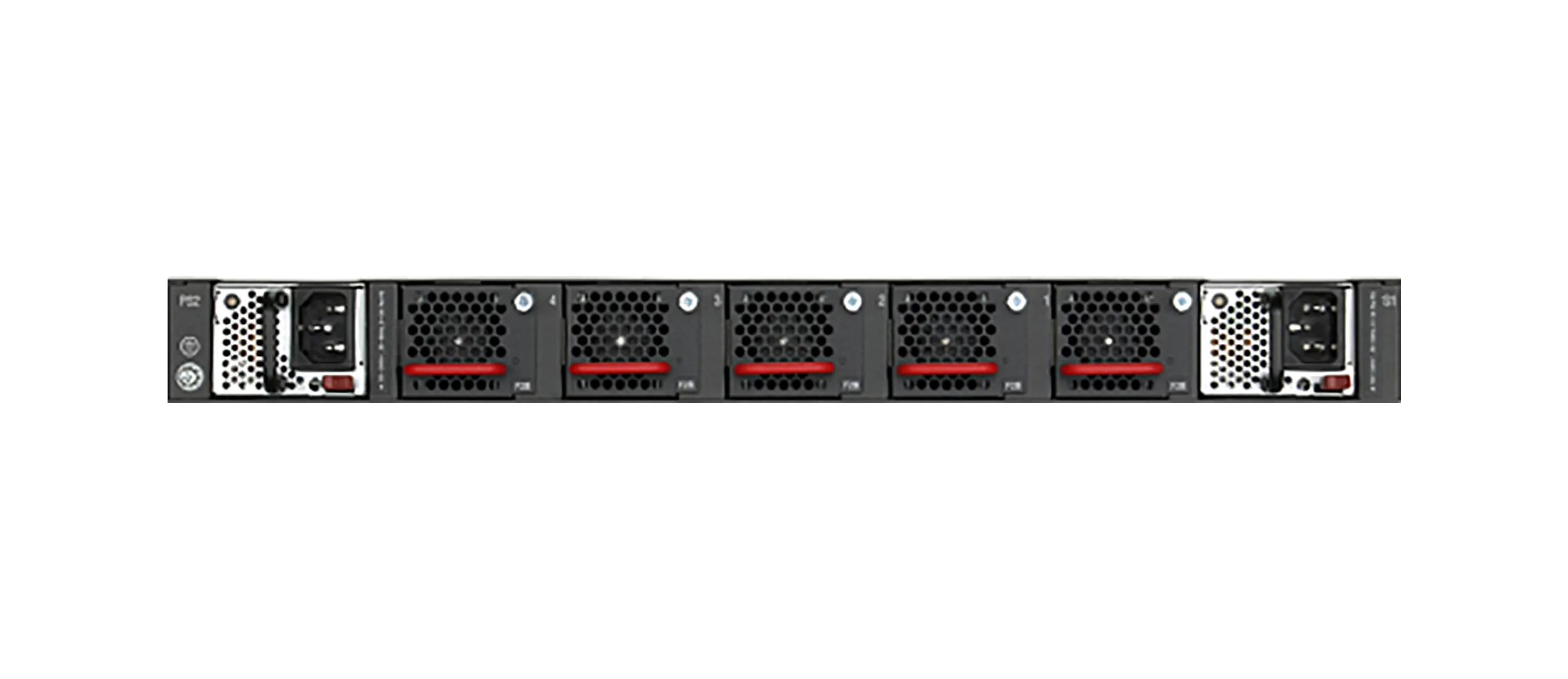

- 4+1 redundant, hot-swappable fans
DOCUMENTS

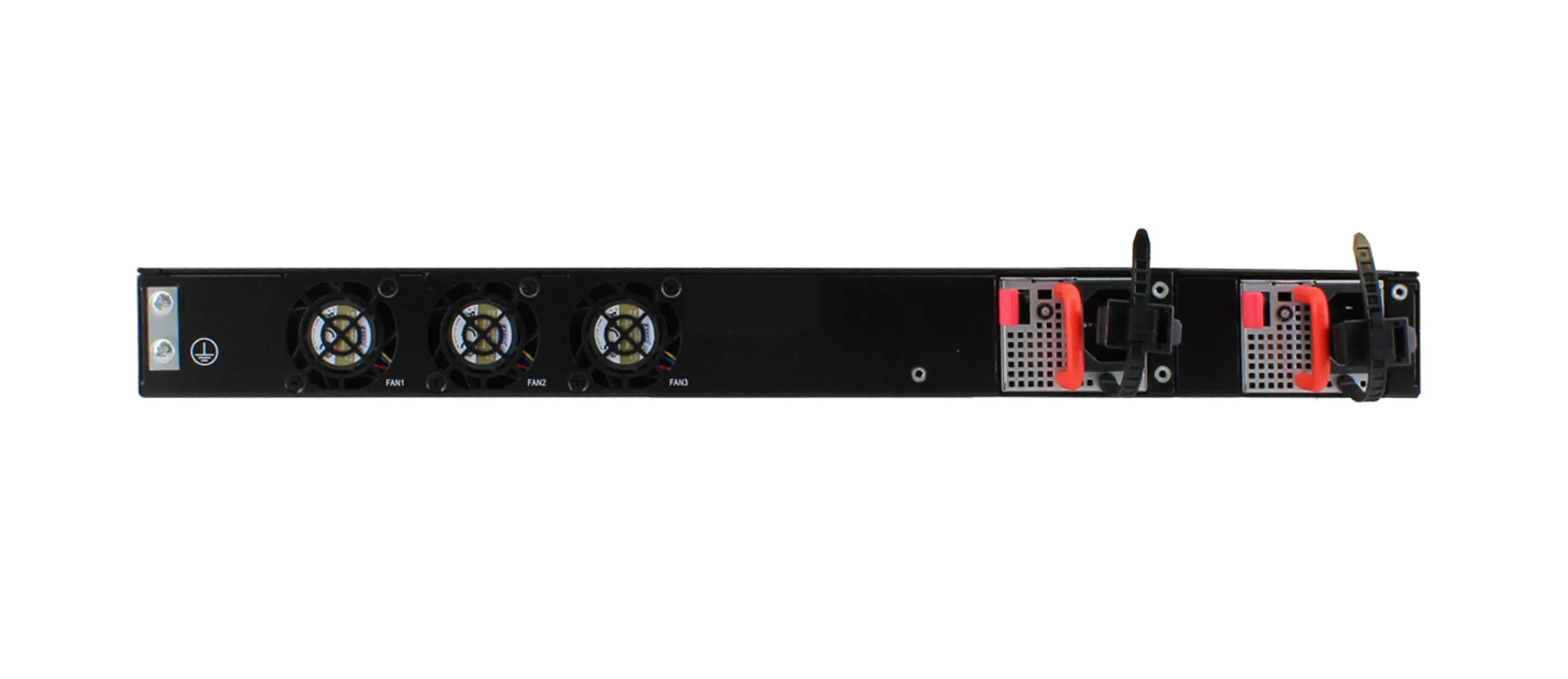

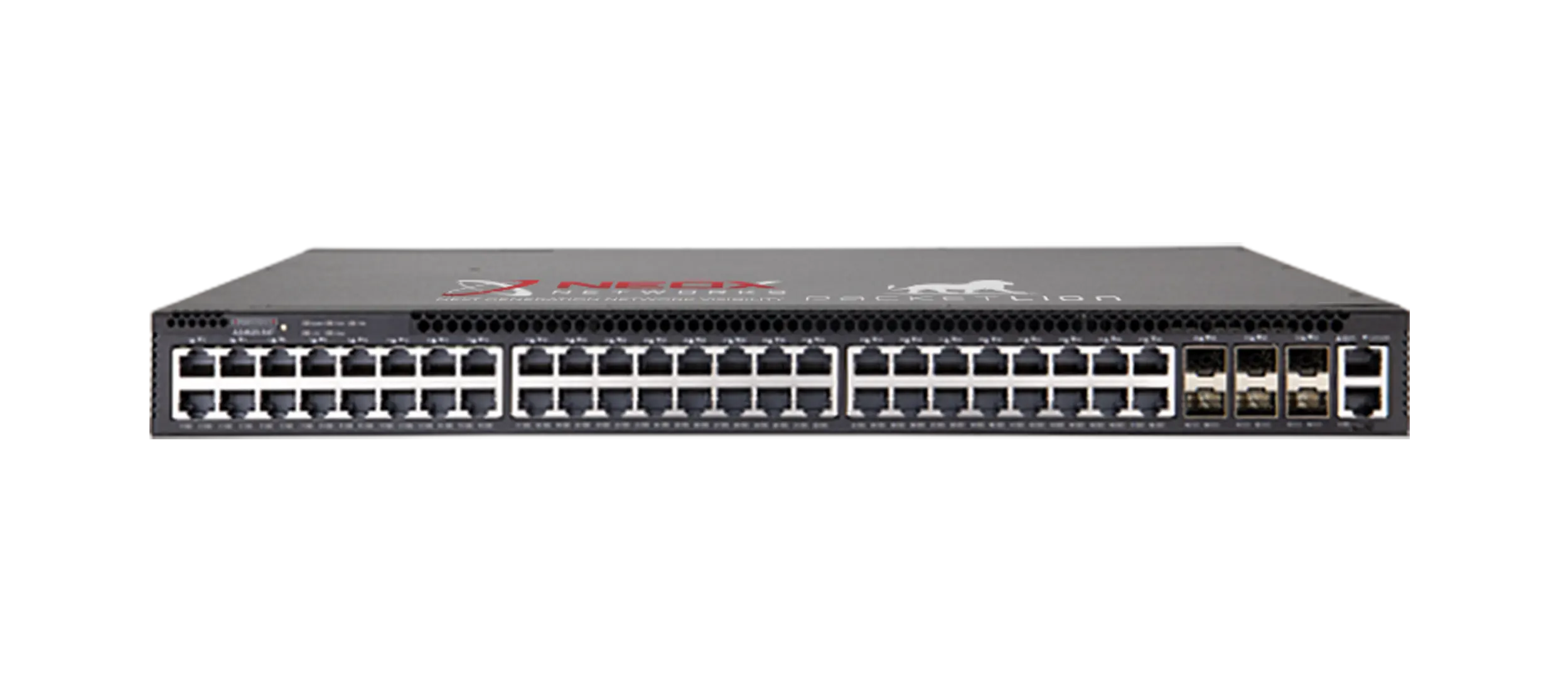

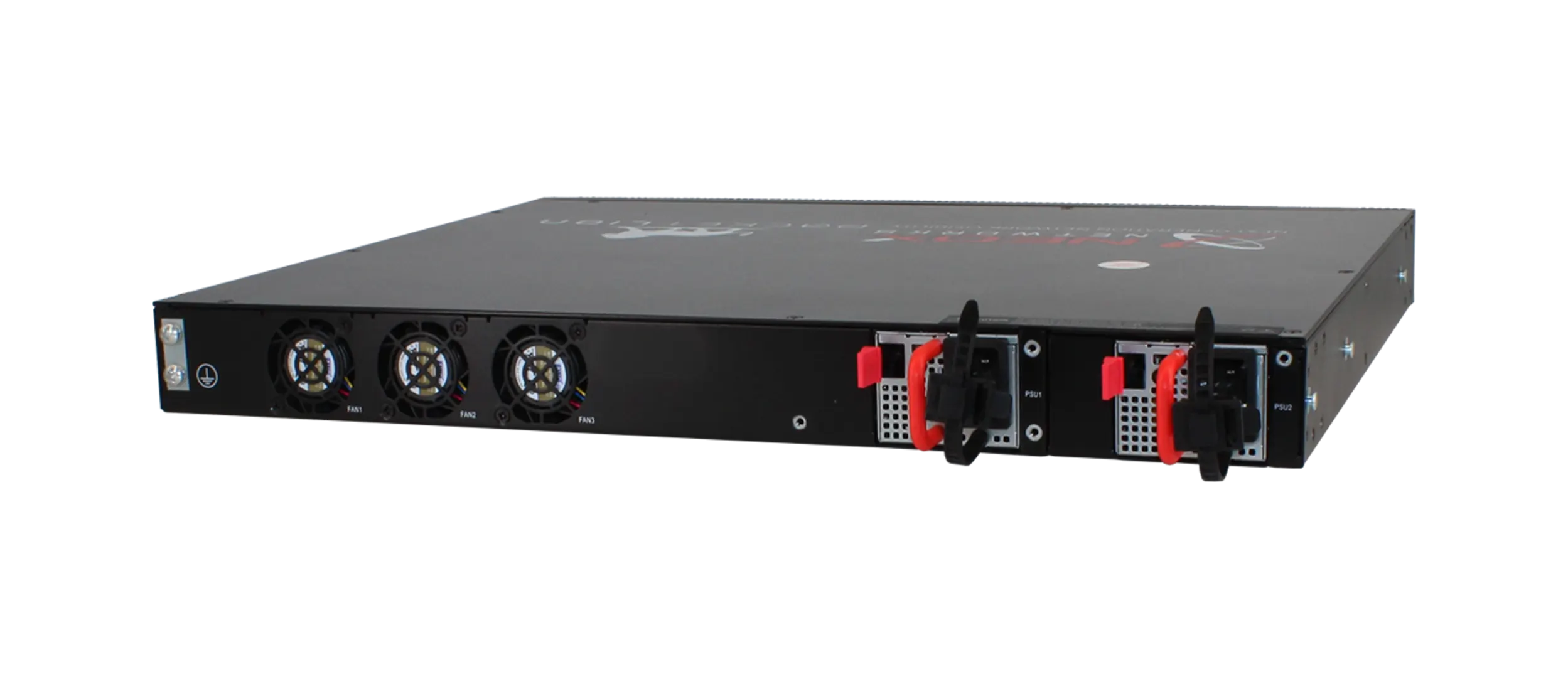

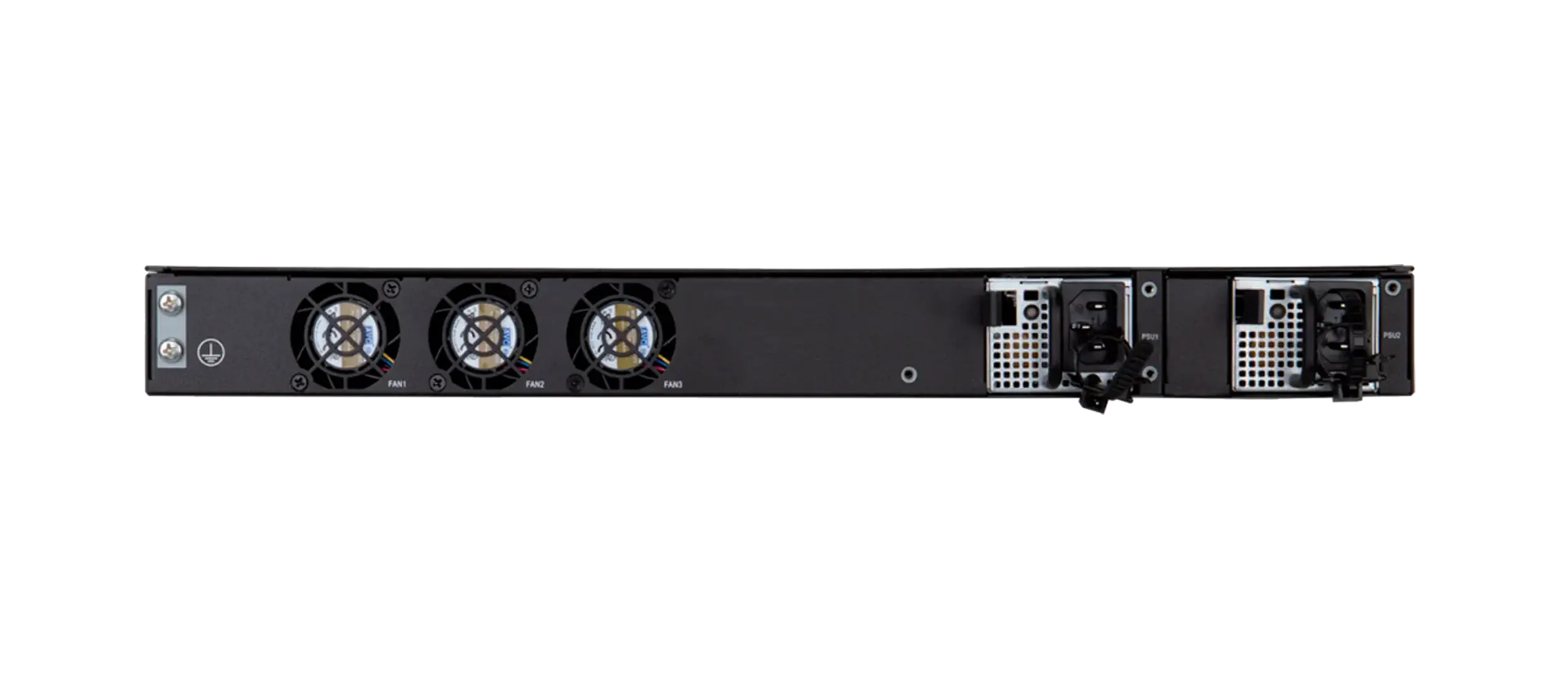

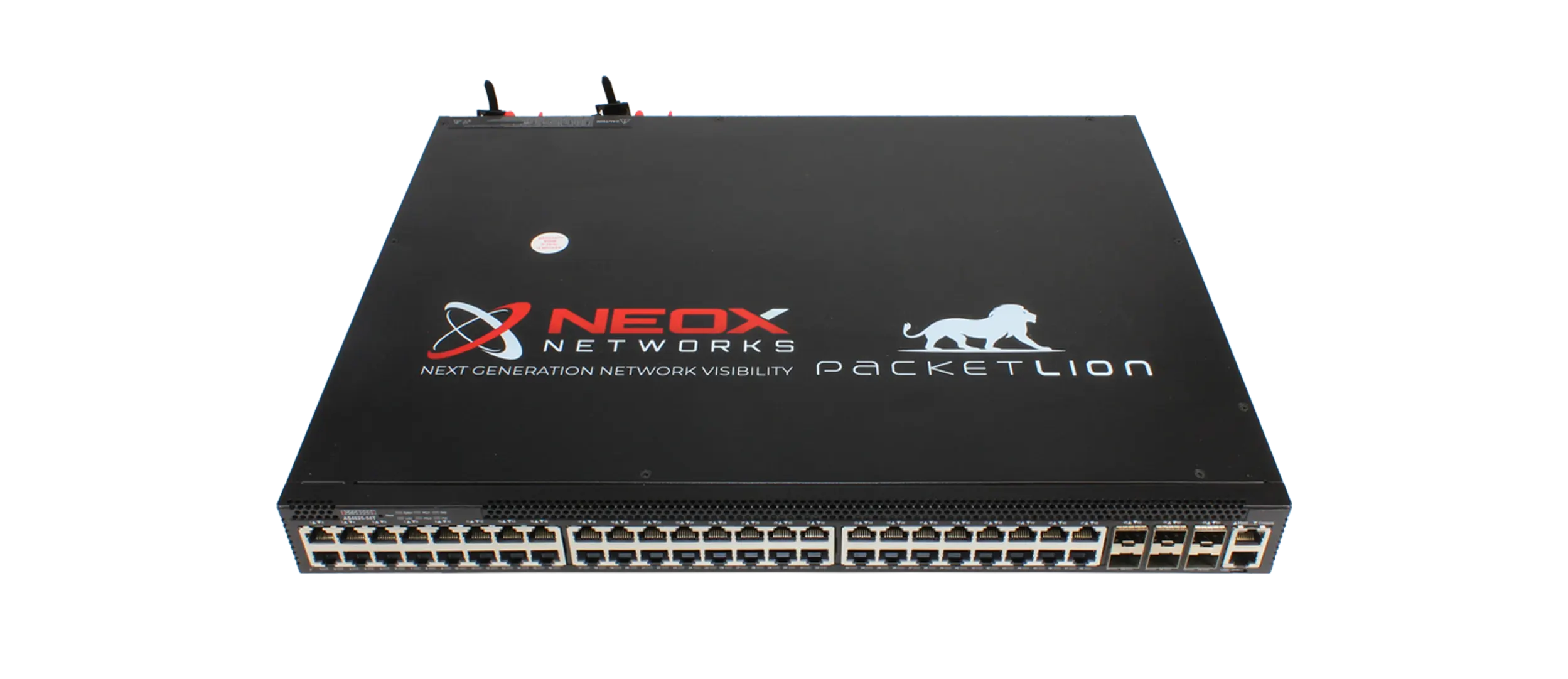

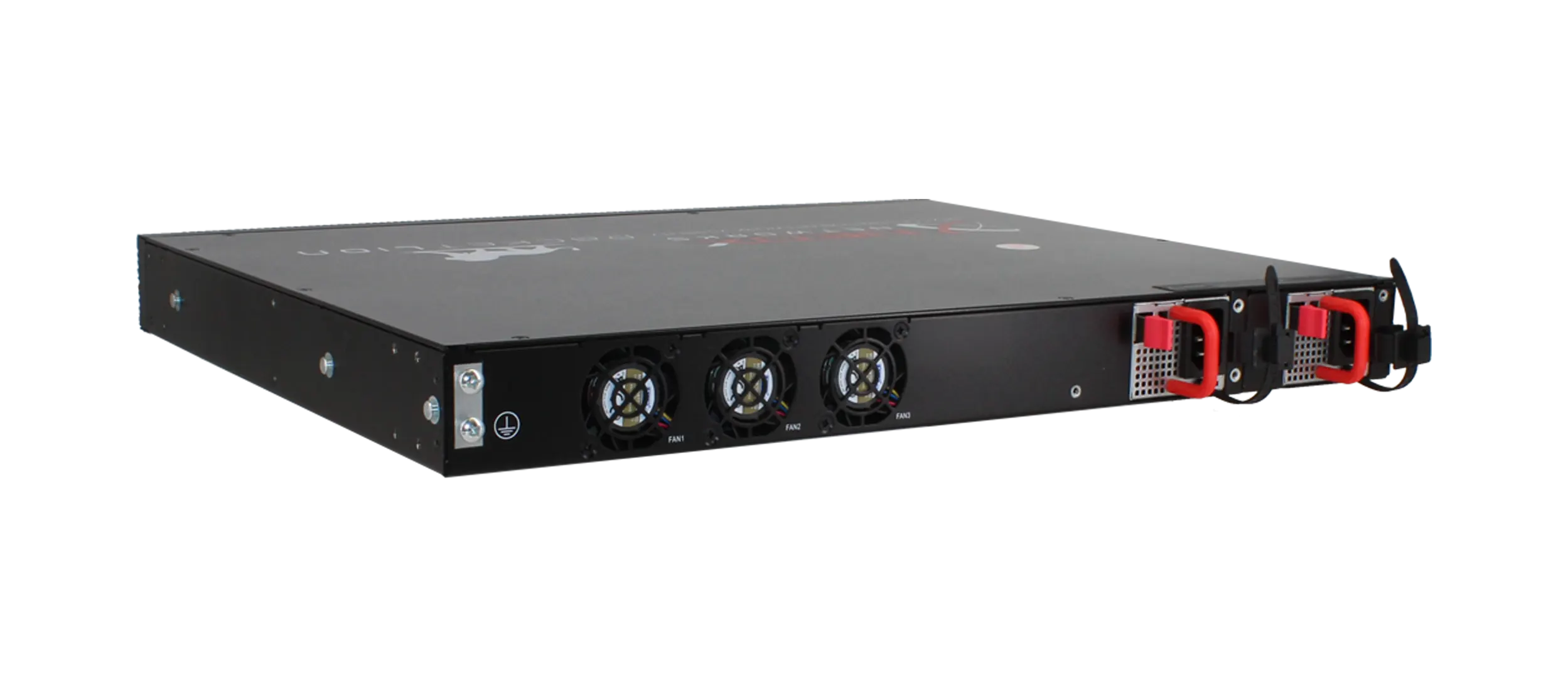

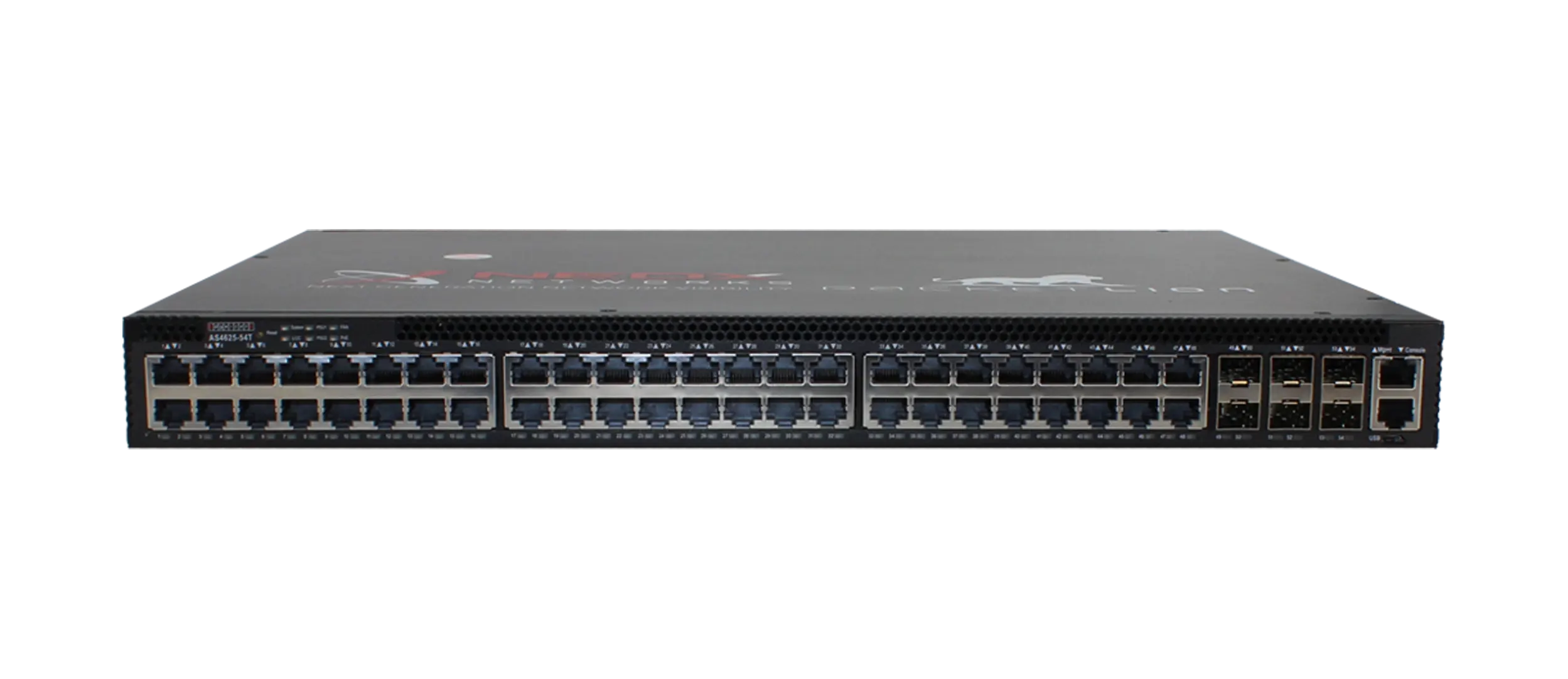

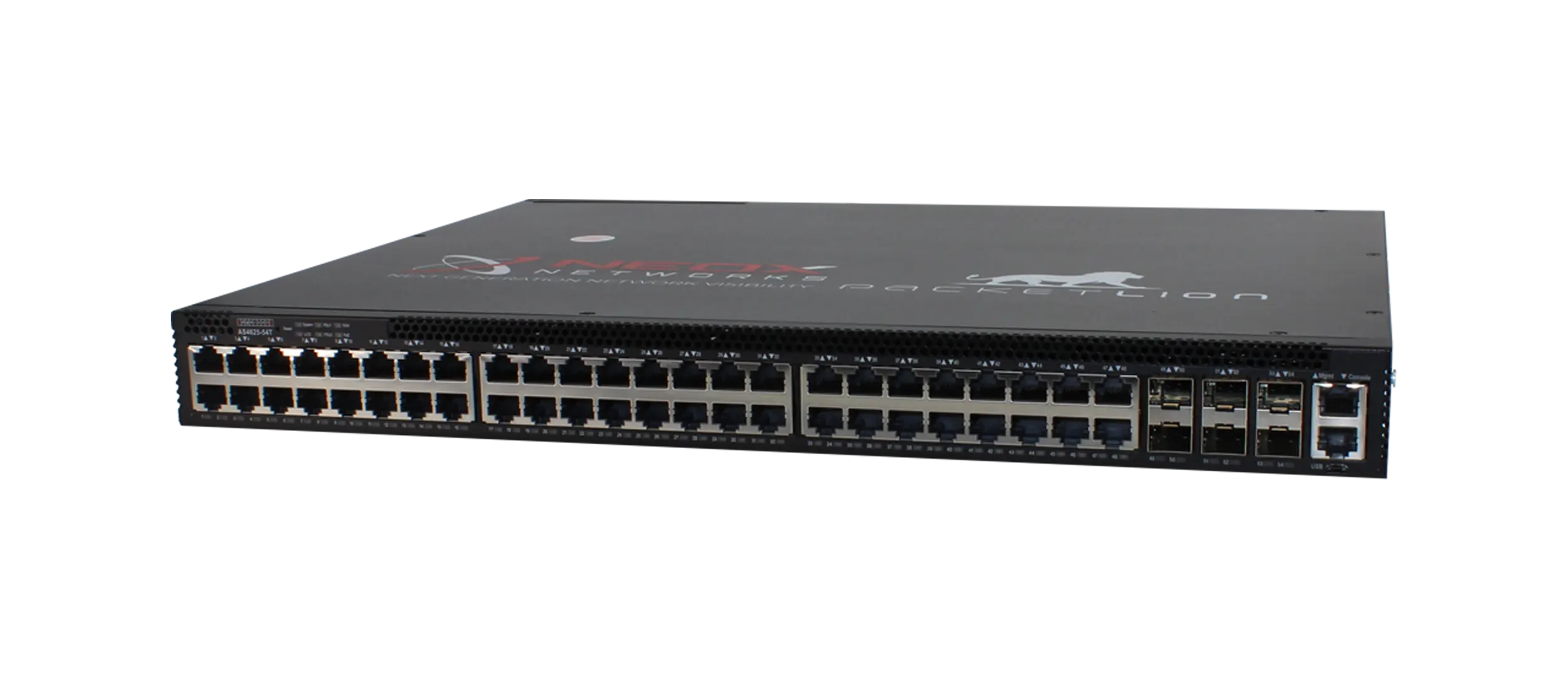

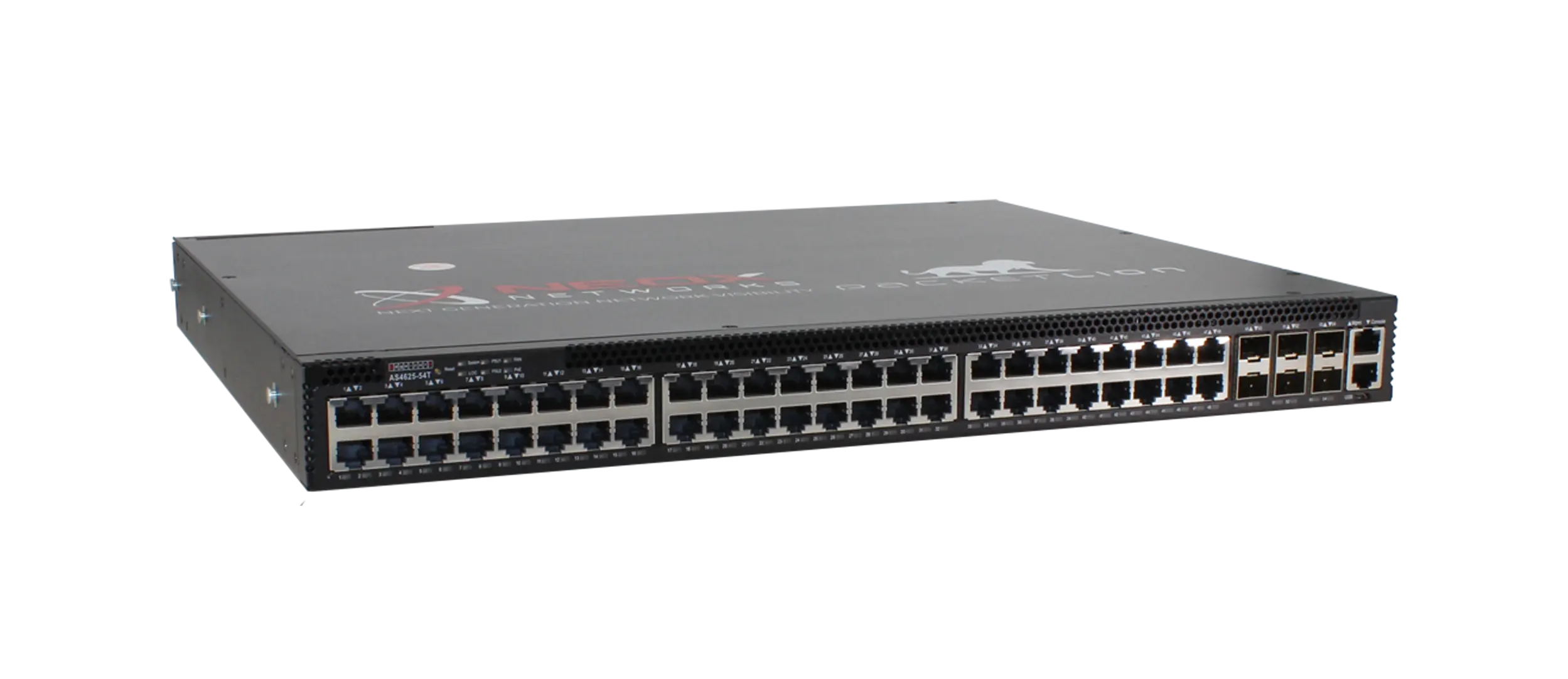

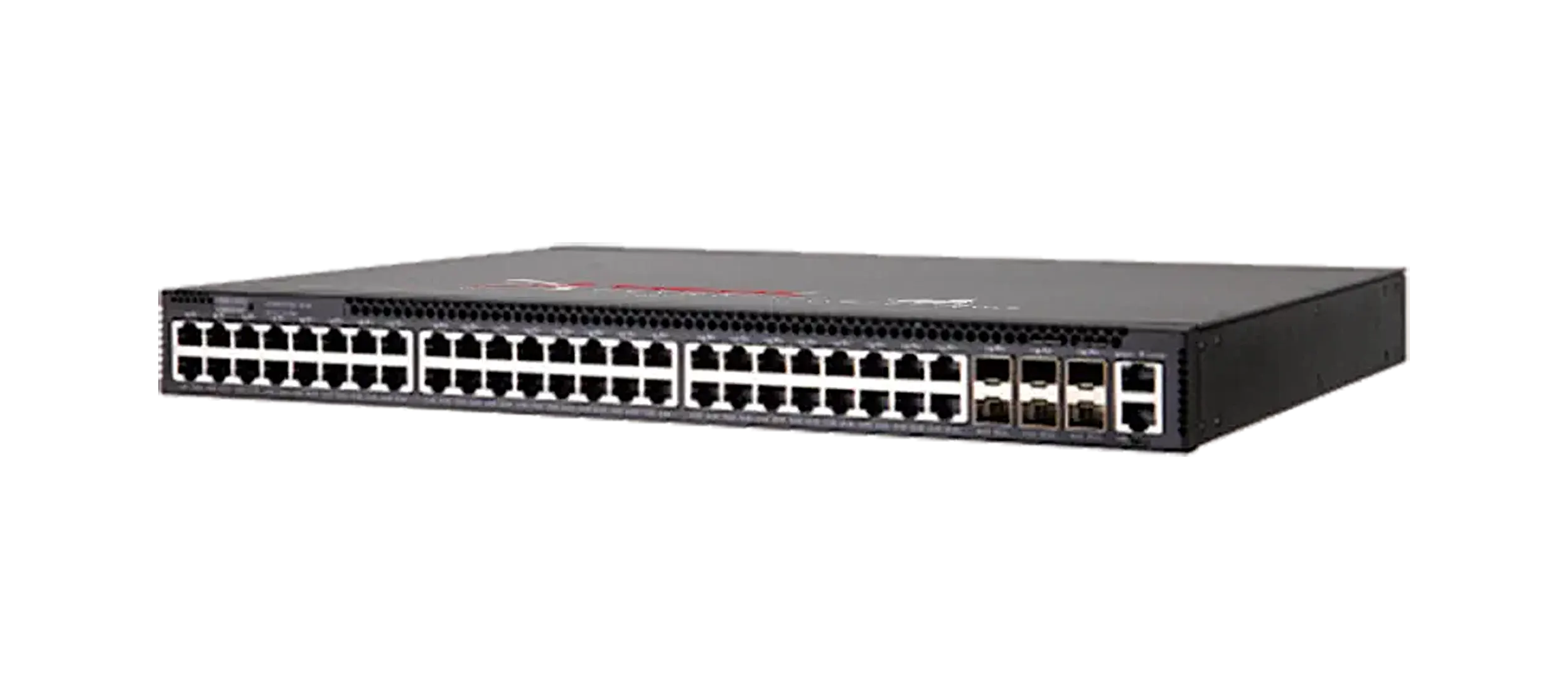

PacketLion NX-PBPL-1SC - Network packet broker
OVERVIEW
Network Packet Brokers, also called Data (Network) Monitoring Switches, help you to intelligently manage your passively tapped network data and – through innovative technology – provide the analysis tools with the data packets reliably and in optimised form.
In the world of the Internet of Things (IoT), the Internet of Medical Things (IoMT), and Operational Technology (OT), managing and securing networks of numerous low-rate devices presents unique challenges for which the NX-PBPL-1S2 can provide an essential addition to existing monitoring tools.
PacketLion NX-PBPL-1SC built on the advanced Trident 3 switch offers high-density form factor and robust functionality. NX-PBPL-1SC supports a wide range of connection rates, from 10/100/1000BASE-T Copper to 10G Fiber. Additionally, it features advanced capabilities such as GRE/VXLAN Termination, Nanosecond Timestamping and Packet Slicing for optimized data processing.
By filtering out the data with hardware-based filtering mechanisms before it is routed out, this allows you to evaluate multiple 10G lines with existing 1G analysis tools, for example, while reducing the amount of data for hassle-free and secure analysis. Data that is not of interest is either discarded or sent to other tools for further analysis.
HIGHLIGHTS
- 48x 10/100/1000 Mbps RJ45 and 6x 1/10 Gbps SFP+
- Flexible Port Assignment (1:1, N:N, N:1, 1:N)
- Aggregation, L2-L4 including 5-tuple Filtering, L2GRE/VXLAN Tunnelling/Termination, Slicing
- TRIDENT 3 platform with 216GBps capacity and 4MB Buffer Size
- Full range of rates supported in a 1U platform: 10/100/1000Mbps, 1G/10G
- Non-blocking backplane architecture with N+1 redundancy
- Line rate performance without packet loss
- Stacking of multiple Network Packet Brokers
- Service/Tool chain for Inline tools use cases

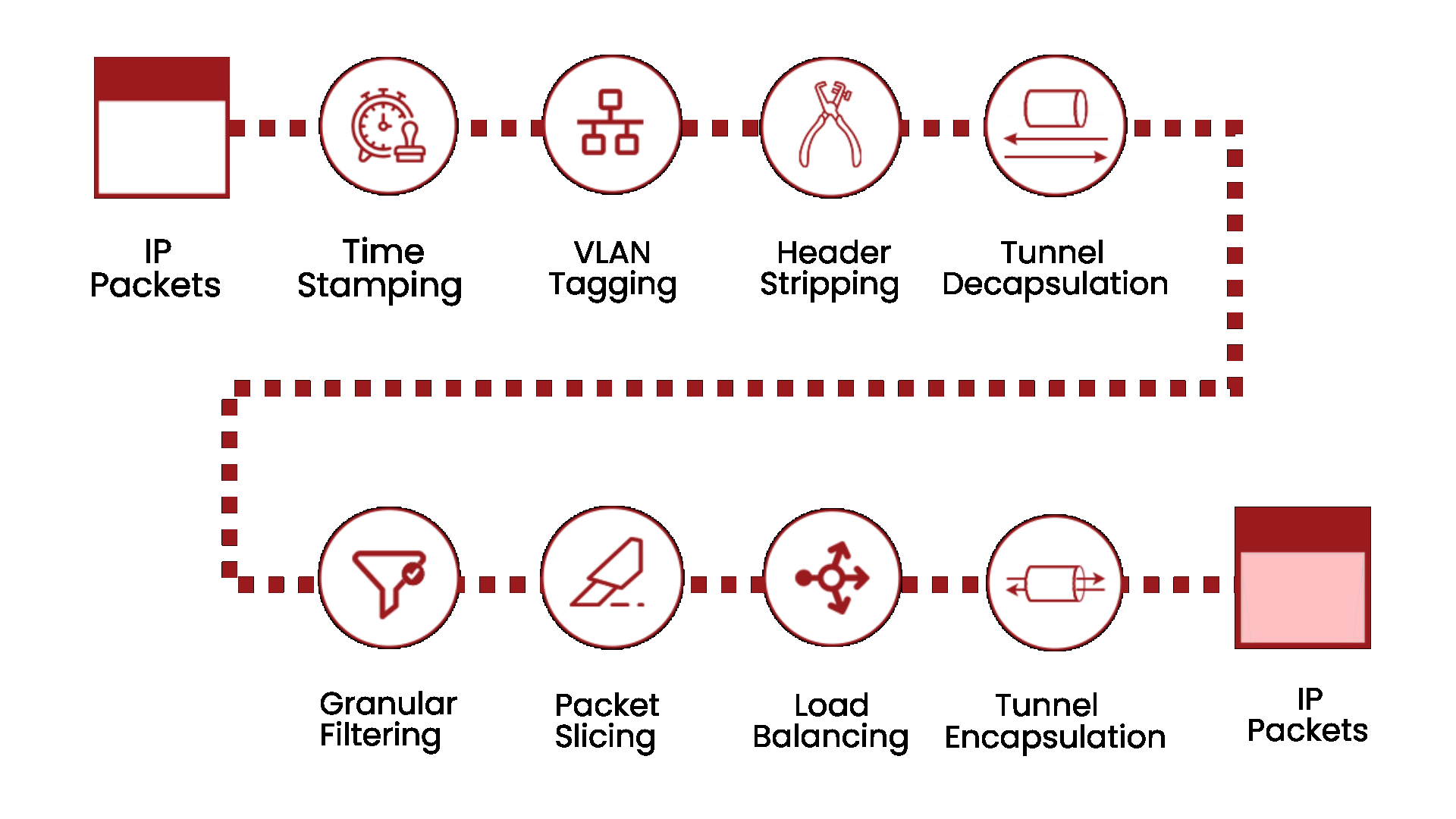

- Nanosecond Timestamping
- Support for L2GRE tunnelling protocol and filtering within a tunnel (GTP, L2TP, MPLS, GRE, VxLAN, etc.)
- Load distribution based on 5-tuple criteria
- Port Splitting (Simplex Mode), Port Labeling
- Support for Jumbo Frames
- MAC Replace and Packet Slicing
- Support for VXLAN interfaces
- Support for filter rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP flags, MPLS, Ingress, Exgress)
- Management Ports: 1x RJ-45 serial console, 1x RJ45 100/1000Base-T
- Enhanced productivity with Drag & Drop Filter Editor
- Unified management including CLI, SNMP, WEB UI, Net CONF and REST API
- Radius and TACACS+
DOCUMENTS
SERVICE & SUPPORT
Unparallel Multi-Level Service & Support for Peace of Mind
All NEOXPacketLion NPBs come with NEOX SILVER Support and can be upgraded to GOLD Support for advanced replacement in case of a hardware failure.
FEATURED CONTENT
Creating Solutions for Your Success
Infographic
Why You Need a Packet Broker
Product Brief
A Brief Guide to Products
Product Brochure
A Complete Guide to Products
