Full Network Visibility up to 8x100G
Advanced Filtering | Deduplication | NetFlow & IPFIX Export
CENTERLIZED NETWORK VISIBILITY
Real-Time Network Data-in-Motion, Consolidation, and Control

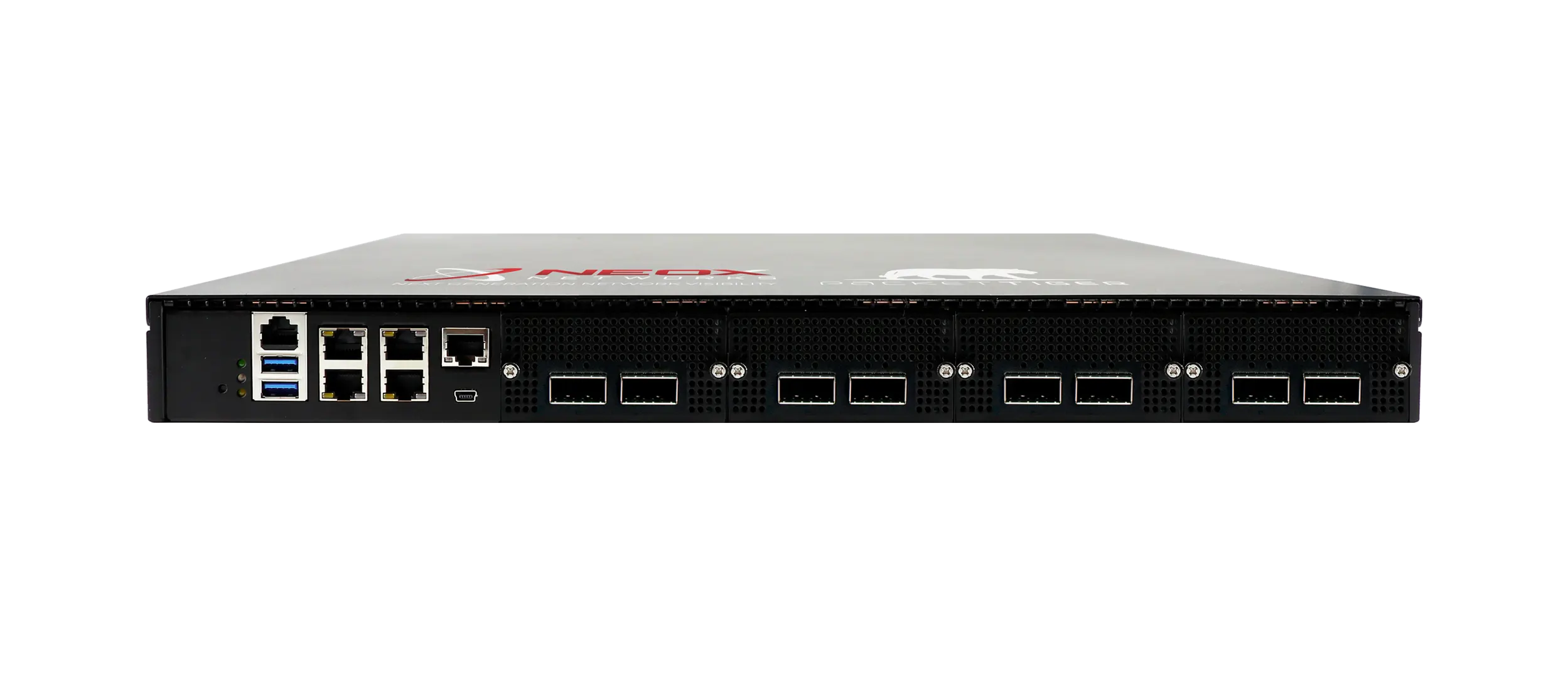

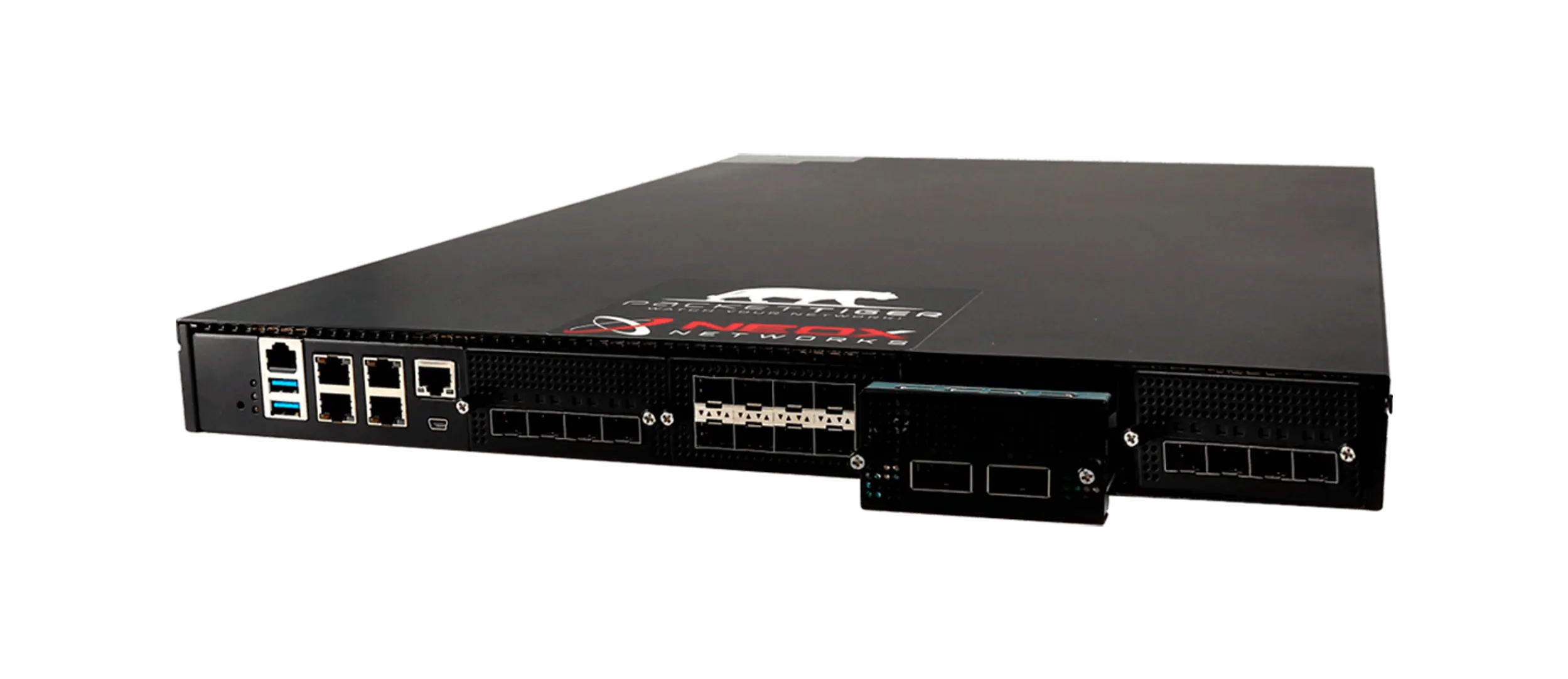

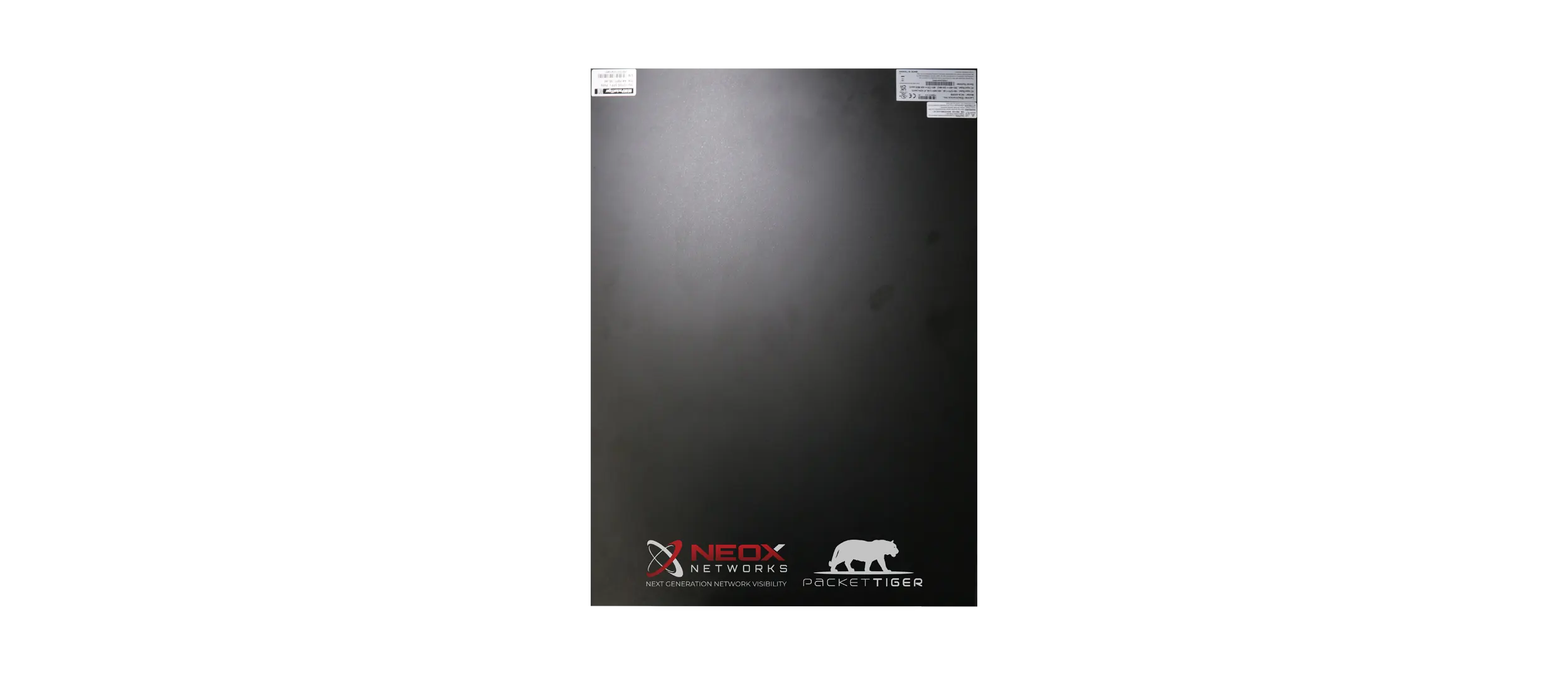

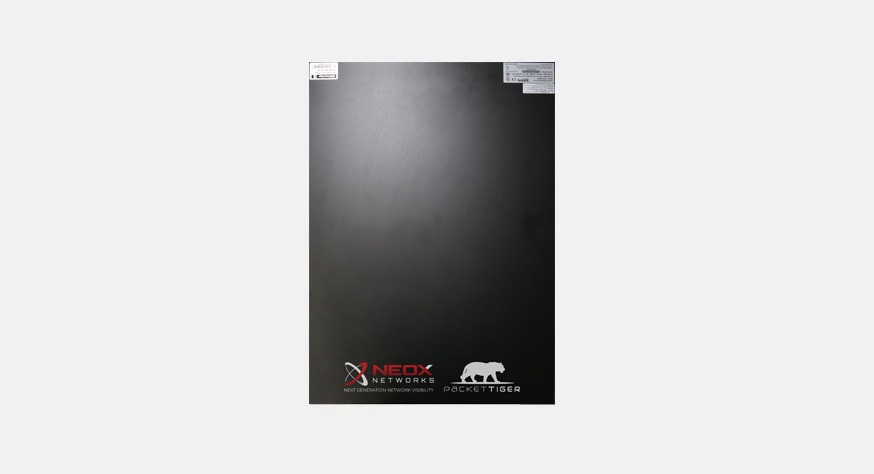

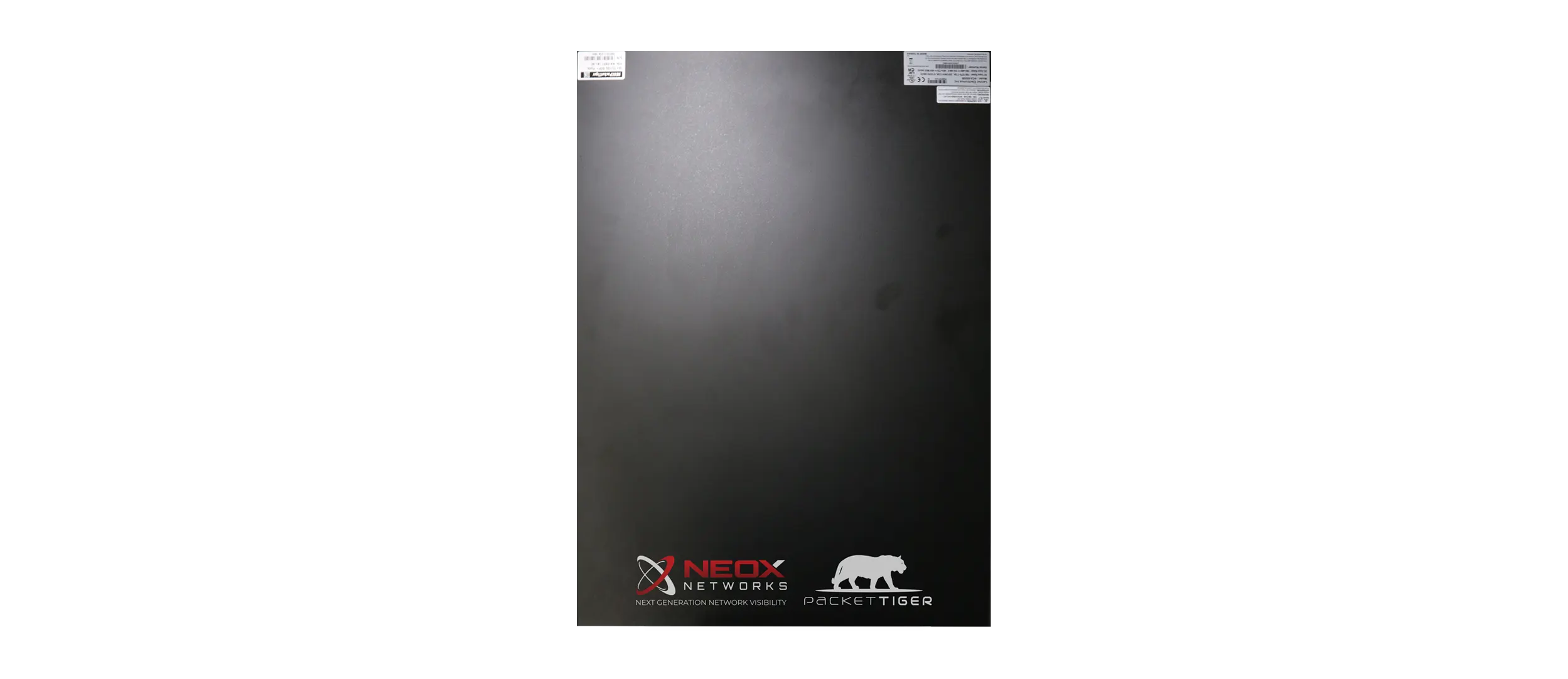

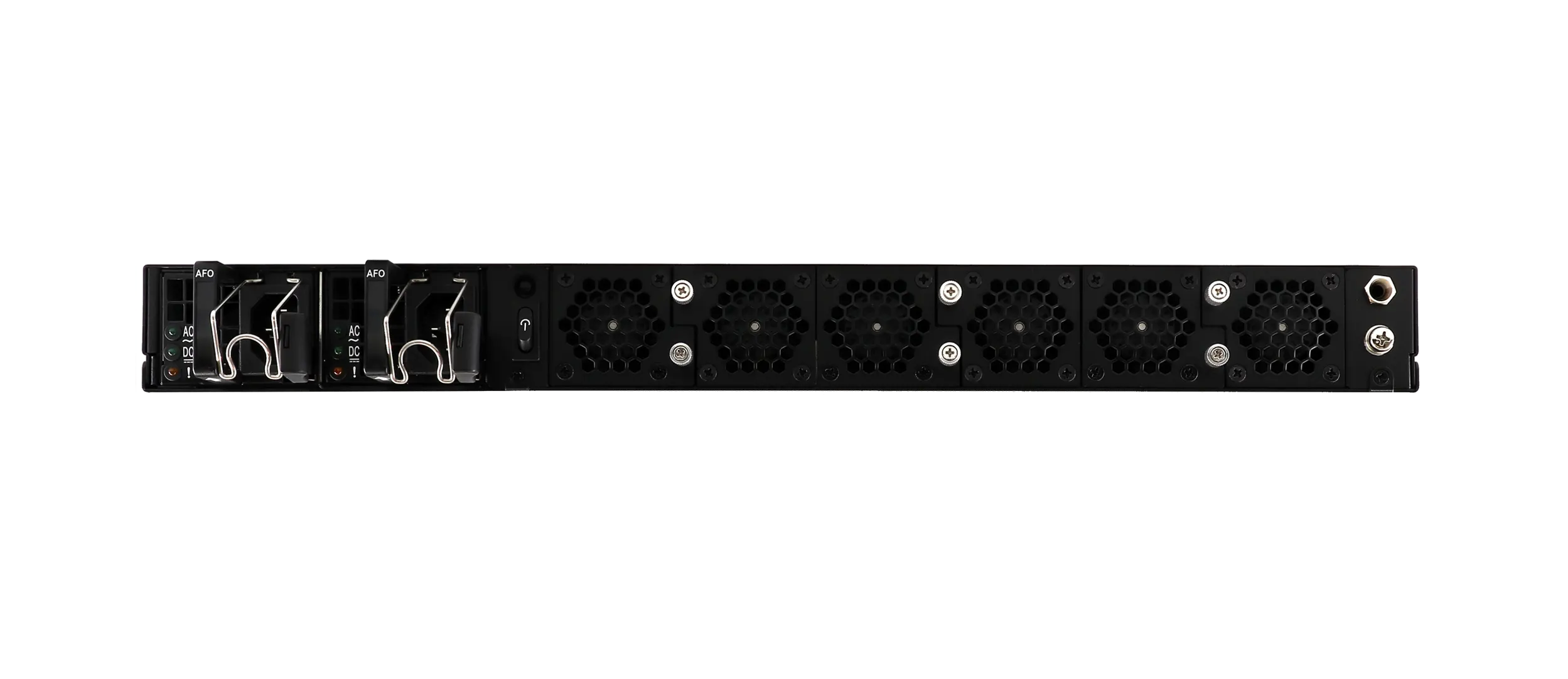

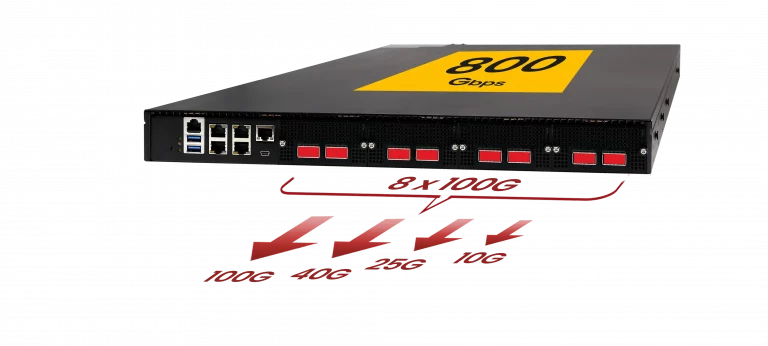

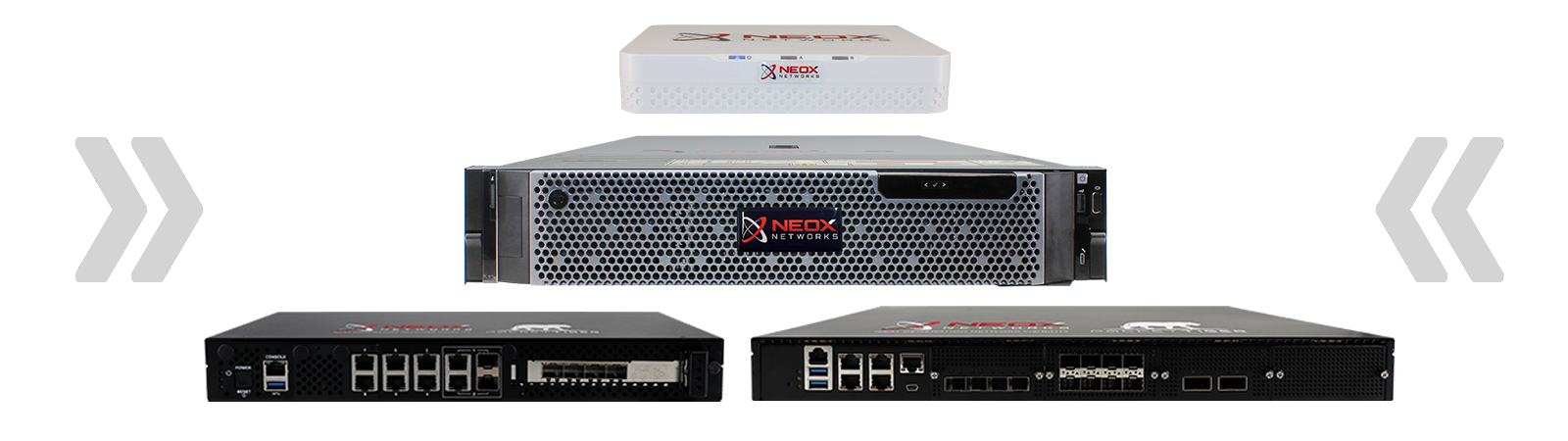

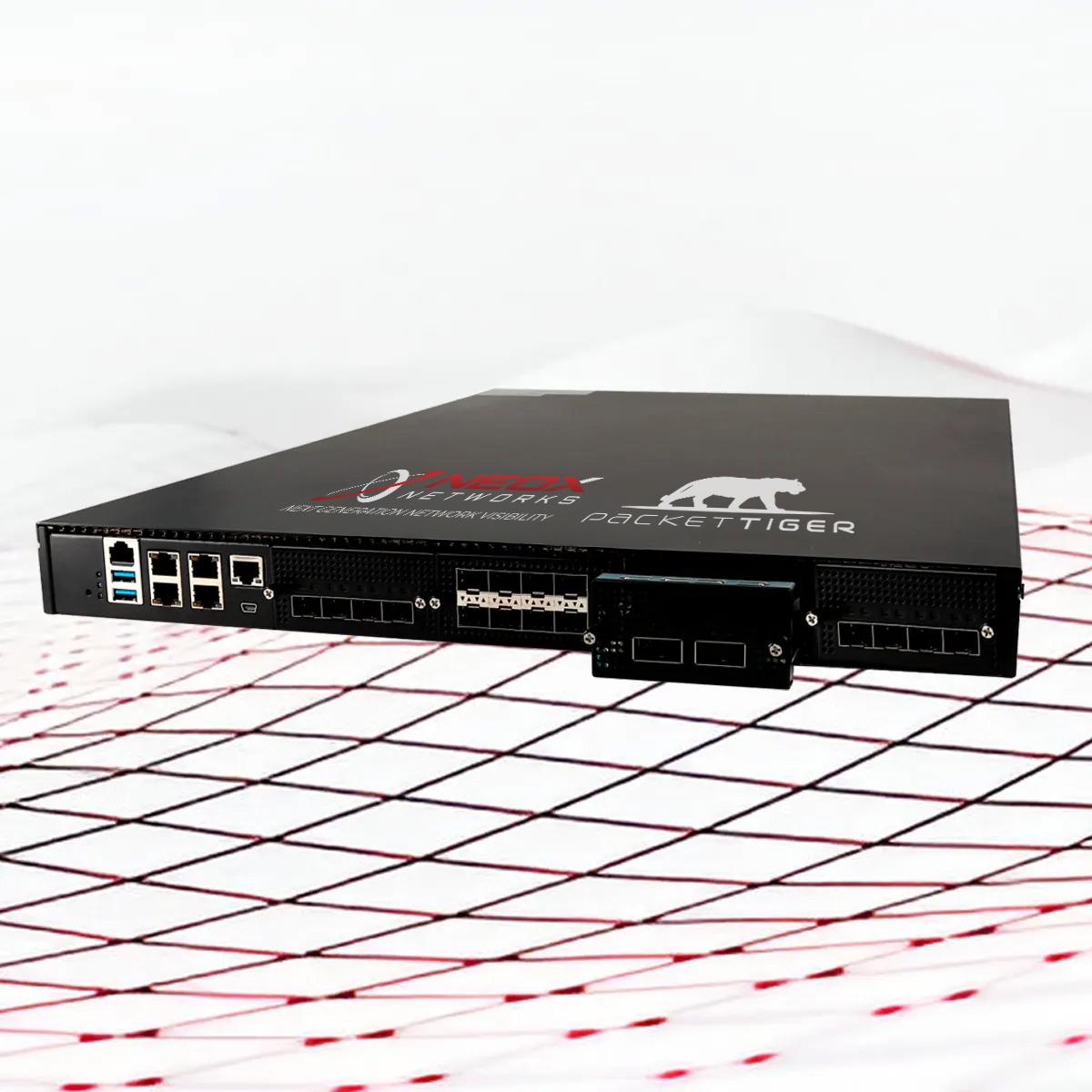

PacketTiger NX-PBPT-1XL Network packet broker
OVERVIEW

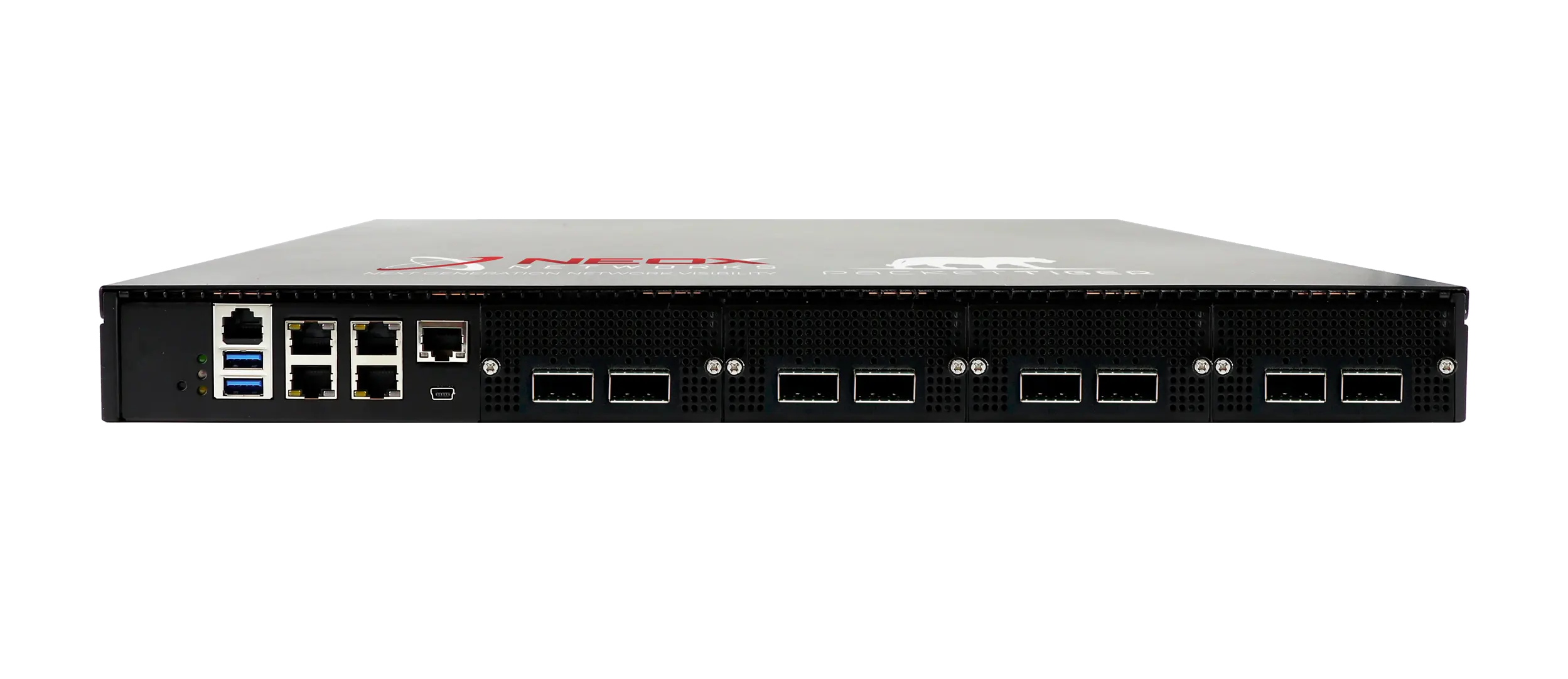

The PacketTiger NX-PBPT-1XL-20/40/100 is a PCI Gen4 based Advanced Network Packet Broker and offers either 32x 1G/10G SFP+, 8x 40G QSFP+ or 8x 100G QSFP28 distributed via 4 NMC slots.
Different configurations are possible due to NMC module flexibility. The system can be used to optimise port usage of existing infrastructure, or as a standalone device in L2-L7 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketTigers offer a full API interface using NETCONF.
There are no additional licence fees per port!
HIGHLIGHTS
- Flexible port allocation (1:1, N:N, N:1, 1:N)
- Aggregation of 10M/100M/1000M, 1G, 10G, 40G and 100G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP Flags, MPLS, GTP, L2TP, VxLAN, Regular Expressions)
- Support of up to 1,000,000 filter rules, AND & OR logical operation
- Aggregation and regeneration of all network traffic
- User Defined Filtering – support for User Defined Filtering (UDF) rules
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Clustering of multiple Network Packet Broker systems via PacketDirector possible, HA configuration support
- Support for Layer 2 and Layer 3 GRE tunnelling protocol
- Load Balancing based on 3-tuple, 4-tuple and 5-tuple criteria, IP addresses
- Port labelling allows after aggregation at your analysis tool to identify the physical source of network traffic despite correlation
- Header stripping: MPLS, PPPoE, VN-Tag, VxLAN, GRE, L2TP, CTP-U, GENEVE
- Static and Dynamic Packet Slicing
- Nanosecond accurate hardware timestamping.
- AAA servers: Radius and TACACS+
- Metadata export using Kafka
- Logging through Syslog and SNMP Traps
- Hardware Acceleration via DPDK
- VLAN Editing, MAC Replace
- High flexibility thanks to NMC and transceiver connectivity
- Easy to use and simple to configure
- Fault diagnosis Digital Diagnostics Monitoring (DDM) (available soon)
MODELS AND ACCESSORIES
| Part Number | NMC Slots | Max. THroughput | Dimensions (W*H*D) / Weight | Certifications |
|---|---|---|---|---|
| NX-PBPT-1XL-20 PCIe Gen4 | 4 | 20 Gb/s | 43.8 cm x 4.4 cm x 61.0 cm ca. 18 kg | CE, RoHS, FCC Class A, UL |
| NX-PBPT-1XL-40 PCIe Gen4 | 40 Gb/s | |||
| NX-PBPT-1XL-100 PCIe Gen4 | 100 Gb/s |

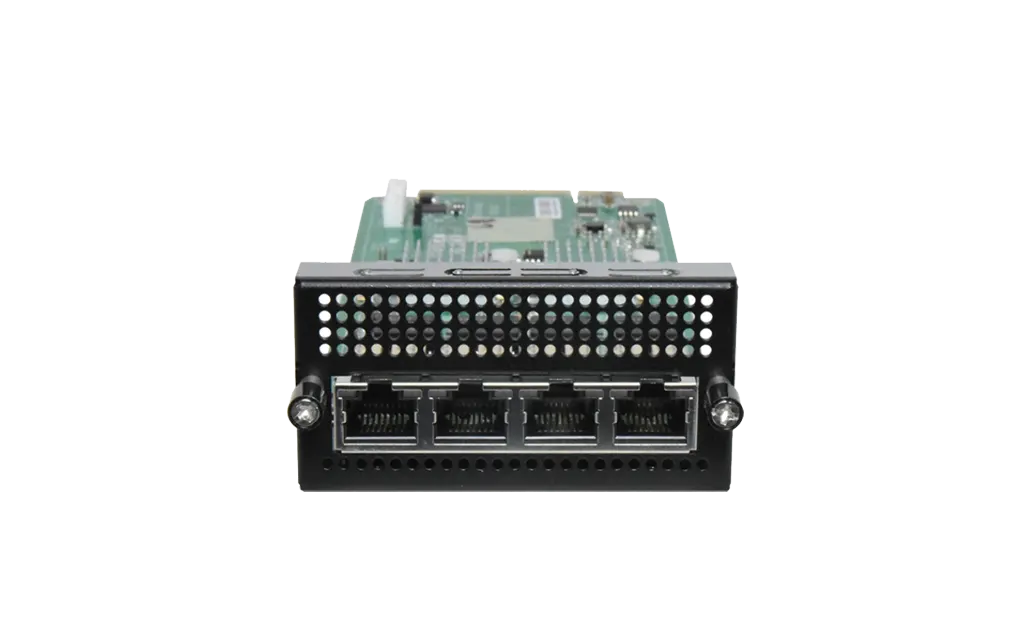

| OPTIONALLY AVAILABLE NMC MODELS | |||||||
|---|---|---|---|---|---|---|---|
| Item No. | Ports | Item No. | Ports | Item No. | Ports | ||

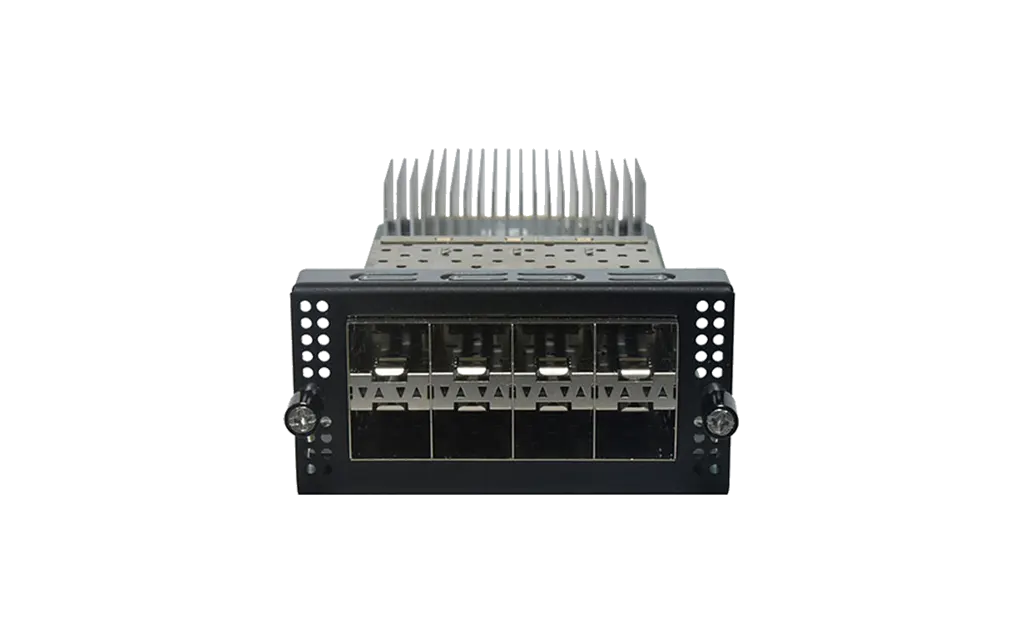

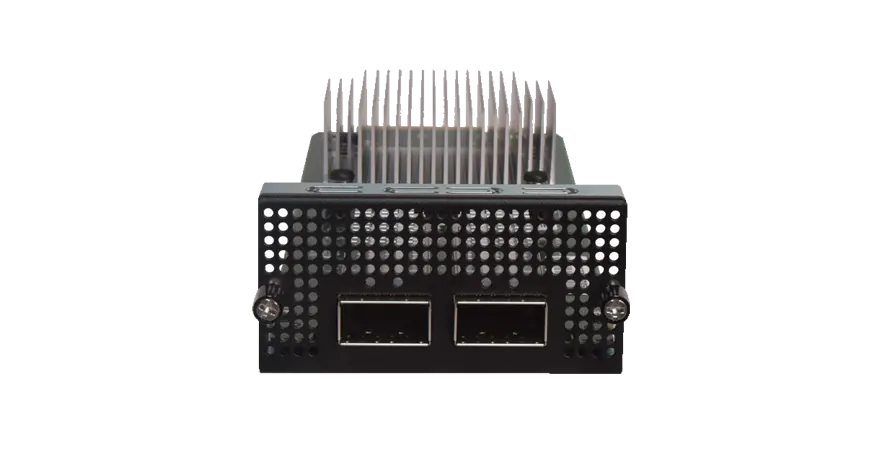

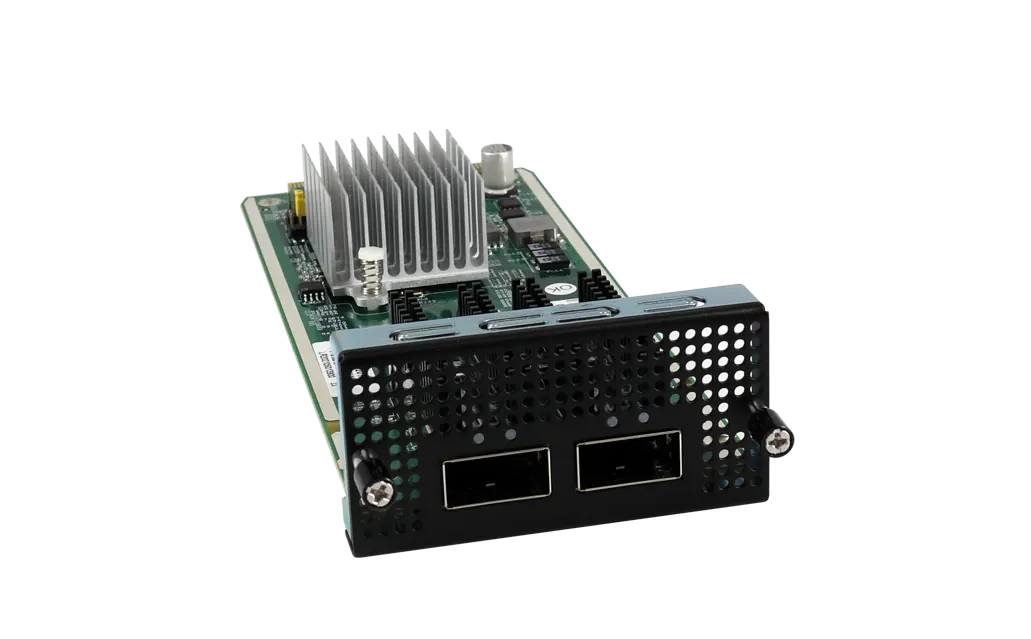

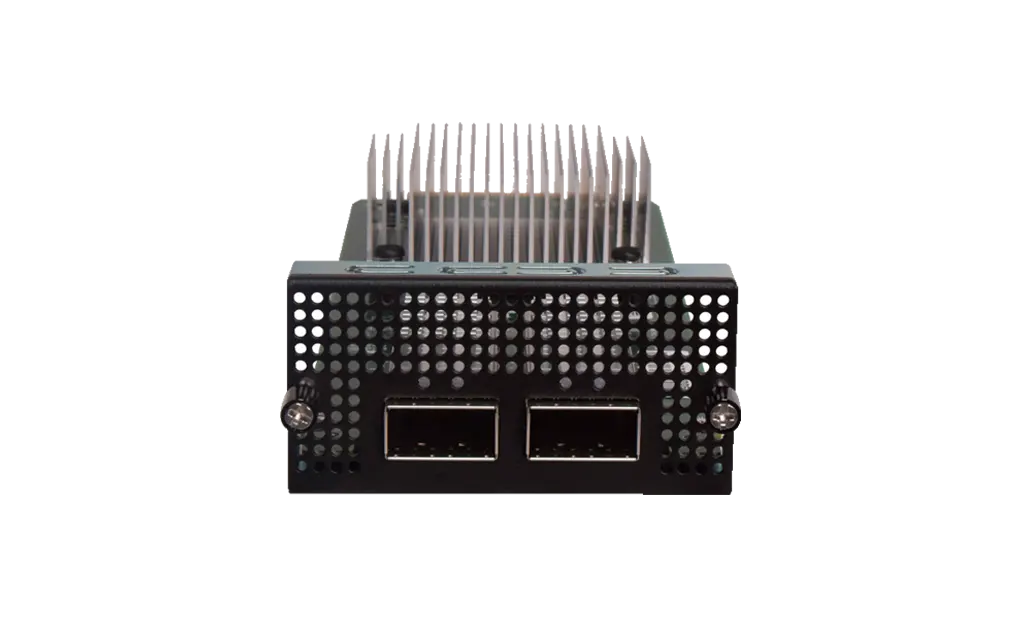

| NX-PBPT-1L-8PS+ | 8x 1G/10G SFP+ | NX-PBPT-1L-2PQ+ | 2x 40G QSFP+ | NX-PBPT-1L-8PS28 | 8x 10G SFP28 | ||
DOCUMENTS

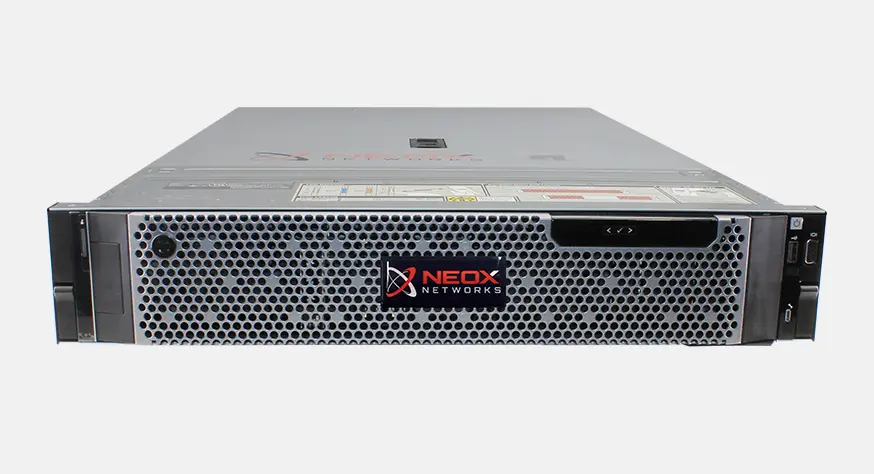

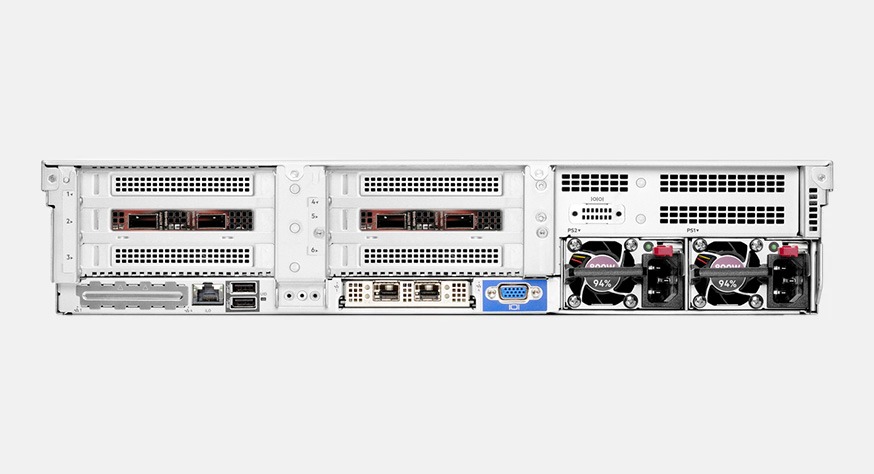

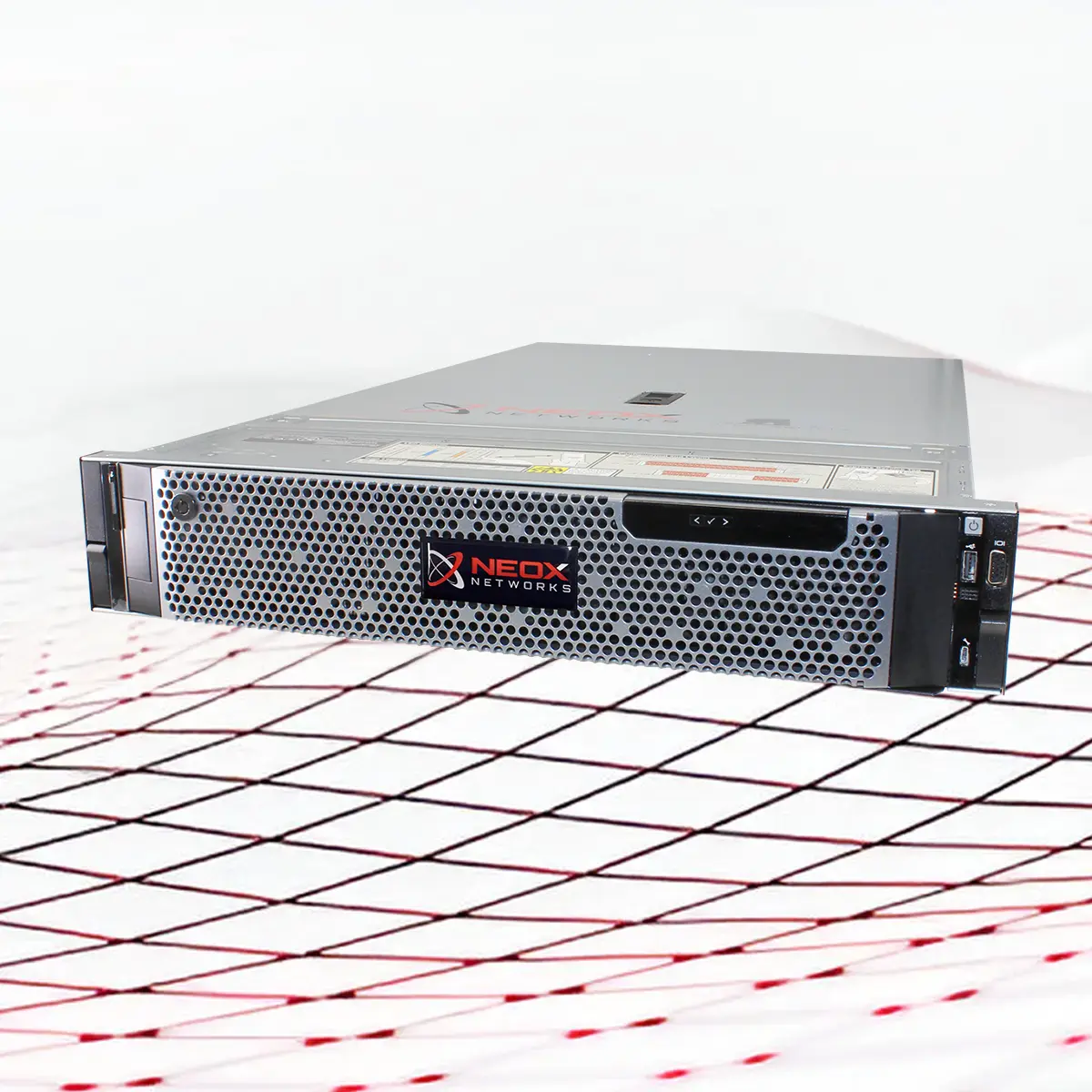

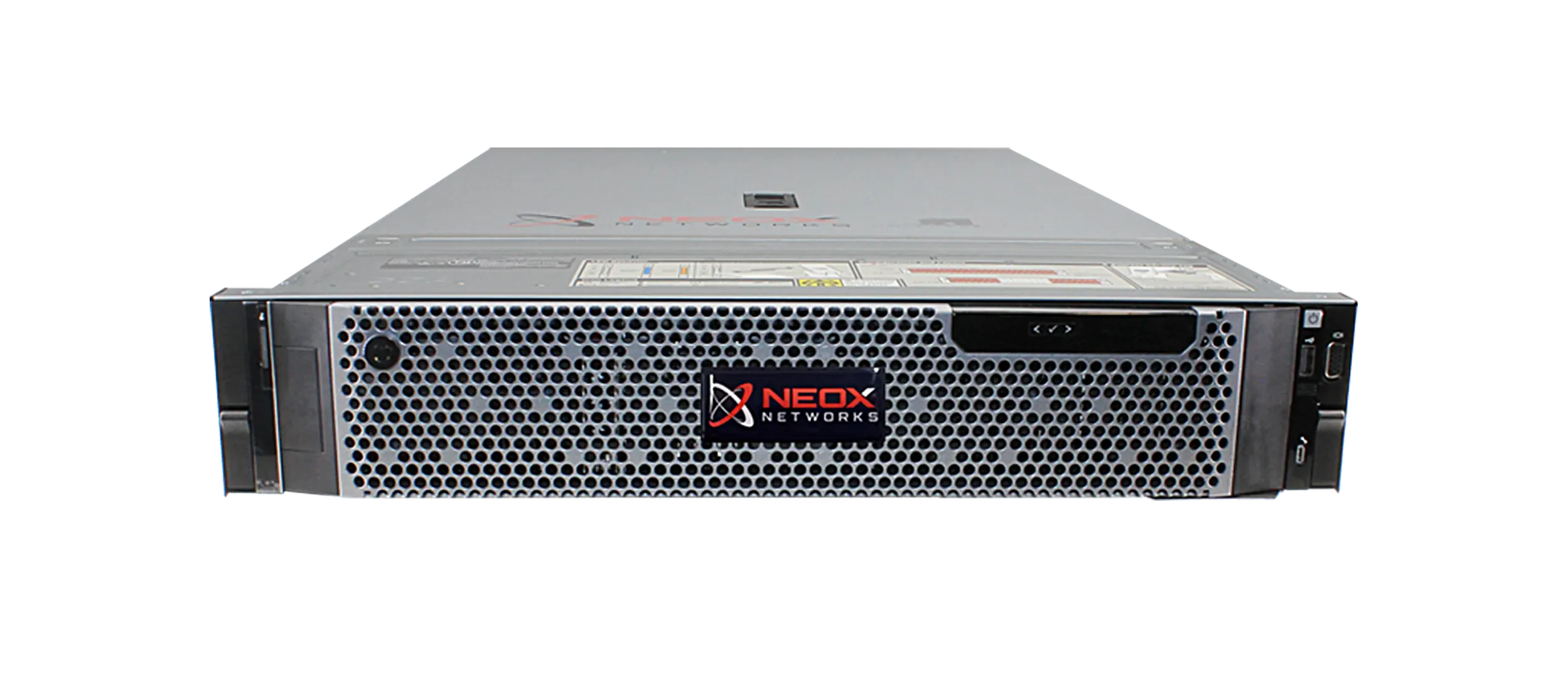

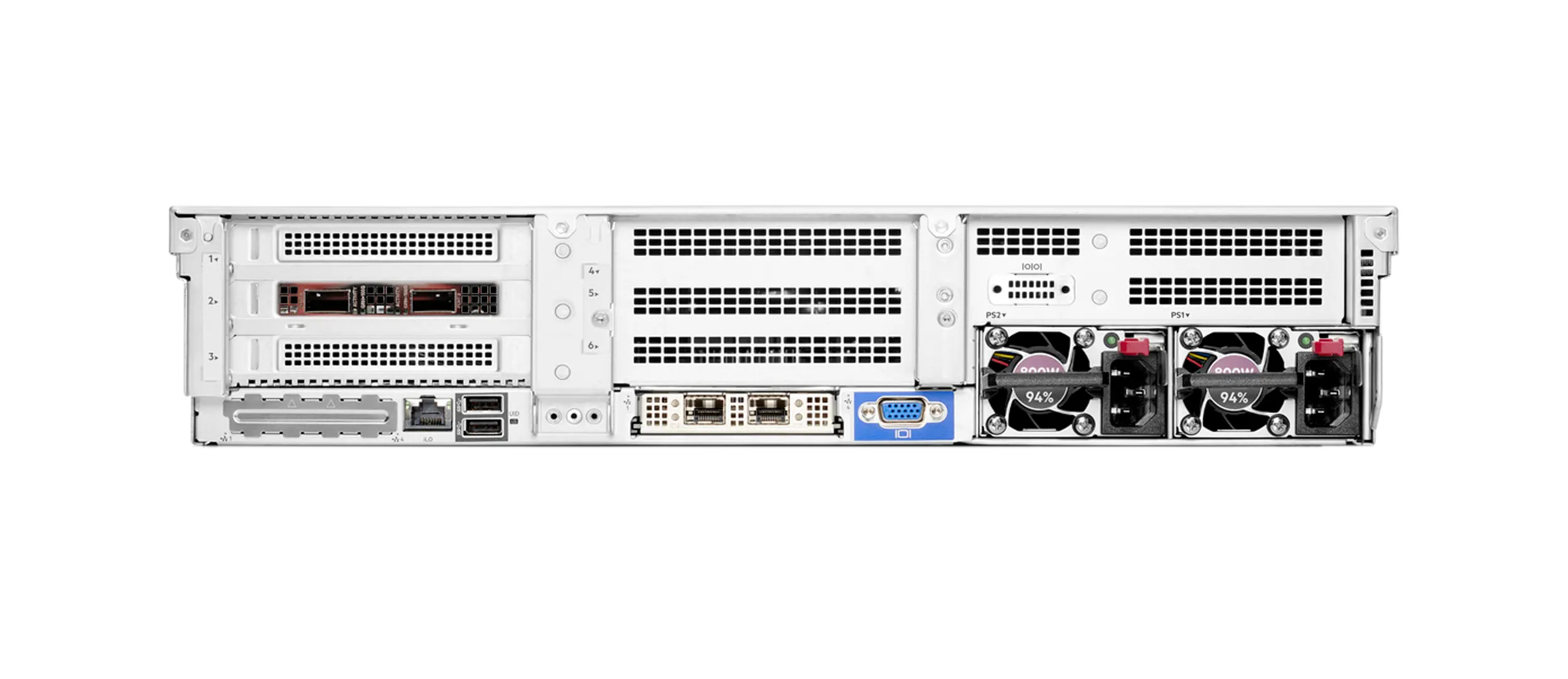

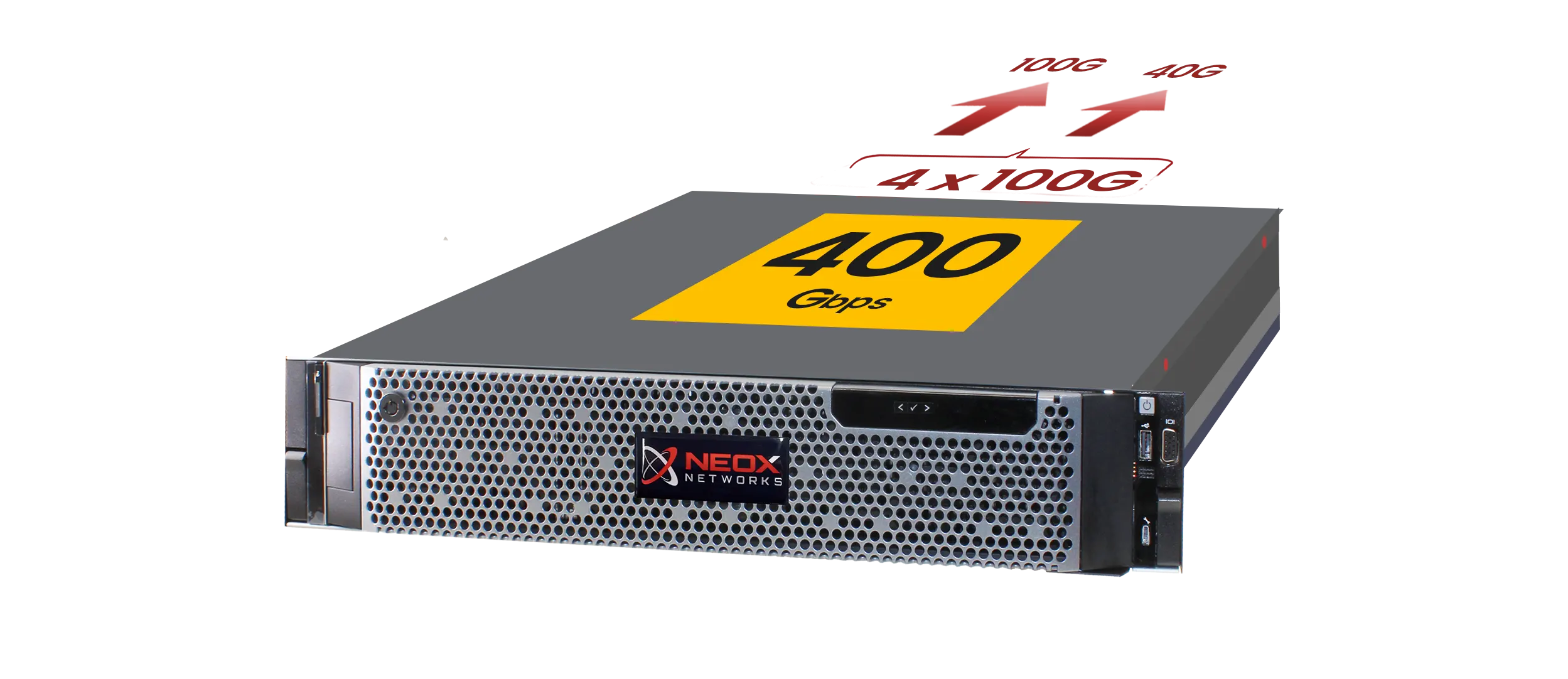

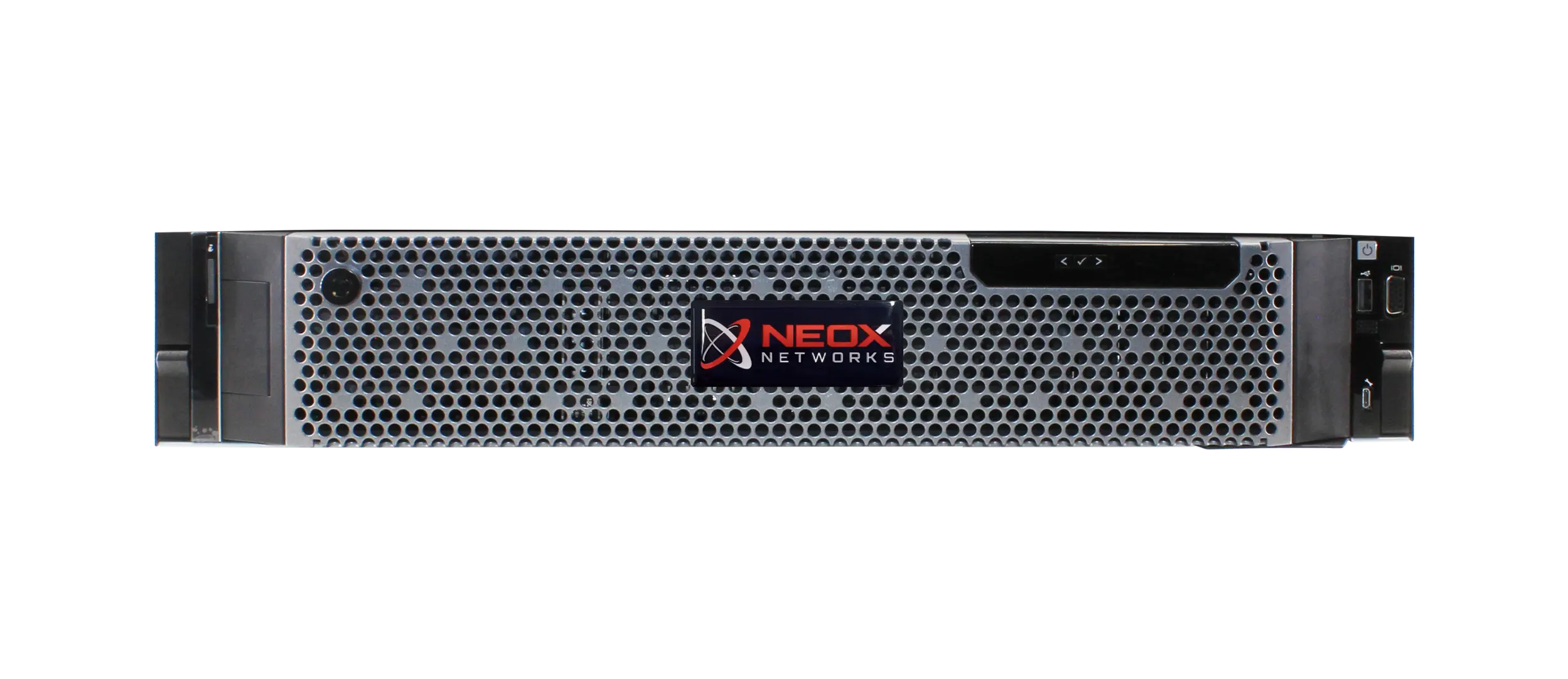

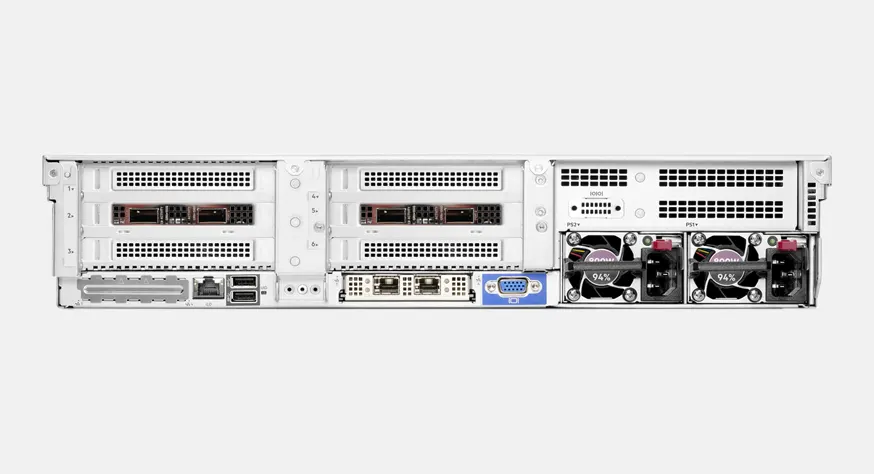

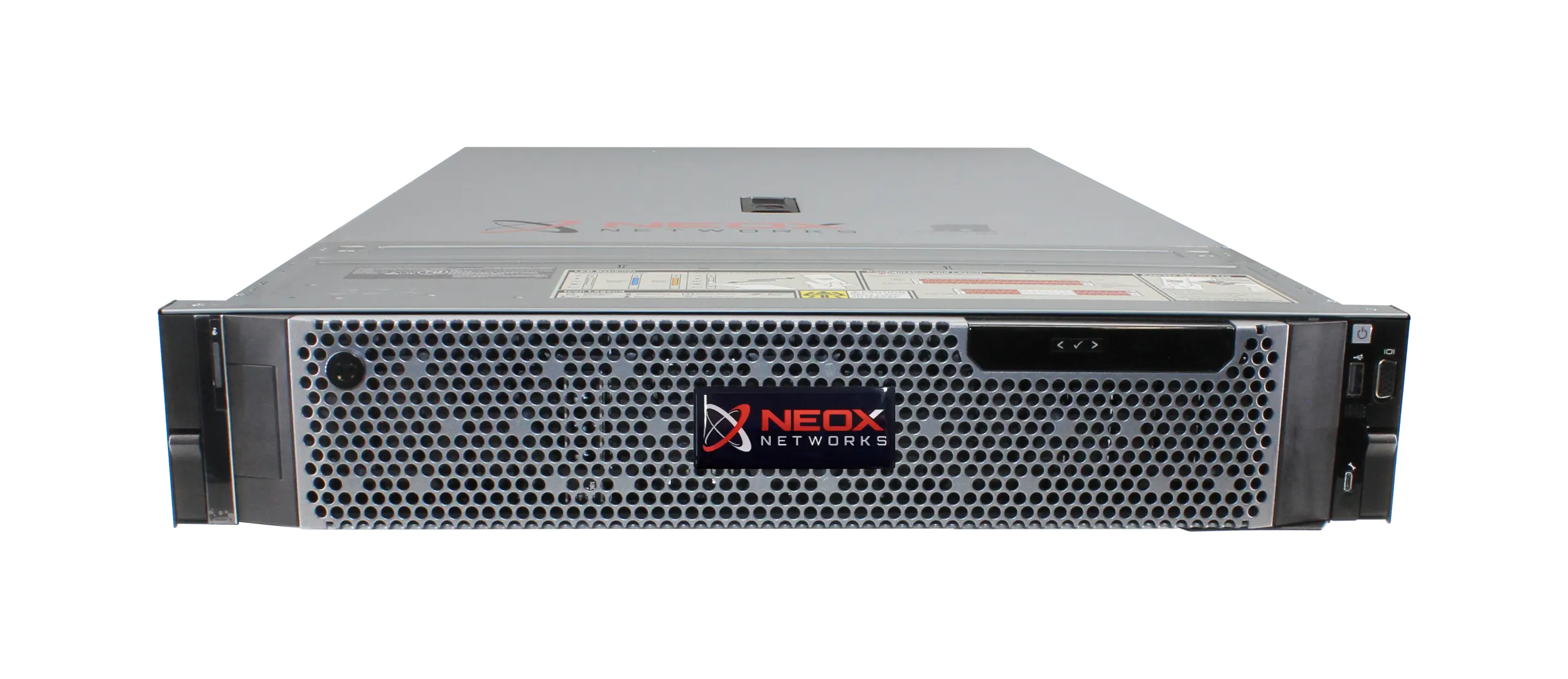

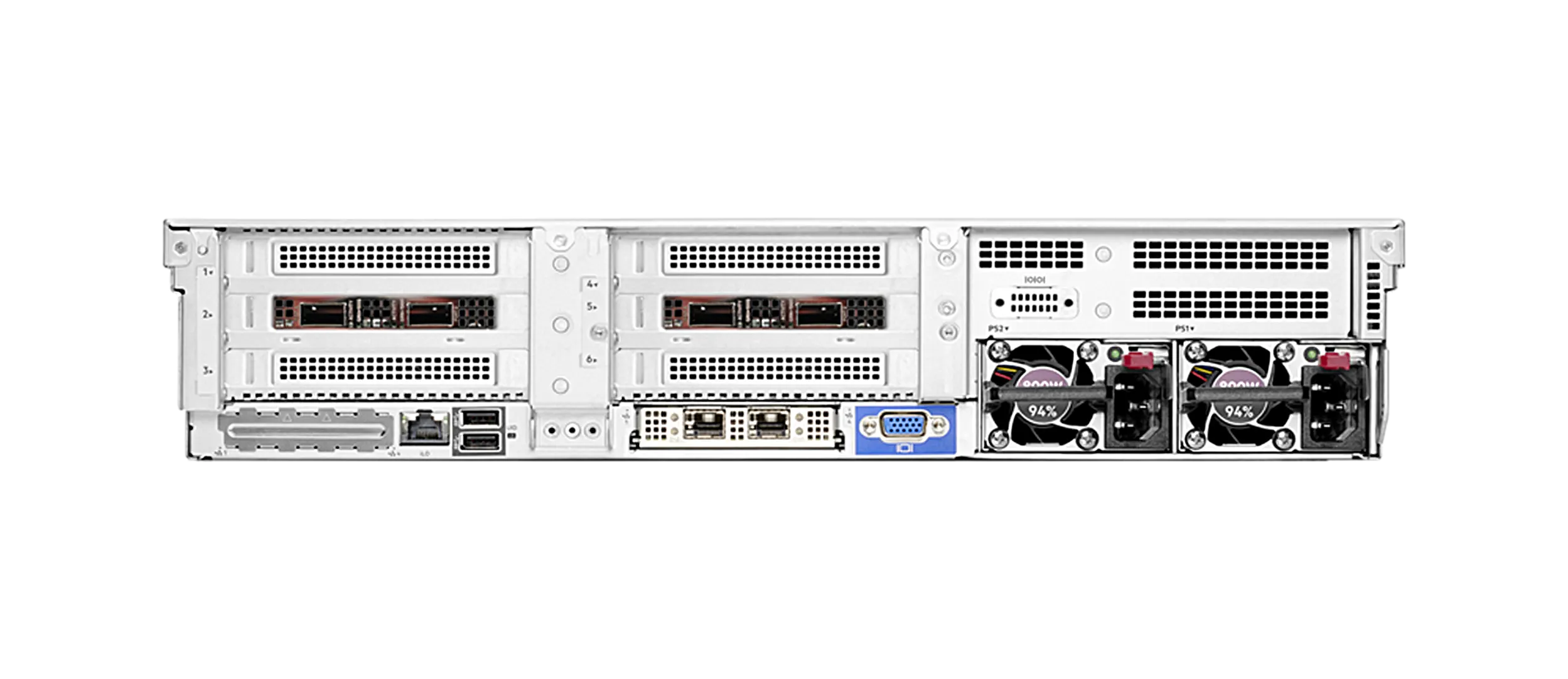

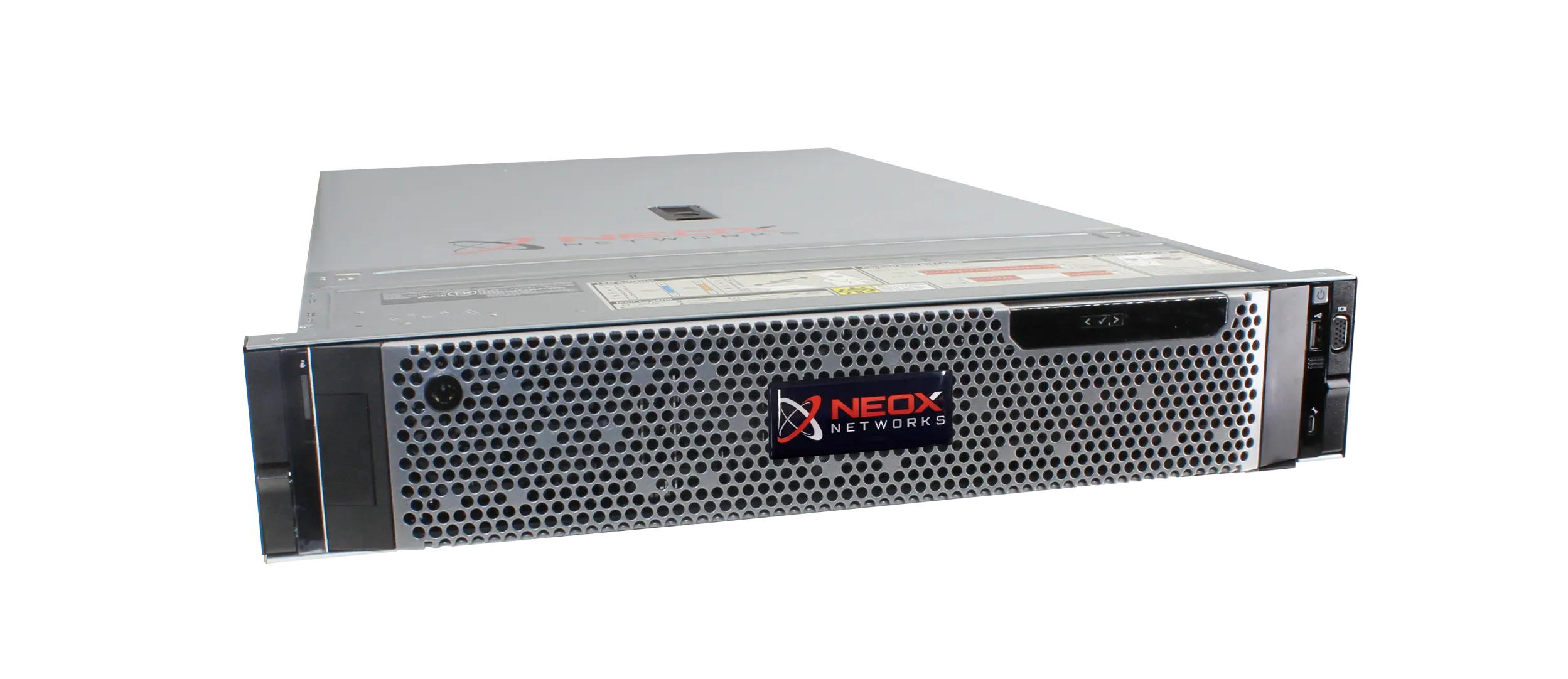

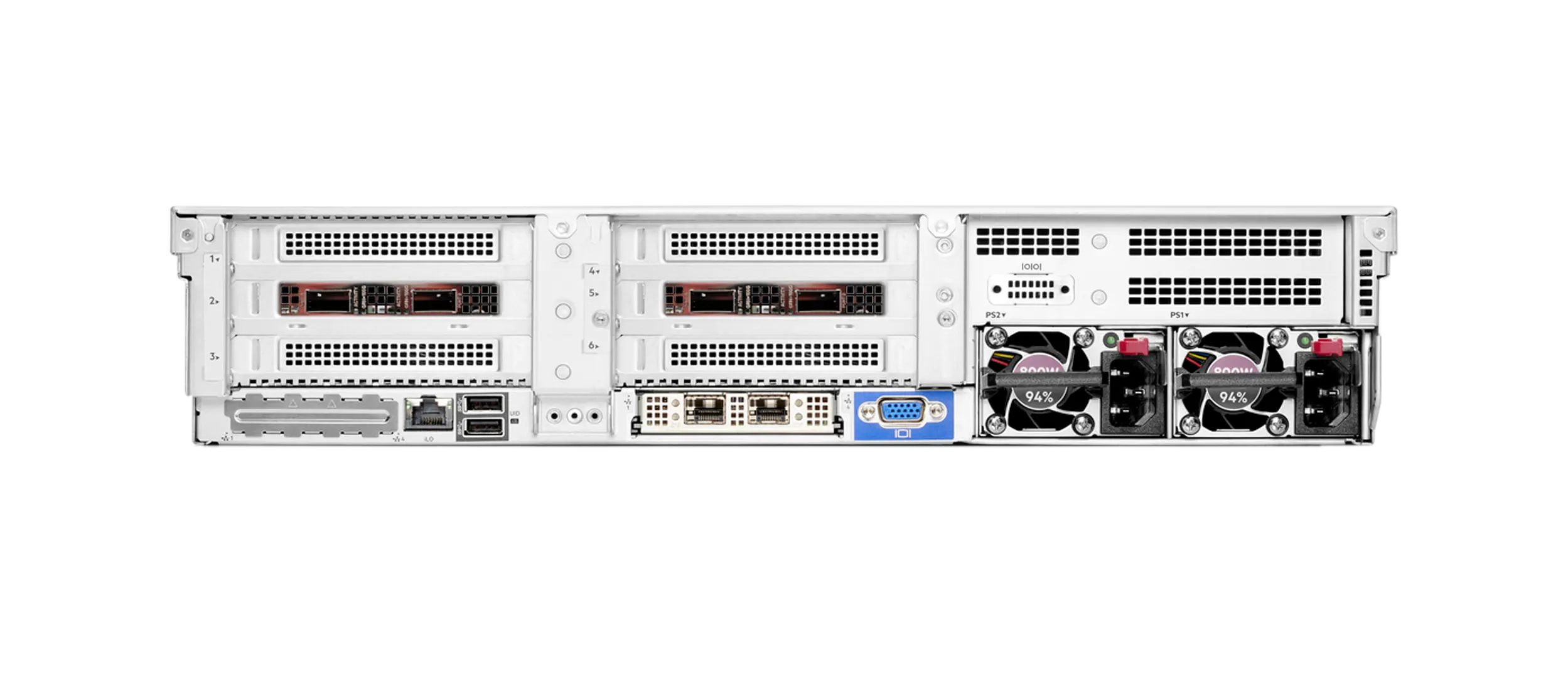

PacketTiger NX-PBPT-2XL/XXL Network packet broker
OVERVIEW

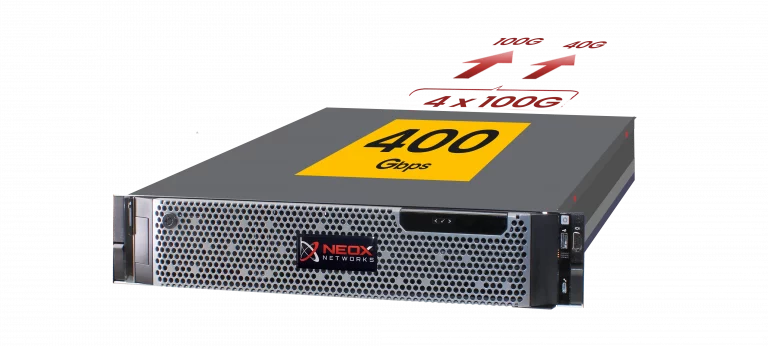

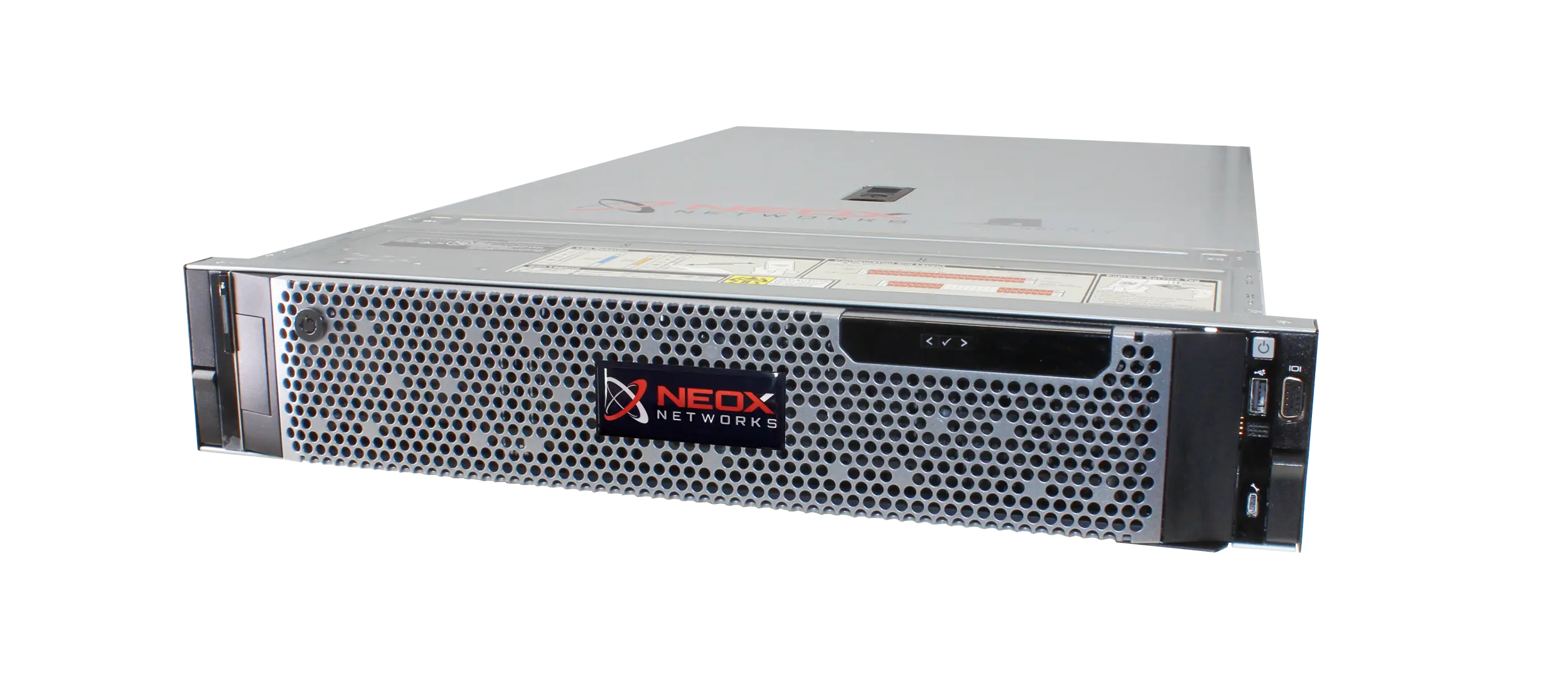

The PacketTiger NX-PBPT-2XL and NX-PBPT-2XXL are PCI Gen4-based Advanced Network Packet Brokers, offering 2 (-2XL) and 4 (-2XXL) QSFP28 ports respectively.
The system can be used to optimise port usage of existing infrastructure, or as a standalone device in L2-L7 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketTigers offer a full API interface using NETCONF.
HIGHLIGHTS
- Flexible port allocation (1:1, N:N, N:1, 1:N)
- Aggregation of 10M/100M/1000M, 1G, 10G, 40G and 100G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP Flags, MPLS, GTP, L2TP, VxLAN, Regular Expressions)
- Support of up to 1,000,000 filter rules, AND & OR logical operation
- Aggregation and regeneration of all network traffic
- User Defined Filtering – support for User Defined Filtering (UDF) rules
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Clustering of multiple Network Packet Broker systems via PacketDirector possible, HA configuration support
- Support for Layer 2 and Layer 3 GRE tunnelling protocol
- Load Balancing based on 3-tuple, 4-tuple and 5-tuple criteria, IP addresses
- Port labelling allows after aggregation at your analysis tool to identify the physical source of network traffic despite correlation
- Header stripping: MPLS, PPPoE, VN-Tag, VxLAN, GRE, L2TP, CTP-U, GENEVE
- Static and Dynamic Packet Slicing
- Nanosecond accurate hardware timestamping.
- AAA servers: Radius and TACACS+
- Metadata export using Kafka
- Logging through Syslog and SNMP Traps
- Hardware Acceleration via DPDK
- VLAN Editing, MAC Replace
- High flexibility thanks to NMC and transceiver connectivity
- Easy to use and simple to configure
- Fault diagnosis Digital Diagnostics Monitoring (DDM) (available soon
MODELS AND ACCESSORIES
| Part Number | Ports | Dimensions (WxHxD)/Weight | Rack Mounting | CERTIFICATIONS |
|---|---|---|---|---|
| NX-PBPT-2XL PCIe Gen4 | 2x 100G QSFP28* | 44.5 cm x 8.7 cm x 73.0 cm / ca. 25 kg | Yes | CE, RoHS, FCC Class A |
| NX-PBPT-2XXL PCIe Gen4 | 4x 100G QSFP28* | 44.5 cm x 8.7 cm x 73.0 cm / ca. 25 kg | Yes | CE, RoHS, FCC Class A |
DOCUMENTS

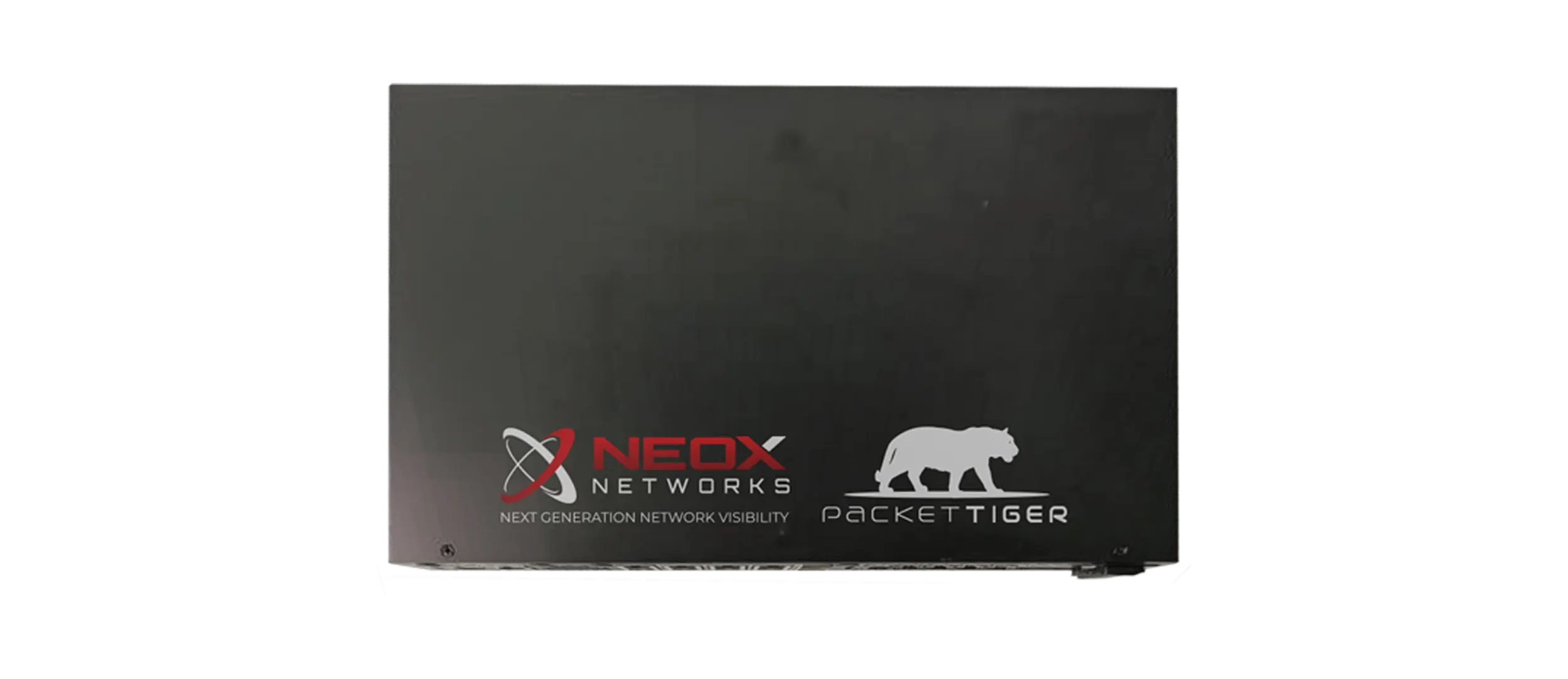

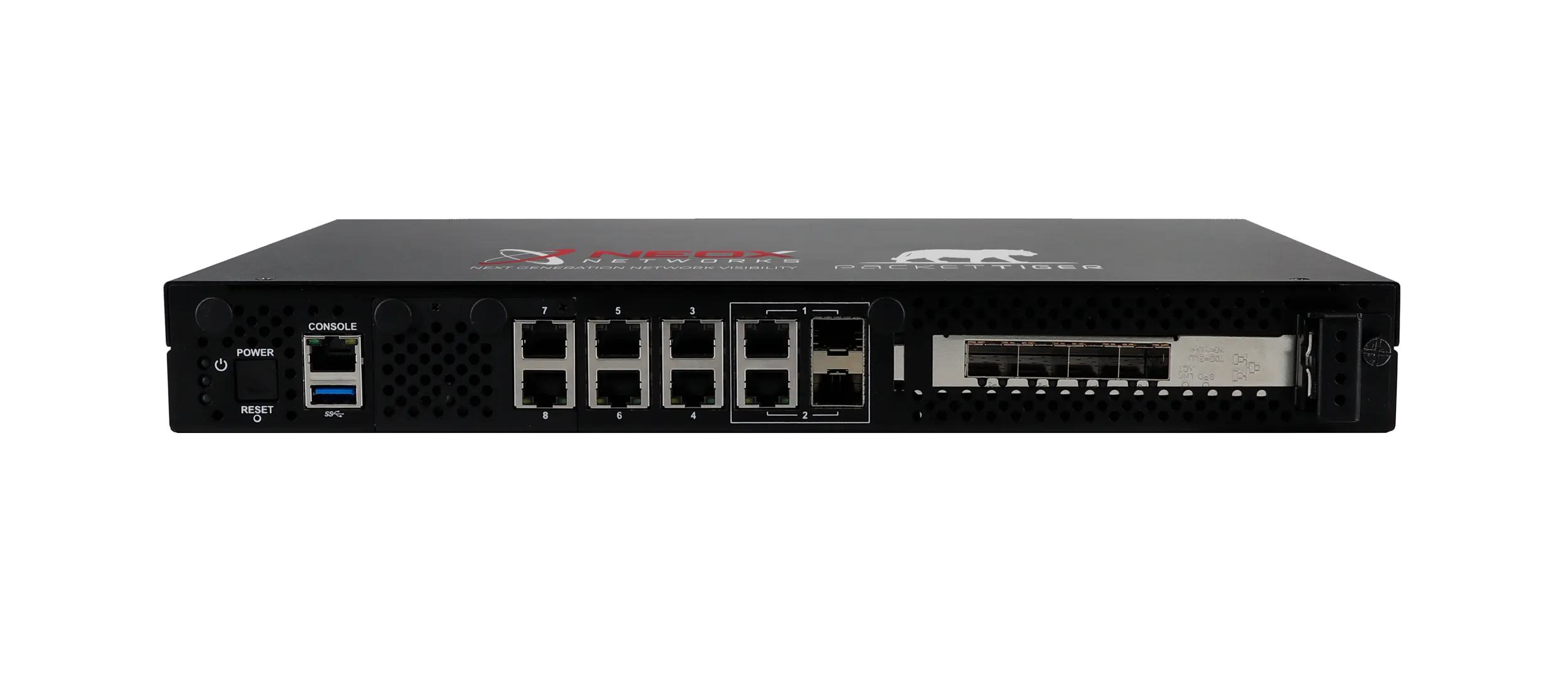

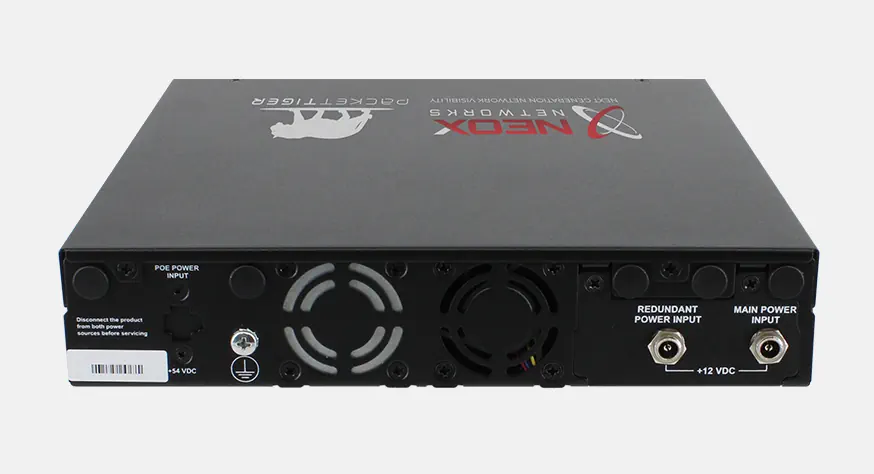

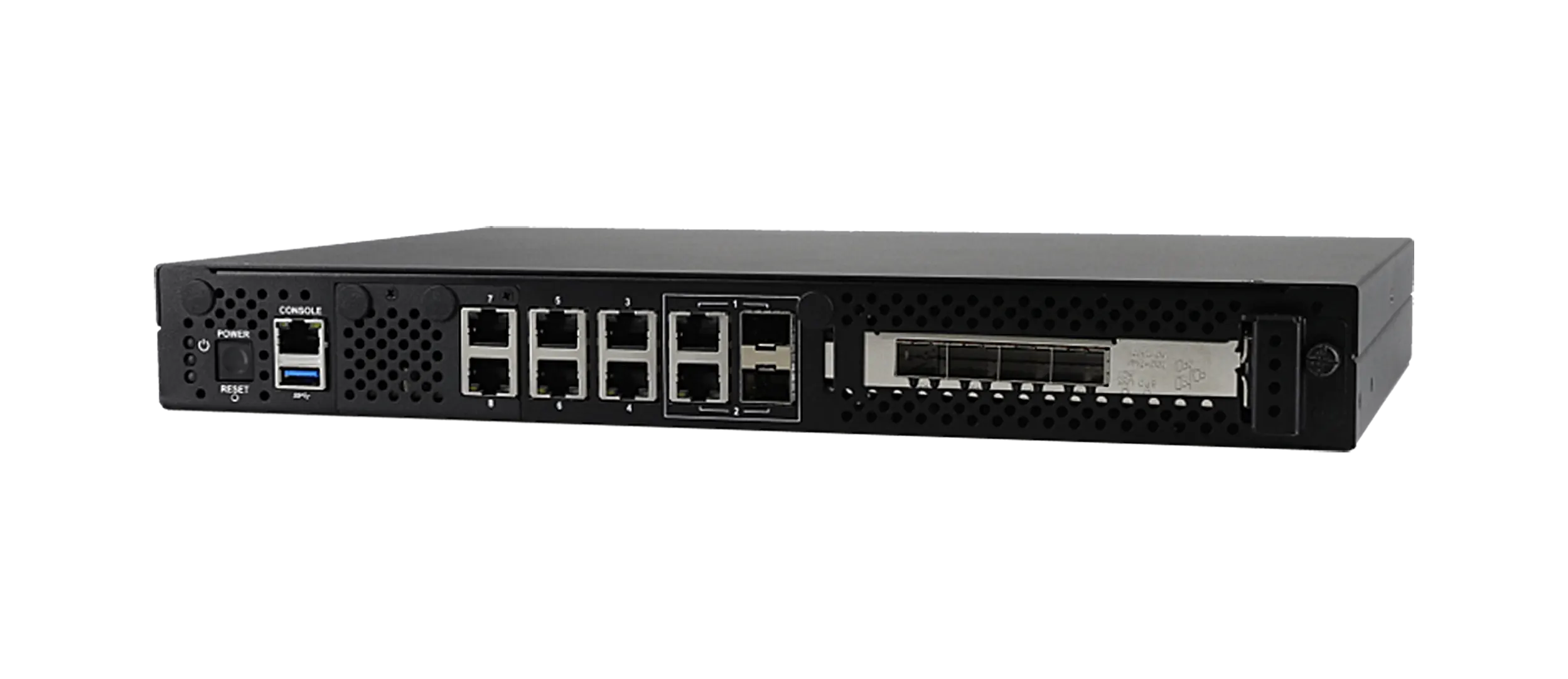

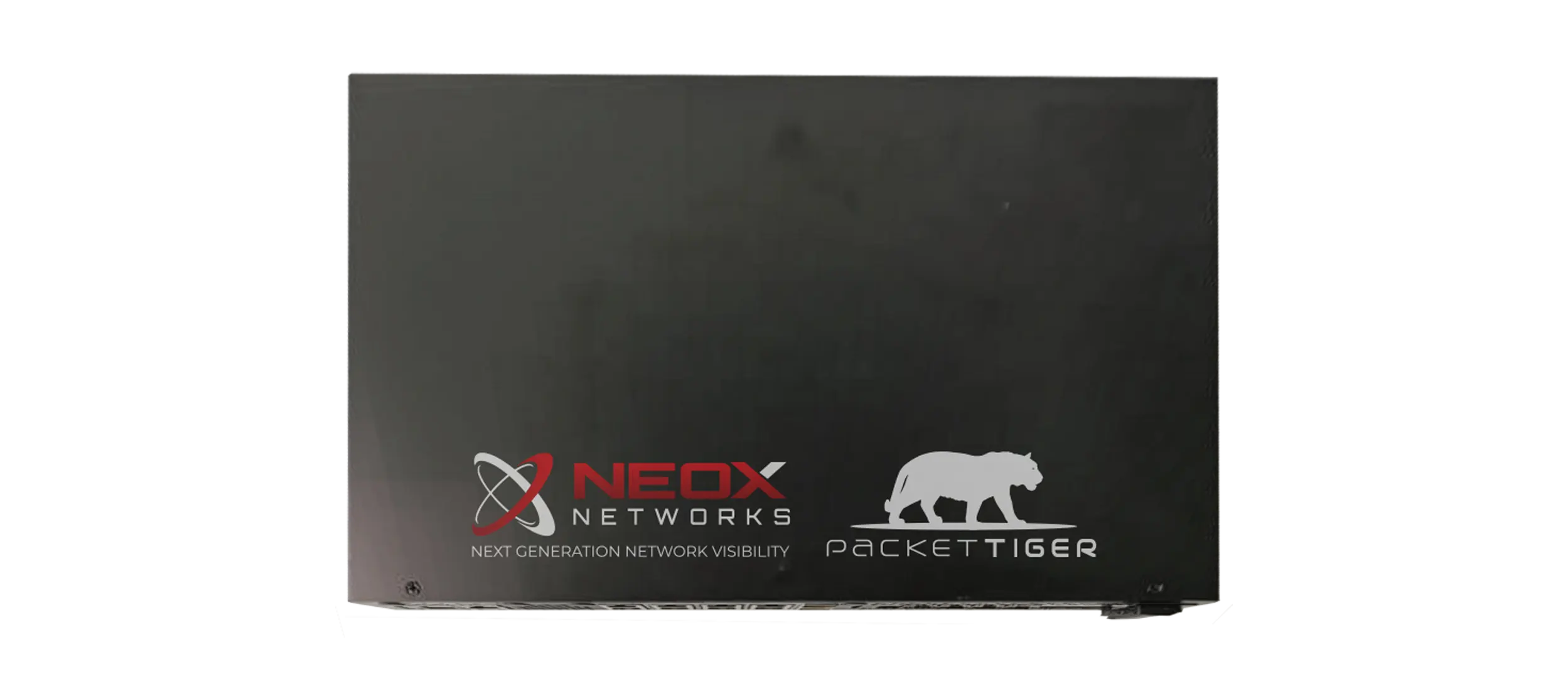

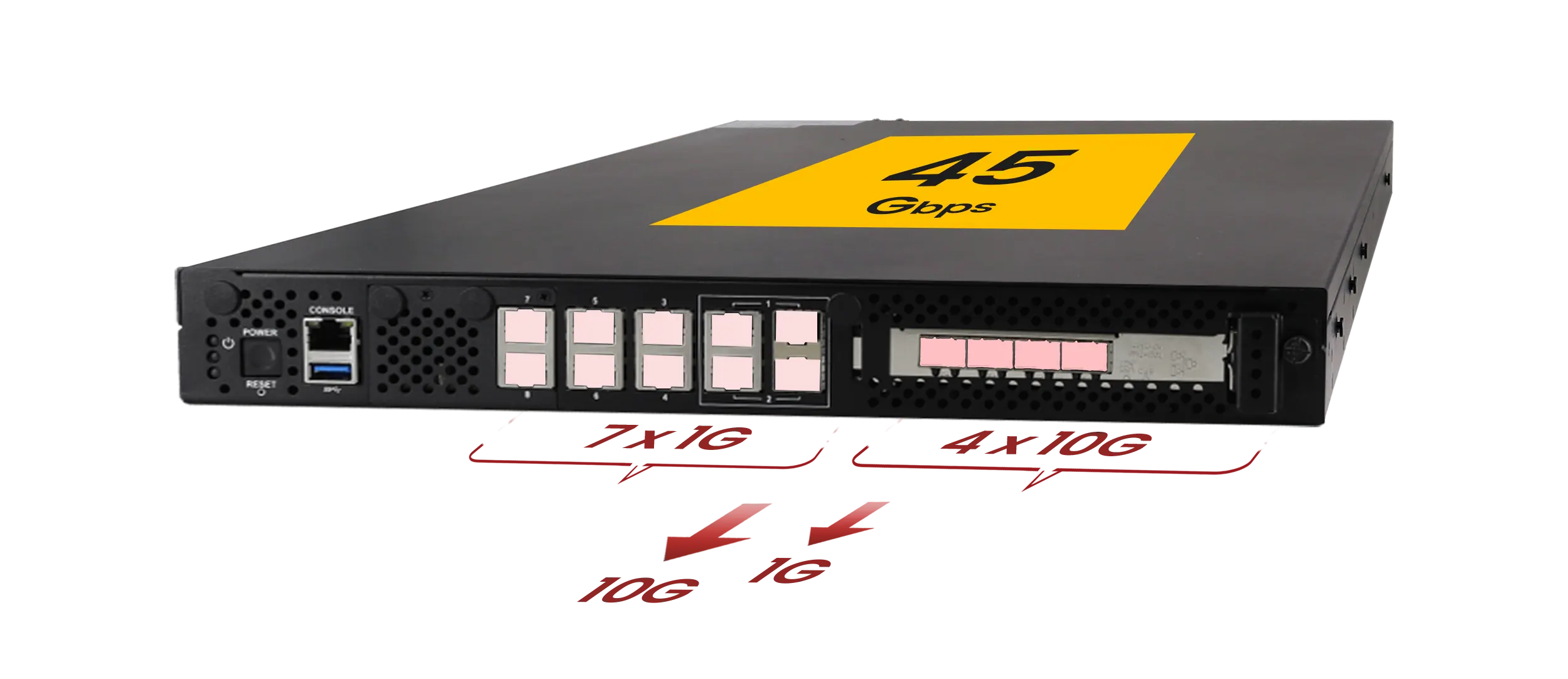

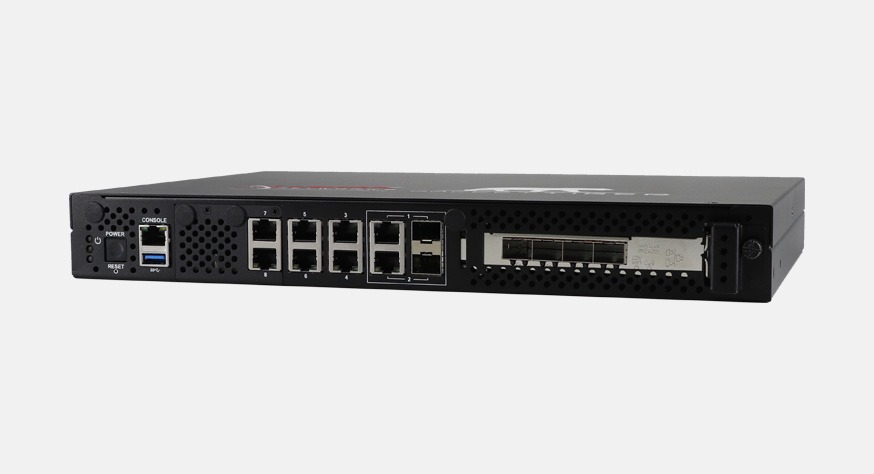

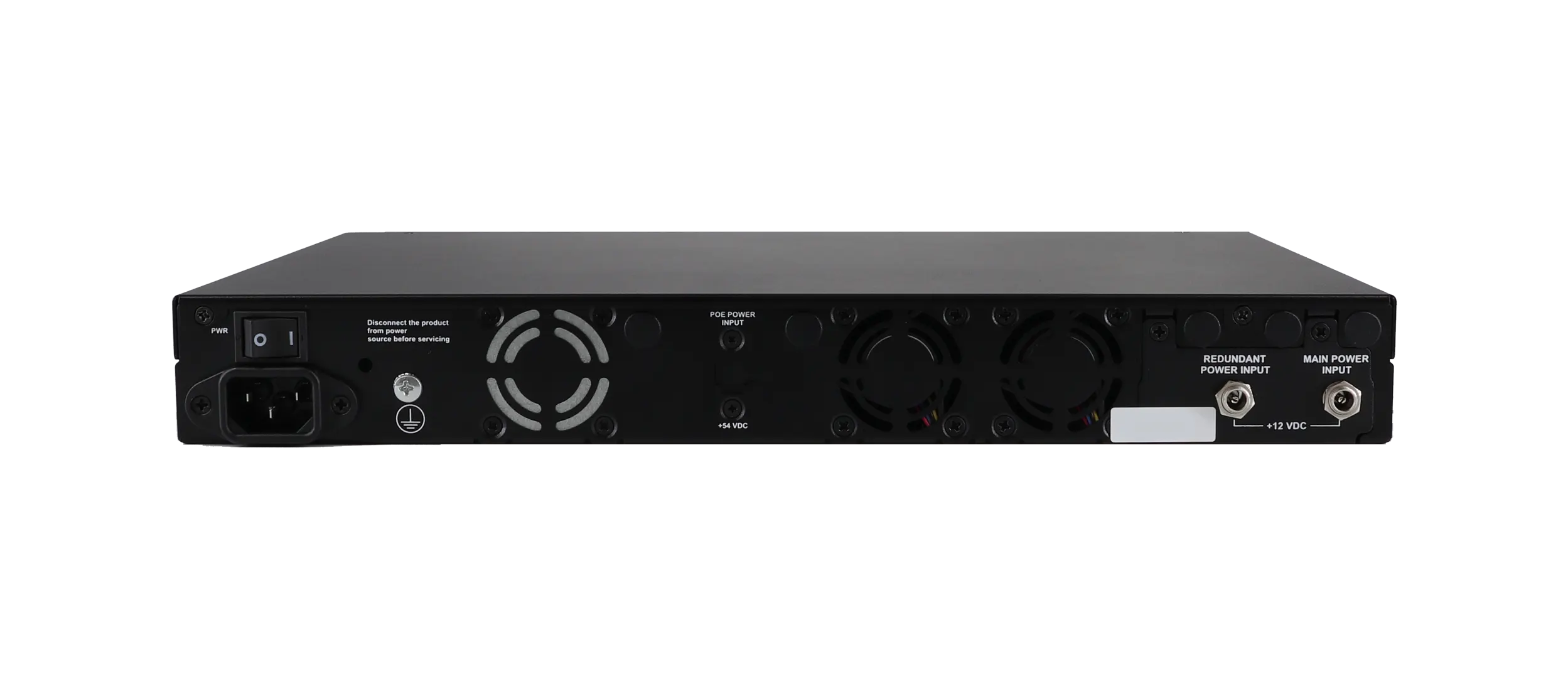

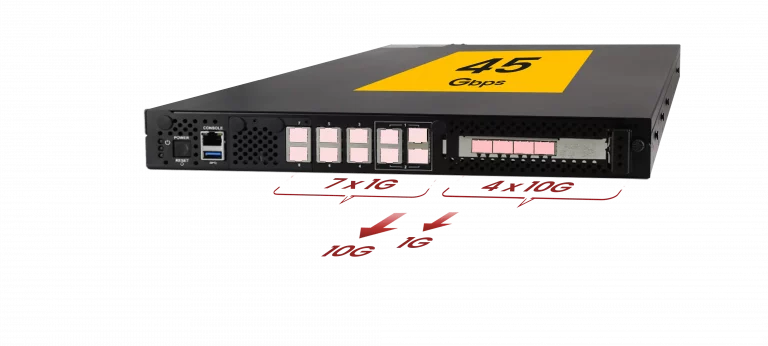

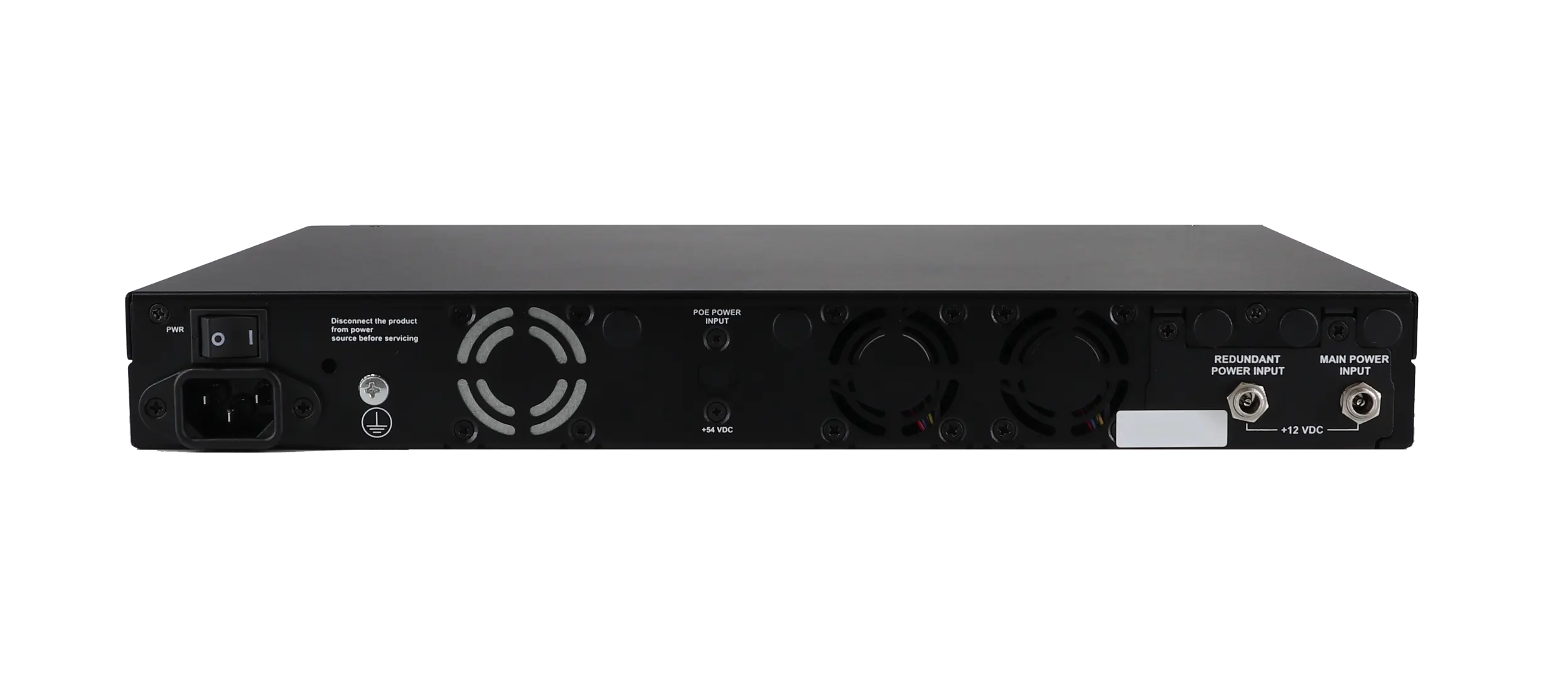

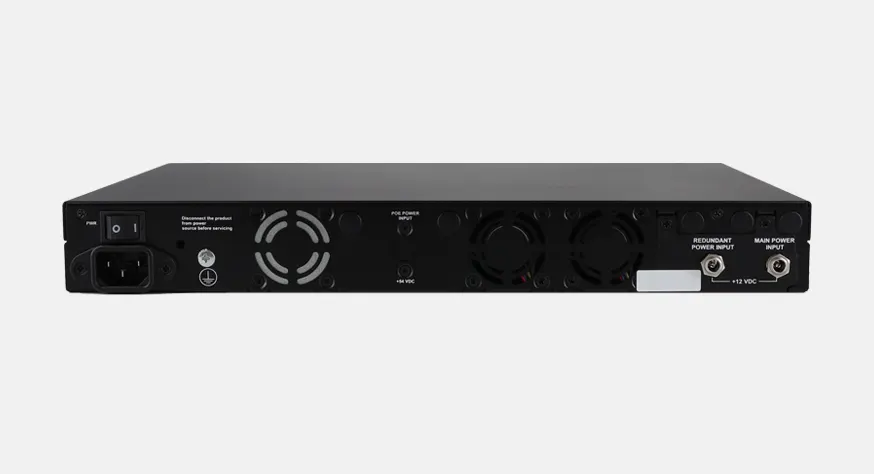

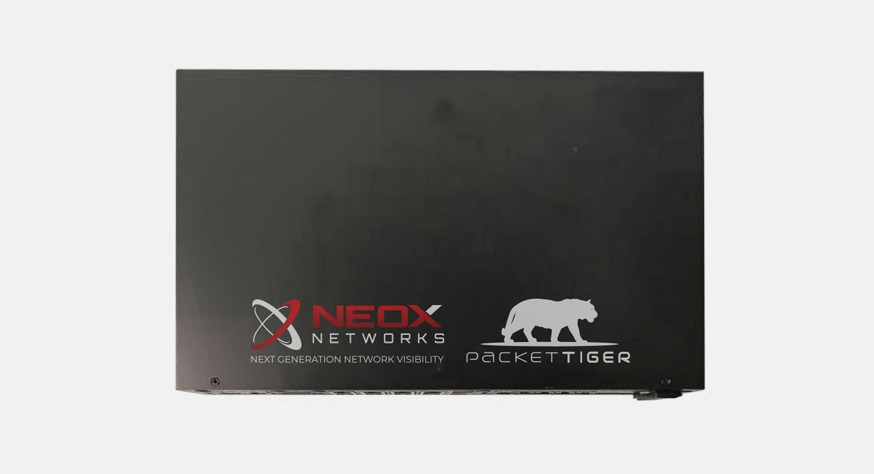

PacketTiger NX-PBPT-1SCR Network packet broker
OVERVIEW
The PacketTiger NX-PBPT-1SCR is an Advanced Network Packet Broker and provides 5x 10M/100M/1000M RJ45, 4x 1G/10G SFP+ and optionally 2x 1G SFP or 2x 1G RJ45 ports.
The system can be used to optimise port usage of existing infrastructure, or as a standalone device in L2-L7 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketTigers offer a full API interface using NETCONF.
HIGHLIGHTS
- Flexible port allocation (1:1, N:N, N:1, 1:N)
- Aggregation of 10M/100M/1000M, 1G, 10G, 40G and 100G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP Flags, MPLS, GTP, L2TP, VxLAN, Regular Expressions)
- Support of up to 1,000,000 filter rules, AND & OR logical operation
- Aggregation and regeneration of all network traffic
- User Defined Filtering – support for User Defined Filtering (UDF) rules
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Clustering of multiple Network Packet Broker systems via PacketDirector possible, HA configuration support
- Support for Layer 2 and Layer 3 GRE tunnelling protocol
- Load Balancing based on 3-tuple, 4-tuple and 5-tuple criteria, IP addresses
- Port labelling allows after aggregation at your analysis tool to identify the physical source of network traffic despite correlation
- Header stripping: MPLS, PPPoE, VN-Tag, VxLAN, GRE, L2TP, CTP-U, GENEVE
- Static and Dynamic Packet Slicing
- Nanosecond accurate hardware timestamping.
- AAA servers: Radius and TACACS+
- Metadata export using Kafka
- Logging through Syslog and SNMP Traps
- Hardware Acceleration via DPDK
- VLAN Editing, MAC Replace
- High flexibility thanks to NMC and transceiver connectivity
- Easy to use and simple to configure
- Fault diagnosis Digital Diagnostics Monitoring (DDM) (available soon
MODELS AND ACCESSORIES
| Part Number | Ports | Dimensions (WxHxD)/Weight | Rack Mounting | Certifications |
|---|---|---|---|---|
| NX-PBPT-1SCR | 5x 10M/100M/1000M RJ45 2x 1G SFP/RJ45* 4x 1G/10G SFP+ | 35.0 cm x 4.4 cm x 26.0 cm / 5.0 kg | Yes | CE, RoHS, FCC Class A, EC Class A |
DOCUMENTS
PacketTiger NX-PBPT-1M Network packet broker
OVERVIEW
The PacketTiger NX-PBPT-1M is an Advanced Network Packet Broker and provides 4x 10M/100M/1000M RJ45 and 2x 1G/10G SFP+ ports.
The system can be used to optimise port usage of existing infrastructure, or as a standalone device in L2-L7 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketTigers offer a full API interface using NETCONF.
HIGHLIGHTS
- Flexible port allocation (1:1, N:N, N:1, 1:N)
- Aggregation of 10M/100M/1000M, 1G, 10G, 40G and 100G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP Flags, MPLS, GTP, L2TP, VxLAN, Regular Expressions)
- Support of up to 1,000,000 filter rules, AND & OR logical operation
- Aggregation and regeneration of all network traffic
- User Defined Filtering – support for User Defined Filtering (UDF) rules
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Clustering of multiple Network Packet Broker systems via PacketDirector possible, HA configuration support
- Support for Layer 2 and Layer 3 GRE tunnelling protocol
- Load Balancing based on 3-tuple, 4-tuple and 5-tuple criteria, IP addresses
- Port labelling allows after aggregation at your analysis tool to identify the physical source of network traffic despite correlation
- Header stripping: MPLS, PPPoE, VN-Tag, VxLAN, GRE, L2TP, CTP-U, GENEVE
- Static and Dynamic Packet Slicing
- Nanosecond accurate hardware timestamping.
- AAA servers: Radius and TACACS+
- Metadata export using Kafka
- Logging through Syslog and SNMP Traps
- Hardware Acceleration via DPDK
- VLAN Editing, MAC Replace
- High flexibility thanks to NMC and transceiver connectivity
- Easy to use and simple to configure
- Fault diagnosis Digital Diagnostics Monitoring (DDM) (available soon)
MODELS AND ACCESSORIES
| Part Number | Ports | Dimensions (WxHxD)/Weight | Rack Mounting | Certifications |
|---|---|---|---|---|
| NX-PBPT-1M | 4x 10M/100M/1000M RJ45 2x 1G/10G SFP+ | 25.4 cm x 4.3 cm x 22.6 cm / 1.6 kg | Optional Rack Mounting Kit | CE, RoHS |
DOCUMENTS

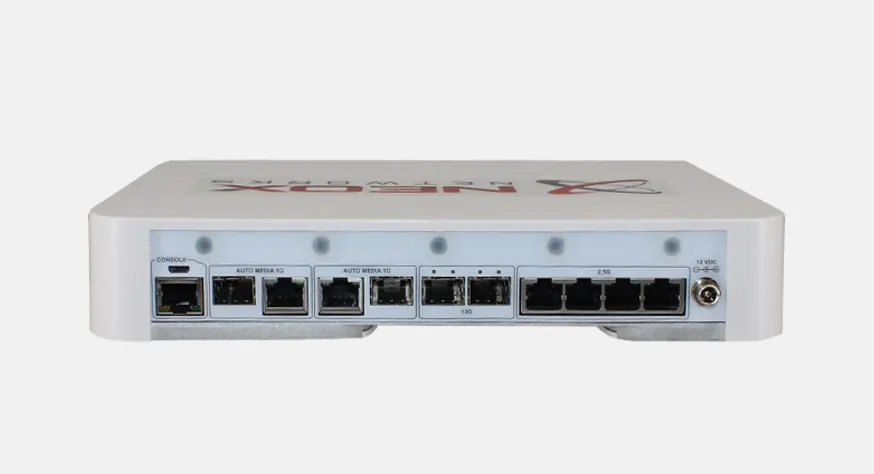

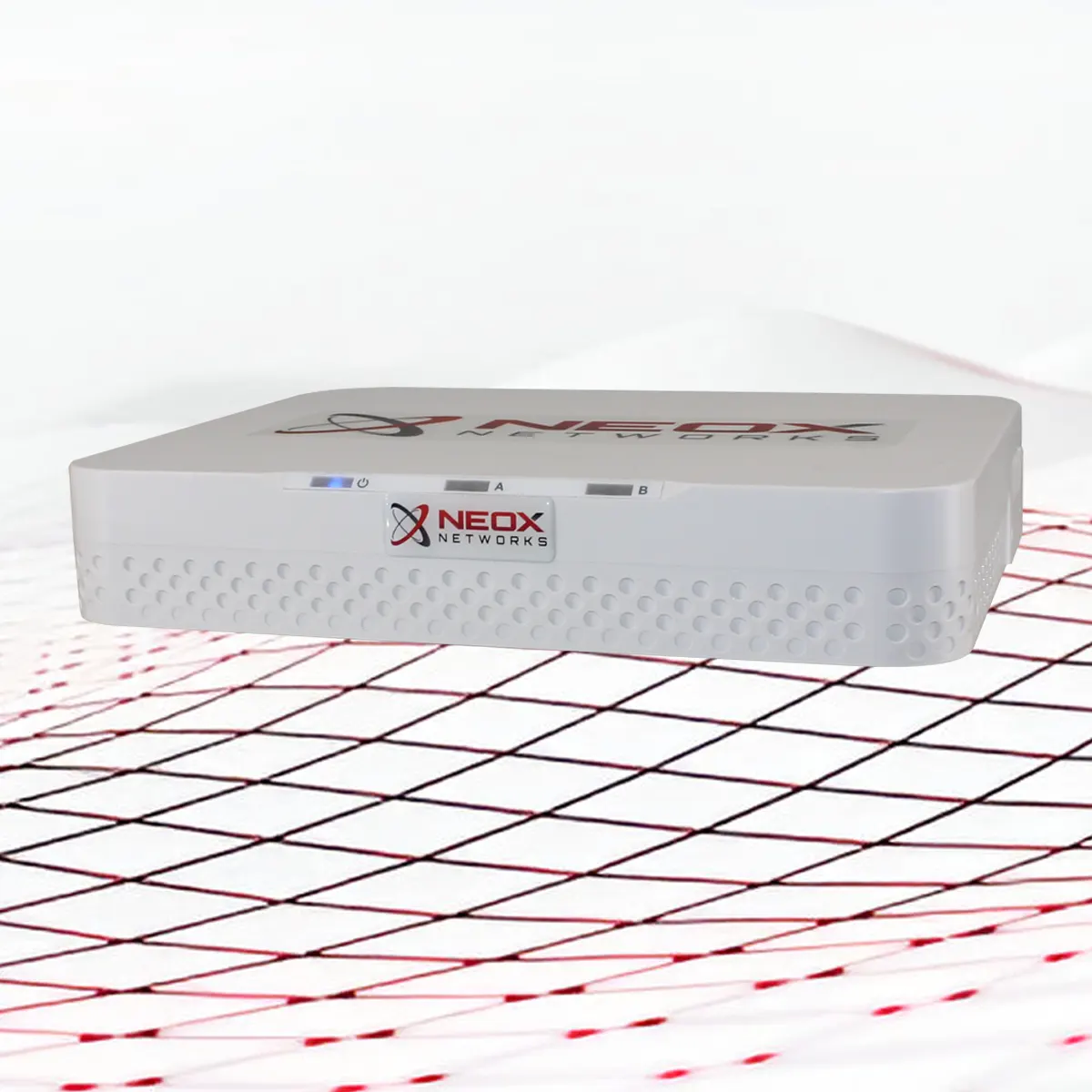

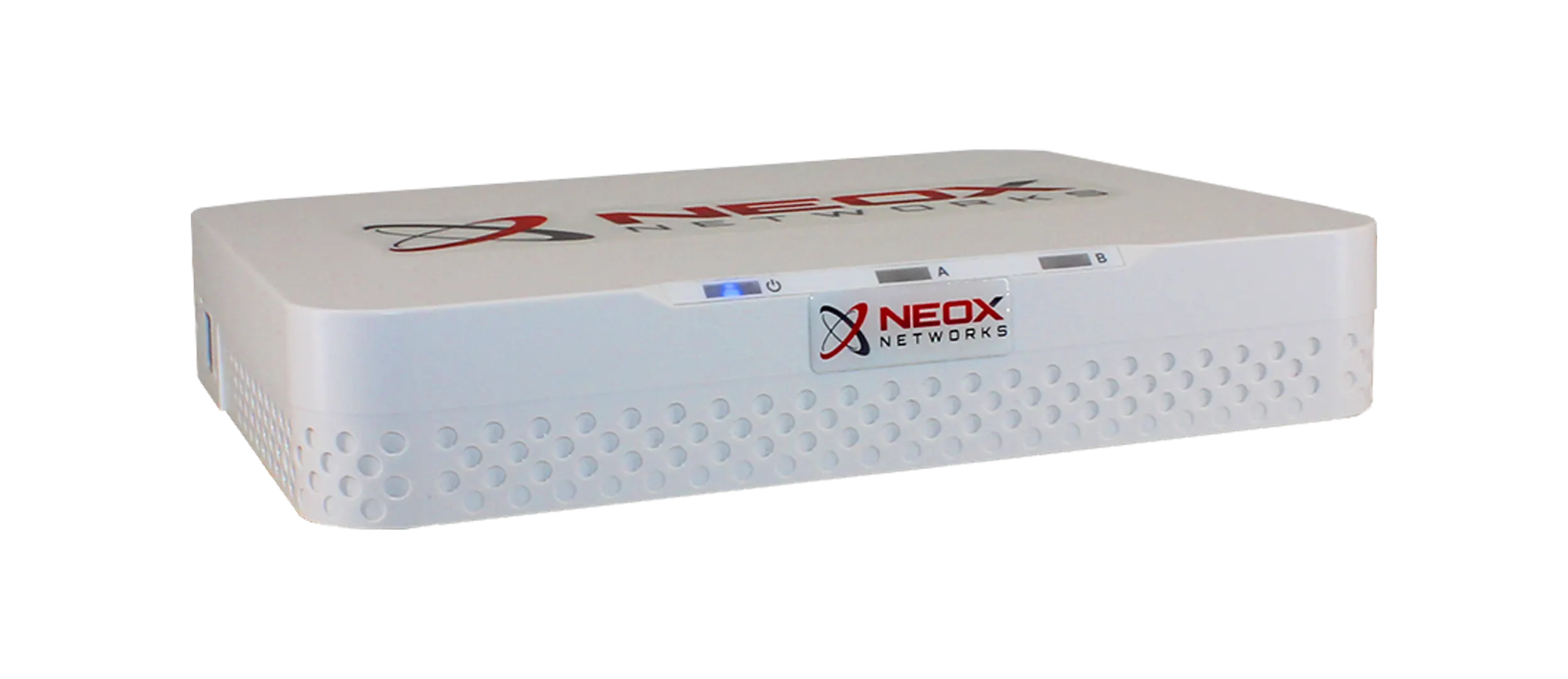

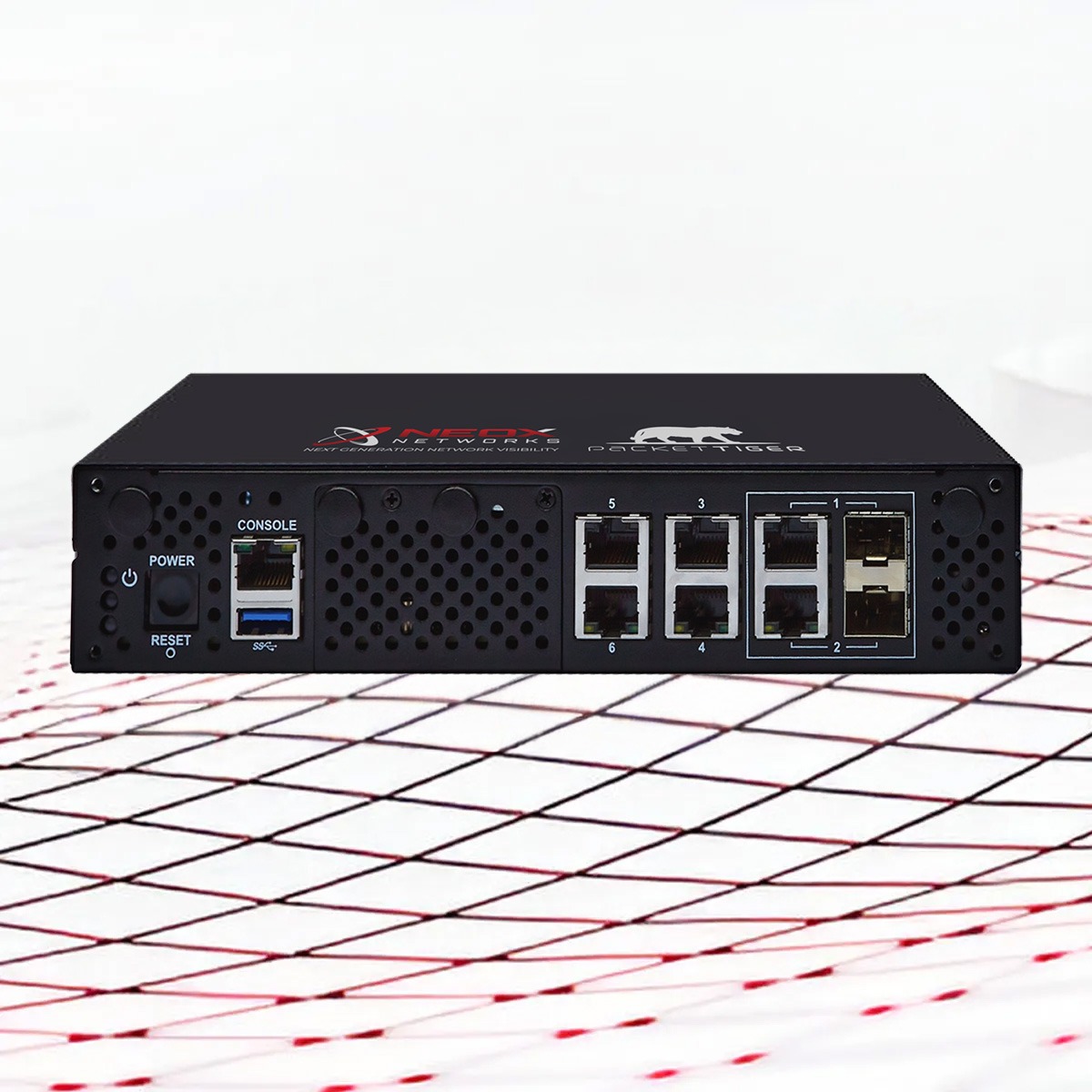

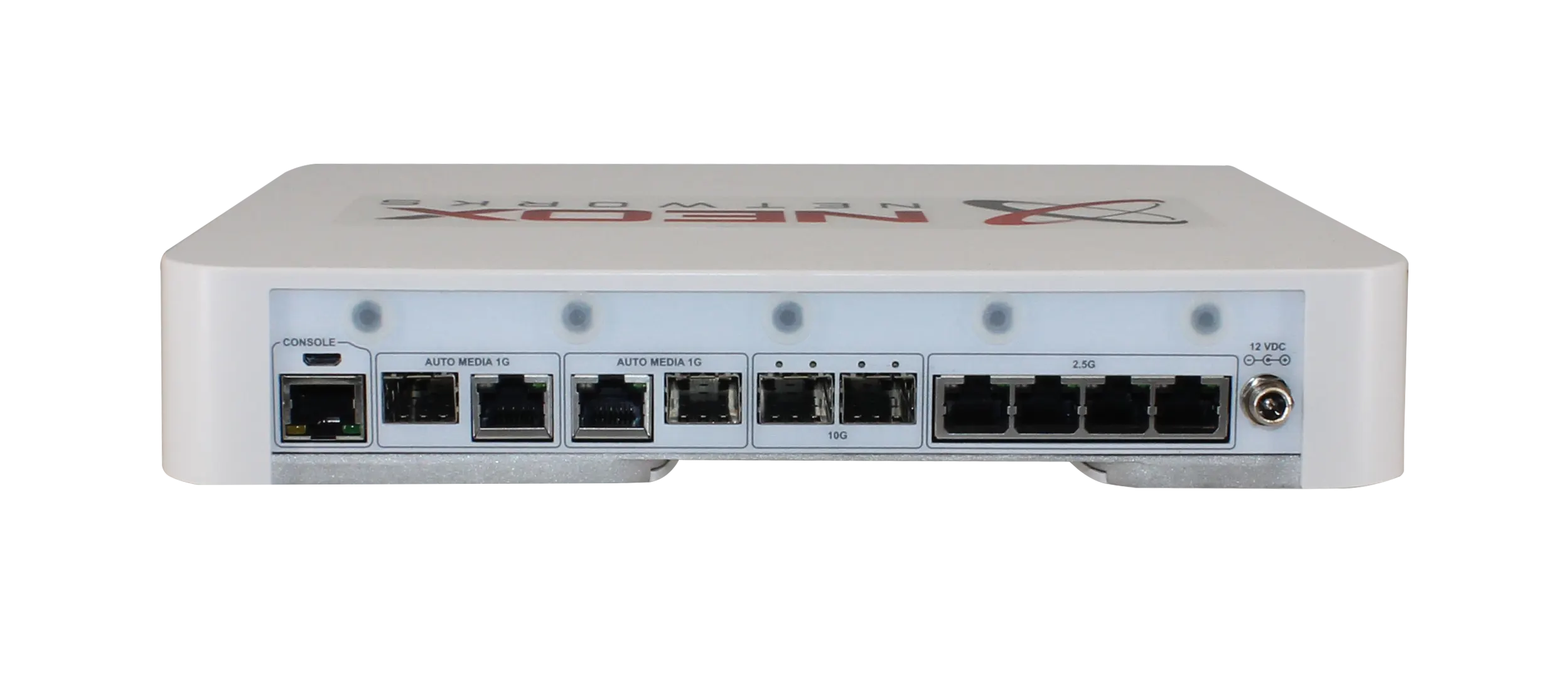

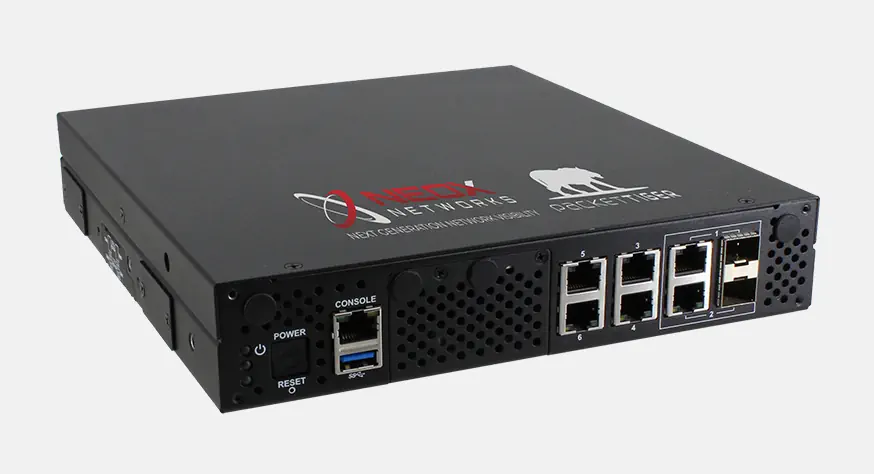

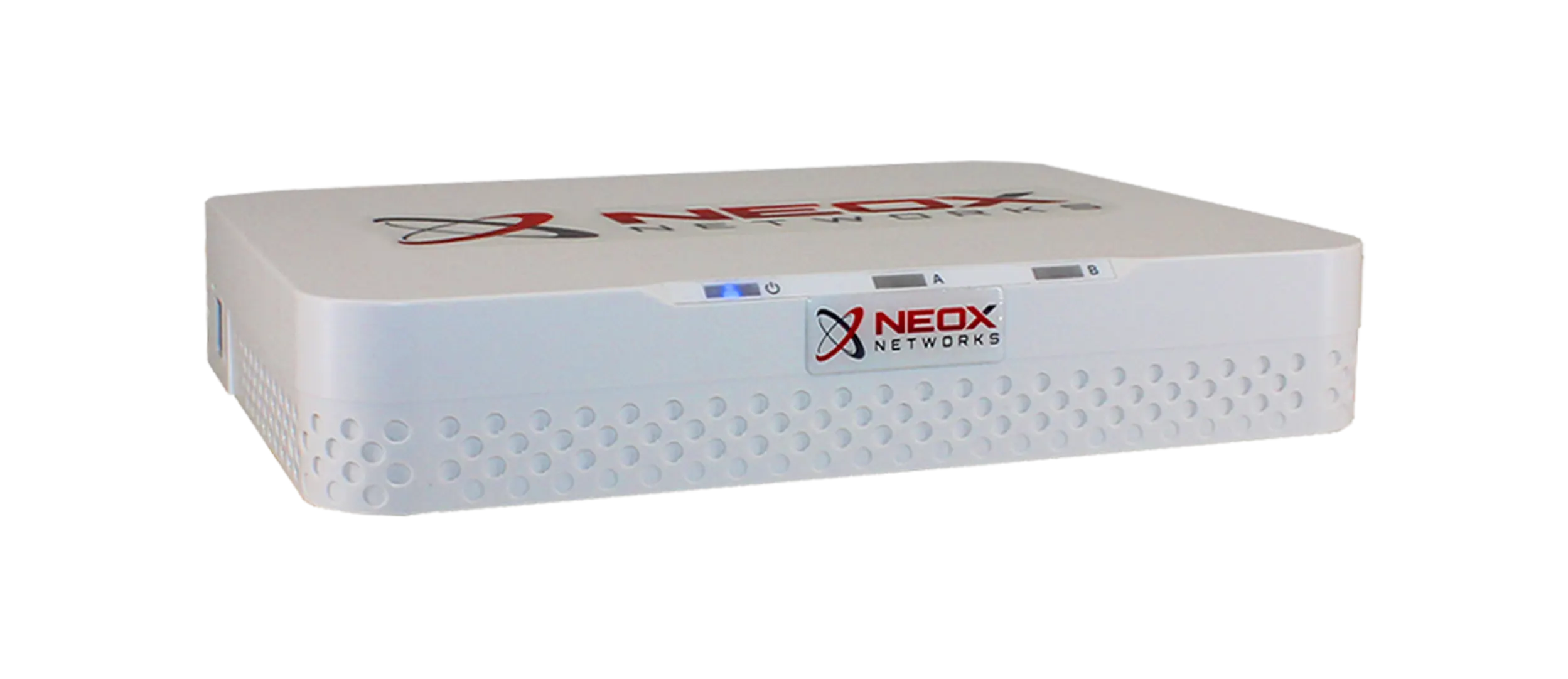

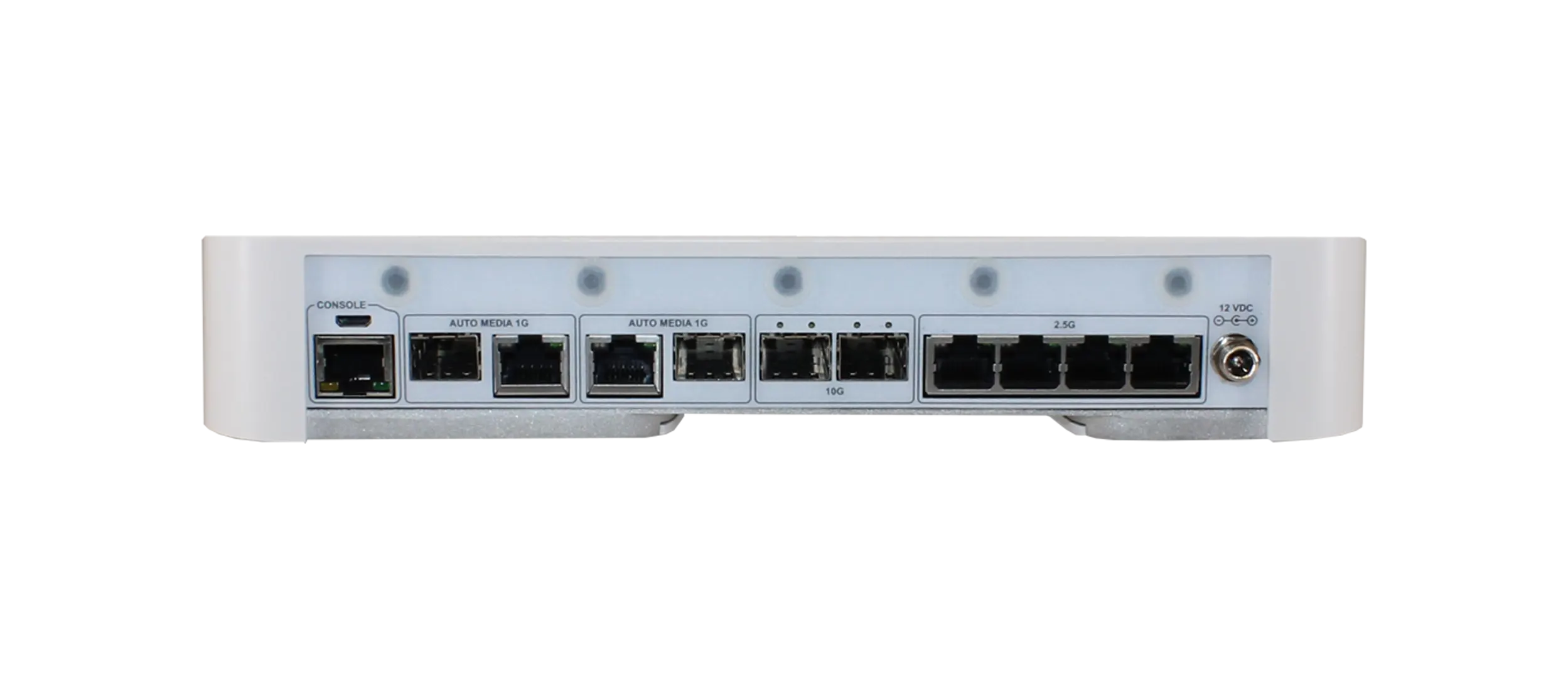

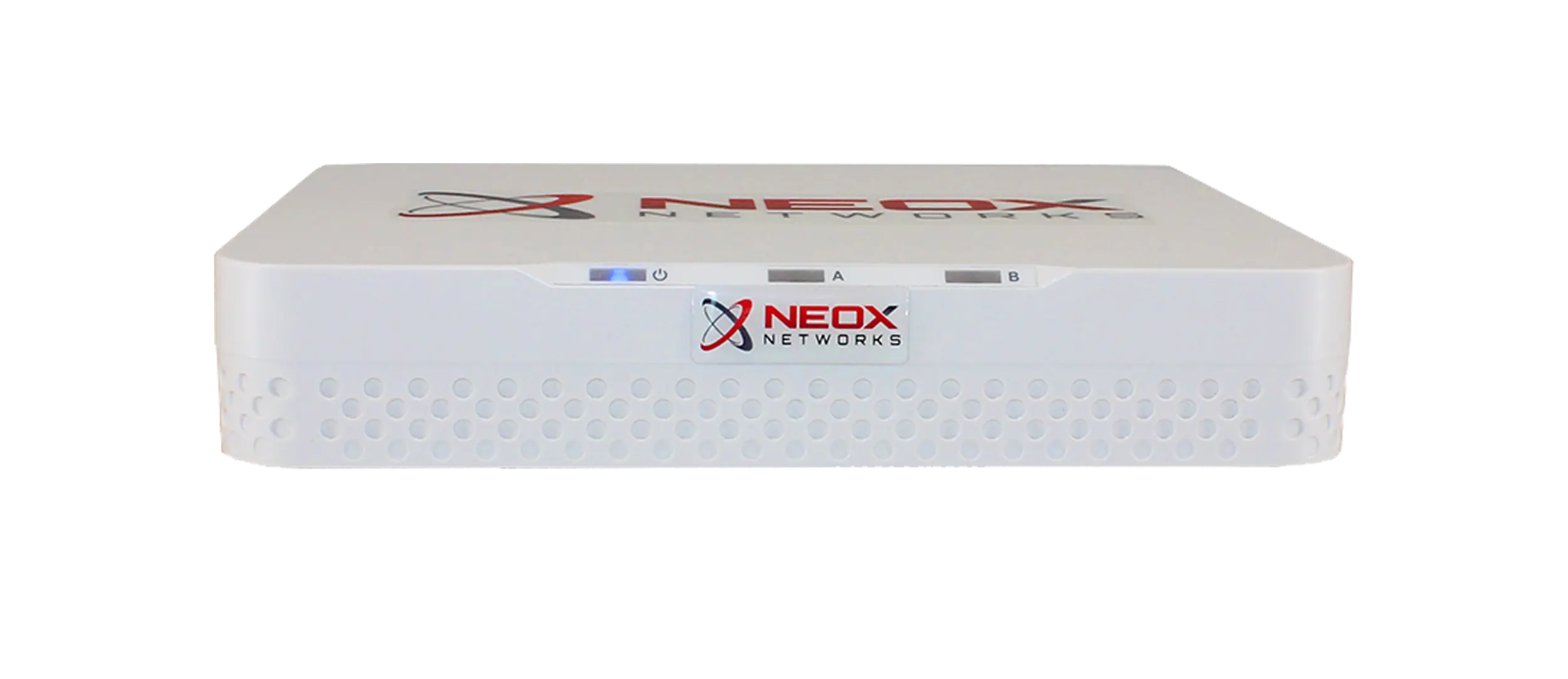

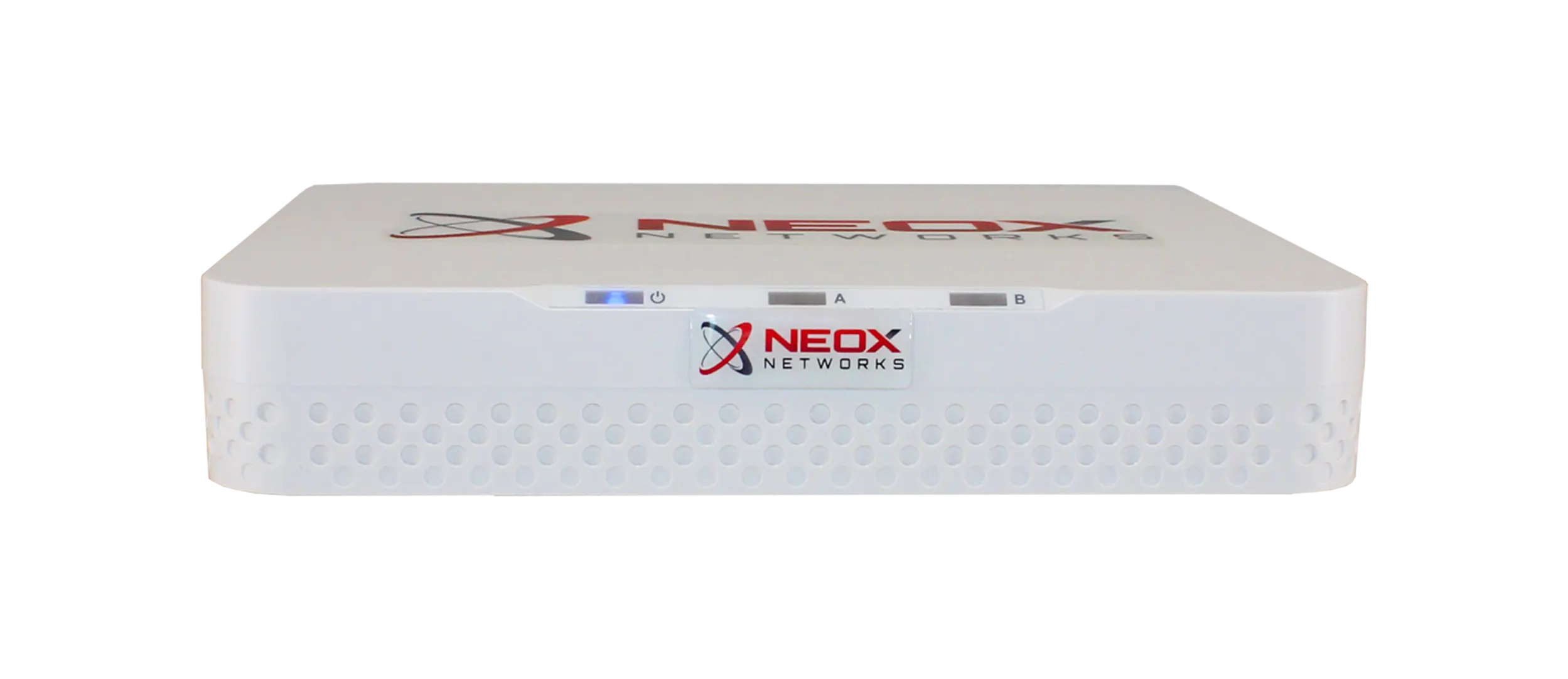

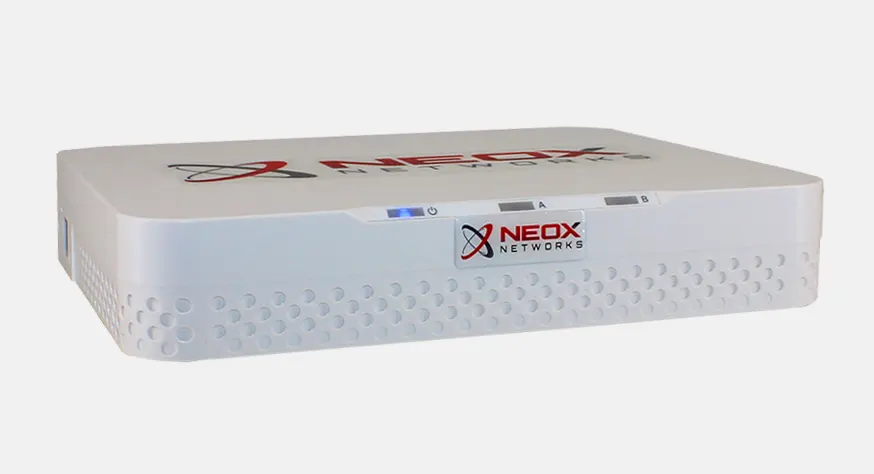

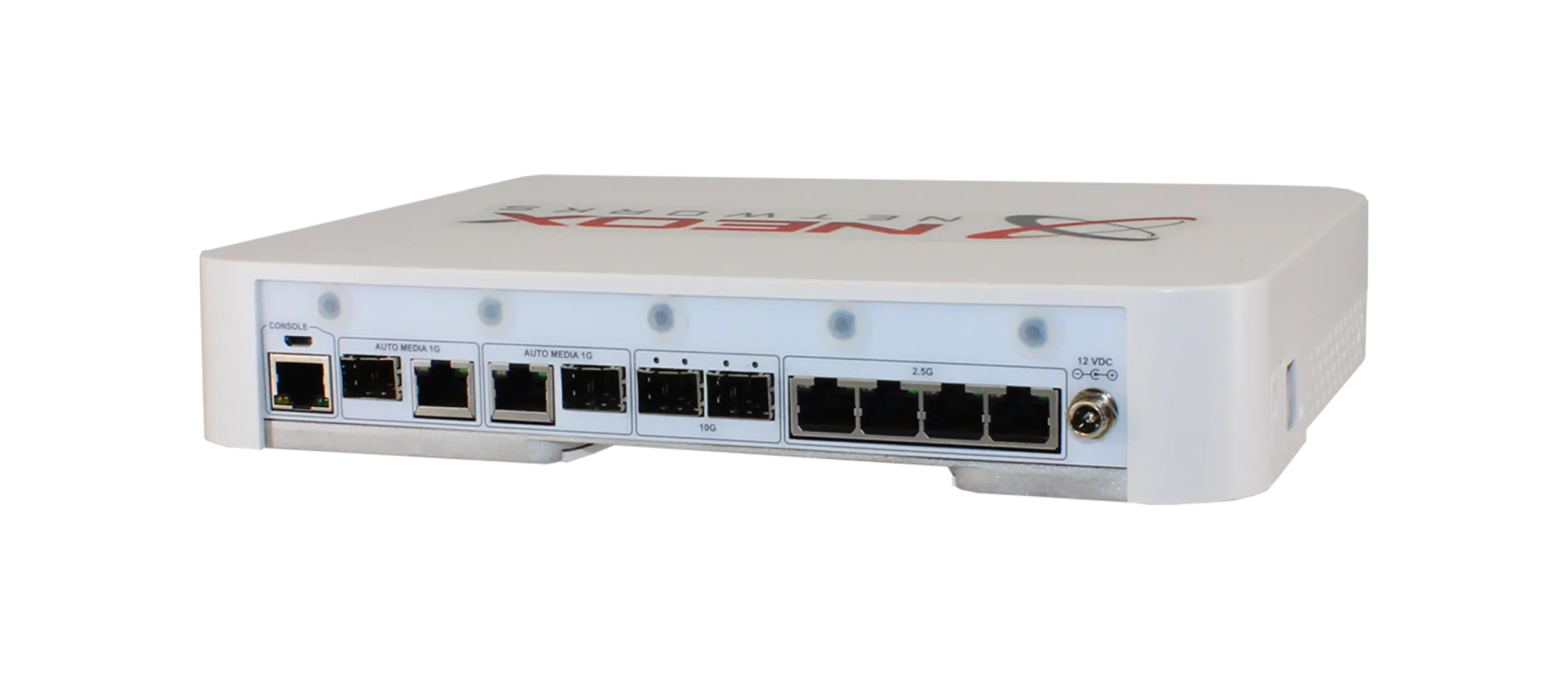

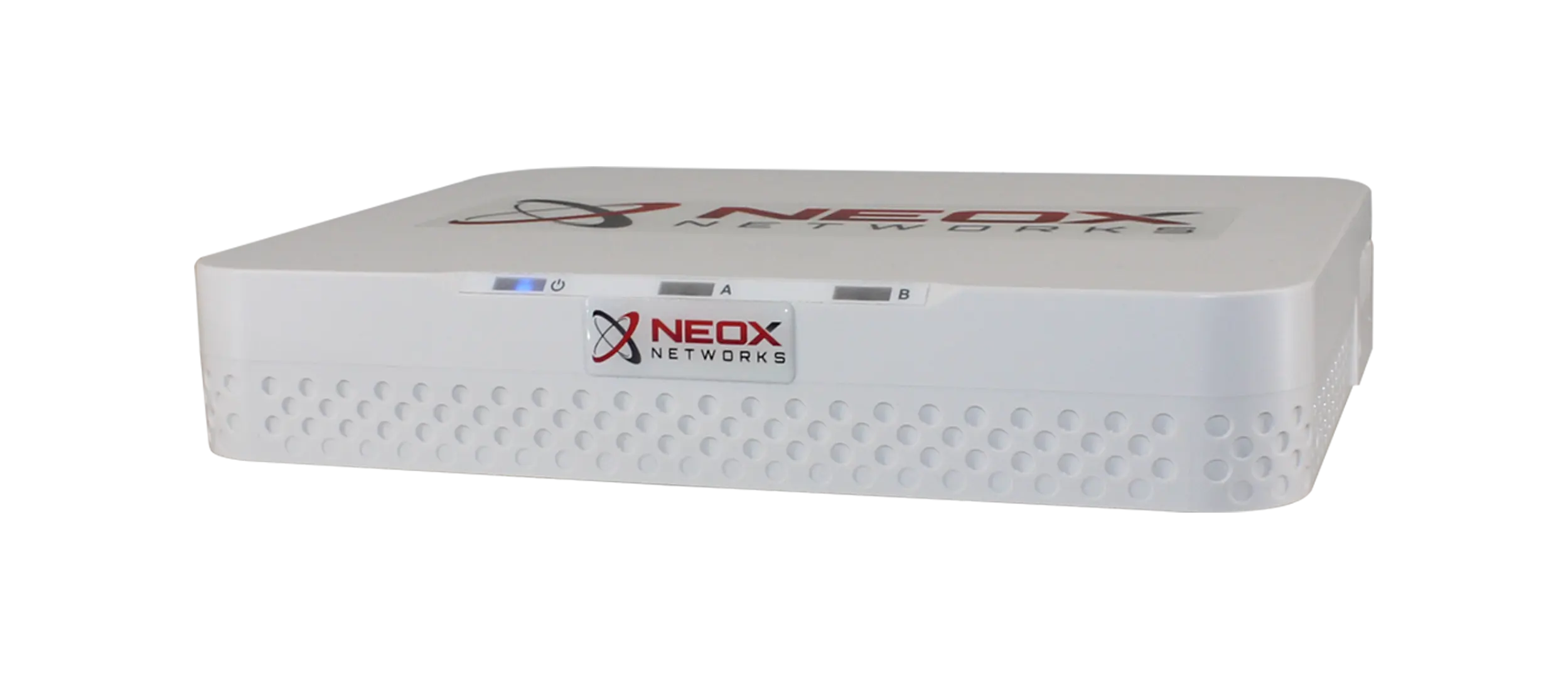

PacketTiger NX-PBPT-1SC Network packet broker
OVERVIEW

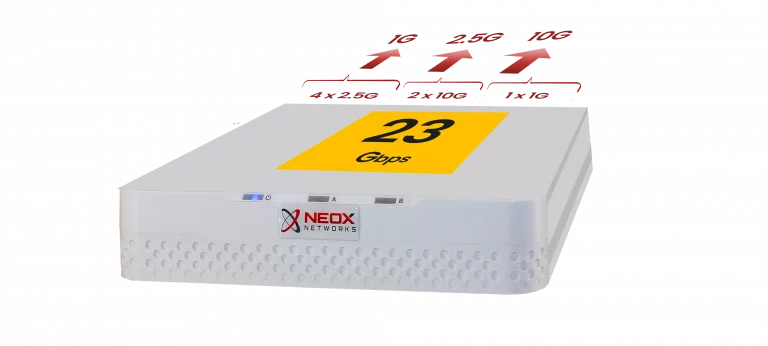

The PacketTiger NX-PBPT-1SC is an Advanced Network Packet Broker and provides 3x 10M/100M/1000M RJ45 and optionally 2x 1G SFP or 2x 1G RJ45 ports.
The system can be used to optimise port usage of existing infrastructure, or as a standalone device in L2-L7 filtering applications. To ensure seamless integration into your monitoring infrastructure, all PacketTigers offer a full API interface using NETCONF.
HIGHLIGHTS
- Flexible port allocation (1:1, N:N, N:1, 1:N)
- Aggregation of 10M/100M/1000M, 1G, 10G, 40G and 100G network ports
- Support for filtering rules (MAC, VLAN, IPv4/IPv6, TCP/UDP, DSCP, TCP Flags, MPLS, GTP, L2TP, VxLAN, Regular Expressions)
- Support of up to 1,000,000 filter rules, AND & OR logical operation
- Aggregation and regeneration of all network traffic
- User Defined Filtering – support for User Defined Filtering (UDF) rules
- Multiple management options (CLI, SSH, SNMP V2/V3, WEB UI, Net CONF and REST API)
- Clustering of multiple Network Packet Broker systems via PacketDirector possible, HA configuration support
- Support for Layer 2 and Layer 3 GRE tunnelling protocol
- Load Balancing based on 3-tuple, 4-tuple and 5-tuple criteria, IP addresses
- Port labelling allows after aggregation at your analysis tool to identify the physical source of network traffic despite correlation
- Header stripping: MPLS, PPPoE, VN-Tag, VxLAN, GRE, L2TP, CTP-U, GENEVE
- Static and Dynamic Packet Slicing
- Nanosecond accurate hardware timestamping.
- AAA servers: Radius and TACACS+
- Metadata export using Kafka
- Logging through Syslog and SNMP Traps
- Hardware Acceleration via DPDK
- VLAN Editing, MAC Replace
- High flexibility thanks to NMC and transceiver connectivity
- Easy to use and simple to configure
- Fault diagnosis Digital Diagnostics Monitoring (DDM) (available soon
ITEM NUMBERS
| Item No. | Ports | Dimensions (WxHxD)/Weight | Rack Mounting | Certifications |
|---|---|---|---|---|
| NX-PBPT-1SC | 3x 10M/100M/1000M RJ45 2x 1G SFP/RJ45* | 22.2 cm x 4.4 cm x 24.1 cm / 5 kg | Optional Rack Mounting Kit | CE, RoHS, FCC Class A, EC Class A |
DOCUMENTS
SERVICE & SUPPORT
Unparallel Multi-Level Service & Support for Peace of Mind
All NEOXPacketTiger NBPs come with NEOX SILVER Support and can be upgraded to GOLD Support for advanced replacement in case of a hardware failure.
