PacketFalcon Capture Appliance

Packet Capture, Analysis, & Forensics

Full Network Visibility up to 1G-100G

FPGA Chipset I Portable & Compact | Ultra-Fast Packet Capture

APPLICATION-LEVEL NETWORK VISIBILITY

Historic Network Data Storage, Search, Replay, and Analysis

PacketFalcon Mini packet capture

Mini

The speed of networks and their complexity continue to increase. And attacks on network infrastructure will also evolve in terms of complexity and stealth.

For optimal and secure IT service quality, IT security teams must therefore have permanent access to detailed analyses of data traffic. Network forensics provides this essential access and insight that security analysts need.

PacketFalcon Mini - Portable and compact

Our PacketFalcon products are powerful recorders for all types of network speeds, enabling IT organisations to analyse, monitor and accurately record traffic without compromise. The PacketFalcon Mini provides permanent 24 x 7 access to 1G, 10G and 25G networks for detailed analysis, including forensic analysis of past events.

PacketFalcon helps security teams analyse by recording data at key network points while minimising the traffic this data collection can generate. By indexing the data and providing simple and complex filters (Berkeley Packet Filter), PacketFalcon enables security teams to quickly investigate and thus stop attacks.

Linux is used as the operating system and a special network forensics software is used for analysis and evaluation. This makes it possible to analyse network traffic across locations via remote access and quickly find errors, which drastically reduces MTTR time.

With its robust and compact design, a choice of 7TB, 15TB or 30TB disk storage and a 1G/10G/25G high performance Gigabit capture adapter, it is the ideal companion for the mobile network analysis and forensics specialist.

  • Continuous 10G WTD (Write to disc) – lossless Full Packet Capturing (FPC)
  • Up to 15G with Packet Slicing and compression enabled
  • High-Speed Smart FPGA Capture Card for 1G or 1G/10G/25G
  • 4x SFP/SFP+/SFP28 Ports
  • FPGA-based Deduplication
  • FPGA-based Packet Slicing and Capture Filters
  • FPGA-based nanosecond-accurate Timestamping
  • Supports IEEE 1588v2 PTP
  • PCAP and PCAPNG support
  • Intuitive WebUI for advanced analysis and PCAP Export
  • Storage capacity from 7TB to 30TB
  • 4GB/8GB Hardware Buffer to absorb and analyse microbursts
  • Integrated, reliable expert events, reference to conspicuous features of the OSI Layer 2-7
  • Acceleration of the Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
  • Packet-based analysis of communication relationships, visualized in intuitive graphical displays
  • VoIP/video analysis
  • Troubleshooting of Performance Issues
  • 1G Management Interface
  • Cascading of multiple PacketFalcon systems possible
  • Small, compact and portable
  • Robust aluminum housing with integrated LCD Screen
  • Passively cooled CPU, very quiet
  • External 330W power supply
  • Includes 1 year hardware, software and maintenance support
  • Development, assembly & QA in Germany
  • Capture cards: High-speed smart FPGA capture card for 1G/10G/25G
  • Ports: SFP/SFP+/SFP28
  • SSD Storage Capacity: 7 TB – 30 TB
  • RAM: 64 GB
  • Power Supply: Very quiet, external 330W PSU, redundant power supply supported
  • Housing: Robust aluminium

  • Dimensions (WxHxD): 10.0 cm x 30.0 cm x 25.5 cm / 3.9″ x 11.8 ” x 10.0″
  • Weight: ca. 6.1 kg
  • Operating Temperature: -40°C to 70°C / -40°F to 158°F
  • Storage Temperature: -40°C to 85°C / -40°F to 185°F
  • Relative Operating Humidity: 5% to 95% non-condensing
  • Relative Storage Humidity: 5% to 95% non-condensing

  • Certifications:
    FCC 47CFR part 15: 2019, subpart B, Class B; ICES-003: 2017 Issue 6, Cilass B; ASINZS CISPR 32: 2015, Class B; EN 55032: 2015, Class B; EN 61000-3-2: 2014; EN 61000-3-3: 2013; EN 55035: 2017; EN 61000-6-3: 2007 + A1 (11) + AC(12); EN 61000-6-1: 2007; EN IEC 61000-6-1: 2019; EN 301 489-17: V3.2.4: 2020, Class B; EN 301 489-1: V2.2.3: 2019, Class B; EN 62368-1:2014 + A11 :2017; IEC 62368-1:2014 (Ed.2);
SKUCPURAMSSDPORTS
 NX-LC-25G-64GB-7TB-M-*Intel XEON32 GB7 TB4x 1G/10G/25G   SFP/SFP+/SFP28
 NX-LC-25G-64GB-15TB-M-*Intel XEON64 GB15 TB4x 1G/10G/25G   SFP/SFP+/SFP28
 NX-LC-25G-64GB-30TB-M-*Intel XEON64 GB30 TB4x 1G/10G/25G   SFP/SFP+/SFP28

* With „-3Y“ for 3 year – or „-5Y“ for 5 year software subscription and hardware support

PacketFalcon Mini X packet capture

Mini X

For optimal and secure IT service delivery, IT security teams must have permanent access to detailed traffic analysis. Network forensics provides this essential access and insight that security analysts need.


Our PacketFalcon products are powerful recorders for all types of network speeds, enabling IT organisations to analyse, monitor and accurately record traffic without compromise.


The PacketFalcon Mini X provides permanent 24 x 7 access to 1G, 10G and 25G networks for detailed analysis, including forensic analysis of past events.
PacketFalcon assists security teams with analysis by recording data at key network points while minimising the traffic this data collection can generate.

By indexing the data and providing simple and complex filters (Berkeley Packet Filter), PacketFalcon enables security teams to quickly investigate and thus stop attacks.


Linux is used as the operating system and a special network forensics software is used for analysis and evaluation. This makes it possible to analyse network traffic remotely from any location and quickly find errors, which drastically reduces MTTR time.


With its robust and compact design, optional 7TB, 15TB or 30TB disk storage and a 1G/10G/25G high-performance Gigabit capture adapter, it is the ideal companion for the mobile network analysis and forensics specialist.

  • Continuous 25G WTD (Write to disc) – lossless Full Packet Capturing (FPC)
  • Up to 35 Gbps with Packet Slicing and/or compression enabled
  • High-Speed Smart FPGA Capture Card for 1G/10G/25G
  • 4x SFP/SFP+/SFP28 Ports
  • FPGA-based Deduplication
  • FPGA-based Packet Slicing and Capture Filters
  • FPGA-based nanosecond-accurate Timestamping
  • Supports IEEE 1588v2 PTP
  • PCAP and PCAPNG support
  • Intuitive WebUI for advanced analysis and PCAP Export
  • Storage capacity from 7TB to 30TB
  • 4GB/8GB Hardware Buffer to absorb and analyse microbursts
  • Integrated, reliable expert vents, reference to conspicuous features of the OSI Layer 2-7
  • Acceleration of the Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
  • Packet-based analysis of communication relationships, visualized in intuitive graphical displays
  • VoIP/video analysis
  • Troubleshooting of Performance Issues
  • Optional support for hardware-encrypted capture storage, protects your data from unauthorised access. FIPS 140-2 certification and complies with ISO/IEC 27040 and NIST 800-88 standards.
  • 1G and 2.5G Management Interface
  • Cascading of multiple PacketFalcon systems possible
  • Small, compact and portable
  • Robust housing
  • External 150W power supply
  • Power efficient
  • Includes 1 year hardware, software and maintenance support
  • Development, assembly & QA in Germany
  • Capture card: High-speed smart FPGA capture card for 1G/10G/25G
  • Ports: SFP/SFP+/SFP28
  • SSD Storage Capacity: 7 TB – 30 TB
  • RAM: 64 GB
  • Power Supply: Very quiet, external 130W PSU, redundant power supply supported
  • Housing: Robust aluminium
  • Dimensions (WxHxD): 19.0 cm x 12.0 cm x 19.0 cm / 7.5″ x 4.7″ x 7.5″
  • Weight: ca. 3.3 kg
  • Operating Temperature: 0°C to 45°C / 32°F to 113°F
  • Storage Temperature: -40°C to 85°C / -40°F to 185°F
  • Relative Operating Humidity: 5% to 93%
  • Relative Storage Humidity: 5% to 95%
  • Certifications:
    EMC: EN 55032:2012 – class B, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010;
    SAFETY: IEC 62368-1:2014, EN 62368-1:2014, UL 62-368-1:2014-12, CAN/CSA-C22.2 No. 62368-1:2014-12;
    COMPLIANCE: UL 62386 (TÜV)/CB/CE/FCC/UKCA;
    IP PROTECTION CLASS: IP 40 on top / IP 30 on sides;
    VIBBRATION OPERATIONAL: IEC 60068-2-6: 10–500 Hz, 1 G;
    SHOCK OPERATIONAL: IEC 60068-2-27: half sine 11 ms 15 G
SKU RAM SSD PORTS
 NX-LC-25G-64GB-7TB-MX* 64 GB 7 TB 4x 1G/10G/25G SFP/SFP+/SFP28
 NX-LC-25G-64GB-15TB-MX* 64 GB 16 TB 4x 1G/10G/25G SFP/SFP+/SFP28
 NX-LC-25G-64GB-30TB-MX* 64 GB 30 TB 4x 1G/10G/25G SFP/SFP+/SFP28
* With „-3Y“ for 3 year – or „-5Y“ for 5 year software subscription and hardware support

PacketFalcon Compact packet capture

COMPACT

For optimal and secure IT service delivery, IT security teams must have permanent access to detailed traffic analysis. Network forensics provides this essential access and insight that security analysts need.

Our PacketFalcon products are powerful recorders for all types of network speeds, enabling IT organisations to analyse, monitor and accurately record traffic without compromise.

PacketFalcon provides permanent 24 x 7 access to 1G, 10G, 25G, 40G and 100G networks for detailed analysis, including forensic analysis of past events. PacketFalcon supports security teams by accurately and losslessly recording network traffic at key nodes using Network TAPs, indexing and analysing it in real time, enabling rapid investigation of anything happening on the network.

By indexing the data and providing simple and complex hardware and software filters (Berkeley Packet Filter), PacketFalcon enables security teams to quickly investigate and thus stop attacks – even when they occur in state-of-the-art high-speed networks such as 40G or 100G network topologies.

On the hardware side, the PacketFalcon impresses with its robust design, a choice of up to 300 TB disk storage, 256GB RAM, up to two high-performance gigabit capture cards from Napatech.

Linux and special network forensics software are used. This makes it possible to analyse network traffic across locations via remote access and to quickly find errors.

Due to its high flexibility in terms of mobile and stationary application possibilities, and also due to its optionally available transport case, it is the ideal companion for every network analysis and forensics specialist

  • Continuous 100G WTD (Write to disc) – lossless Full Packet Capturing (FPC)
  • Up to 125G with Packet Slicing and/or compression enabled
  • Up to 2 High-Speed FPGA capture cards for 1G/10G/25G/40G/100G
  • 4x SFP/SFP+/SFP28 ports and/or 2x QSFP+/QSFP28 ports
  • FPGA-based Deduplication
  • FPGA-based Dynamic Packet Slicing and Capture Filters
  • FPGA-based nanosecond-accurate Timestamping
  • Supports IEEE 1588v2 PTP
  • PCAP and PCAPNG support
  • Intuitive WebUI for advanced analysis and PCAP Export
  • Storage capacity from 30TB to 300TB
  • Enterprise NVMe SSD Drives
  • 8GB/12GB Hardware Buffer to absorb and analyse microbursts
  • Operating system on RAID 1 NVMe M2 SSD, BOSS
  • Integrated, reliable expert events, reference to conspicuous features of the OSI Layer 2-7
  • Acceleration of the Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
  • Packet-based analysis of communication relationships, visualized in intuitive graphical displays
  • VoIP/video analysis
  • Troubleshooting of Performance Issues
  • Optional support for hardware-encrypted capture storage, protects your data from unauthorised access. FIPS 140-2 certification and complies with ISO/IEC 27040 and NIST 800-88 standards.
  • 10G Management interface
  • Portable and rackmountable, 1U
  • Redundant Titanium power supplies
  • Includes 1 year hardware, software and maintenance support
  • Transport case optionally available
  • Development, assembly & QA in Germany
  • Capture cards: High-speed smart FPGA capture card(s) for 1G/10G/25G/40G/100G
  • Ports: SFP/SFP+/SFP28/QSFP+/QSFP28
  • SSD Storage Capacity: 30 TB – 300 TB
  • RAM: 256 GB
  • Power Supply: 2x 700 W Titanium, 200 bis 240 VAC oder 240 HVDC, Hot-Swap-fähig, redundant
  • Housing: 1U – incl. rackmount kit

  • Dimensions (WxHxD): 48.2 cm x 4.3 cm x 82.3 cm / 19.0″ x 1.7″ x 32.4″
  • Weight: ca. 18 kg
  • Operating Temperature: 5°C to 45°C / 41°F to 113°F
  • Storage Temperature: -40°C to 65°C / -40°F to 149°F
  • Relative Operating Humidity: 8% to 90% (non-condensing)
  • Relative Storage Humidity: 5% to 95% (non-condensing)

  • Certifications:
    SAFETY: EN 62368-1:2014 +A11:2017, EN IEC 62368-1:2020 +A11:2020, EN IEC 62311:2020, EN 62479:2010;
    EMC: EN 55032:2015 +A11:2020, EN 55035:2017 +A11:2020, EN 61000-3-2:2014, EN 61000-3-3:2013;
    RoHS: EN IEC 63000:2018
SKURAMSSDCAPTURE CARD – PORTS
 NX-LC-25G-*TB-CT**256 GB30TB, 60TB, 150TB or 300TB4x 1G/10G/25G SFP28
 NX-LC-40G-*TB-CT**256 GB30TB, 60TB, 150TB or 300TB2x 40G QSFP+ / 8x 10G (Fan-out)
 NX-LC-100G-*TB-CT**256 GB30TB, 60TB, 150TB or 300TB2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)



SKURAMSSDCAPTURE CARD 1 – PORTSCAPTURE CARD 2 – PORTS
 NX-LC-25G25G-*TB-CT**256 GB30TB, 60TB, 150TB or 300TB4x 1G/10G/25G SFP284x 1G/10G/25G SFP28
 NX-LC-25G40G-*TB-CT**256 GB30TB, 60TB, 150TB or 300TB4x 1G/10G/25G SFP282x 40G QSFP+ / 8x 10G (Fan-out)
 NX-LC-40G40G-*TB-CT**256 GB30TB, 60TB, 150TB or 300TB2x 40G QSFP+ / 8x 10G (Fan-out)2x 40G QSFP+ / 8x 10G (Fan-out)
 NX-LC-25G100G-*TB-CT**256 GB30TB, 60TB, 150TB or 300TB2x 40G QSFP+ / 8x 10G (Fan-out)2x 100G QSFP28 / 2x 40G QSFP+ /
2x 25G (Adapter) / 8x 10G (Fan-out)
 NX-LC-100G100G-*TB-CT**256 GB30TB, 60TB, 150TB or 300TB2x 100G QSFP28 / 2x 40G QSFP+ /
2x 25G (Adapter) / 8x 10G (Fan-out)
2x 100G QSFP28 / 2x 40G QSFP+ /
2x 25G (Adapter) / 8x 10G (Fan-out)

* SSD capacity – available sizes: „30“ TB, „60“ TB, „150“ TB or, „300“ TB; other sizes on request
** “3Y“ for 3 years – or „5Y“ for 5 years software subscription and hardware support

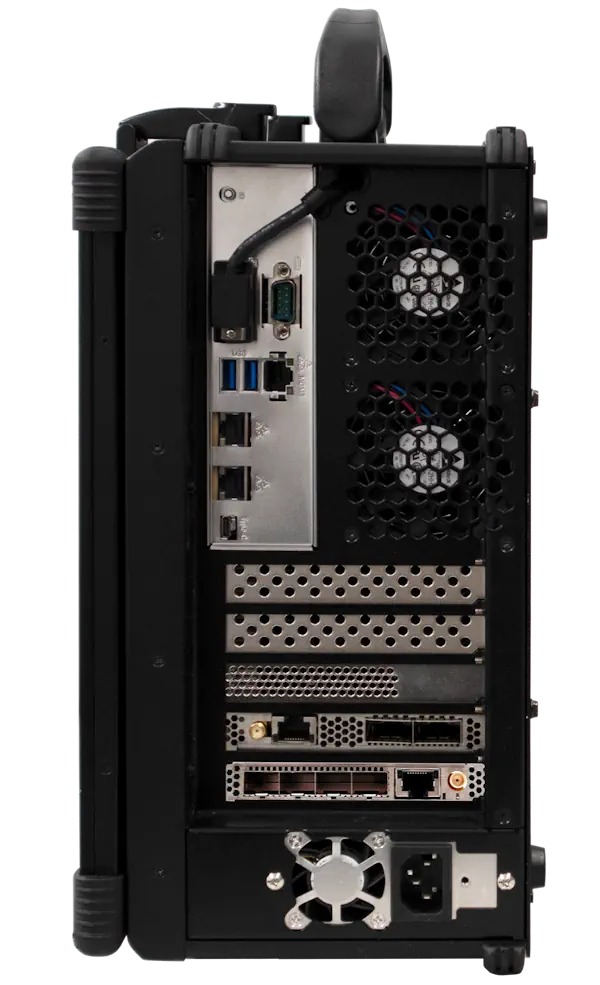

PacketFalcon Portable packet capture

PORTABLE

Our PacketFalcon products are powerful recording devices for all types of speeds, enabling IT organizations to analyze, monitor and accurately record traffic without compromise. PacketFalcon allows permanent 24 x 7 access to 1G, 10G, 25G, 40G and 100G network media for detailed analysis, including forensic analysis of past events.

PacketFalcon helps security teams analyze by recording data at key network points while keeping the traffic that can result from this data collection as low as possible. By indexing the data and providing simple and complex filters (Berkeley Packet Filter), PacketFalcon enables security teams to quickly investigate and stop attacks, even when they occur on advanced high-speed networks such as 40G or 100G network topologies.

With NEOXPacketFalcon, even our proven Deep Packet Inspection technology can be quickly and easily brought even to remote network segments.

With its robust construction and Linux as operating system, either 30 TB, 60 TB, 120 TB, 240TB or 480 TB disk storage and 1G/10G/25G/40G/100G high performance Gigabit Capture Adapter, it is the ideal companion for the mobile network analysis and forensic specialist.

  • Continuous 100G WTD (Write to disc) – lossless Full Packet Capturing (FPC)
  • Up to 125G with Packet Slicing and/or compression enabled
  • Up to 3 High-Speed FPGA capture cards for 1G/10G/25G/40G/100G
  • 4x 1G/10G/25G SFP28 or
    2x 40G QSFP+ / 8x 10G (Fan-out) or
    2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out) or
    2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
  • FPGA-based Deduplication
  • FPGA-based Dynamic Packet Slicing and Capture Filters
  • FPGA-based nanosecond-accurate Timestamping
  • Supports IEEE 1588v2 PTP
  • PCAP and PCAPNG support
  • Intuitive WebUI for advanced analysis and PCAP Export
  • Storage capacity from 24TB to 480TB
  • Hardware RAID 0, 5, 6, 00, 50, 60
  • 16x 2.5“ SSD removable frames
  • 8GB/12GB Hardware Buffer to absorb and analyse microbursts
  • Operating system on RAID 1 NVMe M2 SSD, BOSS
  • 17,3“ Full HD 1920×1080 Display
  • Integrated, reliable expert events, reference to conspicuous features of the OSI Layer 2-7
  • Acceleration of the Mean-Time-To-Resolution (MTTR) through visualization and interaction with meta data, communication flows and the packets themselves
  • Packet-based analysis of communication relationships, visualized in intuitive graphical displays
  • VoIP/video analysis
  • Troubleshooting of Performance Issues
  • Optional support for hardware-encrypted capture storage, protects your data from unauthorised access. FIPS 140-2 certification and complies with ISO/IEC 27040 and NIST 800-88 standards
  • 10G Management interface
  • Keyboard, lockable as display protection during transport
  • Portable
  • Robust aluminium housing
  • Includes 1 year hardware, software and maintenance support
  • Trolley included
  • Transport case with CNC milled foam optionally available
  • Development, assembly & QA in Germany
  • Capture cards: High-speed smart FPGA capture card(s) for 1G/10G/25G/40G/100G
  • Ports: SFP/SFP+/SFP28/QSFP+/QSFP28
  • SSD Storage Capacity: 30 TB – 480 TB
  • RAM: 256 GB
  • Power Supply: 850W
  • Housing: Portable case with LCD screen

  • Dimensions (WxHxD): 43.5 cm x 37.3 cm x 17.8 cm / 17.1″ x 14.7″ x 7.0″
  • Weight: ca. 15 kg
  • Operating Temperature: 0°C to 40°C / 32°F to 104°F
  • Storage Temperature: -40°C – 70°C / -40°F – 158°F
  • Relative Operating Humidity: 20% to 80%
  • Relative Storage Humidity: > 90% (non-condensing)

  • Certifications:
    Low Voltage Directive: 2014/35/EU Electrical Equipment (Safety) Regulations 2016: EN IEC 62368-1:2020, EN 60335-1, EN 61010-1, EN 60204-1
    EMC Directive: 2014/30/EU Electromagnetic Compatibility Regulations 2016: EN 55032:2015 +A11:2020 Class B, EN 55035:2017 +A11:2020, EN 61000-3-2:2014 Class D, EN IEC 61000-3-2:2019 +A1:2021, EN 61000-3-3:2013 , EN 61000-3-3:2013 +A1:2019
    RoHS Directive: 2011/65/EU and (EU)2015/863: EN IEC 63000:2018
    Reach Certificate: 1907/2006/EU



SKUCPURAMSSD**PORTS
 NX-LC-25G-30TB-PT*AMD EPYC™256 GB30 TB4x 1G/10G/25G SFP28
 NX-LC-25G-60TB-PT*AMD EPYC™256 GB60 TB4x 1G/10G/25G SFP28
 NX-LC-25G-120TB-PT*AMD EPYC™256 GB120 TB4x 1G/10G/25G SFP28
 NX-LC-25G-240TB-PT*AMD EPYC™256 GB240 TB4x 1G/10G/25G SFP28
 NX-LC-25G-480TB-PT*AMD EPYC™256 GB480 TB4x 1G/10G/25G SFP28

 NX-LC-40G-30TB-PT*AMD EPYC™256 GB30 TB2x 40G QSFP+ / 8x 10G (Fan-out)
 NX-LC-40G-60TB-PT*AMD EPYC™256 GB60 TB2x 40G QSFP+ / 8x 10G (Fan-out)
 NX-LC-40G-120TB-PT*AMD EPYC™256 GB120 TB2x 40G QSFP+ / 8x 10G (Fan-out)
 NX-LC-40G-240TB-PT*AMD EPYC™256 GB240 TB2x 40G QSFP+ / 8x 10G (Fan-out)
 NX-LC-40G-480TB-PT*AMD EPYC™256 GB480 TB2x 40G QSFP+ / 8x 10G (Fan-out)

 NX-LC-100G-30TB-PT*AMD EPYC™256 GB30 TB2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
 NX-LC-100G-60TB-PT*AMD EPYC™256 GB60 TB2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
 NX-LC-100G-120TB-PT*AMD EPYC™256 GB120 TB2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
 NX-LC-100G-240TB-PT*AMD EPYC™256 GB240 TB2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)
 NX-LC-100G-480TB-PT*AMD EPYC™256 GB480 TB2x 100G QSFP28 / 2x 40G QSFP+ / 2x 25G (Adapter) / 8x 10G (Fan-out)

 NX-LC-25G100G-30TB-PT*AMD EPYC™256 GB30TB2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
 NX-LC-25G100G-60TB-PT*AMD EPYC™256 GB60 TB2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
 NX-LC-25G100G-120TB-PT*AMD EPYC™256 GB120 TB2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
 NX-LC-25G100G-240TB-PT*AMD EPYC™256 GB240 TB2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28
 NX-LC-25G100G-480TB-PT*AMD EPYC™256 GB480 TB2x 100G QSFP28 / 2x 40G QSFP+ / 8x 10G (Fan-out) / 4x 1G/10G/25G SFP28

* With „-3Y“ for 3 year – or „-5Y“ for 5 year software subscription and hardware support

** Further configurations on request

PacketFlacon

SERVICE & SUPPORT

Unparallel Multi-Level Service & Support for Peace of Mind

All NEOXPacketFalcon Capture Appliances come with NEOX SILVER Support and can be upgraded to GOLD Support for advanced replacement in case of a hardware failure.

FEATURED CONTENT

Creating Solutions for Your Success

Packet Capture

Infographic

Why You Need Packet Capture

Info Flyer - Next-Generation Network Visiblity for IT/OT Observability and Security

Product Brief

A Brief Guide to Products

network-visibility-solution-product-brochure

Product Brochure

A Complete Guide to Products

STAY IN TOUCH

Follow Our Social Media and Subscribe to Our Newsletter
